Features & Details

• Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1400W copper motor. It is capable of drilling into the toughest material at 800 RPM. Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm; Max. Coring Depth: 2 in / 50 mm
• Understand the Power: 2810 lbf / 12500N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process. It comes with 11 pcs coring bits for your different drilling needs
• Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the premium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life
• User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort
• Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

ZT-40HA

Shank Type

Weldon Shank (3/4" / 19.05 mm)

Maximum Load Power

1400W

Maximum Magnetic Force

2810 lbf / 12500 N

No-Load Speed

800 rpm

Max. Boring Diameter (Coring Drill)

Φ1.6 in / Φ40 mm

Max. Coring Depth

2 in / 50 mm

Max. Boring Diameter (Twist Drill)

Φ0.1-0.6 in / Φ3-16 mm

Max. Boring Depth (Twist Drill)

3.9 in / 100 mm

Max. Travel Distance

6.3 in / 160 mm

Net Weight (Including All Accessories)

27.3 lb / 12.4 kg

Description

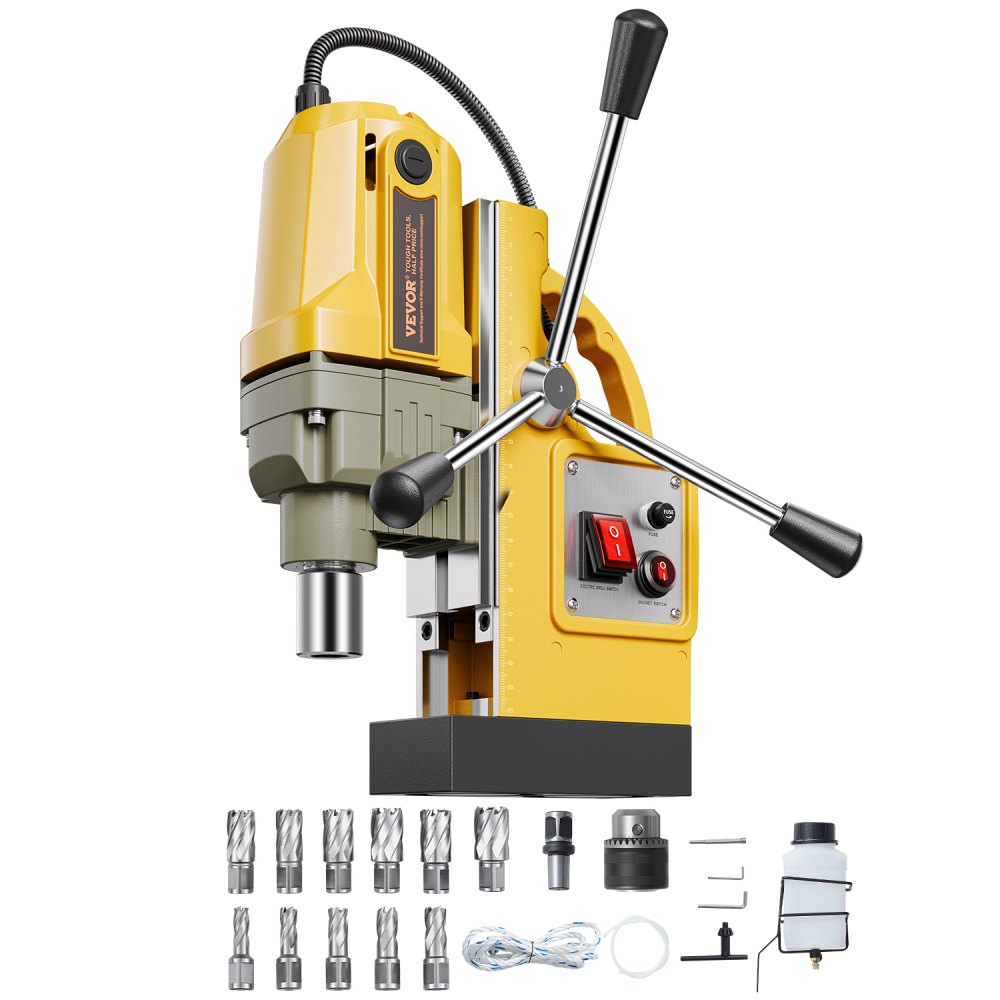

The Pinnacle of Magnetic Power

This magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. With 11 drill bits, it handles diverse drilling tasks. Made of premium alloy, it's ideal for home assembly, industrial use, and steelwork.

•
•
•

CoringDrillingRobust and Reliable

•
•
•

CoringDrillingRobust and Reliable

•
•
•

Precise Depth ControlDurable Guide RailCooling System

•
•
•

Precise Depth ControlDurable Guide RailCooling System

•
•
•

Aerial WorkWall WorkHousehold Projects

•
•
•

Aerial WorkWall WorkHousehold Projects

Key Features

Powerful Performance

Our mag drill boasts a robust 1400W motor with a speed of 800 RPM, significantly enhancing drilling efficiency—ideal for projects that require extensive drilling. Its stable operation ensures smoother handling, greater precision, and a more comfortable user experience.

Versatile Drilling Capabilities

Equipped with an 11-piece annular cutter set and a professional twist drill chuck, our magnetic drill press meets all your drilling needs in one purchase. From small DIY tasks to large-scale industrial projects, this magnetic drill has you covered.

Precision Depth Control

The built-in depth gauge allows you to directly observe and precisely control the drilling depth during operation. This ensures the drilled holes meet exact specifications, making the mag press ideal for machining, construction installation, and applications requiring strict depth accuracy.
