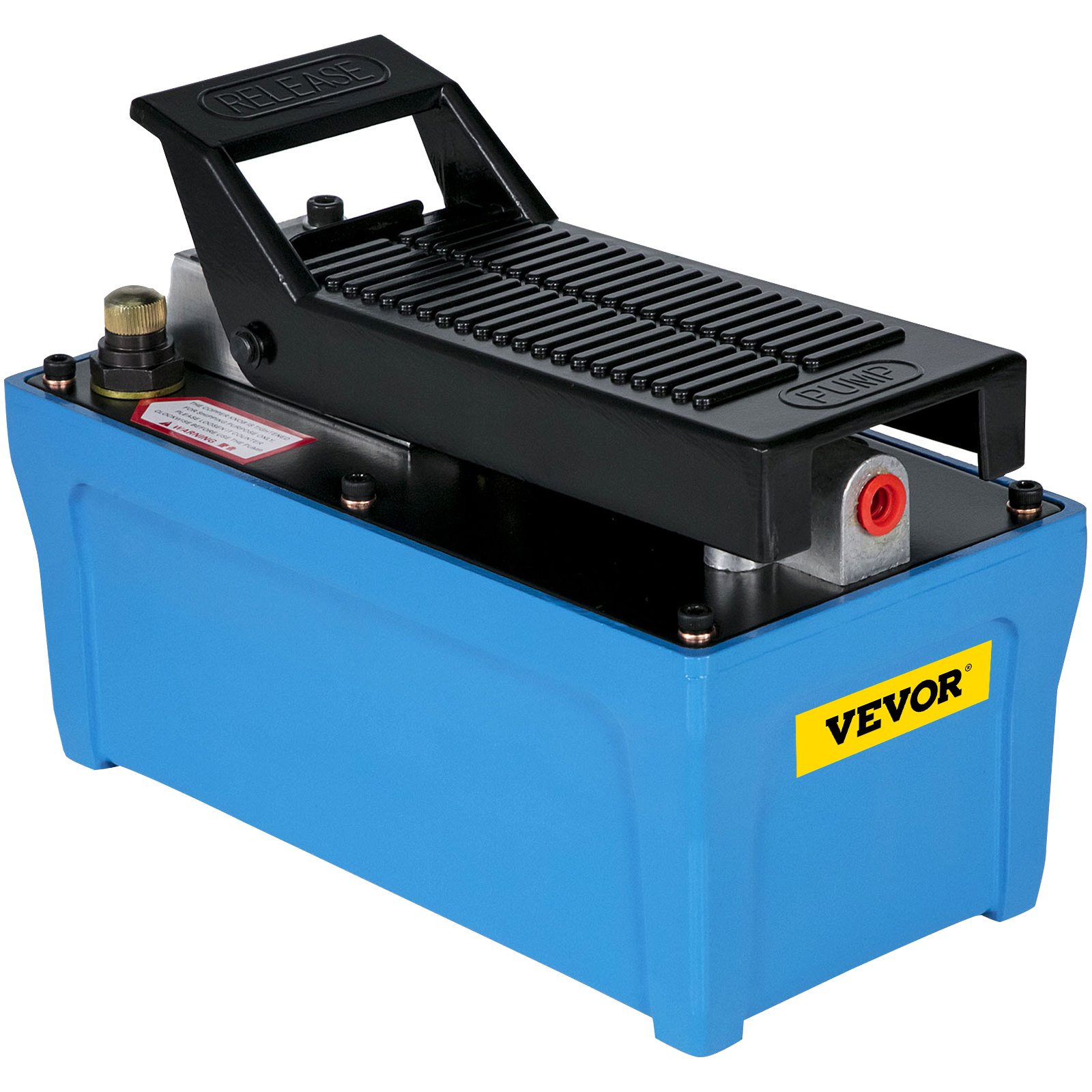

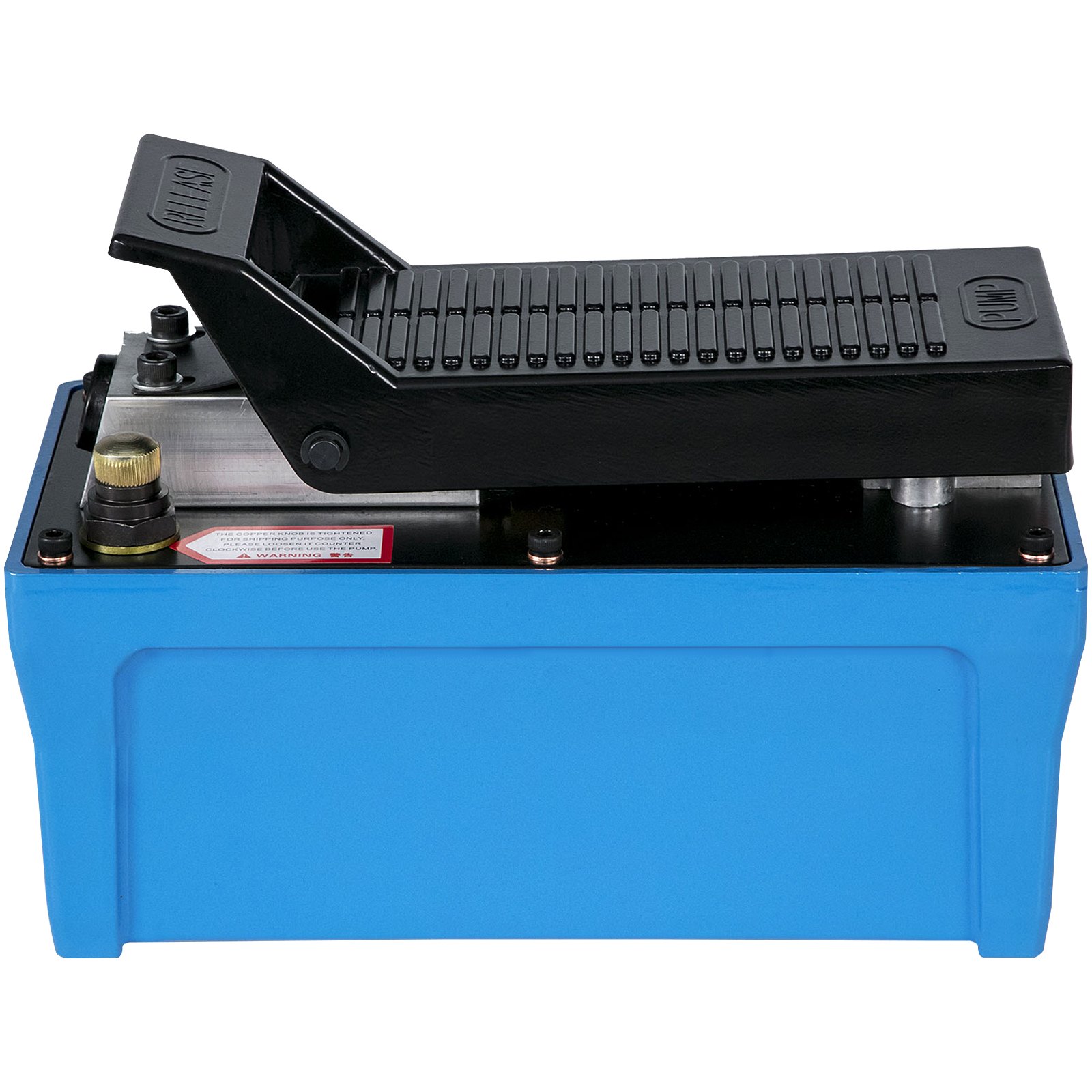

VEVOR air hydraulic pump with blue base and black foot pedal, hose, and connectors. VEVOR air hydraulic pump for industrial use, ideal for auto repair and oil platforms. VEVOR air hydraulic pump with quick hydraulic coupler, 1/4" npt air and 3/8" npt oil. user-friendly VEVOR air hydraulic pump with foot-actuated pedal for hands-free control. VEVOR air hydraulic pump with 1.6l fuel tank capacity and oil filter. VEVOR air hydraulic pump with muffler, pressure valve, and 6.56 ft oil pipe. VEVOR air hydraulic pump specifications: dimensions 12.2x8.26x7.4 in, blue casing.
BTQBTYYJTBLSK0001V0

VEVOR Air Hydraulic Pump Power Pack Unit 10,000 PSI 103 In 3Cap Heavy-duty All Metal Construction Air Hydraulic Foot Pump

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

2 m

  • 2 m
  • No
  • 1.5 m

Blue

  • Gray
  • Blue
  • Orange
  • Yellow

1.6 L

  • 1.6 L
  • 2.3 L

About this item

  • Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons, Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.
  • Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
  • Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L ± 0.1L oil tank has a larger capacity with 1.3 liters maximum oil output. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
  • Durable Oil Pipe Included: This hydraulic air pump is equipped with a 6.56 ft / 2 m high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable, no worry about the oil leak.
  • 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air Hydraulic Pump Power Pack Unit 10,000 PSI 103 In 3Cap Heavy-duty All Metal Construction Air Hydraulic Foot Pump
2 m Blue 1.6 L
VEVOR air hydraulic pump with foot-actuated design, 10000 psi, and 1.6l fuel tank.
blue VEVOR air hydraulic pump with accessories and hose.
10,000 PSI Air Hydraulic Foot Pump
Foot Pedal Control & 1.6L Oil Tank & 6.56 ft Hydraulic Hose
This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
  • Fundamental Parameters
  • Foot-Actuated Design
  • Sturdy & Compact Construction
  • Durable Oil Pipe Included
  • 10,000 PSI for Wide Application
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

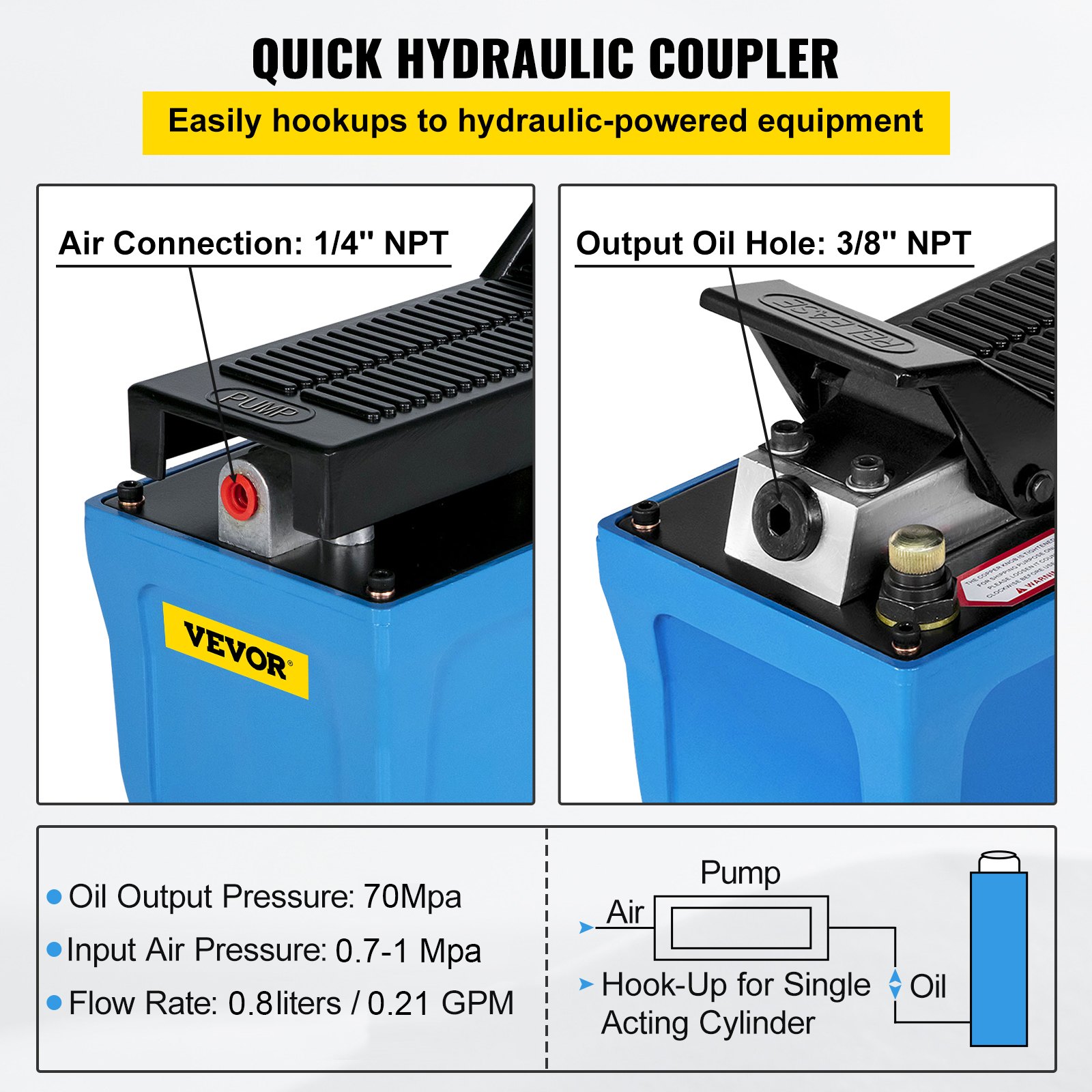

VEVOR air hydraulic pump with 1/4" npt air inlet and 3/8" npt oil outlet.
Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.

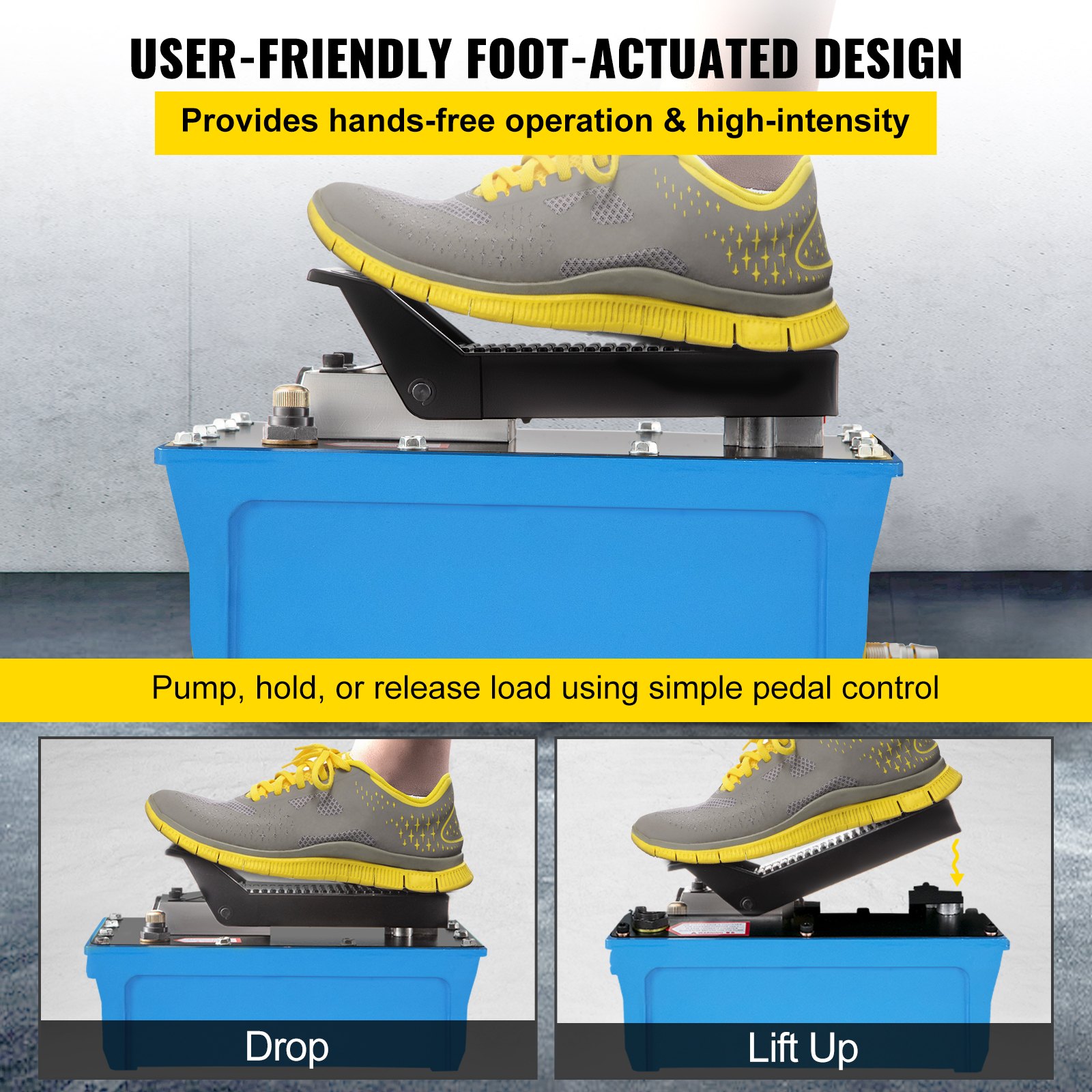

VEVOR air hydraulic pump with simple foot pedal control. drop and lift demonstration.
Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.
VEVOR air hydraulic pump with aluminum alloy and durable metal materials. premium quality.

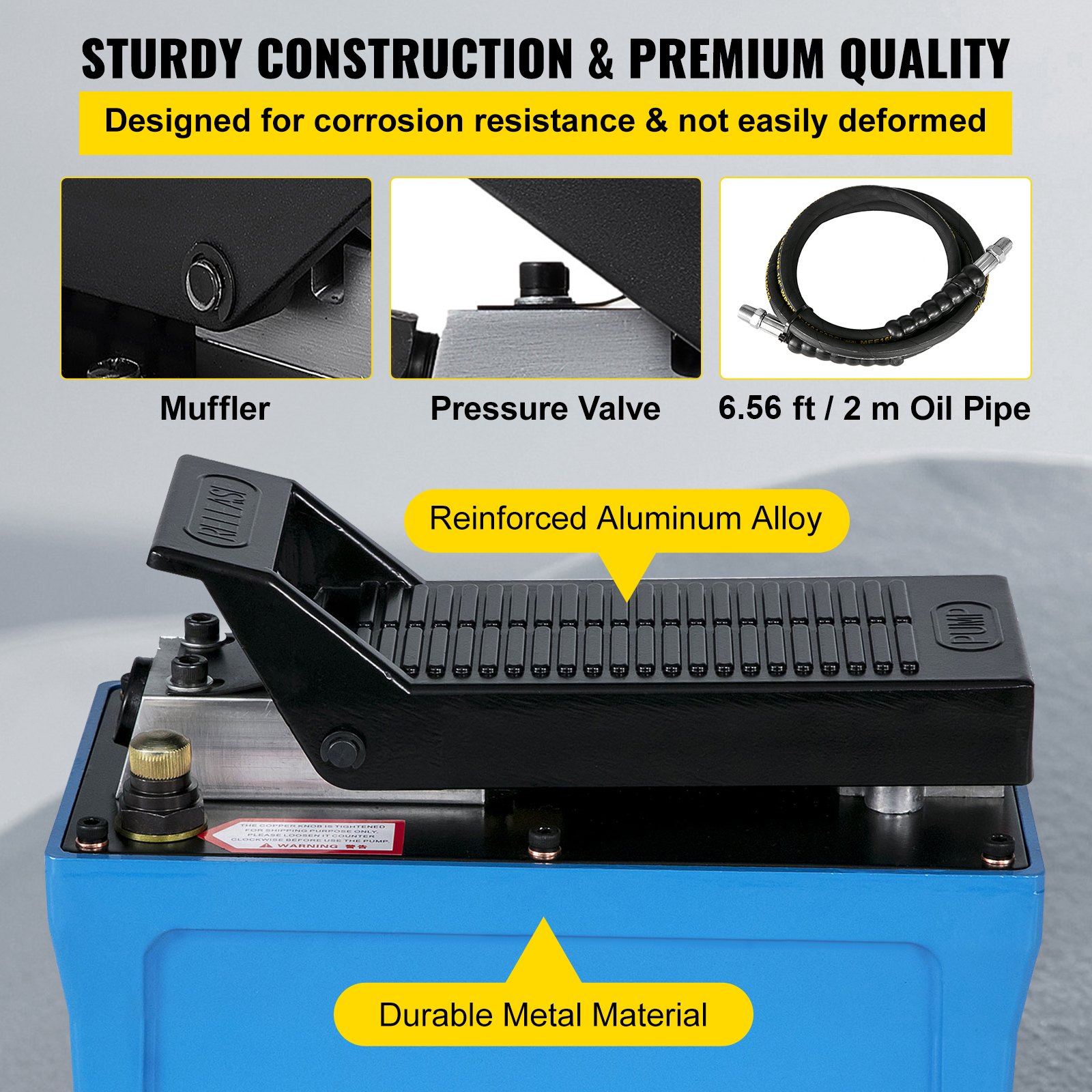

Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.

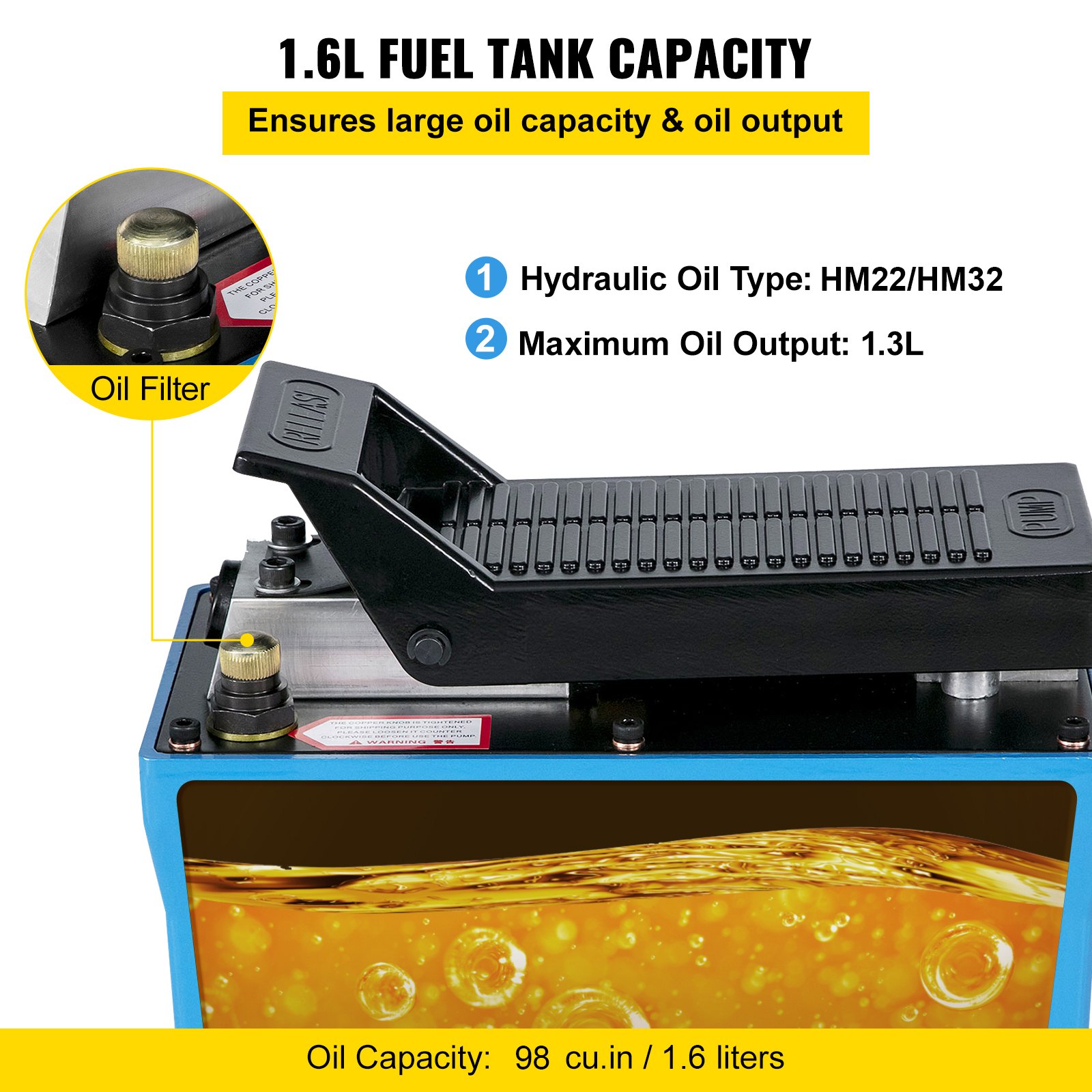

VEVOR air hydraulic pump with 1.6l large oil tank and robust foot pedal.
1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters oil capacity for high performance. Moreover, it ensures you have the supply needed to power your equipment.
high-pressure hydraulic hose with 3/8 npt quick hydraulic coupler for VEVOR air hydraulic pump.
High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 6.56 ft / 2 m with 3/8 NPT - Quick hydraulic coupler.

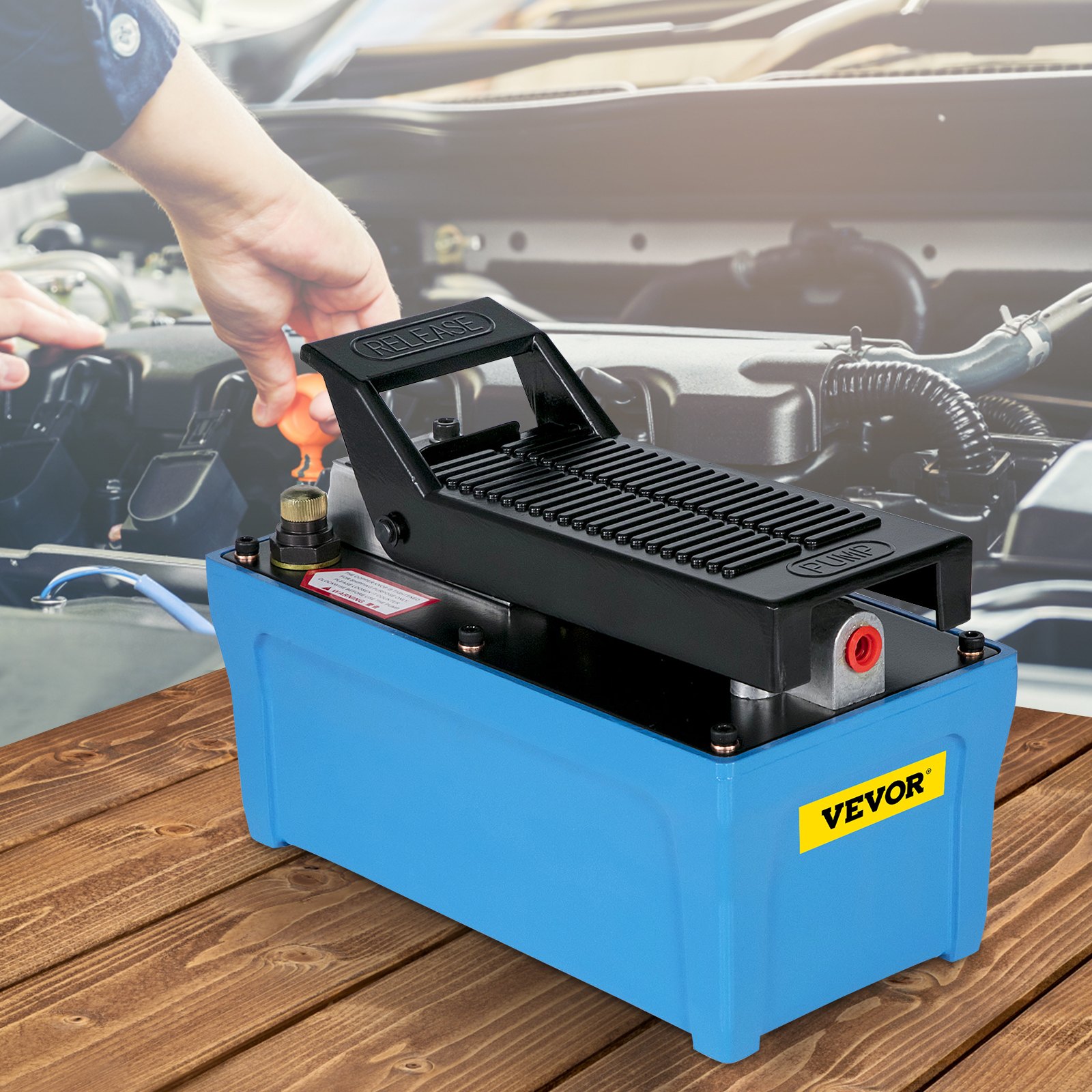

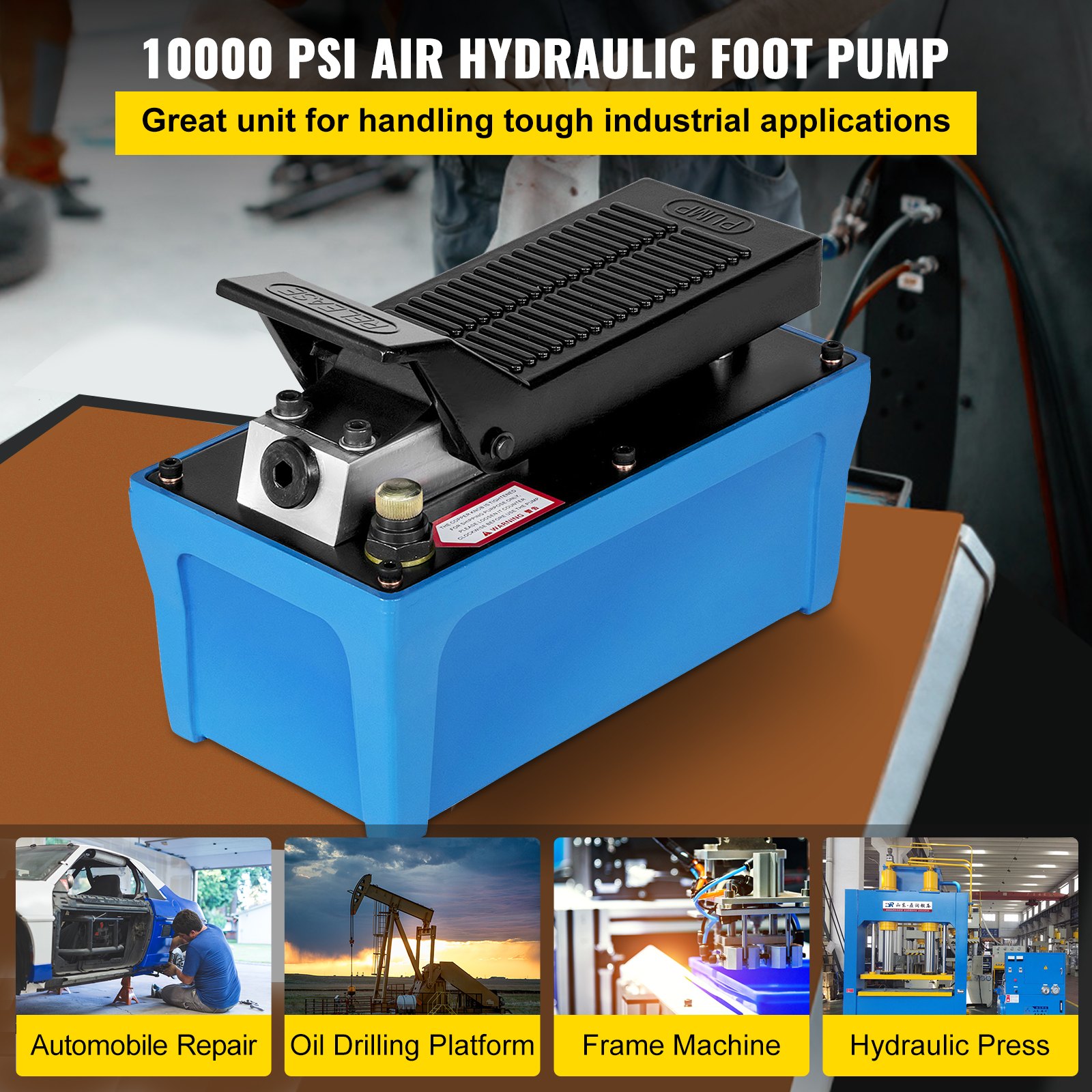

multiple applications for VEVOR air hydraulic pump: automobile repair, oil drilling, machine maintenance, handling.
Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.

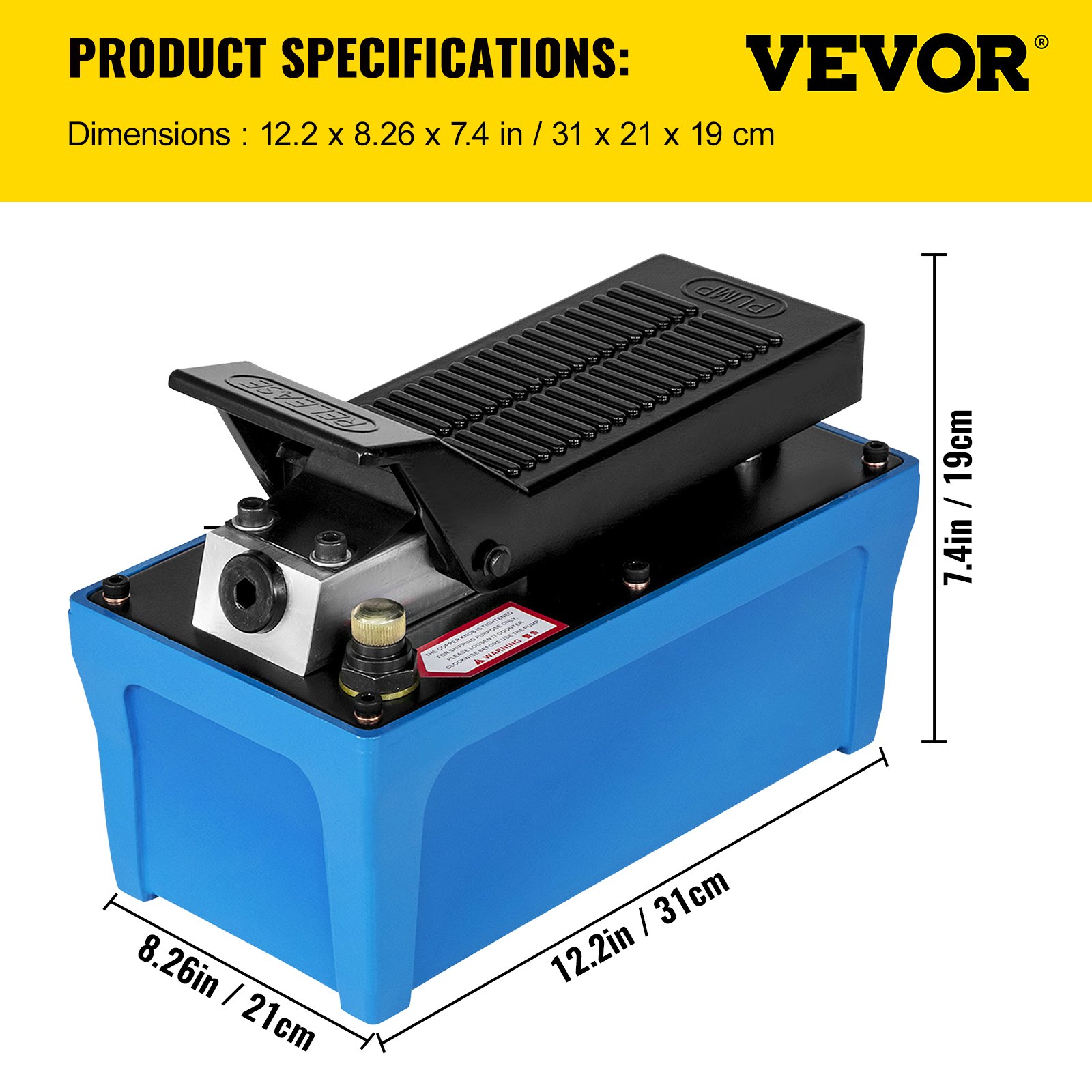

VEVOR air hydraulic pump with dimensions 12.2 in x 8.26 in x 7.4 in
Specifications
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Control: Foot pedal pump - Release pressure to return fluid
  • Includes Hydraulic Hose: 6.56 ft / 2 m with 3/8'' NPT - Quick hydraulic coupler
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air Connection: 1/4" Female NPT
  • Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler
  • Hydraulic Oil Type: HM22/HM32
  • Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons
  • Input Air Pressure: 0.7-1MPa
  • Shell Material: Reinforced Aluminum Alloy
  • Fuel Tank Capacity: 1.6L
  • Capacity Tolerance: ± 0.1L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Pressure Range: ≥ 0.5
  • Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
  • Weight: 17.72 lbs / 8.04 kg
  • Dimensions (L x W x H): 12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm

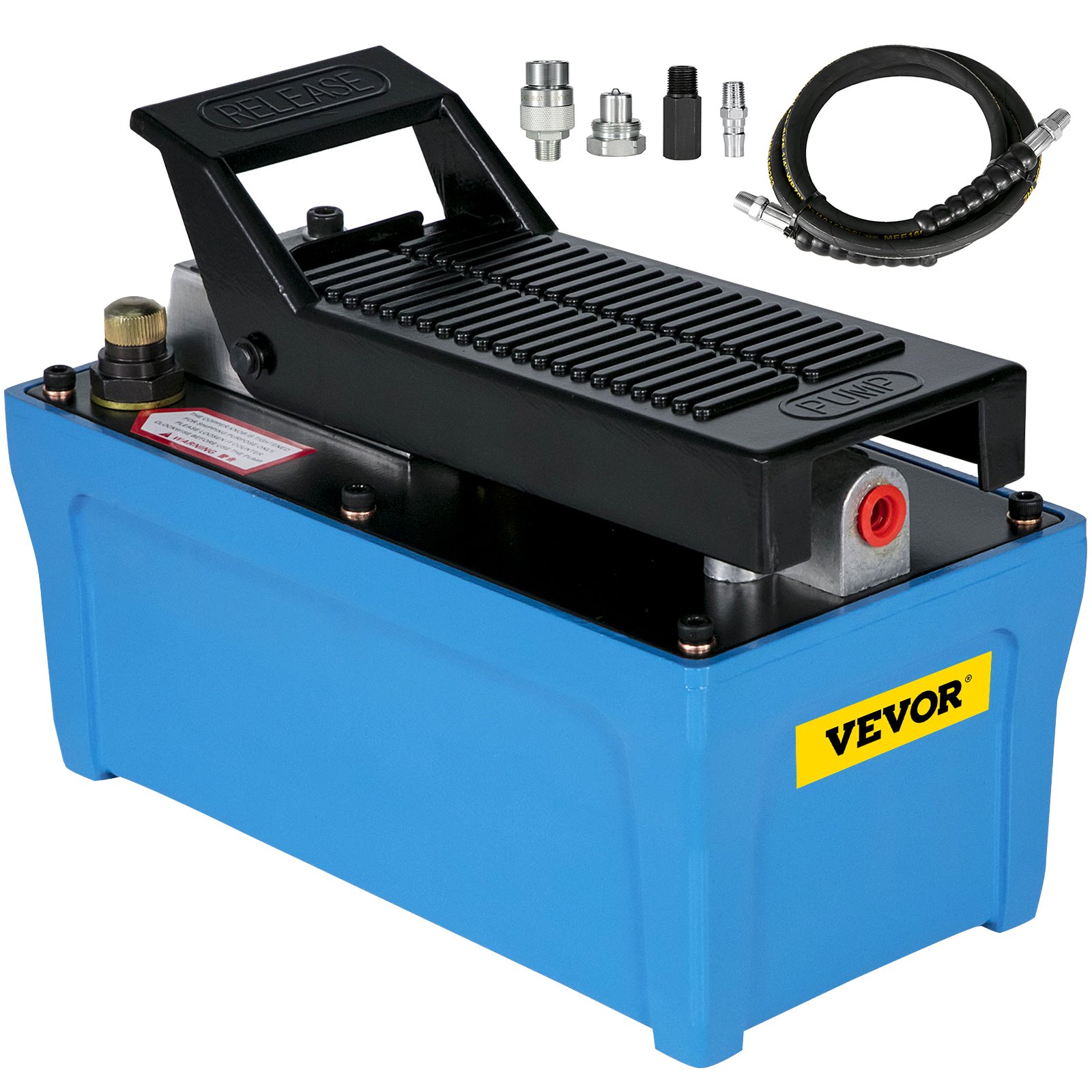

VEVOR air hydraulic pump with blue base, hose, and various connectors.
Package Content
  • 1 x Air Powered Hydraulic Pump
  • 1 x High Pressure Oil Pipe
  • 2 x Quick Connector
  • 1 x Air Gun Connector with Air Pipe
  • 1 x User Manual
VEVOR air hydraulic pump with foot-actuated design, 10000 psi, and 1.6l fuel tank.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
blue VEVOR air hydraulic pump with accessories and hose.
10,000 PSI Air Hydraulic Foot Pump
Foot Pedal Control & 1.6L Oil Tank & 6.56 ft Hydraulic Hose
This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
  • Fundamental Parameters
  • Foot-Actuated Design
  • Sturdy & Compact Construction
  • Durable Oil Pipe Included
  • 10,000 PSI for Wide Application
VEVOR air hydraulic pump with 1/4" npt air inlet and 3/8" npt oil outlet.
Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.
VEVOR air hydraulic pump with simple foot pedal control. drop and lift demonstration.
Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.
VEVOR air hydraulic pump with aluminum alloy and durable metal materials. premium quality.
Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
VEVOR air hydraulic pump with 1.6l large oil tank and robust foot pedal.
1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters oil capacity for high performance. Moreover, it ensures you have the supply needed to power your equipment.
high-pressure hydraulic hose with 3/8 npt quick hydraulic coupler for VEVOR air hydraulic pump.
High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 6.56 ft / 2 m with 3/8 NPT - Quick hydraulic coupler.
multiple applications for VEVOR air hydraulic pump: automobile repair, oil drilling, machine maintenance, handling.
Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.
VEVOR air hydraulic pump with blue base, hose, and various connectors.
Package Content
  • 1 x Air Powered Hydraulic Pump
  • 1 x High Pressure Oil Pipe
  • 2 x Quick Connector
  • 1 x Air Gun Connector with Air Pipe
  • 1 x User Manual
VEVOR air hydraulic pump with dimensions 12.2 in x 8.26 in x 7.4 in
Specifications
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Control: Foot pedal pump - Release pressure to return fluid
  • Includes Hydraulic Hose: 6.56 ft / 2 m with 3/8'' NPT - Quick hydraulic coupler
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air Connection: 1/4" Female NPT
  • Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler
  • Hydraulic Oil Type: HM22/HM32
  • Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons
  • Input Air Pressure: 0.7-1MPa
  • Shell Material: Reinforced Aluminum Alloy
  • Fuel Tank Capacity: 1.6L
  • Capacity Tolerance: ± 0.1L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Pressure Range: ≥ 0.5
  • Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
  • Weight: 17.72 lbs / 8.04 kg
  • Dimensions (L x W x H): 12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm

Exceptional Performance with 10,000 PSI Hydraulic Pump for Efficient Operation

This VEVOR air hydraulic pump provides maximum output hydraulic pressure up to 10,000 PSI. This makes it highly efficient, excelling in heavy-duty tasks. You can use it for shop presses and various equipment. The high pressure ensures the proper functioning of hydraulic cylinders or presses. Solid performance marks the pump as a valuable asset for many applications. Its high pressure has been noted especially for pulling kingpins and guard rails without issues. The strong performance minimizes downtime, which is critical for productive working environments. High-pressure output also makes this pump ideal for use in various maintenance shops and repair services.


Easy-to-Use Air Over Hydraulic Pump with Foot Actuated Control

This air hydraulic pump design provides full control during operations. The foot pedal allows for safe pressure release, which returns the fluid effortlessly. It's simple and intuitive to use, making it suitable for both professionals and beginners alike. Many users find this foot control more convenient than hand pumps. Easy-to-operate foot pedal helps in managing various hydraulic functions seamlessly. This setup reduces user fatigue, especially during prolonged usage. Simple foot actuation enhances productivity by letting users focus on the task. This feature is ideal for multitasking environments where efficiency matters.


Versatile Single Acting Hydraulic Pump Ideal for Various Applications

Its versatility comes in handy for air treadle foot-actuated control, shop presses, or hydraulic punches. It is suitable for professionals needing different hydraulic tools. Having one VEVOR air hydraulic pump that can handle multiple jobs reduces the need for additional equipment. This versatility ensures optimal performance across various mechanical systems. Also, due to its multipurpose functionality, it is cost-effective because it matches diverse types of hydraulic equipment and tools.


Ready to Use with Pre-filled Oil and Quick Hydraulic Coupling

It is important to start work quickly. The addition of oil in the reservoir saves prep time and effort. This feature makes the setup process hassle-free and quick. 3/8" NPT quick hydraulic coupling allows for rapid changes and connections, enhancing workflow efficiency. Provided tools and fittings mean straightforward integration into existing hydraulic systems.


Durable and Reliable, Built for Rigorous Shop and Field Demands

The pump's hardwearing design handles high-pressure tasks without compromising performance. Rigorous workshops demand equipment that won't fail, and this air hydraulic pump meets that need. It has proven to work well under different environmental conditions. You can expect it to last long and work consistently. This reliability saves users from frequent disruptions.


Enhanced Mobility with Lightweight and Compact Design

The compact and lightweight design ensures easy mobility and storage. Weighing only 17.72 lbs, it is easy to carry and position. This adds convenience, especially in settings where equipment needs to be frequently moved. Its small size also means it fits well in tight spaces. This makes it ideal for both small workshops and large industrial environments. You can easily store it without taking up too much space. The compact nature allows for flexible use and easy transport between job sites.


Fast and Efficient Setup Saves Time and Increases Productivity

This air hydraulic pump is quick and easy to set up. Its components fit well and don't require much time to assemble. So, you can start using it almost immediately upon arrival. The user-friendly setup reduces installation time and speeds up maintenance tasks. This immediate usability boosts overall productivity. Less time spent setting up equipment means more time spent on actual work. This fast setup translates to cost savings and efficiency. It's especially beneficial in environments that require rapid device changes. This air hydraulic pump ensures tasks begin efficiently, maintaining a smooth workflow.


See More

Specification

Type
Air Powered Hydraulic Pump
Action
Single Acting
Control
Foot pedal pump - Release pressure to return fluid
Includes Hydraulic Hose
6.56 ft / 2 m with 3/8'' NPT - Quick hydraulic coupler
Flow Rate
0.8 liters / 0.21 gallons per minute
Air Connection
1/4" Female NPT
Connector Type
3/8" NPT ISO 14540 quick hydraulic coupler
Hydraulic Oil Type
HM22/HM32
Oil Capacity
98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons
Input Air Pressure
0.7-1MPa
Shell Material
Reinforced Aluminum Alloy
Fuel Tank Capacity
1.6L
Capacity Tolerance
± 0.1L
Maximum Oil Output
1.3L
Oil Output Pressure
70MPa
Pressure Range
≥ 0.5
Max Output Hydraulic Pressure
10000 psi, 700 kg/square cm
Weight
17.72 lbs / 8.04 kg
Dimensions (L x W x H)
12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm
Manual
Download Link
Questions and Answers
2 Questions
Kan jag ha tellus hydralolja i hydraliska luftpumpen
Den kan endast använda nr 22 eller nr 32 slitstark hydraulolja.
By vevor
Is this suitable for an ordinary garage portapower
This product does not require power supply.
By vevor
