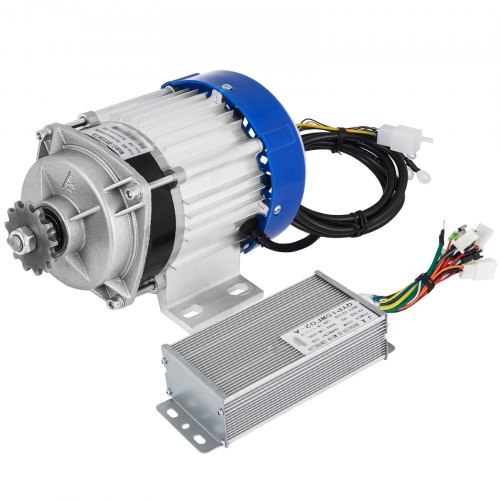

Name: 48v Dc 750w Electric Brushless Motor W Controller Diy Bicycle Go-kart Reduction
Brand: VEVOR
SKU: ZLDJ48V750WKZQ001V0
Price: 122.99 EUR
Availability: OutOfStock
Rating: 4.8 (160 reviews)

48v Dc 750w Electric Brushless Motor W Controller Diy Bicycle Go-kart Reduction

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive 5,00€ off on your first three app orders. Only App.

Download Now

Exclusive 5,00€ off on your first three app orders. Only App.

Scan the QR code to download

About this item

【HIGH-POWER BRUSHLESS MOTOR】- A Brushless motor generally is quieter, smaller and lighter than brushed motors thanks to the lack of brushes, offering strong motivation. 4 Tooth gear for # 420 chain. Power: 750W. Voltage: DC 48 V.
【STABLE ROTATION SPEED】- This 48-volt brushless motor has excellent torque characteristics and delivers 600rpm dynamic operation, intended to fill the need for a small motor with high performance.
【DUAL-DIRECTION DESIGN】- This DC motor bicycle is a forward and backward motor, and you can switch the rotation in either the clockwise or counterclockwise direction by reversing the motor's wires.
【SUPERIOR METAL GEARS】-All gear sets adopt high-quality metal gears, which have stable transmission, high-efficiency, wear-resistance, and long service life.
【CONVENIENT SPEED CONTROL】-This 48 V DC motor comes with a speed controller to provide speed control in the desirable range, suitable for the DIY tricycles, E-bikes, electric scooters.

See More See Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

48 V 750 W Brushless Motor Go Kart

Our brand new electronic brushless motor comes with a lightweight body yet considerable & stable power output, offering excellent efficiency, controllability, and longevity. It is quite suitable for golf carts and mobility carts, electric car, electric motorcycle, etc.

High-Power Brushless Motor
Stable Rotation Speed
Dual-Direction Design
Superior Metal Gears
Convenient Speed Control

750W Brushless Motor

750W considerable power offering high working efficiency with low electric noise.

Steady Speed

Delivering 600rpm-speed of dynamic operation, a small motor with high performance.

Forward & Reverse Rotation

The motor can run forward or reverse simply by reversing its power wires.

Metal Gears Inside

Good quality metal gears help to lengthen the motor's service life.

Speed Controller Included

A speed controller for easy speed control, besides, three wrenches, one screw set, and one sprocket chain also included.

Wide Application

With high performance, ideal for e-scooters, go-karts, e-bikes, etc.

Package Content

1 x Brushless Motor
1 x Controller

Specifications

48 V DC Motor
Rated voltage: 48V DC
Output: 750W
Rated current: 20A
No load current: ≤5.0A
Rated speed: 600 RPM
No load speed: 3100RPM
Gear ratio: 6:1
Drive sprocket: 420-14T
Rated torque: 2.56 N.m
Efficiency: ≥75%
Speed Controller
Matching motor: 48V 750W
Rated voltage: 48V DC
Under Voltage Protection: 42±0.5 V
Speed regulator (throttle): 1-4 V

Specification

: 48 V DC Motor

Rated voltage: 48V DC

Output: 750W

Rated current: 20A

No load current: ≤5.0A

Rated speed: 600 RPM

No load speed: 3100RPM

Gear ratio: 6

Drive sprocket: 420-14T

Rated torque: 2.56 N.m

Efficiency: ≥75%

: Speed Controller

Matching motor: 48V 750W

Rated voltage: 48V DC

Under Voltage Protection: 42±0.5 V

Speed regulator (throttle): 1-4 V

Just plugged together to test it works. Seems solidly built, my 1800W brushless motor is smaller than this. Rotation from factory is CW, not good if you have the chain on the left side (where it usually is). The reverse function gives only 50% rpm. No labels on plugs, the wire colors in description not always match what is on the controller. There is no speed select connector for the 3 speed (description states it should have). No battery voltage output from controller (48V) or brake light output, other controllers have it. A bit noisy, probably because the gears. I look forward to test it on my atv.

I had this gasoline edger I got tired of pulling the cord. This motor is perfect, now I just flip a switch. I already had the battery from my electric bike. The nut from the motor shaft fit perfectly in the pulley secured with the set screw.

Purchased for a go kart project. Finish is good and wires are well terminated. Driven 12.8:1(approx) as installed on my project with a jackshaft we attained a 15 mph top speed.
