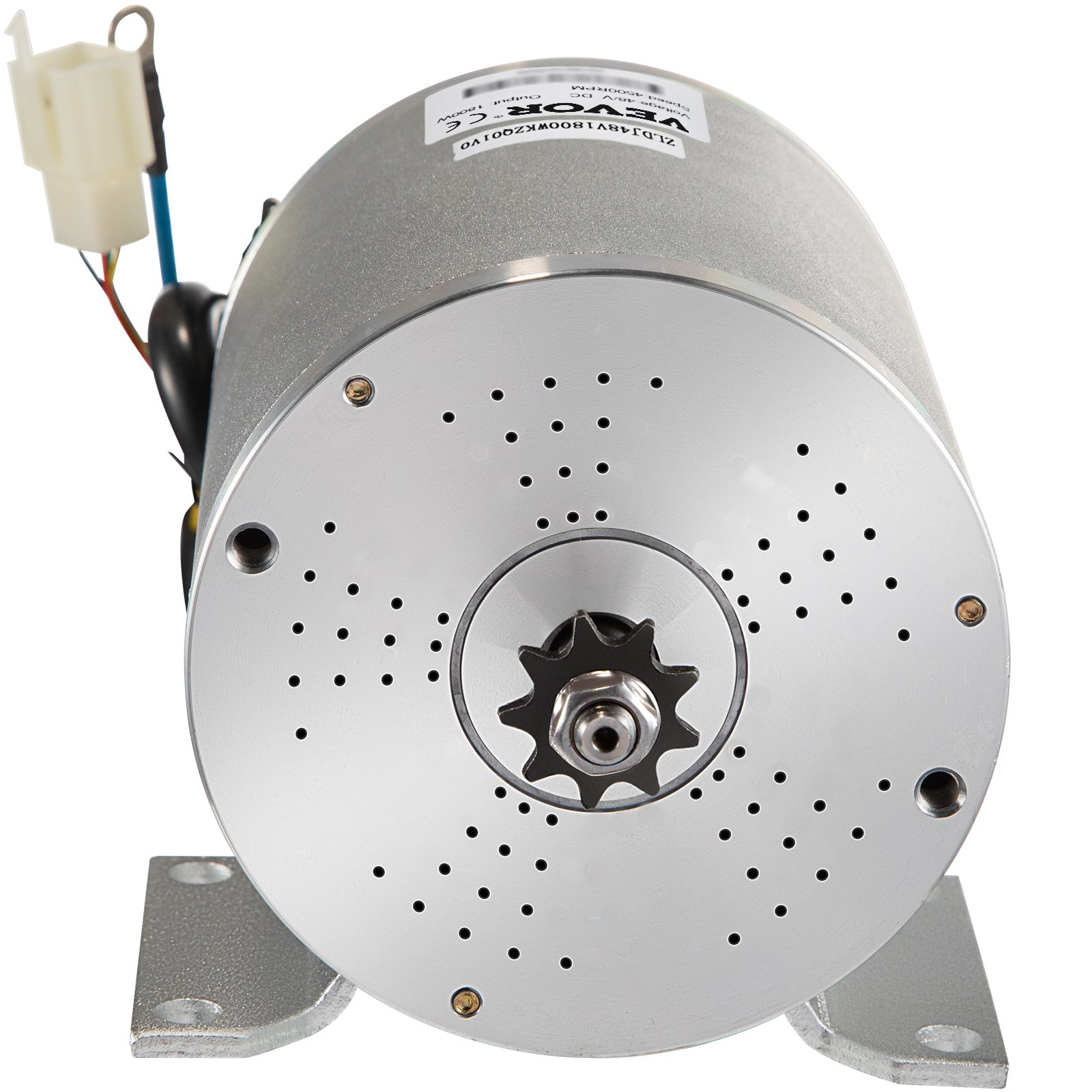

48V 1800W Brushless DC Motor Kit
4500 RPM & Controller & Throttle Pedal
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and a complete accessories kit to help you fix the motor safely. It is ideal for go karts, electric scooters, e-bikes, ATVs, motorized bicycles, etc. Hit the ground running faster than ever with our brushless DC motor kit.
- Fundamental Parameters
- 1800W Brushless Motor
- Sturdy Aluminum Construction
- Speed Controller Included

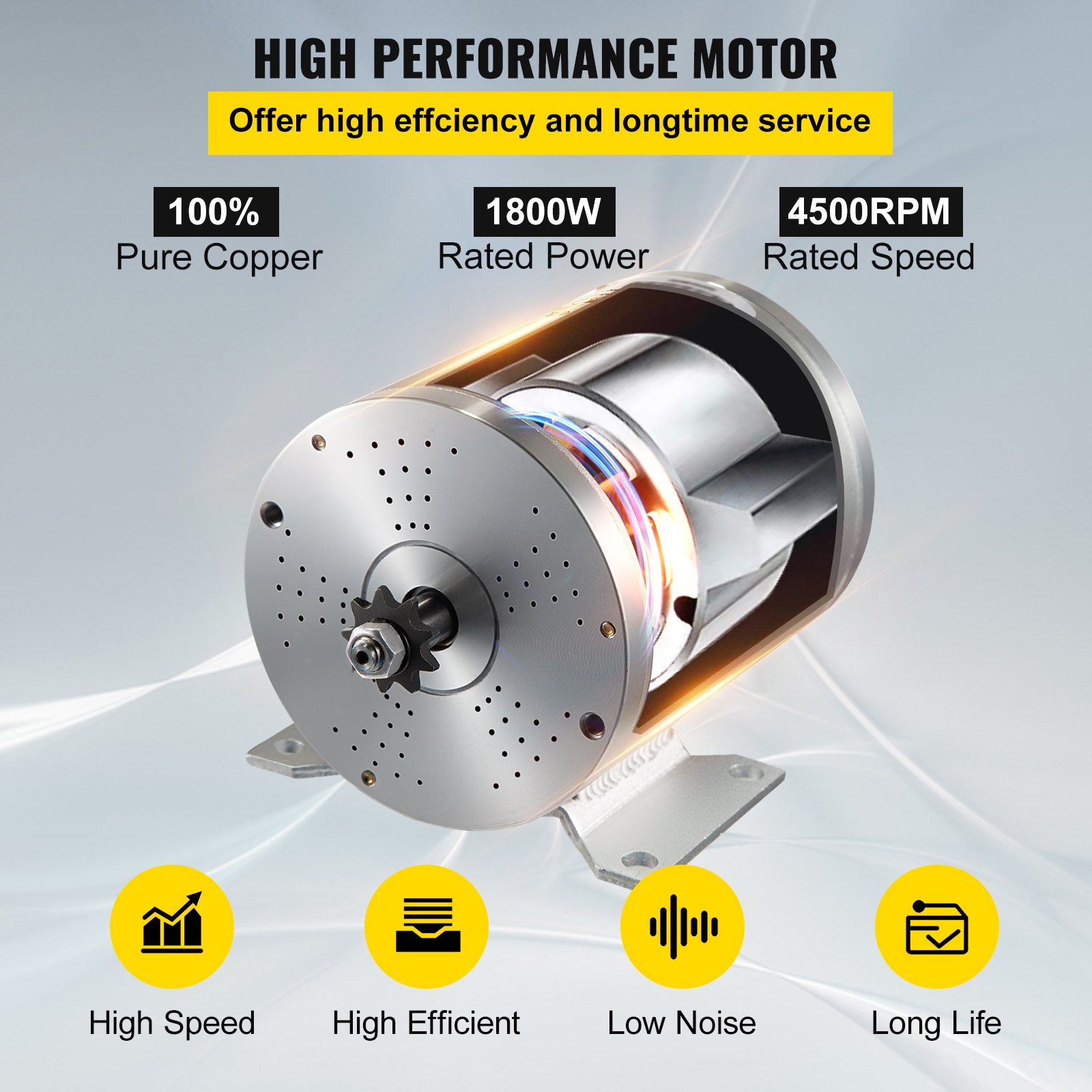

Pure Copper Motor
The electric brushless dc motor features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy during extended use.
4500 RPM High Speed
This dc brushless motor kit runs at 1800W, the rated speed is 4500RPM, and the maximum speed is 5200 RPM. Thus, it can provide fast acceleration and unmatched power for your machines.

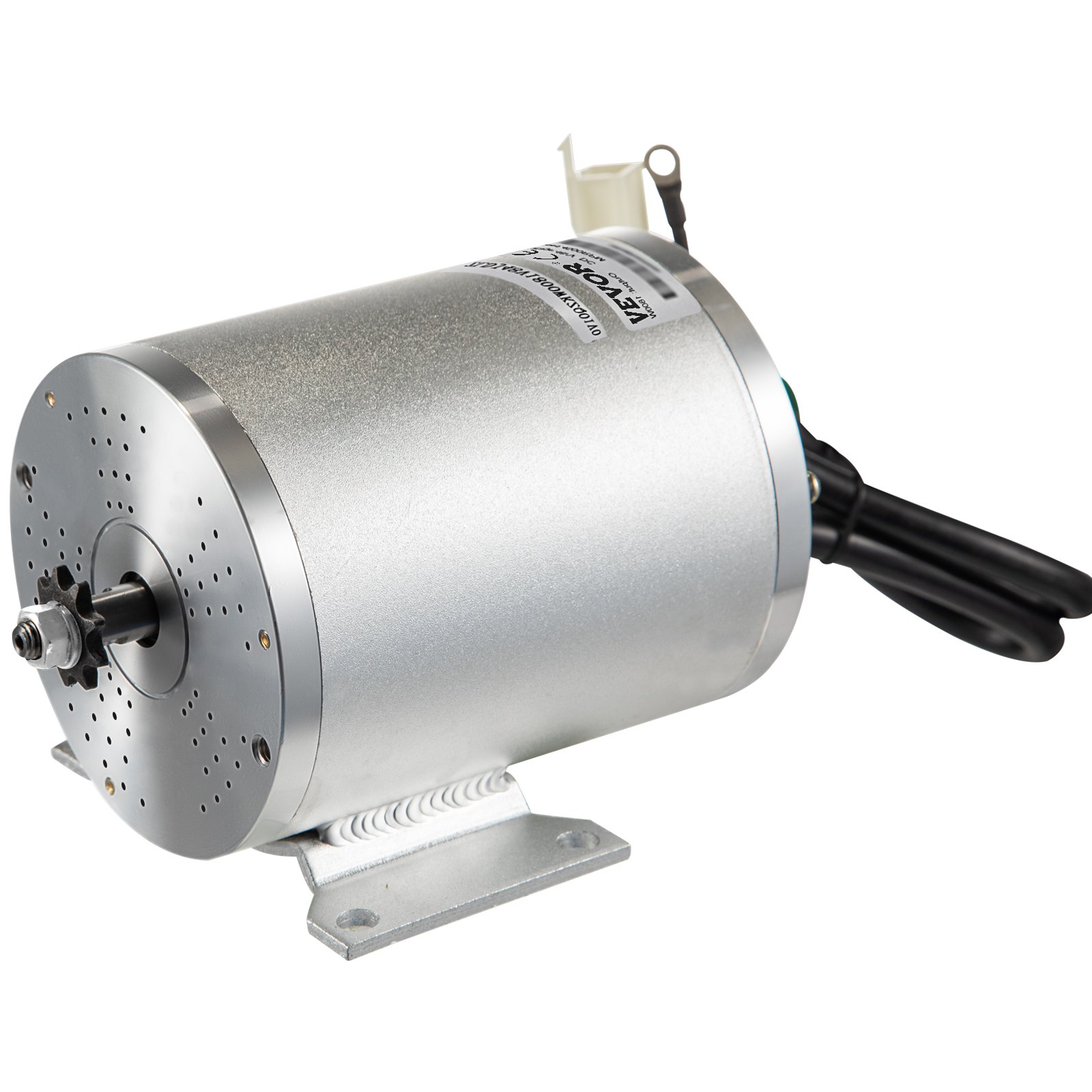

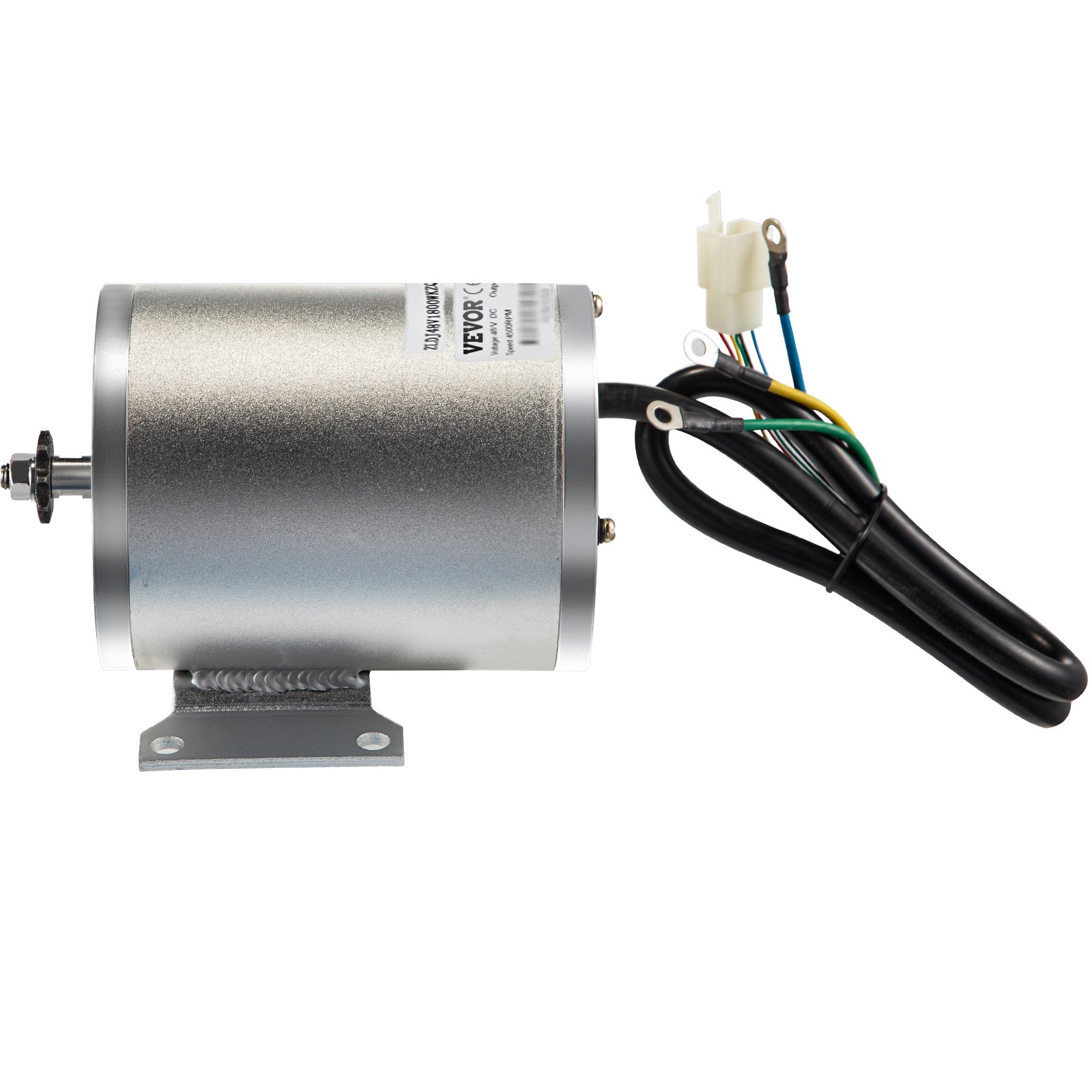

Durable Aluminum Alloy Shell
The electric go kart motor is constructed from aluminum alloy material, which can resist oxidation, compression, and deformation. Besides, it is lightweight enough to carry and process with ease.

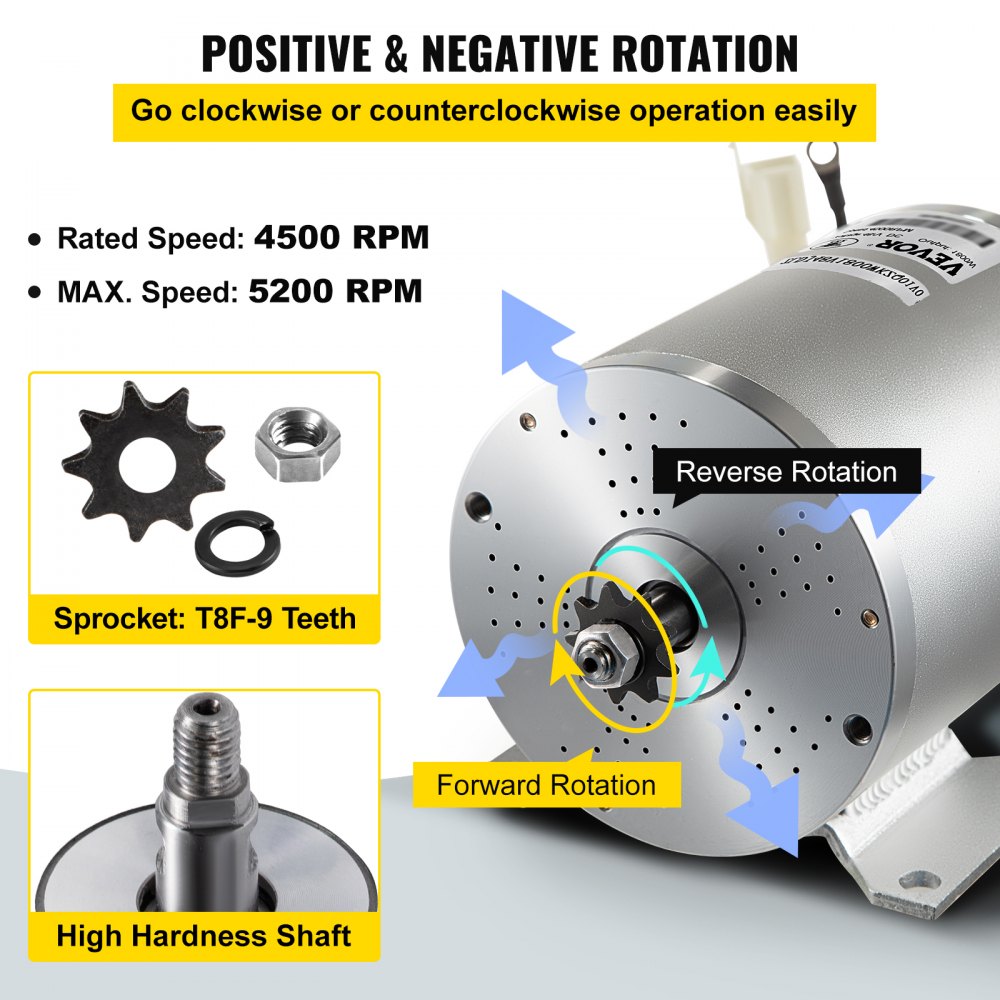

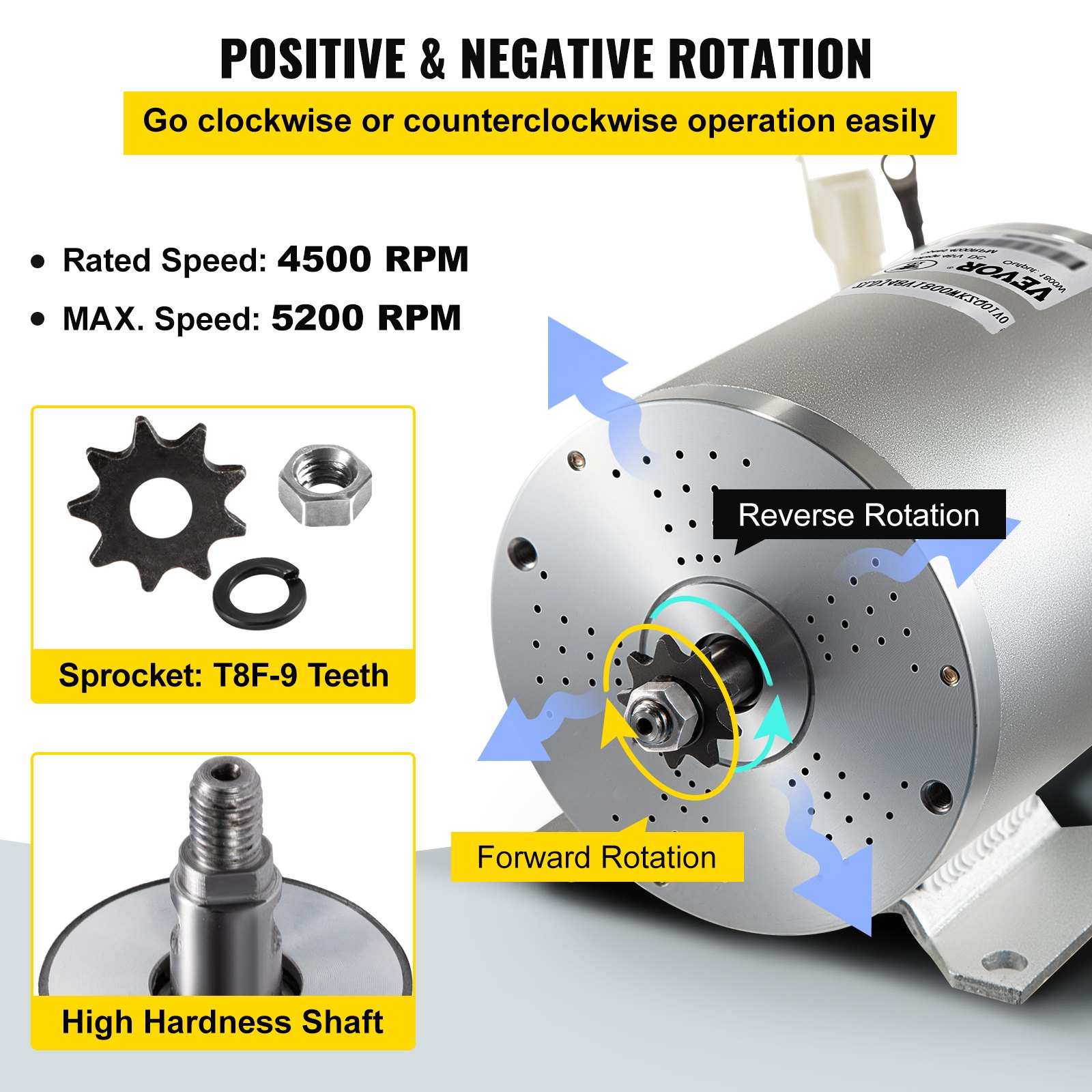

Dual-Direction Design
You can switch the rotation to either a clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which are easy to adjust.

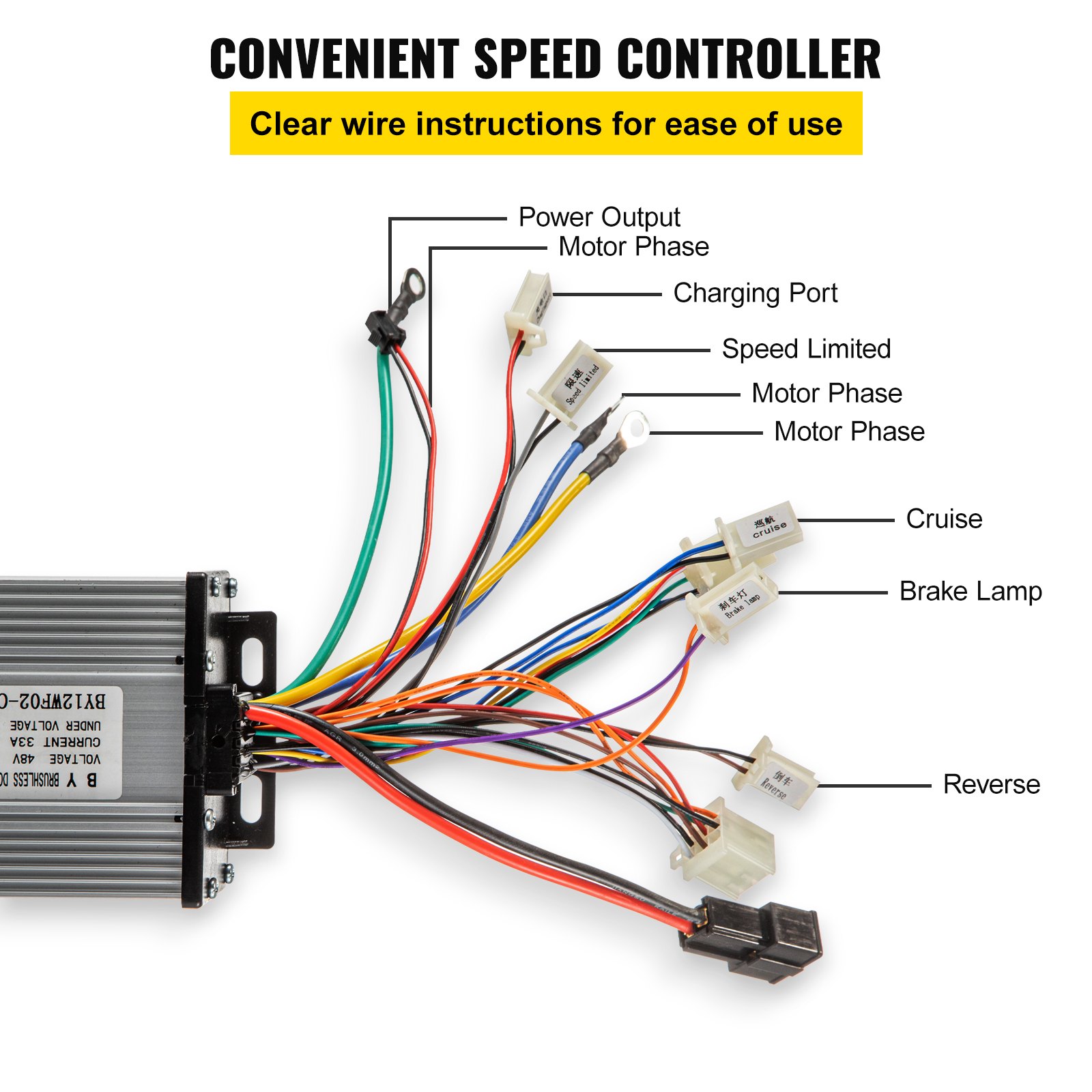

Convenient Speed Control
The speed controller allows you to control the speed effortlessly. The complete brushless motor set, speed controller, and other necessary components assist in operating the machine.

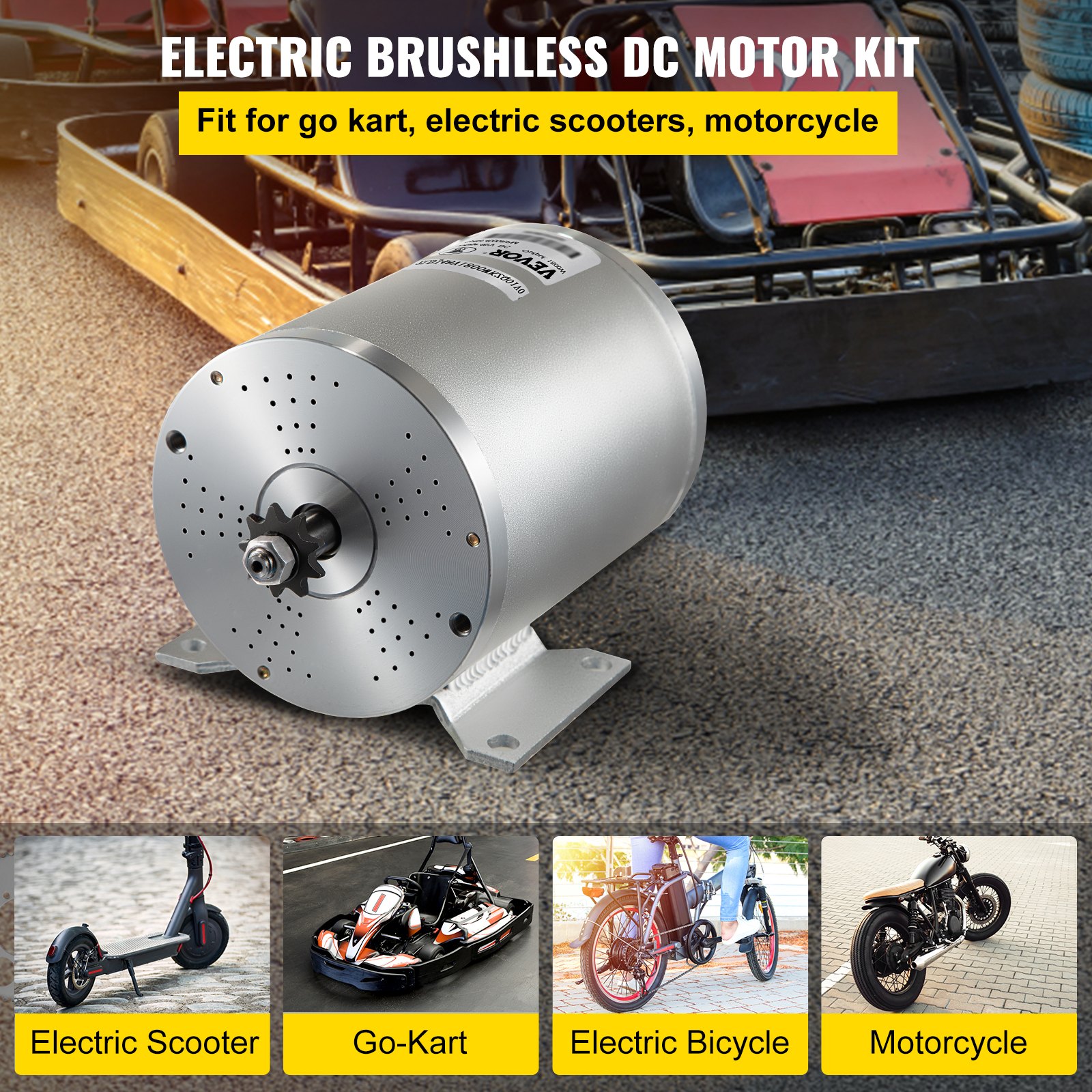

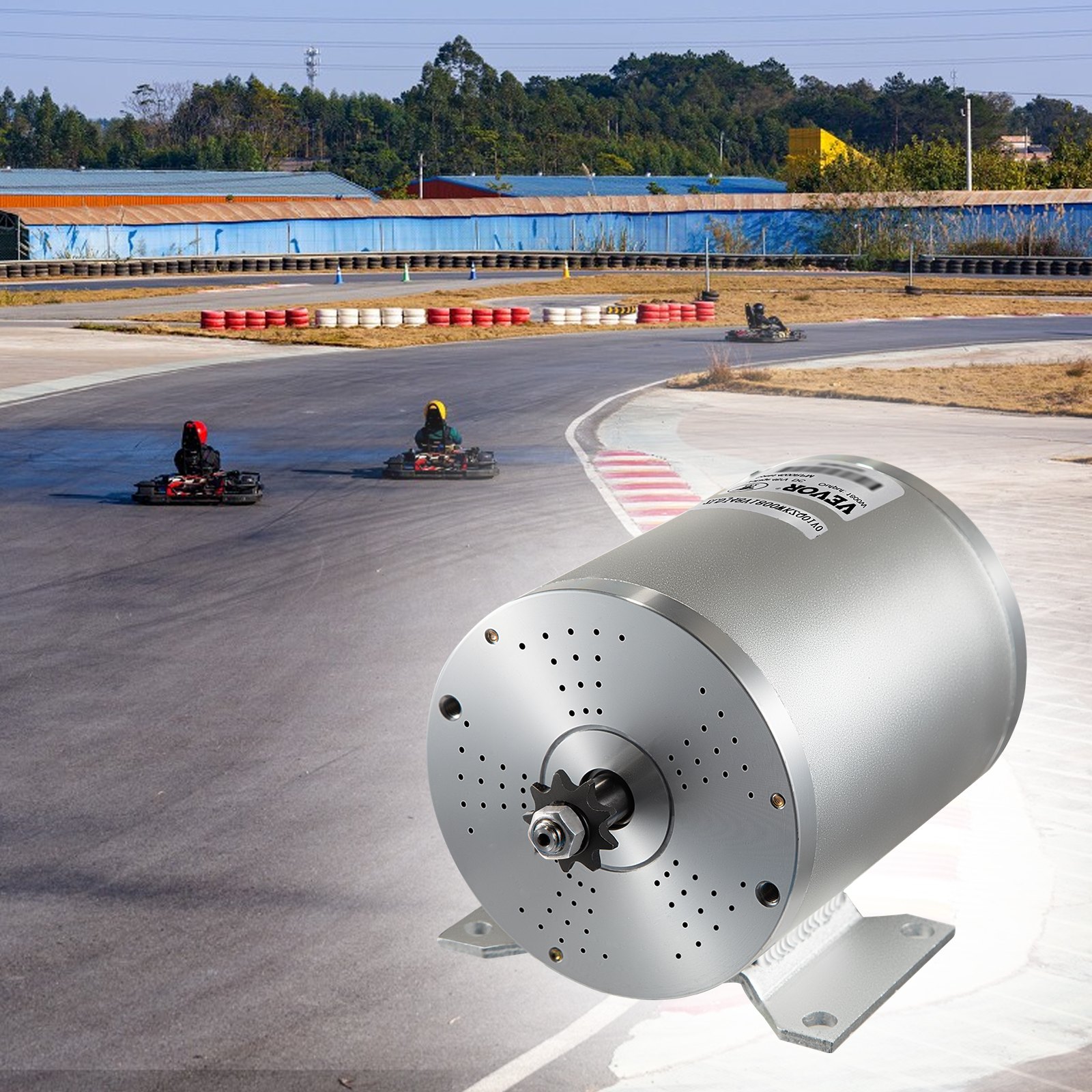

Wide Application
Electric brushless motor is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.

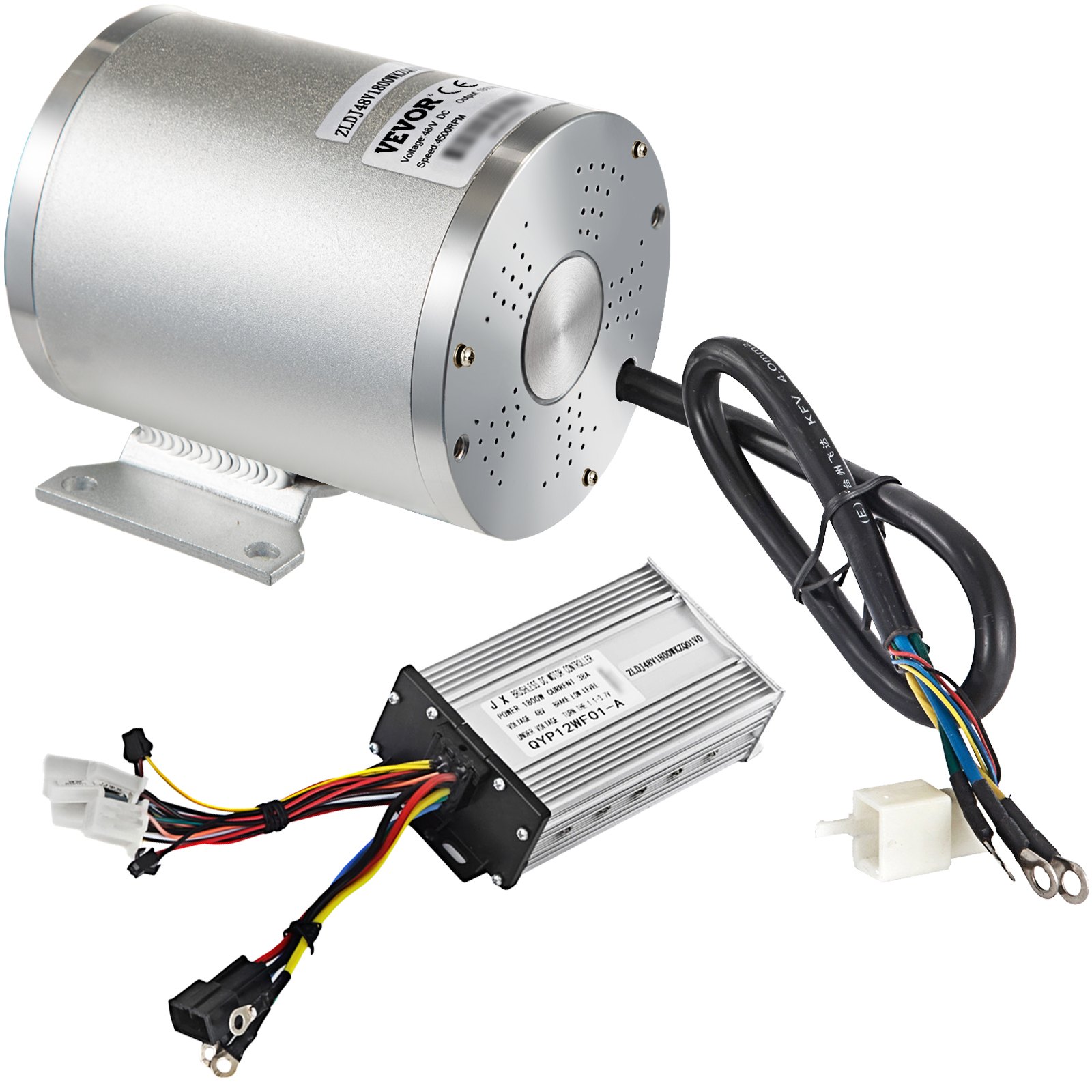

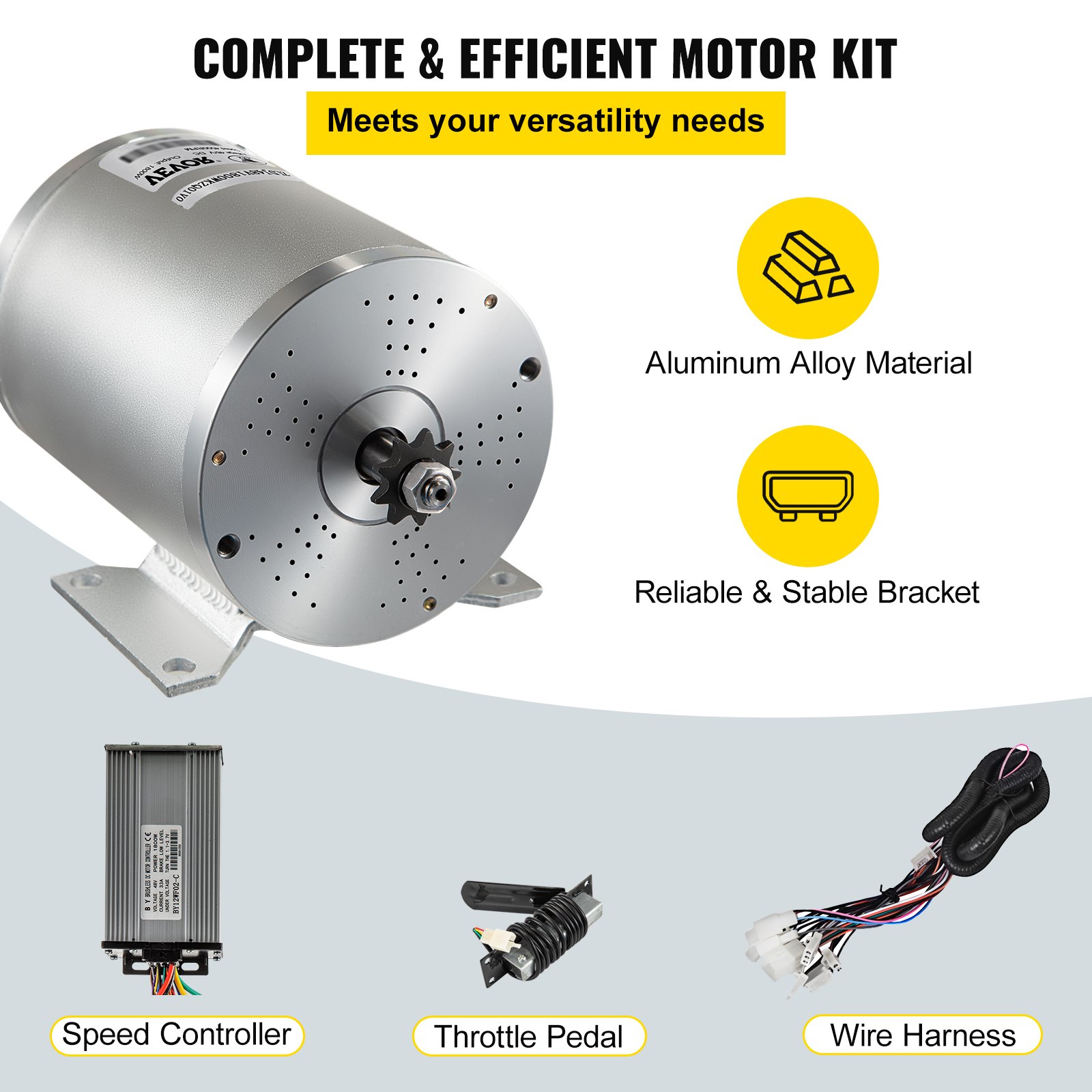

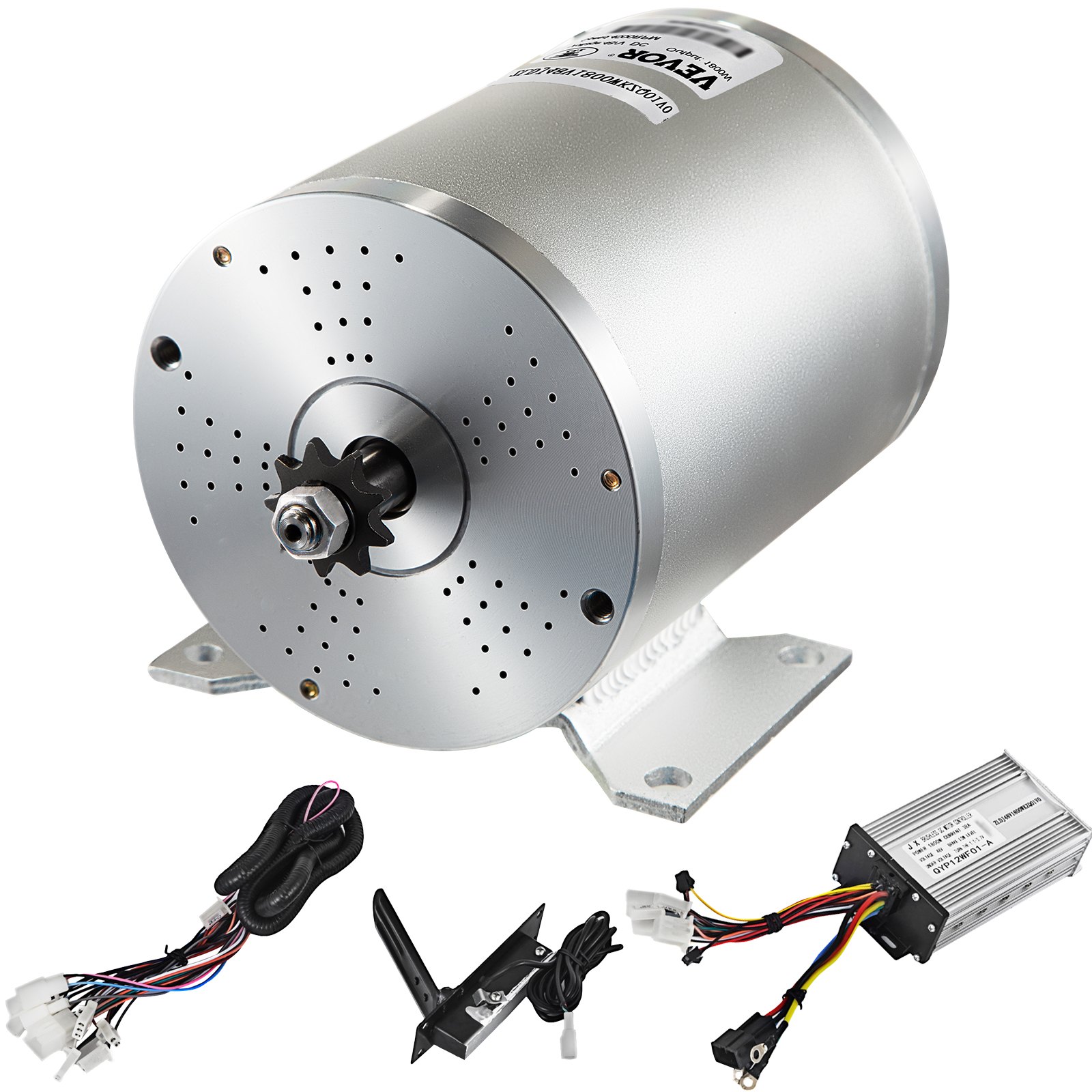

Package Content
- 1 x Brushless DC Motor
- 1 x Controller
- 1 x Throttle Pedal
- 1 x Wire Harness
- 1 x Screw Set
- 2 x Wrench
- 1 x Some Related Accessories
Specifications
- Motor
- Model: MY1020D
- Input Voltage: 48V DC
- Output Power: 1800W
- Rated Current: 33A
- Rated Speed: 4500 RPM
- Maximum Speed: 5200 RPM
- Sprocket: T8F-9T
- Horsepower: 2.4 HP
- Rated Torque: 4.0 N.m / 566.44 oz.in
- Maximum Current: 37.5A
- No-load Current: ≤ 3.5A
- Peak Efficiency: ≥ 85%
- Working Temperature: < 120 °C / 248 ℉
- Shaft Length: 5.28'' / 134 mm
- Net Weight: 9.26 lbs / 4.2 kg
- Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm

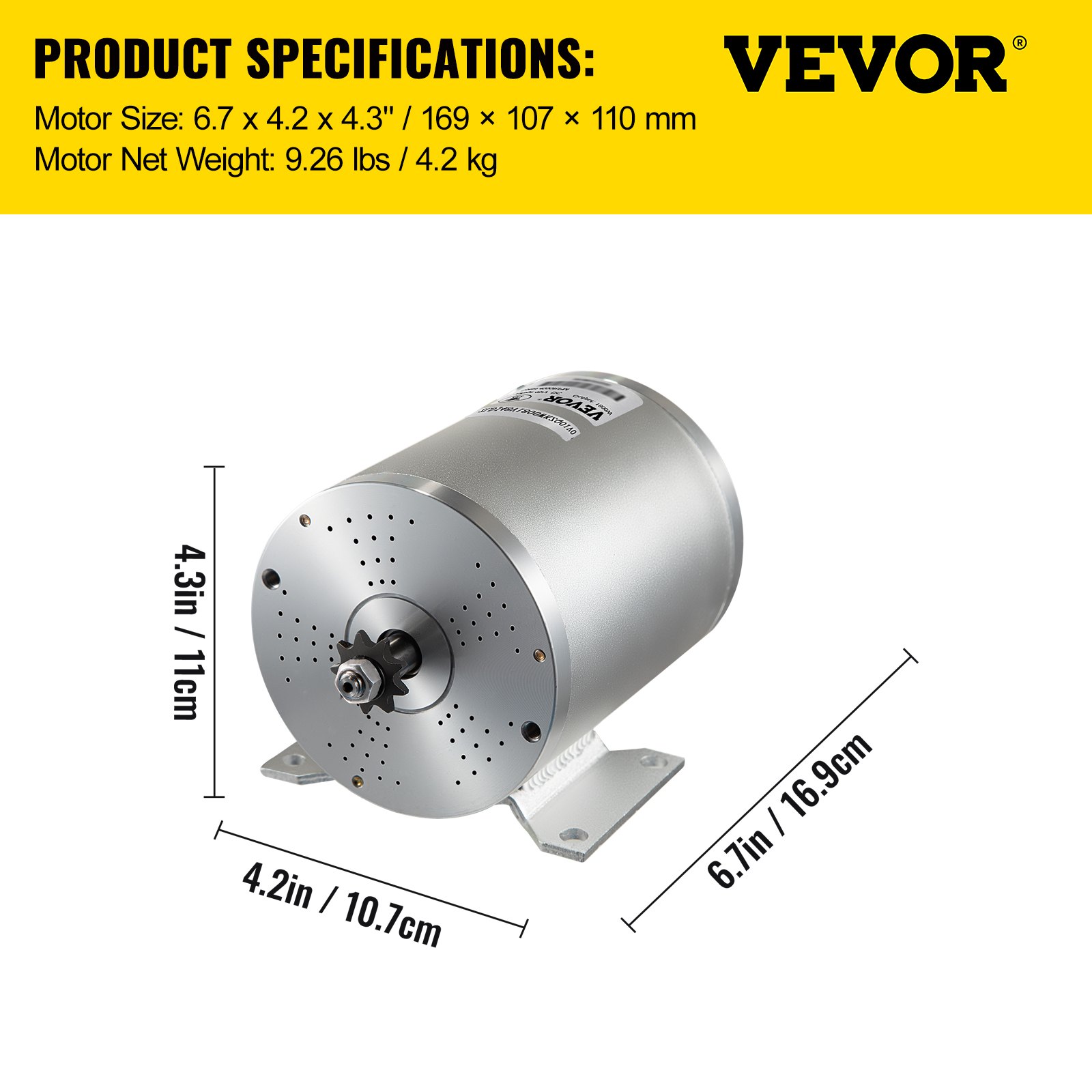

- Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
- Controller
- Model: BY12WF02-C
- Current: 33A
- Phase Degree: 120°
- Conversion Efficiency: 90%
- Under Voltage Protection Voltage: 41±0.5V
- Speed Regulator (Throttle): 1-4.3V
