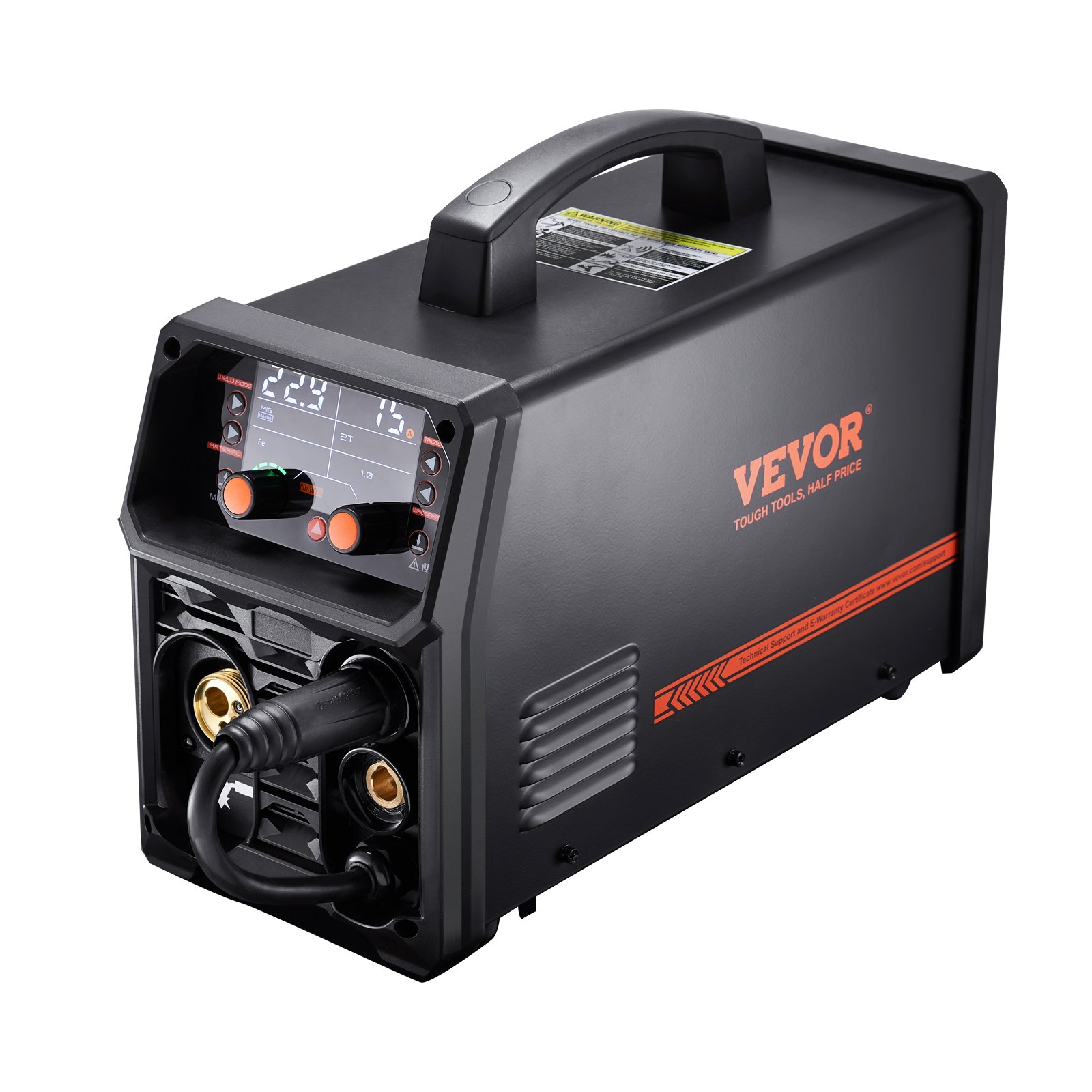

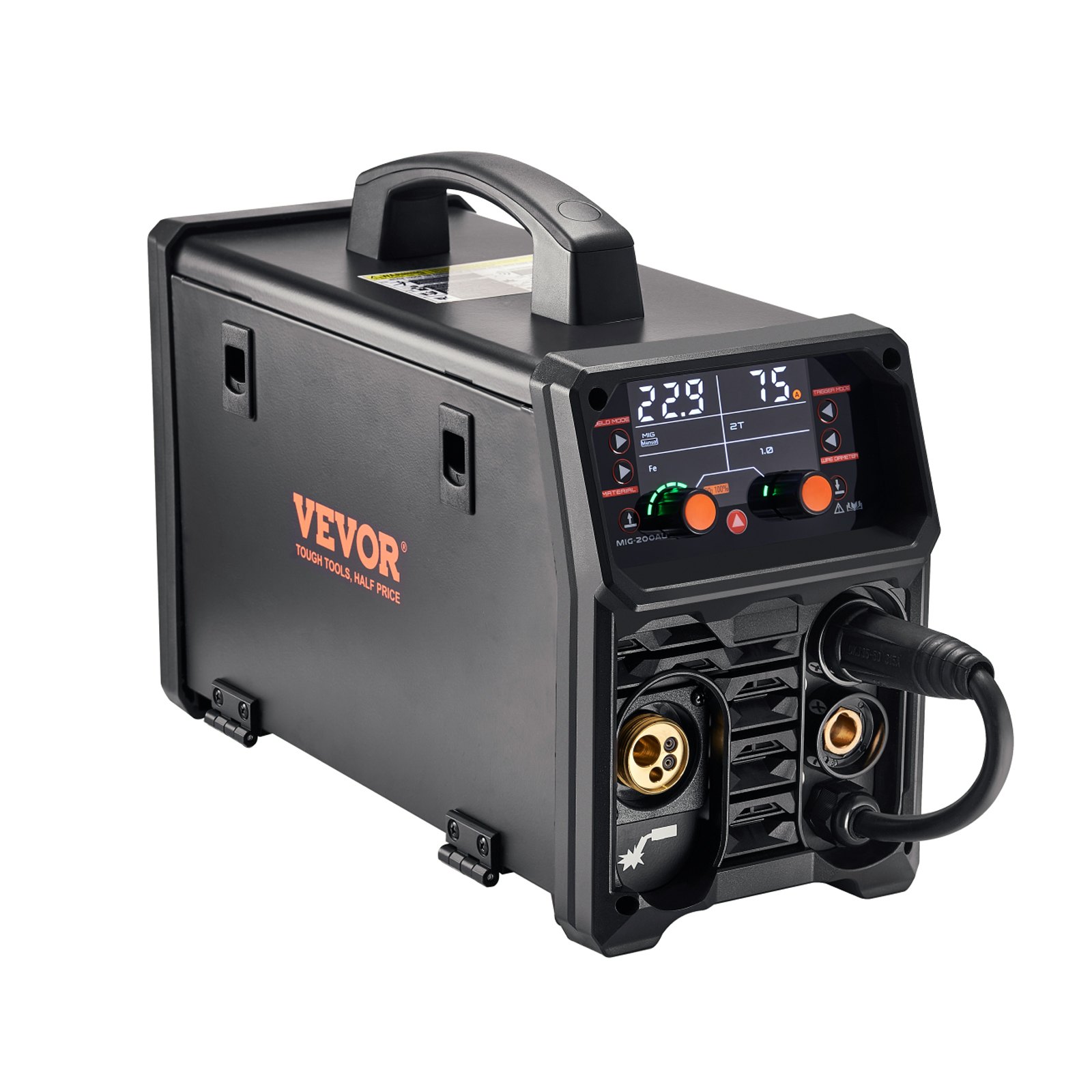

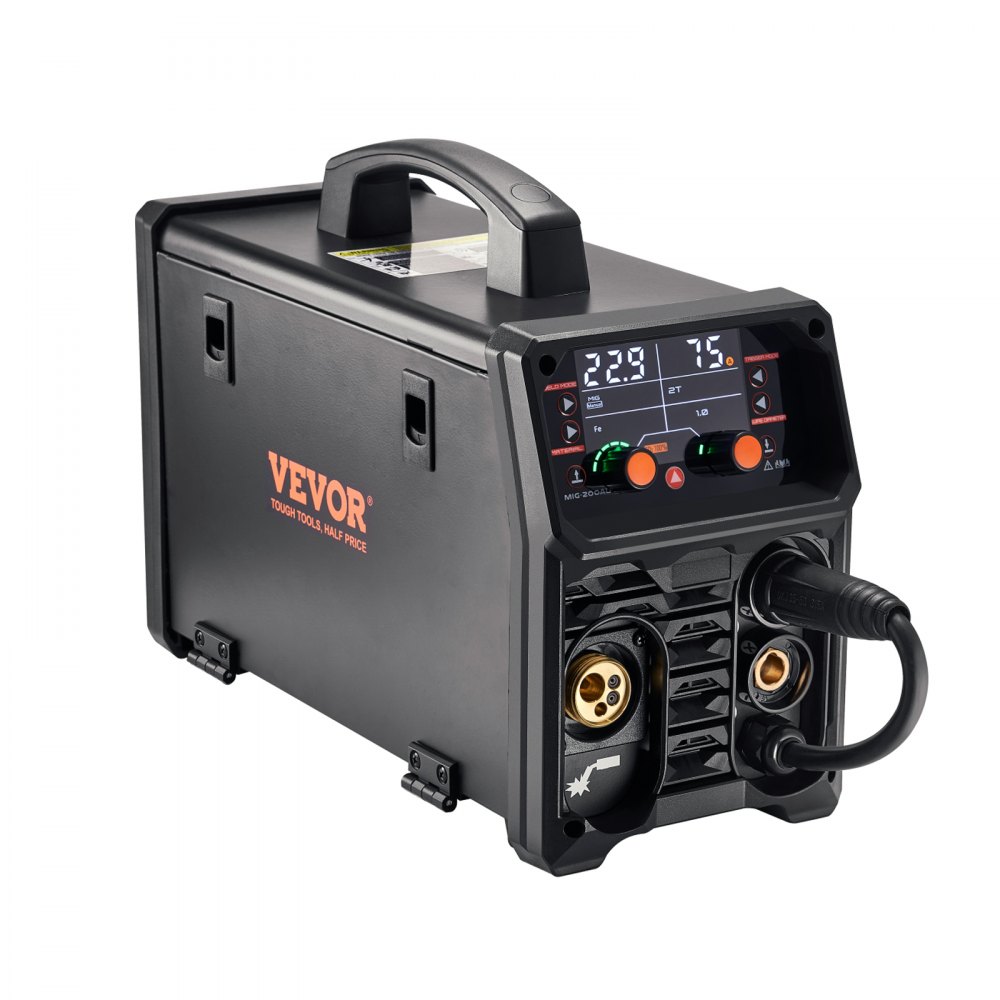

VEVOR Pro MIG Welder, 200Amp Pluse Mig Welding Machine, 5-in-1 Welder Machine MIG Pluse/Gas MIG/Flux Core MIG/Stick/Lift TIG with IGBT Inverter Technology and LCD Screen Display

5 in 1 Welder Adds Pulse MIG Function for Low-Spatter, High-Quality Welds

This 5 in 1 welder adds dedicated pulse welding mode, gasless MIG, gas MIG, MMA stick, and lift TIG to the standard welding functionality, rounding out the five processes. Pulse welding provides faster, cleaner welds with substantially less spatter than standard continuous MIG welding. It offers better thermal control for higher-quality welds with lower overall heat input, a major advantage for thinner materials or heat-sensitive joints where excessive heat buildup can cause warping or burn-through.

It is the key difference between pulse MIG and regular MIG welding. Instead of a single arc running continuously, the pulse feature varies the current in a controlled pattern to reduce average heat while maintaining weld penetration. The 5 in 1 welder’s pulse function yields noticeably cleaner results than the regular MIG mode would be able to achieve on the same material. It is a great feature for users working with thinner sheet metal or materials that are susceptible to distortion with sustained heat.

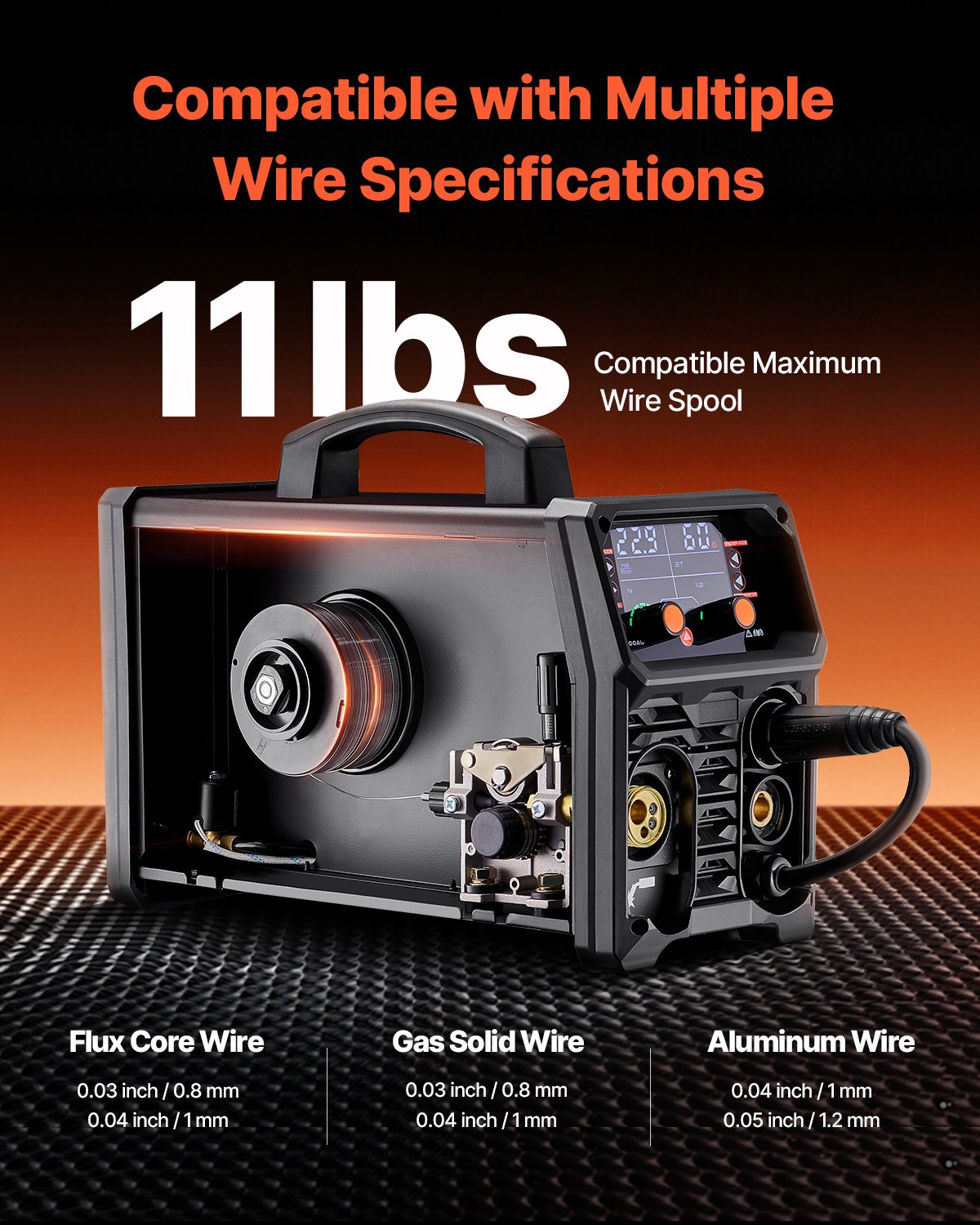

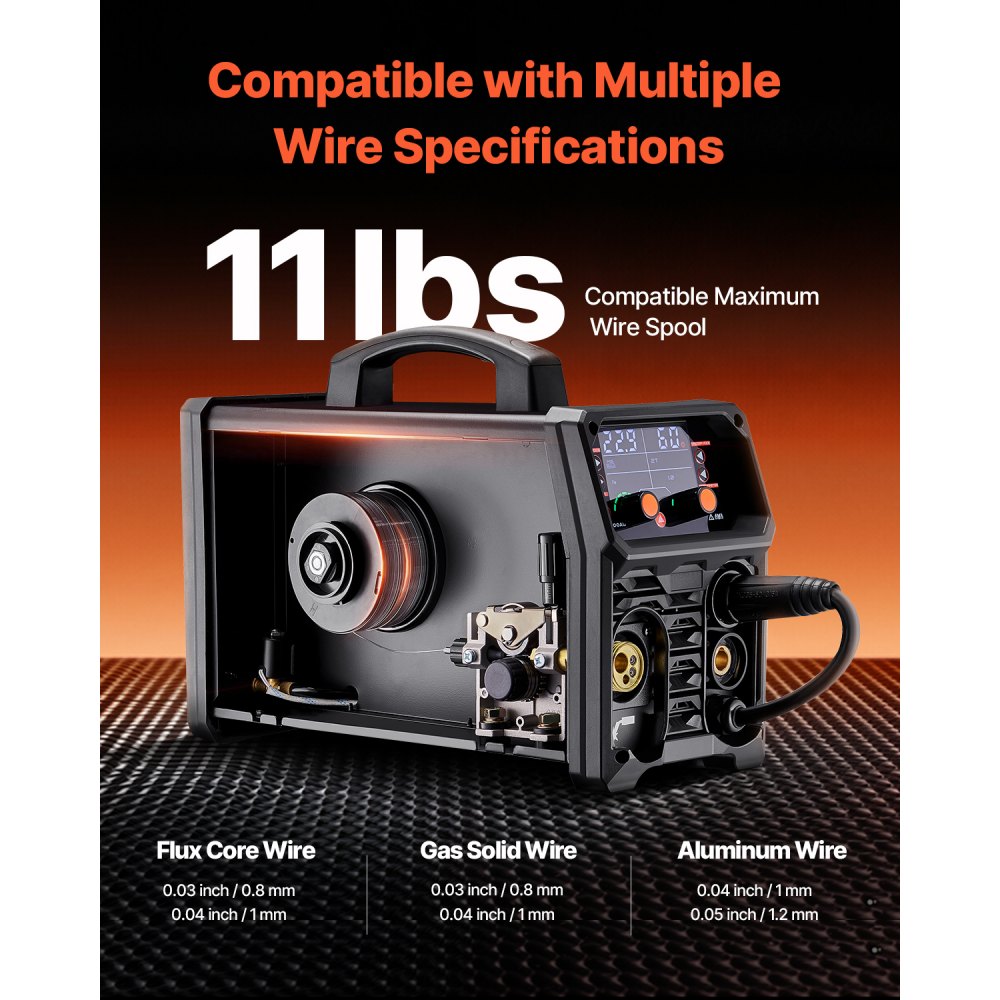

Triple Wire Compatibility, Including Aluminum Wire for Expanded Material Range

Like other units in this welder line, this model shares flux core and gas solid wire compatibility, adding aluminum wire capability to broaden the practical material range to include aluminum welding in addition to mild steel, stainless steel, and cast iron. Flux core and solid wire are in the 0.03 in / 0.8mm and 0.04 in / 1.0mm diameters. Aluminum wire has its own 0.04 in / 1.0mm and 0.05 in / 1.2mm diameter range. Operators should verify the correct wire diameter for the material being welded, as aluminum wire sizes differ from those for steel-compatible wire.

Maximum wire spool capacity on all three types of wire is 11 lbs / 5 kg, so you can work longer without having to regularly change the spool, no matter the material you’re working on. It is what makes this machine a 5-in-1 welder in practice, not just five welding processes but real material versatility for steel and aluminum work from one unit.

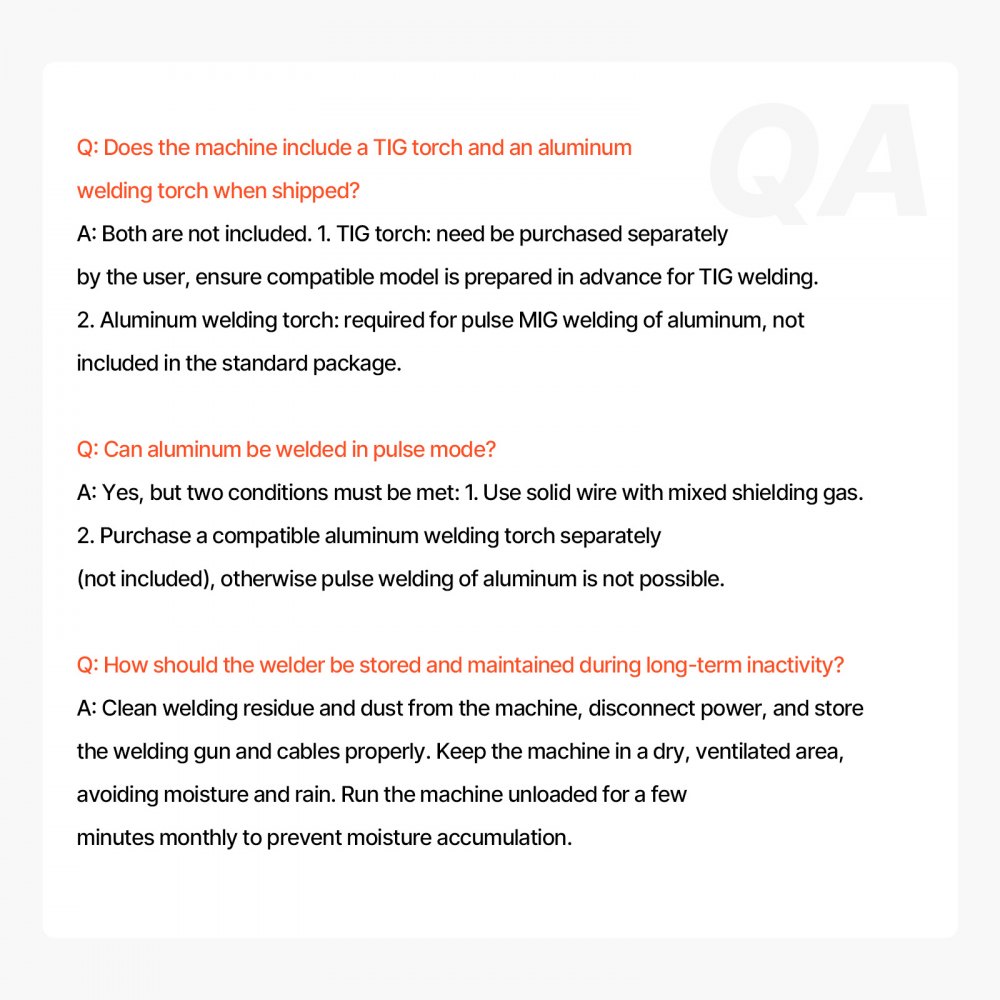

Aluminum and Lift TIG Torches Sold Separately for This 5 in 1 Welder

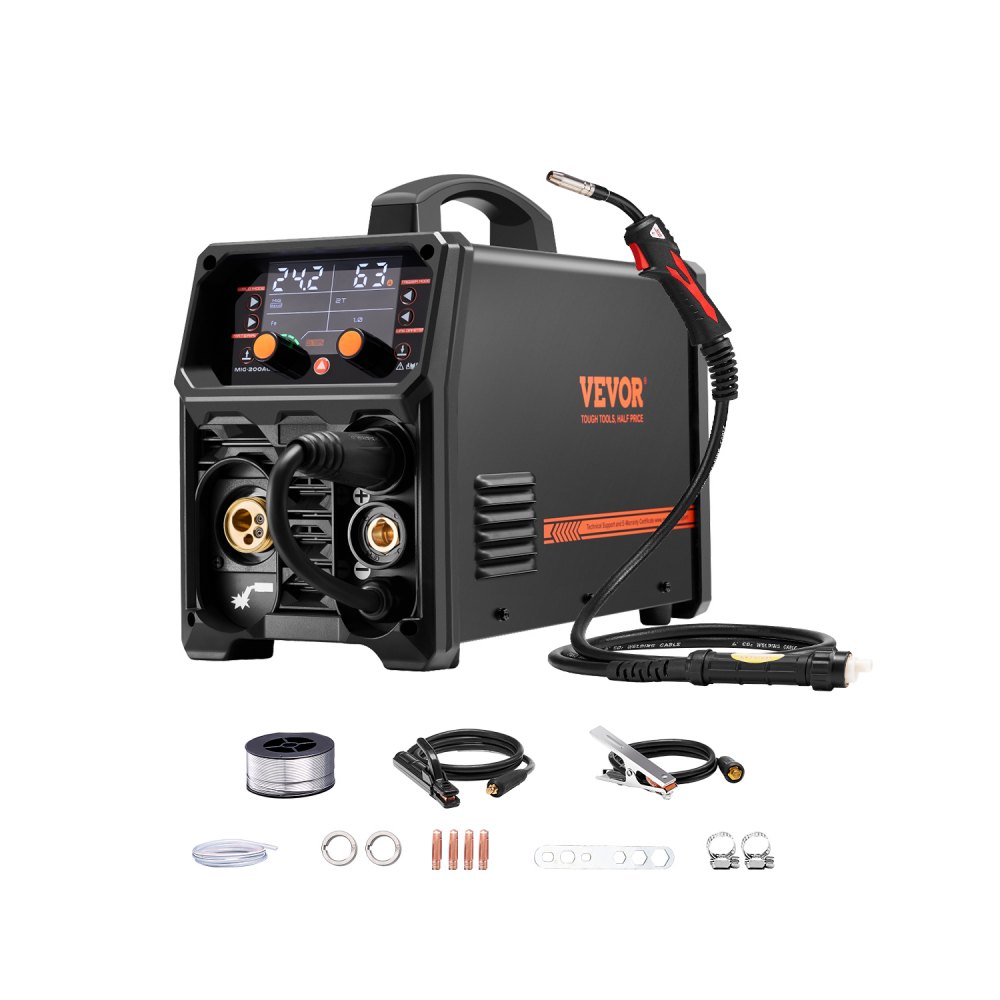

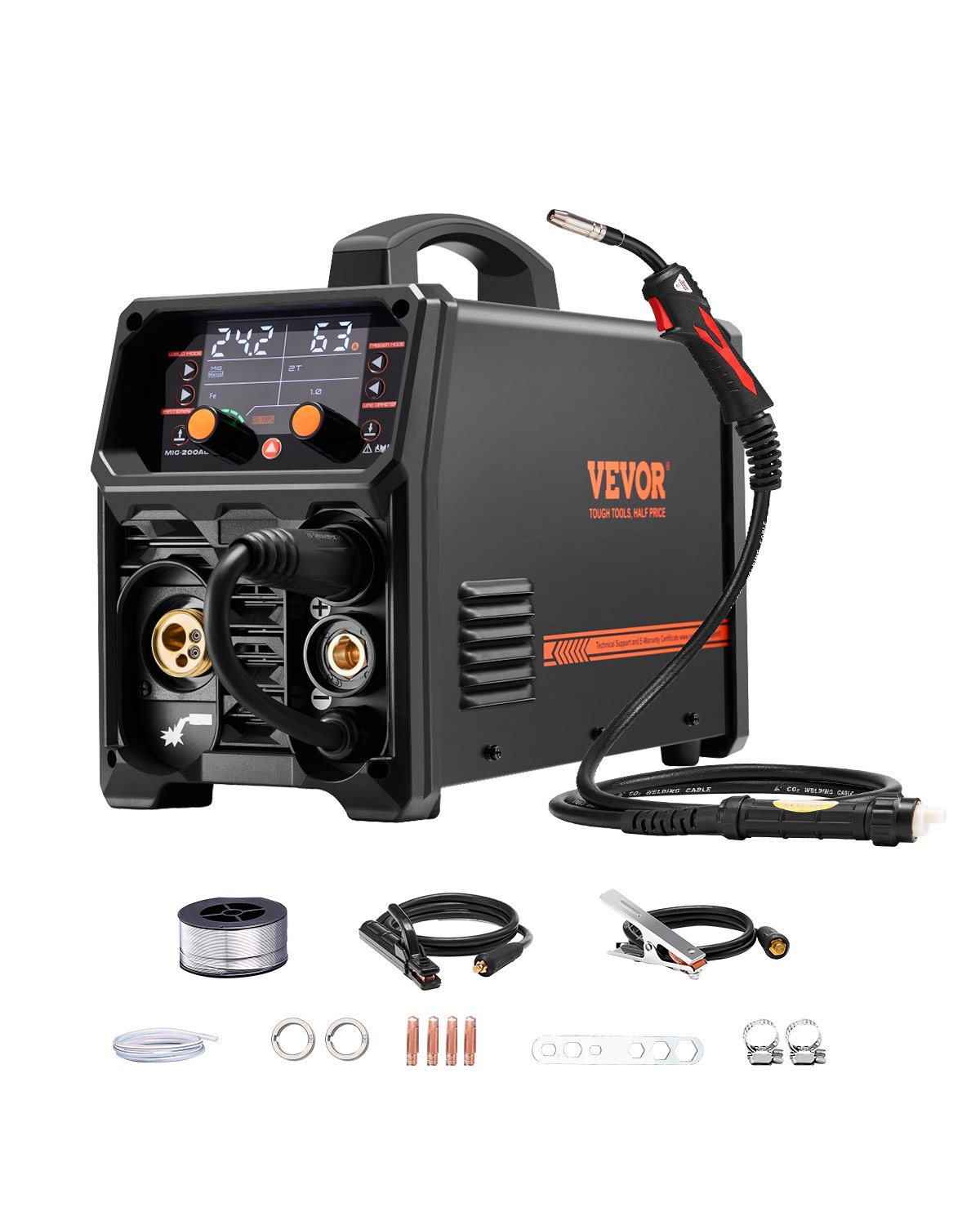

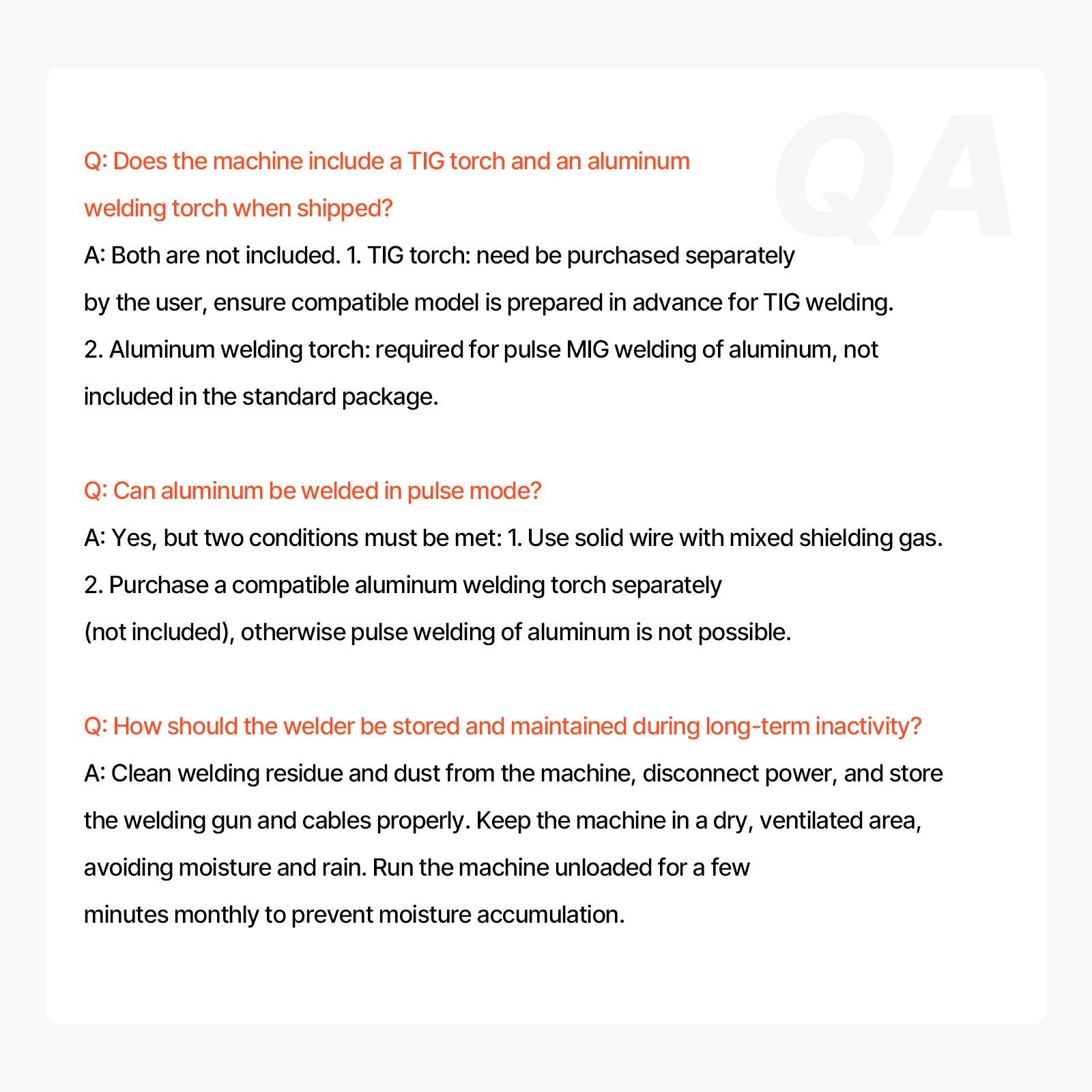

This machine does not come with 2 accessories which are needed for full functionality: the aluminum welding torch and the lift TIG torch. Both must be purchased separately before using their corresponding welding modes. The included accessories support gasless MIG, gas MIG, and MMA stick welding out of the box, but, like the other models, you will need to buy additional torches to access aluminum welding and lift TIG welding.

If the main reason for choosing this 5-in-1 over a simpler model is aluminum welding or TIG capability, then it is worth confirming before purchase that you have the right torch accessories. This means the machine delivers the full advertised functionality, rather than revealing a gap after unboxing. This one unit puts all five welding processes at your disposal with the correct torches fitted.

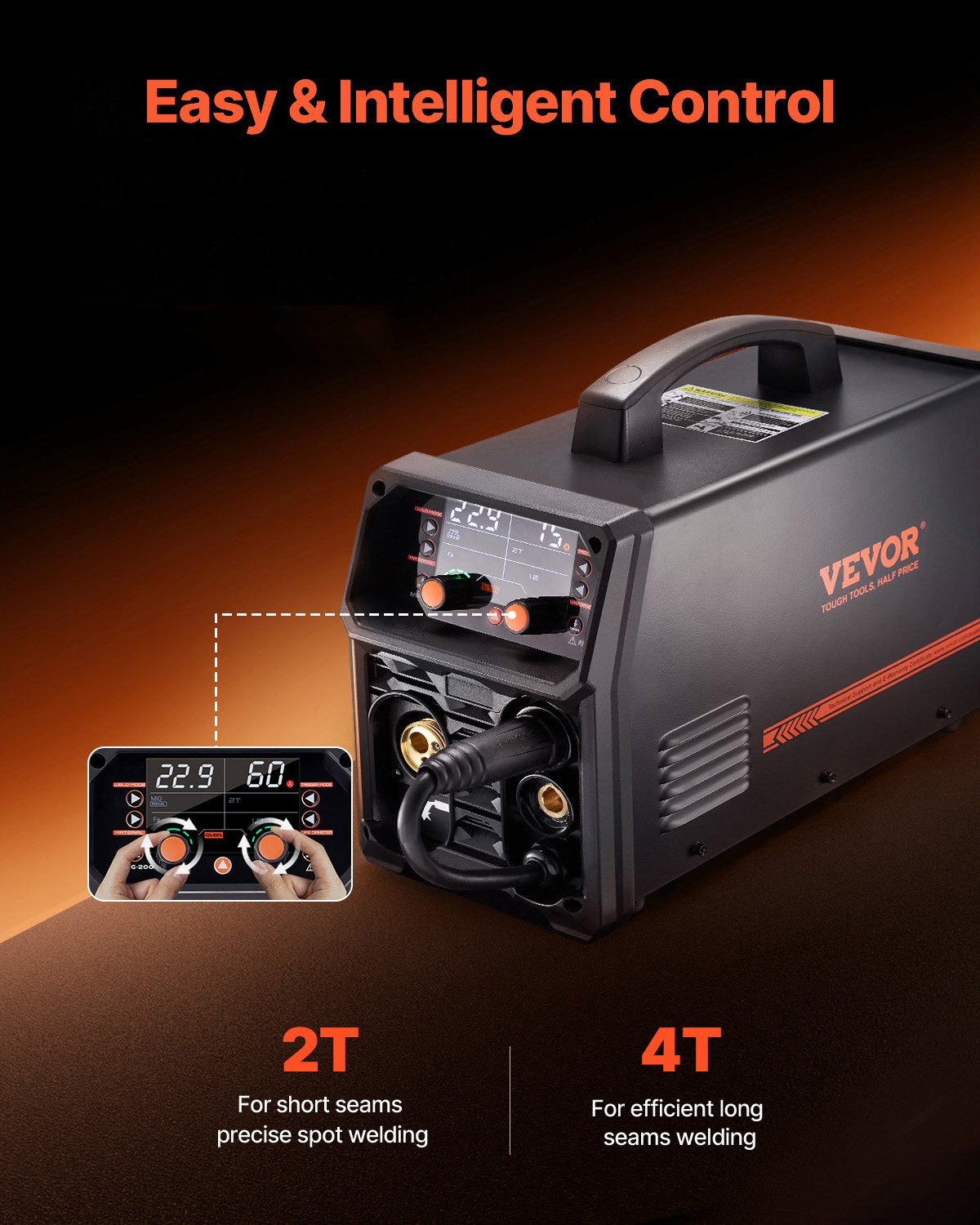

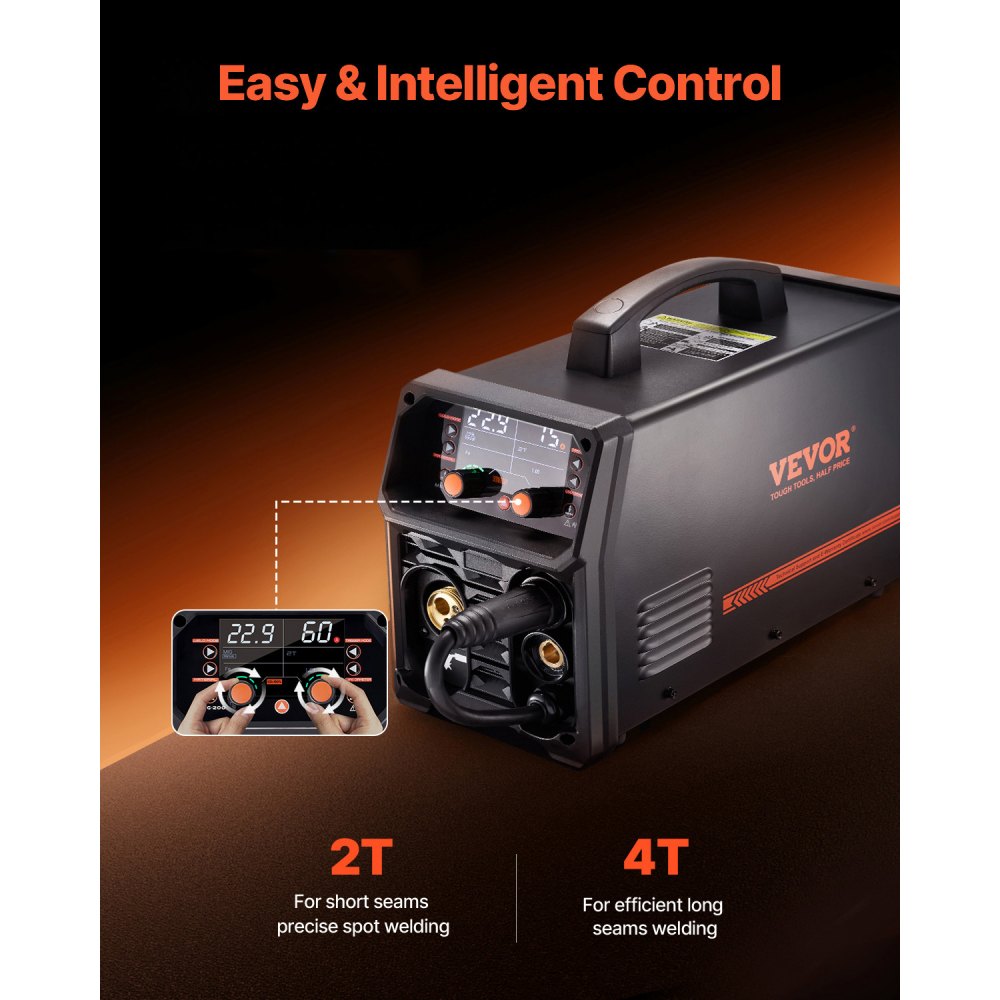

2T and 4T Welding Modes for Precise Spot Welds or Continuous Seams

2T mode requires the operator to hold the trigger for the full duration of the weld. This mode is perfect for precise spot welding on short seams, as the direct and continuous control of the trigger allows for careful positioning and stop timing. 4T mode locks welding on after a short trigger pull, giving the operator’s hand relief from continuous trigger pressure during longer continuous seams, reducing repeated trigger operation and hand fatigue over long welding passes.

The ability to alternate between these two modes allows the operator to tailor trigger operation to the specific task at hand, rather than adapting to a single fixed trigger response across all welding situations. This dual-mode setup gives the 5 in 1 welder versatility, from short precision work to longer production welding, all in the same job, paired with pulse MIG capability and increased wire compatibility.

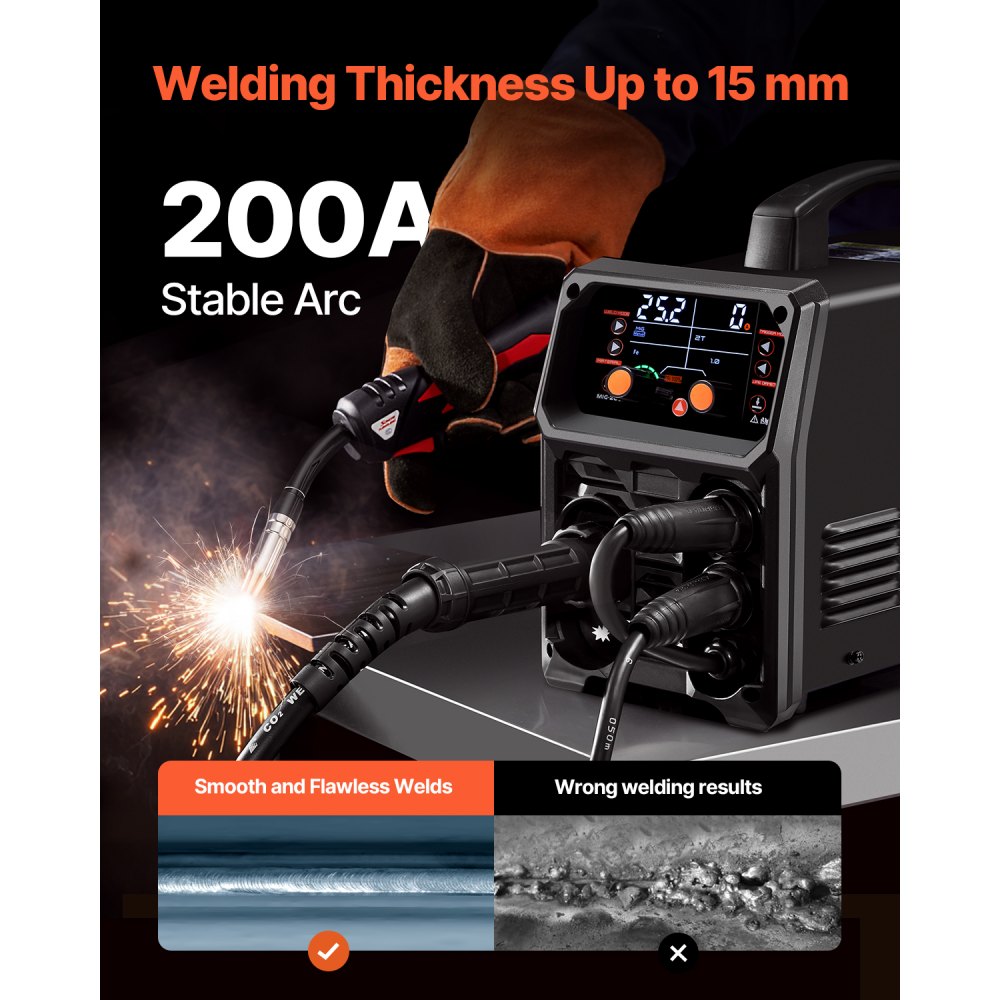

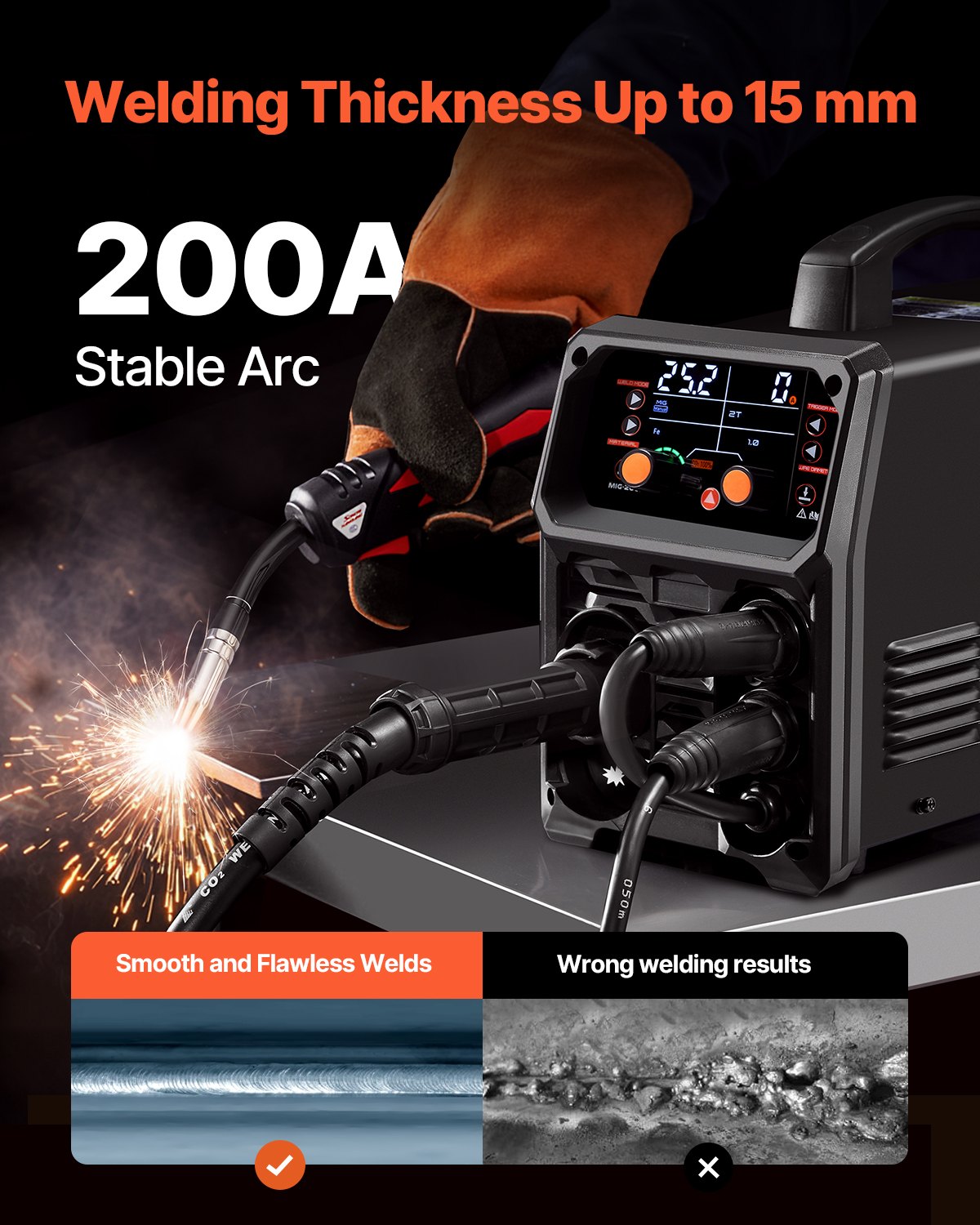

200A Output Supports Welding Thickness Up to 15mm Across Multiple Materials

This welder produces 200A of output current and can weld materials up to 0.59 in / 15mm thick for mild steel, aluminum, stainless steel, cast iron, sheet metal, square tubing, and metal cage fabrication. This 5 in 1 welder has real versatility on ferrous and non-ferrous material work, something you won’t find on the steel-only welders earlier in this product line because of that thickness ceiling, coupled with aluminum wire capability.

The input capacity is rated at 6.1 KVA; the power draw required to sustain 200A output on extended passes is especially important when running in pulse mode or working with thicker materials, where output demand is high throughout the weld. Operators should verify that electrical circuit capacity is adequate for this draw before attempting sustained heavy-duty sessions on any of the five available welding processes.

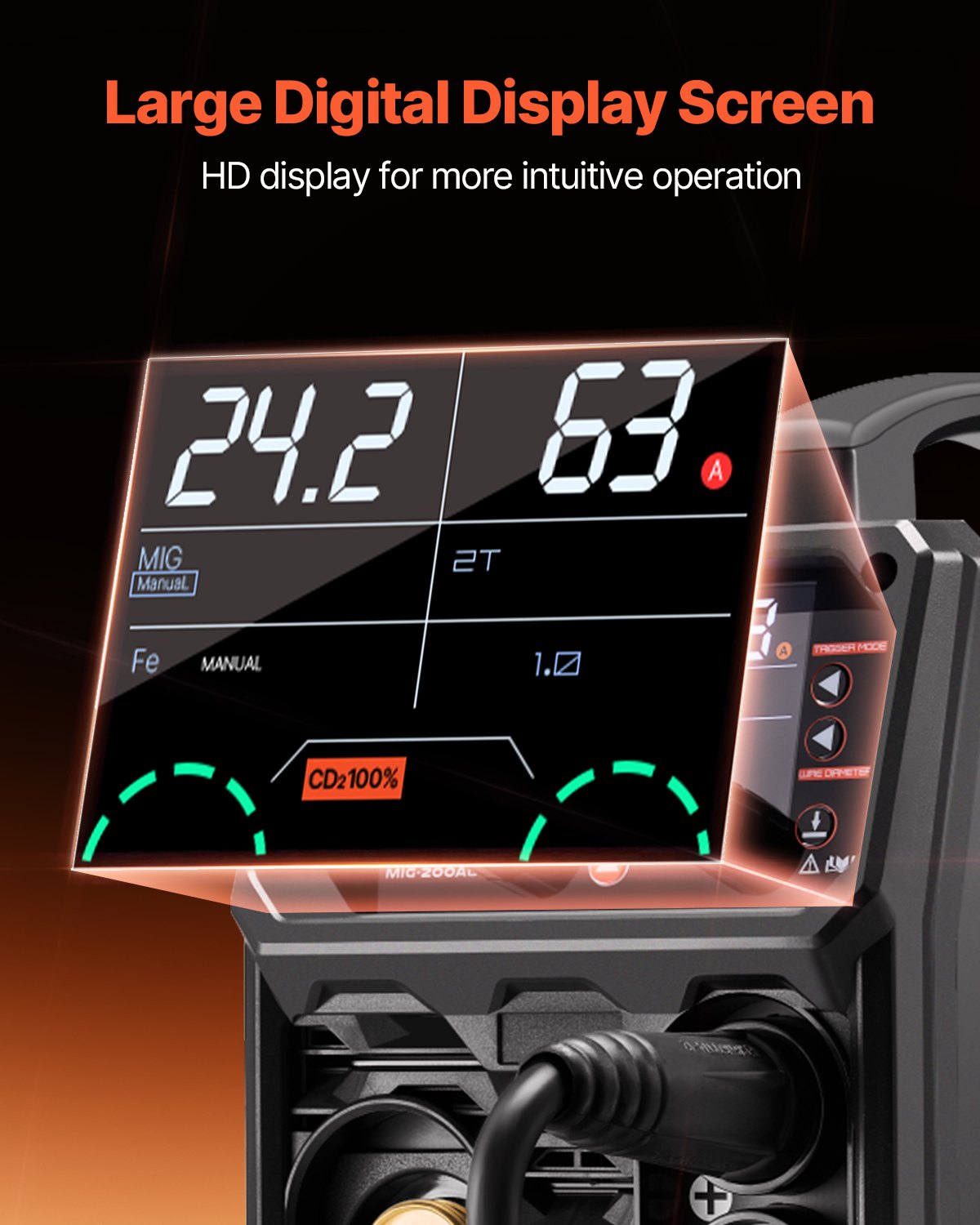

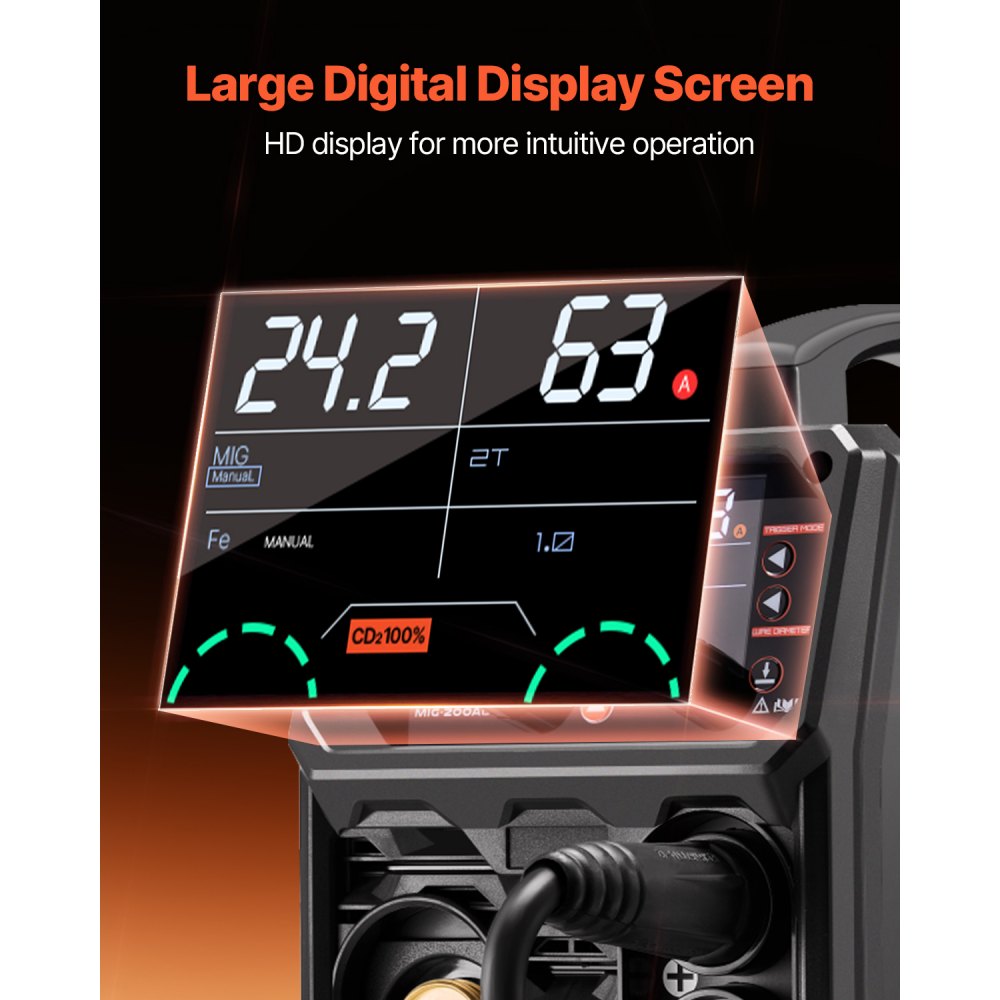

HD LCD Screen and Dual Protection Systems for Dependable Long-Term Use

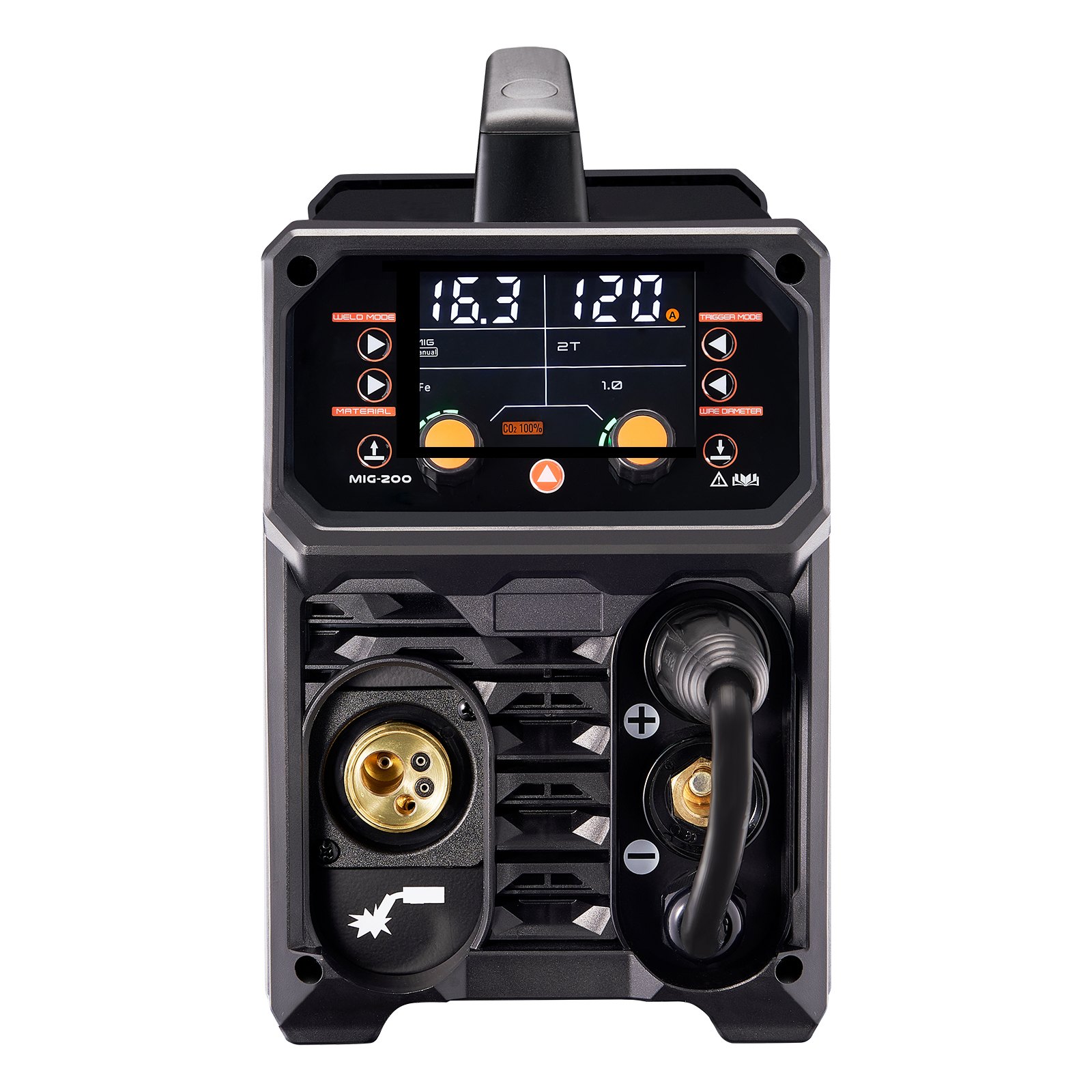

The HD LCD screen clearly displays current parameters in all five welding modes. Hence, the operator has instant confirmation of active settings when changing between pulse MIG, gas MIG, gasless MIG, stick, and lift TIG functions during a work session. That visual clarity reduces setup errors when switching between processes and wire types during mixed-material jobs.

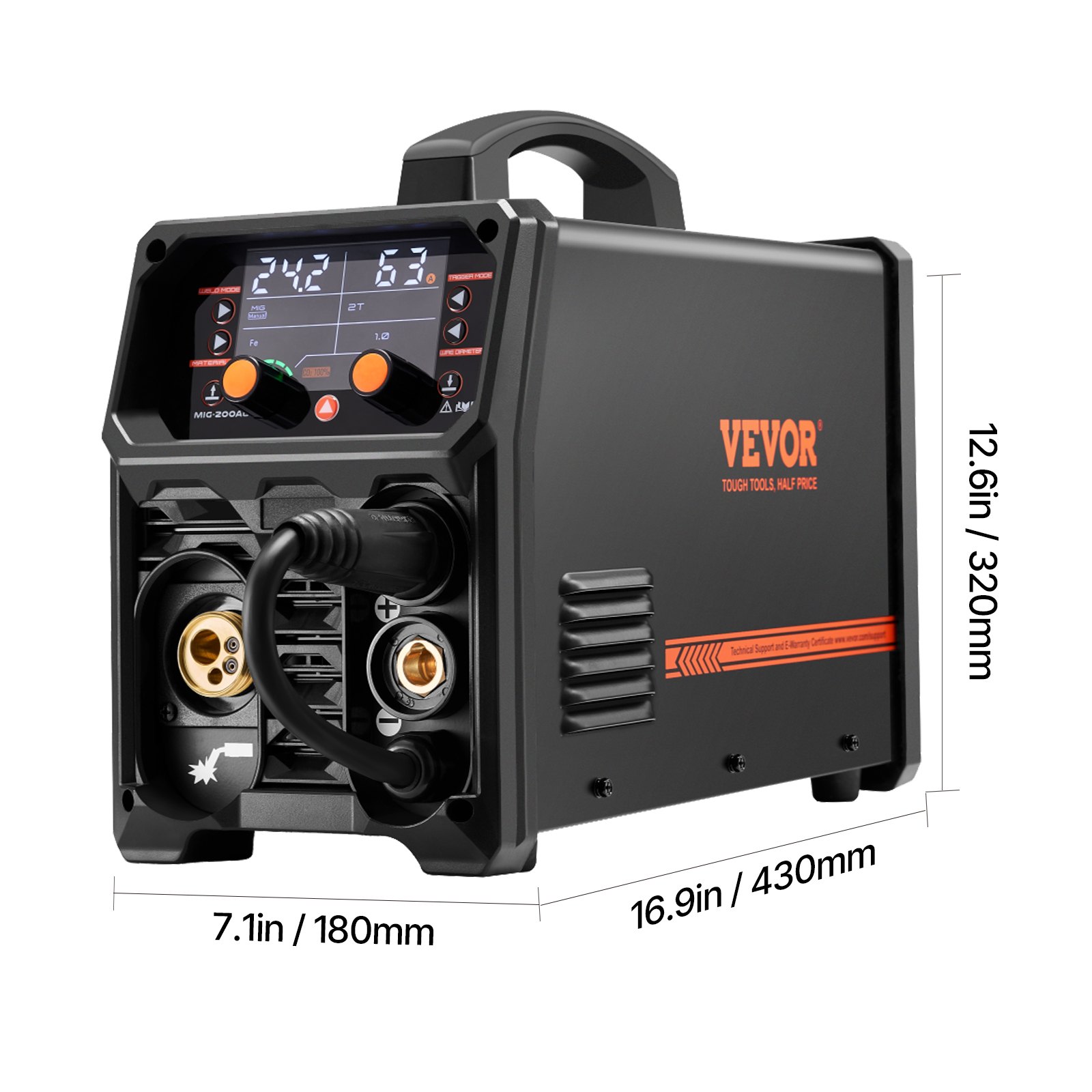

Overheat protection automatically shuts down operation if internal temperatures rise above safe levels, and overload protection disconnects power when the output current exceeds the rated capacity. It weighs 27.3 lbs (12.4 kg) and measures 16.9 × 7.1 × 12.6 in. This 5-in-1 welder carries the extra weight of supporting five processes and three wire types. Still, both protection systems ensure reliable operation across the demanding range of materials and welding modes this machine is built to handle.
