Features & Details
- 【DURABLE MATERIAL】- The diaphragm water pump is composed of high-strength cast iron with powder-coated that is waterproof and rust-proof for long-lasting uses.
- 【POWERFUL AUTOMATIC PRESSURE PUMP】- This pump is a fully automatic self-priming pump, the max flow of 2.63 GPM, inlet PSI set at Max 1.17Bar, power for the Pump: AC 12V.
- 【SAFETY PROTECTION】- The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection. Long-life pump with quiet operation and no leak.
- 【QUICK INSTALLATION】- The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
- 【FOR VARIOUS USES】- The misting booster pump can be applied in food, beverage filling, and liquid transfer. The kind of pump is known as a clean machine, road-works requirements, cooler system.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 41 reviews
Reviews 4.7
All reviews are from verified purchases
Rafael
Reviewed on Feb 15,2026
I haven't assembled the good construction material on my 4x4 yet, but I have already connected it and it works well. I hope it lasts for many years. The idea is to connect it to have water pressure from a tank that I will install.
See Less
See More
Sandokan
Reviewed on Jan 01,2026
Works smoothly. Compared to other nautical pumps is much better and cheaper.
See Less
See More
VEVOR Customer
Reviewed on Dec 15,2025
So far so good. Seems like a quality product. Tip: You may need to prime the pump to get it working. (No mention of this in the manual) What worked for me was opening the low point cold water lines drain and the water draining out of the water lines created a vacumn on the the pump helping it to suck up water from the water tank.
See Less
See More
George
Reviewed on Dec 05,2025
Excellent service. Things arrived quickly. I'll buy again.
See Less
See More
See all 41 reviews
About this item
Product specification
- Model
- FL-30
- Voltage
- 12V, 2.2A
- Port Size
- 3/4”(19 mm) Quick attach
- Flow
- 10 L/min (2.63 GPM)
- Insert size
- 1/2” hose barb, thread
- Outlet size
- 1/2” hose barb, thread
- Type
- 3 Chamber Diaphragm
- Self-priming
- 6 feet(within 2 m)
- Inlet PSI
- 17 PSI [1.17Bar] Max
- Run Dry
- Yes
- Net weight
- 5.3 lbs / 2.4 kg
Description

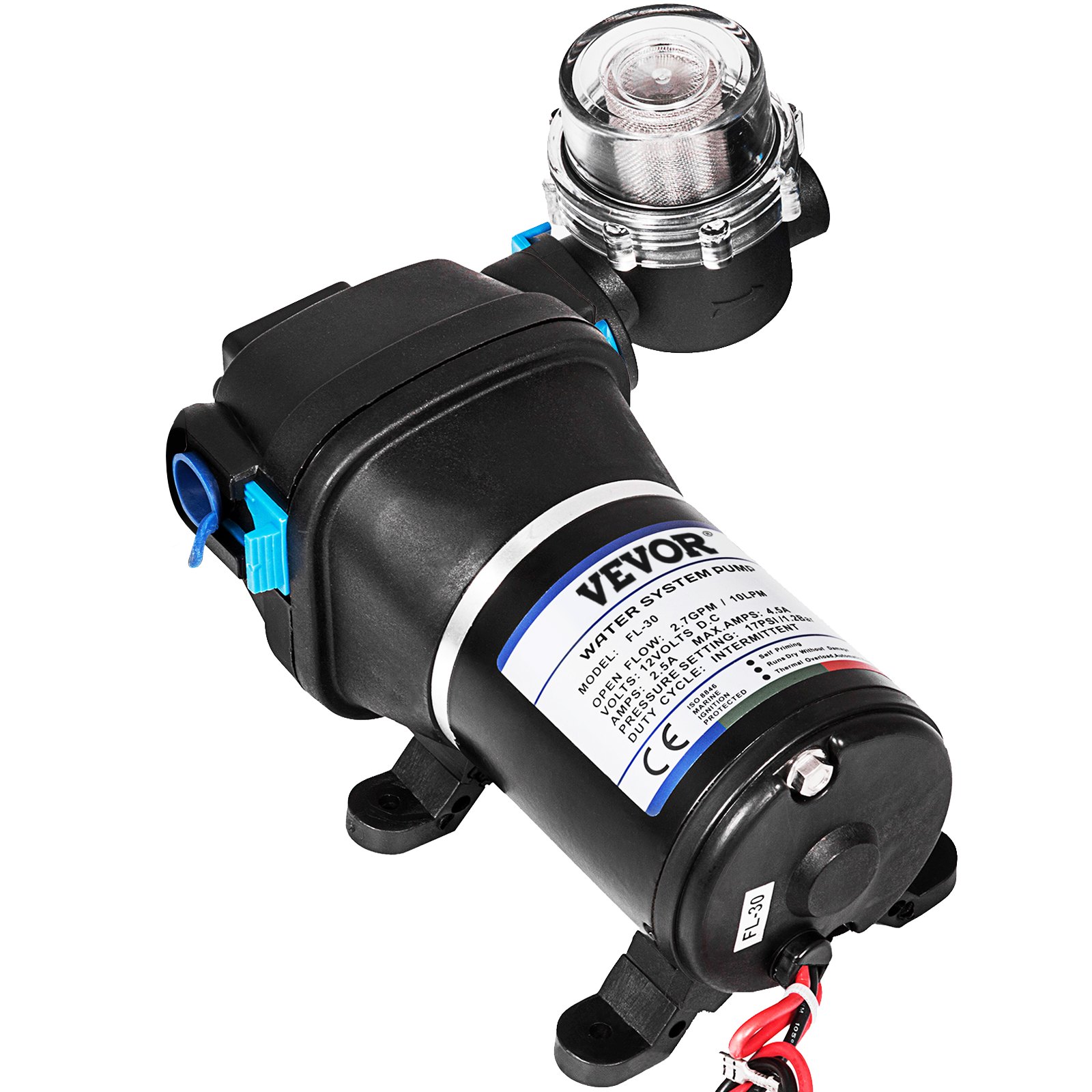

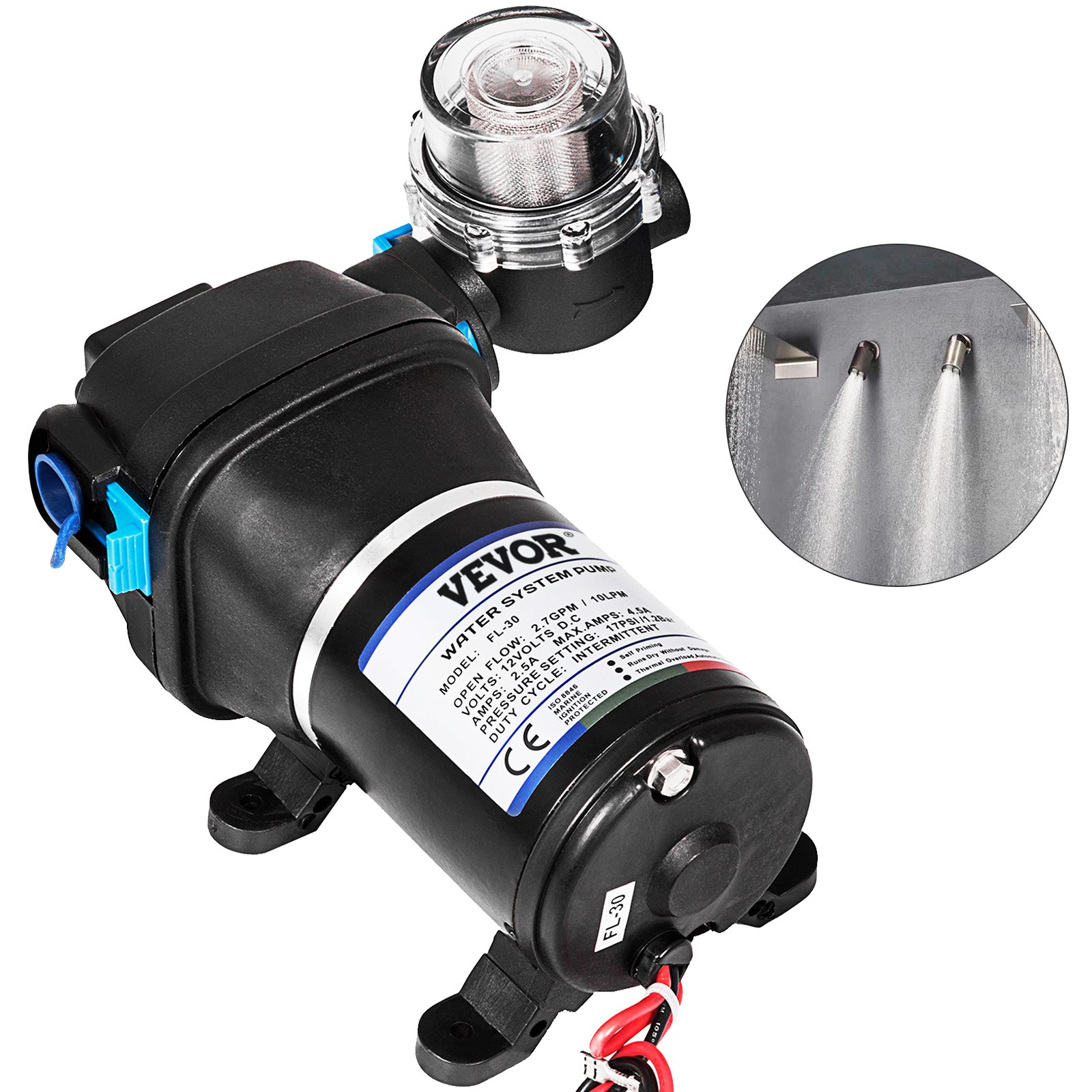

Diaphragm Water Pump
The diaphragm pump is specially made for RV/MARINE Yachts and any other pressurization system. All the pumps have been strictly tested and inspected by the QC department to guarantee proper operation. When installed correctly, marine duty freshwater Pumps provide years of quiet operation.
- Durable Material
- Powerful Automatic Pressure Pump
- Safety Protection
- Quick Installation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

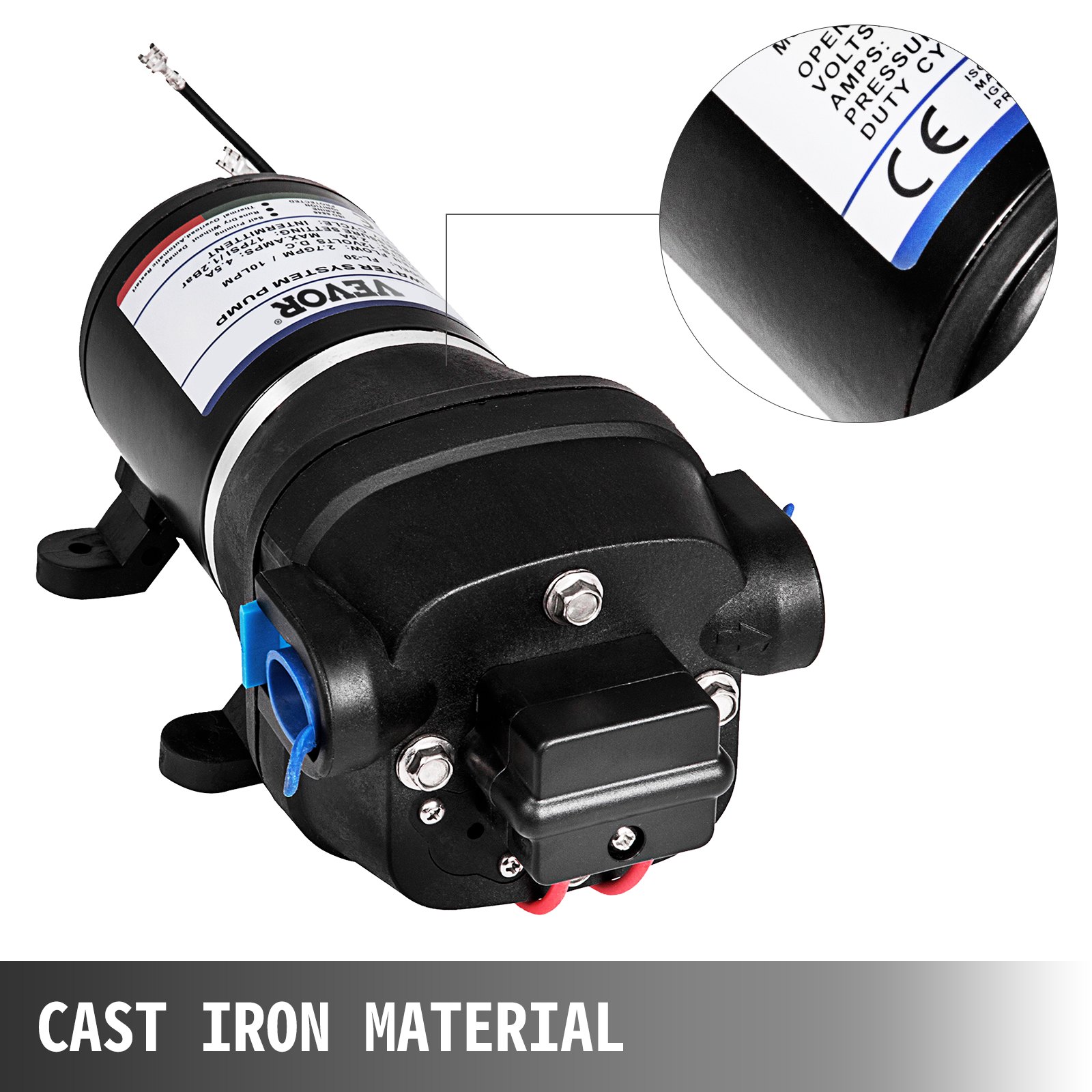

Cast Iron Material
The Sprayer Diaphragm Pump is made of high-strength cast iron with powder-coated that is resistant to chemical corrosion.

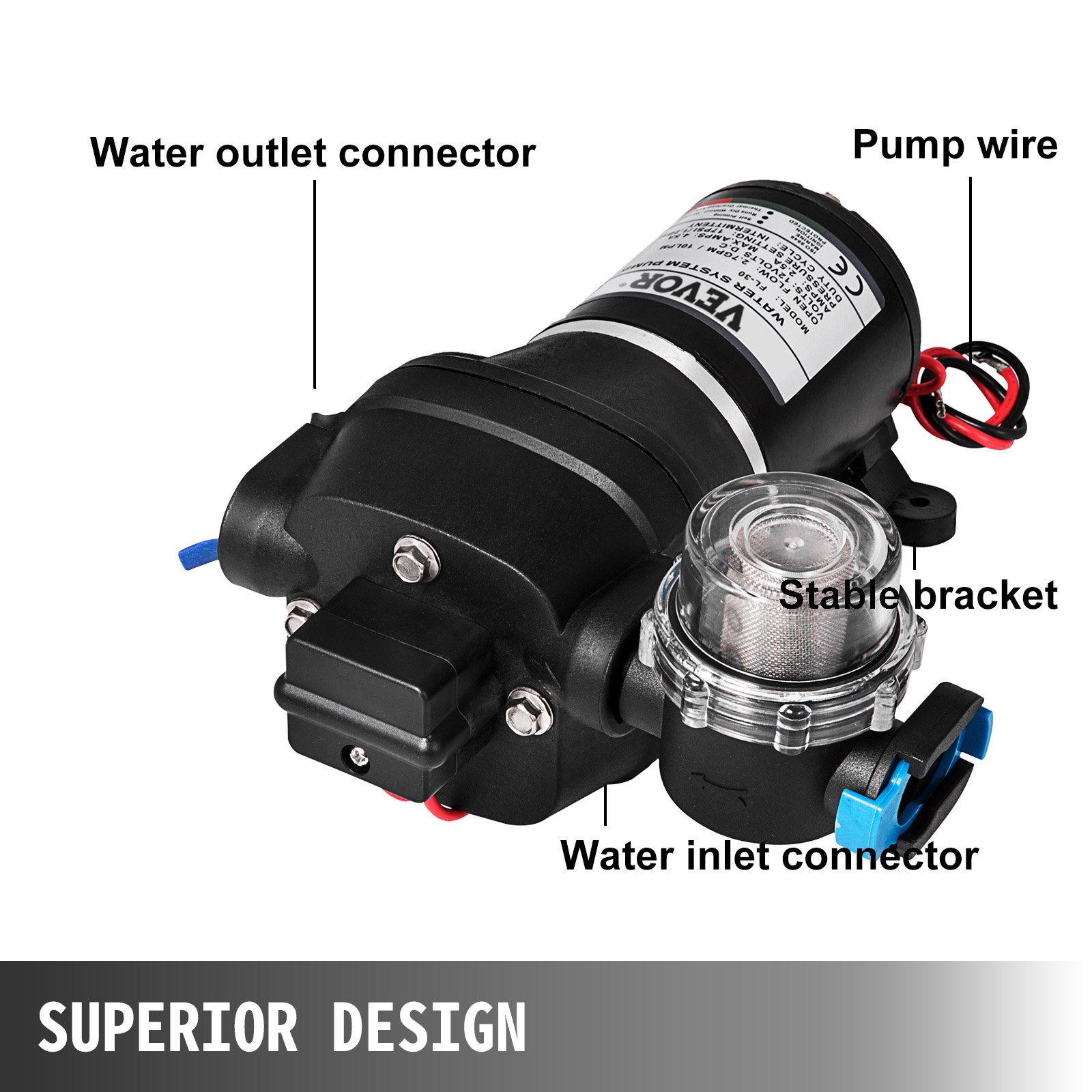

Superior Design
The diaphragm pump is specially made for the pressurization system. Automatic self-priming pump with the max flow of 2.63 GPM, inlet PSI set at Max 1.17Bar.

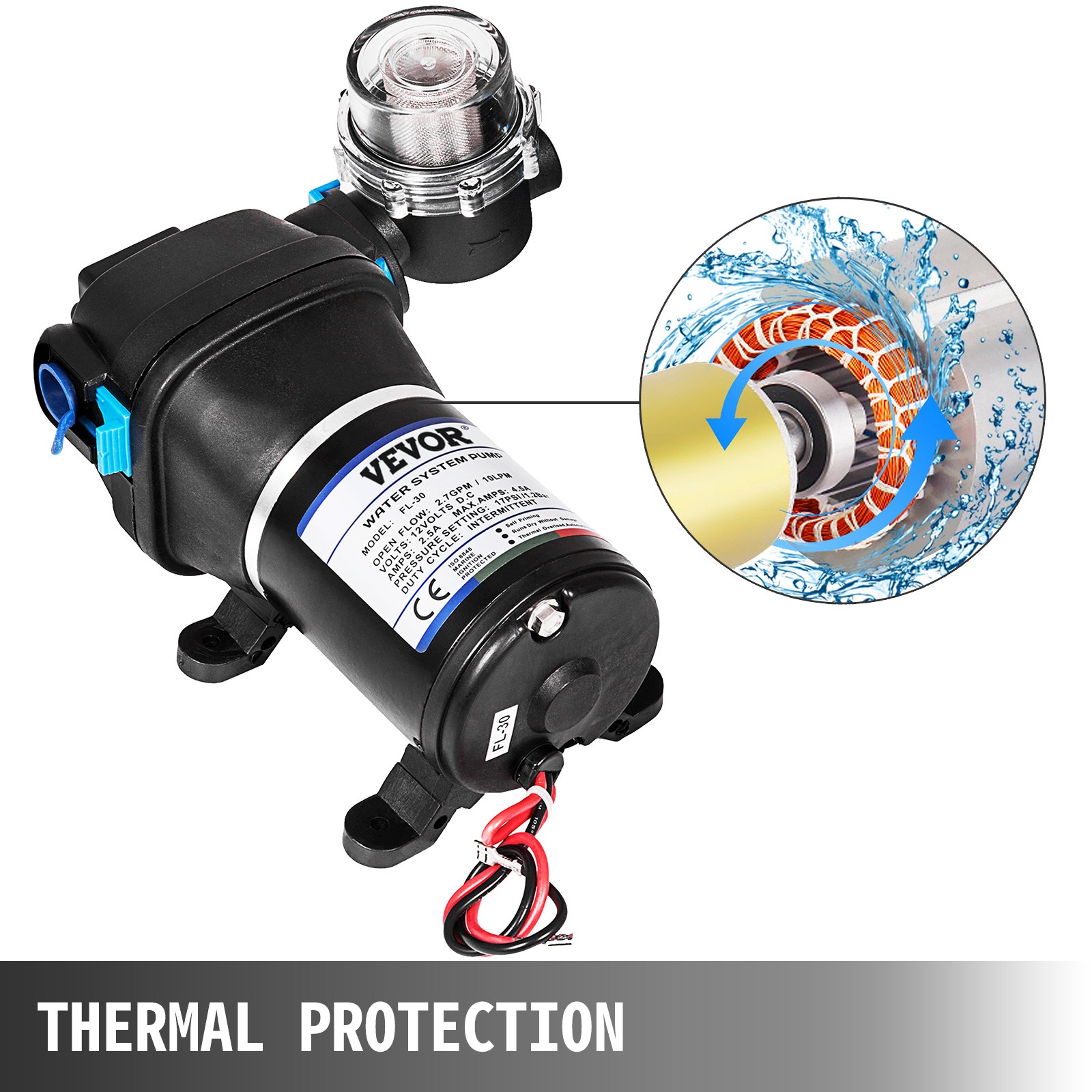

Thermal Protection
The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection.

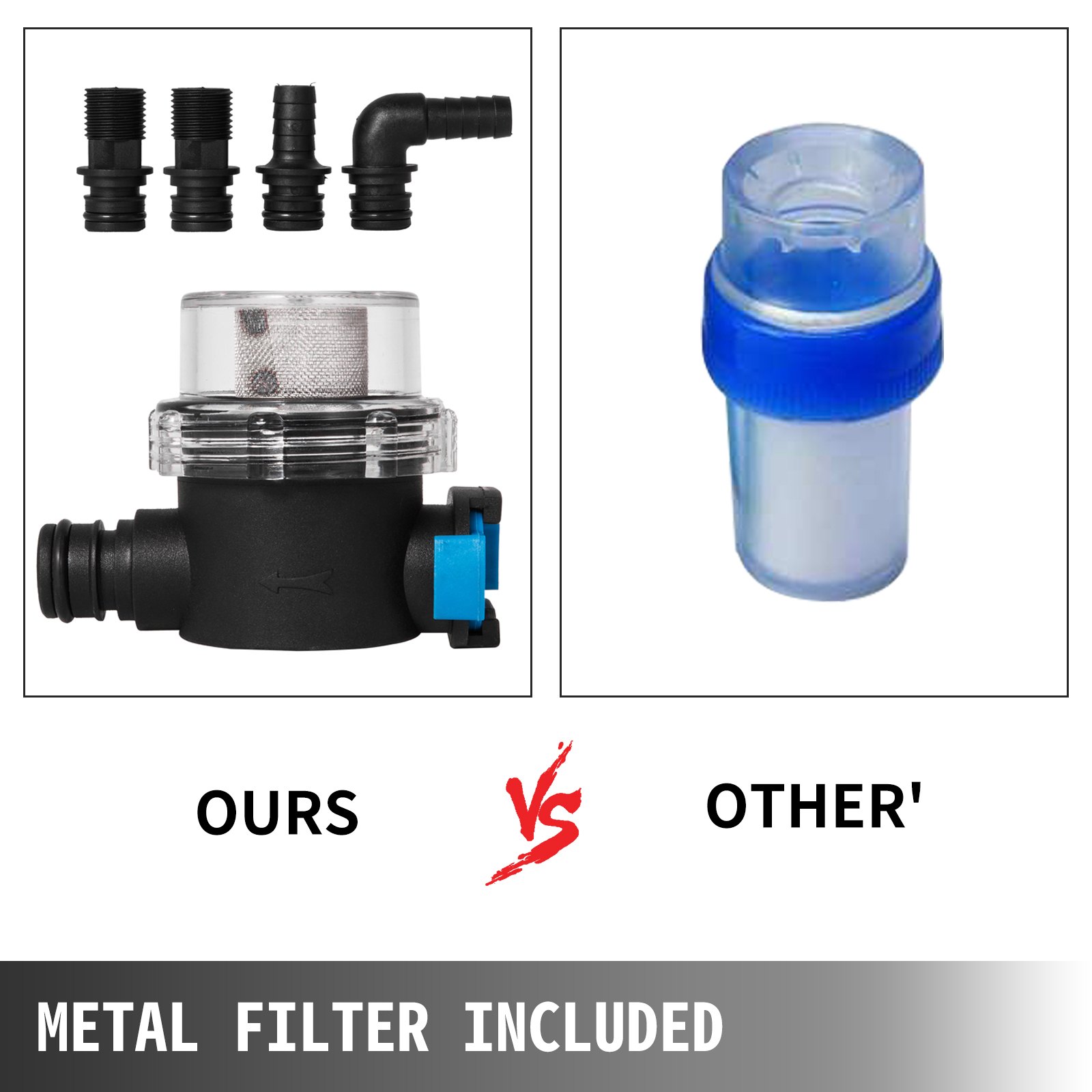

Metal Filter Included
Metal filters can be connected to the diaphragm water pump for stable performance.

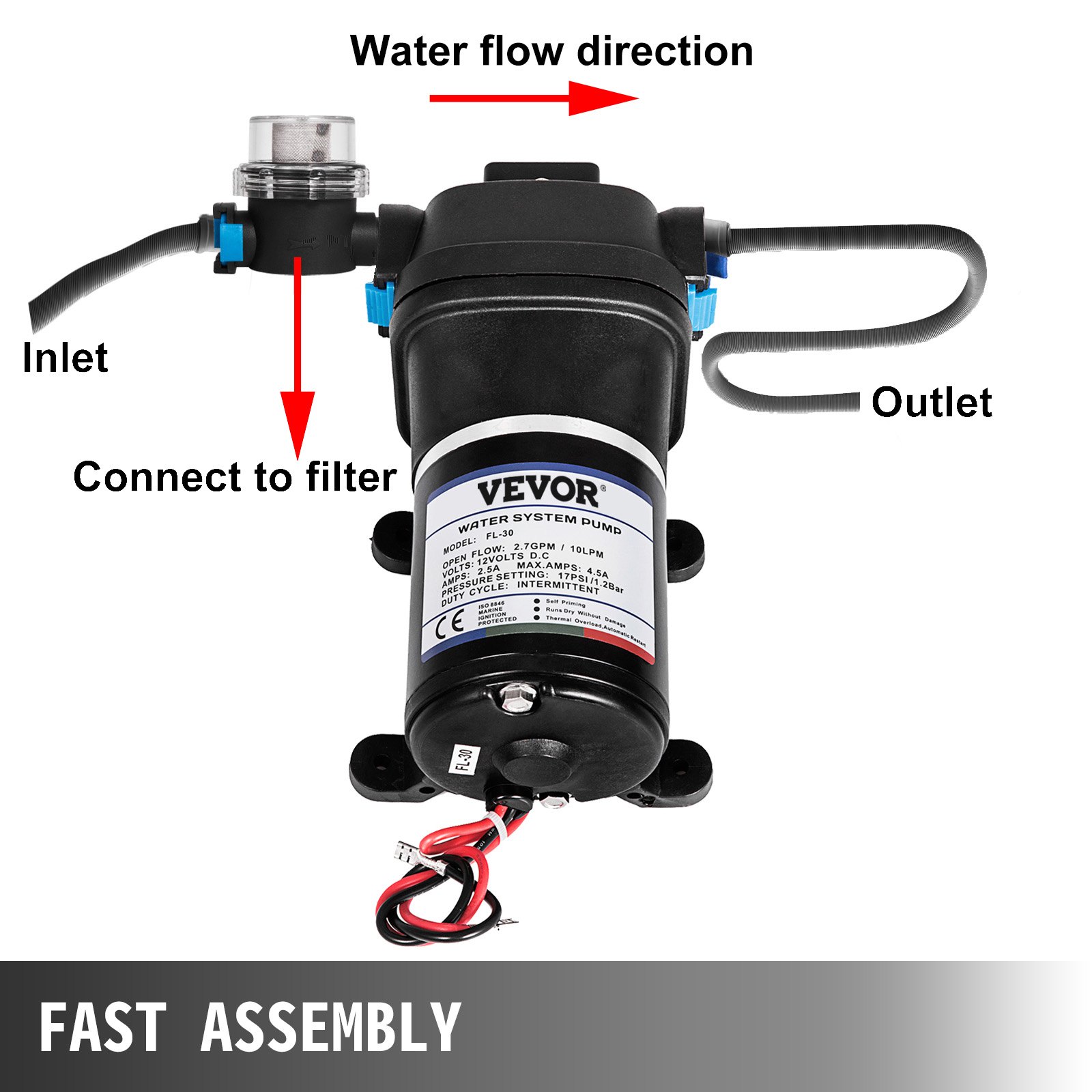

Fast Assembly
The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
Wide Application
Ideal for automotive marine/RV/caravans, agricultural spraying, general industrial, sprayer fixtures.

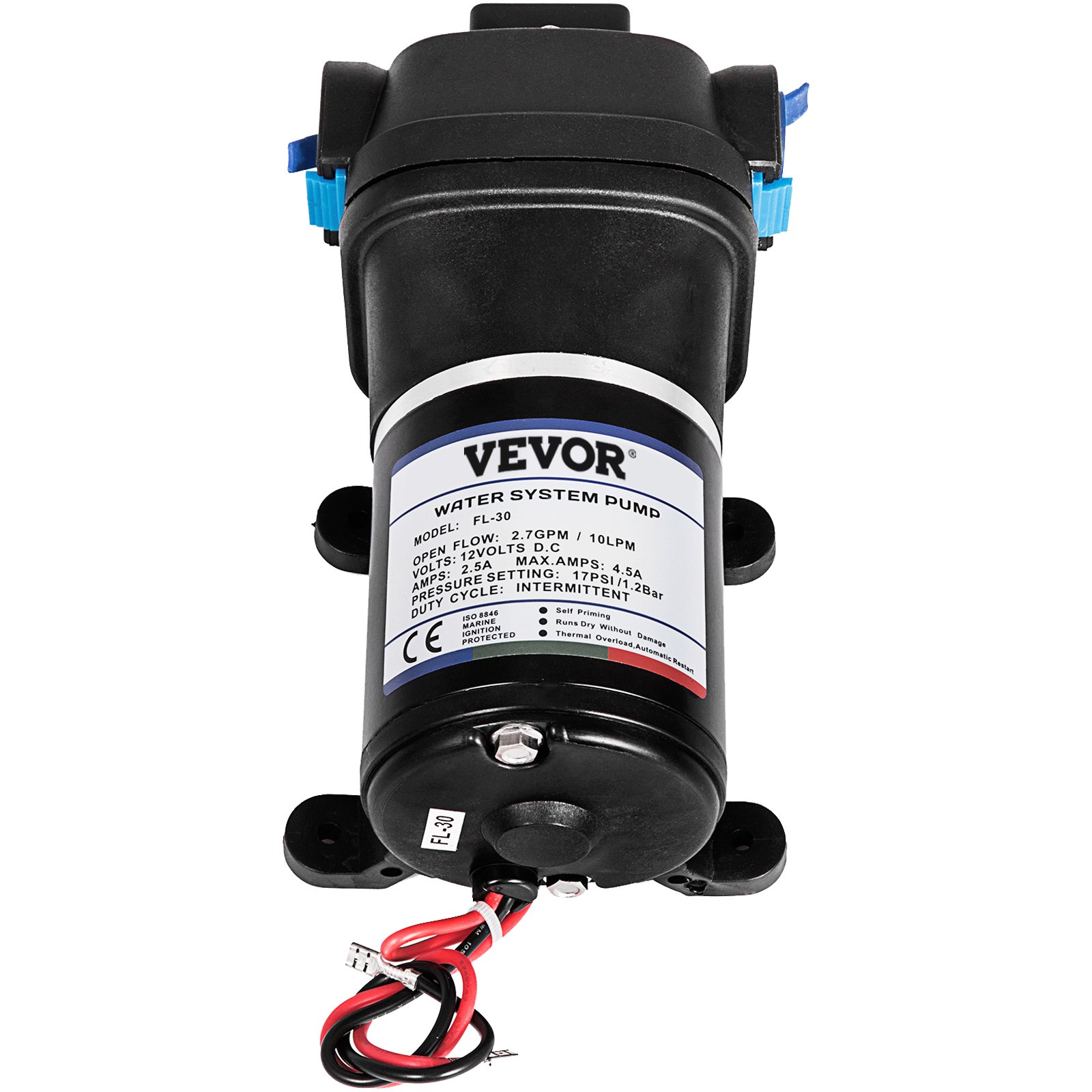

Specifications
- Model: FL-30
- Voltage: 12V, 2.2A
- Port Size:3/4”(19 mm) Quick attach
- Flow: 10 L/min (2.63 GPM)
- Insert size: 1/2” hose barb, thread
- Outlet size: 1/2” hose barb, thread
- Type: 3 Chamber Diaphragm
- Self-priming: 6 feet(within 2 m)
- Inlet PSI: 17 PSI [1.17Bar] Max
- Run Dry: Yes
- Net weight: 5.3 lbs / 2.4 kg

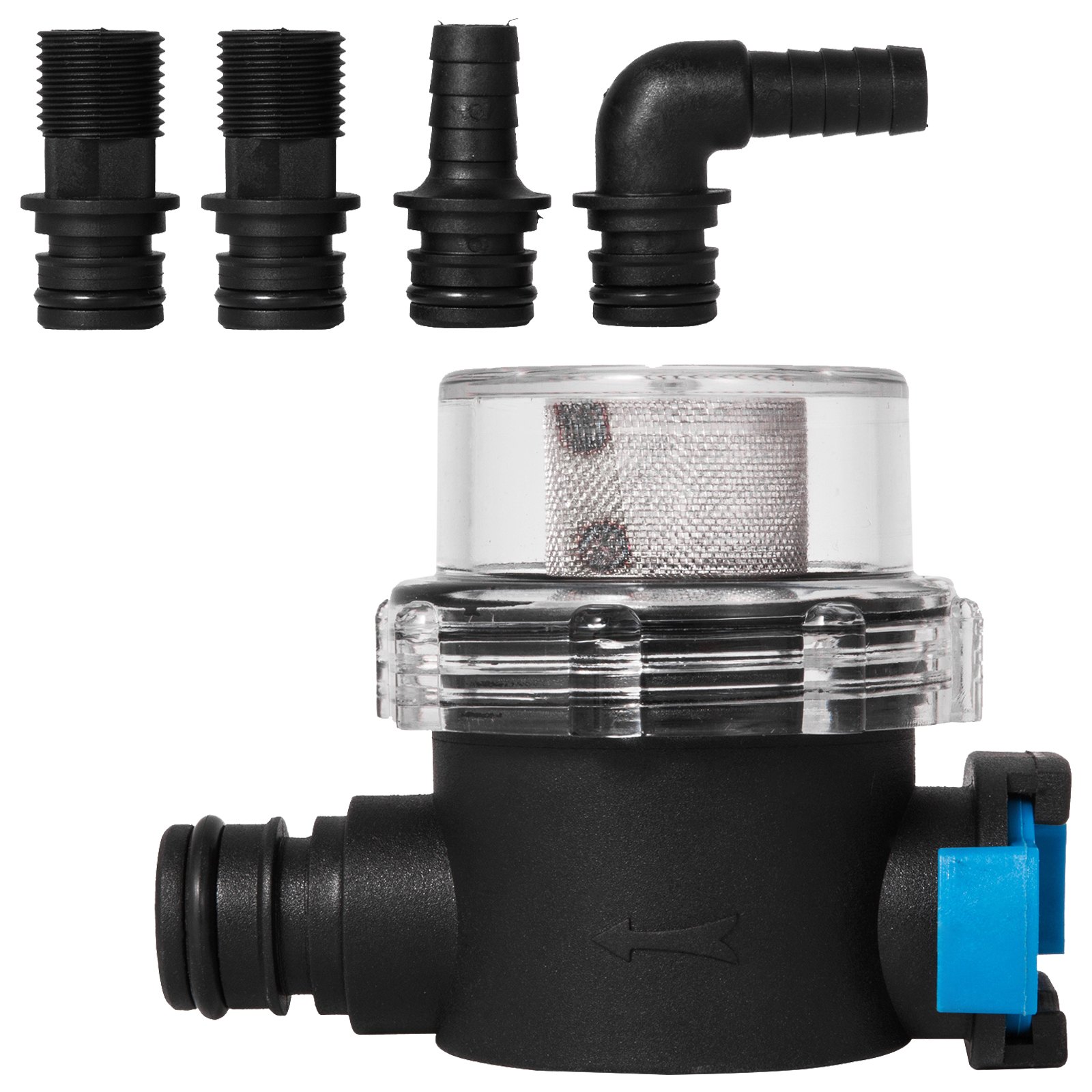

Package Content
- 1 x Diaphragm Water Pump
- 1 x Filter
- 3 x Fitting
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Diaphragm Water Pump
The diaphragm pump is specially made for RV/MARINE Yachts and any other pressurization system. All the pumps have been strictly tested and inspected by the QC department to guarantee proper operation. When installed correctly, marine duty freshwater Pumps provide years of quiet operation.
- Durable Material
- Powerful Automatic Pressure Pump
- Safety Protection
- Quick Installation
Cast Iron Material
The Sprayer Diaphragm Pump is made of high-strength cast iron with powder-coated that is resistant to chemical corrosion.
Superior Design
The diaphragm pump is specially made for the pressurization system. Automatic self-priming pump with the max flow of 2.63 GPM, inlet PSI set at Max 1.17Bar.
Thermal Protection
The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection.
Metal Filter Included
Metal filters can be connected to the diaphragm water pump for stable performance.
Fast Assembly
The diaphragm water pump features small size, lightweight and stable performance for instant assembly.
Wide Application
Ideal for automotive marine/RV/caravans, agricultural spraying, general industrial, sprayer fixtures.
Package Content
- 1 x Diaphragm Water Pump
- 1 x Filter
- 3 x Fitting
Specifications
- Model: FL-30
- Voltage: 12V, 2.2A
- Port Size:3/4”(19 mm) Quick attach
- Flow: 10 L/min (2.63 GPM)
- Insert size: 1/2” hose barb, thread
- Outlet size: 1/2” hose barb, thread
- Type: 3 Chamber Diaphragm
- Self-priming: 6 feet(within 2 m)
- Inlet PSI: 17 PSI [1.17Bar] Max
- Run Dry: Yes
- Net weight: 5.3 lbs / 2.4 kg
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (7)
Hi what is maximal water temperature to use in it.
105℃.
By vevor
Helpful
(
1
)
Is this pump suitable for boosting mains water to a combination gas boiler?
Also, does it turn on automatically when the water starts to flow?
Yes, this is suitable. When the tap is turned on, it will start automatically. Automatic stop when closed.
By vevor
Helpful
(
1
)
Why does this model only use 2.2A when the other models use around 10A?
It is with a rated current of 4.2A, the instantaneous starting current will reach 2 times.
By vevor
Helpful
(
0
)
Does the pump have built in bypass valve (to handle overpressure)?
It has built in bypass valve (to handle overpressure).
By vevor
Helpful
(
0
)
is it food grade? What range of pH can it handle?
It is food grade and cannot pump corrosive liquids.
By vevor
Helpful
(
0
)
FL-30GMB12V000001V0
VEVOR Diaphragm Water Pressure Pump FL-30 Water Pressure Pump 12V Diaphragm Water Pump High Pressure 1.17 Bar Self Priming Water Pump
