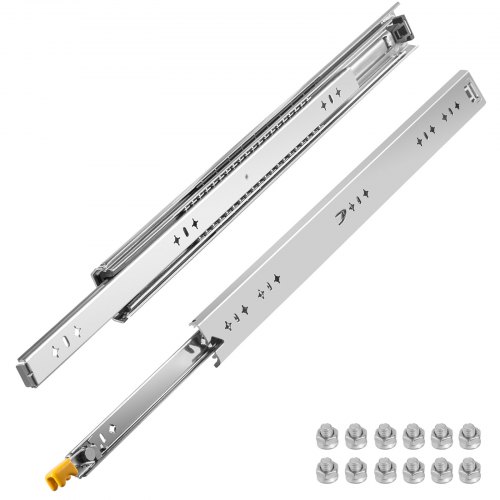

VEVOR heavy duty drawer slides with mounting screws. VEVOR heavy duty drawer slides for kitchen, room furniture, and tool shed. VEVOR heavy duty drawer slides with lock, smooth steel ball-bearing action, low noise nylon buffer. VEVOR heavy duty drawer slides with 250 lbs load capacity, non-deformation, rust-proof, scratch-proof. VEVOR heavy duty drawer slides installation guide for different drawer and cabinet sizes. VEVOR heavy duty drawer slides installation steps with components and illustrations. VEVOR heavy duty drawer slides with 48in extension and 0.75in thickness specs.
CTDG250B24YCWS001V0

VEVOR Heavy Duty Drawer Slides 2PCS Drawer Slides 24" Locking Drawer Slides 250LBS Capacity Heavy Duty Slides Three Section Full Extension Drawer Slide Cold-rolled Steel Industrial Drawer Slides

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Three-Section Drawer Slides: You can get 1 pair of locking drawer slides: 24"/ 61 cm in length, 2.1"/ 5.3 cm in width, and 0.75"/ 1.9 cm in thickness. Our 3-fold full extension design allows the entire drawer to be extended fully, making it easy to reach. A great helper to maximally utilize your drawer's space(fully closed length: 24", fully extended length: 48"/ 121.9 cm).
  • Sturdy Steel & 250 lbs Bearing: Constructed with 0.08"/ 2 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 250 lbs/ 115 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The electroplated surface keeps the extension drawer slides rust-proof and abrasion-proof, ensuring lifetime use. The slides can be applied to goods shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.
  • Softly & Quietly Slides with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Compared to drawer slides without locks, our drawer slides with locks provide more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.
  • Choose the Right Size: How can you determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. 0.76"/ 19.2 mm space between drawer and cabinet wall is required (left 0.76", right 0.76"). It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should be less than or equal to drawer depth.
  • Installation & Usage: Full extension drawer slides are compatible with most major drawer and cabinet types. The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as room furniture, kitchen, tool shed and commercial equipment. Installation is effortless, so you can use the drawer right away.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Heavy Duty Drawer Slides 2PCS Drawer Slides 24" Locking Drawer Slides 250LBS Capacity Heavy Duty Slides Three Section Full Extension Drawer Slide Cold-rolled Steel Industrial Drawer Slides
VEVOR heavy duty drawer slides, 24in, 250 lbs bearing, lock device, cold-rolled steel.
VEVOR heavy duty drawer slides with mounting hardware, featuring durable construction.
24 in Locking Slide Drawers
Smooth Slide & Low Noise & Durable
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. Install your drawers at room furniture, kitchen, tool shed and commercial equipment, and get ready to slide, lock, and close. Stability and durability are achieved for a high-quality performance you can trust.
  • Three-Section Drawer Slides
  • Sturdy Steel & 250 lbs Bearing
  • Softly & Quietly Slides with Lock
  • Choose the Right Size
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR heavy duty drawer slides with lock feature, shown with labeled components and a push mechanism.
Lock Feature Included
Inner slide, middle slide, and outer slide are all included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
VEVOR heavy duty drawer slides with dual-row ball-bearing and nylon buffer design.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
VEVOR heavy duty drawer slides, cold-rolled steel, 2mm thickness, 250 lbs capacity.
Cold Rolled Steel
High-grade cold-rolled steel with an electroplated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
diagram showing correct measurements for VEVOR heavy duty drawer slides installation.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.
effortless installation steps for VEVOR heavy duty drawer slides.
Easy & Quick to Assemble
During installation, it's better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
VEVOR heavy duty drawer slides in various drawer applications for kitchen, home, and tools.
Wide & Professional Uses
The heavy drawer slides are mainly used for industrial factories and homes. It is perfect for room furniture, industrial drawers, modified car drawers, office cabinets, etc.
VEVOR heavy duty drawer slides, dimensions with 48in full extension and 24in pull back.
Specifications
  • Color: Silver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 250 lbs/ 115 kg
  • Fully Pull-Out Length: 48"/ 121.9 cm
  • Fold Product Size: 24" x 2.1" x 0.75"/ 61 x 5.3 x 1.9 cm
  • Inner Size (L x W): 24" x 1"/ 61 x 2.6 cm
  • Middle Size (L x W): 24" x 1.6"/ 61 x 4 cm
  • Outer Size (L x W): 24" x 2.1"/ 61 x 5.3 cm
  • Slide Lock: Support
VEVOR heavy duty drawer slides with 12 mounting bolts in a set.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR heavy duty drawer slides, 24in, 250 lbs bearing, lock device, cold-rolled steel.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR heavy duty drawer slides with mounting hardware, featuring durable construction.
24 in Locking Slide Drawers
Smooth Slide & Low Noise & Durable
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. Install your drawers at room furniture, kitchen, tool shed and commercial equipment, and get ready to slide, lock, and close. Stability and durability are achieved for a high-quality performance you can trust.
  • Three-Section Drawer Slides
  • Sturdy Steel & 250 lbs Bearing
  • Softly & Quietly Slides with Lock
  • Choose the Right Size
VEVOR heavy duty drawer slides with lock feature, shown with labeled components and a push mechanism.
Lock Feature Included
Inner slide, middle slide, and outer slide are all included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
VEVOR heavy duty drawer slides with dual-row ball-bearing and nylon buffer design.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
VEVOR heavy duty drawer slides, cold-rolled steel, 2mm thickness, 250 lbs capacity.
Cold Rolled Steel
High-grade cold-rolled steel with an electroplated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
diagram showing correct measurements for VEVOR heavy duty drawer slides installation.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.
effortless installation steps for VEVOR heavy duty drawer slides.
Easy & Quick to Assemble
During installation, it's better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
VEVOR heavy duty drawer slides in various drawer applications for kitchen, home, and tools.
Wide & Professional Uses
The heavy drawer slides are mainly used for industrial factories and homes. It is perfect for room furniture, industrial drawers, modified car drawers, office cabinets, etc.
VEVOR heavy duty drawer slides with 12 mounting bolts in a set.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR heavy duty drawer slides, dimensions with 48in full extension and 24in pull back.
Specifications
  • Color: Silver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 250 lbs/ 115 kg
  • Fully Pull-Out Length: 48"/ 121.9 cm
  • Fold Product Size: 24" x 2.1" x 0.75"/ 61 x 5.3 x 1.9 cm
  • Inner Size (L x W): 24" x 1"/ 61 x 2.6 cm
  • Middle Size (L x W): 24" x 1.6"/ 61 x 4 cm
  • Outer Size (L x W): 24" x 2.1"/ 61 x 5.3 cm
  • Slide Lock: Support

Heavy Duty Drawer Slides for Robust Applications

This is why we recommend using the VEVOR heavy-duty drawer slides for demanding tasks. Made from cold-rolled steel, these drawer slides offer exceptional strength and durability. Each slide can support up to 250 lbs, making them ideal for heavy loads regardless of industrial use or custom projects. These slides provide reliable performance. The strong construction ensures they can handle rough handling and bumpy roads without failing. They are perfect for RVs, trucks, and other mobile applications. You get peace of mind with any heavy-duty application.


Locking Mechanism for Enhanced Security

It is especially useful for mobile applications where movement can cause items to shift. Simply press down on the locking mechanism to release and slide out the drawer. The lock engages automatically when the storage drawer becomes full-length or closed. This added security is perfect for protecting your tools or equipment during transport. The easy-to-use lock ensures that even in rough conditions, your contents remain secure.


Full Extension for Easy Access

The drawer slides offer full extension. This enables you to pull out the drawer fully. It provides easy access to the entire drawer. So, it's convenient to reach items at the back. Full extension is particularly useful for storage solutions where you need to see and reach everything easily. Whether for a workbench, RV storage, or a crafted and designed project, the full extension makes an immense difference in usability. These slides make it easy to reach every pullout item.


Durable Construction for Long-Lasting Use

Made from cold-rolled steel, these slides are built to last! The strong material ensures they can handle heavy loads and constant use. The zinc plating provides added protection against rust and corrosion. This makes them suitable for both indoor and outdoor applications. With proper installation, these slides can provide years of reliable service. Durable construction means you won't worry about them failing or wearing out prematurely. These slides are an investment in long-term reliability and performance.


Ideal for Custom Projects and Industrial Use

These heavy-duty drawer slides are ideal for a wide range of custom projects. Whether you're constructing a tool drawer, a sliding shelf, or a storage solution, these slides are the perfect choice! They have incredibly strong construction and high load capacity. Their strong construction and high load capacity make them suitable for industrial applications. They are an excellent choice for any project that requires sturdy, reliable drawer slides. You can use their versatility in various settings, from home workshops to commercial environments.


Smooth Operation Despite Heavy Loads

The smooth operation of these slides ensures excellent performance, even when dealing with heavy loads. Precision engineering ensures that the drawer slides in and out effortlessly, even under heavy loads. This smooth operation makes using your drawer easy without using a lot of force. The well-designed mechanism ensured that it stayed stable and secure during use. No matter whether you are sliding out a heavy tool chest or kitchen drawer, these slides provide an excellent user experience.


Cost-Effective Solution for Heavy-Duty Needs

The value these slides offer is excellent. These VEVOR Heavy Duty Drawer Slides offer excellent value for money. They provide a cost-effective solution for your heavy-duty needs without compromising on quality. These slides offer competitive pricing compared to other brands, making them a compelling choice for budget-conscious buyers. The combination of affordability and durability makes them a savvy choice for anyone looking for reliable drawer slides. Investing in these slide systems gives you high performance without breaking the bank. This makes it an excellent addition to any project.


See More

Specification

Color
Silver
Material
Cold Rolled Steel
Finish
Zinc Plated
Amount
1 Pack(2 PCs)
Load Capacity
250 lbs/ 115 kg
Fully Pull-Out Length
48"/ 121.9 cm
Fold Product Size
24" x 2.1" x 0.75"/ 61 x 5.3 x 1.9 cm
Inner Size (L x W)
24" x 1"/ 61 x 2.6 cm
Middle Size (L x W)
24" x 1.6"/ 61 x 4 cm
Outer Size (L x W)
24" x 2.1"/ 61 x 5.3 cm
Slide Lock
Support
Questions and Answers
1 Questions
Hello, what is the weight of this product? Thank You for the answer. David
The weight of the product is 3.4kg.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
84 Review(s)
Clear filters
John Robinson John Robinson
Done what it said.
Peter Peter
Mr
Used these for a portable bar. Work perfectly supporting the whole bar on 5 runners. I will be using more of these on future projects. Excellent value and delivered on time as normal with vevor.
KB KB
Yes it works
I_ very impressed with this product, it does work, very sturdy, yes I will recommend it.
Senad Custic Senad Custic
Mr
Meget godt skinner holder min grill på 50 kg....vil godt anbefale dem her...står udenfor og det ruster ikke
Ville Ville
Heavy Duty Drawer slides
Very good overall quality for price. Works well, i made few drawers for suv. Delivery was also fast to Finland.
Stanila Florin Mircea Stanila Florin Mircea
dl
foarte robuste si rezistente, culiseaza foarte usor si fara zgomot , blocajul este numai pe una din glisiere din pereche , confom descrierii de pe site
Nejc Nejc
Tom
Great product, Easy to install and very easy to use.. It has been delivered within a week. it is very robust and strong.
Brian Ashton Brian Ashton
My mind is made up
I have used these draw sliders from different companies in the past, but never got such a good quality product with a great feature at a competitive price. My mind is made up to where i shop for these in future……..
Michal Michal
--
The product arrived very quickly and in good order. The quality is very good, I am completely satisfied. I recommend this product. I used them for a camping installation in a Toyota Landcruiser. furniture drawer
AigX AigX
Excellent Quality
These slides are of excellent quality and the price is very good. They are heavy duty, sturdy and for 4x4 slides drawers are excellent.I surely recommend them.
