Features & Details

• 660LBS Load Capacity: The electric hoist lifts small engines, transmissions, or building supplies easily. It supports two lifting modes with a security latch steel hook. The capacity and speed of a single line are 330 lbs/150 kg, 32.8 ft/min(10 m/min). The capacity and speed of the double line are 660lbs /300 kg, 16.4 ft/min(5 m/min).
• Powerful Motor: The high-quality copper motor provides 550W strong power that can bear large force without deformation for this electric winch. Besides, the large radiator fan cools the machine quickly with the help of overheat protection. Thus, this powerful motor ensures the high-efficient work and saves more energy.
• 3.9Ft Control Cord: Our electric hoist with remote control is achieved through a handle switch, which is installed on the machine for operating at a secure distance. In addition, our hoist is equipped with a limit switch and buffer spring to stop the machine automatically and avoid drooping.
• Premium Structure: This electric hoist winch is constructed by alloy shell and galvanized steel wire, keep out corrosion, rust, and rain. The steel line length: 39.4 ft/12 m; Diameter: 0.12 in/3 mm. Moreover, The metal fixing ring is adjustable along with your various needs and can be installed easily.
• Wide Application: The power hoist is suitable for factories, warehouses, construction sites, carmakers, railway constructions, etc. It is an ideal tool for working in harsh indoor or outdoor environments. Please use it among the bar's width and height to compatible with the inner sizes of mounting brackets.

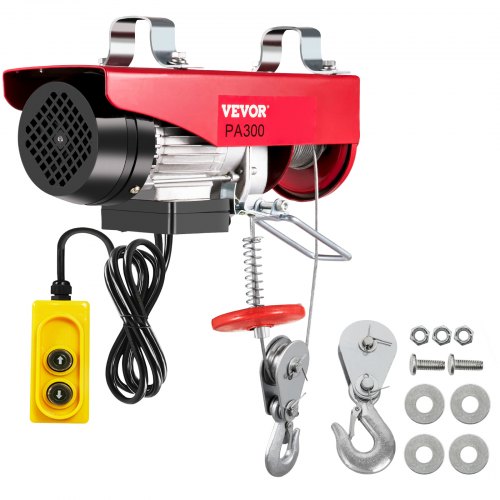

• Model: PA300
• Material: Aluminum Alloy & Alloy Steel
• Voltage: 220V/50Hz
• Power: 550W
• Load Capacity: 330 lbs / 150 kg, 660 lbs / 300 kg
• Lifting Height: 39.4 ft / 12 m, 19.7 ft / 6 m
• Lifting Speed: 32.8 ft/min / 10 m/min, 16.4 ft/min / 5 m/min
• Steel Line Length: 39.4 ft / 12 m
• Power Cord Length: 2.1 ft / 0.65 m
• Remote Control Cord Length: 3.9 ft/1.2 m
• Ring Width: 2 in / 5 cm
• Ring Height: 1.8 in / 4.5 cm
• Item Size: 13.5 x 5.5 x 7.8 in / 34.3 x 14 x 19.8 cm
• Item Weight: 24.3 lbs / 11 kg

• 1 x Lift Electric Hoist
• 2 x Lifting Lugs
• 1 x Moveable Pulley
• 1 x Bag of Screws
