Features & Details

• 【LABOR-SAVING & HYDRAULIC 10T】 - It is a knockout punch set with a separable hydraulic pump. The maximum crimping power is 10 T. It features a good tightness and no oil leakage. With a safety valve, the pressure will release automatically when the pressure reaches the limited max.
• 【DURABLE DIES & PUNCHES SET】 - The knockout punch set comes with six punching dies 22, 27.5, 34, 43, 49, 60 mm (0.866", 1.08", 1.34", 1.7",1.93", 2.36"), drilling holes from 0.86" to 2.36", fully meeting your needs. Two draw bolts are solid and built to last. Max thickness for steel: 0.13"; Max thickness for stainless steel: 0.08".
• 【CONVENIENT OPERATION】 - The knockout set is fast and easy to operate. With the excellent cooperation of a drill bit and a driving bolt, you can easily get a clean and uniform hole. And the long plastic handle ensures zero sliding and effective force transfer, improving work efficiency.
• 【PORTABLE CARRYING CASE】 - The stud punch tool is stored in a durable plastic toolbox that is not easily broken, saving space. It is compact, light-weight, and easy to carry. Besides, it also reduces the possibility of missing parts.
• 【WIDE APPLICATION】 - This manual metal stud punch tool can be used for professional equipment drilling, punching 11 Ga mild steel, iron plate, and also can be used for personal DIY, furniture installation, etc.

Frequently Bought Together

Videos for this product

About this item

Product specification

Punching Die Material

Steel

Stroke

25 mm / 1"

Max pressure

10 Ton

Max thickness for steel

3.2 mm/0.13 inch/11 ga

Max thickness for stainless steel

2 mm/0.08 inch/13 ga

Punch Dies

22, 27.5, 34, 43, 49, 60 mm (0.866", 1.08", 1.34", 1.7",1.93", 2.36")

Draw studs

3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam/ 7.9 cm L x 0.79 cm Diam & 8.1 cm L x 0.76 cm Diam(Compatible with GREENLEE and other domestic punch tooling)

Punches materials

Steel, stainless steel, brass, copper, aluminum (soft alloys only, not for use with 7075 or other superalloys), fiberglass, plastic, and more.

Dimension

430X260X260 mm/17X10X10 inch

Total weight

11 kg/25 lbs

Description

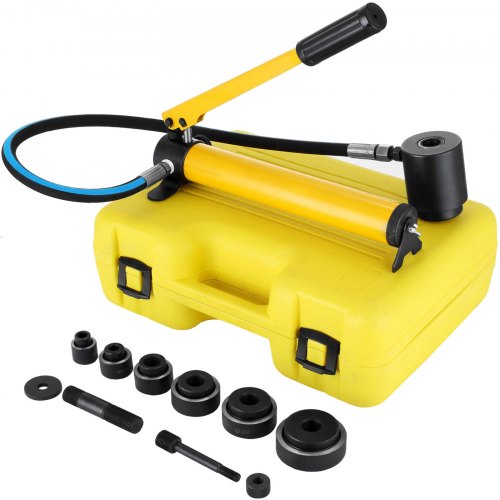

Hydraulic Knockout Punch Kit

This hydraulic knockout hole punch driver kit features a compact and durable structure with high hardness and great quality, easy to operate to get a perfect, uniform hole. It comes with six drill bits for punching holes of different sizes. It is suitable for construction site and maintenance work.

• Labor-Saving & Hydraulic 10T
• Durable Dies & Punches Set
• Convenient Operation
• Portable Carrying Case

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Hydraulic Mechanism 10T

Max pressure: 10T. The knockout set is equipped with a hydraulic pump and a 3.1“ oil hose, possible for a narrow space. The hydraulic mechanism makes the hole punching a breeze.

Interchangeable 6 Dies

There are six steel drill bits, including 22, 27.5, 34, 43, 49, 60 mm (0.866", 1.08", 1.34", 1.7",1.93", 2.36"), for drilling both large diameter and small diameter holes. Two driving bolts are rugged and built to last.

Efficient Hole Punching

Getting a perfect hole is nothing difficult with this hole punch set. You can finish it under the operation steps the picture shows. It is suitable for 11 ga steel and 14 ga stainless steel.

Ergonomic Handle

A thickened plastic handle gives you a comfortable and anti-slip using experience, suitable for long-lasting use. It is convenient and energy-saving for you to operate this hole punch set.

Portable Storage Case

This hydraulic knockout punch set is compact and easy to store with a plastic tool case. It saves space and makes the hydraulic punch kit easy to carry. The tool case is durable and practical.

Wide Application

This hydraulic punch driver kit is suitable for construction site and maintenance work, personal DIY and furniture installation, for punching sheet metal, such as mild steel, stainless steel, etc.

Specifications

• Punching Die Material: Steel
• Stroke: 25 mm / 1"
• Max pressure: 10 Ton
• Max thickness for steel: 3.2 mm/0.13 inch/11 ga
• Max thickness for stainless steel: 2 mm/0.08 inch/13 ga
• Punch Dies: 22, 27.5, 34, 43, 49, 60 mm (0.866", 1.08", 1.34", 1.7",1.93", 2.36")
• Draw studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam/ 7.9 cm L x 0.79 cm Diam & 8.1 cm L x 0.76 cm Diam(Compatible with GREENLEE and other domestic punch tooling)
• Punches materials: Steel, stainless steel, brass, copper, aluminum (soft alloys only, not for use with 7075 or other superalloys), fiberglass, plastic, and more.
• Dimension: 430X260X260 mm/17X10X10 inch
• Total weight: 11 kg/25 lbs

Package Content

• 1 x 10-Ton Pump
• 1 x Ram with Hose
• 6 x Dies & Punches
• 2 x Spacers
• 2 x Draw Studs
• 1 x Piston Shaft
• 1 x Plastic Carrying Case
• 1 x Manual

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Hydraulic Knockout Punch Kit

This hydraulic knockout hole punch driver kit features a compact and durable structure with high hardness and great quality, easy to operate to get a perfect, uniform hole. It comes with six drill bits for punching holes of different sizes. It is suitable for construction site and maintenance work.

• Labor-Saving & Hydraulic 10T
• Durable Dies & Punches Set
• Convenient Operation
• Portable Carrying Case

Hydraulic Mechanism 10T

Max pressure: 10T. The knockout set is equipped with a hydraulic pump and a 3.1“ oil hose, possible for a narrow space. The hydraulic mechanism makes the hole punching a breeze.

Interchangeable 6 Dies

There are six steel drill bits, including 22, 27.5, 34, 43, 49, 60 mm (0.866", 1.08", 1.34", 1.7",1.93", 2.36"), for drilling both large diameter and small diameter holes. Two driving bolts are rugged and built to last.

Efficient Hole Punching

Getting a perfect hole is nothing difficult with this hole punch set. You can finish it under the operation steps the picture shows. It is suitable for 11 ga steel and 14 ga stainless steel.

Ergonomic Handle

A thickened plastic handle gives you a comfortable and anti-slip using experience, suitable for long-lasting use. It is convenient and energy-saving for you to operate this hole punch set.

Portable Storage Case

This hydraulic knockout punch set is compact and easy to store with a plastic tool case. It saves space and makes the hydraulic punch kit easy to carry. The tool case is durable and practical.

Wide Application

This hydraulic punch driver kit is suitable for construction site and maintenance work, personal DIY and furniture installation, for punching sheet metal, such as mild steel, stainless steel, etc.

Package Content

• 1 x 10-Ton Pump
• 1 x Ram with Hose
• 6 x Dies & Punches
• 2 x Spacers
• 2 x Draw Studs
• 1 x Piston Shaft
• 1 x Plastic Carrying Case
• 1 x Manual

Specifications

• Punching Die Material: Steel
• Stroke: 25 mm / 1"
• Max pressure: 10 Ton
• Max thickness for steel: 3.2 mm/0.13 inch/11 ga
• Max thickness for stainless steel: 2 mm/0.08 inch/13 ga
• Punch Dies: 22, 27.5, 34, 43, 49, 60 mm (0.866", 1.08", 1.34", 1.7",1.93", 2.36")
• Draw studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam/ 7.9 cm L x 0.79 cm Diam & 8.1 cm L x 0.76 cm Diam(Compatible with GREENLEE and other domestic punch tooling)
• Punches materials: Steel, stainless steel, brass, copper, aluminum (soft alloys only, not for use with 7075 or other superalloys), fiberglass, plastic, and more.
• Dimension: 430X260X260 mm/17X10X10 inch
• Total weight: 11 kg/25 lbs
