Name: VEVOR 4 Quart Single Acting Hydraulic Dump Trailer Power Unit Lift Remote
Brand: VEVOR
SKU: 4LCZYYBTXDZY00001V0
Price: 200.99 EUR
Availability: Discontinued
Rating: 4.8 (79 reviews)

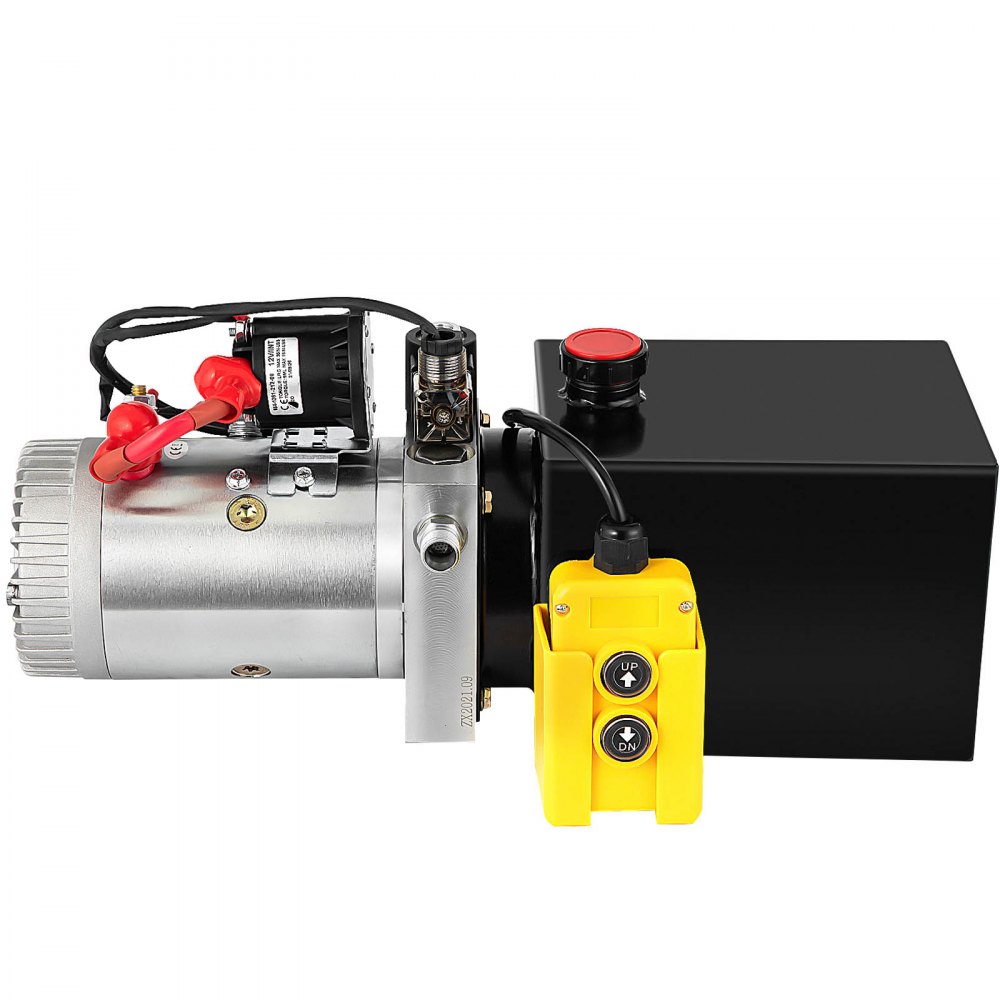

VEVOR 4 Quart Single Acting Hydraulic Dump Trailer Power Unit Lift Remote

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive 5,00€ off for your first three orders on the App.

Download Now

Exclusive 5,00€ off for your first three orders on the App.

Scan the QR code to download

About this item

Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

See More See Less

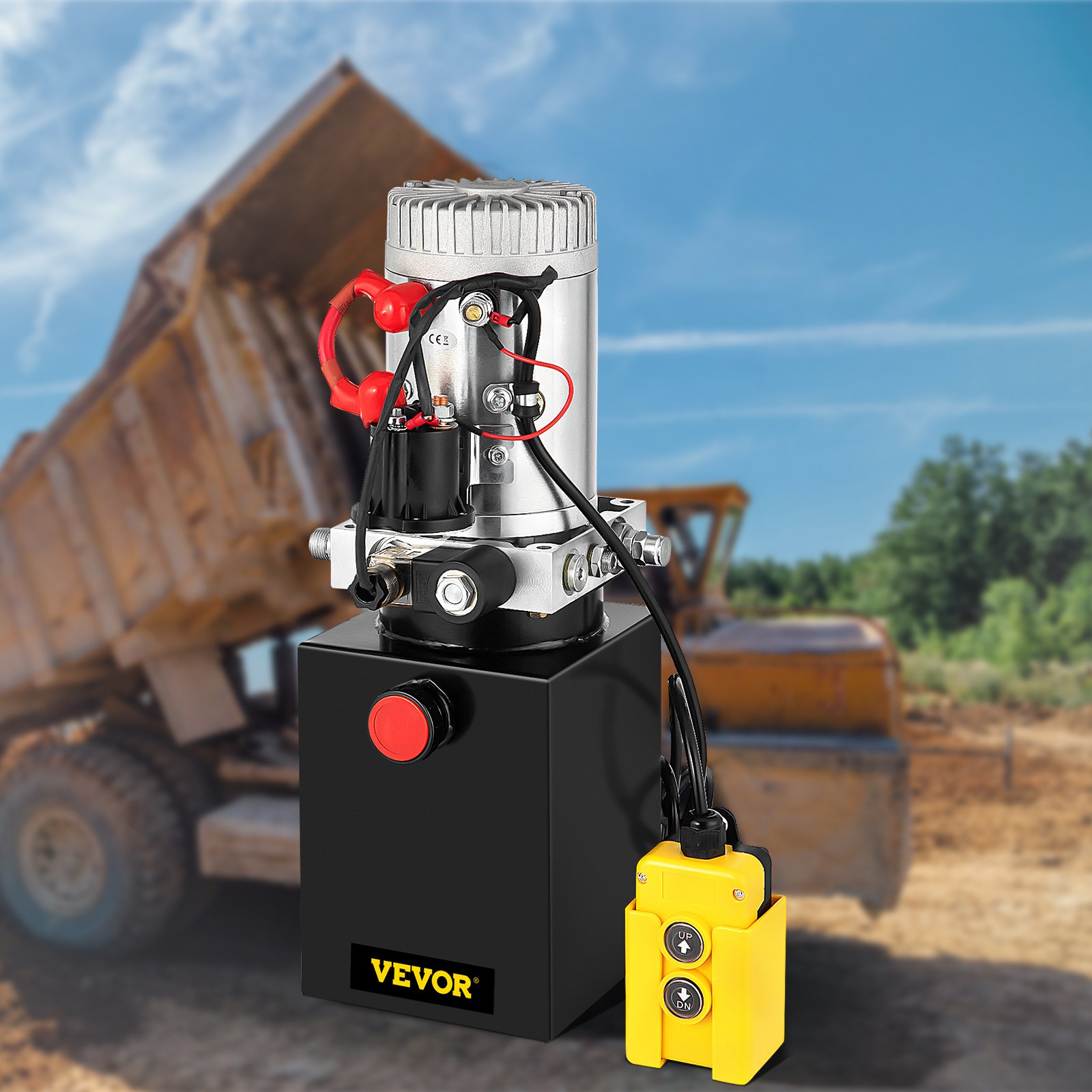

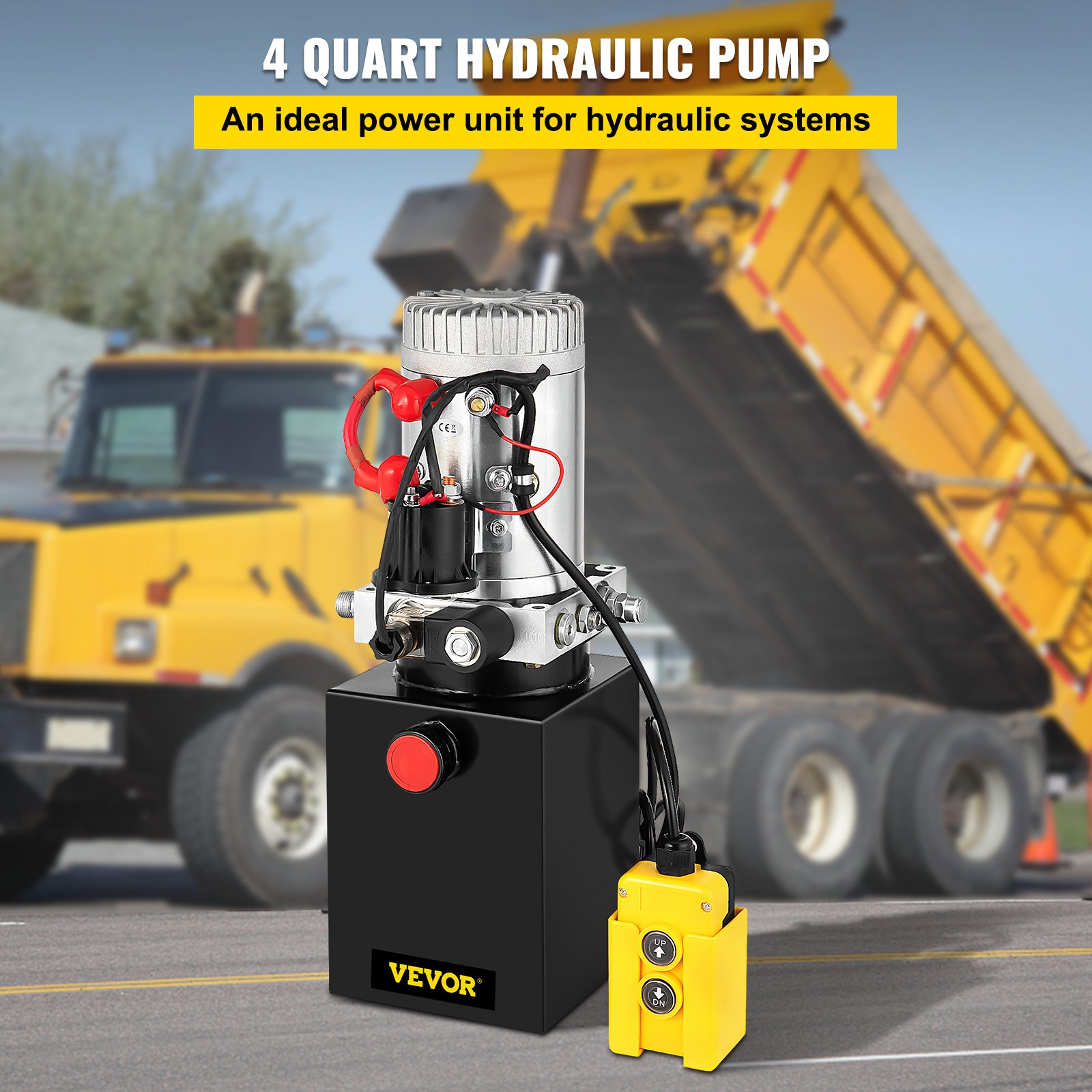

VEVOR hydraulic pump for dump trailer, 4 quart single acting on construction site.

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

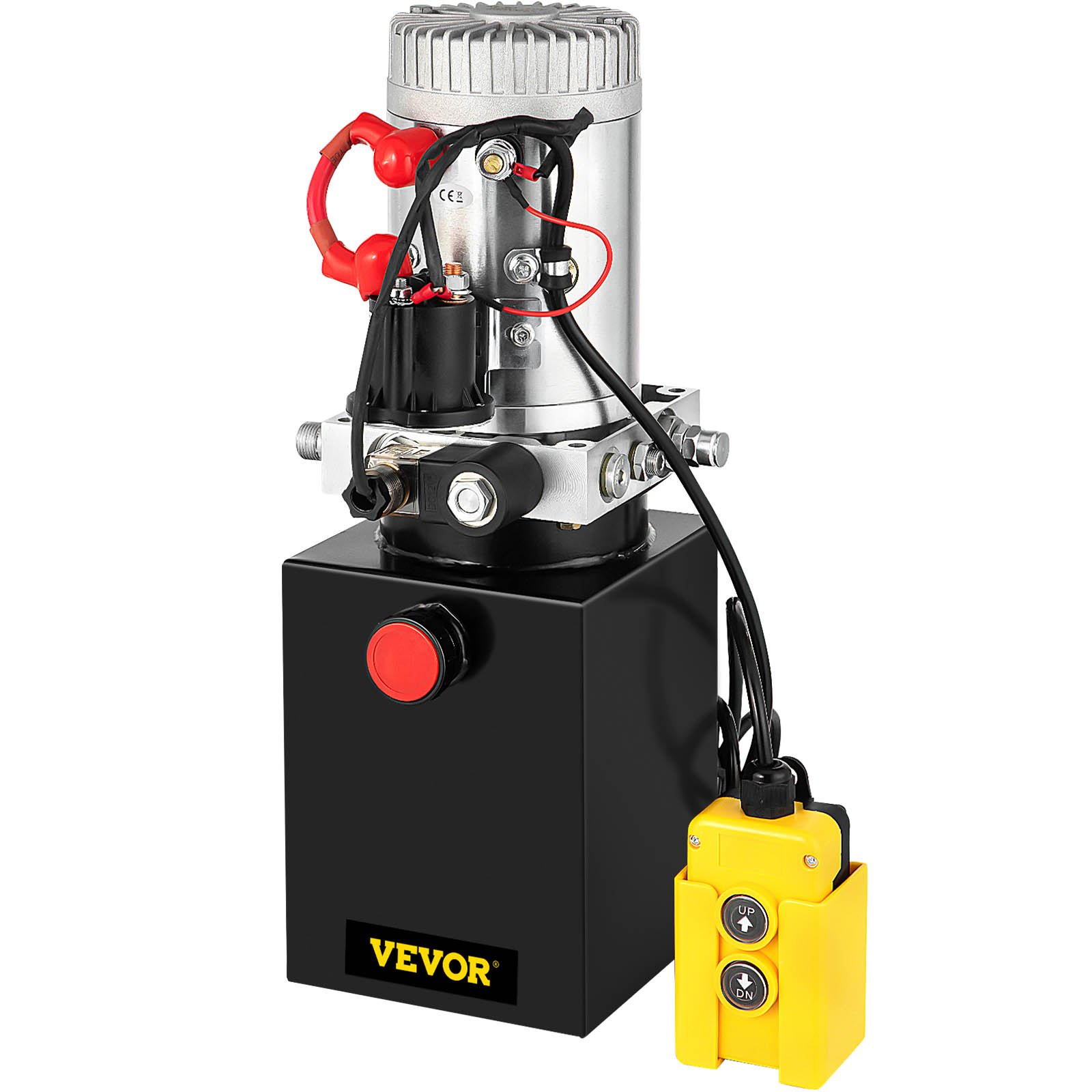

VEVOR hydraulic pump with red and yellow controls, attached wires, and metal fitting.

4 Quart Single Acting Hydraulic Pump

This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

Product Details
Easy to Use
Reliable Quality
Rapid Start
Wide Application

Single-Acting Power Unit

This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.

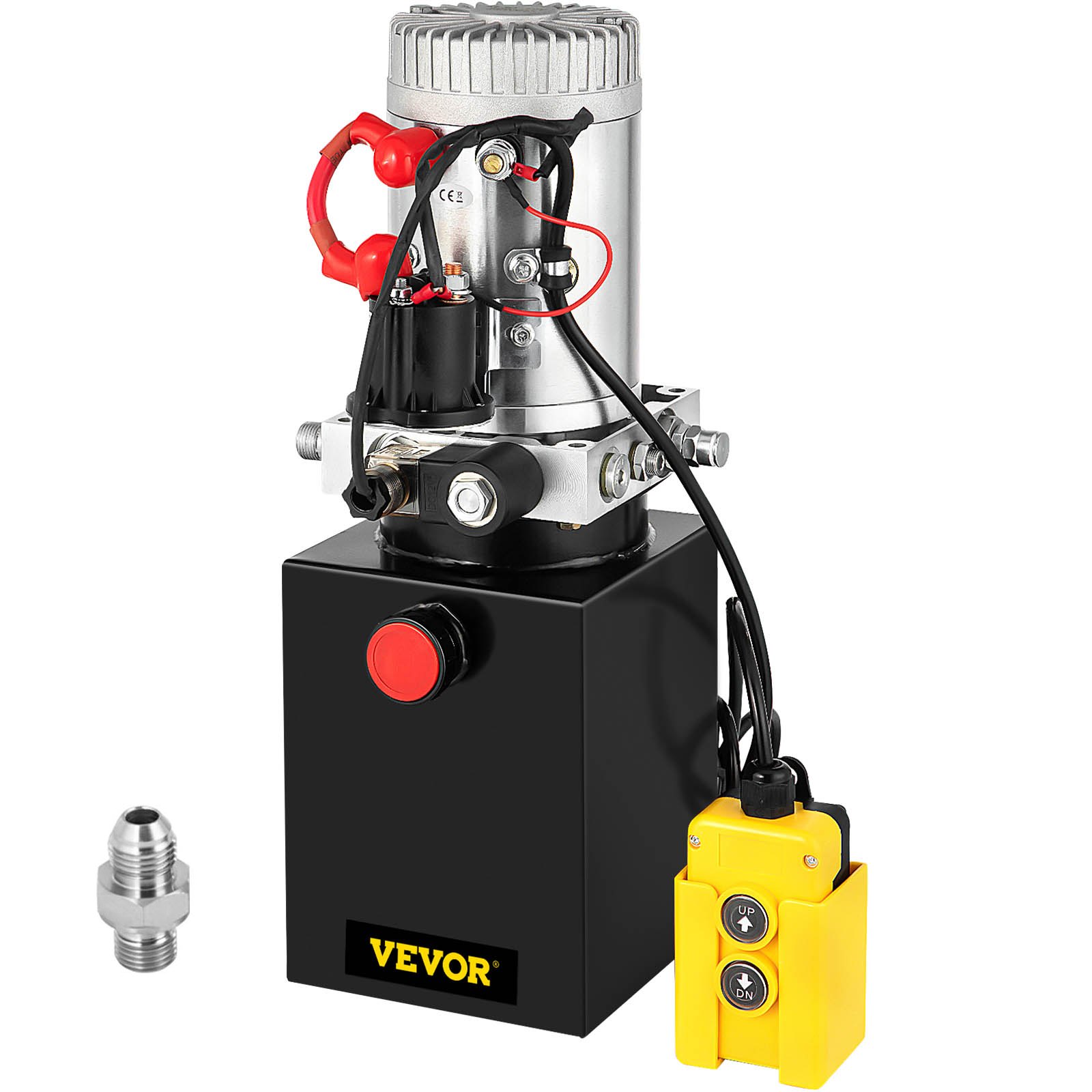

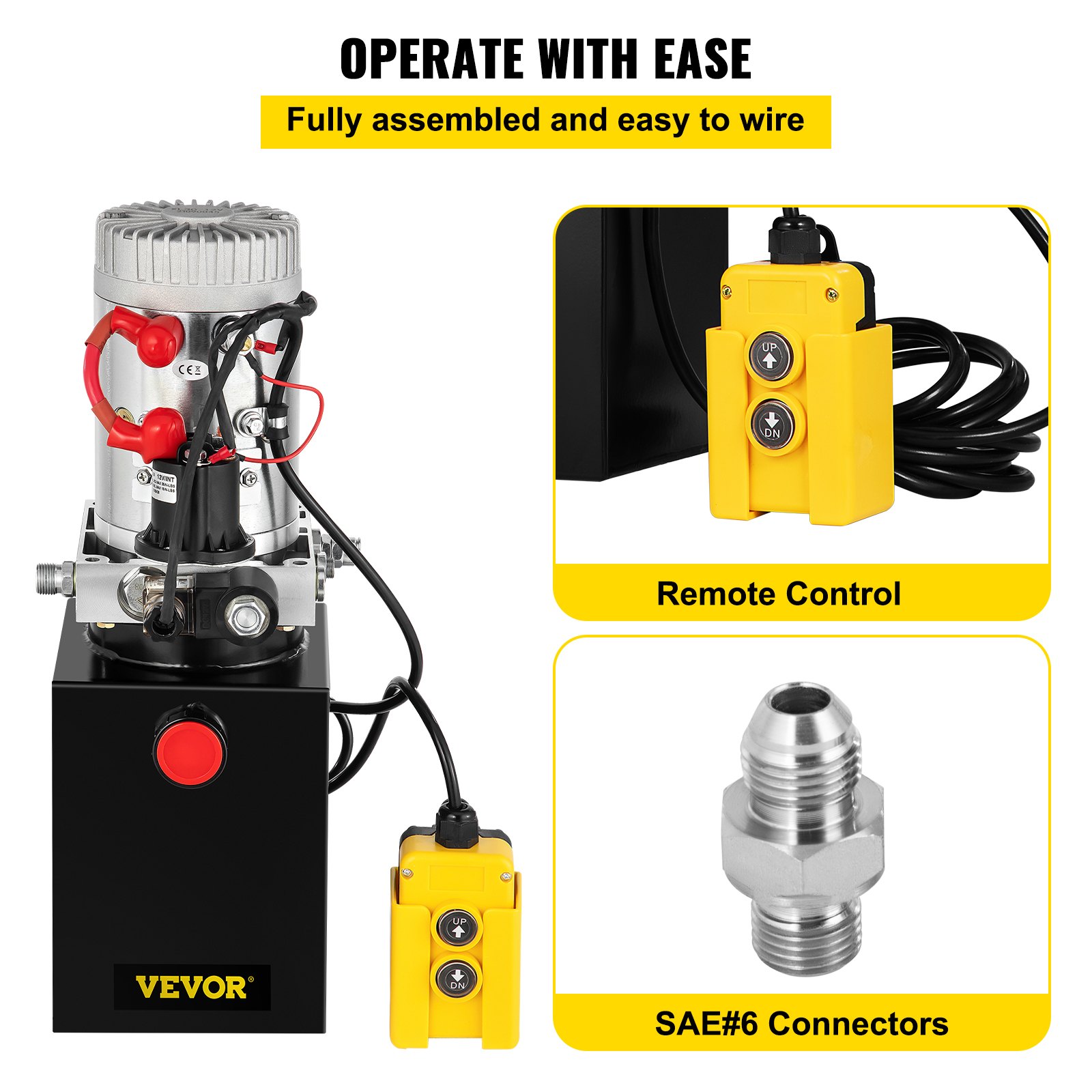

VEVOR hydraulic pump with metal reservoir, sae#6 connectors, and remote control

Convenient Design

Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.

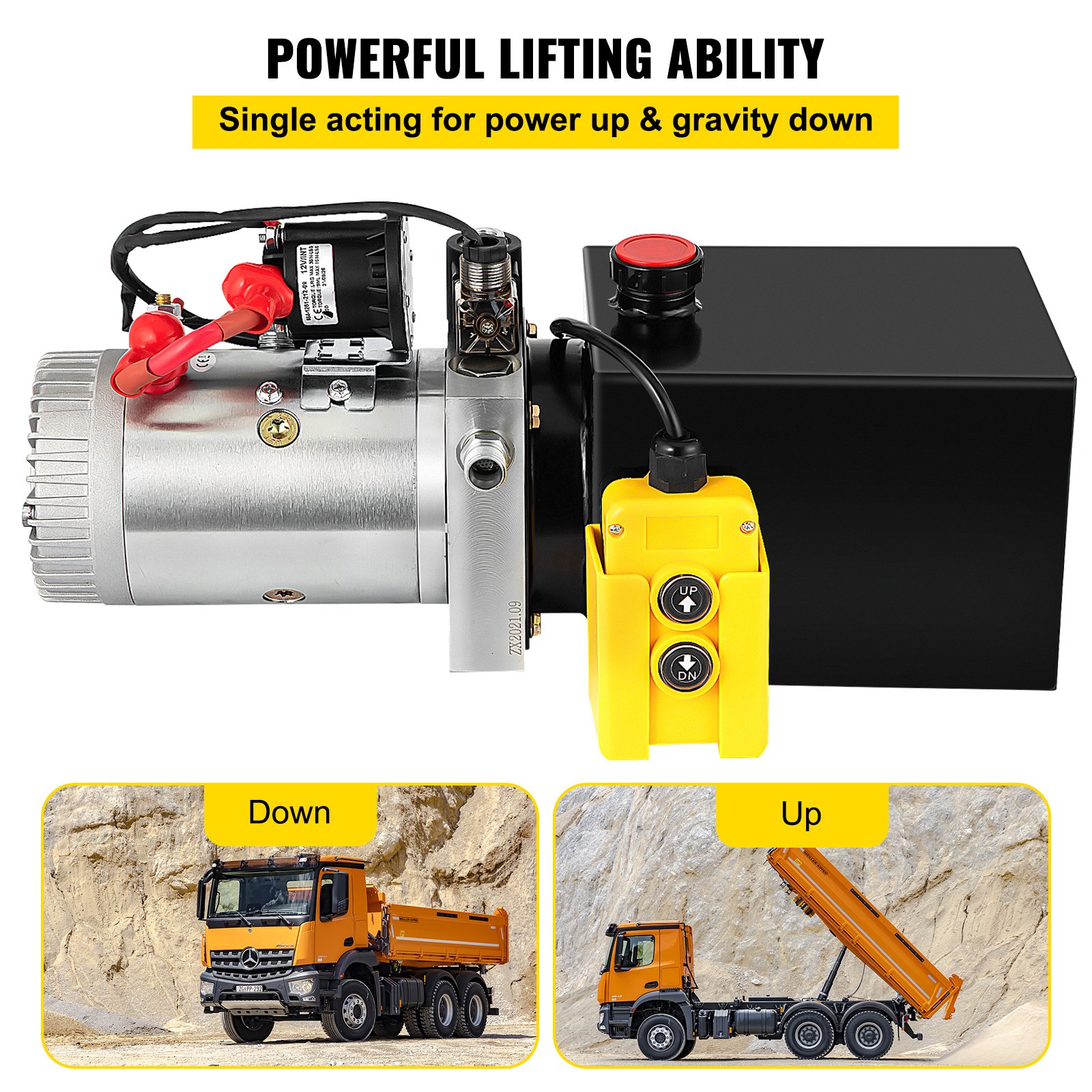

VEVOR hydraulic pump for quick start and lifting with power up and gravity down functions.

Quick Start＆Lifting

With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.

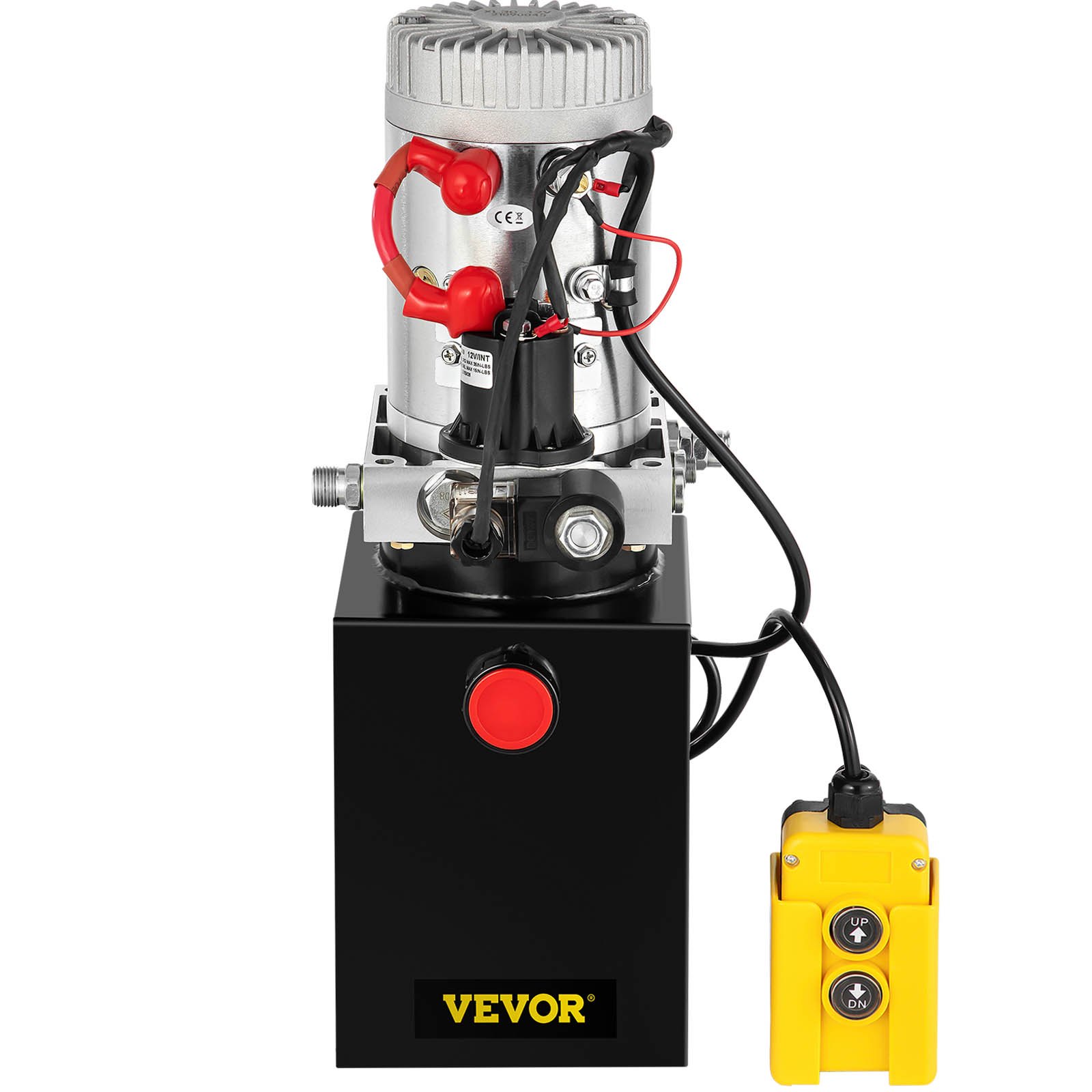

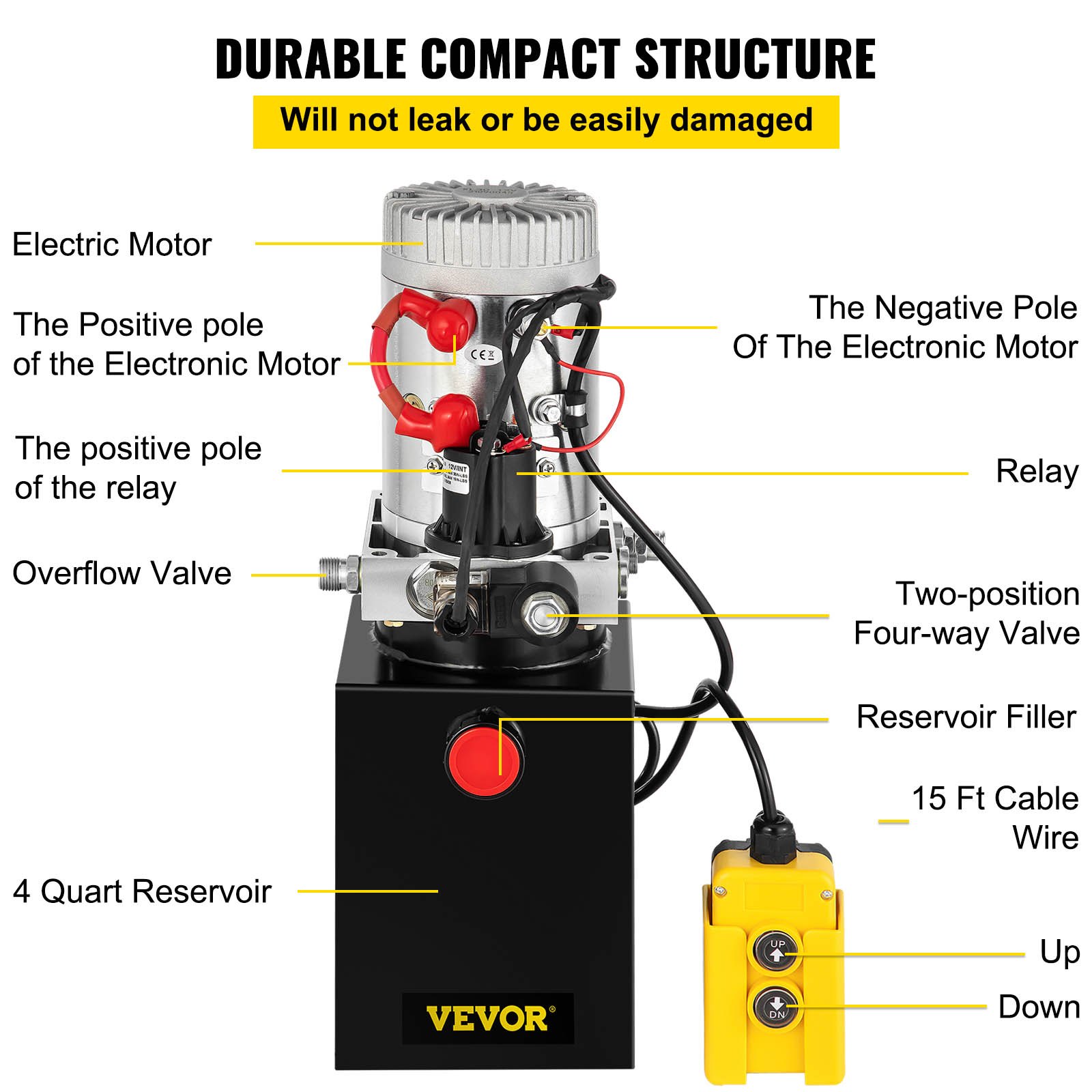

VEVOR hydraulic pump with steel tank, powerful motor, reinforced structure, and controls.

Long Lasting

You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

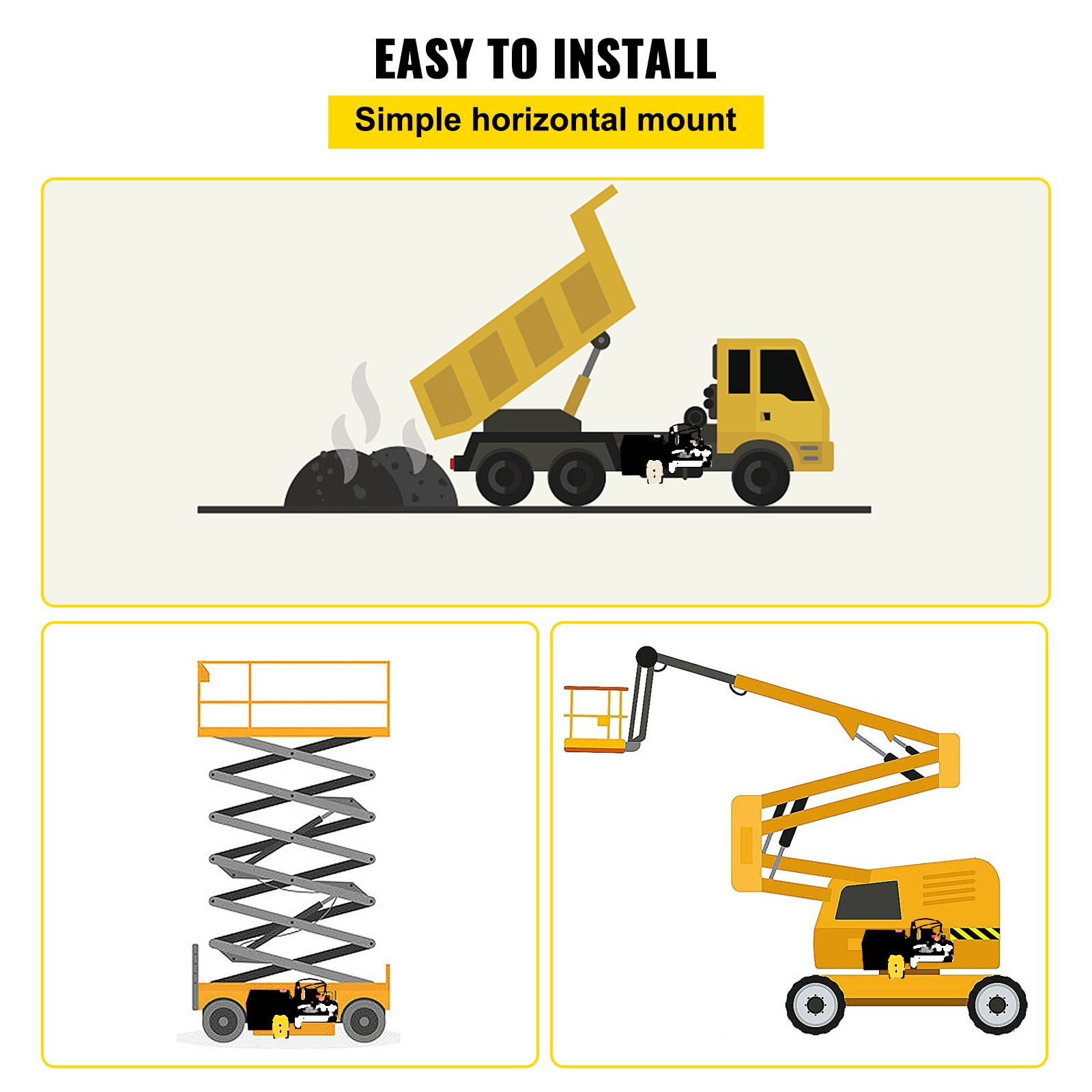

Simple Installation

All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.

VEVOR hydraulic pump showcased with construction truck, forklift, crane, and dump truck.

Wide Application

As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

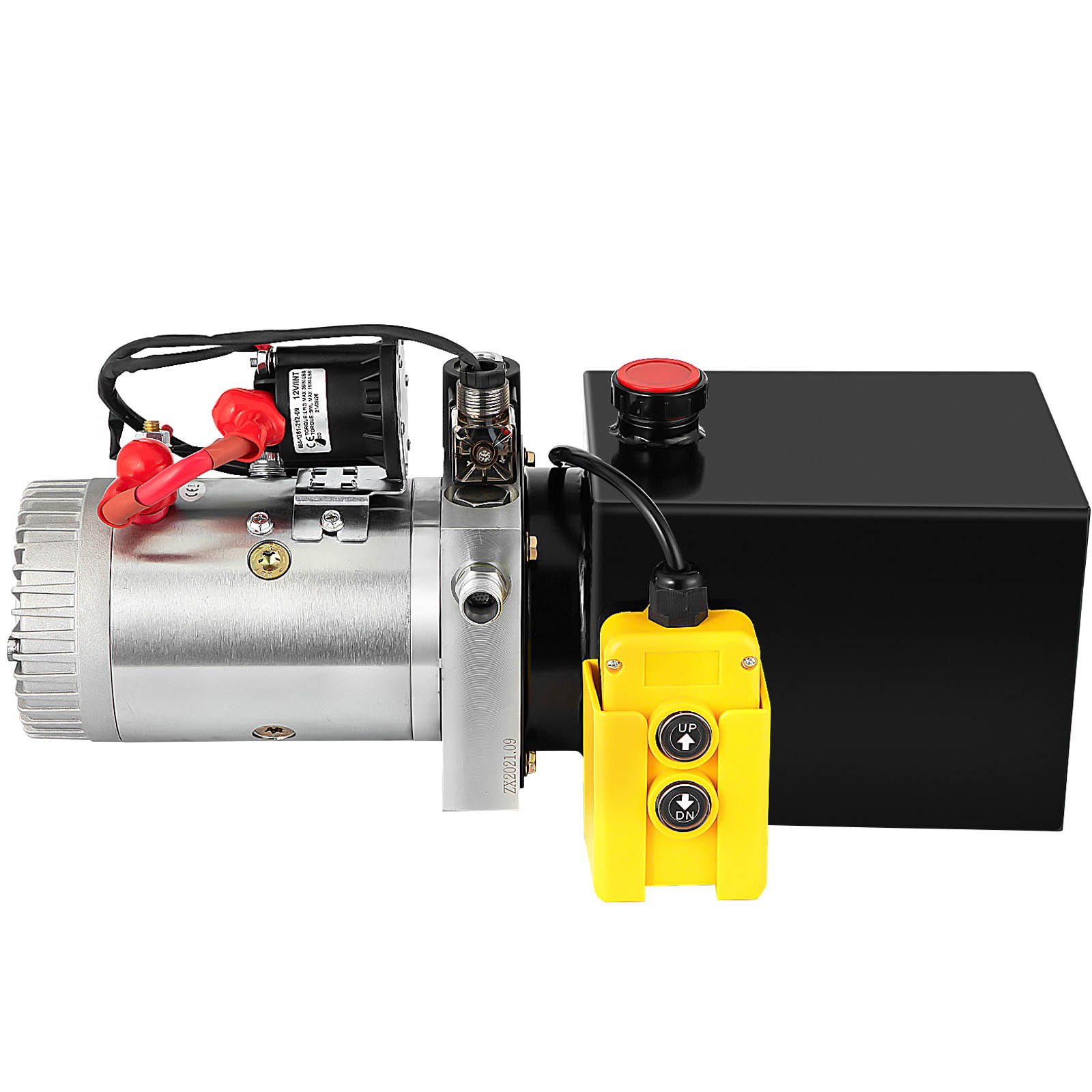

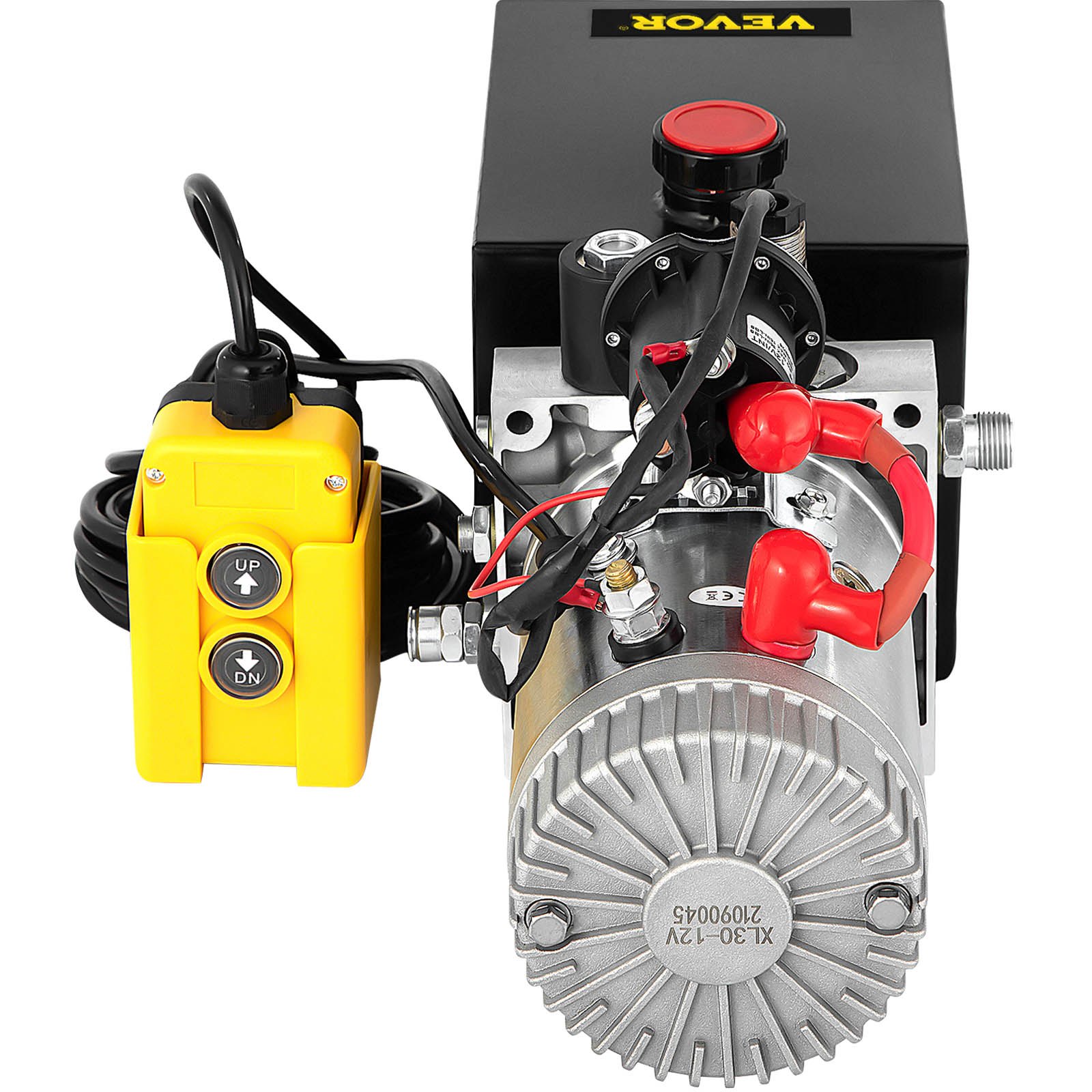

VEVOR hydraulic pump with yellow control unit and black tank, close-up angle.

Package Content

1 × 4 Quart Single Acting Hydraulic Pump
1 × English Manual
Several Related Accessories (Including connectors)

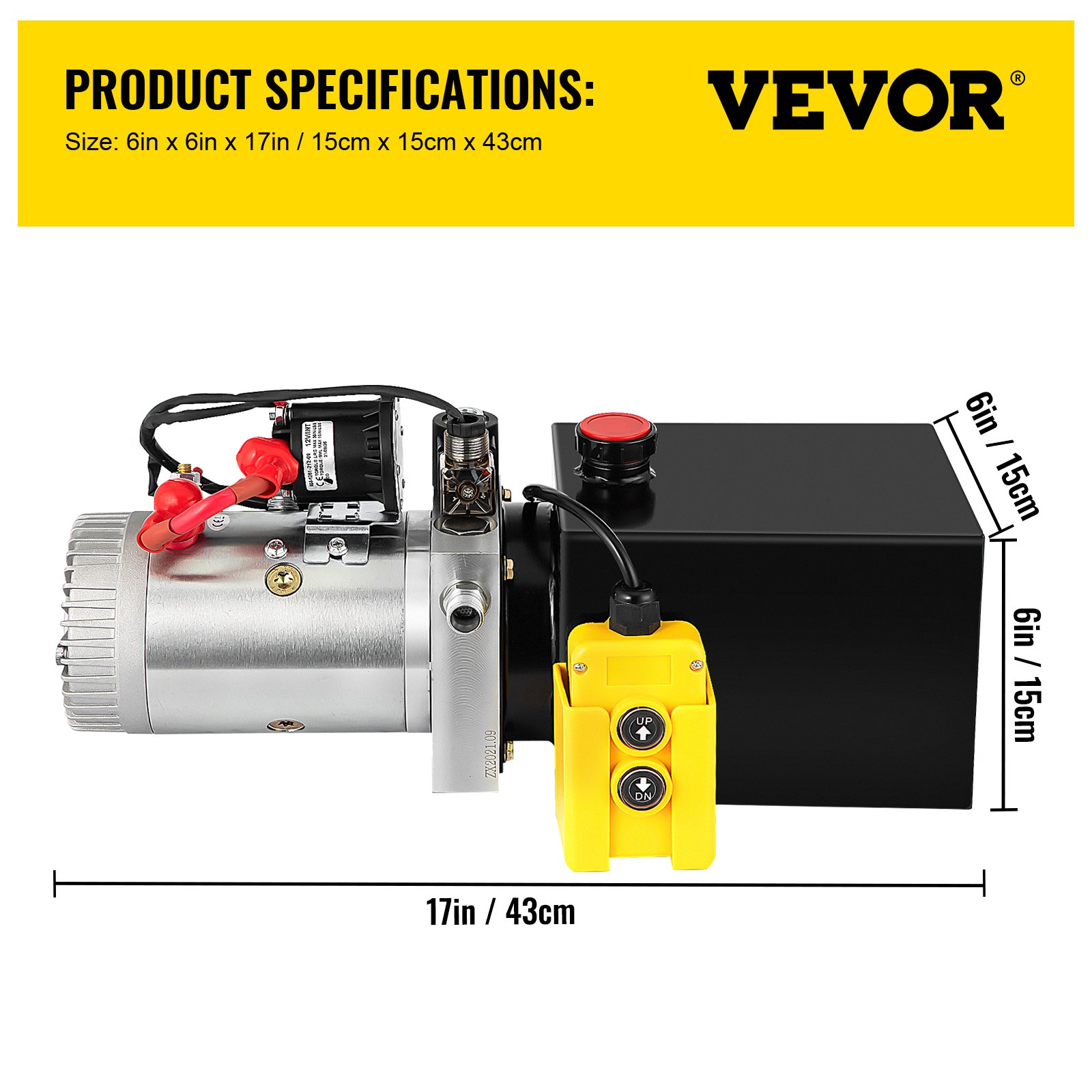

VEVOR hydraulic pump with 17in length, 6in height, and yellow controller.

Specifications

Tank Material: Metal
Displacement of hydraulic pump: 0.562-4.350GPM
Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 1.6-3.0KW
Motor voltage: DC12V
Tank Capacity: 4 Quart
Single acting Power-Up/Gravity Down
1500 PS Max Relief Setting on B port
4 Quart Metal Reservoir
SAE # 6 Port, Horizontal mount
Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid

Specification

Tank Material: Metal

Displacement of hydraulic pump: 0.562-4.350GPM

Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)

Rated speed: 2850R/MIN

Motor power: 1.6-3.0KW

Motor voltage: DC12V

Tank Capacity: 4 Quart

: Single acting Power-Up/Gravity Down

: 1500 PS Max Relief Setting on B port

: 4 Quart Metal Reservoir

: SAE # 6 Port, Horizontal mount

: Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid

Manual: Download Link

Nice quality, fast delivery, no transport damage. Cant ask for more. One way pump bought for leveling shipping container with two hydraulic pistons. A simple way with just 12V needed.

I update a very old dump trail with an English threaded hydraulic hose. Thanks to a previous reviewer I new I would have to go to a local hydraulic supply and repair to buy a $12 metric to english convertor. The mounting bolts do not come with and they are Metric also.

I was really surprised by this setup. I was a little uneasy about ordering it because I wasn't sure if it was going to truly be able to replace the pump that came on my dump trailer originally but let me tell you, hands down you are getting your money's worth here. I have a 16' trailer with 4 foot walls with the dual piston and it lifted 5 tons pretty damn easy. I'm still not trying to shovel loads like I did sometimes with my last pump but so far about ten loads in I'm more impressed each time. As far as the fittings, yea they need to send the correct ones, I had hell finding them and not just any store stocks them. My local hydraulic store after about an hr or scrambling ended up finding what I was describing. I will say though this one is alot slower than my last pump and smaller looking but All in all I would order again. Good luck with the fittingsPs. The picture I put up is of one of the smaller loads, it's the only one I have.
