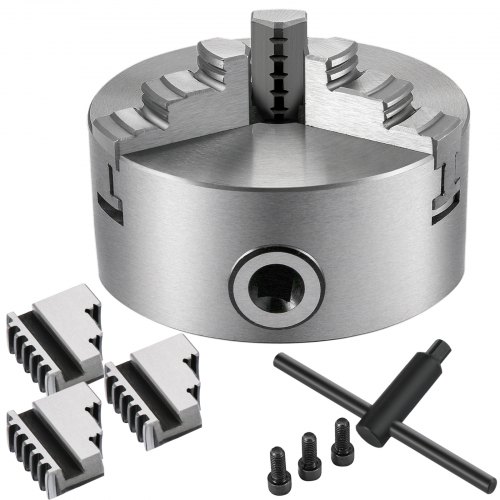

VEVOR lathe chuck with interchangeable jaws, key wrench, and screws VEVOR lathe chuck with metal rings, bolts, screws, and valve parts for machining. VEVOR lathe chuck with internal and external jaw display and clamping size chart. VEVOR lathe chuck with accurate bearings, mounting thread, reversible jaws, and bevel gear. effortless operation of VEVOR lathe chuck with mounting bolt, wrench, safety chuck key, and external jaws. VEVOR lathe chuck with ground jaw teeth, anti-rust oil coating, and durable cast iron. VEVOR lathe chuck, 3.94 in diameter, 7 lbs weight in stainless steel finish.
KPK11-100KPZFZ001V0

VEVOR K11-100 Lathe Chuck 4" ,Metal Lathe Chuck Self-centering 3 Jaw ,Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • Quality Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • High Precision: The metal lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • 2 Sets of Jaws: This chuck includes two sets of internal and external jaws. Outside Diameter: 100 mm / 3.94". The clamping range of this chuck is between 0.078" / 2 mm - 3.54" / 90 mm, which is suitable for clamping a variety of industrial parts.
  • Fast Clamping Speed: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
  • High Adaptability: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR K11-100 Lathe Chuck 4" ,Metal Lathe Chuck Self-centering 3 Jaw ,Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
VEVOR lathe chuck for metal turning with 3-m8 mounting thread and precise self-centering design.
VEVOR lathe chuck with accessories including jaws, t-handle, and screws.
4-inch Lathe Chuck for Milling Turning
3 Jaw & Self Centering & With Two Sets of Jaws
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.078" / 2 mm - 3.54" / 90 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets Of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with hardened steel and ht 300 durable cast iron.
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR lathe chuck with self-centering and flexible linkage chuck design.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR lathe chuck with high-precision, 0.001 accuracy, featuring bevel and pinion gears.
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread metal lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR lathe chuck with internal and external jaw displays and large clamping range.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR lathe chuck labeled parts for easy installation: chuck body, jaws, bolts, key.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
wide application of VEVOR lathe chuck: wood lathe, metal lathe, drilling, milling.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR lathe chuck, 3.94-inch diameter, steel, with adjustable jaws.
Specifications
  • Material: Hardened Steel
  • Model: K11-100
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Mounting Thread: 3-M8
  • Outside Diameter: 3.94" / 100 mm
  • Bolt Circle Diameter: 3.31" / 84 mm
  • Center Thru Hole Diameter: 0.866" / 22 mm
  • Chuck Body Thickness: 2.16" / 55 mm
  • Mounting Thread: 3-M8
  • Internal Jaw Clamping Range (A-A1): 0.08"-1.18" / 2-30 mm
  • Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm
  • External Jaw Clamping Range (C-C1):1.18"-3.15" / 30-80 mm
  • Accuracy: 0.002" / 0.051 mm
  • Color: Silver
  • Item Weight: 7 lbs / 3.18 kg
VEVOR lathe chuck with wrench and additional jaws on a white background.
Package Content
  • 1 x 4" / 100 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck for metal turning with 3-m8 mounting thread and precise self-centering design.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with accessories including jaws, t-handle, and screws.
4-inch Lathe Chuck for Milling Turning
3 Jaw & Self Centering & With Two Sets of Jaws
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.078" / 2 mm - 3.54" / 90 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets Of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR lathe chuck with hardened steel and ht 300 durable cast iron.
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR lathe chuck with self-centering and flexible linkage chuck design.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR lathe chuck with high-precision, 0.001 accuracy, featuring bevel and pinion gears.
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread metal lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR lathe chuck with internal and external jaw displays and large clamping range.
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR lathe chuck labeled parts for easy installation: chuck body, jaws, bolts, key.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
wide application of VEVOR lathe chuck: wood lathe, metal lathe, drilling, milling.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR lathe chuck with wrench and additional jaws on a white background.
Package Content
  • 1 x 4" / 100 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck, 3.94-inch diameter, steel, with adjustable jaws.
Specifications
  • Material: Hardened Steel
  • Model: K11-100
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Mounting Thread: 3-M8
  • Outside Diameter: 3.94" / 100 mm
  • Bolt Circle Diameter: 3.31" / 84 mm
  • Center Thru Hole Diameter: 0.866" / 22 mm
  • Chuck Body Thickness: 2.16" / 55 mm
  • Mounting Thread: 3-M8
  • Internal Jaw Clamping Range (A-A1): 0.08"-1.18" / 2-30 mm
  • Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm
  • External Jaw Clamping Range (C-C1):1.18"-3.15" / 30-80 mm
  • Accuracy: 0.002" / 0.051 mm
  • Color: Silver
  • Item Weight: 7 lbs / 3.18 kg

Precision Lathe Chuck for Enhanced Accuracy

The VEVOR K11-100 lathe chuck provides high precision with an accuracy of 0.002". This makes it perfect for detailed work. It offers a secure grip, reducing errors and improving your work's quality. This precision is essential for both grinding and milling machines. You can trust this lathe chuck to deliver consistent results every time. Is precision important for both grinding and milling machines? Yes, you need this level of precision because it’s designed to minimize runout. So your projects are accurate and error-free. What's important here is that it doesn't matter if you're pursuing any kind of project or achieving professional levels of precision. We recommend using this machine to maintain high standards in your work. No matter what type of job you are doing, whether as a hobbyist or a professional, this feature ensures your output is always perfectly aligned. The value of this 3-jaw chuck is also significant. Therefore, it becomes a dependable option for all home users and businesses. The VEVOR K11-100 lathe chuck is available.


Durable Self-centering 3 Jaw Chuck for Reliable Performance

The 3 jaw design provides a strong and stable grip. It is important for handling various materials and sizes, including both amateur and professional settings. You won't have to worry about frequent replacements. The VEVOR K11-100 lathe chuck is built to last. This durability ensures you can focus on your work without interruptions. Our machining needs are handled by the rigors of regular use. Therefore, it’s a dependable tool in your workshop. Your partner in reliable machining is the VVPK11–100 lathechuck.


Versatile Lathe Chuck for Grinding and Milling Machines

Whether you're working on a small project or a large one, this lathe chuck meets your needs. It performs well in various applications. This versatility makes it incredibly useful for any workshop. The VEVOR K11-100 lathe chuck is your all-in-one solution for machining tasks.


Easy to Install and Use for Immediate Productivity

The VEVOR K11-100 lathe chuck is easy to install. It comes with clear instructions for quick setup. You can start using it almost immediately. The simple design ensures you spend less time on setup, which allows you to focus more on your work. This easy installation process also reduces the risk of errors. Because its ease of use makes it accessible to all skill levels, you can be confident in its proper setup. Whether you're a beginner or an expert, you will find it user-friendly. We designed our product to minimize downtime and maximize efficiency. So, this immediate productivity is essential for meeting deadlines. We have the VEVOR K11-100 lath chuck — your tool for efficient machining.


Cost-effective Solution with High Value

This is a smart choice for budget-conscious buyers. The VEVOR K11-100 lathe chuck offers excellent value for its price. Its combination of precision, durability, and versatility is hard to find at this cost. This makes it a cost-effective solution for your machining needs. You can achieve high-quality performance without exceeding your budget. The affordability of these lathe chucks does not compromise on quality. They provide reliable performance that matches more expensive options. Investing in this lathe chuck means getting more value.


Designed for a Wide Range of Clamping Sizes

It has a wide range of clamping sizes. This makes it suitable for a variety of projects and materials, such as construction work. You can handle small and large workpieces with ease. The internal jaw clamper range is 0.08"-1.18". The external jaw clamping range stands 1.18"-3.15". This versatility ensures you can tackle different tasks. Your workshop doesn't require multiple chucks of varying sizes or multiple jacks simultaneously. The VEVOR K11-100 lathe chuck does all. Its wide clamping range meets the needs of different applications. So, this adaptability makes it a flexible tool in your workshop. The VVPK11-11-100 lath chuck serves as a versatile clamping solution for various applications.


Fast Shipping and Reliable Customer Service

You can get help if you encounter any issues. The VEVOR’s commitment to service enhances your buying experience. Fast shipping reduces waiting time, boosting efficiency. Reliable customer service gives you peace of mind. You know there is help when you need it. This combination of rapid shipping and reliable service makes VEVOR a trustworthy choice. The VEVOR K11-100 lathe chuck is not just a product; it’s VEVOR's promise that support will be the best option for you.


See More

Specification

Mounting Thread
3-M8
Internal Jaw Clamping Range (A-A1)
0.08" / 2 mm - 1.18" / 30 mm
Internal Jaw Jamming Range (B-B1)
1.18" / 30 mm - 3.54" / 90 mm
External Jaw Clamping Range (C-C1)
1.18" / 30 mm - 3.15" / 80 mm
Manual
Download Link
