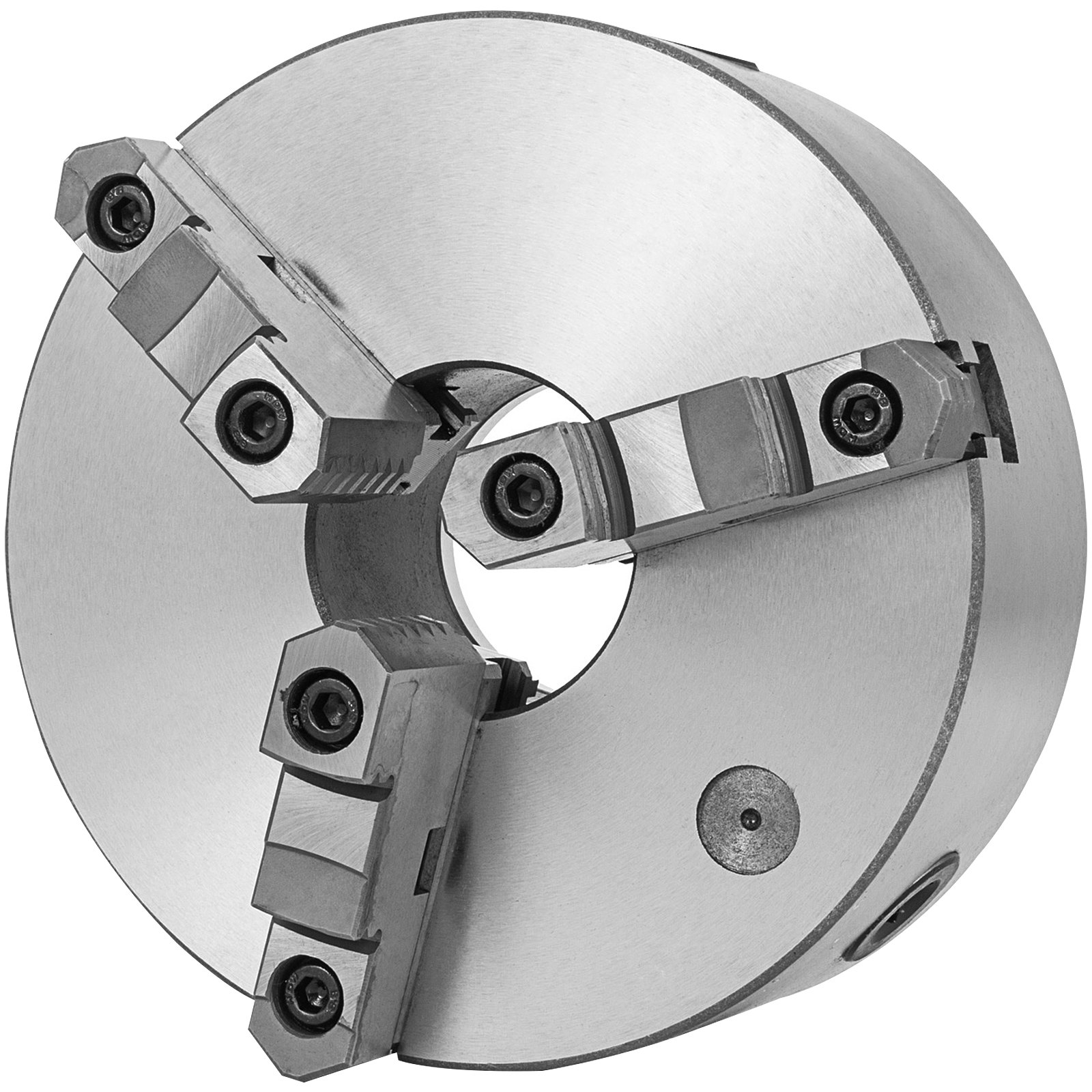

VEVOR lathe chuck with three jaws and accessories for precise metal gripping. VEVOR lathe chuck with metal rings, bolts, screws, and valve parts for grinders and mills. VEVOR lathe chuck with internal and external jaw display, clamping size details. VEVOR lathe chuck with reversible jaws, accurate bearings, and self-locking system. effortless operation of VEVOR lathe chuck with mounting bolts, wrench, and safety chuck key. VEVOR lathe chuck - ht 300 cast iron, anti-rust coated, with ground jaw teeth. VEVOR lathe chuck, 8in diameter, 31.2lbs weight, three-jaw design
KPK11-200KPFLZ001V0

VEVOR Lathe Chuck 8" 3 Jaw Self-Centering Metal Turning CNC w/ Reversible Jaw

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • Quality Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • High Precision: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • Double Jaw Chuck Jaws: Internal jaw is a positive L-shape, and external jaw is an inverted L-shape. The clamping range of this chuck is between 0.16" / 4 mm - 7.87" / 200 mm, which is suitable for clamping a variety of industrial parts.
  • Fast Clamping Speed: The 3 jaw lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
  • High Adaptability: The accessory screws make the scroll chuck highly adaptable and can be used with the same series of jaws as the chuck. This power lathe chuck is suitable for clamping various parts such as hanging shafts, disks, equilateral triangles, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Lathe Chuck 8" 3 Jaw Self-Centering Metal Turning CNC w/ Reversible Jaw
VEVOR lathe chuck: metal turning, 3-m10 mounting thread, precise self centering.

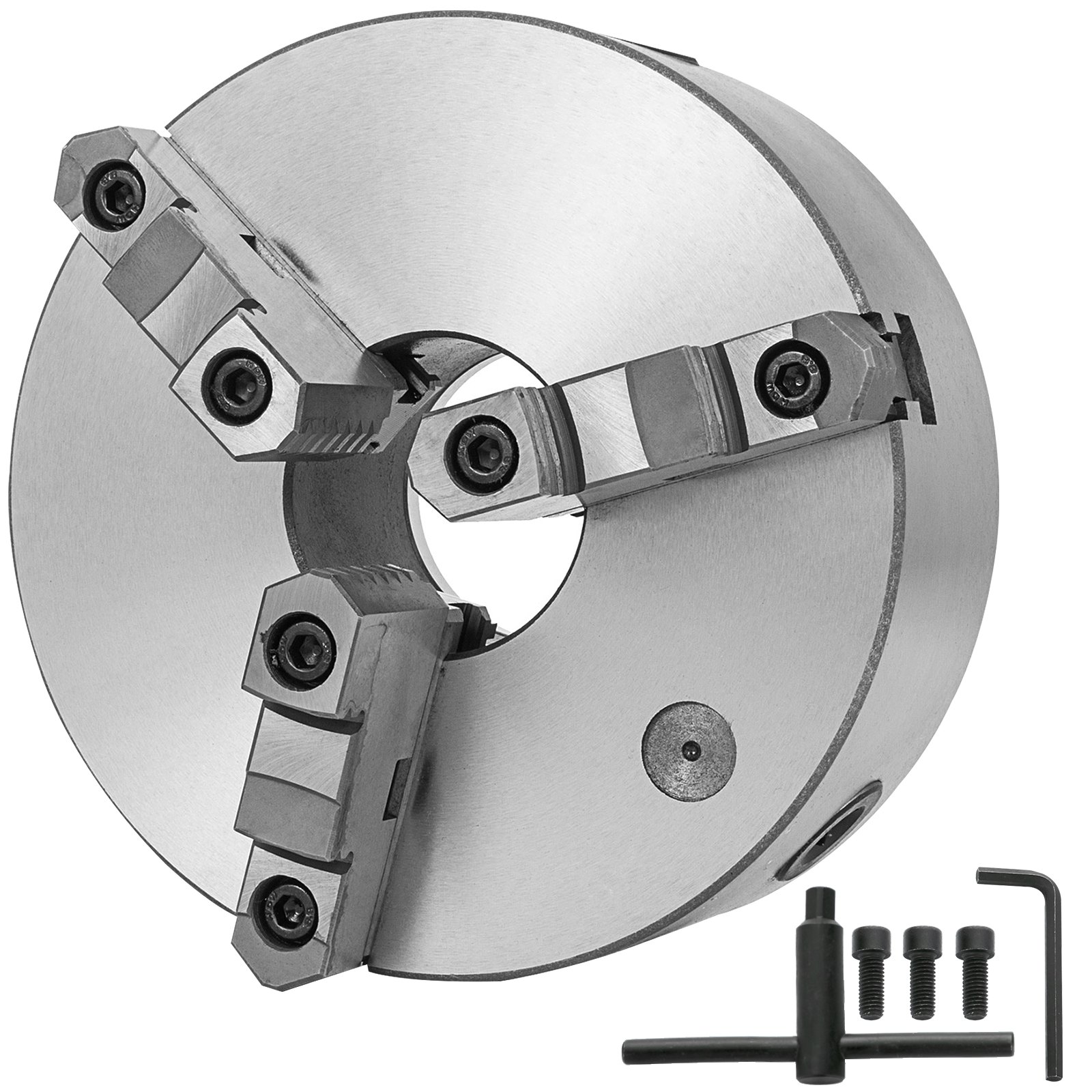

VEVOR lathe chuck with three jaws and included t-handle and bolts.
8-inch 3-Jaw Wood Lathe Chuck
Self Centering & 3-M10 Mounting Thread & with Functional
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two-way jaws to hold industrial parts in the size range 0.16" / 4 mm - 7.87" / 200 mm. Of course, this lathe chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • Double Jaw Chuck Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

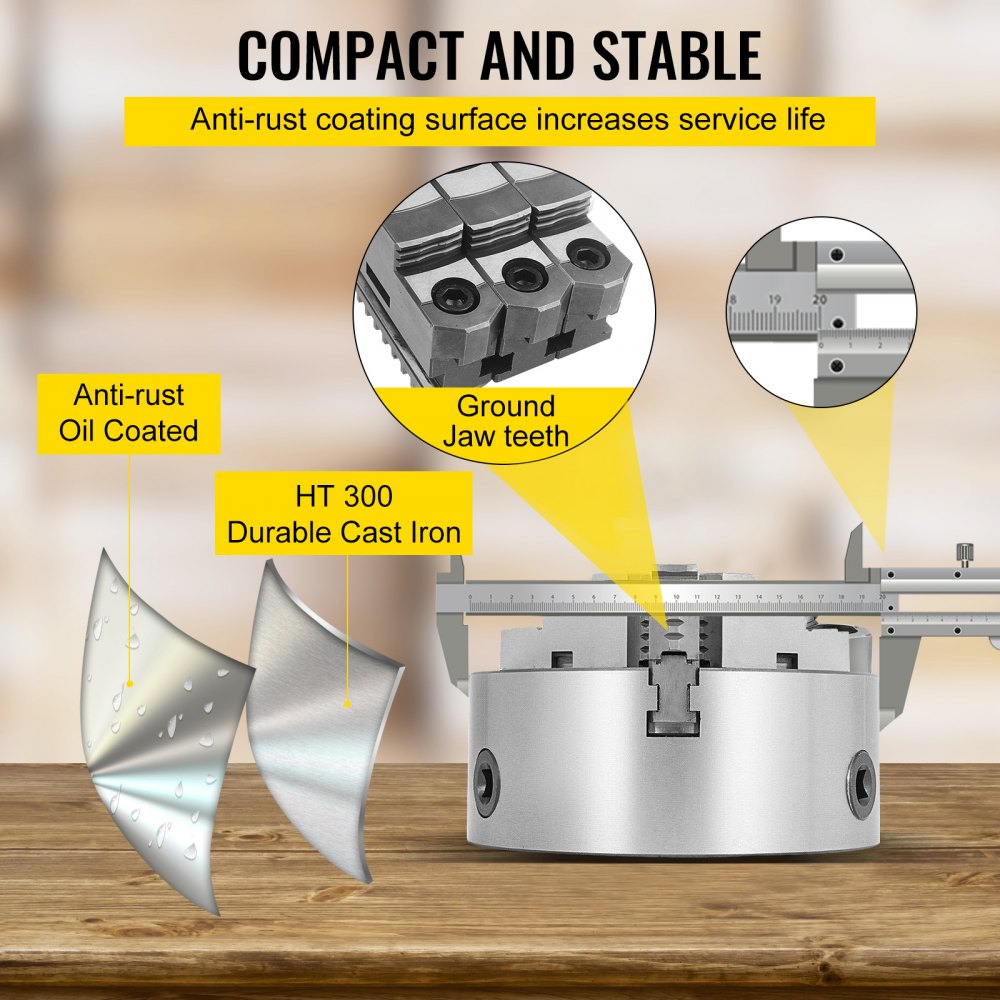

VEVOR lathe chuck in hardened steel with ht 300 durable cast iron component.
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR lathe chuck with self-centering flexible linkage.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.

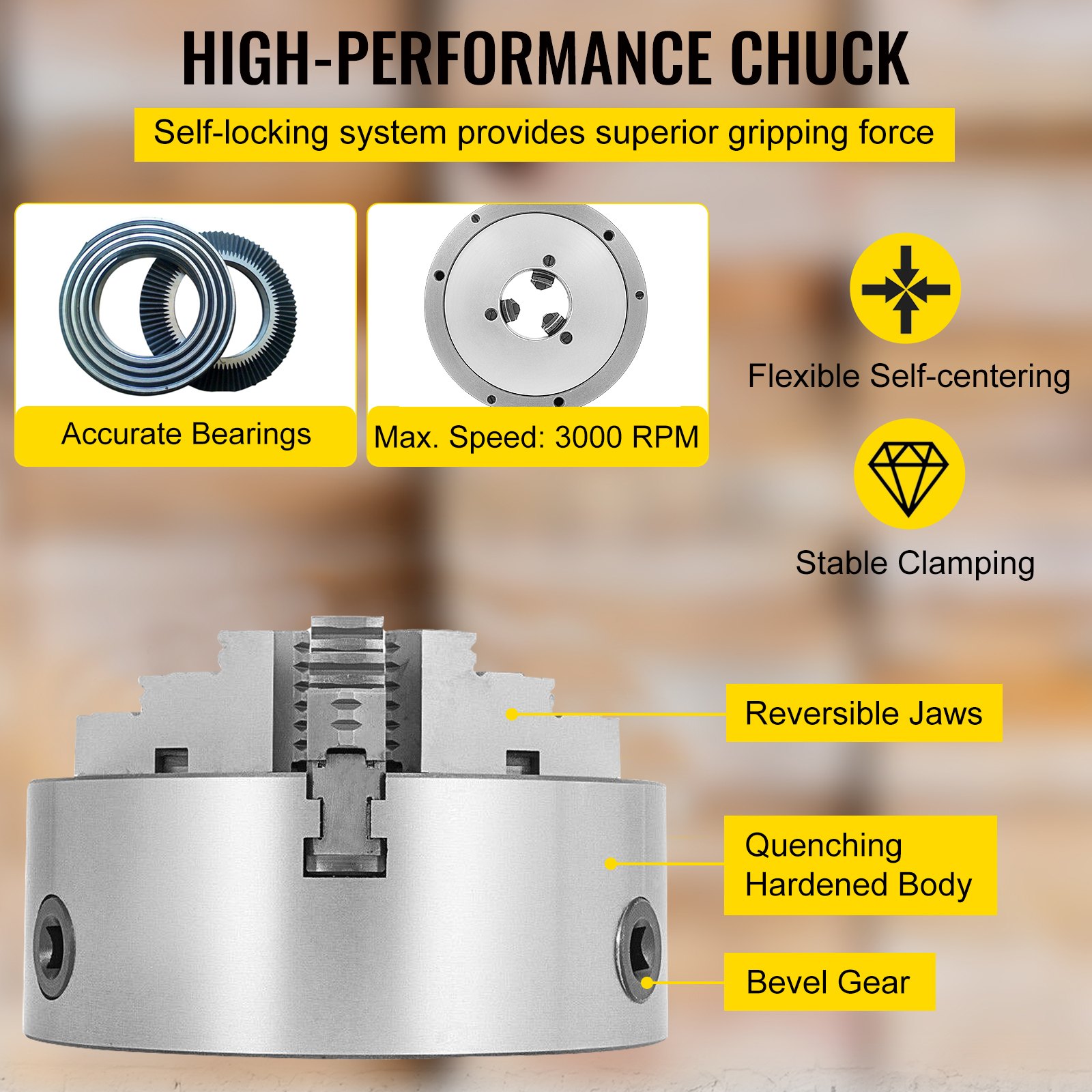

VEVOR lathe chuck with high-precision, 0.001 accuracy, bevel and pinion gears.
High-precision Chuck
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.

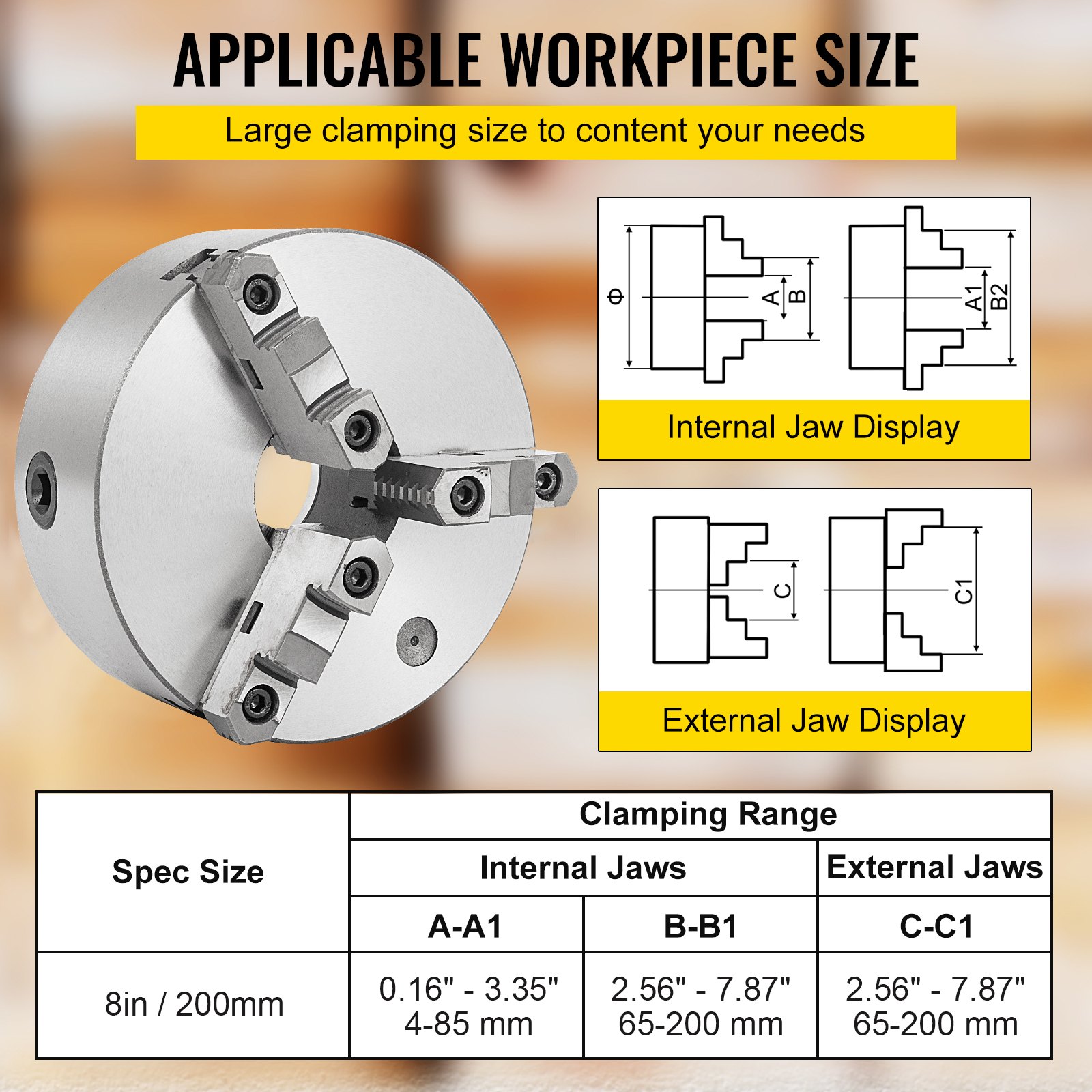

VEVOR lathe chuck with large clamping range, internal and external jaw display.
Large Clamping Range
This chuck is equipped with a set of reversible jaws, the external jaw clamping range is larger than the internal jaw, which is suitable for clamping a variety of industrial parts.

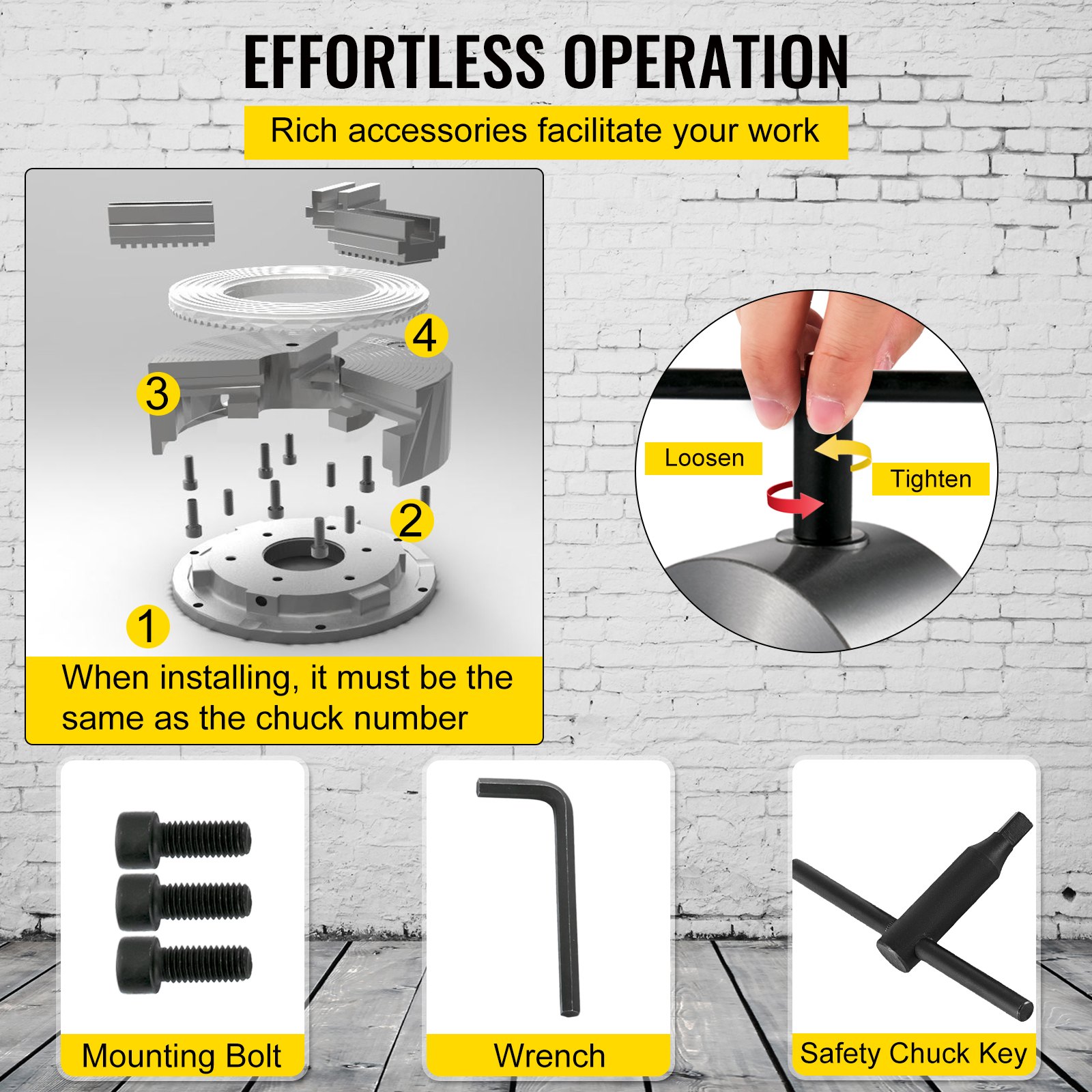

VEVOR lathe chuck with internal jaw, chuck body, mounting bolts, safety chuck key, and wrench.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.

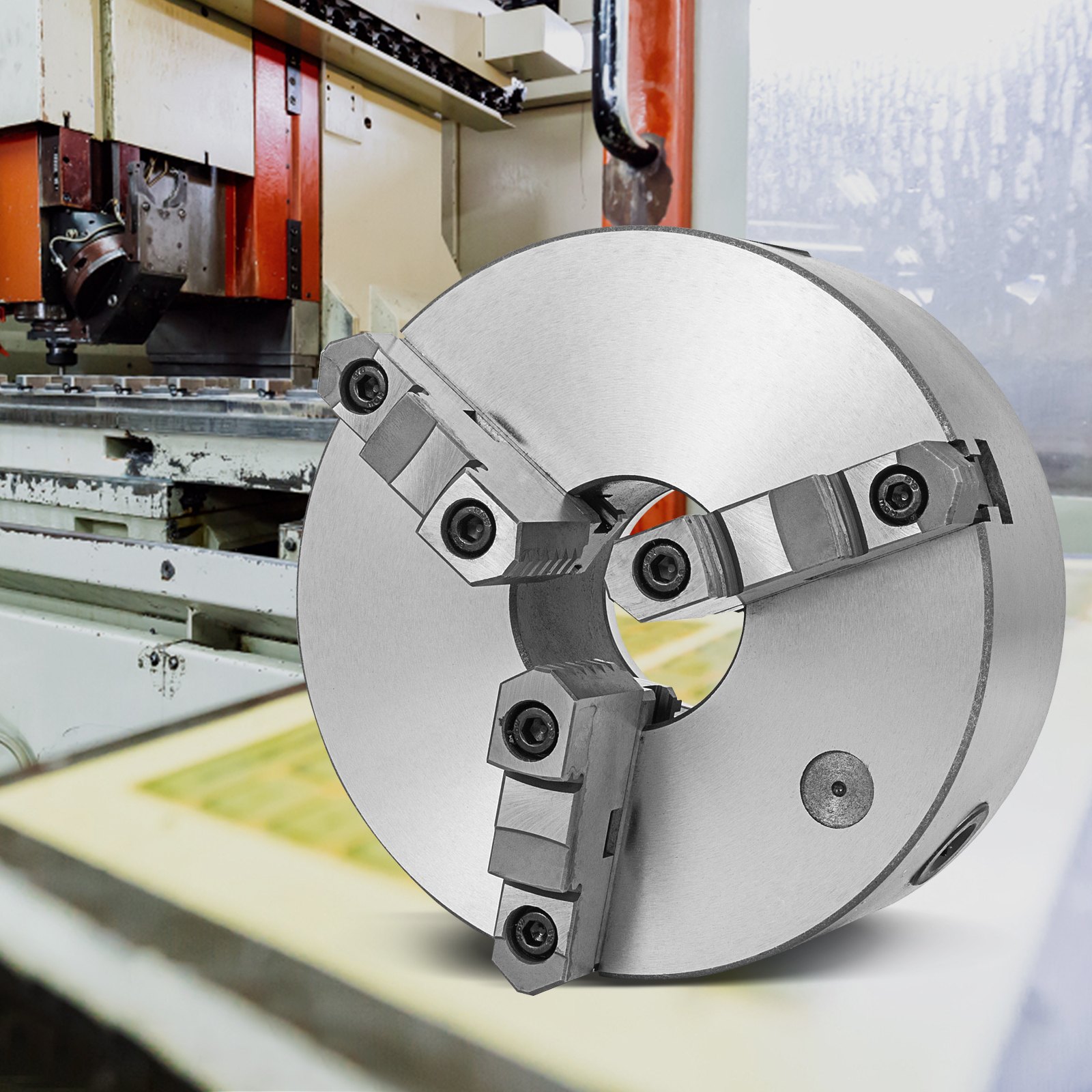

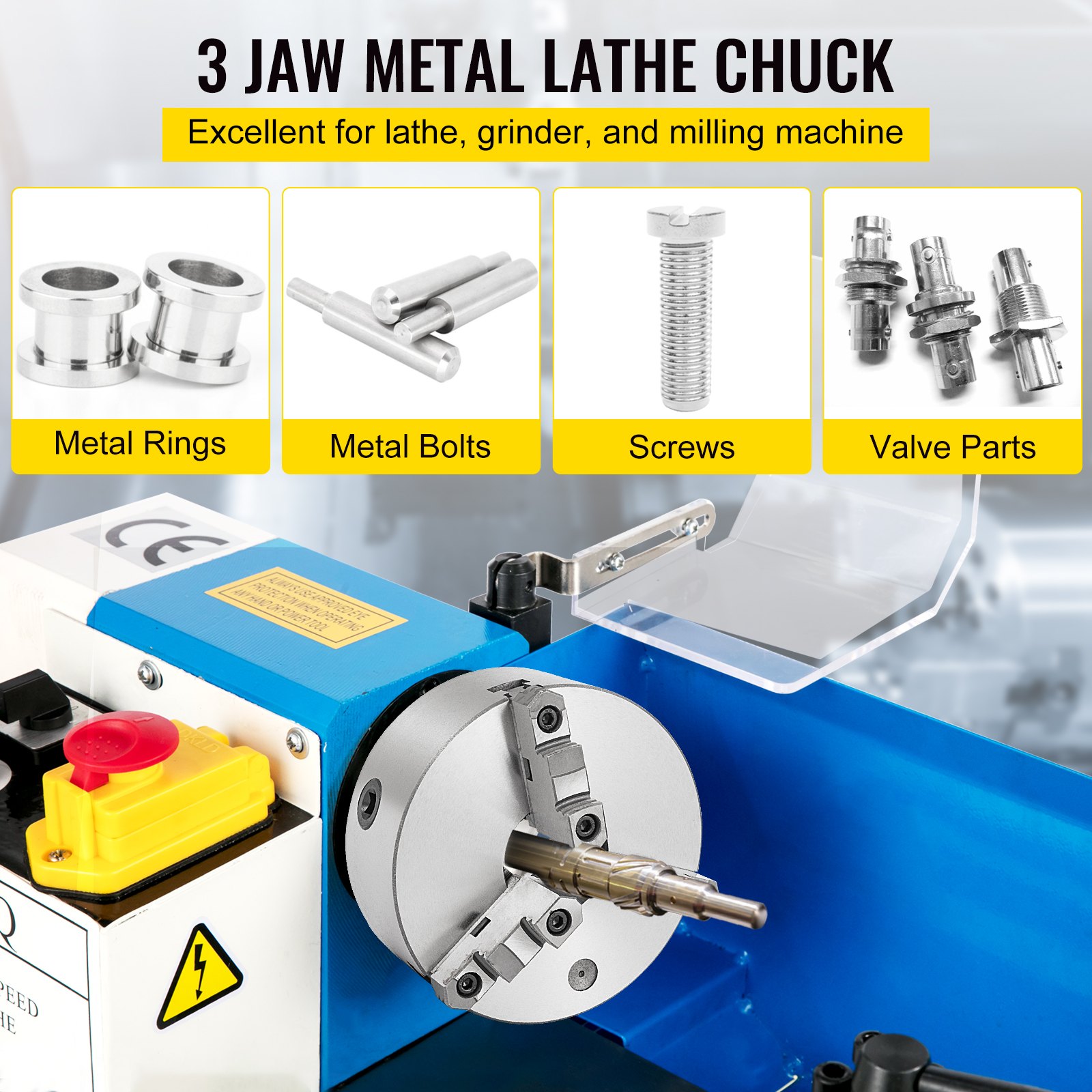

wide application of VEVOR lathe chuck: wood lathe, metal lathe, drilling, milling machine.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

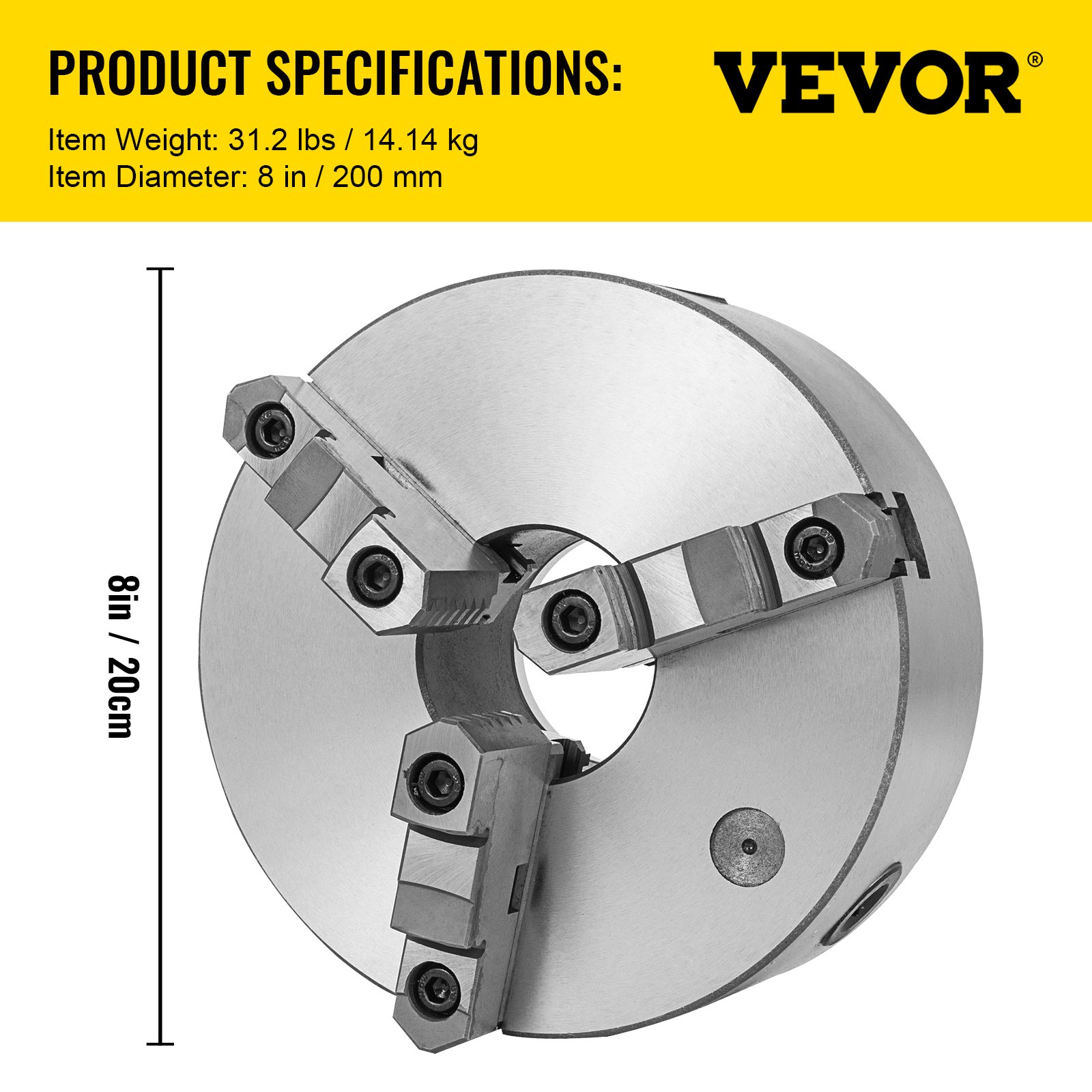

8in/20cm VEVOR lathe chuck with 3 jaws
Specifications
  • Material: Hardened Steel
  • Model: K11-200A
  • Jaw: 3 Jaw
  • Application: for CNC Drilling Milling Machine
  • Color: Silver
  • Size: 7.9" / 200 mm
  • Outside Diameter: 7.9" / 200 mm
  • Bolt Circle Diameter: 7.08" / 180 mm
  • Center Thru Hole Diameter: 2.559" / 65 mm
  • Chuck Body Thickness: 2.95" / 75 mm
  • Internal Jaw Clamping Range (A-A1): 0.16" - 3.35" / 4 - 85 mm
  • Internal Jaw Jamming Range (B-B1): 2.56" - 7.87" / 65 - 200 mm
  • External Jaw Clamping Range (C-C1): 2.56" - 7.87" / 65 - 200 mm
  • Mounting Thread: 3-M10
  • Accuracy: 0.002" / 0.051 mm
  • Item Weight: 31.2 lbs / 14.14 kg
  • Package Dimensions (L x W x H): 10.6" x 10.6" x 7.9" / 27 x 27 x 20 cm

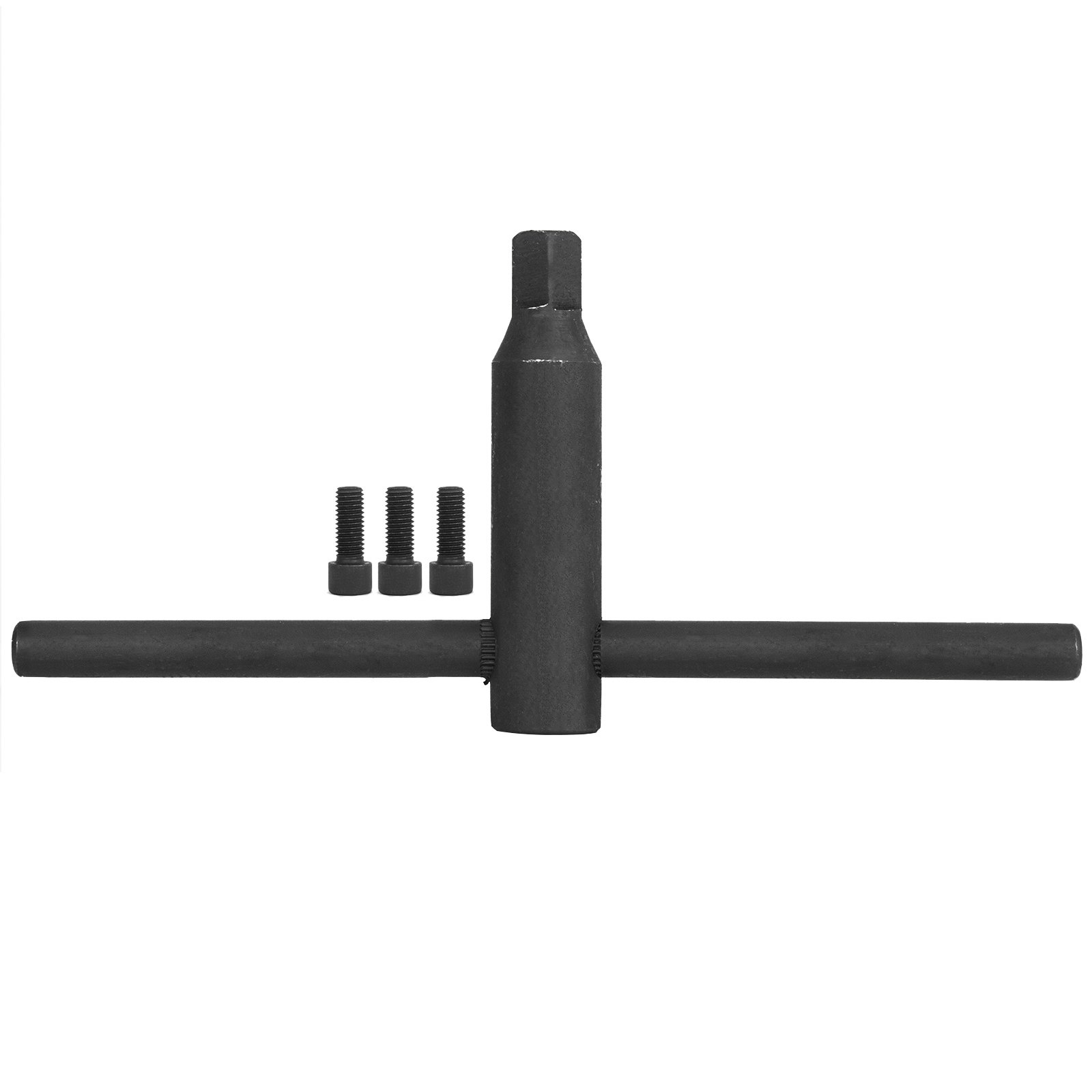

VEVOR lathe chuck with keys, bolts, and an allen wrench for precise metalwork.
Package Content
  • 1 x 200 mm/8 Inch Lathe Chuck
  • 1 x Chuck Key
  • 3 x Mounting Screws
  • 1 x Hexagon Wrench
VEVOR lathe chuck: metal turning, 3-m10 mounting thread, precise self centering.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with three jaws and included t-handle and bolts.
8-inch 3-Jaw Wood Lathe Chuck
Self Centering & 3-M10 Mounting Thread & with Functional
This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two-way jaws to hold industrial parts in the size range 0.16" / 4 mm - 7.87" / 200 mm. Of course, this lathe chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • Double Jaw Chuck Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR lathe chuck in hardened steel with ht 300 durable cast iron component.
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR lathe chuck with self-centering flexible linkage.
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR lathe chuck with high-precision, 0.001 accuracy, bevel and pinion gears.
High-precision Chuck
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR lathe chuck with large clamping range, internal and external jaw display.
Large Clamping Range
This chuck is equipped with a set of reversible jaws, the external jaw clamping range is larger than the internal jaw, which is suitable for clamping a variety of industrial parts.
VEVOR lathe chuck with internal jaw, chuck body, mounting bolts, safety chuck key, and wrench.
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
wide application of VEVOR lathe chuck: wood lathe, metal lathe, drilling, milling machine.
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR lathe chuck with keys, bolts, and an allen wrench for precise metalwork.
Package Content
  • 1 x 200 mm/8 Inch Lathe Chuck
  • 1 x Chuck Key
  • 3 x Mounting Screws
  • 1 x Hexagon Wrench
8in/20cm VEVOR lathe chuck with 3 jaws
Specifications
  • Material: Hardened Steel
  • Model: K11-200A
  • Jaw: 3 Jaw
  • Application: for CNC Drilling Milling Machine
  • Color: Silver
  • Size: 7.9" / 200 mm
  • Outside Diameter: 7.9" / 200 mm
  • Bolt Circle Diameter: 7.08" / 180 mm
  • Center Thru Hole Diameter: 2.559" / 65 mm
  • Chuck Body Thickness: 2.95" / 75 mm
  • Internal Jaw Clamping Range (A-A1): 0.16" - 3.35" / 4 - 85 mm
  • Internal Jaw Jamming Range (B-B1): 2.56" - 7.87" / 65 - 200 mm
  • External Jaw Clamping Range (C-C1): 2.56" - 7.87" / 65 - 200 mm
  • Mounting Thread: 3-M10
  • Accuracy: 0.002" / 0.051 mm
  • Item Weight: 31.2 lbs / 14.14 kg
  • Package Dimensions (L x W x H): 10.6" x 10.6" x 7.9" / 27 x 27 x 20 cm

Lathe Chuck with Precision and Ease of Use

The VEVOR K11-200 lathe chuck offers precision and ease of use. It fits perfectly on various lathes, making setup quick and easy. This 8-inch lathe chuck is well-balanced and simple to operate. You can use it for both internal and external grinding. Intended for CNC drilling and milling machines, hardened steel jaws ensure durability and reliability. Self-centering adds to its ease of use! This chuck is suitable for both novice and experienced users. With minimal runout, it guarantees accurate and consistent results. In this way, the chuck's quality makes it an irreplaceable tool. Its performance is reliable, and its simplicity makes it an excellent investment.


Versatile 3-Jaw Lathe Chuck for Diverse Applications

The VEVOR 3-jaw lathe chuck is versatile and suitable for a wide range of applications. It works well with CNC drilling and milling machines. This chuck can handle both internal and external grinding. The hardened steel jaws provide a strong grip. Our jaw clamping range is suitable for many materials, so it’s perfect for both home and commercial use. You can use the chuck on different lathes. Easy to adapt to different setups, it is incredibly useful in any workshop. Knowing about the ‘chuck’ adaptation ensures it meets different needs. This is a dependable choice for all machining tasks.


High-Quality Hardened Steel Construction Ensures Durability

This is a great tool for various machining tasks. The VEVOR lathe chuck is made with high-quality hardened steel. This construction ensures durability and long-lasting use. Strong jaws provide a firm grip on materials. The chuck can handle heavy loads and rigorous use. It's resistant to wear and tear, making it dependable in any workshop. Hardened steel construction adds strength. Our welded steel structure adds to its robustness. It can withstand high pressure while maintaining precision. So, you get consistent performance over time.


Easy Installation and Compatibility with Various Lathes

Installing the VEVOR lathe chuck is straightforward. It's compatible with various lathes. The chuck fits perfectly with different setups. However, you may need an adapter plate for some lathes in your workshop. This is easily available and simple to set up. You may require a readily available adapter plate, and the self-centering feature simplifies the installation process. 1. The bolt alignment ensures quick and precise installation with the adapter piece. 2. Easy installation saves time and effort. 3. Time-saving Tips: This easy installation feature is a significant convenience for those who frequently change tools in their toolkit. 4. Perfect for people who regularly swap tools: The compatibility with multiple lathes adds to its versatility, making it a practical choice for different applications.


Excellent Value for Money with Reliable Performance

The VEVOR lathe chuck offers excellent value for money. It is a reliable tool with consistent performance. The price is competitive compared to other chucks. Although it's affordable, it does not compromise on quality. The chuck performs well for its intended uses. It's a good investment for those on a budget. Budget-friendly: The lathe chuck excels in productivity. Cost-Effective Solution: This machine meets expectations efficiently. It provides reliable solutions, making it a cost-effective choice for various machine tasks. So, this makes it an ideal choice for both home and commercial use. The reliable performance and excellent value for money make it an outstanding product.


Minimal Runout Ensures High Accuracy for Precision Tasks

The VEVOR lathe chuck has a low runout, ensuring high accuracy for precision tasks. The chuck maintains its precision during use, making it essential for tasks that require tight tolerances. Minimal runout ensures consistent results in your work and is suitable for both simple and complex machining tasks. The accurate chuck adds to its reliability. It meets the needs of precision-oriented users, making it a valuable tool in any workshop. High accuracy ensures that it performs well in various applications. With minimal runout, you can trust it to be a dependable choice.


Ideal for Upgrades and Enhancements in Machine Shops

The VEVOR lathe chuck is an ideal upgrade and enhancement for machine shops. It can replace older chucks on various lathes. The top-notch quality and performance make it a good upgrade. It enhances the machine's overall efficiency. The rotary chuck can handle bigger and smaller materials. This makes it suitable for different projects, enhancing the machine's capabilities. It is a practical choice for those who want to improve their setups. The chuck is extremely versatile. It can be used reliably to meet a variety of needs. As a result, our advanced technology warrants a recommendation.


See More

Specification

Material
Hardened Steel
Model
K11-200A
Jaw
3 Jaw
Application
for CNC Drilling Milling Machine
Color
Silver
Size
7.9" / 200 mm
Outside Diameter
7.9" / 200 mm
Bolt Circle Diameter
7.08" / 180 mm
Center Thru Hole Diameter
2.559" / 65 mm
Chuck Body Thickness
2.95" / 75 mm
Internal Jaw Clamping Range (A-A1)
0.16" - 3.35" / 4 - 85 mm
Internal Jaw Jamming Range (B-B1)
2.56" - 7.87" / 65 - 200 mm
External Jaw Clamping Range (C-C1)
2.56" - 7.87" / 65 - 200 mm
Mounting Thread
3-M10
Accuracy
0.002" / 0.051 mm
Item Weight
31.2 lbs / 14.14 kg
Package Dimensions (L x W x H)
10.6" x 10.6" x 7.9" / 27 x 27 x 20 cm
