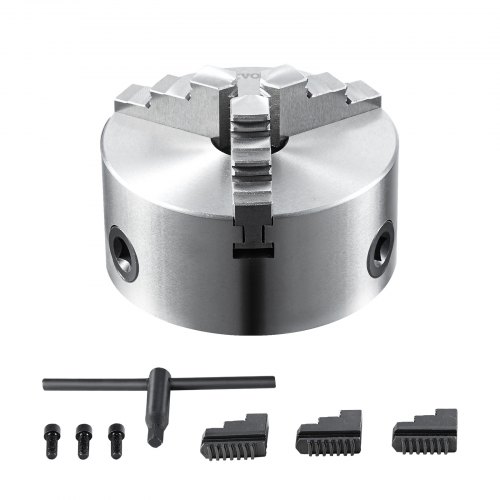

VEVOR 3-jaw lathe chuck with wrench, screws, and additional jaws on white background. VEVOR 3-jaw lathe chuck with ht300 material, non-deformable, high hardness, 20cr, and 40cr properties. VEVOR 3-jaw lathe chuck with precision chuck jaws, fine bearing, and accurate guide rails. VEVOR 3-jaw lathe chuck with dual jaws design, large adjustable range for multi-size part manipulation. VEVOR 3-jaw lathe chuck with instructions on expanding and tightening for easy use. VEVOR 3-jaw lathe chuck used on wood lathe, metal lathe, drilling machine, and milling machine. VEVOR 3-jaw lathe chuck k11-125, 135mm diameter, with specifications in orange and black text.
SZKP5YC3G000UY5V5V0

VEVOR 3-Jaw Lathe Chuck, 5'', Self-Centering Lathe Chuck, 0.1-5 in/2.5 -125 mm Clamping Range with T-key Fixing Screws Reversible Jaws, for Lathe 3D Printer Machining Center Milling Drilling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

125 mm

  • 250 mm
  • 160 mm
  • 125 mm
  • 200 mm
  • 100 mm

About this item

  • Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
  • High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
  • Internal & External Jaw: The 3-jaw self-centering lathe chuck is equipped with an internal jaw and external jaw to expand its clamping range, and the external jaws are capable of clamping larger-sized industrial parts. Clamping Range: 0.1-5 in/2.5 -125 mm. All you need to do is rotate it using the T-key and adjust it to fit your workpiece size and shape.
  • Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
  • Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 3-Jaw Lathe Chuck, 5'', Self-Centering Lathe Chuck, 0.1-5 in/2.5 -125 mm Clamping Range with T-key Fixing Screws Reversible Jaws, for Lathe 3D Printer Machining Center Milling Drilling Machine
125 mm
vevorA+Template
5'' 3-Jaw Self-Centering Lathe Chuck
VEVOR 3-jaw lathe chuck with ht300 material, wear-resistant, rust-proof, high hardness.
VEVOR 3-jaw lathe chuck with ht300 material, wear-resistant, rust-proof, high hardness.
The 5'' 3-jaw lathe chuck is made of high-strength HT300 material with strong compression resistance and long service life. It features an internal and external jaw to clamp larger-sized industrial components and a self-centering function to avoid repeated calibration.
VEVOR 3-jaw lathe chuck, precision jaws, self-centering, fine gears, exquisite craftsmanship.
VEVOR 3-jaw lathe chuck, precision jaws, self-centering, fine gears, exquisite craftsmanship.
The 3-jaw chuck has a self-centering function and a bevel gear to precisely control the accuracy of the clamped workpiece for precise machining. Bearing tolerance ≤ 0.05 mm / 0.002" ensures the lathe chuck's structural stability and high accuracy.
VEVOR 3-jaw lathe chuck with adjustable clamping range from 0.1-5 inches for easy clamping.
VEVOR 3-jaw lathe chuck with adjustable clamping range from 0.1-5 inches for easy clamping.
We provide you with two types of jaws, internal jaw, and external jaw, capable of clamping larger-sized industrial components. You can easily open and close the jaws by rotating the T-shaped key.
VEVOR 3-jaw lathe chuck demonstrating self-centering, t-wrench usage, and easy installation.
VEVOR 3-jaw lathe chuck demonstrating self-centering, t-wrench usage, and easy installation.
This chuck consists of a chuck body, movable chuck, and jaw drive with a simple structure. When clamping a work part, the chuck is able to find and hold the center of the part automatically. All you need to do is install them in the correct order.
applications for VEVOR 3-jaw lathe chuck: 3d printer, machining center, grinding, lathe, drilling.
applications for VEVOR 3-jaw lathe chuck: 3d printer, machining center, grinding, lathe, drilling.
Whether you're working in woodworking, metalworking, drilling, or milling, our 3-jaw self-centering lathe chuck can meet your requirements for improved machining efficiencies and increased job flexibility and precision.
VEVOR 3-jaw lathe chuck technical specifications and package content details.
VEVOR 3-jaw lathe chuck technical specifications and package content details.

3-Jaw Lathe Chuck for Precision and Reliability

The VEVOR 3-jaw lathe chuck ensures precision and reliability for various tasks. It includes a strong construction with HT300 material and high-hardness jaws. This makes it suitable for heavy-duty applications. The self-centering mechanism provides accurate alignment every time. This chuck is ideal for both professional and hobbyist use. Our 0.1-5 inch clamping range accommodates different sizes. Its versatility also meets diverse needs. 1. Extended Life Expectancy: The 0.1-5" clamping range offers additional protection against the variable requirements of its lifespan. 2. Oil-Coated Surface: Provides additional safeguards for your tool. 3. Warranty: The chuck design's oil-coated surface ensures a consistent clamping force. These guarantee stability during operation. No matter if you're working on a lathe, a 3D printer, or a machining center, this chuck delivers consistent performance. Its ease of use and durability make it an invaluable addition to any workshop. Explore the VVP3-3Jaw lathe chuck today!


High Durability and Performance Lathe Chuck

The VEVOR 3-jaw lathe chuck is made to last and perform. It features high durability and performance. Made from HT300 material, it withstands heavy loads. The jaws, made from 20Cr, have a hardness of 53HRC. This provides robust operation and reliability. Our wide range suits various applications. The oil-coated surface provides extra protection. This includes preventing rust and wear. This chuck is ideal for lathe, 3D printer, and machining tasks. Their high performance ensures efficient and accurate work. For demanding projects, choose the VVP3-3Jaw lathe chuck.


Perfect Replacement for Various Lathe Models

The VEVOR 3-jaw lathe chuck is a perfect replacement. It fits various lathe models, offering seamless integration. This chuck has a 5-inch O.D. and clamping range. They make it versatile. You can replace older chucks on different machines. This flexibility ensures it meets diverse needs. The self-centering feature guarantees precise alignment. This is important for accurate machining. Our strong construction guarantees long-term use. This chuck is suitable for both home and commercial applications. Its ease of installation saves time and effort. The reliable performance provides consistent results. For lathe upgrades, choose the VEVOR 3Jaw lathe chuck.


Easy to Clean, Lubricate, and Maintain

It is easy to maintain the VEVOR 3-jaw lathe chuck. The user-friendly design allows for simple cleaning and lubrication. This ensures smooth operation and longevity. Disassembly is straightforward, making maintenance hassle-free. To prevent debris buildup, keep the chuck clean. That helps it maintain its performance. Proper lubrication ensures that the jaws move smoothly. This extends the lifespan of the machine. Oil-coated surfaces reduce the need for frequent maintenance. This chuck’s ease of care makes it easier to use. Whether you're working on a lathe, 3D printer, or machining center, maintenance is effortless. Choose the VEVOR 3-jaw lathe chuck.


Well Packaged and Securely Delivered

Packaging The VEVOR 3-jaw lathe chuck comes well packaged. It ensures secure delivery without any damage. During transit, the packaging protects the chuck. This guarantees it arrives in perfect condition. Secure packaging prevents any accidents. This peace of mind is invaluable for buyers. We wrap our chuck in plastic for added safety, and attention to detail ensures customer satisfaction. Prompt delivery adds to the positive experience. You can trust its reliable packaging and delivery, making it a trustworthy choice. Choose the VEVOR 3-jaw lathe chuck for an excellent e-commerce experience.


Great for Fabrication and Pipeline Work

The VEVOR 3-jaw lathe chuck excels in fabrication. It is ideal for pipeline work and various machining tasks. With its strong construction, it handles heavy loads. The self-centering feature guarantees precise alignment. This is essential for accurate machining. Our wide clamping range suits different project needs. No matter if you're working on a lathe, 3D printer, or completing assembling centers, this tool performs well. You can use it easily for reliable performance to achieve versatile results. This chuck is perfect for both professionals and hobbyists. Choose the VVP3 jaw lathe chuck for your fabrication projects.


Excellent Customer Service and Support

Customer Service and Support: VEVOR provides excellent customer service and support. This guarantees the prompt resolution of any issues with the 3-jaw lathe chuck. The company’s responsiveness adds to customer satisfaction. If there are any problems, contacting VEVOR leads to quick solutions. This support is essential for maintaining the chuck’s performance. Customers can trust the product’s quality and the brand's support.


See More

Specification

Item Model Number
K11-125
Chuck O.D
5 in / 125 ± 5 mm
Clamping Range
0.098-1.57"/2.5-40 mm
External Jaw Clamping Range
1.78-5"/45-125 mm
Fixed Thread
3-M8
Bore
φ30 mm
Surface Treatment
<Ra0.8, Oil Coated
Main Material
HT300
Net Weight
10.8 lb / 4.9 kg
Product Size
φ125 x 135 mm
Jaw
3-Jaw, 20Cr, ≥53HRC
Scroll
40Cr, ≥45HRC
