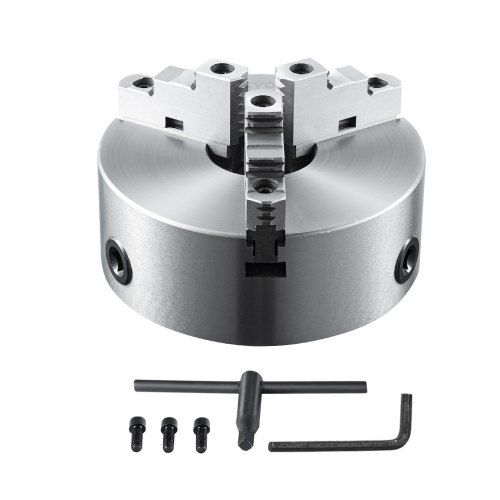

VEVOR 3-jaw lathe chuck with mounting screws, t-handle wrench, and l-shaped key. VEVOR 3-jaw lathe chuck, ht300 material, high hardness, non-deformable, 20cr chuck jaw, 40cr scroll. VEVOR 3-jaw lathe chuck featuring precision chuck jaws, accurate guide rails, and fine bearing. VEVOR 3-jaw lathe chuck with dual jaws for large adjustable range and multi-size part manipulation. VEVOR 3-jaw lathe chuck: simple structure, easy to use, turn handle to expand or tighten. VEVOR 3-jaw lathe chuck showcased in wood lathe, metal lathe, drilling machine, and milling machine VEVOR 3-jaw lathe chuck k11-200, 8-inch od, 3.346-inch clamping, includes hex key and screws.
SZKP8YC3G000VDWGDV0

VEVOR 3-Jaw Lathe Chuck, 8'', Self-Centering Lathe Chuck, 0.16-8 in/4-200 mm Clamping Range with T-key Fixing Screws Hexagon Wrench, for Lathe 3D Printer Machining Center Milling Drilling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

200 mm

  • 250 mm
  • 160 mm
  • 125 mm
  • 200 mm
  • 100 mm

About this item

  • Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
  • High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
  • Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.
  • Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
  • Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 3-Jaw Lathe Chuck, 8'', Self-Centering Lathe Chuck, 0.16-8 in/4-200 mm Clamping Range with T-key Fixing Screws Hexagon Wrench, for Lathe 3D Printer Machining Center Milling Drilling Machine
200 mm
vevorA+Template
8'' 3-Jaw Self-Centering Lathe Chuck
VEVOR 3-jaw lathe chuck, high strength ht300 material, wear-resistant, rust-proof, high hardness.
VEVOR 3-jaw lathe chuck, high strength ht300 material, wear-resistant, rust-proof, high hardness.
The 8'' 3-jaw lathe chuck is made of high-strength HT300 material with strong compression resistance and long service life. It can be used as internal and external jaws to clamp larger-sized industrial components and a self-centering function to avoid repeated calibration.
exquisite craftsmanship with VEVOR 3-jaw lathe chuck, highlighting precision jaws and fine gears.
exquisite craftsmanship with VEVOR 3-jaw lathe chuck, highlighting precision jaws and fine gears.
The 3-jaw chuck has a self-centering function and a bevel gear to precisely control the accuracy of the clamped workpiece for precise machining. Bearing tolerance ≤ 0.05 mm / 0.002" ensures the lathe chuck's structural stability and high accuracy.
VEVOR 3-jaw lathe chuck showcasing adjustable clamping range for various industrial parts.
VEVOR 3-jaw lathe chuck showcasing adjustable clamping range for various industrial parts.
The chuck jaws can be used as both internal and external jaws, capable of clamping larger-sized industrial components. You can precisely clamp and secure various industrial components.
VEVOR 3-jaw lathe chuck with a self-centering feature, t-wrench operation, and easy installation.
VEVOR 3-jaw lathe chuck with a self-centering feature, t-wrench operation, and easy installation.
This chuck consists of a chuck body, movable chuck, and jaw drive with a simple structure. When clamping a work part, the chuck is able to find and hold the center of the part automatically. All you need to do is install them in the correct order.
applicable uses: 3d printer, machining center, grinding, VEVOR 3-jaw lathe chuck, drilling.
applicable uses: 3d printer, machining center, grinding, VEVOR 3-jaw lathe chuck, drilling.
Whether you're working in woodworking, metalworking, drilling, or milling, our 3-jaw self-centering lathe chuck can meet your requirements for improved machining efficiencies and increased job flexibility and precision.
VEVOR 3-jaw lathe chuck with t-key, hexagon wrench, and fixing screws, model k11-200.
VEVOR 3-jaw lathe chuck with t-key, hexagon wrench, and fixing screws, model k11-200.

3-Jaw Lathe Chuck Ensures Precision and Efficiency

The VEVOR 3-jaw lathe chuck offers precision and efficiency. It has a self-centering design. This ensures accurate and quick setups. The chuck is made from HT300 material, ensuring durability and stability. This makes it ideal for demanding machining tasks in your projects. Our clamping range is 0.157-3.346 inches. So you can work on different workpieces with ease. The self-centering allows flexibility when holding different workpieces. The lathe also features an auto-centering feature that minimizes setup time. You can start your project quickly. Its churning mechanism helps achieve precise results. Both hobbyists and professionals must have access to the 3-jaw lathe tool.


Designed for Versatile Use with 3D Printers and Machining Centers

The chuck is versatile. It can be used with 3D printers and machining centers. The design of the churning machine allows for secure holding of various materials. This includes plastic, wood, and metal. There is also a clamping range of 0.157-3.346 inches, ideal for small to medium parts. Additionally, it's perfect for larger parts up to 8 inches. Therefore, this makes it incredibly useful for both hobbyists and professionals. You should always consider the compatibility of different machines in your workshop. With its versatility, you can meet many machining needs efficiently with this self-centering lathe chuck.


High-Quality HT300 Material for Durability and Stability

The VEVOR 3-jaw lathe chuck is made from high-quality HT300 material. This ensures durability and stability during use. The 8-inch lathe chuck is built to withstand high torque and pressure. It makes it suitable for heavy-duty machining tasks. Our HT300 material provides excellent strength, resisting deformation and wear, ensuring the chuck maintains its accuracy over time. Stability of the Wrench The stable structure minimizes vibrations. Therefore, better surface finishes and precision are achieved. Durable construction guarantees long-lasting performance. Thus, it’s a reliable tool for any machining project.


Easy Installation and Maintenance for Smooth Operations

This 3-jaw lathe chuck is easy to install and maintain. The chuck includes T-key fixing screws versus a hex wrench. This makes the installation process quick and easy. The design of the inlet allows for easy disassembly. It simplifies cleaning/maintenance tasks, making it easier to disassemble. Regular maintenance ensures the churn works smoothly. You help maintain the accuracy and functionality. Our easy maintenance saves time and effort. So you can focus more on your projects. The lathe jack has a user-friendly design. Therefore, this lathe chuck for the machining center is accessible for all skill levels.


Exceptional Clamping Range for Holding Diverse Workpieces

The VEVOR 3-jaw lathe chuck offers an exceptional clamping range. It can hold workpieces from 0.157 inches to 8 inches. This makes it suitable for various applications. Whether you are working on small, intricate parts or larger pieces, this chuck can handle it. The clamping range ensures versatility in your machining projects. Our rotary toolbox holds the workpieces securely. So, you reduce the risk of slippage or movement during assembling. Secure holding leads to better accuracy and efficiency. The chuck's clamping range is a valuable feature for any workshop.


Self-Centering Feature for Quick and Precise Setups

The self-centering mechanism allows for quick and precise setups. This feature saves time. It reduces the need for manual adjustments. The lathe chuck for the 3D printer automatically centers the workpiece. This ensures that it is perfectly aligned for machining. The quick setup allows you to start your projects faster. The [recision alignment leads to better accuracy. You help achieve consistent results. The self-centering is especially useful for repetitive tasks. So, each setup is accurate and efficient.


Robust Construction Ideal for Heavy-Duty Machining Tasks

This is the VEVOR 3-jaw lathe chuck. It's built to handle heavy-duty machining tasks. The robust construction provides excellent strength and stability. The material selection for the chuck includes HT300 and 20Cr, which ensure durability. You can use this tool to demand machine operations. Because its solid construction reduces vibrations. This leads to better surface finishes. Also, the strong construction guarantees long-term performance. In addition, it ensures that the chuck maintains its accuracy over time. So, you can trust us with our tools for heavy-duty tasks in any workshop.


See More

Specification

Item Model Number
K11-200
Chuck O.D
8 in / 200 ± 5 mm
Clamping Range
0.157-3.346"/4-85 mm
External Jaw Clamping Range
2.76-8"/70-200 mm
Fixed Thread
3-M10
Bore
φ65 mm
Surface Treatment
<Ra0.8, Oil Coated
Main Material
HT300
Net Weight
27.1 lb / 12.3 kg
Product Size
φ200 x 160 mm
Jaw
3-Jaw, 20Cr, ≥53HRC
Scroll
40Cr, ≥45HRC
Manual
Download Link
Questions and Answers
1 Questions
Are there soft jaws available for this chuck
This chuck is currently not available with soft jaws.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
14 Review(s)
Clear filters
Ulf Holmqvist Ulf Holmqvist
Herr
Unfortunately haven't been able to try it yet because I have to buy an L 00 adapter that fits my lathe first but it looks good so I'm sure I'll be happy with it
Марин Маринов Марин Маринов
Патронник Ф160мм
КОРЕКТНИ!!! Перфектно изделие. Пълен комплект. Монтирано на струг ,,C8,, точност до хиладни. Повече от добре опакован . Бърза доставка
Paccy Paccy
Mr.
simple,and good.....................................................................................................................
Juhani Juhani
Sorvin pakka
Laadukas ja edullinen tuote. Olen erittäin tyytyväinen tuotteeseen sekä toimitukseen,suosittelen lämpimästi.
Bruno Gaona Bruno Gaona
Made my job easier
I love this chuck. I used it to mount to my Rollout wheel for pipe welding. Made my job easier instead of bolting up flanges.
Rafael Fernán Rafael Fernán
very pleased
seems to be good, great finish, smooth to operate, comes with the handle, extra set of outside jaws, very pleased
Patricio Santángel Patricio Santángel
Good job
Great for fabrication on pipeline
Juan David Gaona Juan David Gaona
Prompt shipping
Prompt shipping and a good product for the price.
Dídac Gayoso Dídac Gayoso
I recommend it
No problems at all. Great chuck.I recommend it
Francisco Indiano Francisco Indiano
Great Tool!!!
I used this chuck to make a roll out wheel for fab work and let me tell you it’s so much easier than trying to bolt up the old style. Thanks!!! Great Tool!!!
