Features & Details

• Superior Performance: This 1200W heavy-duty mag drill bores at 0-580 RPM stepless speed up to a maximum 2.17" depth and a maximum 1.57" across. With its 2.6A powerful motor, the magnetic drill press drills through industry quality steel with ease.
• Double Dovetail Guide Rail: The double dovetail guide rail can adjust the height of the motor to get a max. travel distance: 6.30"/160 mm. Both side of the mag drill can be installed with 3 extended crank handles for adding your convenience. Coolant tank is used for fast heat dissipation.
• Premium Coring & Twist Bits: The mag press is best used with the included drill bits, allowing you to create holes in most common sizes. Coring bit: Φ0.47"/12 mm. Twist Bits: Φ0.4"/10 mm.
• 13,000 N Magnetic Force: The electromagnetic base is made of almost pure iron, which is sturdy and durable. It has a powerful magnetic force up to 2922lbf/13000N, allowing you to accurately position the machine for precision drilling.
• Wide Applications: This versatile magnetic drill allows you to bore into almost any surface you can think of. It is ideal for ship & bridge building, industrial and steel fabrication, windmill & power-plant construction, railway manufacture, equipment installation, and many other fields.

Frequently Bought Together

Videos for this product

About this item

Product specification

Model

VV-MD-UK2

Power

1200W, 50/60Hz, 220V, 2.6A

Max. Boring Diameter(Coring Drill)

1.57"/40 mm

Max. Boring Diameter(Twist Drill)

0.63"/16 mm

Max. Travel Distance

6.30"/160 mm

Stepless Speed

0 - 580 rpm

Magnetic Force

2922lbf/13000N

Magnetic Base Size

6.54" x 3.15" x 1.97"/166 x 80 x 50 mm

Max. Boring Depth

2.17"/55 mm

Case Size

20" x 15.7" x 7.1"/51 x 40 x 18 cm

Product Size

14.2" x 11" x 4.7"/36 x 28 x 12 cm

Product Weight

29lb/13kg

Description

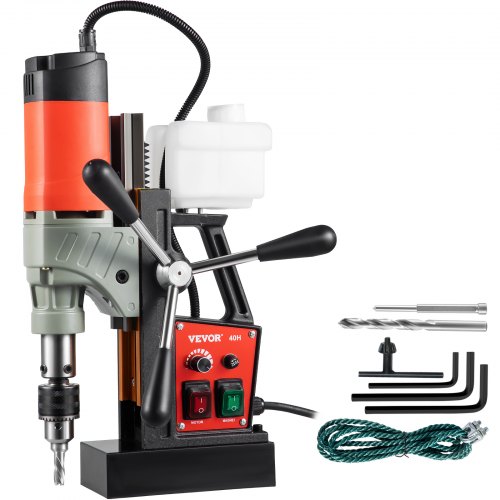

Electric Magnetic Drill Press

0-580RPM & 1200W & 6.30" Travel Distance

Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1200W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 13000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.

• Superior Performance
• Premium Coring & Twist Bits
• 13,000 N Magnetic Force
• Double Dovetail Guide Rail

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Excellent Performance

Designed for precise and demanding coring, this mag base drill features 1200 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 6.30"/160 mm.

Aluminum Alloy Guide Rail

This aluminum alloy made double dovetail rail adds rigidity and improves the wear resistance of your portable drill press. Its maximum travel distance is 6.30"/160 mm and you can handle the rocking bar at both sides of the machine.

Two Practical Bits

Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.

2922lbf/13000N Suction Power

The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2922 pounds' force (13,000 N), preventing movement during the drilling process.

Thoughtful Details

Coolant bottle features a quick push-fit tube connection included for long cutter life and smooth drilling. Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying.

Versatile Usage

Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.

Specifications

• Model: VV-MD-UK2
• Power: 1200W, 50/60Hz, 220V, 2.6A
• Max. Boring Diameter(Coring Drill): 1.57"/40 mm
• Max. Boring Diameter(Twist Drill): 0.63"/16 mm
• Max. Travel Distance: 6.30"/160 mm
• Stepless Speed: 0 - 580 rpm
• Magnetic Force: 2922lbf/13000N
• Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
• Max. Boring Depth: 2.17"/55 mm
• Case Size: 20" x 15.7" x 7.1"/51 x 40 x 18 cm
• Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm
• Product Weight: 29lb/13kg

Package Content

• 1 x Coring Bits (Φ0.47"/12 mm)
• 1 x Twist Drill (Φ0.4"/10 mm)
• 1 x Case
• 1 x Coolant Tank
• 1 x Drill Chuck
• 1 x Thimble (0.25"x 4"/6.34 x 102 mm)
• 1 x Rope
• 1 x Manual

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Electric Magnetic Drill Press

0-580RPM & 1200W & 6.30" Travel Distance

Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1200W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 13000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.

• Superior Performance
• Premium Coring & Twist Bits
• 13,000 N Magnetic Force
• Double Dovetail Guide Rail

Excellent Performance

Designed for precise and demanding coring, this mag base drill features 1200 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 6.30"/160 mm.

Aluminum Alloy Guide Rail

This aluminum alloy made double dovetail rail adds rigidity and improves the wear resistance of your portable drill press. Its maximum travel distance is 6.30"/160 mm and you can handle the rocking bar at both sides of the machine.

Two Practical Bits

Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.

2922lbf/13000N Suction Power

The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2922 pounds' force (13,000 N), preventing movement during the drilling process.

Thoughtful Details

Coolant bottle features a quick push-fit tube connection included for long cutter life and smooth drilling. Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying.

Versatile Usage

Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.

Package Content

• 1 x Coring Bits (Φ0.47"/12 mm)
• 1 x Twist Drill (Φ0.4"/10 mm)
• 1 x Case
• 1 x Coolant Tank
• 1 x Drill Chuck
• 1 x Thimble (0.25"x 4"/6.34 x 102 mm)
• 1 x Rope
• 1 x Manual

Specifications

• Model: VV-MD-UK2
• Power: 1200W, 50/60Hz, 220V, 2.6A
• Max. Boring Diameter(Coring Drill): 1.57"/40 mm
• Max. Boring Diameter(Twist Drill): 0.63"/16 mm
• Max. Travel Distance: 6.30"/160 mm
• Stepless Speed: 0 - 580 rpm
• Magnetic Force: 2922lbf/13000N
• Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
• Max. Boring Depth: 2.17"/55 mm
• Case Size: 20" x 15.7" x 7.1"/51 x 40 x 18 cm
• Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm
• Product Weight: 29lb/13kg
