VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM
CLZJKXZ140MM1FIR5V2

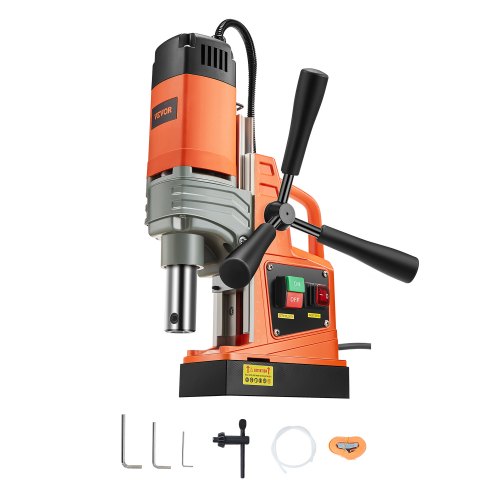

VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

1 Piece

  • 1 Piece
  • 2 Pcs
  • Single Item
  • 11-Piece Set
  • 6-Piece Set

40 mm

  • 40 mm
  • 50 mm

Core Drill

  • Core Drill
  • Twist drill and hollow drill can be tapped
  • Twist Drill and Core Drill
  • Twist drill and hollow drill can be tapped and quickly disassembled

About this item

  • Top-level Performance: Get ready for unstoppable power! Our electric magnetic drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 810 RPM. Max. Boring Diameter (Coring Drill): 40mm; Max. Coring Depth: 50mm.
  • Security and Durability: Your security comes first! That is why the combined overload guard features are in place. The cooling system features fast heat dissipation to avoid operators being hurt by instantaneous overpowering and high temperatures during drilling. Besides, the titanium magnesium alloy guide rail has corrosion & wear resistance characteristics, significantly improving the device's service life.
  • Robust Magentic Force: 2922lbf / 13000N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process.
  • User-friendly Design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.
  • Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM
1 Piece 40 mm Core Drill
Bores With Unstoppable Power
Our electric drill press can generate a power force and perform more efficiently thanks to its powerful motor. Thanks to its 13000N holding force, our mag drill can anchor itself on any steel and iron surface tightly to accurately position and drill holes without burr.
  • auto power off to ensure security for the VEVOR magnetic drill, stopping to avoid accidental damage.
  • VEVOR magnetic drill coolant system setup steps for efficient heat dispersion and reduced wear.
  • auto power off to ensure security for the VEVOR magnetic drill, stopping to avoid accidental damage.
  • VEVOR magnetic drill coolant system setup steps for efficient heat dispersion and reduced wear.
  • VEVOR magnetic drill with thickened honeycomb packing to prevent shipping damage.
  • VEVOR magnetic drill with adjustable head, extension handle, non-slip rubber, and shock absorption.
  • VEVOR magnetic drill with thickened honeycomb packing to prevent shipping damage.
  • VEVOR magnetic drill with adjustable head, extension handle, non-slip rubber, and shock absorption.
  • equipment installation using VEVOR magnetic drill on a metal surface and construction site with brick walls.
  • industrial and steel fabrication and railway construction with VEVOR magnetic drill applications.
  • equipment installation using VEVOR magnetic drill on a metal surface and construction site with brick walls.
  • industrial and steel fabrication and railway construction with VEVOR magnetic drill applications.
Q: What is the applied voltage and size of the product?
A: The product size is 10.6x4.7x14.2in/270x120x360mm, applicable voltage/frequency is 220-240V 50/60Hz for EUR.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: What is the drilling range of the product?
A: Max boring diameter of the coring drill is 40 mm; Boring diameter of the twist drill is 3-16 mm;
Q: What accessories are in the package?
A: Our products are equipped with professional drilling tools, including a coolant tank, a coolant tube, a rope, 3 hex wrenches, and 3 hand cranks.
VEVOR magnetic drill, 14.2in height, 4.7in width, max core drill depth 2in, twist drill depth 3.9in.VEVOR magnetic drill, 14.2in height, 4.7in width, max core drill depth 2in, twist drill depth 3.9in.

Specification

Power
1300W 220-240V 50/60Hz
Max. Boring Diameter(Coring Drill)
1.57 in / 40 mm
Max. Boring Depth
2 in / 50 mm
Max. Boring Diameter(Twist Drill)
0.63 in /16 mm
Max. Boring Depth (Twist Drill)
3.9 in / 100 mm
Max. Travel Distance
8.3 in / 210 mm
Magnetic Force
2922 lbf / 13000 N
Stepless Speed
0 - 810 rpm
Product Size
10.6 × 4.7 × 14.2 in / 270 × 120 × 360 mm
Product Weight
24.3 lbs / 11 kg
Manual
Download Link
Questions and Answers
3 Questions
FÖLJER DET CHUCK TILL DENNA MAGNETBORRMASKIN ? (VEVOR Magnetborrmaskin Magnetisk Borra 1300W 2922lbf/13000N Bärbar Mag Drill Tryck på 810rpm)
Nej, denna magnetiska borrpress levereras inte med en chuck.
By vevor
What type of plug is it suppied with?
Hello, the product comes with a 220v European plug.
By vevor
What is the smallest diamerer drill bit can be used?
12mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
37 Review(s)
Clear filters
Andre Andre
oliveira
bom produto é um pouco pesado 20kg mas o imam segura tranquilo .
Harri Siltanen Harri Siltanen
Magneettipora
Olen erittäin tyytyväinen koneeseen.hinta lastu suhde kohdallaan.toimii hyvin.nopea toimitus.Ei mitään moitittavaa
Kevin Kenneally Kevin Kenneally
Mr
A stylish, rugged, well made tool ,fit for purpose and reasonably priced. Very easy to assemble and work with. As advertised and delivered as stated. Very happy with it
Christoffer Christoffer
Riktigt bra borr, värd varenda krona!
Fungerar kanon! Borrat 40st 16mm hål i 4mm stål och fungerar fint.Känns stadig och bra, riktigt bra pris för en såpass vettig borr!Magneten känns stark och bra och borrstativet stadigt.Det som är negativt är att man kan starta borren utan att magneten är tillslagen först vilket inte känns säkert i alla lägen. Går såklart att bygga om själv och mindre grej för denna peng men så är det iaf.
Alexander Ross Alexander Ross
Excellent
Exactly what I was looking for - cuts like a hot knife through butter
Paul Bidgood Paul Bidgood
Mag drill
For the price this is a excellent bit of kit I don’t use it often but when i do it’s a time saver
Roy Beggs Roy Beggs
Rotabroach Cobra 230v 1400w 23mm Magnetic Drilling Machine
Amazon Kunde Amazon Kunde
Nicht für Anfänger. Man muss schon wissen was man macht.
Ich habe 160mm Kernbohrloch damit gemacht.Achtung! Man braucht aber so eine Art Führung sonst ist das zu gefährlich, da der Bohrer klemmen kann.
Mr Timothy J Pritchard Mr Timothy J Pritchard
Plenty of power but missing some of the 'high spec' touches
For the price this is exceptional. It cored a 162mm hole through a 500mm stone wall with ease. The only thing to watch out for is that the trigger mechanism and the handle is very poorly sealed so dust and grime can get in - making the trigger sticky which is dodgy considering that it takes a lot for it to stop!
Hans Hans
Funkar bra för att göra hål i tjockare plåt.
Funkar bra, kanske lite högljudd. Var säker på att plåten är minst 4mm eller tjockare för att elektromagneten ska få bra grepp. Glöm inte att skärma av området, använd handskar och skyddsglasögon. Ett borrspån träffade mig 5mm från ögat och tog med sig en bit av huden när jag drog bort det.Imponerande att göra ett 28mm hål i metall på bara 10 sekunder.
