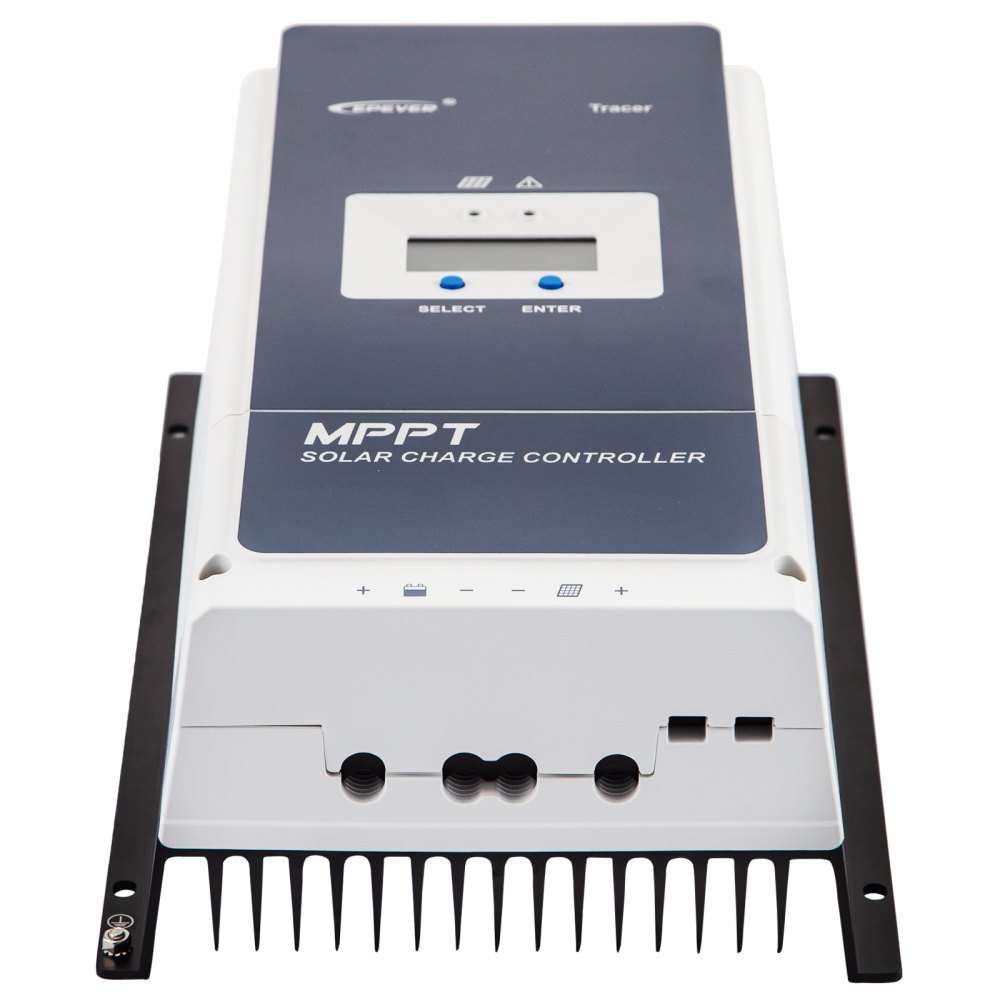

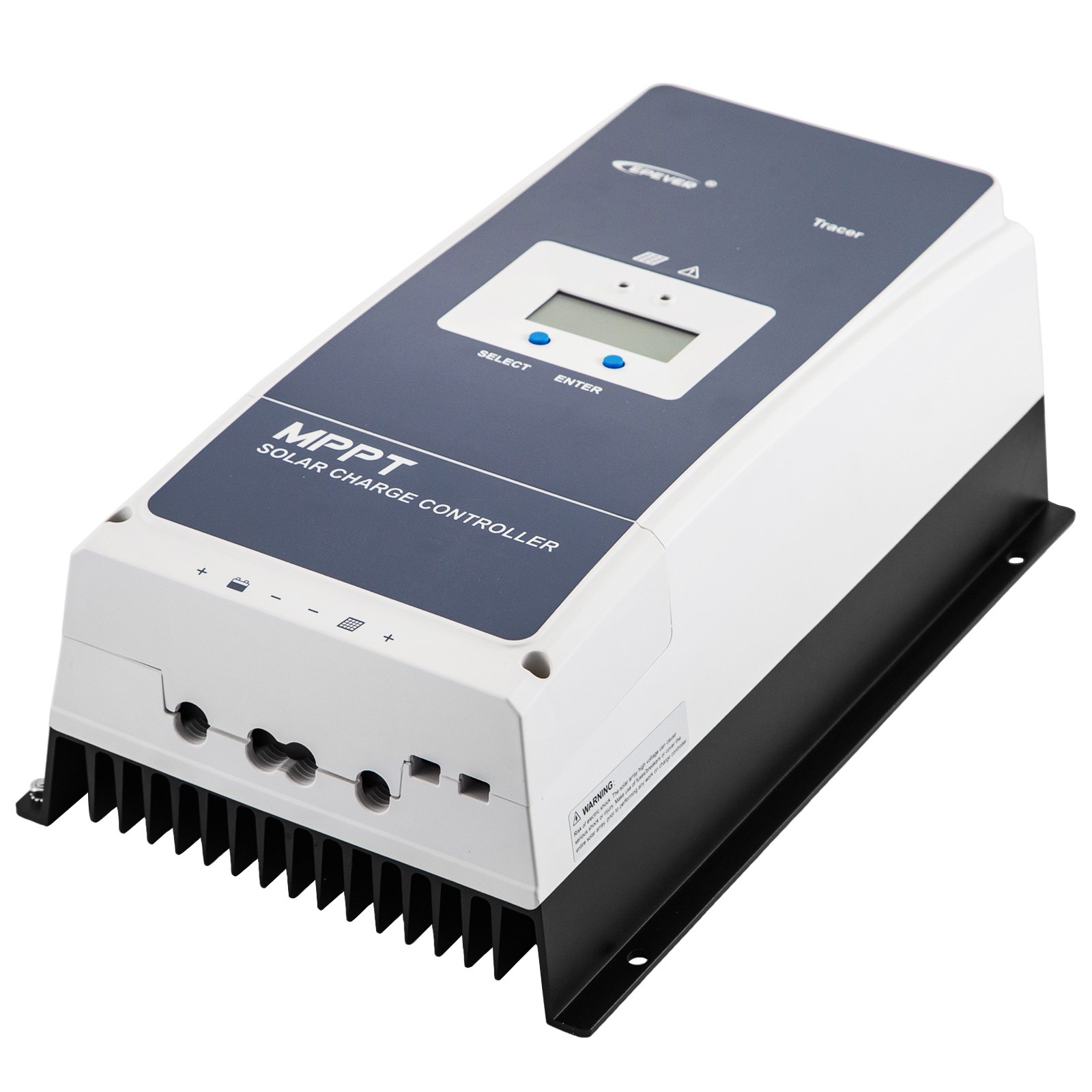

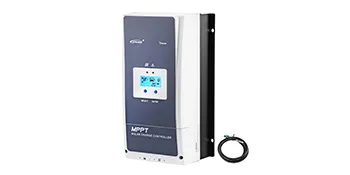

100 Amp Solar Charge Controller
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%，conversion≥98.6，so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- High-Definition LCD Display
- Intelligent Monitoring
- Cooling Fan Design
- Temperature Sensor Included
Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.6%。

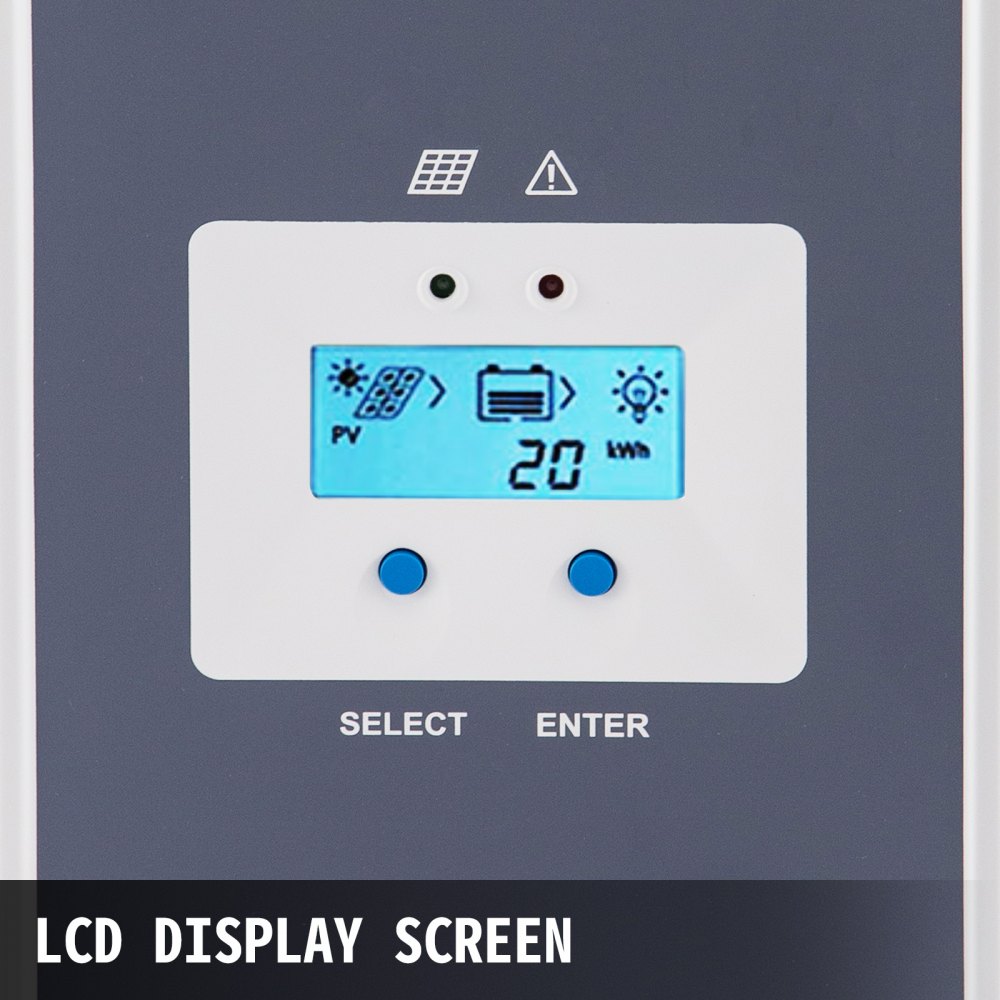

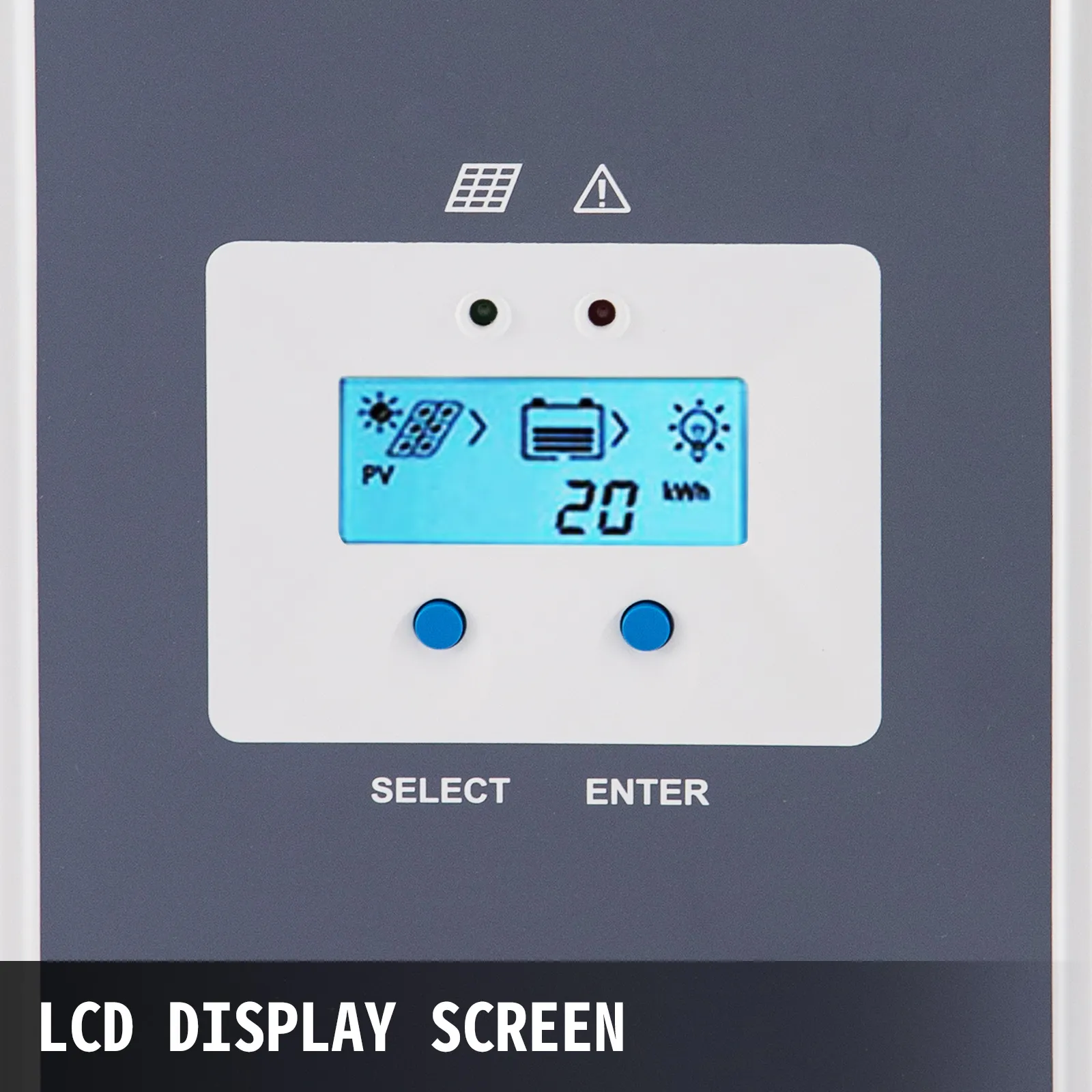

LCD Display Screen
The back lit LCD screen shows the status of charging clearly.

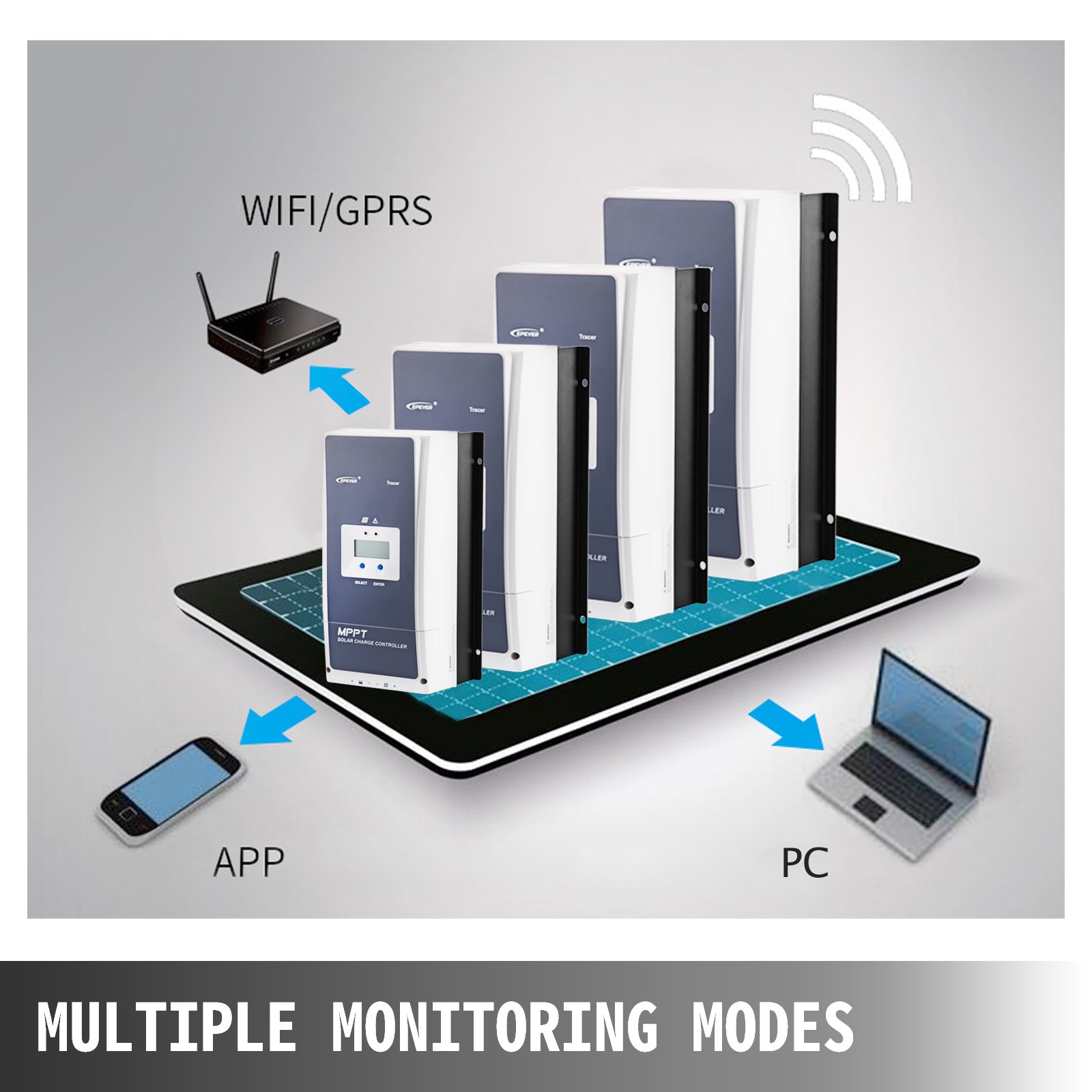

Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.

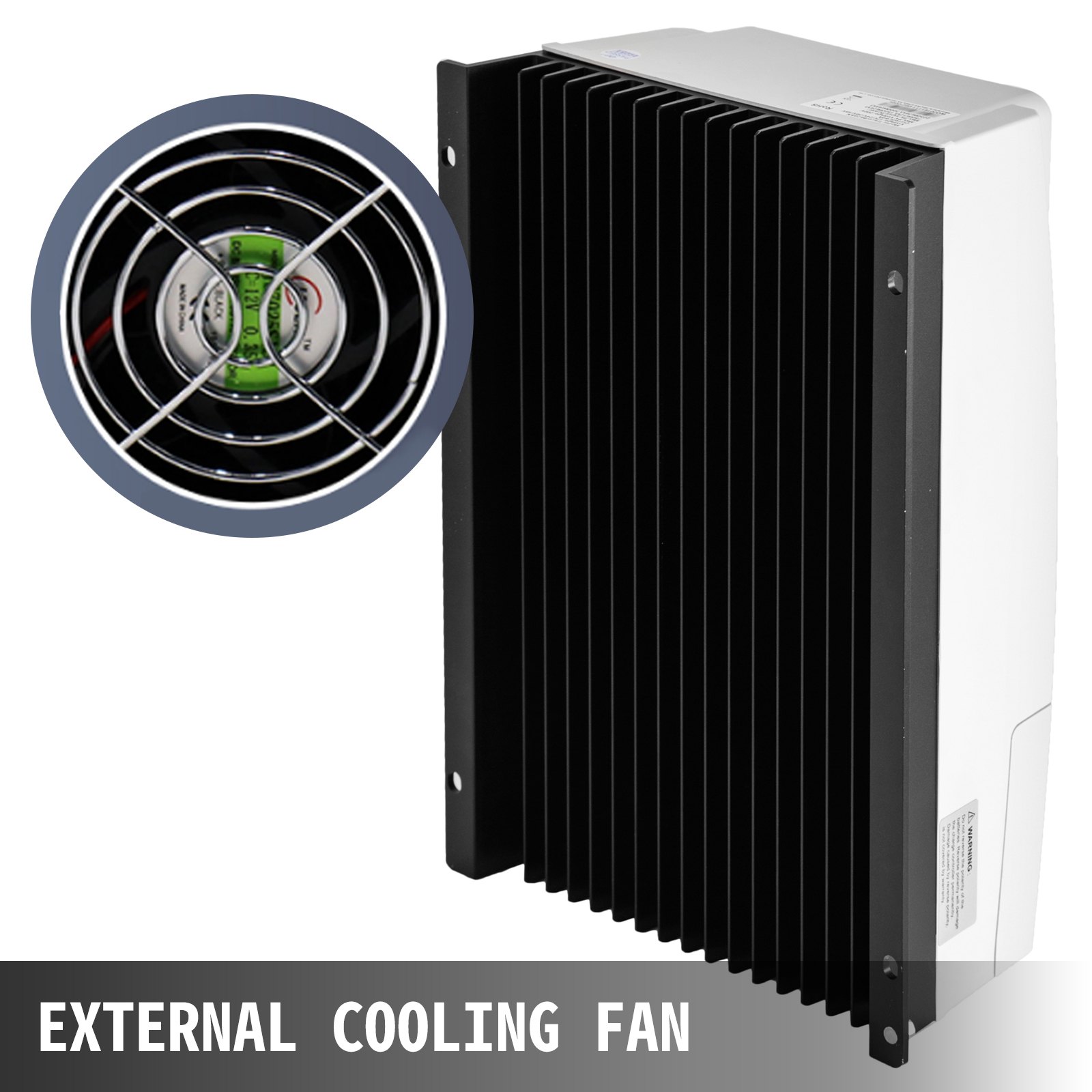

External Cooling Fan
The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.

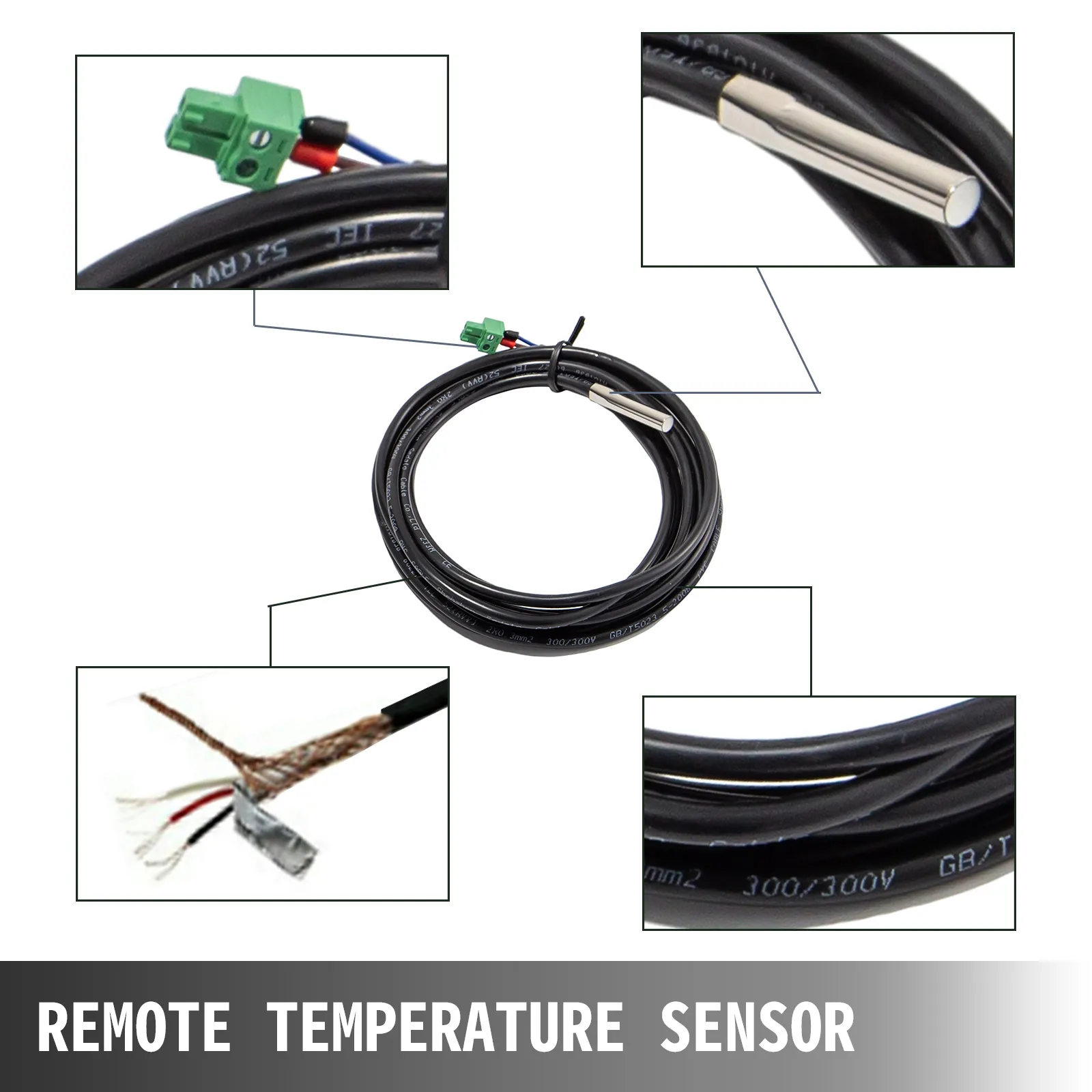

Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.

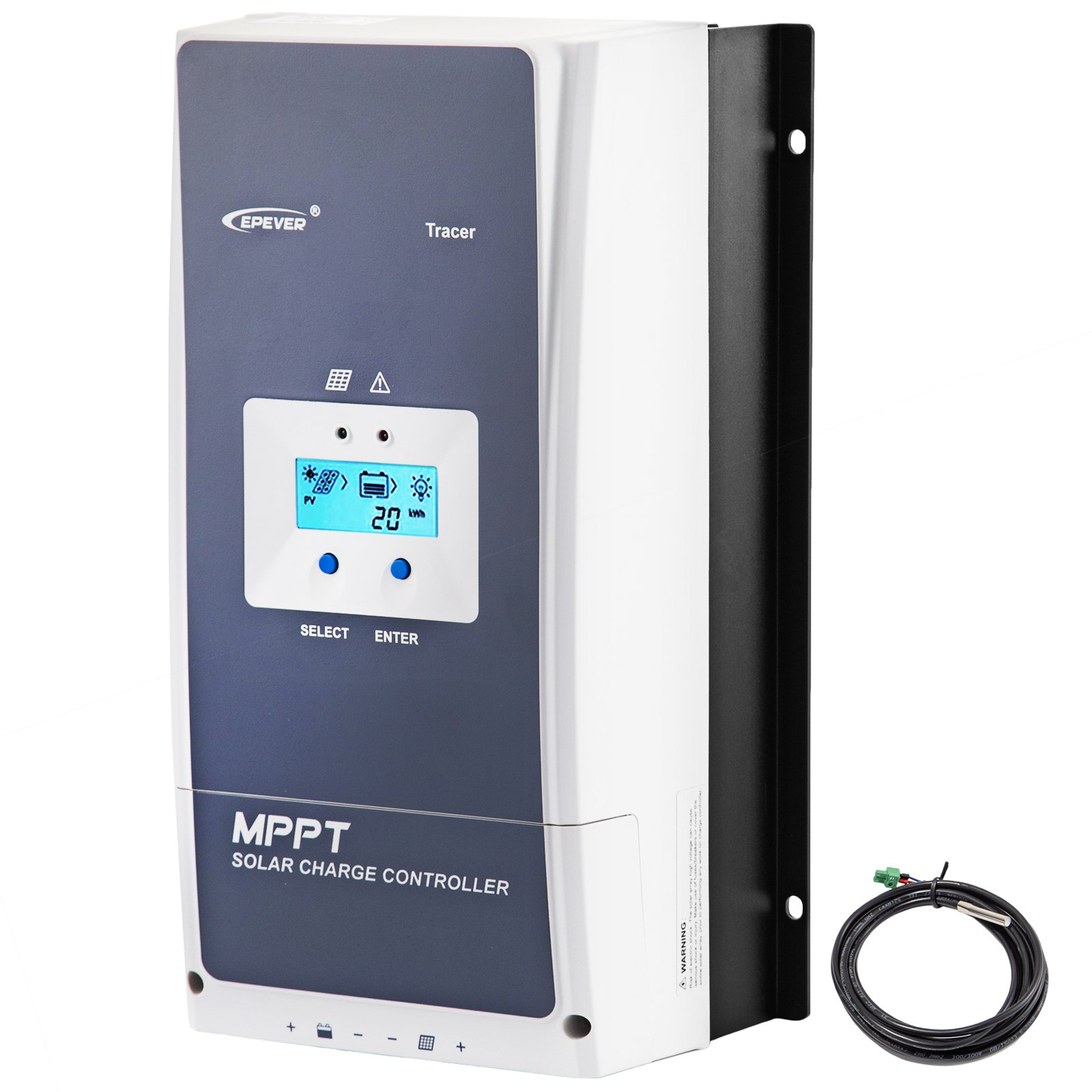

Package Content
- 1 X Solar Charge Controller

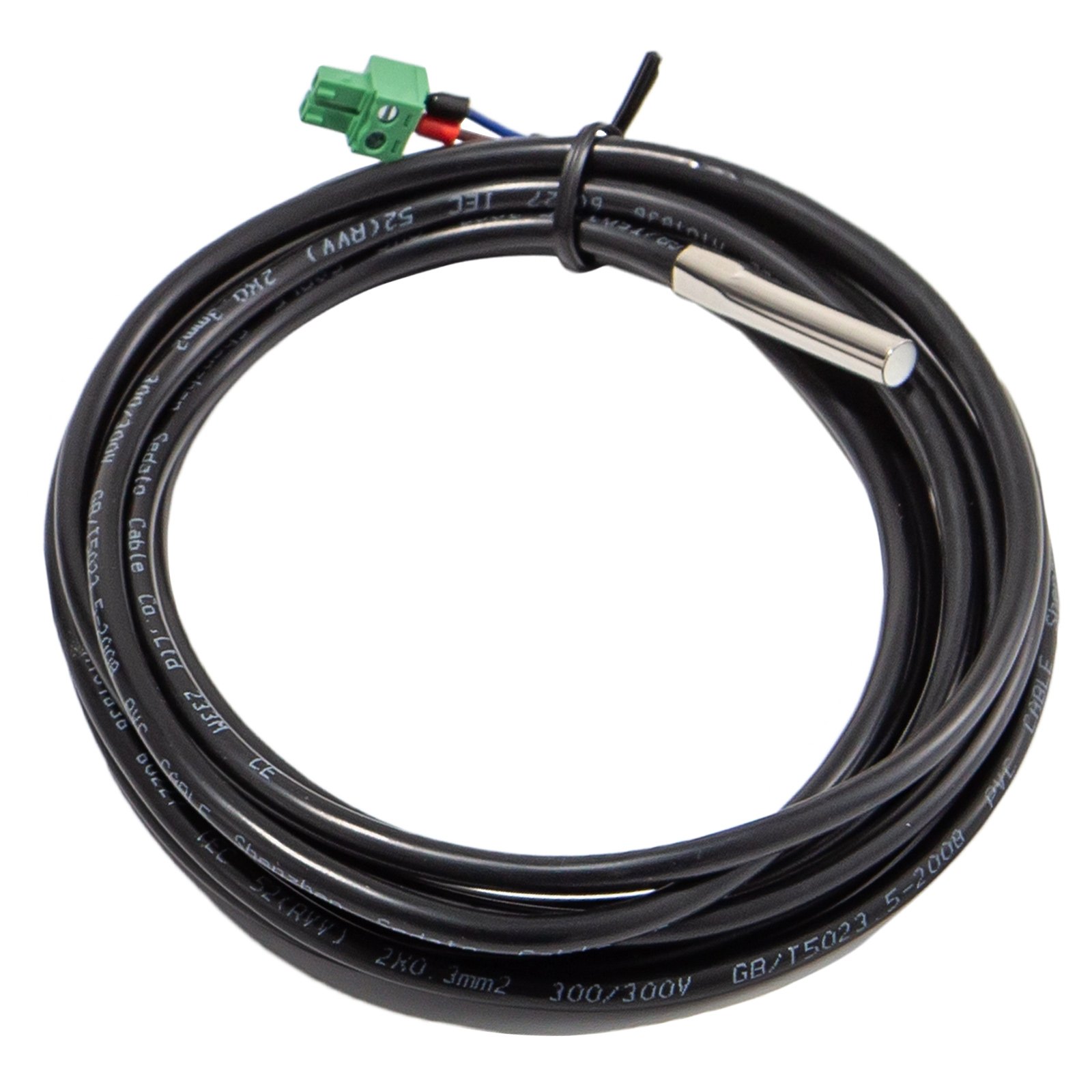

- 1 X Temperature Sensor
Specifications
- Max Input Power: 1250 / 2500 / 3750 / 5000 W
- Battery Voltage Range: 8-68 V
- Max. Battery Charging Current: 100 A
- Efficiency：≥99.5%
- Conversion: ≥98.6%
- Equalization Voltage: 14.6/14.8 A
- Float Voltage: 13.8 V
- Standard Voltage System: 12/24/36/48 V
- Max. Solar Panel Open-Circuit Voltage: 150 V
- Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon
- Charge Stage : 3- stage
- TEP CO: -3mV/°C@2V
- Operating Temperature Range: -30~+60℃
- Storage Temperature: -30 ~ +85 °C
- Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in The Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection

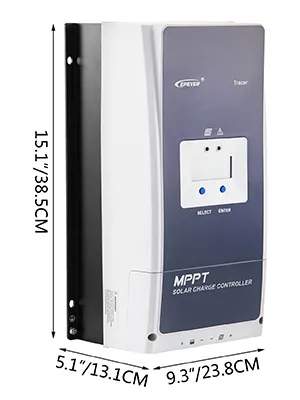

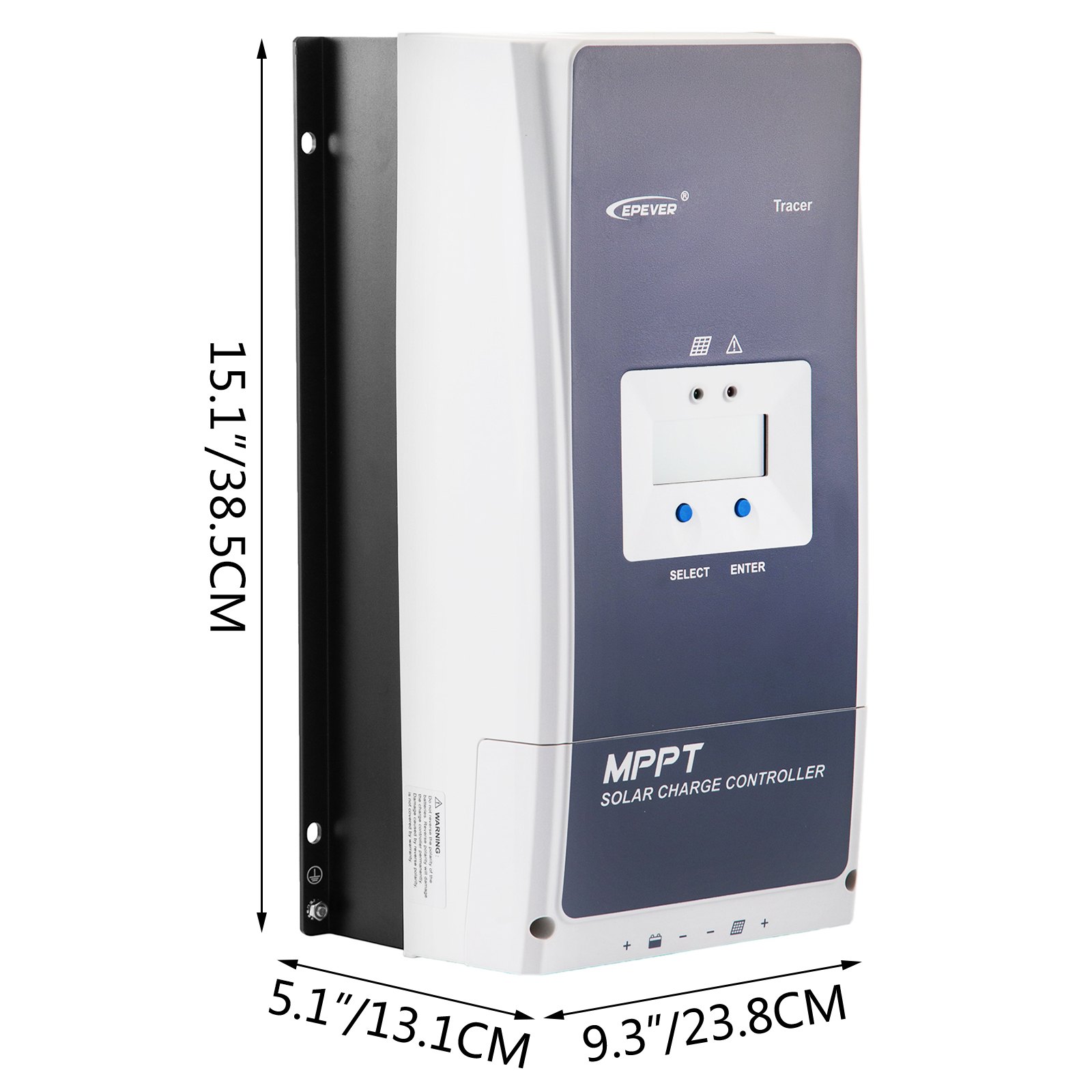

- Dimension: 394 x 242 x143 mm
