Features & Details

  • 【HIGH EFFICIENCY】- Advanced MPPT Control algorithm can minimize the power point loss rate and loss time, and its tracing efficiency is no less than 99.5%, and conversion is no less than 98%.
  • 【HIGH-DEFINITION LCD SCREEN】- This solar charge controller features a high-definition LCD screen, so you can see the status of charging clearly.
  • 【INTELLEGENT MONITORING】- This solar panel controller allows multiple monitoring ways: WIFI/GPRS, mobile app remote control, and computer monitoring, which all make it super convenient for you to monitor it anytime & anywhere.
  • 【MULTIPLE SAFETY PROTECTIONS】- This solar panel charge controller applies multiple intelligent security protections to ensure the controller to be fully protected in the process of use.
  • 【TEMPERATURE SENSOR INCLUDED】- We offer you a high-quality temperature sensor free of cost. It is flexible-resistance and can have better thermal conductivity. Length of cable: 3 meters.

Frequently Bought Together

Reviews 4.8
All reviews are from verified purchases
Average rating based on 43 reviews

See all 43 reviews

About this item

Product specification
Max Input Power
260 / 520 W
Battery Voltage Range
8-32 V
Max. Battery Charging Current
20 A
Efficiency
≥99.5%
Conversion
≥98%
Equalization Voltage
14.6/14.8 A
Float Voltage
13.8 V
Standard Voltage System
12 / 24 V
Max. Solar Panel Open-Circuit Voltage
100 V
Battery Type
Gel, AGM, Plumbic Acid, Lead-Carbon, Lithium-ion, NI-MH
Charge Stage
3- stage
TEP CO
-3mV/°C@2V
Operating Temperature Range
-30~+60℃
Storage Temperature
-30 ~ +85 °C
Protections
Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in The Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection

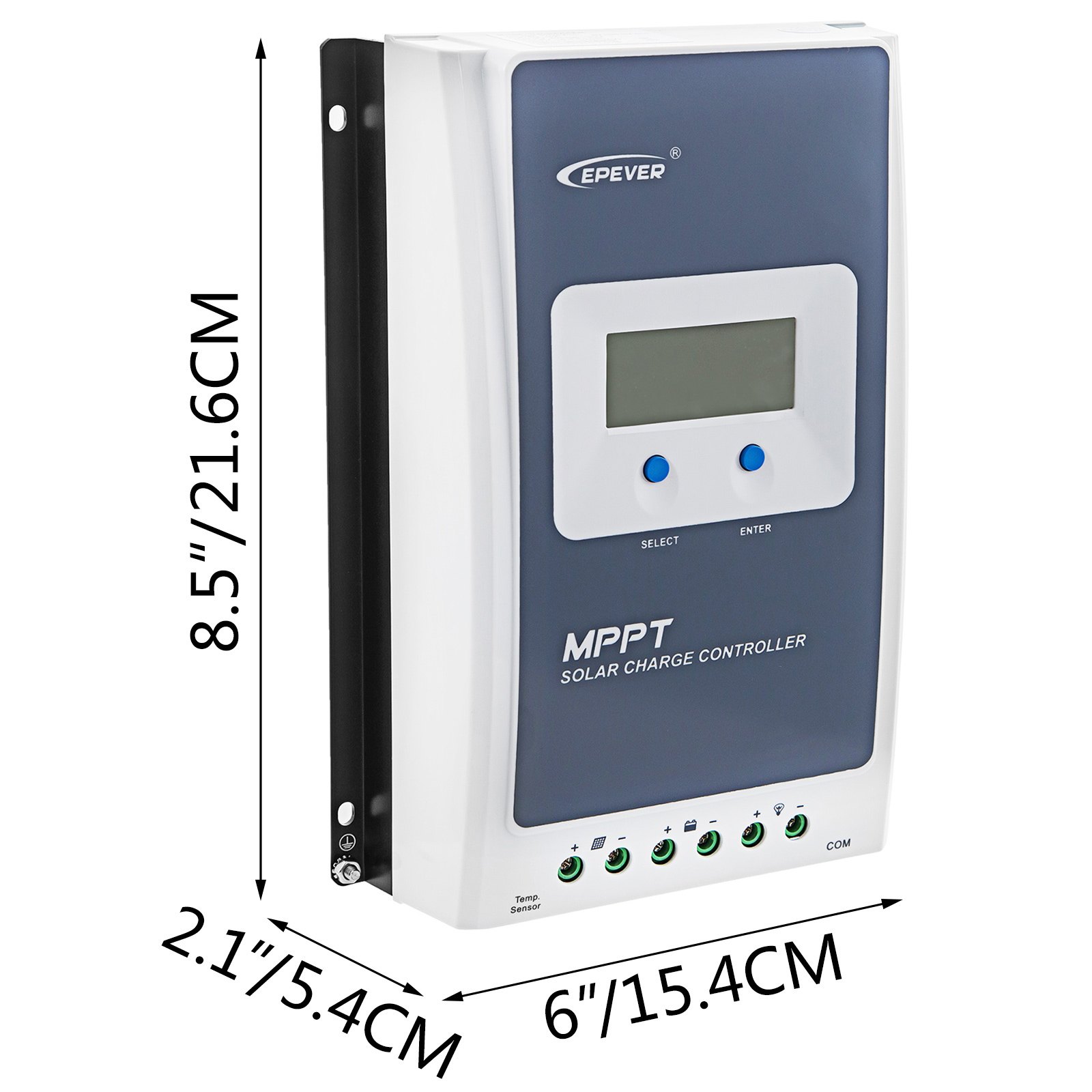

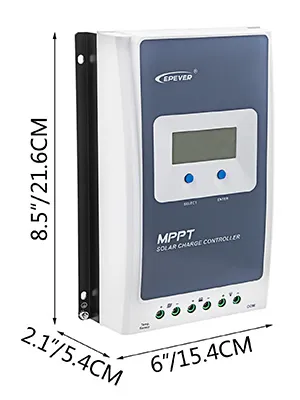

Dimension
220 x 154 x 52 mm
Description
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

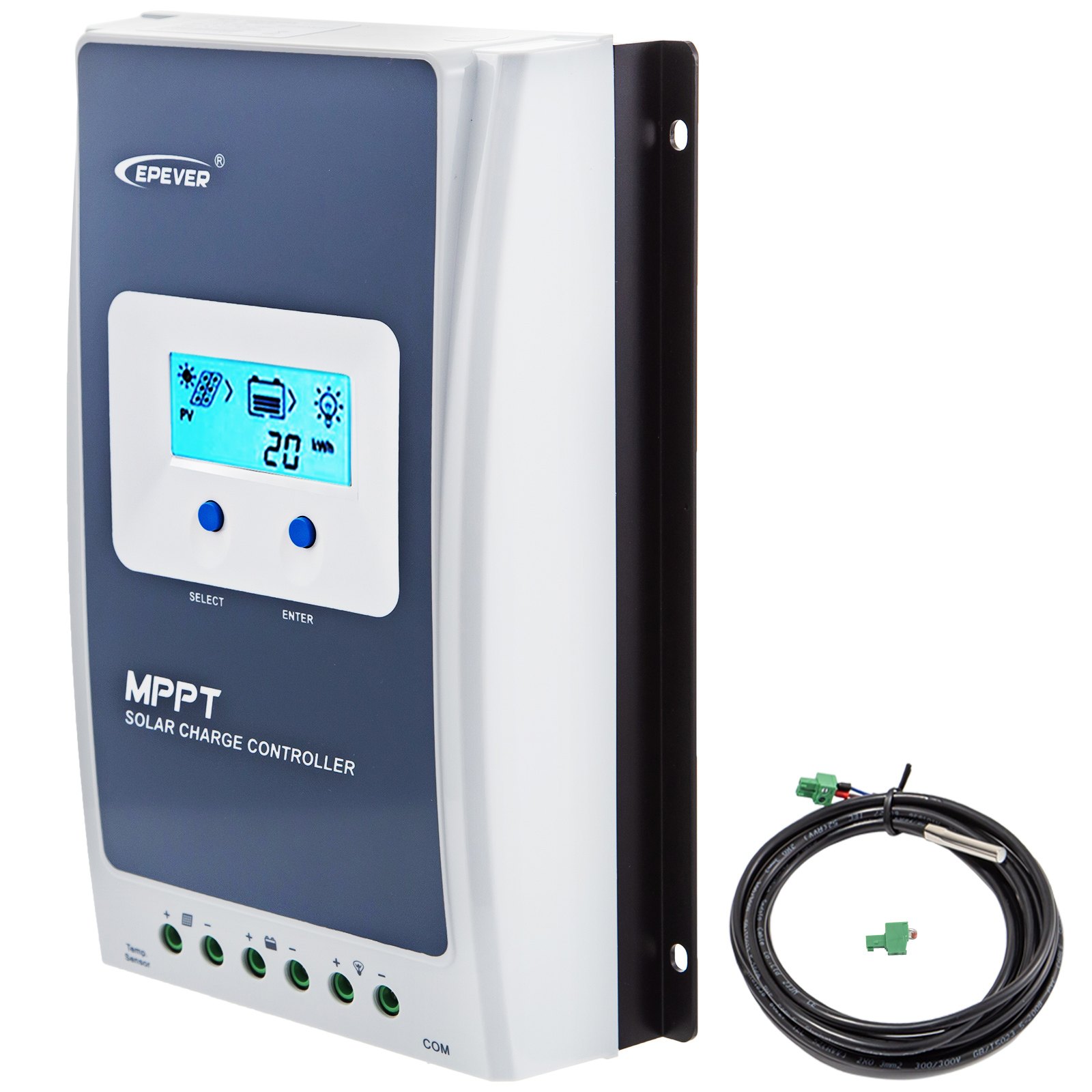

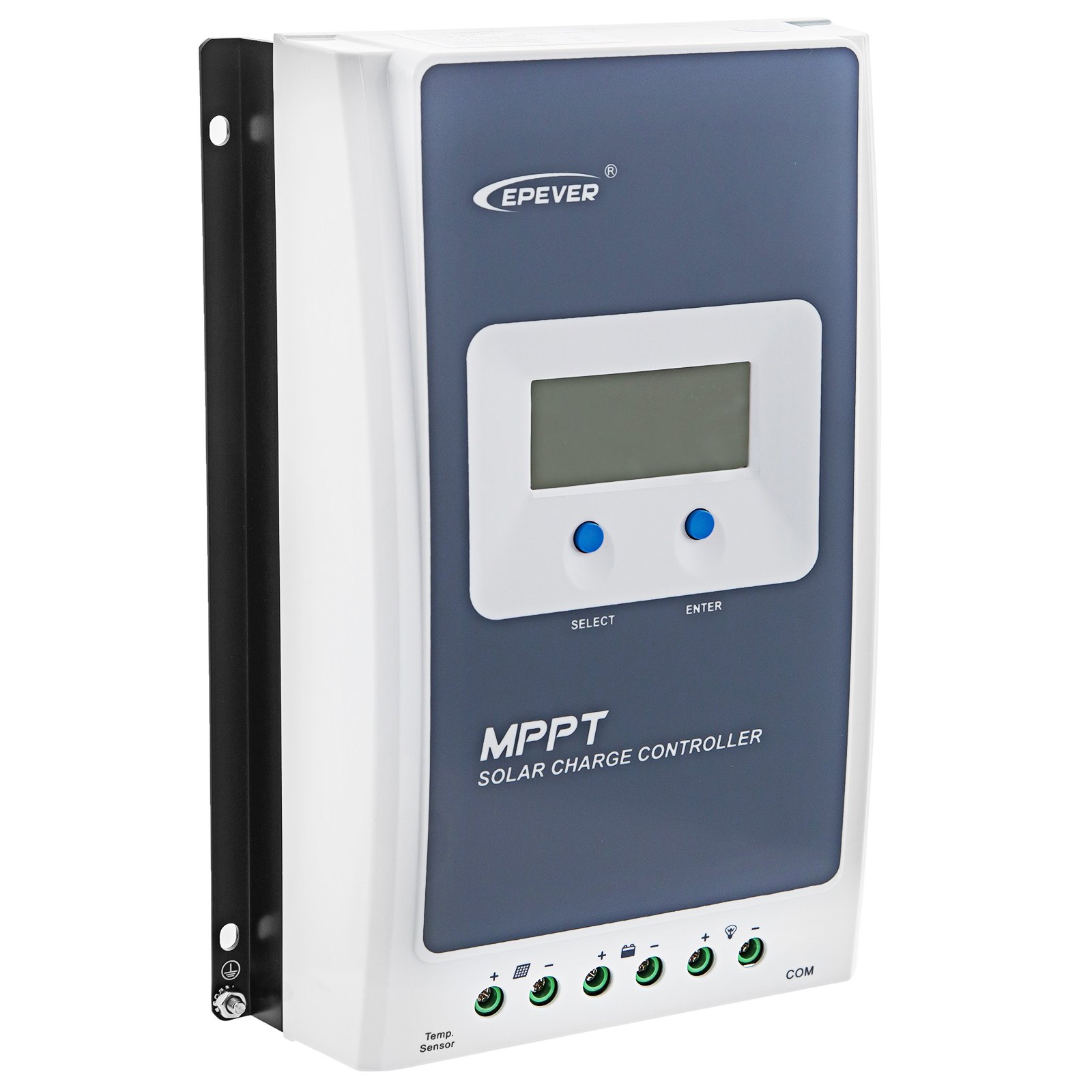

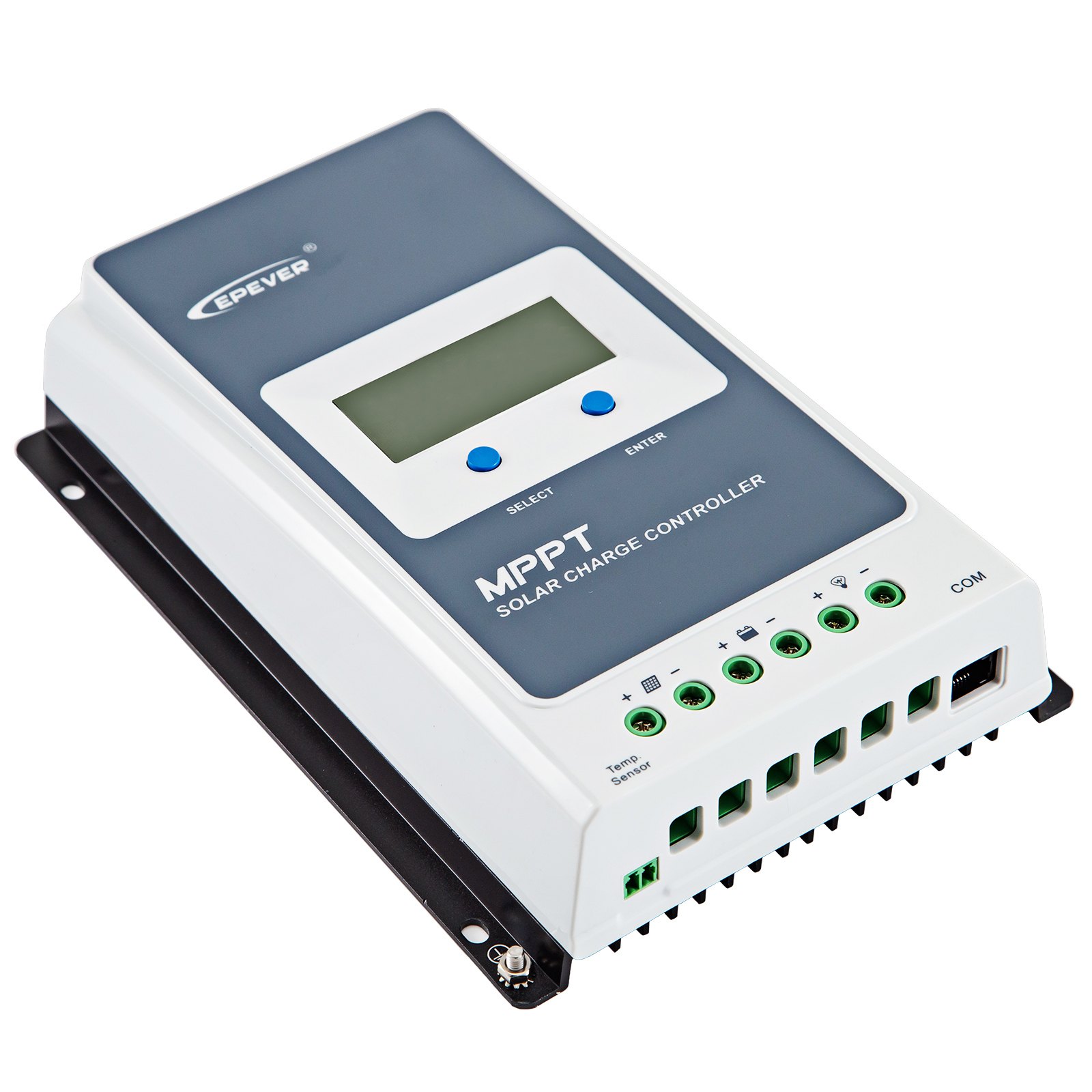

20 Amp Solar Charge Controller
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Temperature Sensor Included

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

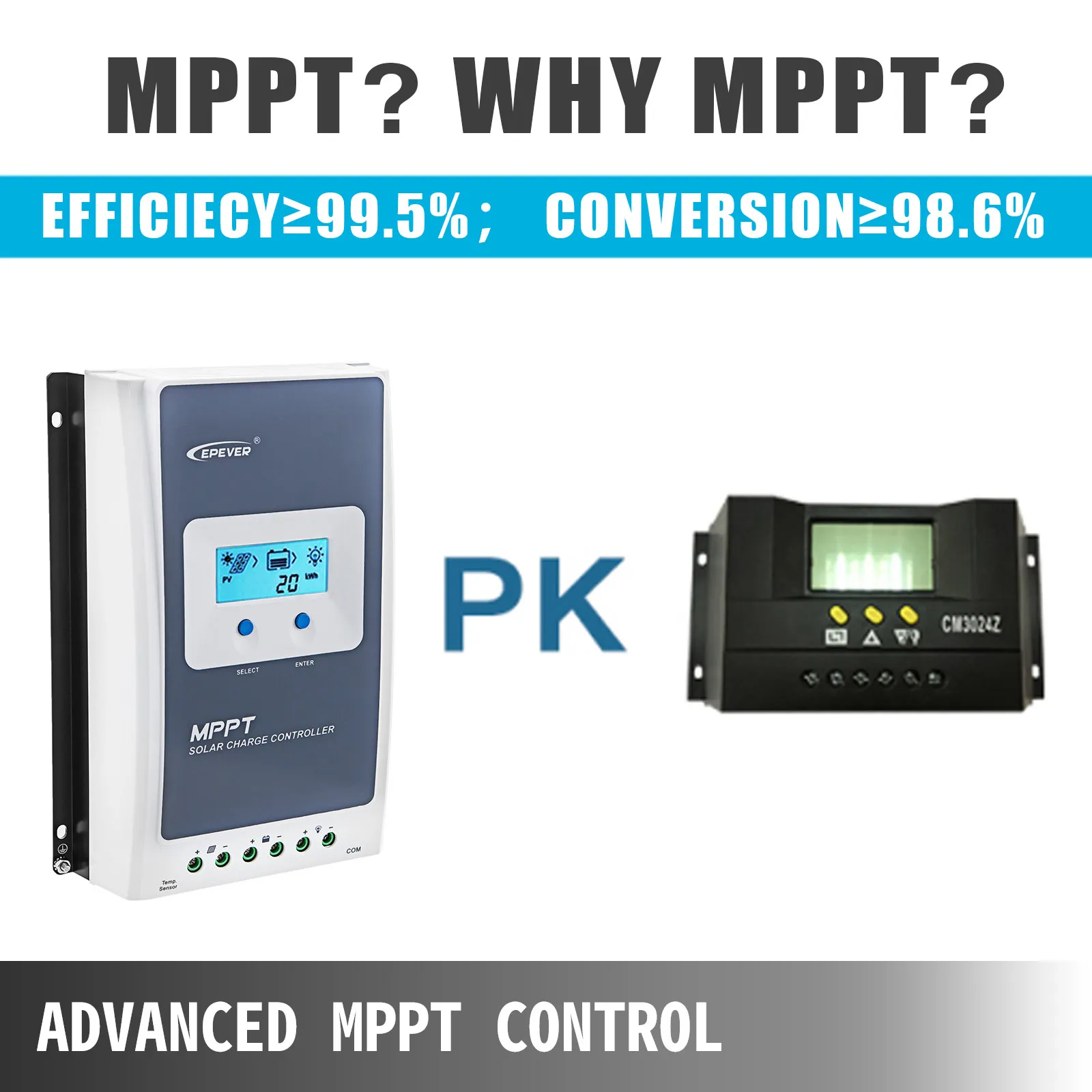

Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98%.

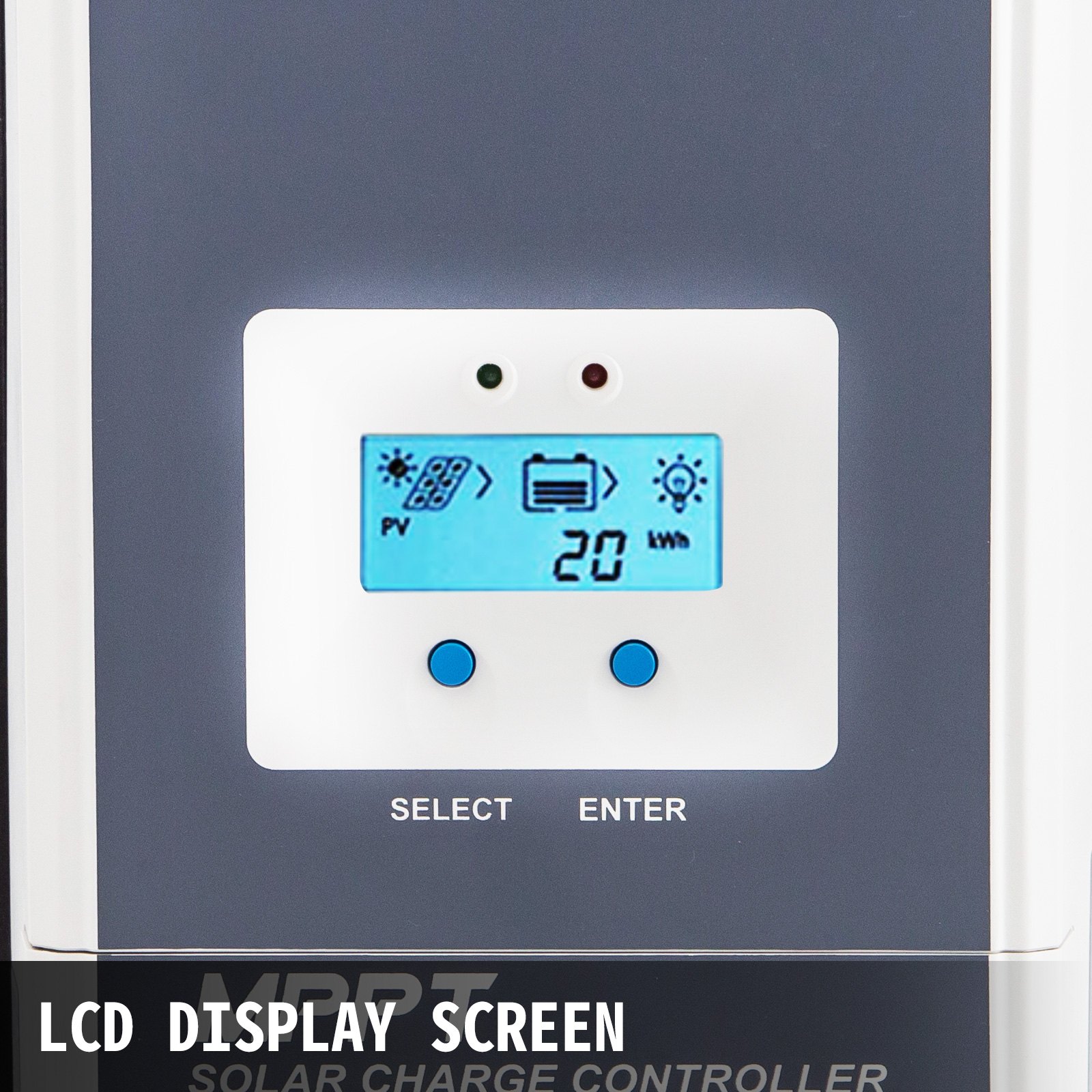

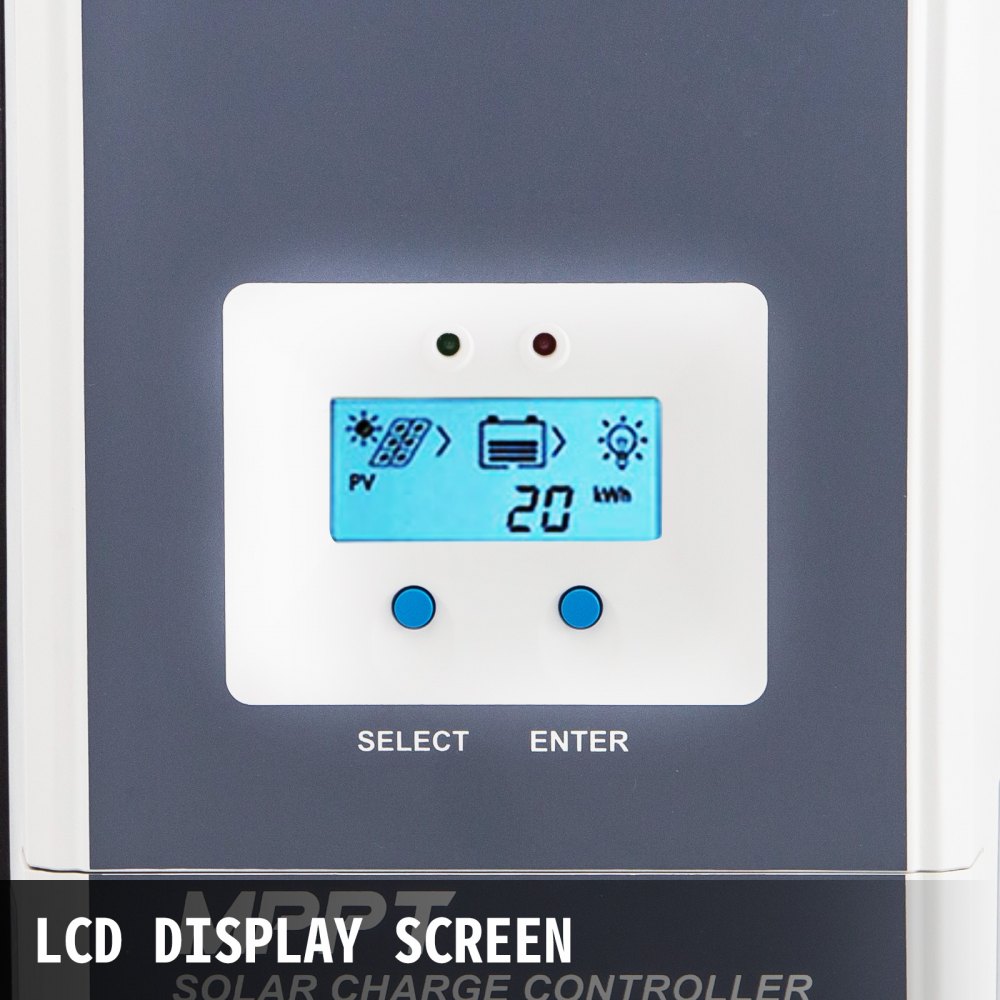

LCD Display Screen
The back lit LCD screen shows the status of charging clearly.

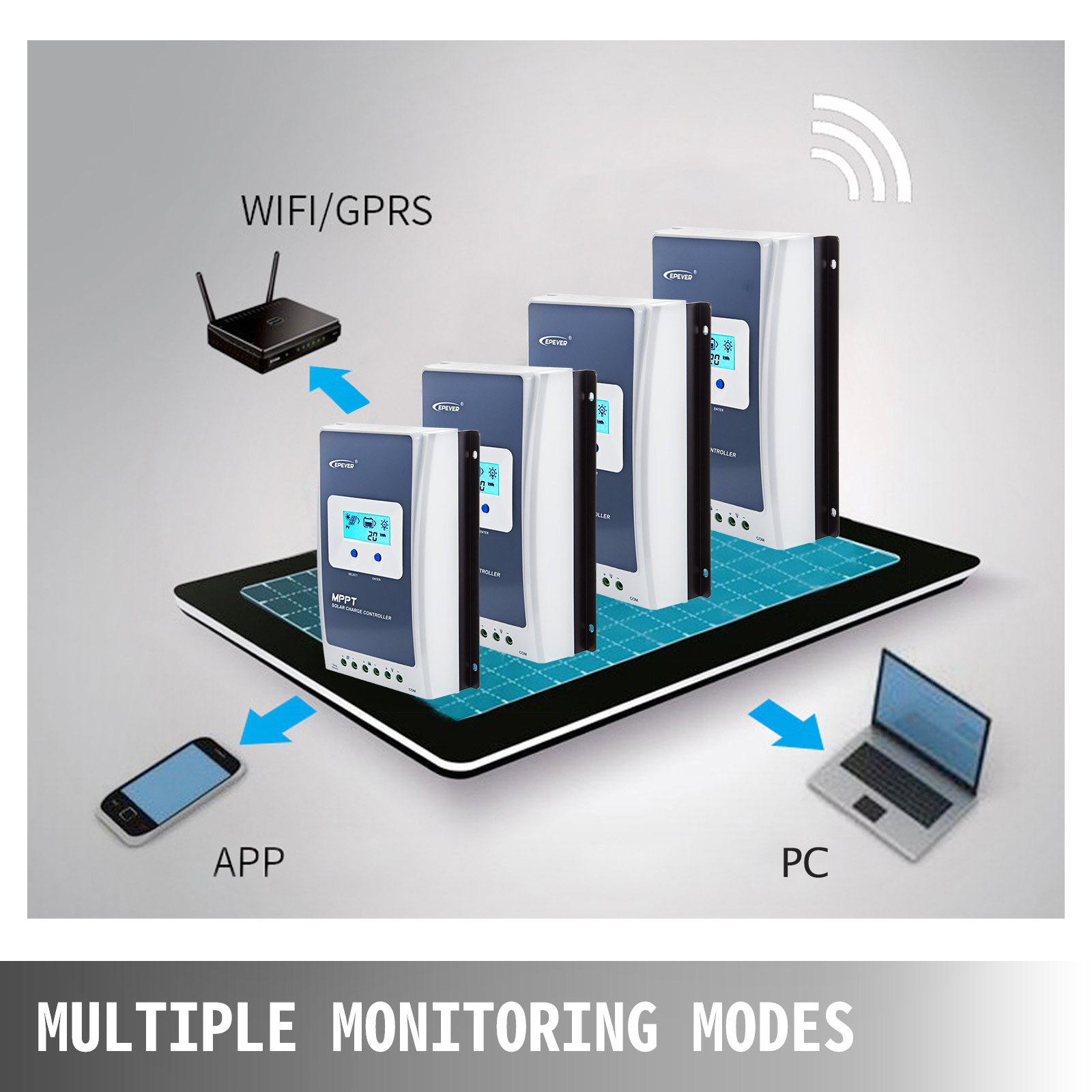

Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
Fully Protection Designs
There are some main protection measures for the solar controller: short-circuit protection, PV reverse polarity protection, over-load protection, over-charge protection, over-temperature protection, etc.

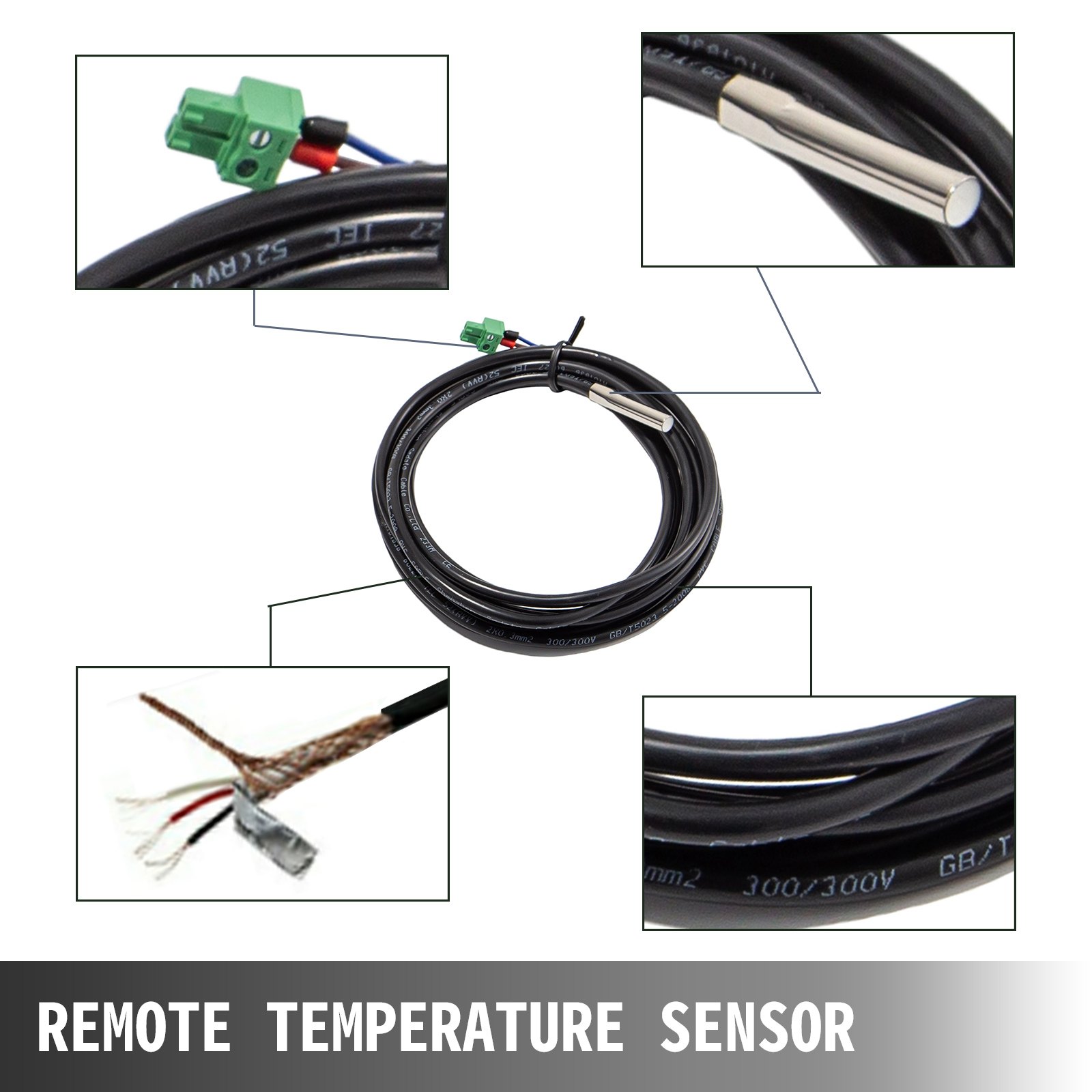

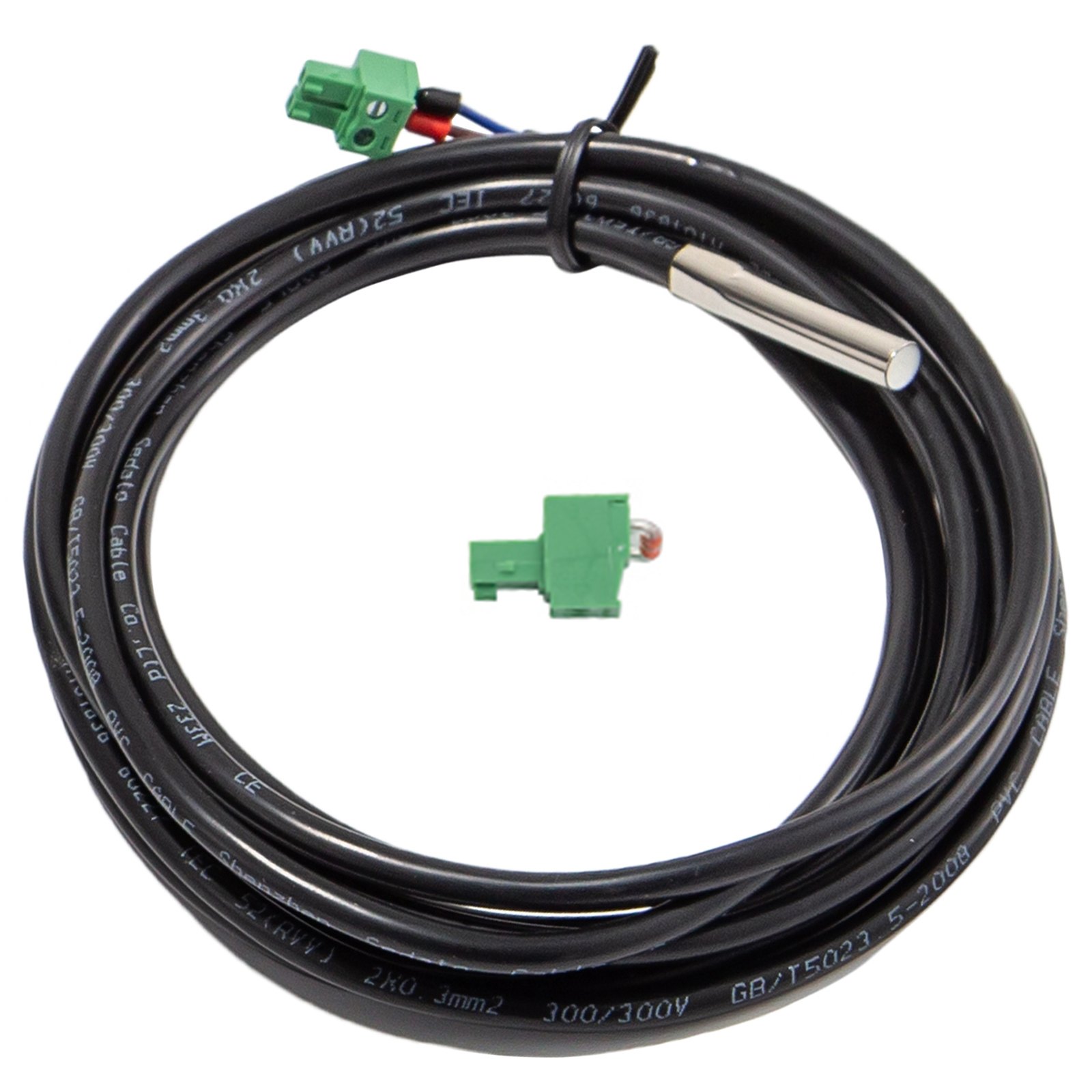

Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.

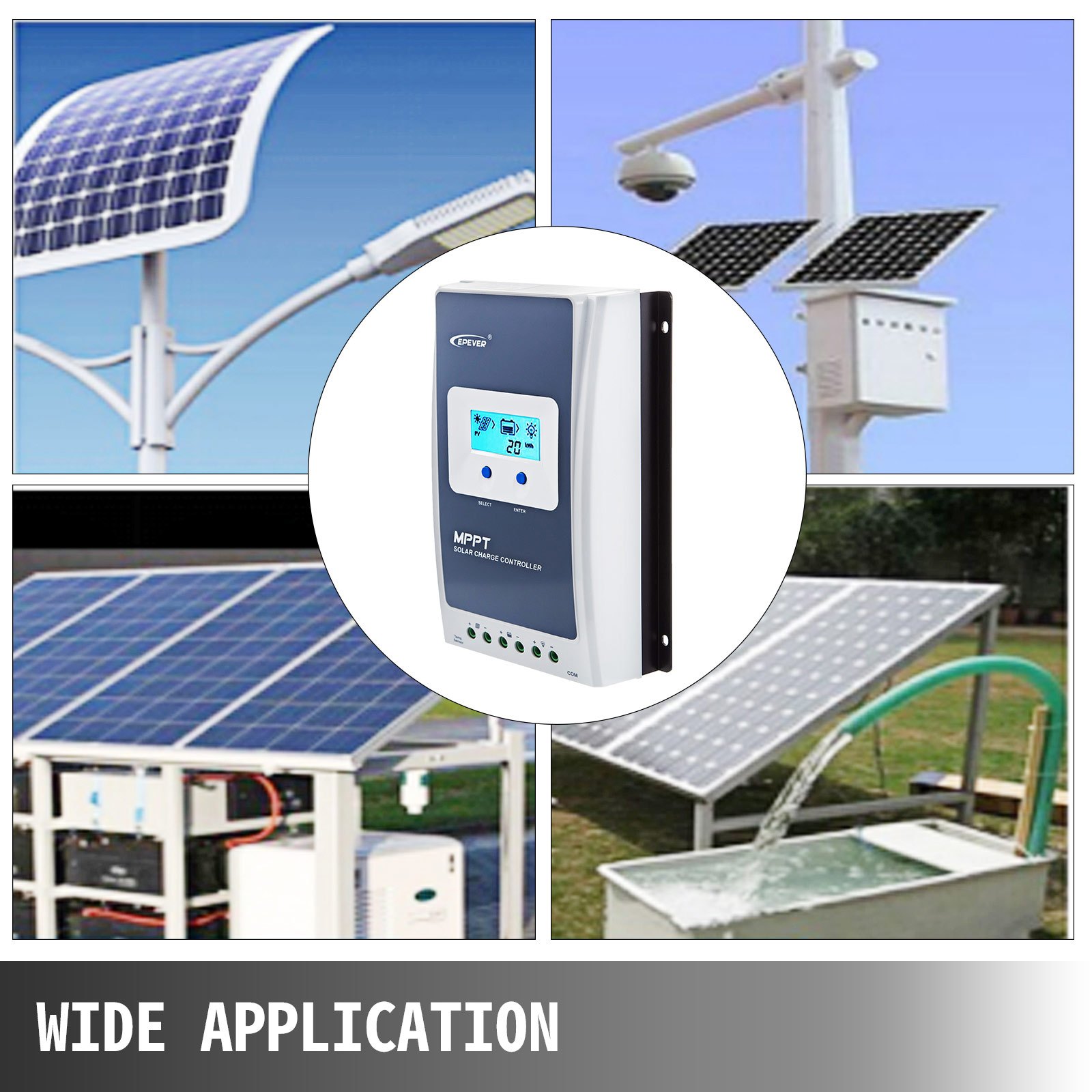

Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Specifications
  • Max Input Power: 260 / 520 W
  • Battery Voltage Range: 8-32 V
  • Max. Battery Charging Current: 20 A
  • Efficiency：≥99.5%
  • Conversion: ≥98%
  • Equalization Voltage: 14.6/14.8 A
  • Float Voltage: 13.8 V
  • Standard Voltage System: 12 / 24 V
  • Max. Solar Panel Open-Circuit Voltage: 100 V
  • Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon, Lithium-ion, NI-MH
  • Charge Stage : 3- stage
  • TEP CO: -3mV/°C@2V
  • Operating Temperature Range: -30~+60℃
  • Storage Temperature: -30 ~ +85 °C
  • Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in The Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection
  • Dimension: 220 x 154 x 52 mm
Package Content
  • 1 X Solar Charge Controller
  • 1 X Temperature Sensor
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
20 Amp Solar Charge Controller
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Temperature Sensor Included
Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98%.
LCD Display Screen
The back lit LCD screen shows the status of charging clearly.
Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
Fully Protection Designs
There are some main protection measures for the solar controller: short-circuit protection, PV reverse polarity protection, over-load protection, over-charge protection, over-temperature protection, etc.
Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Package Content
  • 1 X Solar Charge Controller
  • 1 X Temperature Sensor
Specifications
  • Max Input Power: 260 / 520 W
  • Battery Voltage Range: 8-32 V
  • Max. Battery Charging Current: 20 A
  • Efficiency：≥99.5%
  • Conversion: ≥98%
  • Equalization Voltage: 14.6/14.8 A
  • Float Voltage: 13.8 V
  • Standard Voltage System: 12 / 24 V
  • Max. Solar Panel Open-Circuit Voltage: 100 V
  • Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon, Lithium-ion, NI-MH
  • Charge Stage : 3- stage
  • TEP CO: -3mV/°C@2V
  • Operating Temperature Range: -30~+60℃
  • Storage Temperature: -30 ~ +85 °C
  • Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in The Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection
  • Dimension: 220 x 154 x 52 mm
