Name: Solar Charge Controller, Mppt Charge Controller, 80 Amp, Solar Panel Controller
Brand: VEVOR
SKU: TYNKZQT-8415AN001V9
Price: 292.99 EUR
Availability: Discontinued
Rating: 4.8 (44 reviews)

Solar Charge Controller, Mppt Charge Controller, 80 Amp, Solar Panel Controller

292₉₉ €

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Discontinue

About this item

【HIGH EFFICIENCY】-Advanced MPPT Control algorithm can minimize the power point loss rate and loss time, and its tracing efficiency is no less than 99.5%, and conversion is no less than 98.5%.
【HIGH-DEFINITION LCD SCREEN】-This solar charge controller features a high-definition LCD screen，so you can see the status of charging clearly.
【INTELLEGENT MONITORING】-This solar panel controller allows multiple monitoring ways: WIFI/GPRS, mobile app remote control and computer monitoring, which all make it super convenient for you to monitor it anytime & anywhere.
【COOLING FAN DESIGN】-The charge controllers for solar panels come with a rear-mounted cooling fan, cooling down quickly, which can extend the machine's operating life to a large extent.
【TEMPERATURE SENSOR INCLUDED】-We offer you a high-quality temperature sensor free of cost, it is flexible-resistance and can have better thermal conductivity. Length of cable: 3 meters.

See More See Less

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Tough Equipment & Tools, Pay Less

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

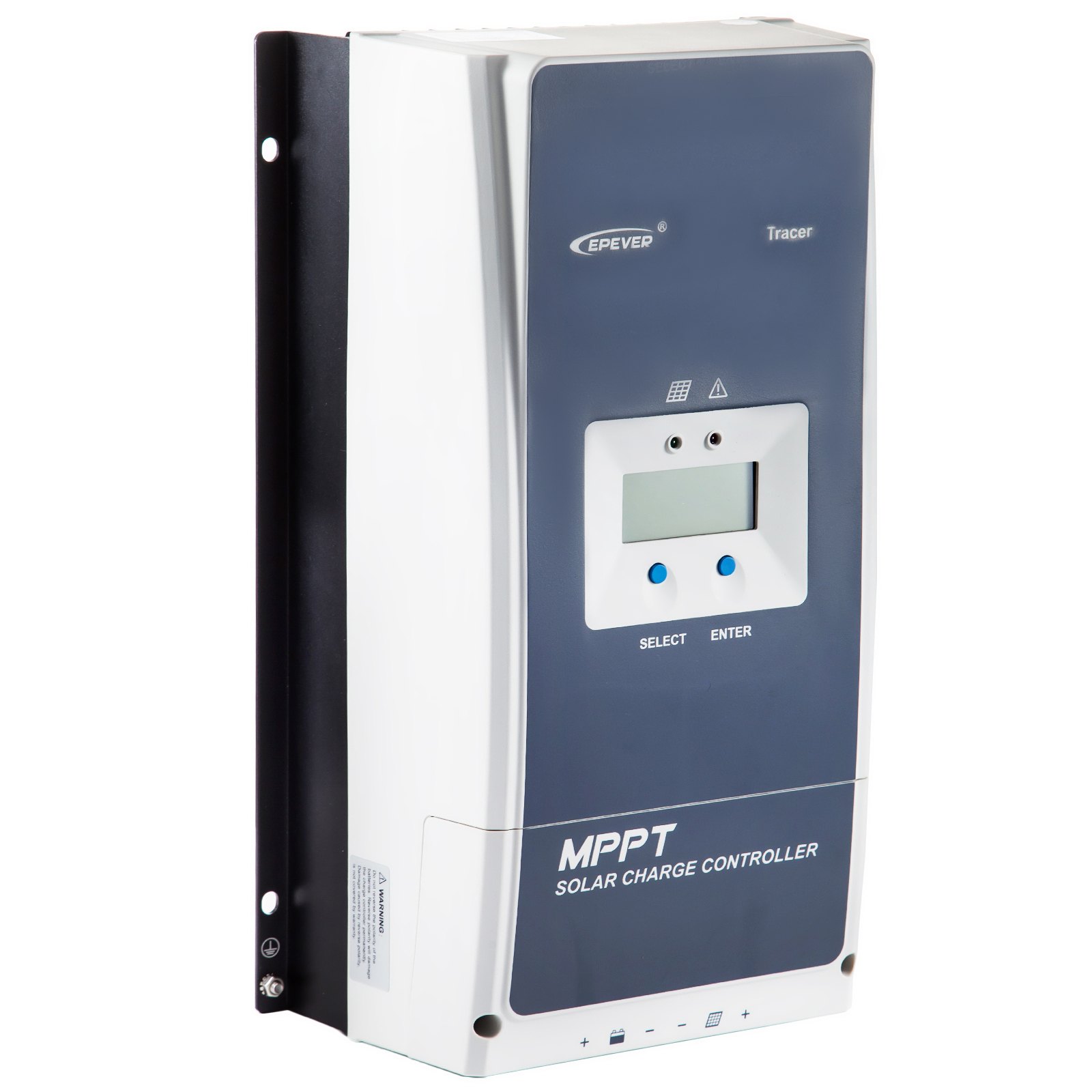

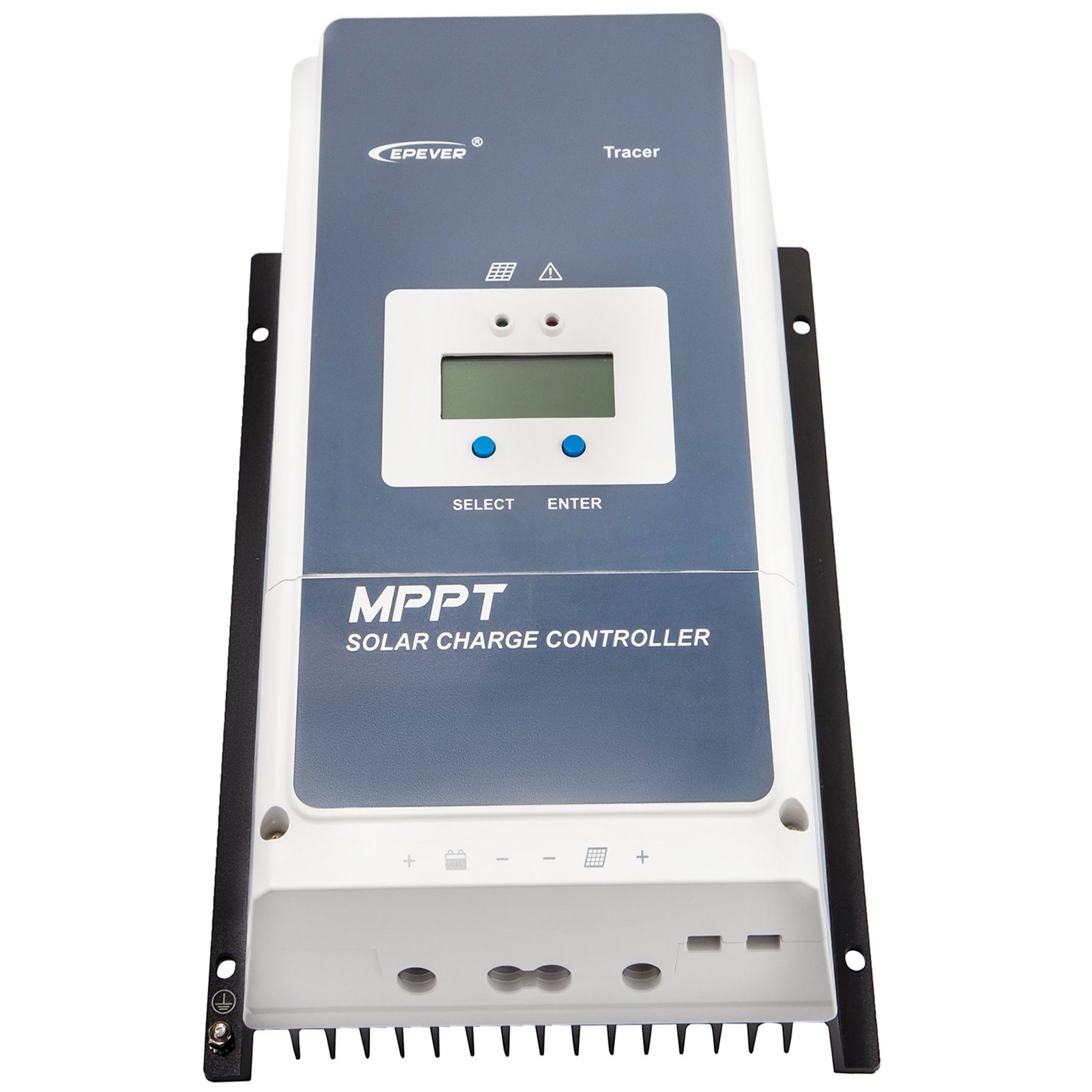

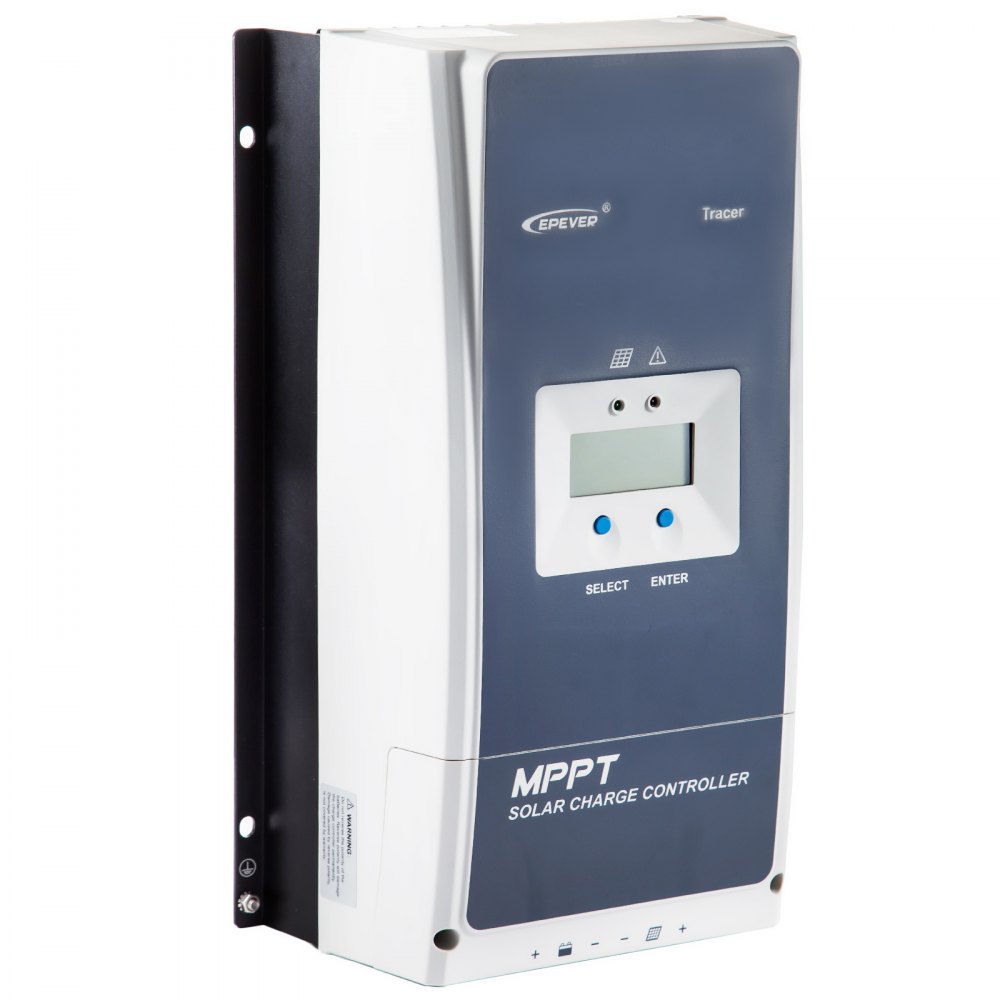

80 Amp Solar Charge Controller

Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98.6%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.

High Efficiency
High-Definition LCD Display
Intelligent Monitoring
Cooling Fan Design
Temperature Sensor Included

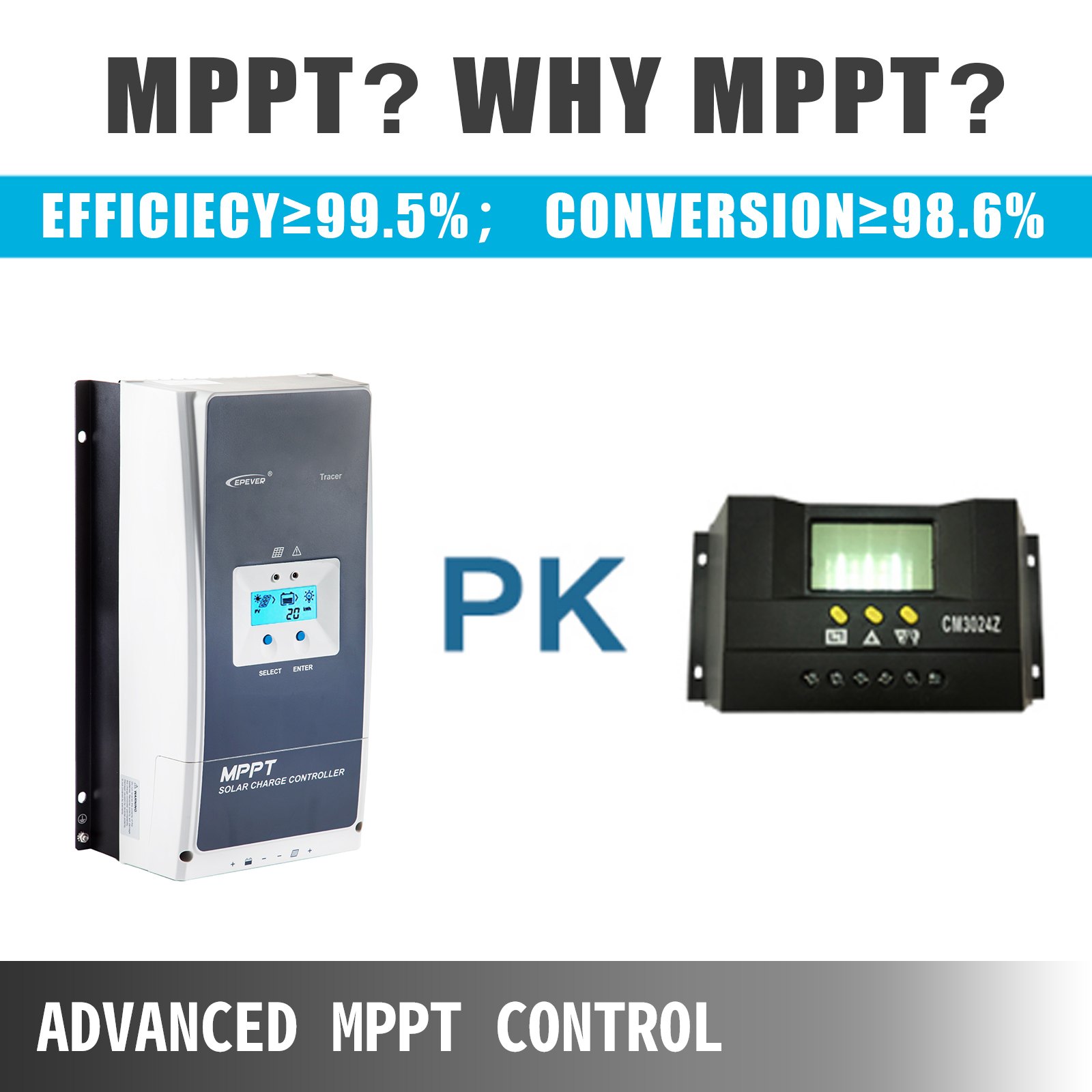

Advanced MPPT Control

It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.5%.

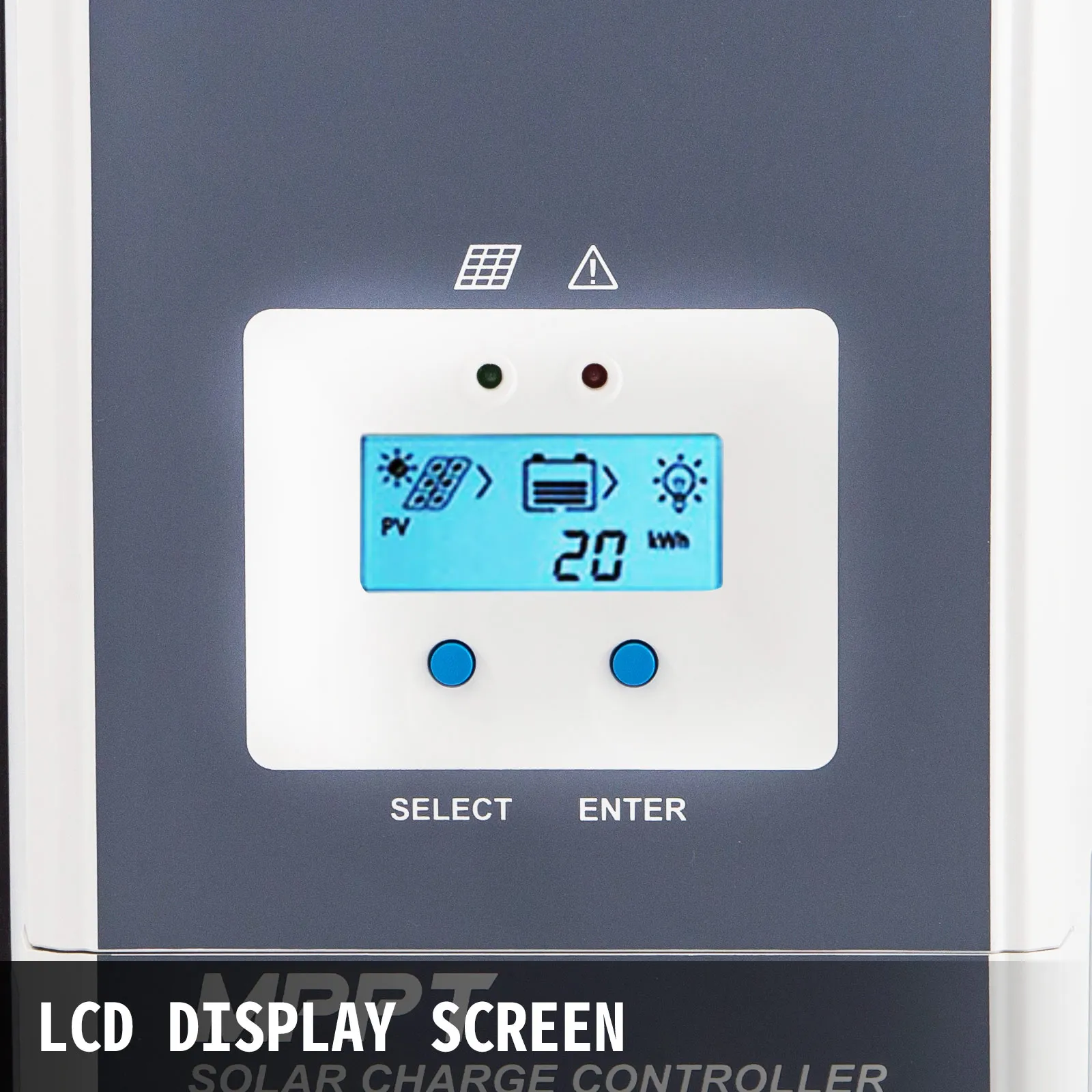

LCD Display Screen

The backlit LCD screen shows the status of charging clearly.

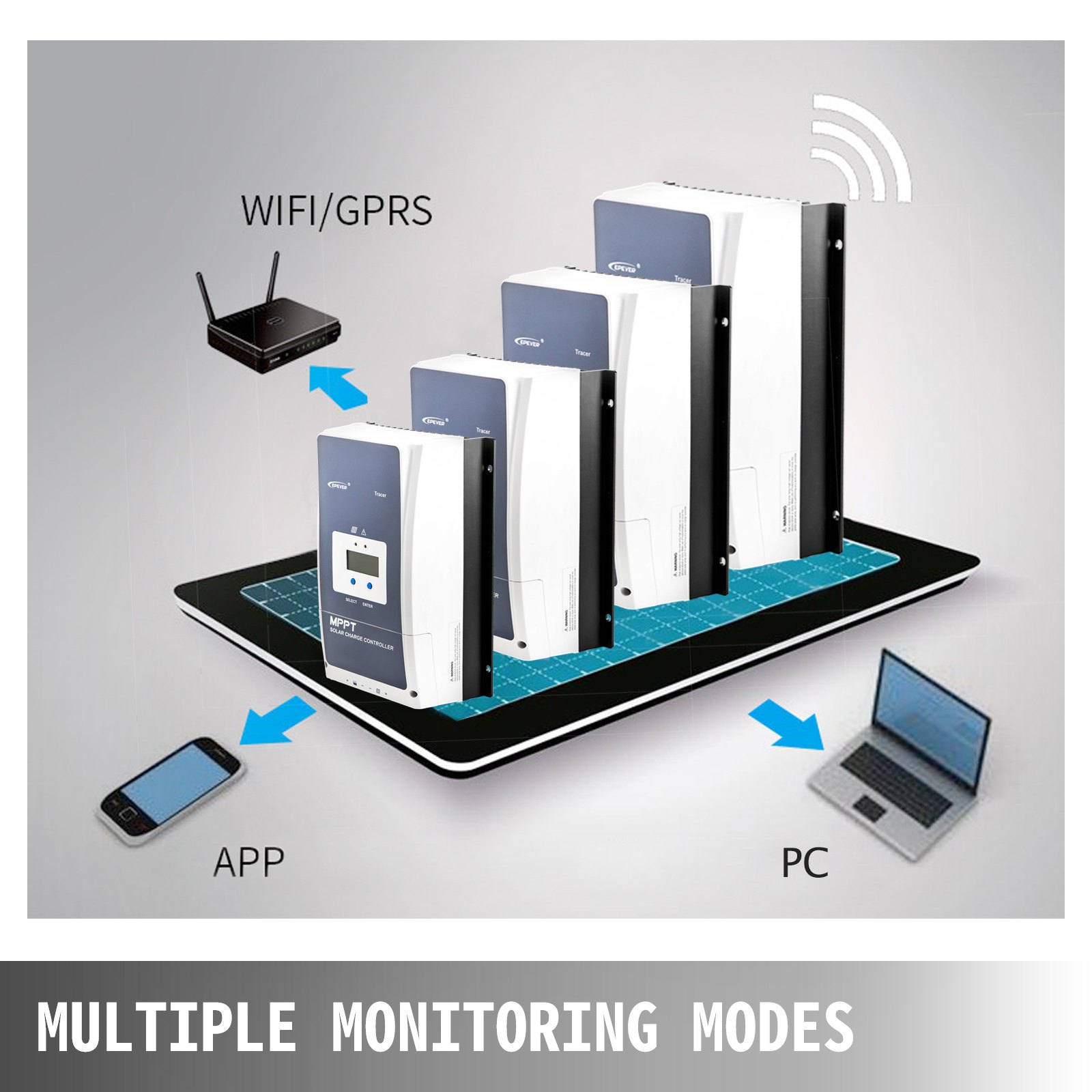

Multiple Monitoring Modes

It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.

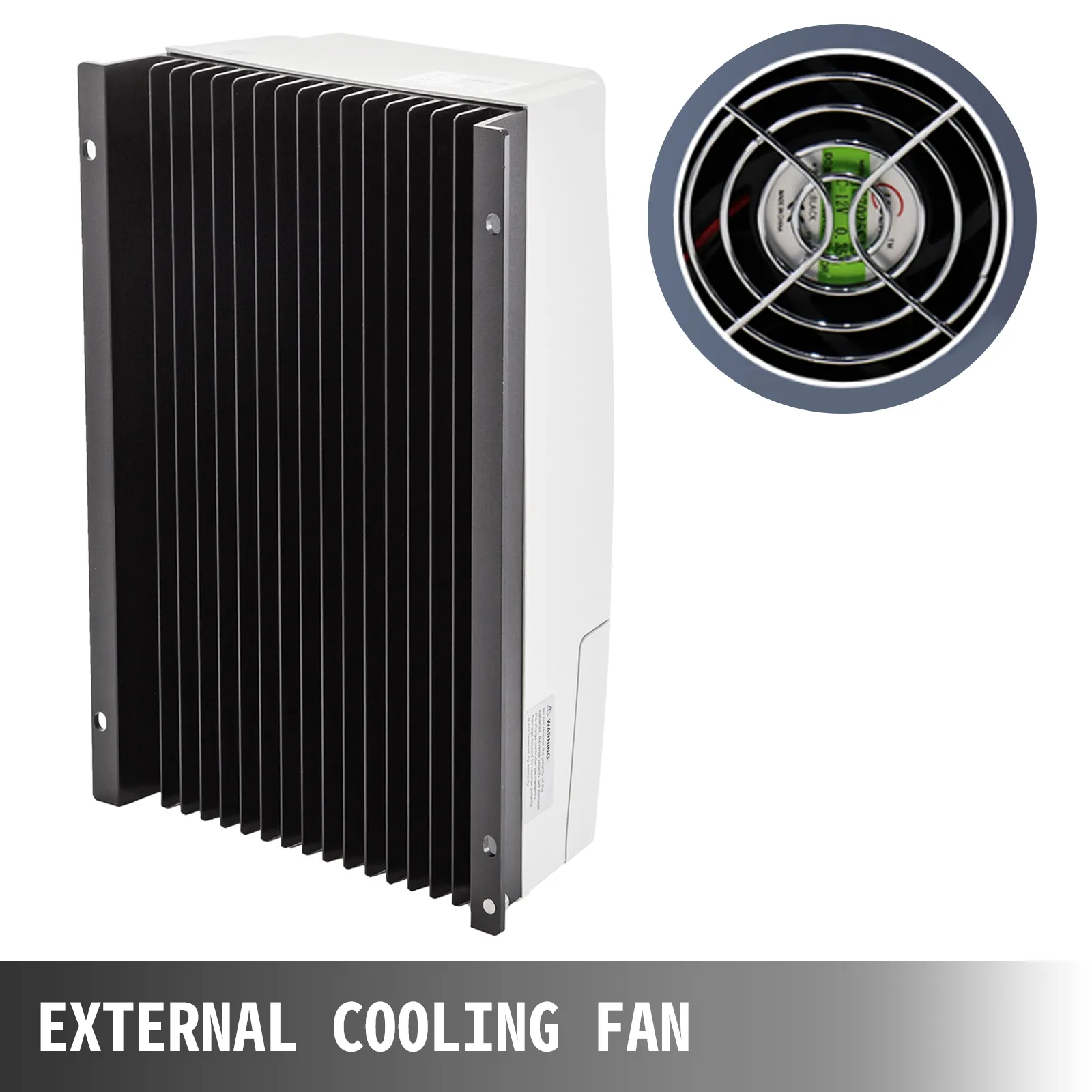

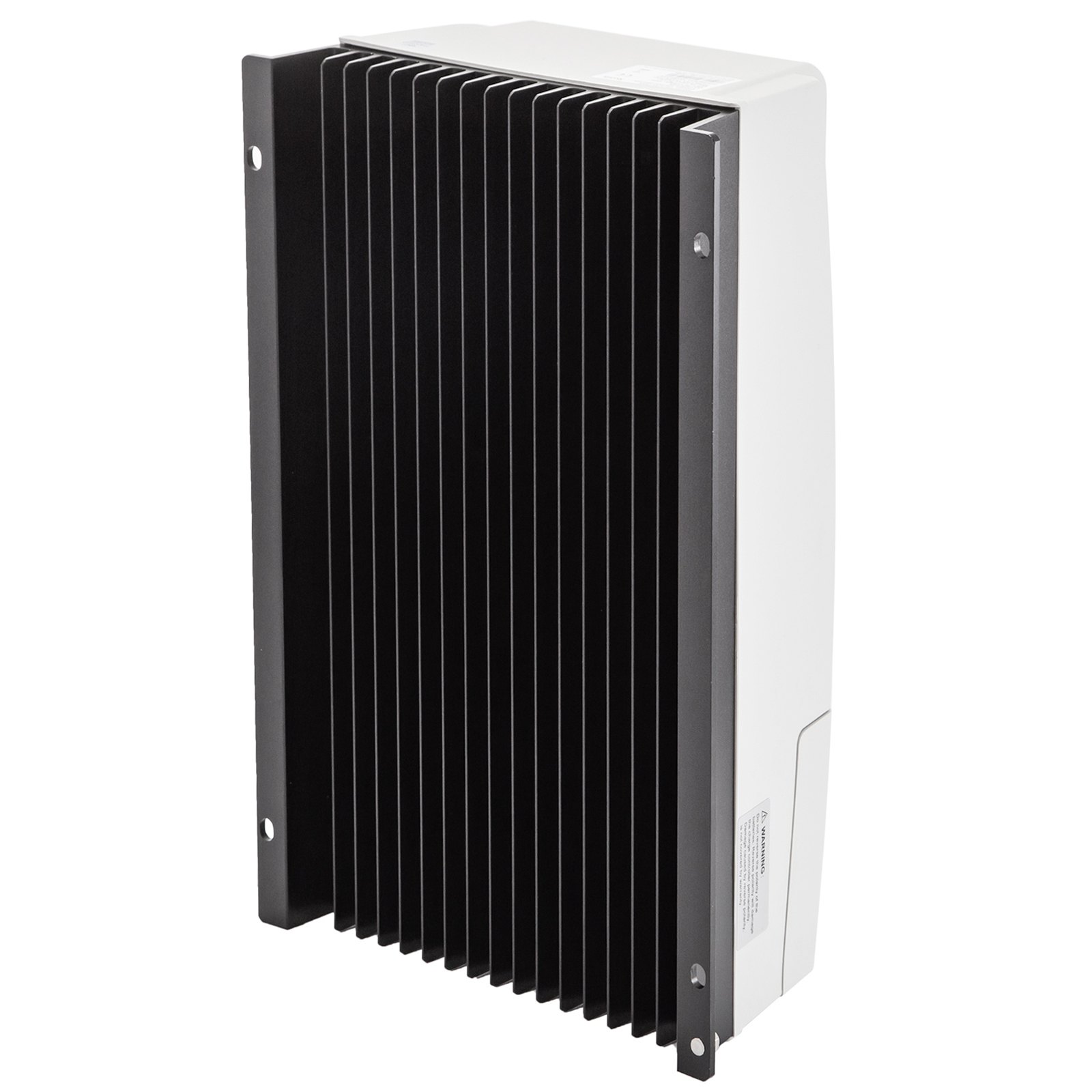

External Cooling Fan

The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.

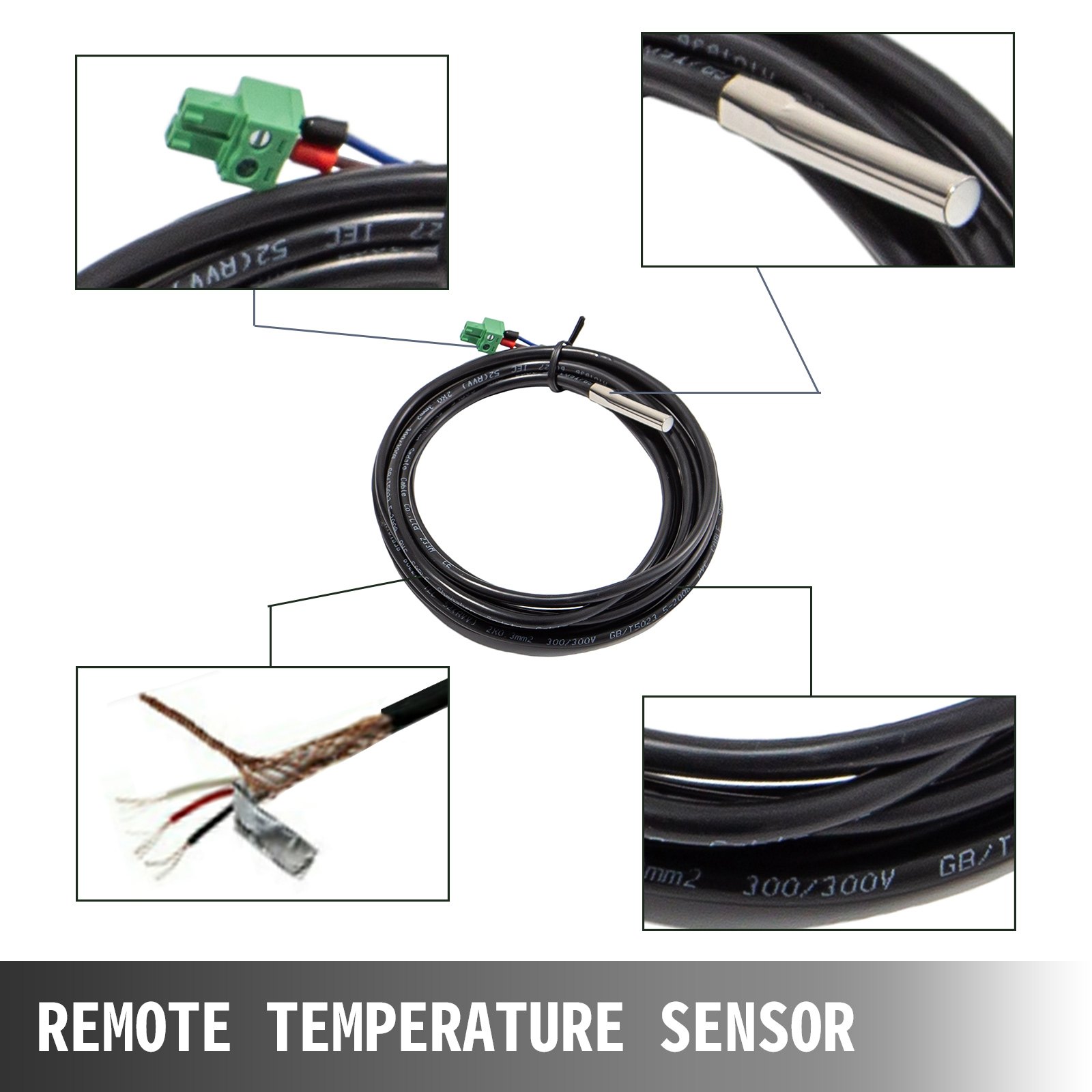

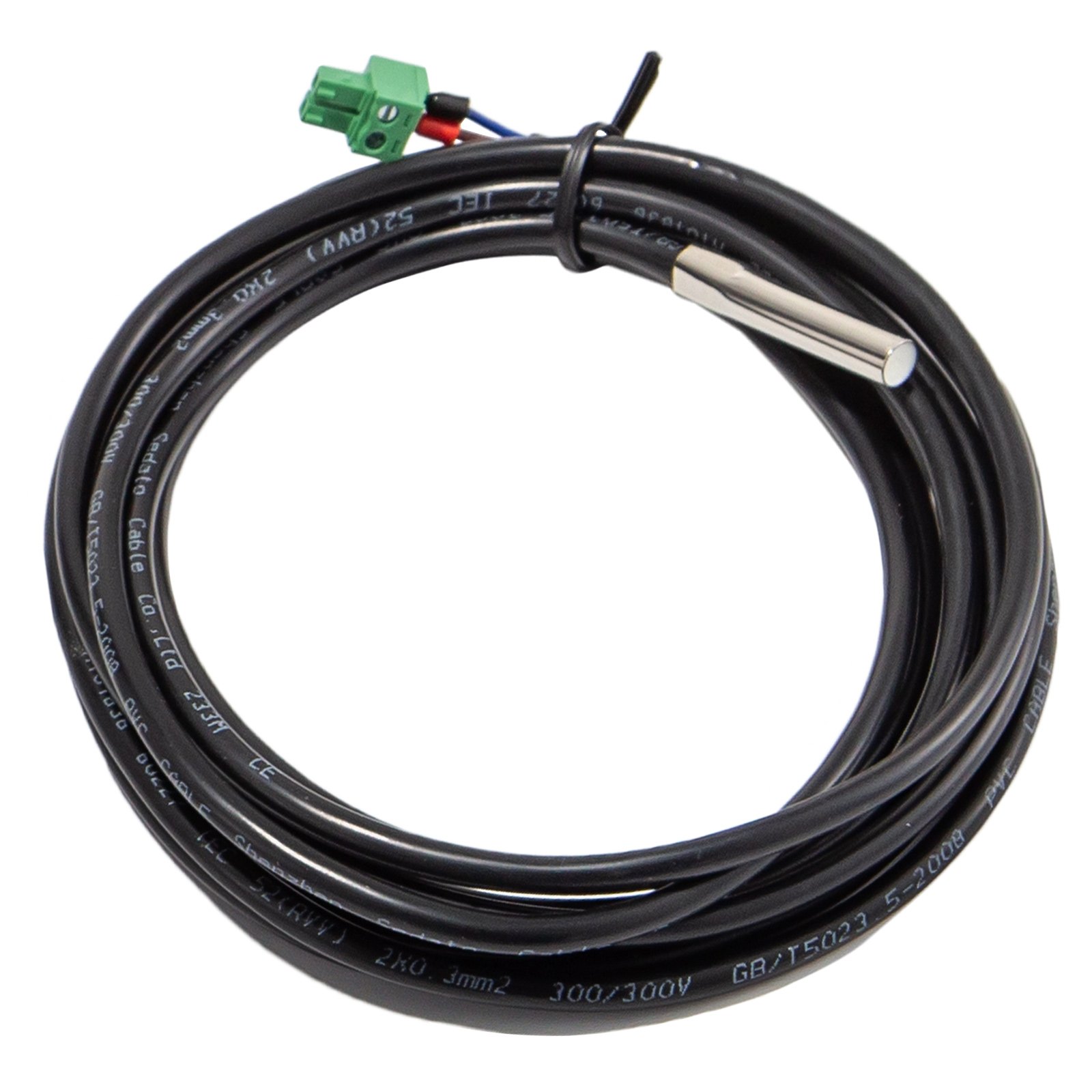

Remote Temperature Sensor

A temperature sensor here for you to charge safely and quickly.

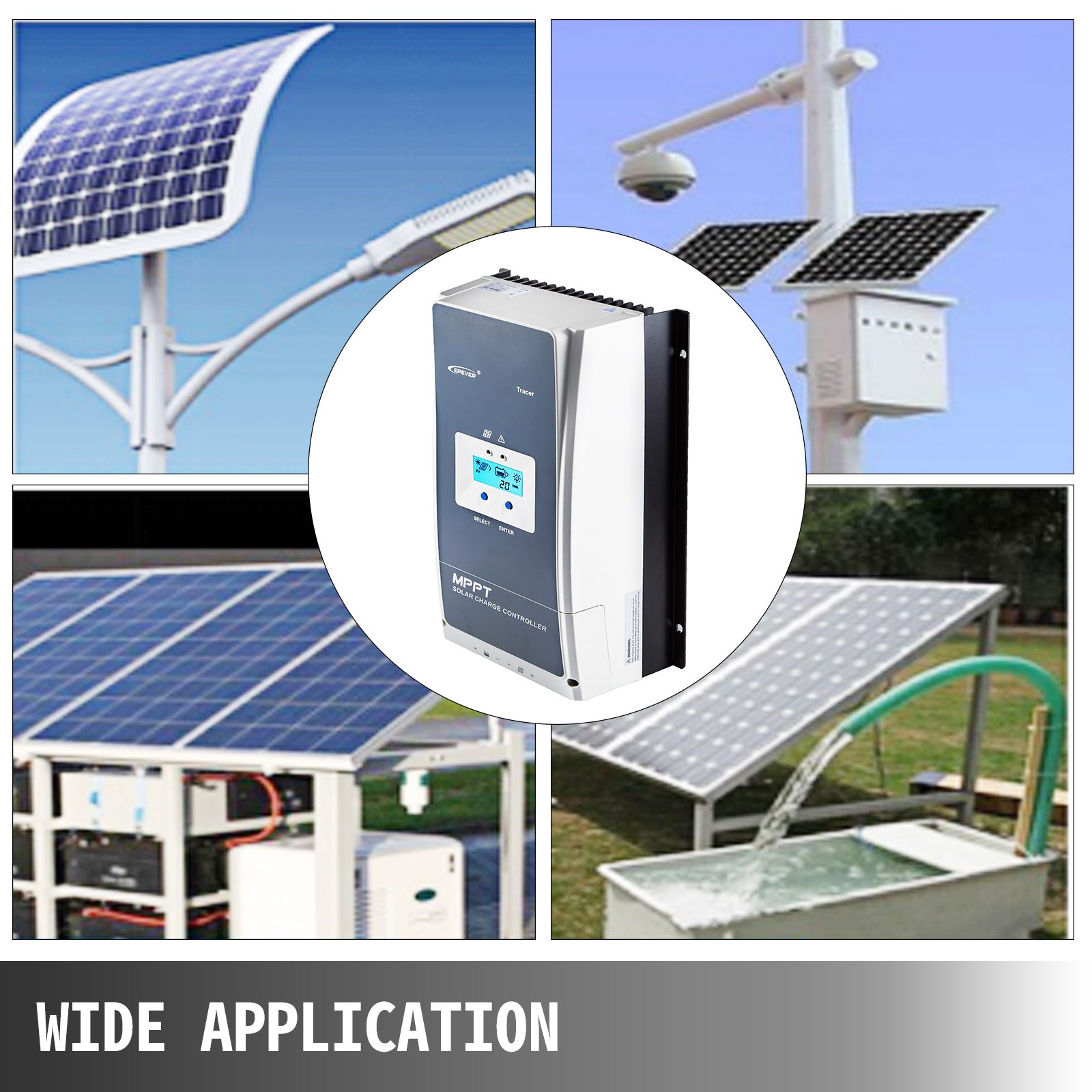

Wide Application

It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.

Package Content

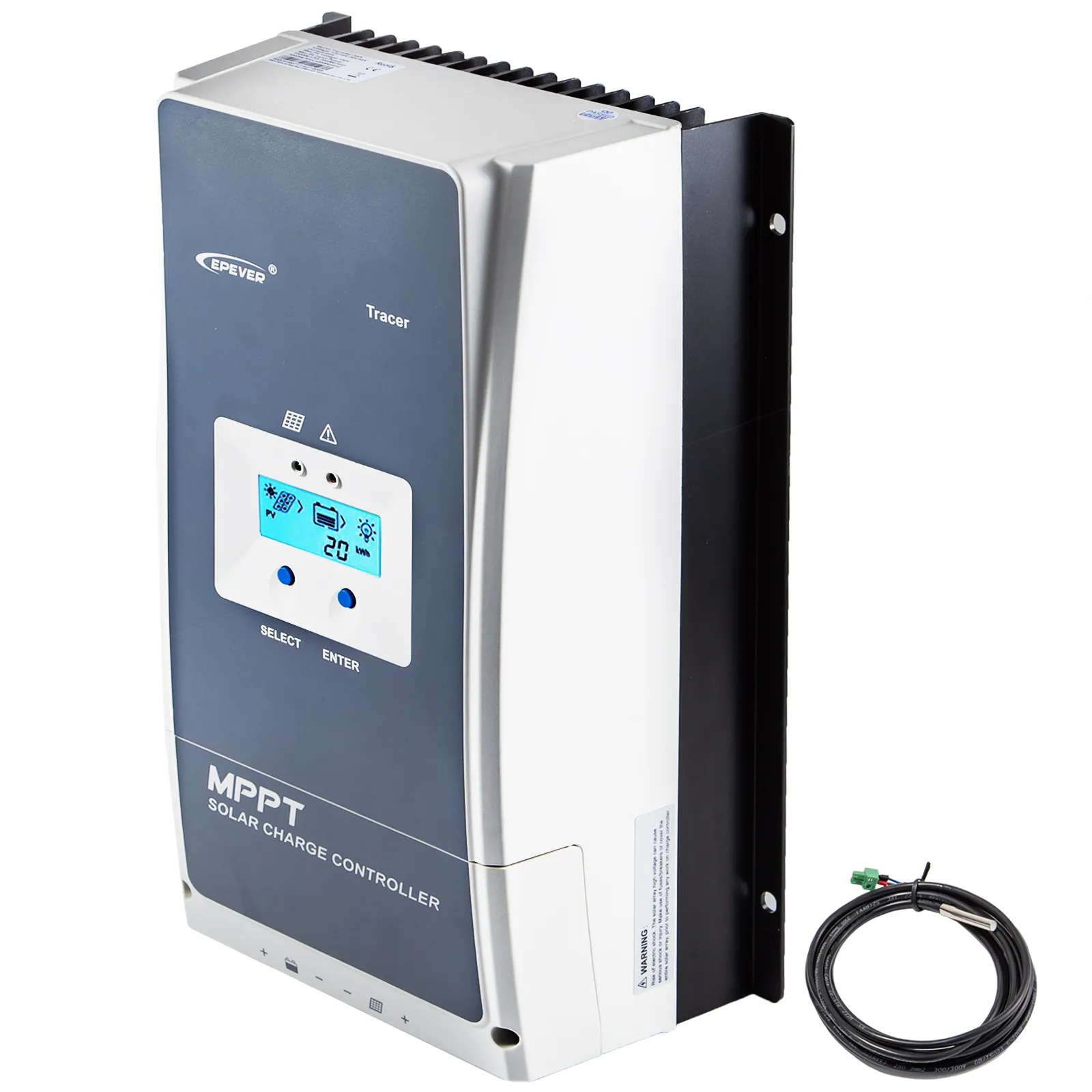

1 X Solar Charge Controller
1 X Temperature Sensor

Specifications

Nominal System Voltage：12/24/36/48 V DC or Auto
Battery Input Voltage Range: 8V～68V
Battery Type: Lithium Battery : Lithium Battery :LiFePO4/ Li(Ni Co Mn)O2/ User
Battery Fuse: 150A/58V
Rated Charge Current: 80A
Rated charge Power: 1000W/12V 2000W/24V 3000W/36V 4000W/48V
Max. PV Open Circuit Voltage: 150V① 138V②
MPP Voltage Range: Battery Voltage +2V) ～108V③
Tracking Efficiency: ≥99.5%
Max. Conversion Efficiency: 98.5%
Full Load Efficiency：98%
Temperature Compensate Coefficient：－3mV/°C/2V(Default)
Self-Consumption：98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding: Common Negative Grounding
Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 Interface: RS485(RJ45)
LCD backlight time: Default:60S,Range:0～999S(0S:the backlight is ON all the time)
Ambient Temperature Range:-25 °C ～+60 °C(above 45 °C)
LCD Temperature Range: -20 °C ～+70 °C
Storage Temperature Range:-30 °C ～+85 °C
Relative Humidity Range: 5% to 95% (N.C.）
Enclosure: IP20
Pollution Degree；PD2

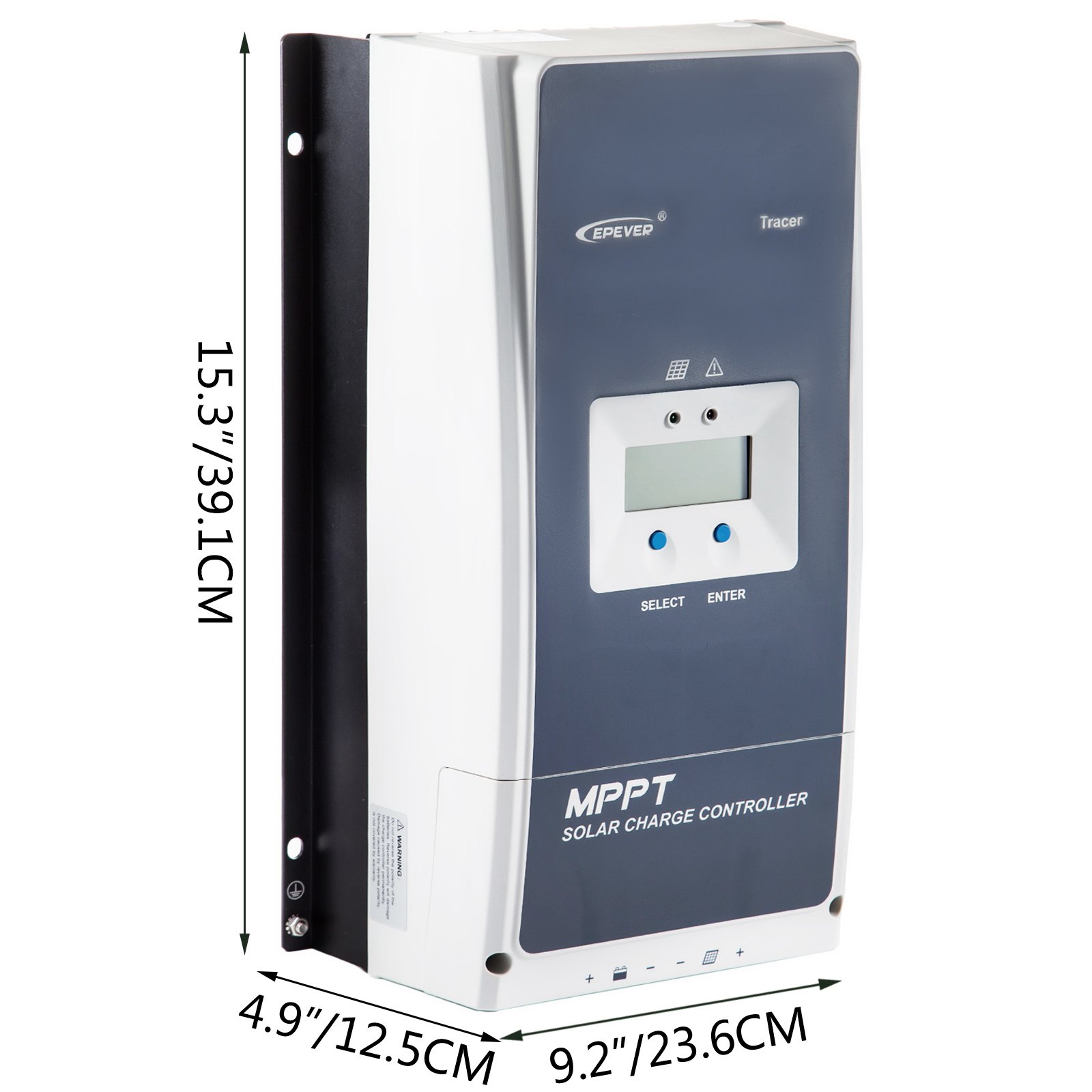

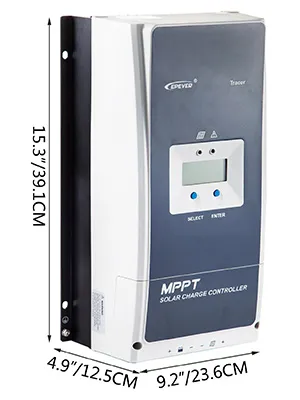

Dimension: 394×240×134 mm
Mounting Dimension: 300 mm x 228 mm
Mounting Hole Size: φ7 mm
① At minimum operating environment temperature
② At 25 °C environment temperature
③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature

Specification

Nominal System Voltage: 12/24/36/48 V DC or Auto

Battery Input Voltage Range: 8V～68V

Battery Type: Lithium Battery

Battery Fuse: 150A/58V

Rated Charge Current: 80A

Rated charge Power: 1000W/12V 2000W/24V 3000W/36V 4000W/48V

Max. PV Open Circuit Voltage: 150V① 138V②

MPP Voltage Range: Battery Voltage +2V) ～108V③

Tracking Efficiency: ≥99.5%

Max. Conversion Efficiency: 98.5%

Full Load Efficiency: 98%

Temperature Compensate Coefficient: －3mV/°C/2V(Default)

Self-Consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V

Grounding: Common Negative Grounding

Relay: Rated Value

RS485 Interface: RS485(RJ45)

LCD backlight time: Default

Ambient Temperature Range: -25 °C ～+60 °C(above 45 °C)

LCD Temperature Range: -20 °C ～+70 °C

Storage Temperature Range: -30 °C ～+85 °C

Relative Humidity Range: 5% to 95% (N.C.）

Enclosure: IP20

: Pollution Degree；PD2

Dimension: 394×240×134 mm

Mounting Dimension: 300 mm x 228 mm

Mounting Hole Size: φ7 mm

: ① At minimum operating environment temperature

: ② At 25 °C environment temperature

: ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature

I put it on and it works perfectly for me, it meets the requirement, 60th thanks to the seller, I can't put a photo, I can't, I don't know how the issue is going, thanks

It arrived a week before the indicated delivery and I am delighted with their speedy delivery and I give 4 stars and I will give the fifth star when I try the regulator.

I ordered this charger because I wanted more power from the panels, I have had several pwm chargers in use. I put 3x140 panel. Fast delivery to Finland.

Customer Reviews

4.8 Out of 5

Based on 44 reviews

Ratings by Features

Price 4.8
Quality 4.6
Features 4.6
Easy to Use 4.7
See More See Less

44 Review(s)

Text, image, video

Photos Only

Videos Only

All star

5 star Only

4 star Only

3 star Only

2 star Only

1 star Only

Most Recent

Most Helpful

Clear filters

Denes

Lorand

Very good comparing to price, wotking good still, will order next time also, time of articol a week , very good!!

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

San

Budapest

This is a good product, it works properly. Easy to set up and check its operation during operation. I recommend buying it.

Markus

Mppt

Fungerar bra med enkla menyer, lätt att först och inget krångligt. Rustik och bra . Väl tilltagna kontakt terminaler. Tydlig display.

Brian Ward

So happy with the MPPT controller after upgrading from PWM. Would ha e gotten 5 star's across the board had a USB port been incorporated!

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

Savolainen

Pursimies

Very satisfied. Easy to use and satisfied after 1 summer use. Maybe some trip meter for use could be implemented, but good to have power from start.

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

Brenda Reed

what to buy in vevor

karen

Super excellent delivery

Jariu

Achim Büttner

Super, habe 2

Super Regler Wifi von zuhause oder von überall...Klasse

Voidwalker_MV

Good value for money.

Appears to be of decent build quality, especially for the price. Performs well and provides a nice amount of information regarding solar panel output, battery status, and load. Only thing I'd change would be to have LiFePo4 battery support out of the box, but as it allows custom battery charge profiles this isn't too much of an issue.
