    Solar Charge Controller, Mppt Charge Controller, 80 Amp, Solar Panel Controller
    TYNKZQT-8420AN001V9

    Solar Charge Controller, Mppt Charge Controller, 80 Amp, Solar Panel Controller

    35599
    Price including VATSee details
    Save up to 15% with PRO price. Sign up for free PRO Account.
    Discontinue

    About this item

    • 【HIGH EFFICIENCY】-Advanced MPPT Control algorithm can minimize the power point loss rate and loss time, and its tracing efficiency is no less than 99.5%, and conversion is no less than 98.5%.
    • 【HIGH-DEFINITION LCD SCREEN】-This solar charge controller features a high-definition LCD screen,so you can see the status of charging clearly.
    • 【INTELLEGENT MONITORING】-This solar panel controller allows multiple monitoring ways: WIFI/GPRS, mobile app remote control and computer monitoring, which all make it super convenient for you to monitor it anytime & anywhere.
    • 【COOLING FAN DESIGN】-The charge controllers for solar panels come with a rear-mounted cooling fan, cooling down quickly, which can extend the machine's operating life to a large extent.
    • 【TEMPERATURE SENSOR INCLUDED】-We offer you a high-quality temperature sensor free of cost, it is flexible-resistance and can have better thermal conductivity. Length of cable: 3 meters.

    Frequently Bought Together

    People Who Bought This Item Also Bought

    Solar Charge Controller, Mppt Charge Controller, 80 Amp, Solar Panel Controller
    35599  Only 1 Left, order soon
    Discontinue
    VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

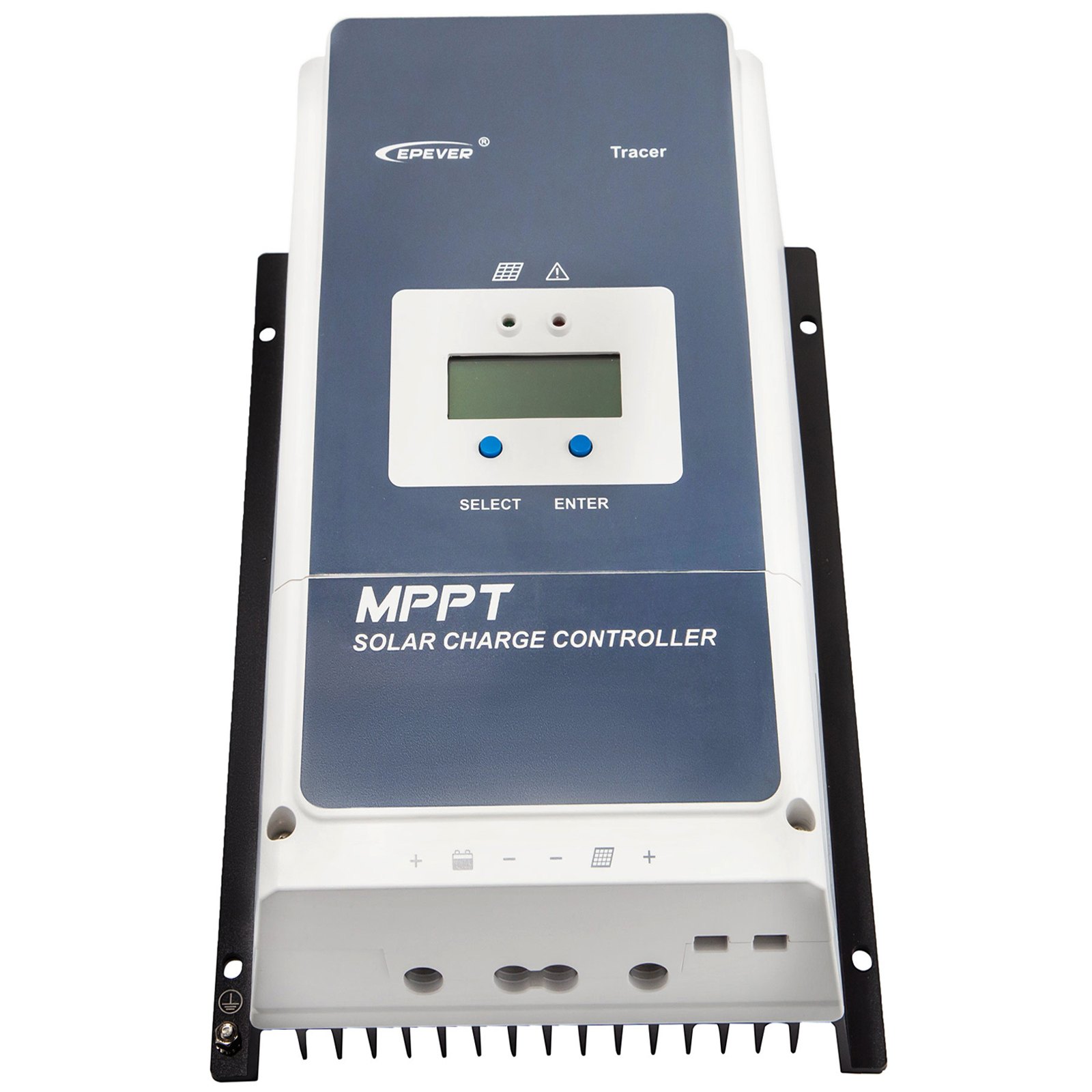

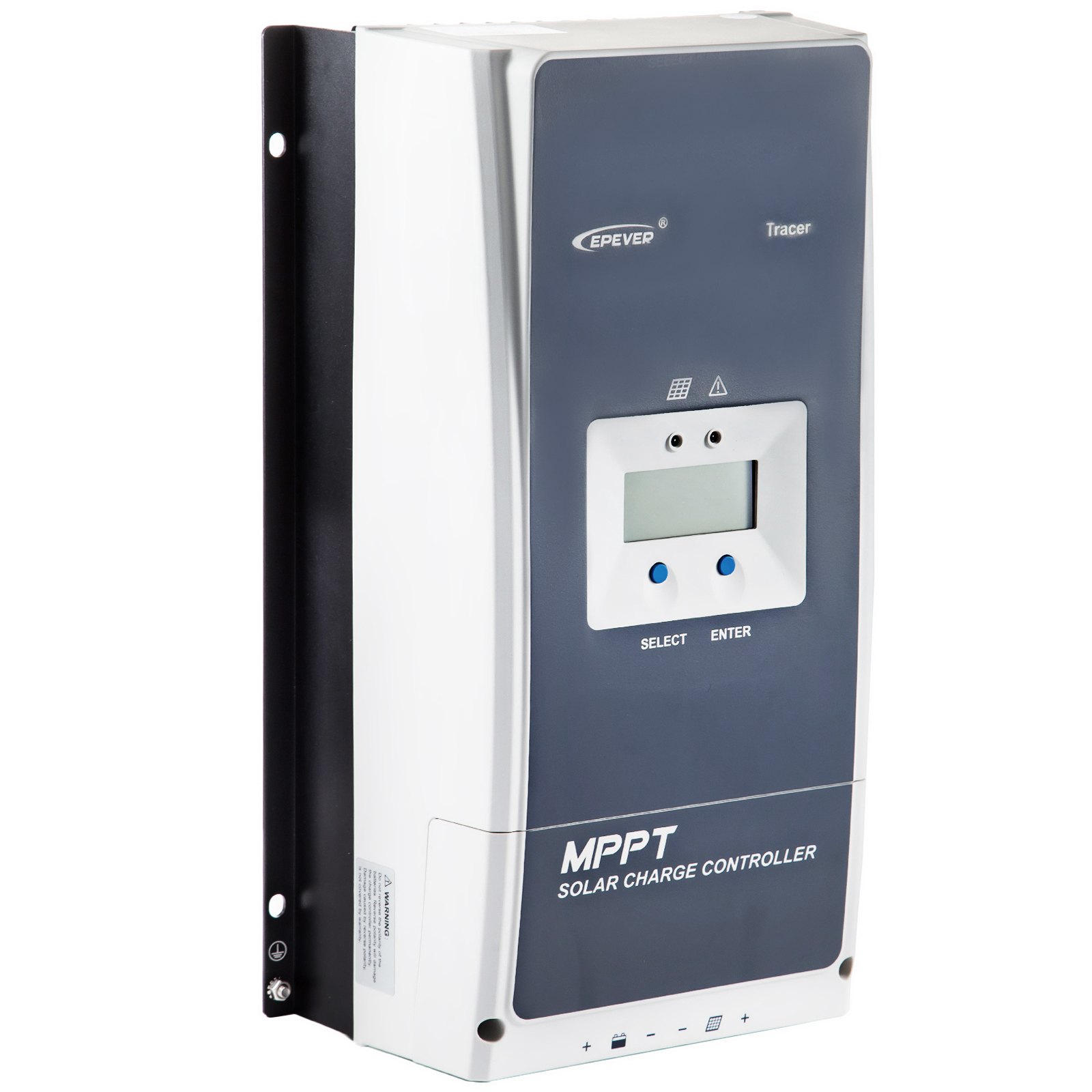

    80 Amp Solar Charge Controller
    Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98.6%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
    • High Efficiency
    • High-Definition LCD Display
    • Intelligent Monitoring
    • Cooling Fan Design
    • Temperature Sensor Included

    Tough Equipment & Tools, Pay Less
    VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
    Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    VEVOR logo
    Tough Equipment & Tools, Pay Less
    VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
    Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service

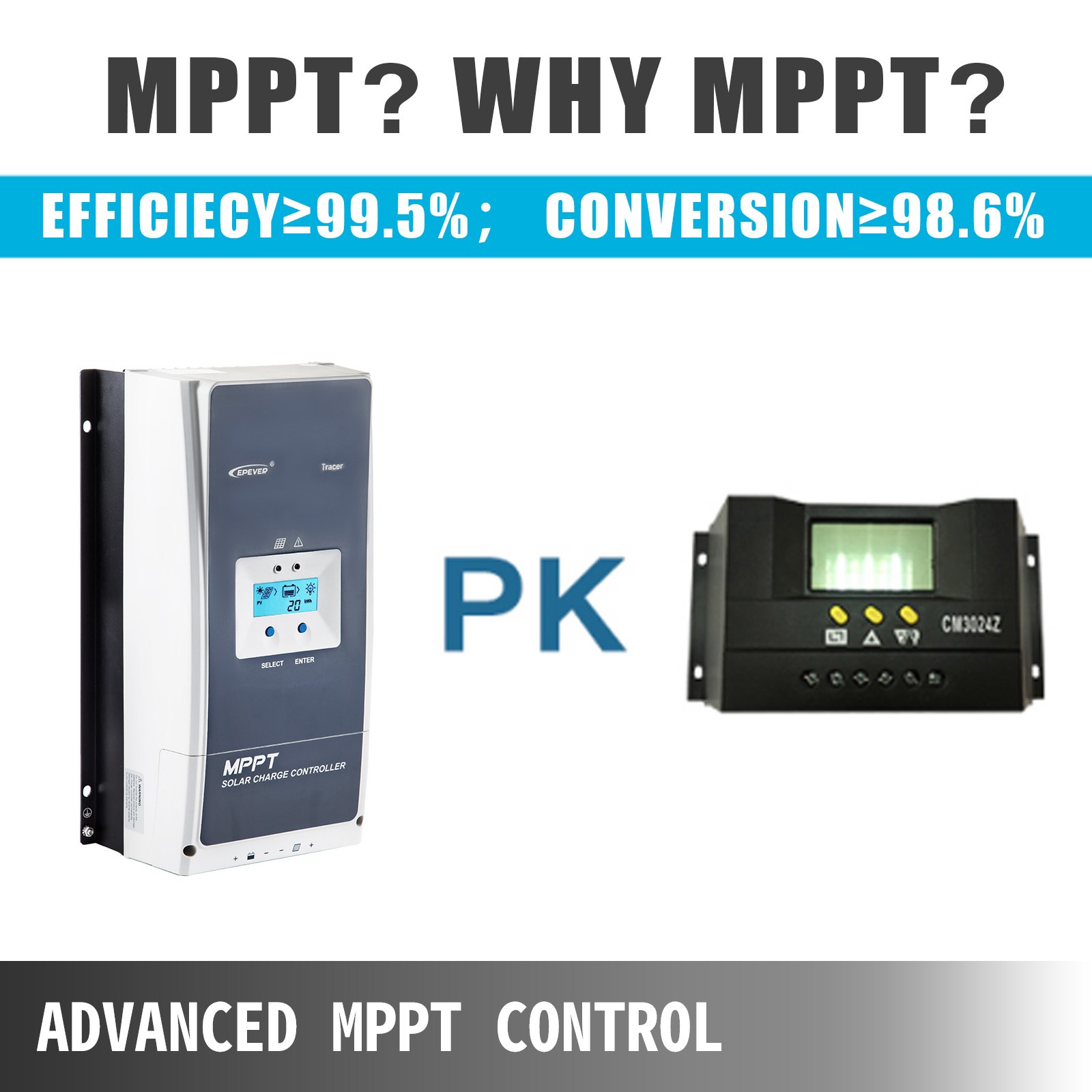

    Advanced MPPT Control
    It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.5%.

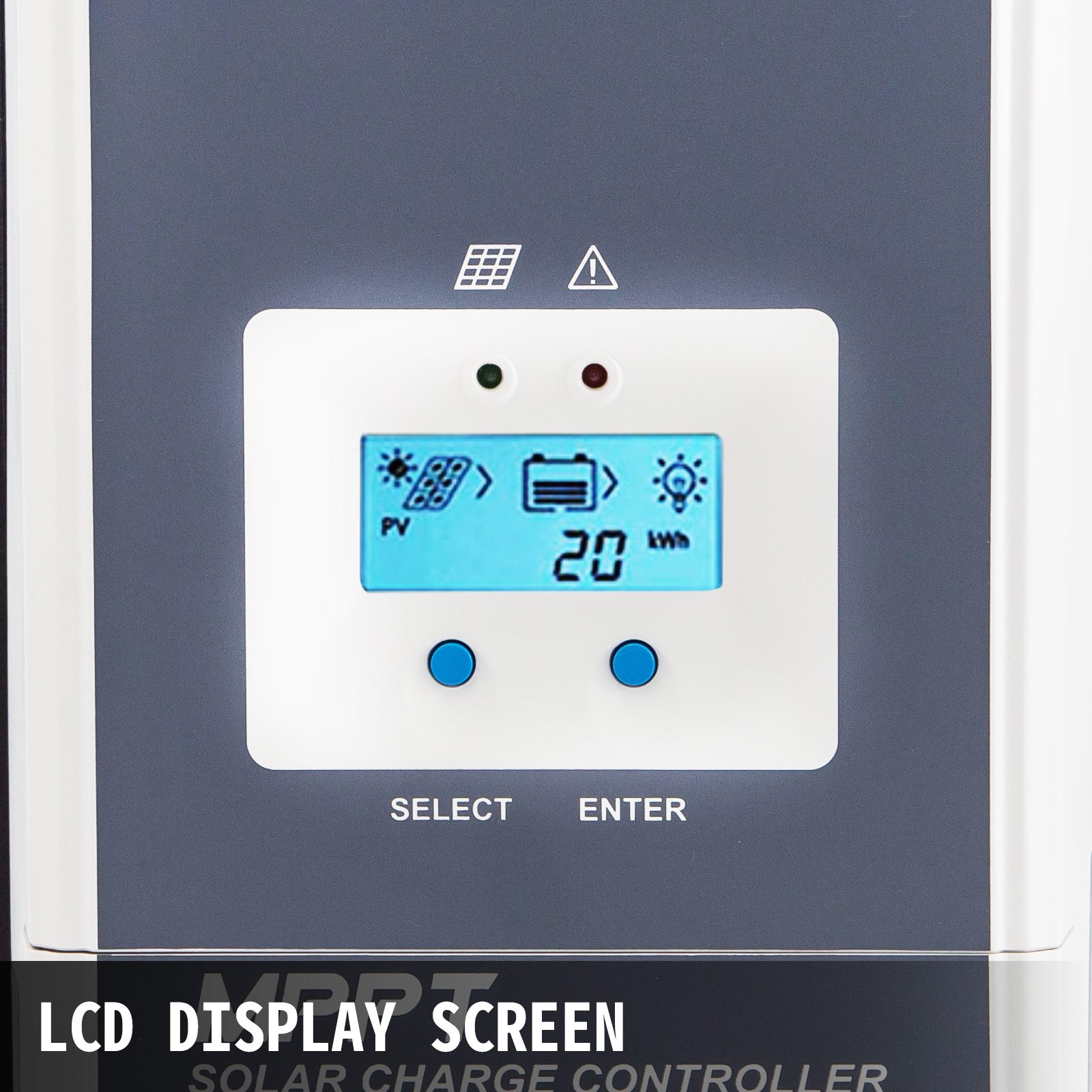

    LCD Display Screen
    The backlit LCD screen shows the status of charging clearly.

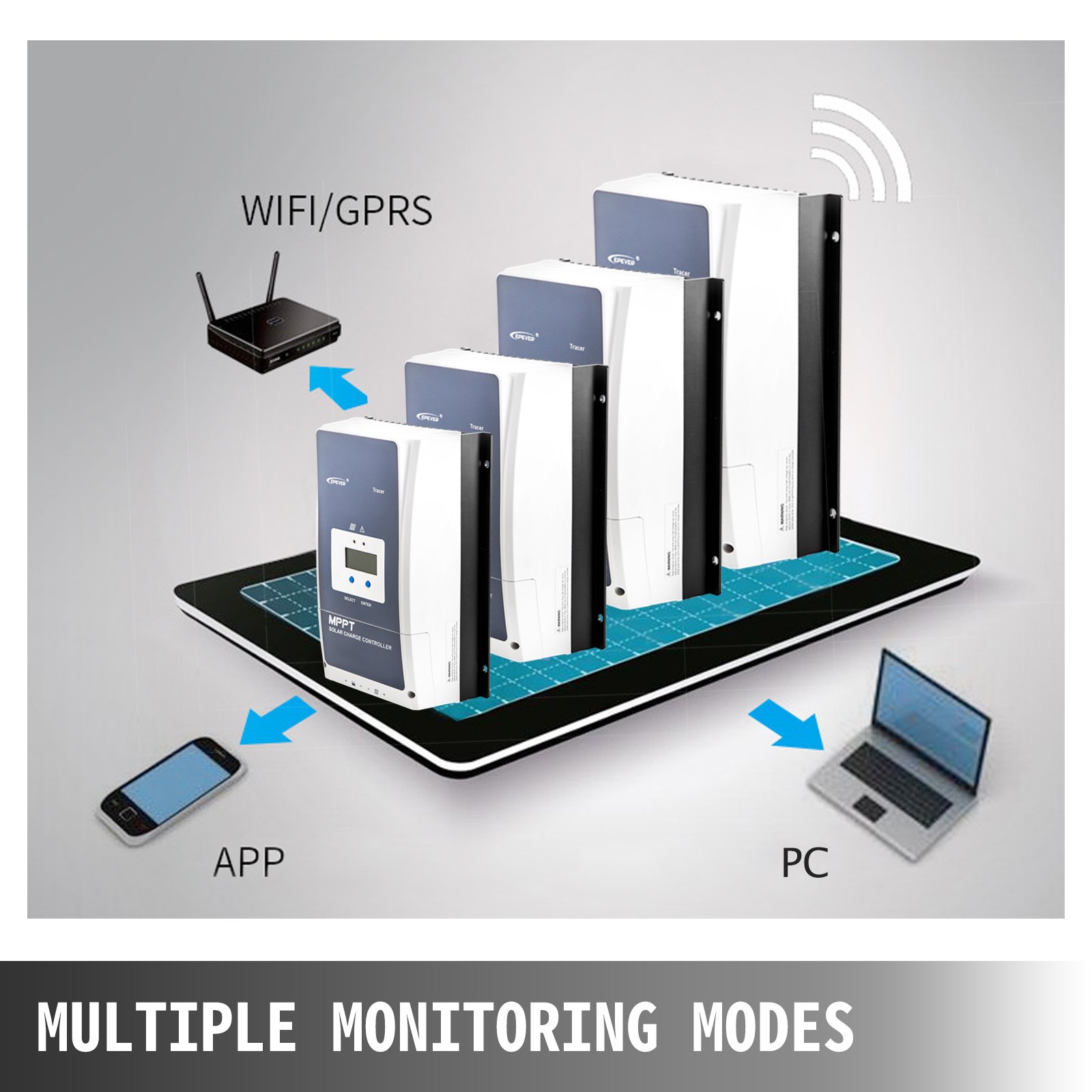

    Multiple Monitoring Modes
    It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.

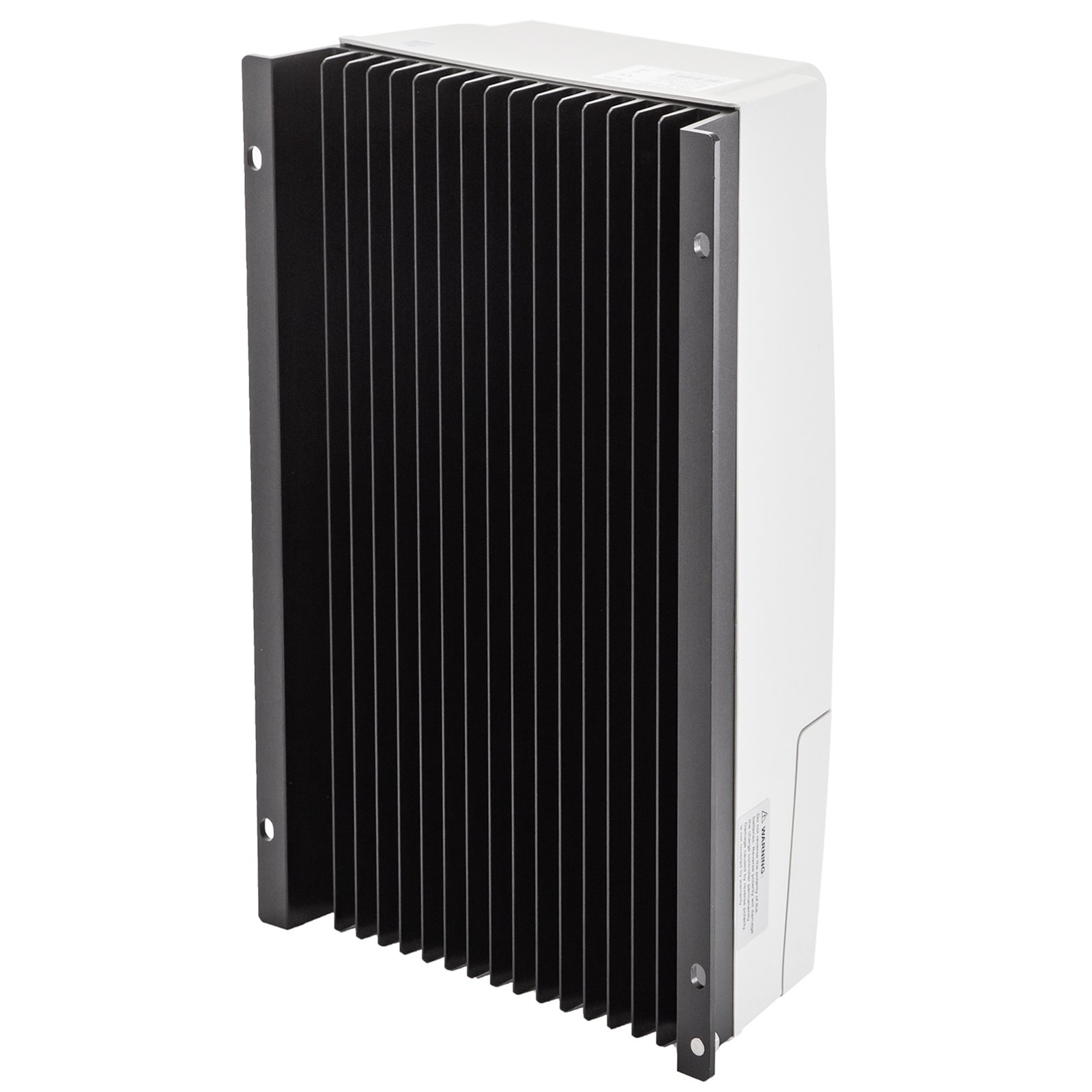

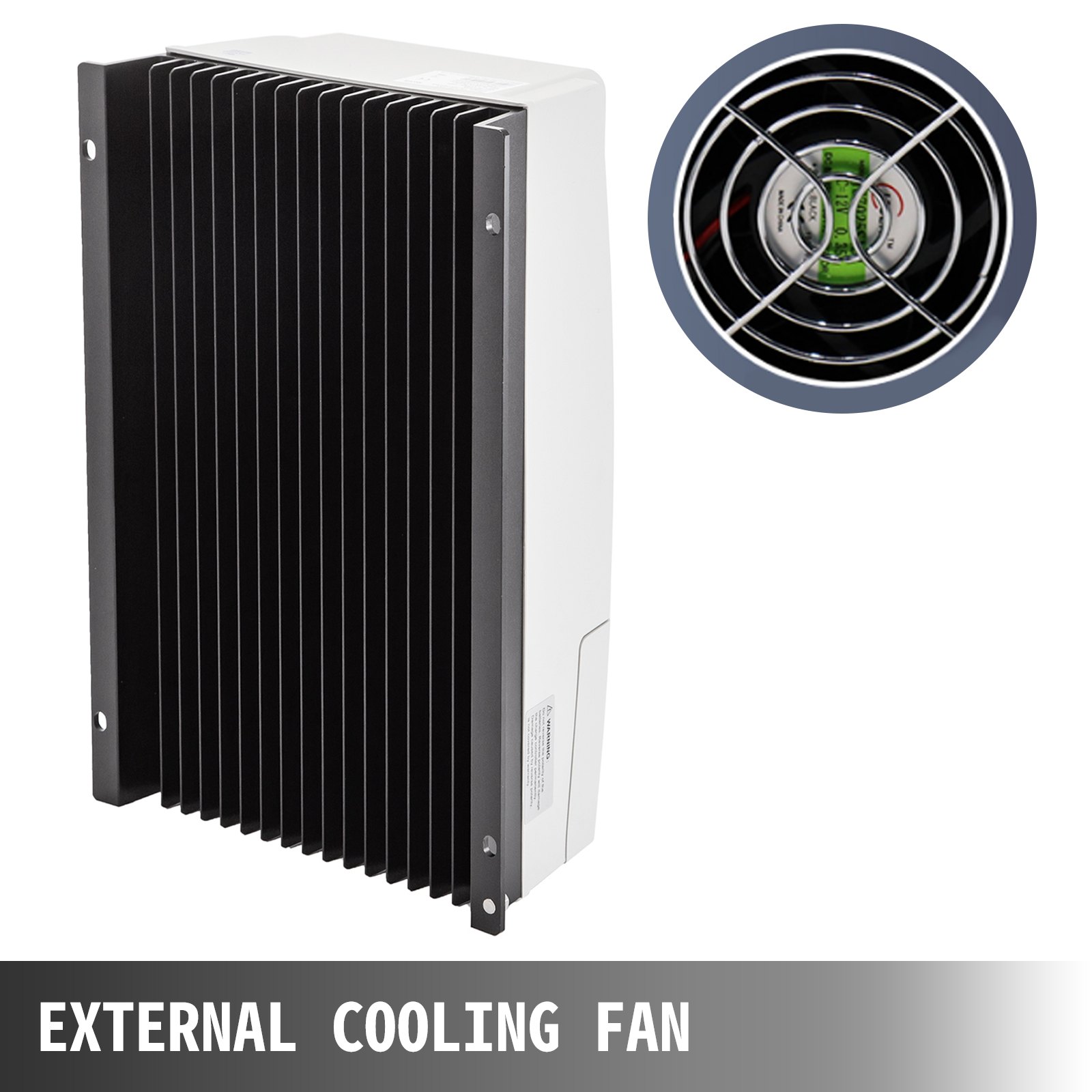

    External Cooling Fan
    The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.

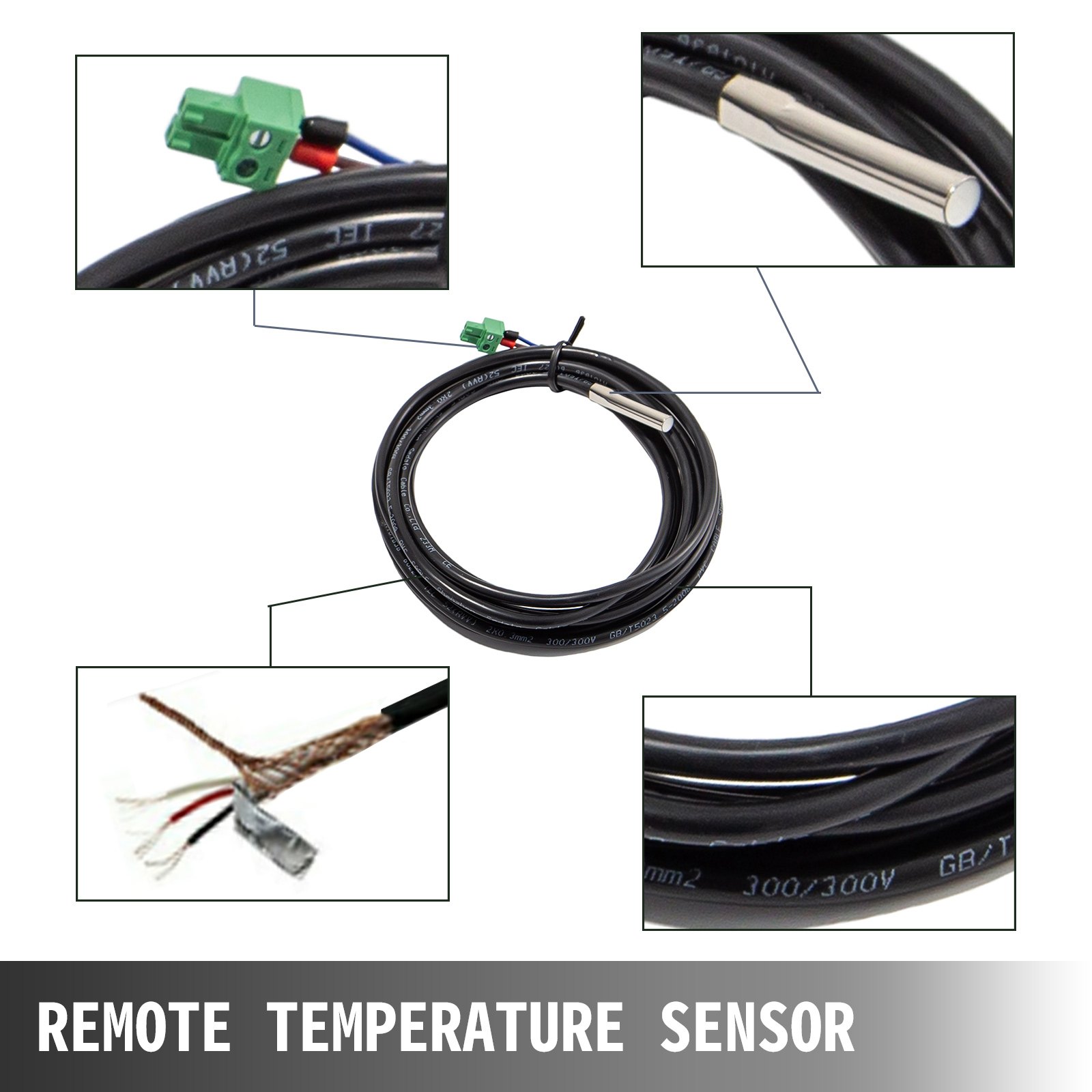

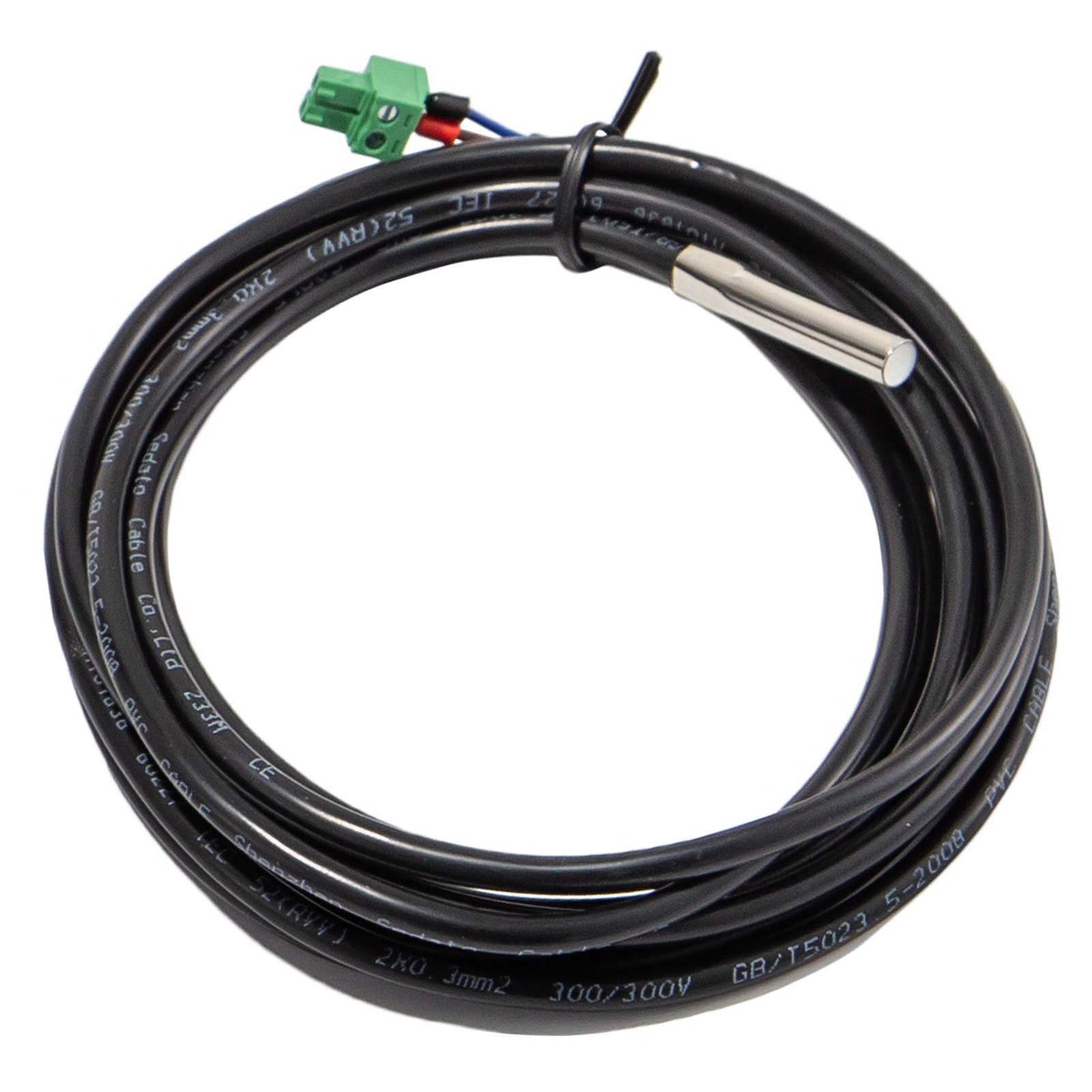

    Remote Temperature Sensor
    A temperature sensor here for you to charge safely and quickly.

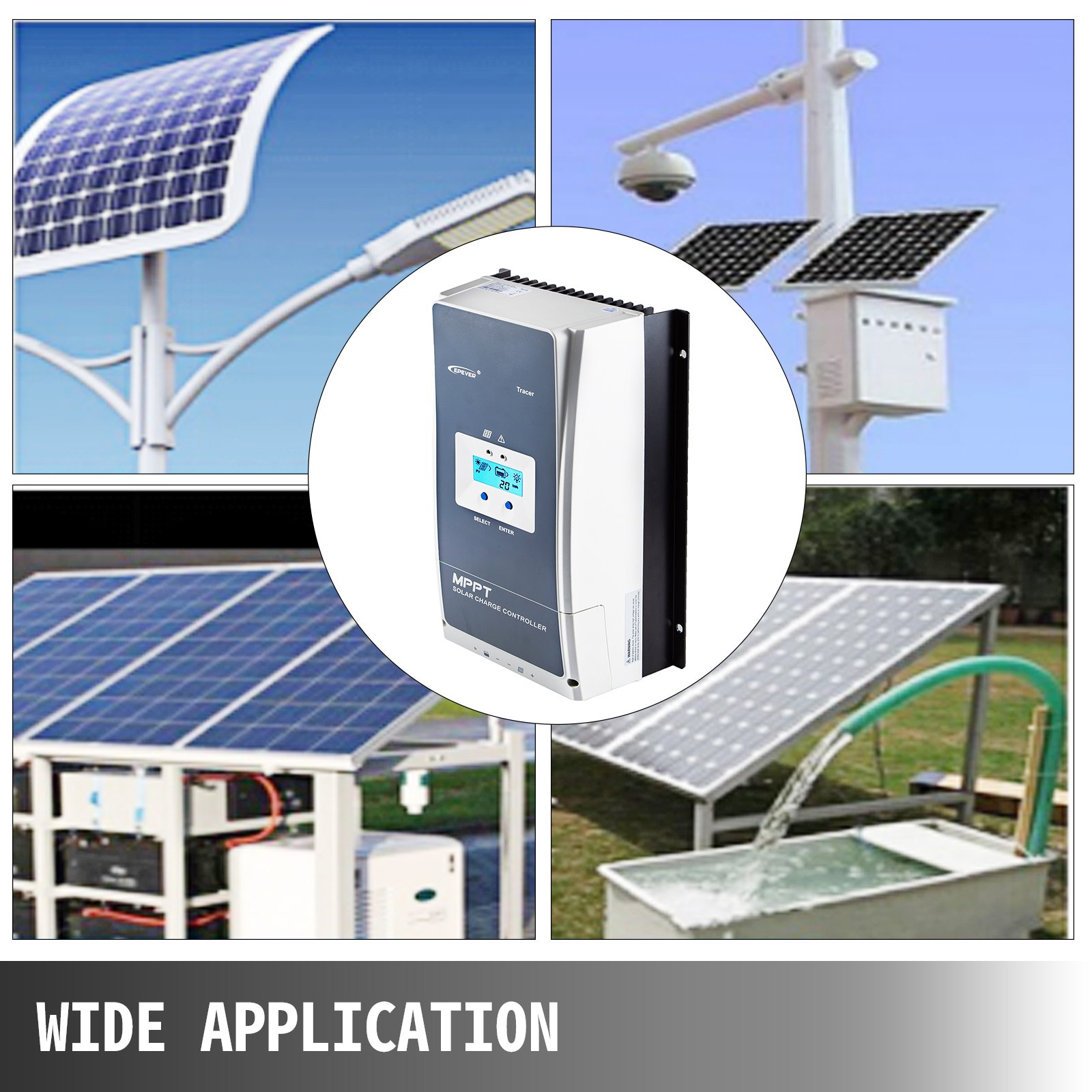

    Wide Application
    It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
    Specifications
    • Nominal System Voltage:12/24/36/48 V DC or Auto
    • Battery Input Voltage Range: 8V~68V
    • Battery Type: Lithium Battery : Lithium Battery :LiFePO4/ Li(Ni Co Mn)O2/ User
    • Battery Fuse: 150A/58V
    • Rated Charge Current: 80A
    • Rated charge Power: 1000W/12V 2000W/24V 3000W/36V 4000W/48V
    • Max. PV Open Circuit Voltage: 200V① 180V②
    • MPP Voltage Range: Battery Voltage +2V) ~108V③
    • Tracking Efficiency: ≥99.5%
    • Max. Conversion Efficiency: 98.5%
    • Full Load Efficiency:97.5%
    • Temperature Compensate Coefficient:-3mV/°C/2V(Default)
    • Self-Consumption:98mA/12V;60mA/24V;50mA/36V;46mA/48V
    • Grounding: Common Negative Grounding
    • Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
    • RS485 Interface: RS485(RJ45)
    • LCD backlight time: Default:60S,Range:0~999S(0S:the backlight is ON all the time)
    • Ambient Temperature Range:-25 °C ~+60 °C(above 45 °C)
    • LCD Temperature Range: -20 °C ~+70 °C
    • Storage Temperature Range:-30 °C ~+85 °C
    • Relative Humidity Range: 5% to 95% (N.C.)
    • Enclosure: IP20
    • Pollution Degree;PD2

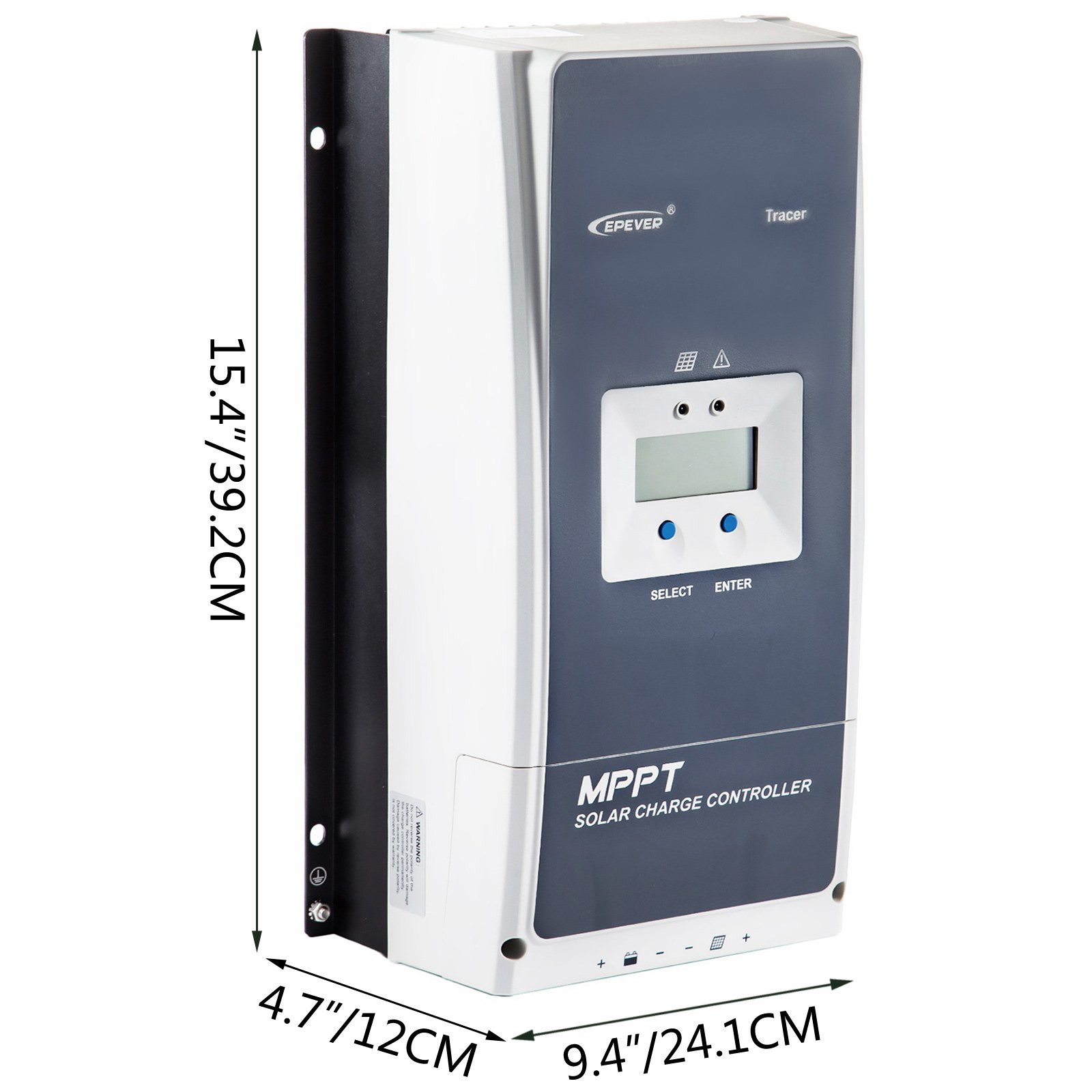

    • Dimension: 394×240×134 mm
    • Mounting Dimension: 300 mm x 228 mm
    • Mounting Hole Size: φ7 mm
    • ① At minimum operating environment temperature
    • ② At 25 °C environment temperature
    • ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature

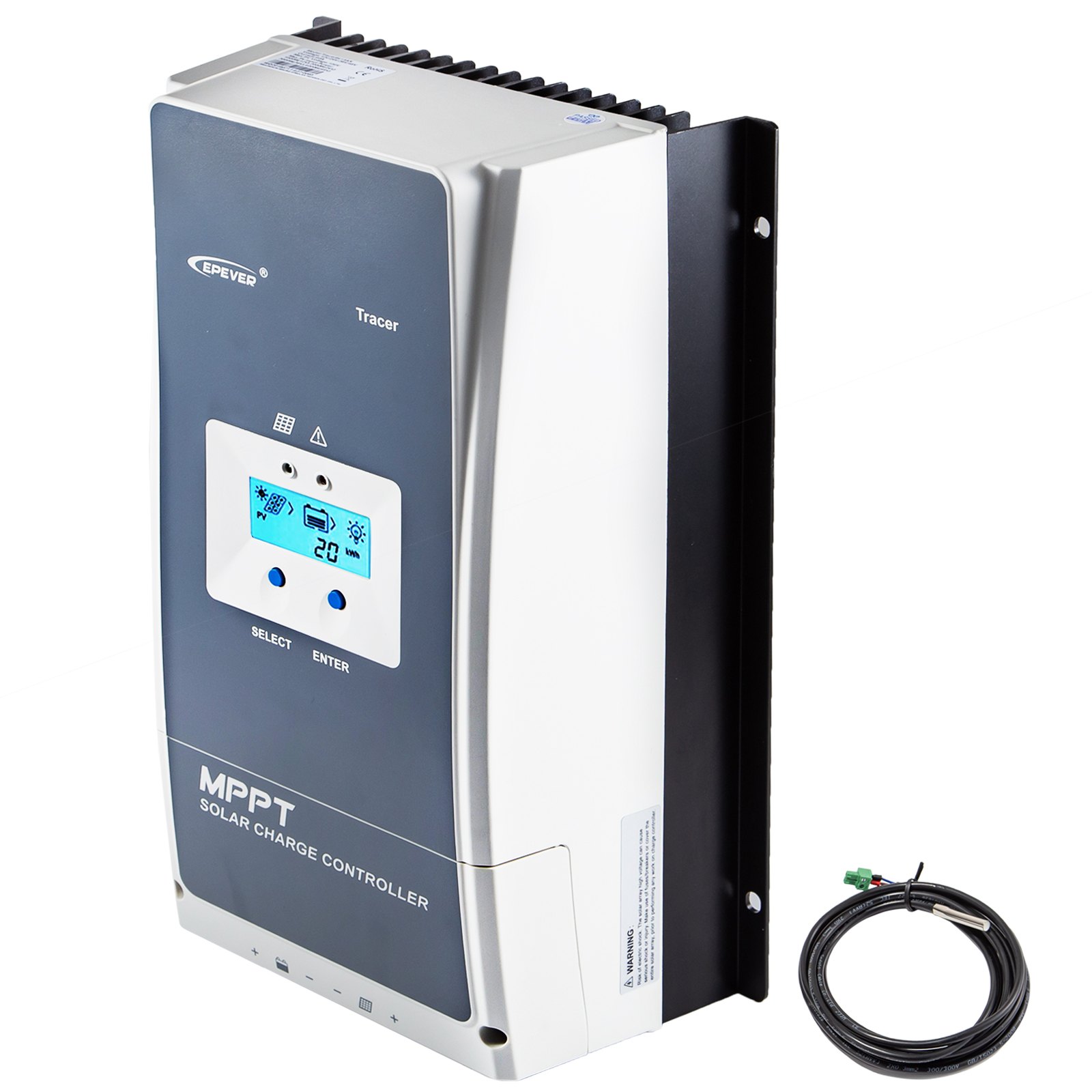

    Package Content
    • 1 X Solar Charge Controller
    • 1 X Temperature Sensor
    VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

    Tough Equipment & Tools, Pay Less
    VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
    Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    VEVOR logo
    Tough Equipment & Tools, Pay Less
    VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
    Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    80 Amp Solar Charge Controller
    Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98.6%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
    • High Efficiency
    • High-Definition LCD Display
    • Intelligent Monitoring
    • Cooling Fan Design
    • Temperature Sensor Included
    Advanced MPPT Control
    It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.5%.
    LCD Display Screen
    The backlit LCD screen shows the status of charging clearly.
    Multiple Monitoring Modes
    It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
    External Cooling Fan
    The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.
    Remote Temperature Sensor
    A temperature sensor here for you to charge safely and quickly.
    Wide Application
    It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
    Package Content
    • 1 X Solar Charge Controller
    • 1 X Temperature Sensor
    Specifications
    • Nominal System Voltage:12/24/36/48 V DC or Auto
    • Battery Input Voltage Range: 8V~68V
    • Battery Type: Lithium Battery : Lithium Battery :LiFePO4/ Li(Ni Co Mn)O2/ User
    • Battery Fuse: 150A/58V
    • Rated Charge Current: 80A
    • Rated charge Power: 1000W/12V 2000W/24V 3000W/36V 4000W/48V
    • Max. PV Open Circuit Voltage: 200V① 180V②
    • MPP Voltage Range: Battery Voltage +2V) ~108V③
    • Tracking Efficiency: ≥99.5%
    • Max. Conversion Efficiency: 98.5%
    • Full Load Efficiency:97.5%
    • Temperature Compensate Coefficient:-3mV/°C/2V(Default)
    • Self-Consumption:98mA/12V;60mA/24V;50mA/36V;46mA/48V
    • Grounding: Common Negative Grounding
    • Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
    • RS485 Interface: RS485(RJ45)
    • LCD backlight time: Default:60S,Range:0~999S(0S:the backlight is ON all the time)
    • Ambient Temperature Range:-25 °C ~+60 °C(above 45 °C)
    • LCD Temperature Range: -20 °C ~+70 °C
    • Storage Temperature Range:-30 °C ~+85 °C
    • Relative Humidity Range: 5% to 95% (N.C.)
    • Enclosure: IP20
    • Pollution Degree;PD2
    • Dimension: 394×240×134 mm
    • Mounting Dimension: 300 mm x 228 mm
    • Mounting Hole Size: φ7 mm
    • ① At minimum operating environment temperature
    • ② At 25 °C environment temperature
    • ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature

    Specification

    Nominal System Voltage
    12/24/36/48 V DC or Auto
    Battery Input Voltage Range
    8V~68V
    Battery Type
    Lithium Battery
    Battery Fuse
    150A/58V
    Rated Charge Current
    80A
    Rated charge Power
    1000W/12V 2000W/24V 3000W/36V 4000W/48V
    Max. PV Open Circuit Voltage
    200V① 180V②
    MPP Voltage Range
    Battery Voltage +2V) ~108V③
    Tracking Efficiency
    ≥99.5%
    Max. Conversion Efficiency
    98.5%
    Full Load Efficiency
    97.5%
    Temperature Compensate Coefficient
    -3mV/°C/2V(Default)
    Self-Consumption
    98mA/12V;60mA/24V;50mA/36V;46mA/48V
    Grounding
    Common Negative Grounding
    Relay
    Rated Value
    RS485 Interface
    RS485(RJ45)
    LCD backlight time
    Default
    Ambient Temperature Range
    -25 °C ~+60 °C(above 45 °C)
    LCD Temperature Range
    -20 °C ~+70 °C
    Storage Temperature Range
    -30 °C ~+85 °C
    Relative Humidity Range
    5% to 95% (N.C.)
    Enclosure
    IP20
    Pollution Degree;PD2
    Dimension
    394×240×134 mm
    Mounting Dimension
    300 mm x 228 mm
    Mounting Hole Size
    φ7 mm
    ① At minimum operating environment temperature
    ② At 25 °C environment temperature
    ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature
