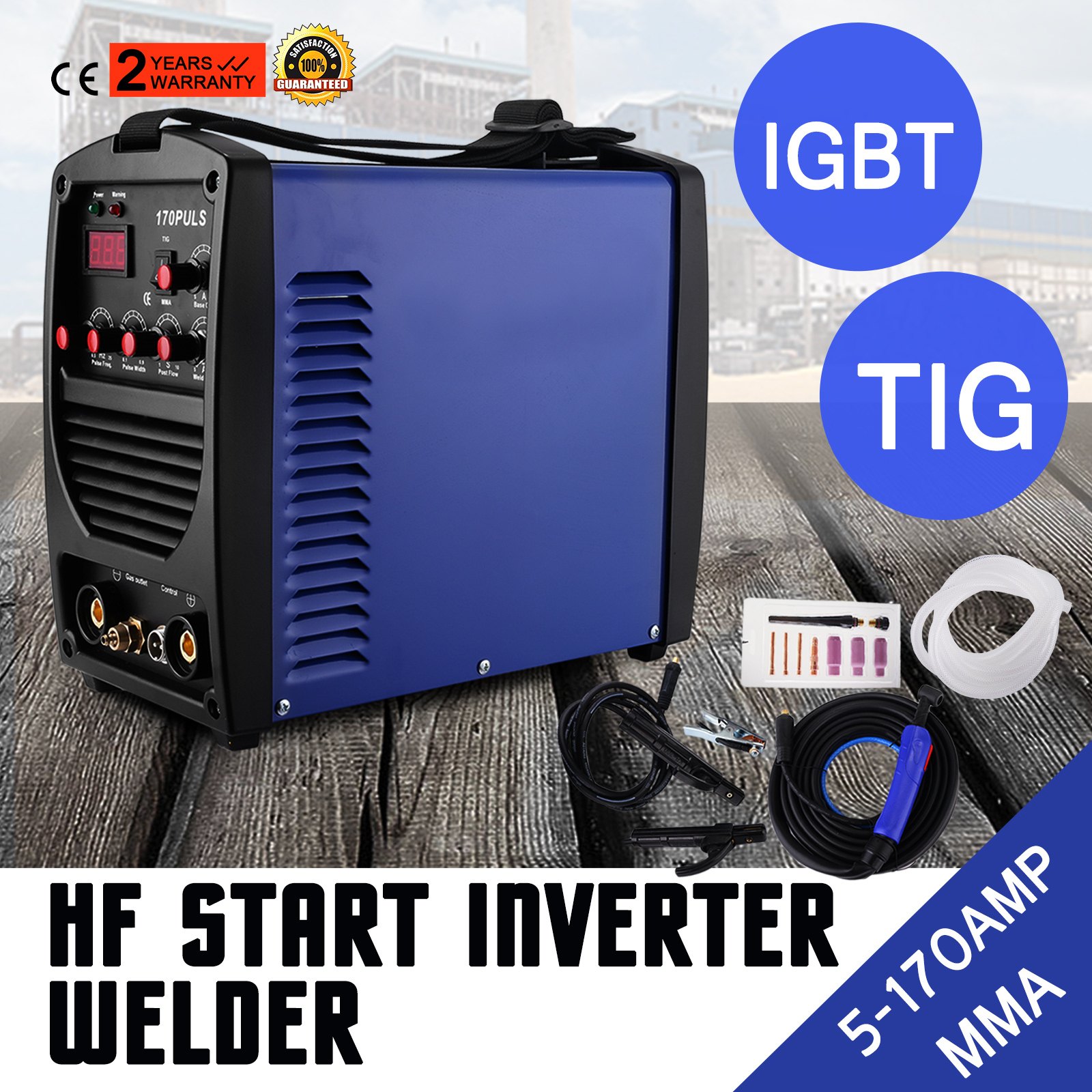

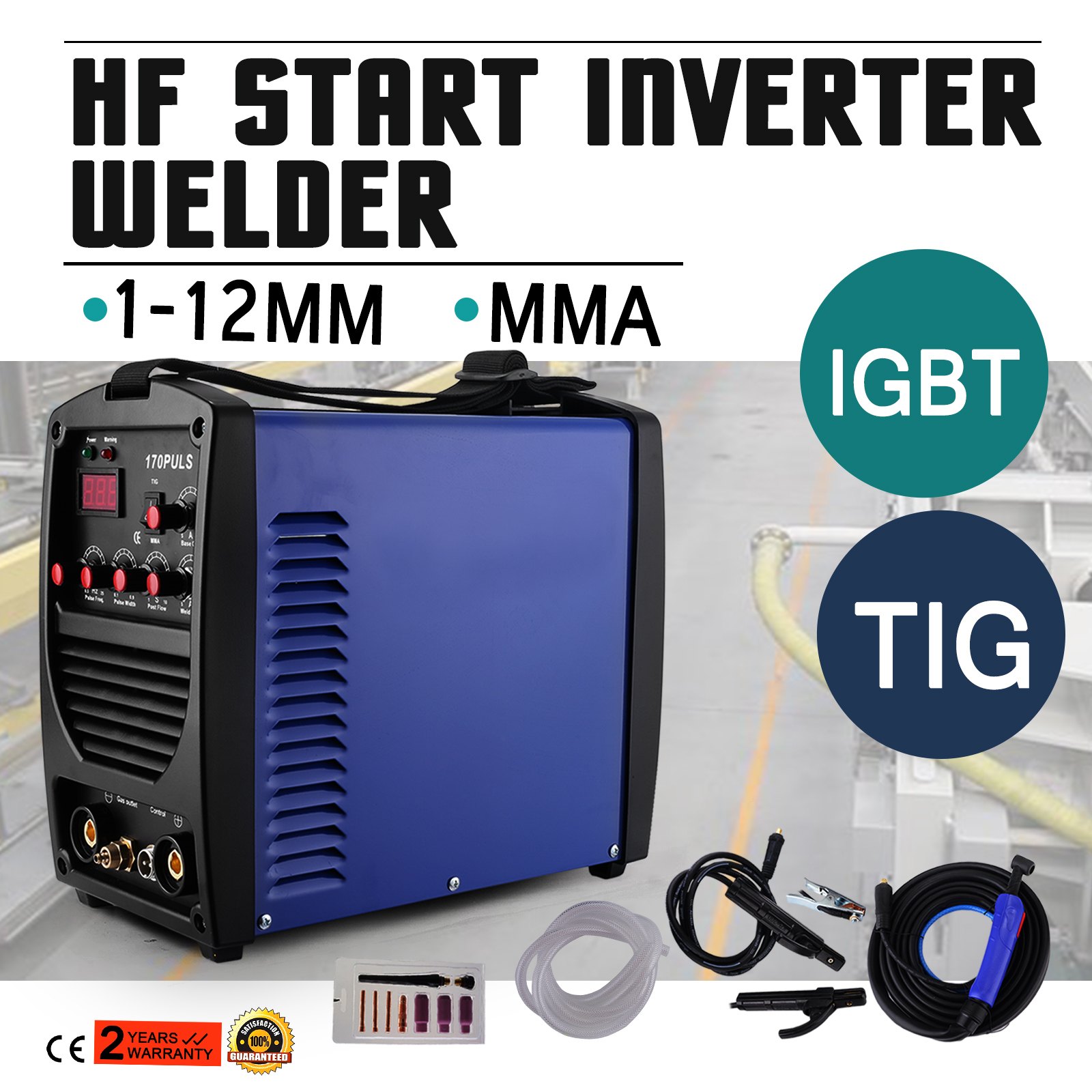

170a Mma/arc Dc Inverter Pulse Welder With Lift Tig Led +complete Kit Hf Start

Features & Details

• 【2 IN 1 COMBO WELDING】-This is a combo welder, used as TIG welder or MMA stick welder. The output current range is 5-170A (TIG welding) and 5-130A (MMA welding). With the TIG/MMA switch, you can easily switch the mode by this very button to improve the welding machine's performance.
• 【HIGHLY EFFICIENT WELDING】- The steel constructed and powder-coated case is made for dirty-proof & durability. And the HF (high-frequency) ignitioncanignite the arc during TIG welding without touching the workpiece to deliver a flawless weld.
• 【EXCELLENT COOLING SYSTEM】- The instant cooling function can promote body heat dissipation at the front, left & right. And our TIGwelding machine also provides over-load, over-voltage & over-current protection.
• 【EASY CARRYING】- The lightness and strength of its components make the TIG welding machine a reliable work tool for professionals or personal use. Besides, we prepare a great handle for easy movement.
• 【WIDE APPLICATION】-Compatible with max. φ4 mm acid & alkali electrodes, our inverter welding machine can be used to weld stainless steel, carbon steel, low alloy steel, etc. and provide less splash, deep molten pool, good weld shape.

• Portable and easy to use
• Professional and reliable
• Shoulder strap for easy transport
• Inverter welder for reduced energy consumption and a stable arc
• Hot Start increases the initial current to optimize the trigger
• Arc Force avoids arc shutting down and melt flaws during welding
• Simple and intuitive interface allows precise adjustments
• The HF function guarantees 100% quick and precise arc trigger
• With international advanced IGBT technology
• The welding current is stable
• The welding seam is nice
• Few spatters and low noise
• Ideal for TIG DC high frequency welding and MMA welding
• Two years warranty
• CE certification

• Model: TM170PULS
• Power supply voltage: AC 230V, single phase
• Frequency: 50 / 60 Hz
• Current adjusting range: 5-170 A

• No-load voltage: 60-80 V
• Welding cur. adjusting range: 5 - 130 A
• Rated output current: 130 A
• Rated duty cycle: 60%
• Electrode diameter: 1.6 - 4.0 mm (0.06 - 0.16 inch)

• Welding cur. adjusting range: 5 - 170 A
• Rated duty cycle: 60%
• Pulse width ratio: 0.1 - 0.9
• Pulse frequency: 0.5 - 25 Hz
• Arc striking mode: high frequency arc striking
• Current down-slope time: 0.5 - 1 sec(fixed)
• After flow time: 1 - 10 sec
• Electrode diameter: 1.6 / 2.4 / 3.2 mm (0.06 / 0.09 / 0.13 inch)

• Weight: 8.5 kg (18.7 lbs)
• Protection class of enclosure: IP21S
• Outline dimensions: 305 x 165 x 265 mm (12 x 7 x 10 inch)

• 1 x Welding Machine
• 1 x 4M Torch
• 1 x 2M Cable With Welding Clamp
• 1 x 2M Cable With Grounding Clip
• 1 x 2M Gas Hose
• 2 x Clamps
• 1 x User Manual
