Features & Details

• 2-in-1 Hybrid Solar Inverter: Seamlessly integrated inverter and controller with 3500W 220V/230VAC high-rated power, providing pure sine wave output for various applications. It meets high energy consumption requirements and offers an efficient power solution for off-grid solar PV systems.
• Efficient MPPT Technology: Equipped with a built-in 60A MPPT solar charge controller, our hybrid inverter charger supports a maximum of 120A battery charging (PV + AC) and boosts solar energy conversion efficiency up to 96%. It can handle solar arrays with a maximum of 1500W and a voltage range of 30-160V DC.
• Fit Multiple Battery Types: Our solar inverter charge controller is designed for 24V battery systems and supports various battery types, including lithium-ion, lead-acid, and custom batteries. It's specially optimized for lithium-ion systems, providing BMS communication and activation features.
• Multiple Protection Functions: Our off grid hybrid solar inverter comes equipped with a range of security features, including over-temperature protection, over-current protection, over-voltage protection, under-voltage protection, short circuit protection, and over-load protection. These safeguards ensure the security of your circuits and power supply.
• Intelligent Control: Our hybrid pure sine inverter provides real-time system data and operating status through an LCD display. Additionally, you can easily adjust different charging modes (solar, utility, or hybrid) and discharge modes (UTL mode, SOL mode and SBU mode) using the built-in buttons. It's a versatile power solution for both home and office environments, catering to a wide range of electrical appliances.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

EML3500-24L

Input Voltage

220/230V AC

Output Voltage

AC 230V, 50 Hz

Inverter Response Time

10 ms (UPS); 20 ms (appliance)

Output Waveform

Pure Sine Wave

Battery Type

24V Lead-Acid, Lithium, and LiFePO Batteries

Rated Power

3500W ±10%

Maximum Charging Current

60A(PV)/80A(AC)/120A(PV + AC)

PV Array MPPT Voltage Range

30-160V DC

No-load Self-consumption

≤ 20W

Product Dimensions

14.4 x 12.2 x 4.2 in/365 x 310 x 107 mm

Net Weight

13.7 lbs/6.2 kg

Description

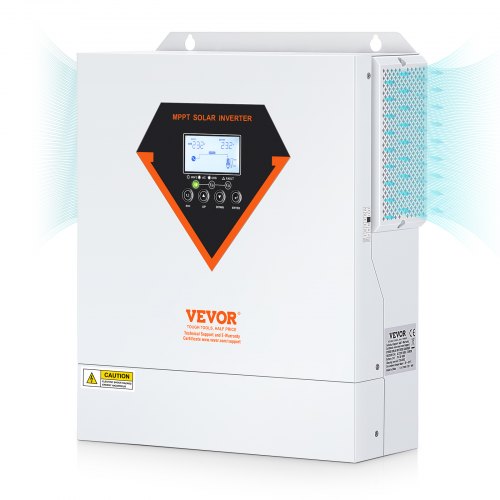

3500W Hybrid Solar Inverter

Our 2-in-1 hybrid solar inverter controller boosts a robust 3500W pure sine wave output, outstanding 7000VA peak performance, and advanced MPPT charging technology, achieving a 96% conversion efficiency. Compatible with lithium-ion, lead-acid, and lithium-iron phosphate batteries.

Our intuitive LCD screen allows you to effortlessly monitor system status and parameters. Easily navigate through different program modes using physical buttons for an enhanced user experience.

Our hybrid inverter charger supports lithium battery activation and communication with lithium battery management systems (BMS) through RS232/RS485 interfaces. It achieves a smarter, more efficient, and reliable power supply, extending battery life and reducing maintenance costs.

Our hybrid off grid inverter offers you three charging modes: solar charging, utility charging, and hybrid charging. Additionally, it features 3 output modes: UTL, SOL, and SBU. As a UPS, it switches to backup power during outages, ensuring uninterrupted operation for your devices.

Whether you're at home, in an RV, or enjoying outdoor camping, our 2-in-1 solar inverter charge controller is designed to meet your power needs. It brings convenience and sustainability to your life, no matter where you are.
