Features & Details

• Easy-to-Carry & Transport: The portable case design includes all essential components for fuel delivery, ensuring you have everything needed in one convenient package. The hard-shell storage case is weather-resistant, airtight, smoke-proof, and impact-resistant, providing superior safeguard for the pump and extending the pump’s lifespan.
• Efficient Fuel Transfer: Equipped with a 1/4 HP high-speed brush-less motor, this diesel transfer pump delivers fuel at up to 10 GPM, with a maximum lift of 30 ft and a suction lift of 7 ft. It can transfer a 55-gallon drum of diesel in under 4 minutes. This pump is designed for diesel, kerosene, and transformer fuel only. Do not use it for gasoline, motor fuel, or other liquids.
• Automatic Fuel Nozzle: This fuel transfer pump comes with an automatic shut-off fuel nozzle. During fuel delivery, simply press and release the handle switch. There's no need to monitor the fuel delivery level, as the nozzle will automatically stop when the tank is full, avoiding overflows and ensuring a hassle-free fuel delivery experience.
• Security Features: The diesel transfer pump body is constructed from durable cast iron to endure harsh conditions. The pump body is equipped with an overload protection and a bypass valve to avoid damage from over-current and excessive fuel pressure, ensuring efficient and stable fuel transfer. To extend the pump's lifespan, allow it to stop for 30 minutes after working for 30 minutes

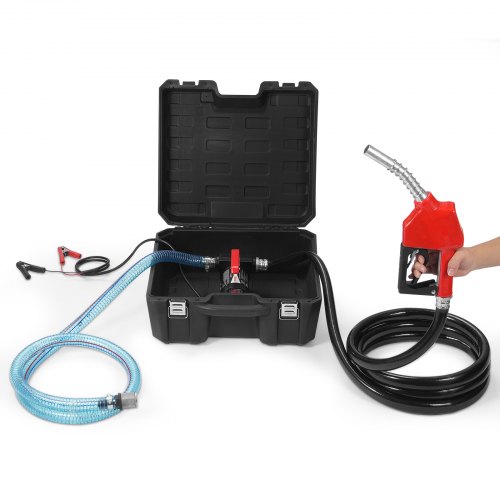

• Comprehensive Accessories: This fuel transfer pump set includes a 13-foot rubber outlet hose, a 6.6-foot PVC inlet hose, and an automatic shut-off fuel nozzle. The inlet hose is equipped with a metal mesh filter at the end to avoid impurities from entering the pump during fuel delivery, ensuring clean and efficient operation.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

DCFD40A

Max Flow

10 GPM

Lift & Suction Lift

30 ft/9.14 m & 7 ft/2.13 m

Fuel Inlet/Outlet Diameter

GHT3/4

Applicable Fuel

‎Diesel, Kerosene, Transformer Fuel

Net Weight

21.27 lbs/9.65 kg

Input Voltage

DC 12V

Horsepower

1/4HP

Inlet Hose Length

6.6 ft/2 m

Outlet Hose Length

13 ft/4 m

Description

Efficient Fuel Transfer Pump

This fuel transfer pump is equipped with a high flow of 10 GPM, which is powered by a high-speed 4600 RPM motor that can pump a 55-gallon drum of diesel in less than 6 minutes as quickly as possible . It can bring you a good refueling experience.

With a maximum lift of up to 30 ft, this diesel transfer pump is ideal for quickly filling large machinery or storage containers. Its efficient fuel transfer capability shortens wait times and boosts overall delivery efficiency.

The fuel transfer pump features a 13 ft rubber outlet hose, known for its long-distance refueling, tangle-resistant, and high flow. It also includes a 6.6ft transparent inlet hose with a metal mesh filter to keep impurities out during refueling. It is to make sure that your pump is in tip-top shape.

The overload protection automatically shuts down the pump when the load is too high, avoiding overheating and reducing motor strain. The bypass valve maintains continuous fuel flow if the fuel transfer hose is blocked, safeguarding the pump from high-pressure damage

For added security, this diesel transfer pump comes with a durable case that ensures excellent portability. The case shields the pump from dust, moisture, and other environmental factors, helping to extend its lifespan and keep it in optimal condition.

See More
