Features & Details

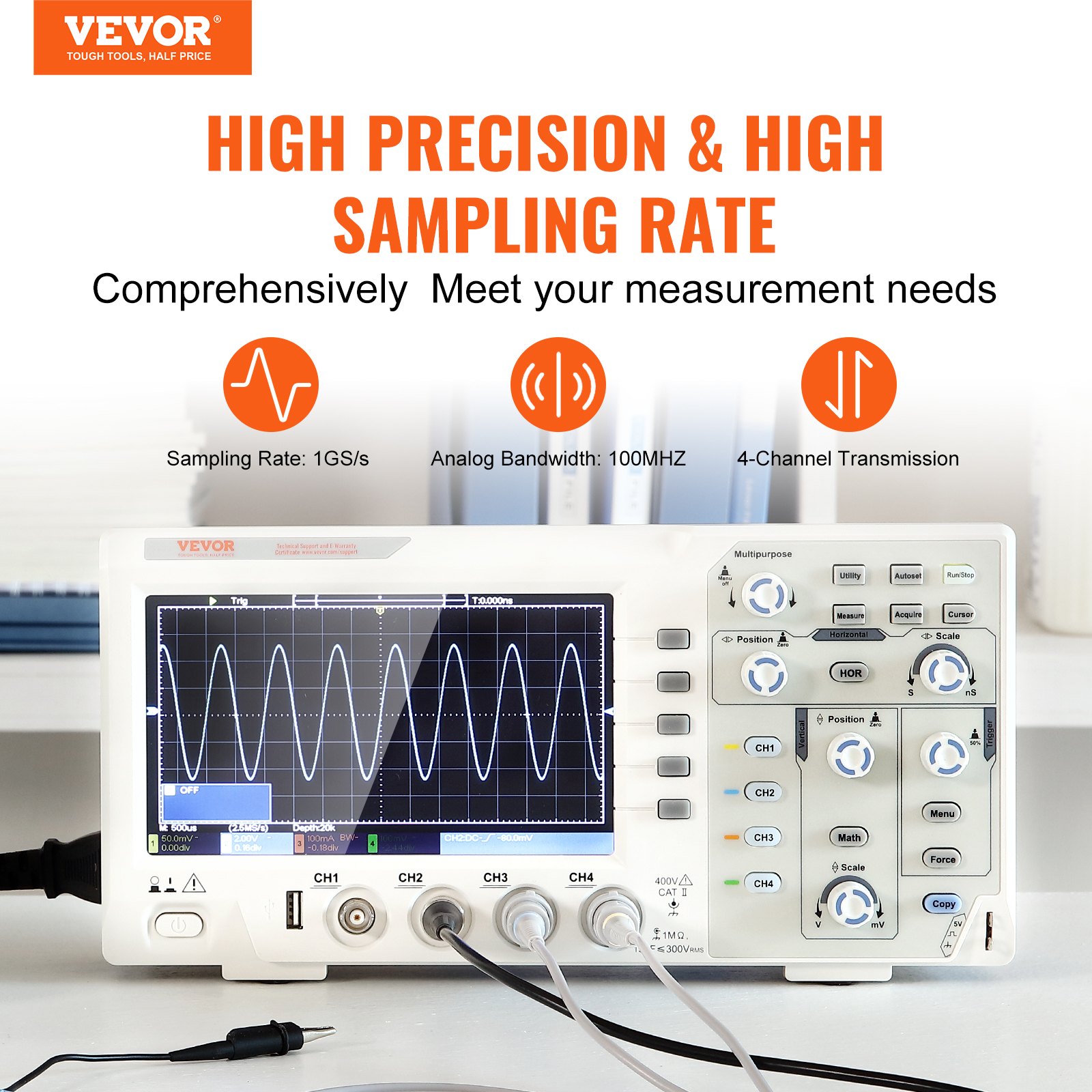

• High Precision & Sampling Rate: Our portable oscilloscope boasts high precision and high-speed capabilities, enabling detection of a wider range of circuit signals. With sampling rates of up to 1GS/s and a bandwidth of 100MHz, along with 4 adjustable probes, you can analyze and troubleshoot circuits and systems more accurately!

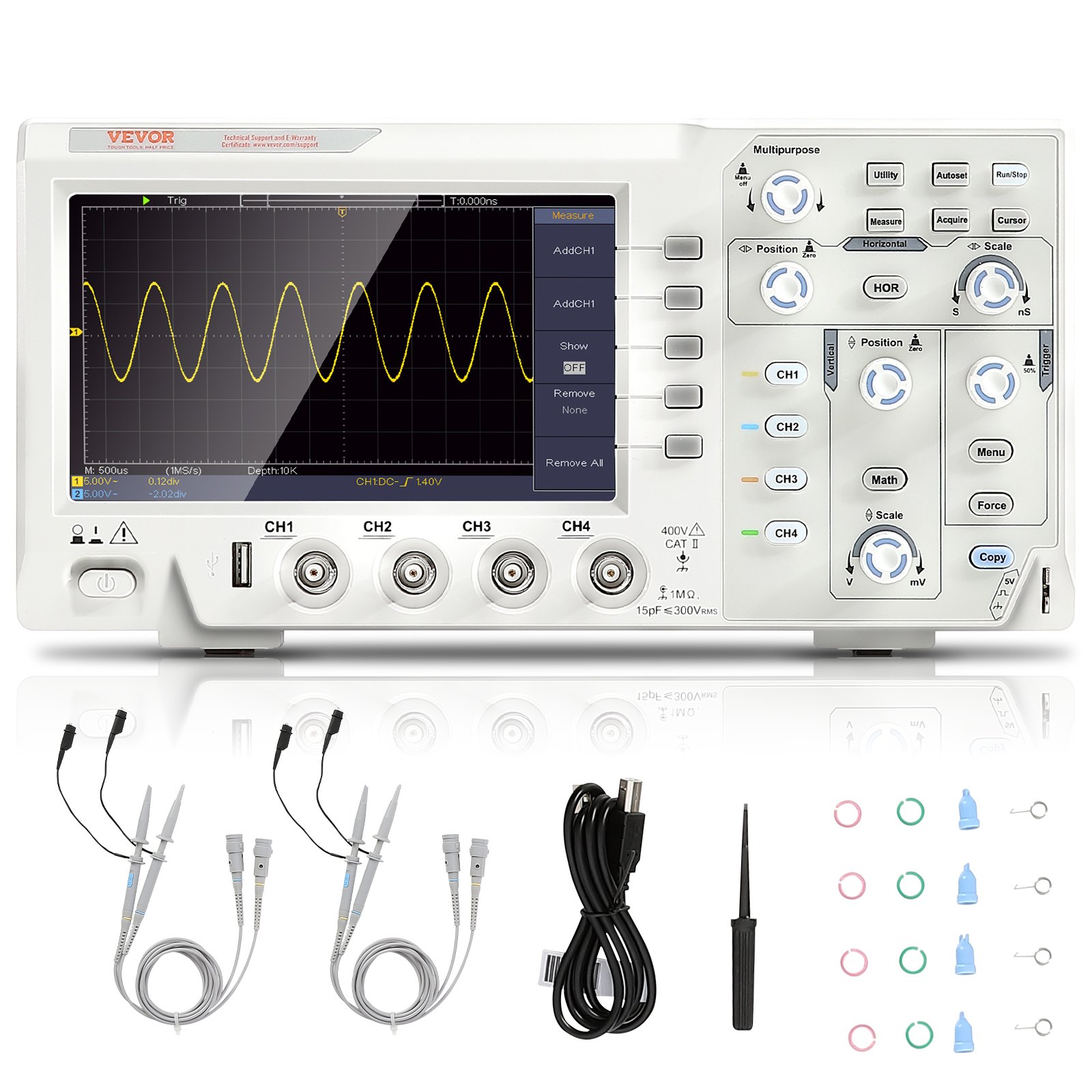

• High Capacity Storage Analysis: To meet your data viewing and analysis needs, our portable oscilloscope features independent storage capability, capable of storing 15 sets of waveform data, supporting USB storage, and firmware upgrades. With a USB interface, power cord socket, and instructional CD, it boasts complete hardware.
• Automatic Waveform Capture: The automatic waveform capture feature eliminates the need for manual calculation and measurement, allowing for quick acquisition of key data. Equipped with a high-definition 7-inch LCD screen, it can display clear waveforms in real time.
• Versatile Mathematical Calculations: In addition to basic measurement functions, our oscilloscope also features versatile mathematical calculations, including addition, subtraction, multiplication, division, FFT, and inversion algorithms. It offers 30 automatic measurement functions and supports a customizable measurement menu, making it easy to tackle testing challenges.

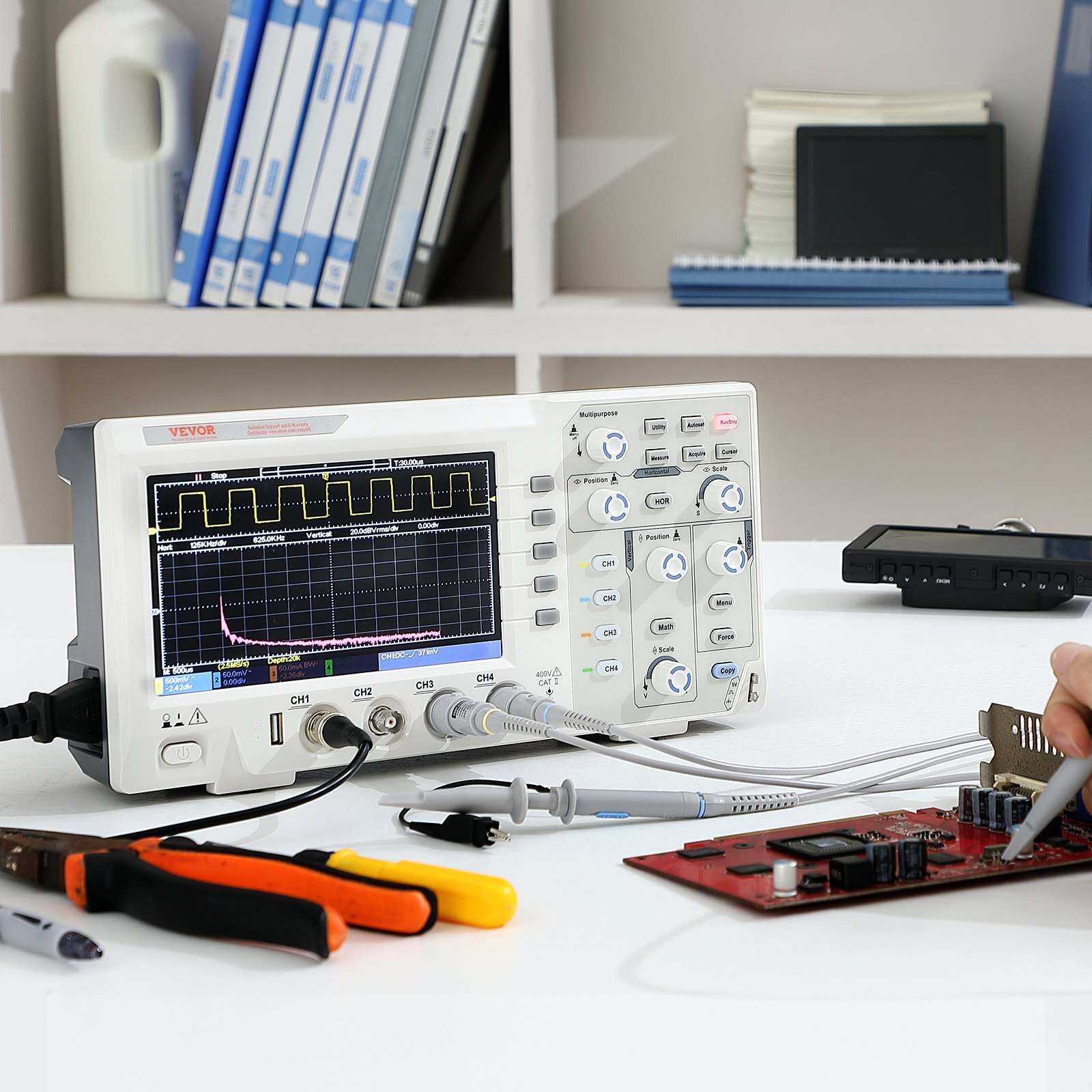

• Multi-Channel Inputs: Supports SCPI communication and LabVIEW communication, with optional RS232 port, HDMI port, WIFI communication, SD card storage, USB port for LAN, and more. Applications include electronic circuit debugging, circuit testing, design manufacturing, education training, vehicle maintenance, and testing.

Frequently Bought Together

Videos for this product

About this item

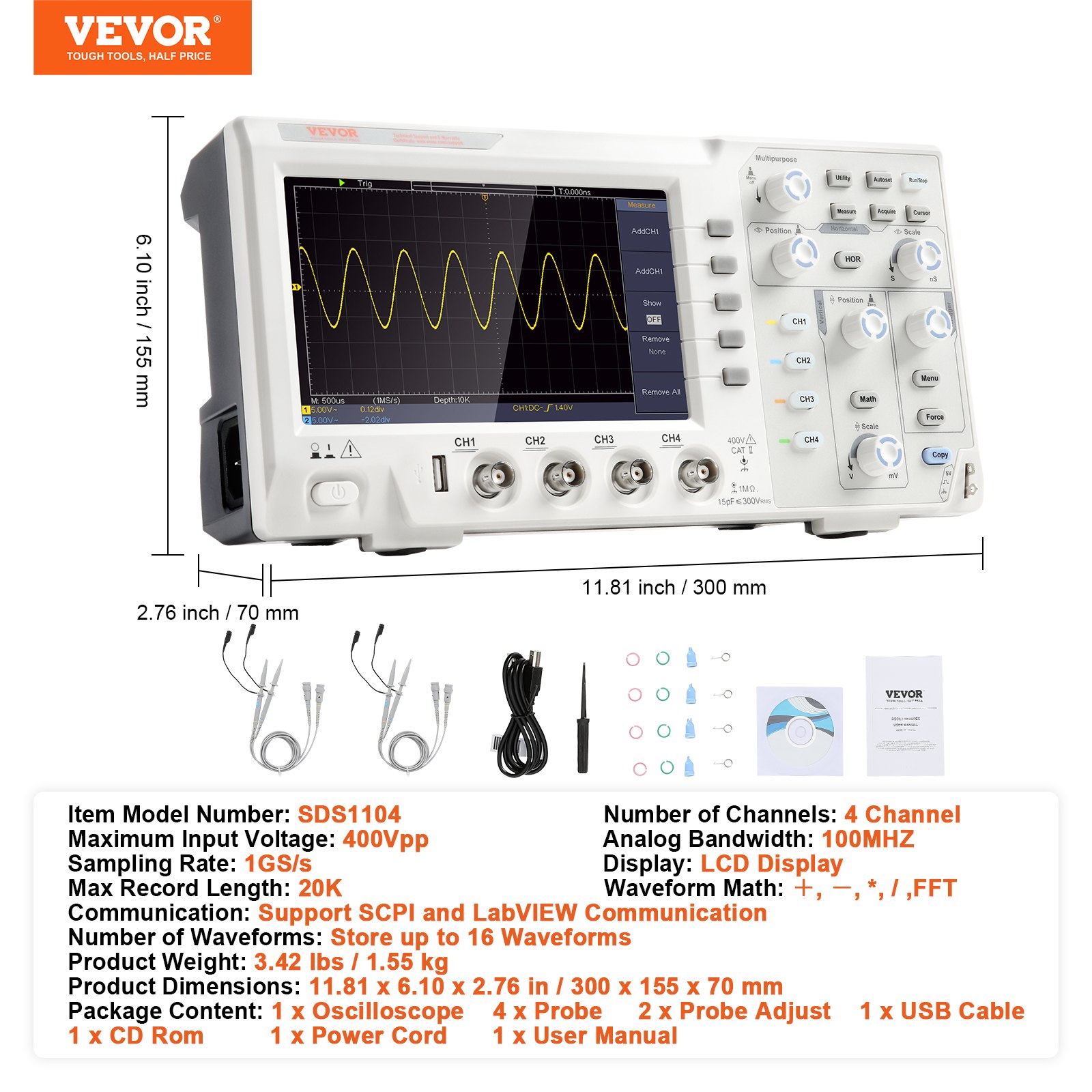

Product specification

Item Model Number

SDS1104

Number of Channels

4 Channel

Maximum Input Voltage

400Vpp

Analog Bandwidth

100MHZ

Sampling Rate

1GS/s

Display

LCD Display

Max Record Length

20K

Waveform Math

＋, －, *, / ,FFT

Communication

Support SCPI and LabVIEW Communication

Number of Waveforms

Store up to 15 Waveforms

Product Weight

3.42 lbs / 1.55 kg

Product Dimensions

1.85 x 5.98 x 2.76 in / 301 x 152 x 70 mm

Description

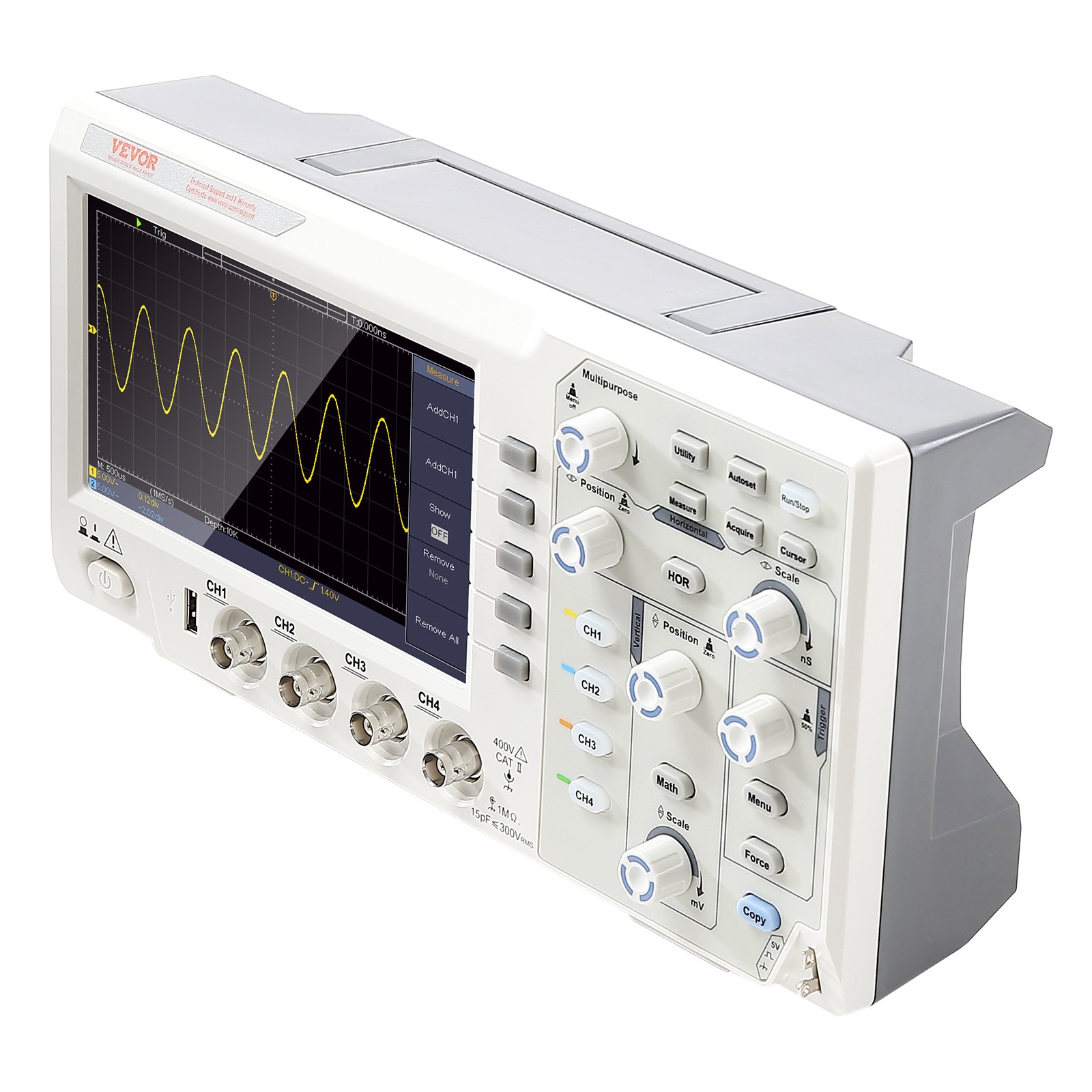

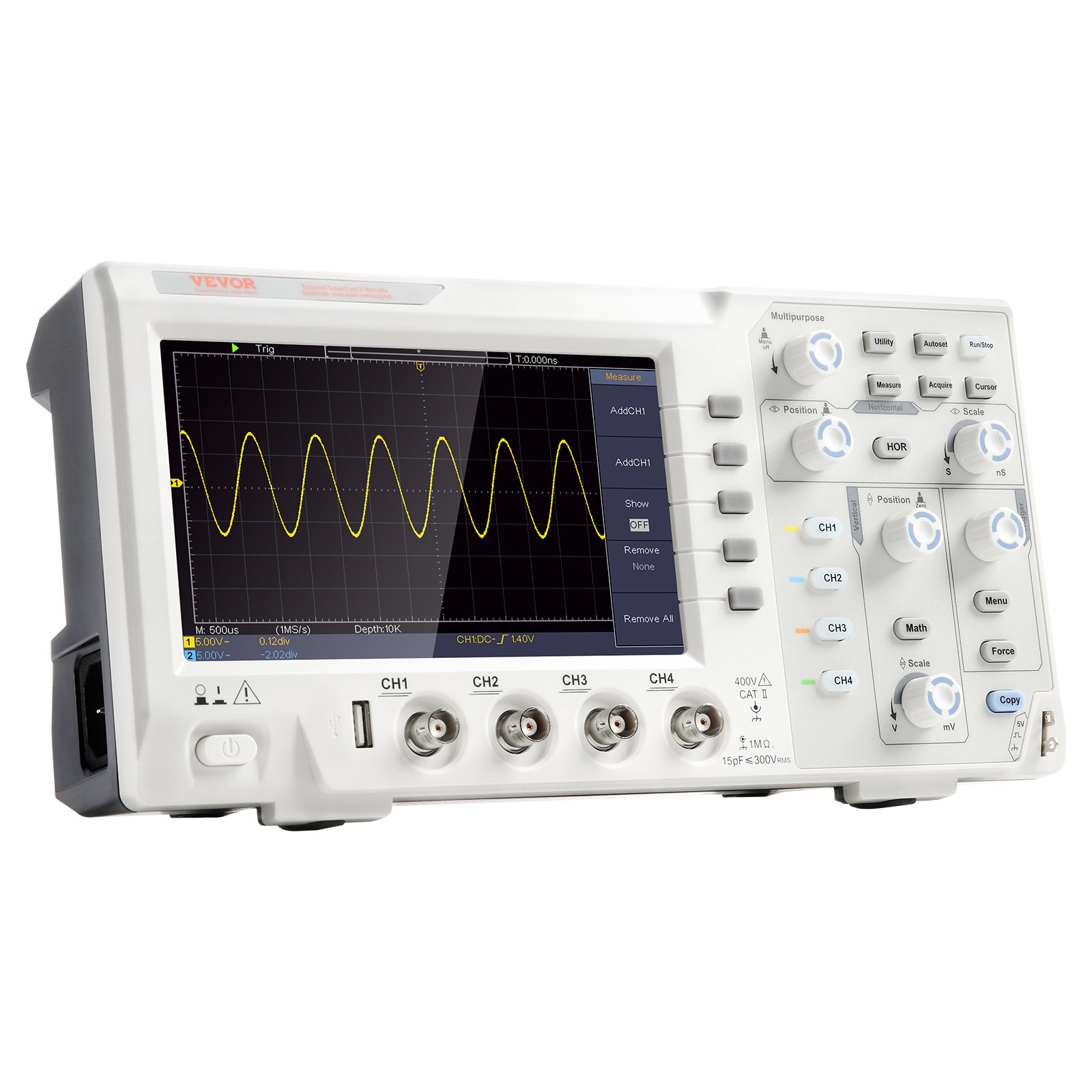

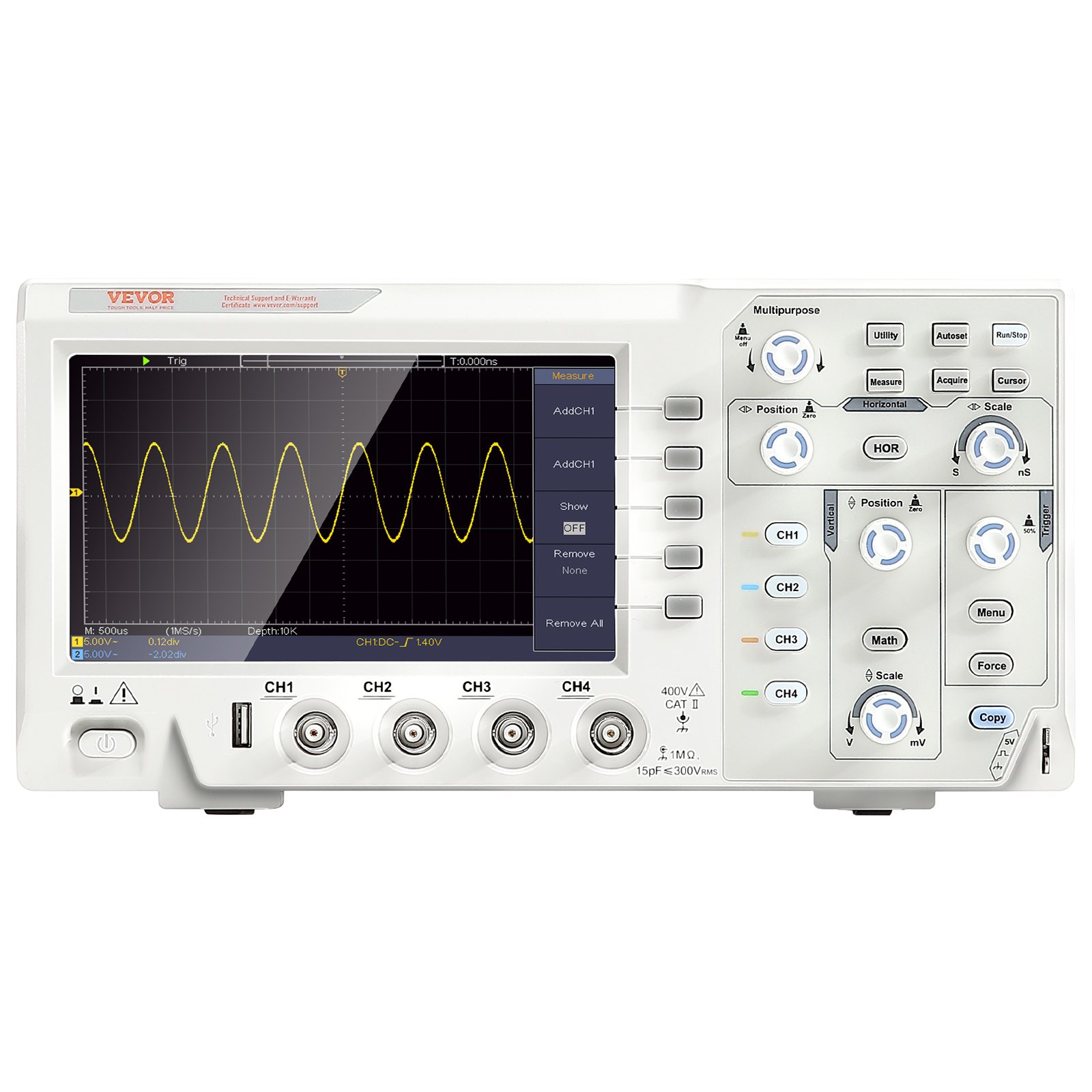

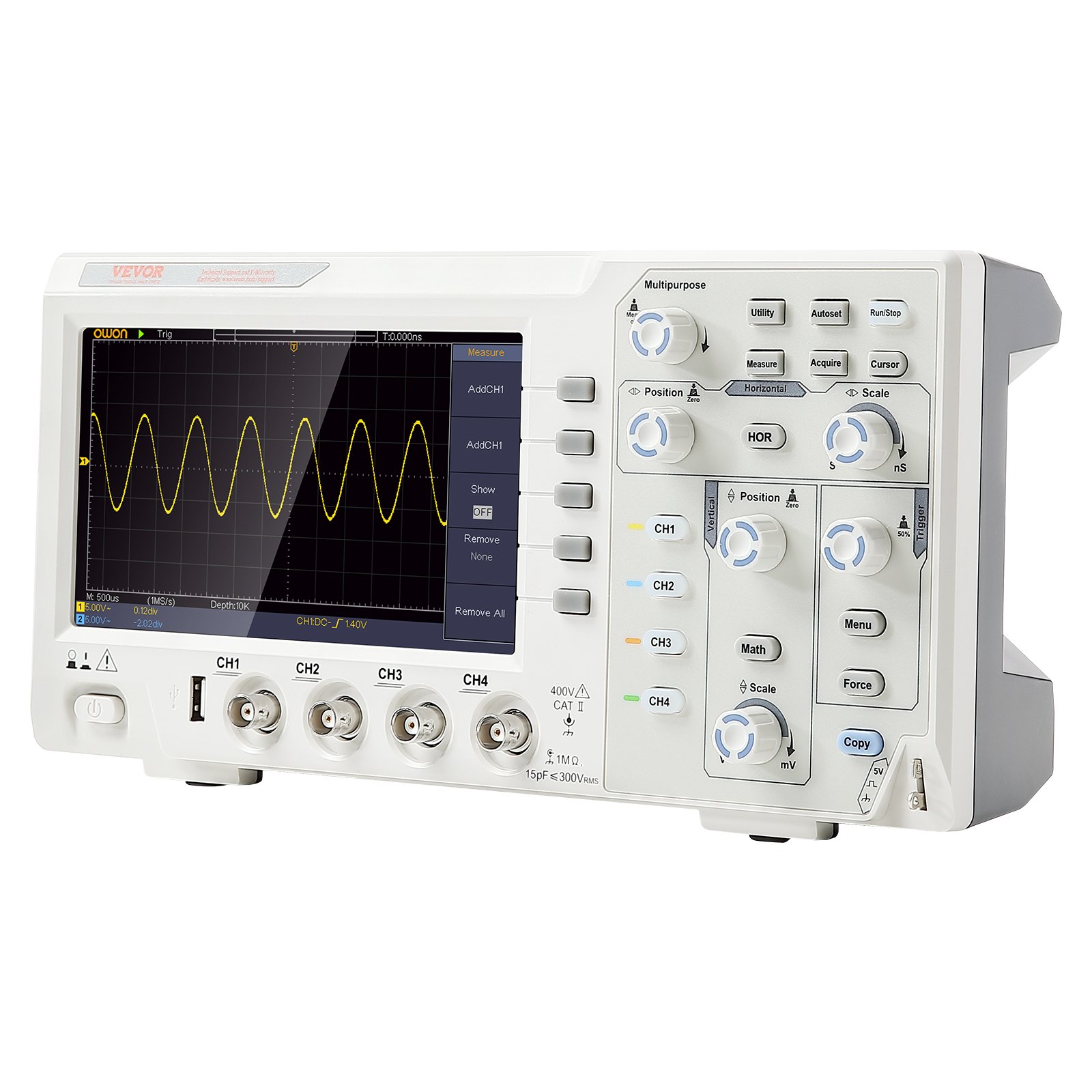

Digital Oscilloscope

Our digital oscilloscope boasts a 1 GS/s sampling rate and a 100 MHZ bandwidth with independent storage and real-time observation functions, enabling you to analyze and troubleshoot circuits more accurately. Choose our oscilloscope multimeter and experience the power of portability!

Independent Storage Function

Our digital oscilloscope comes equipped with an independent storage function, allowing you to effortlessly review and analyze up to 15 waveform captures. You can access historical data at your convenience, making data analysis a breeze.

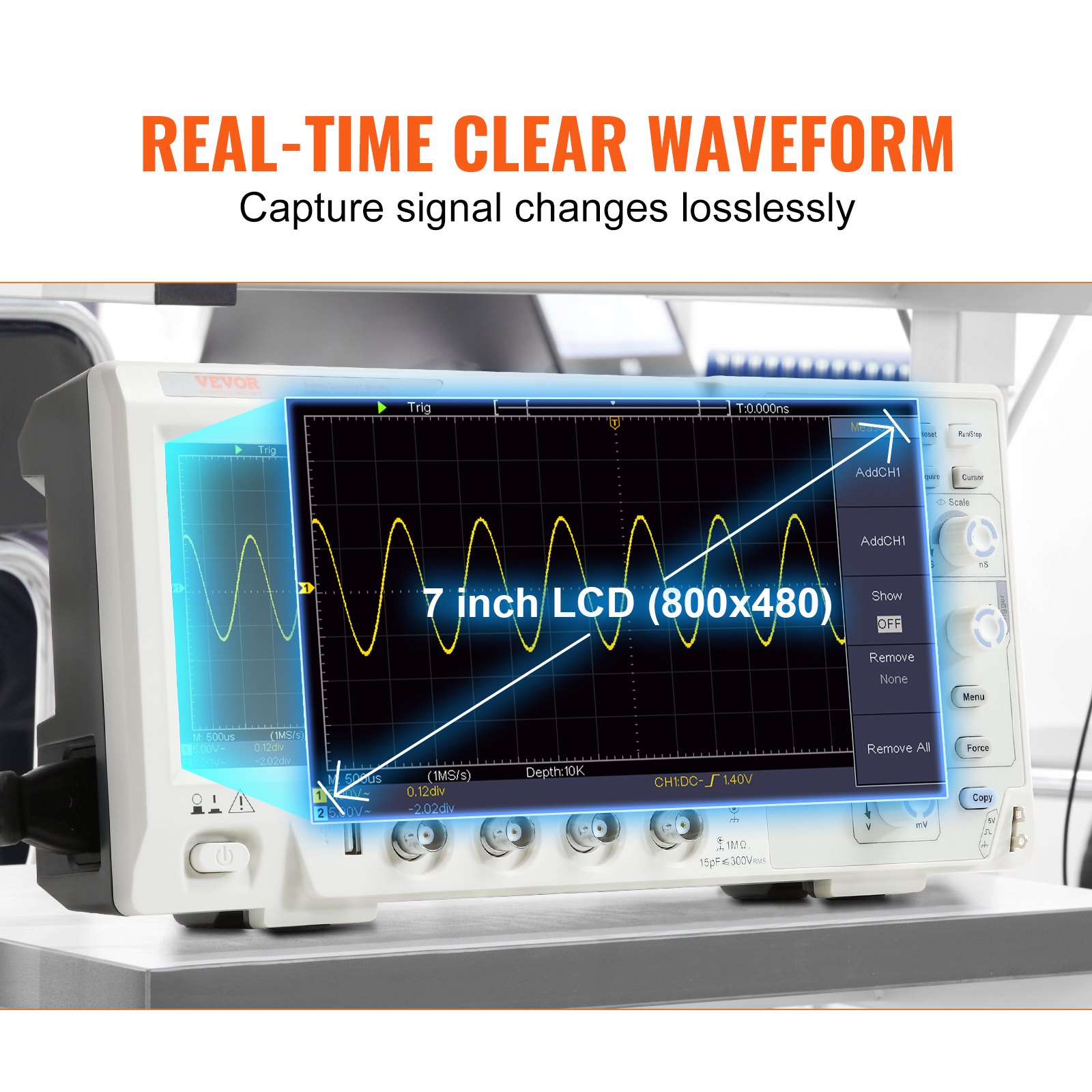

Our portable oscilloscope excels at providing crystal-clear displays of captured waveforms. Whether it's through automatic waveform capture or auto-ranging functionality, the 7-inch color screen offers an intuitive platform for analyzing signal changes.

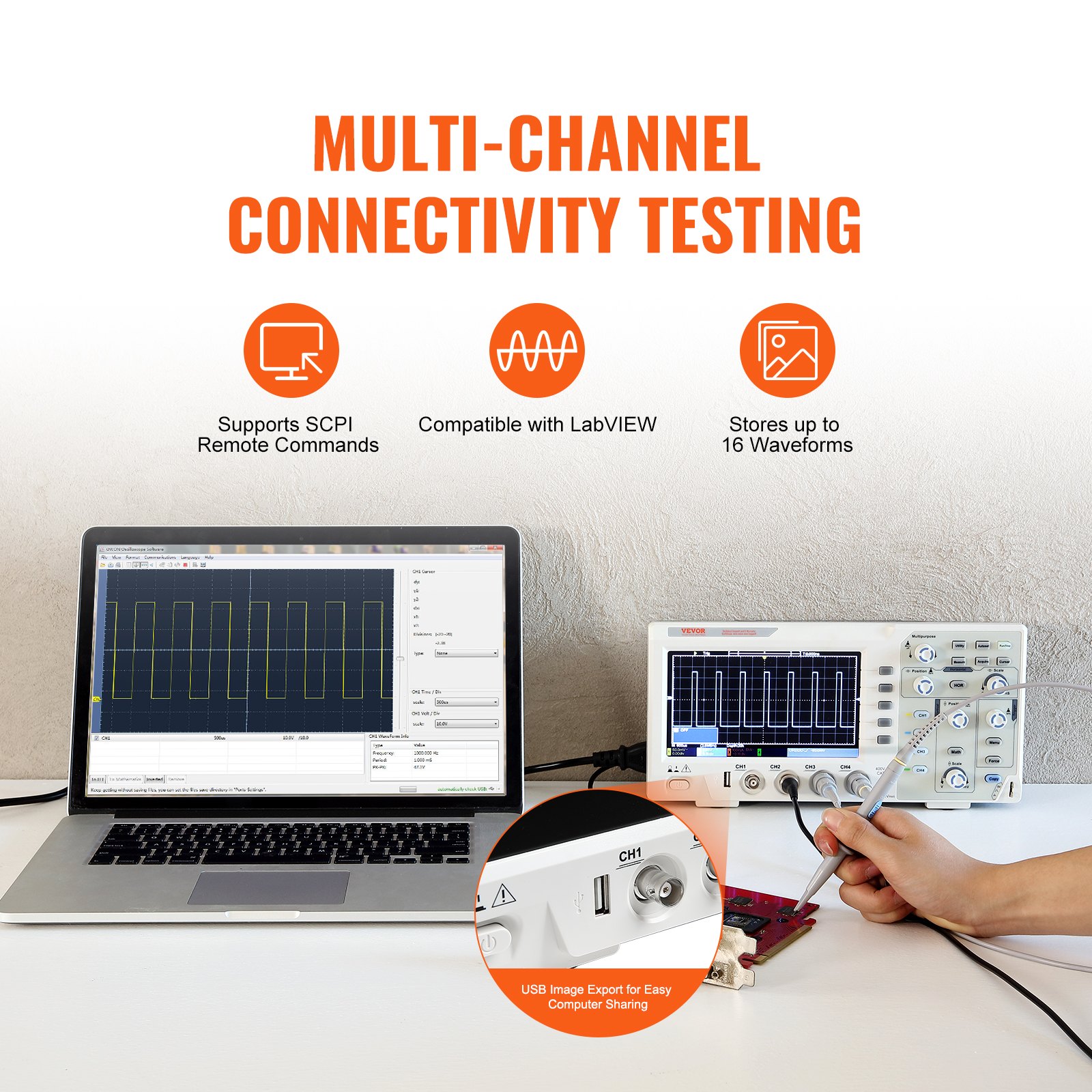

Our digital oscilloscope supports both SCPI and LabVIEW communication, allowing you to broaden your applications across various fields. Expand your testing capabilities and meet a wider range of requirements with ease. Our oscilloscope has you covered.

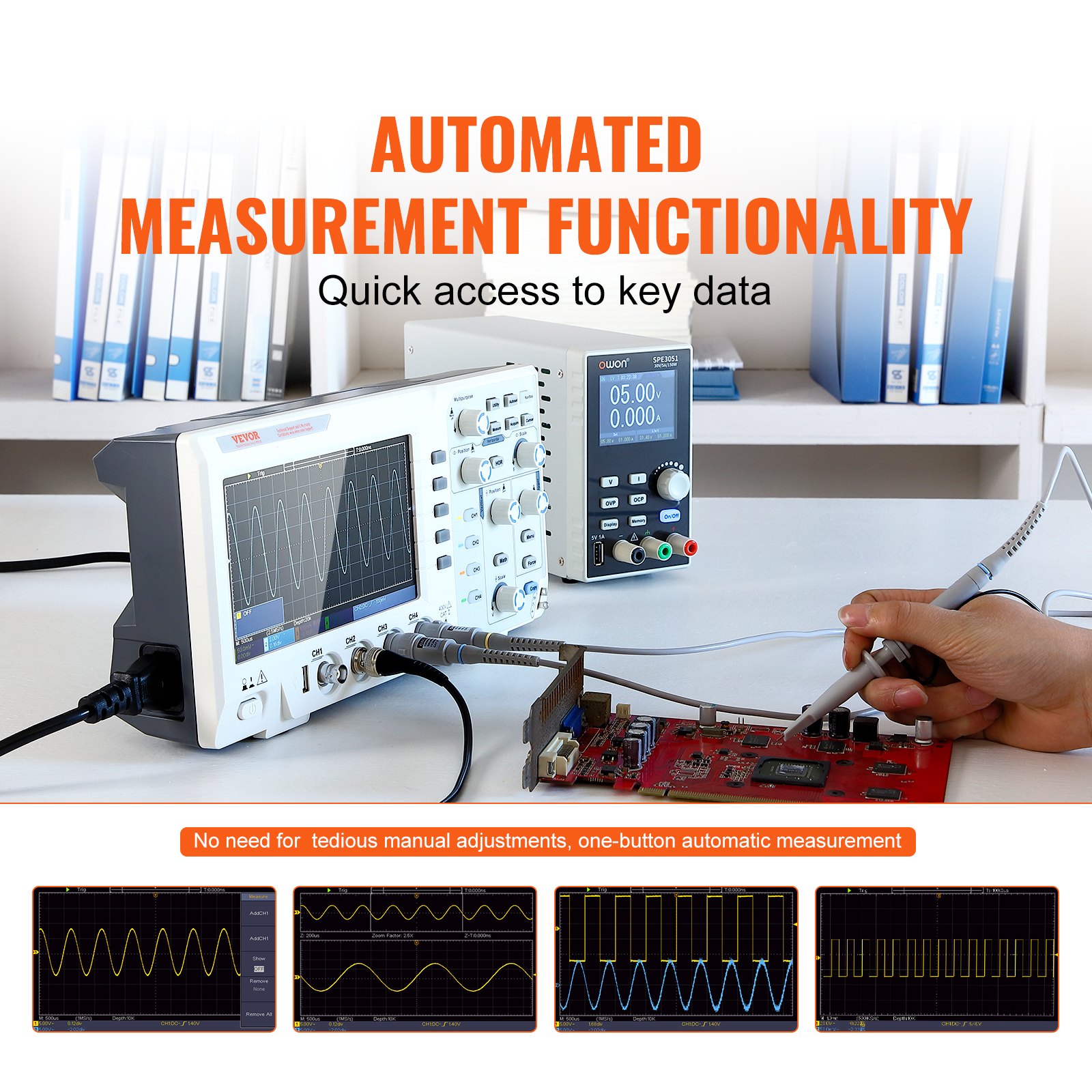

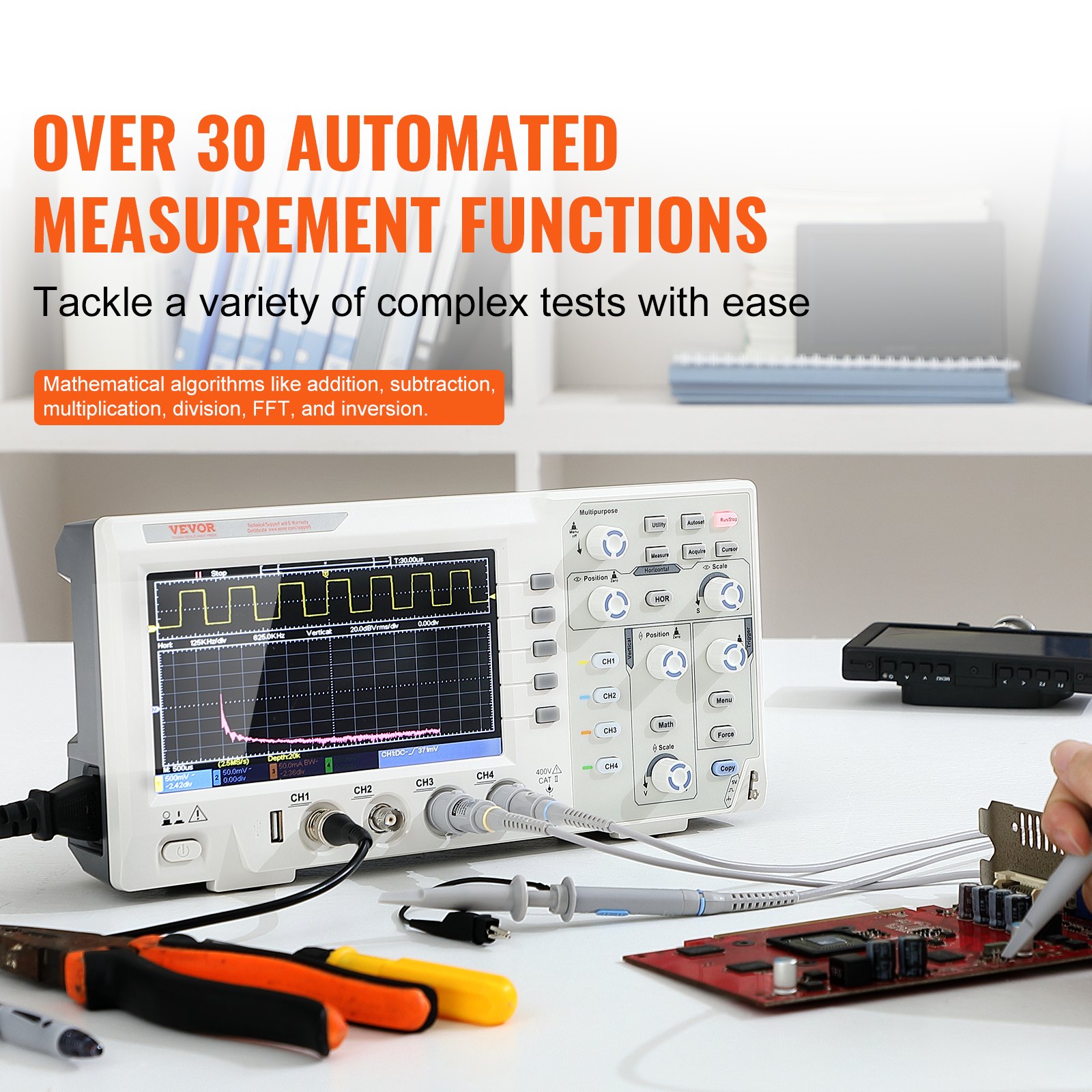

Our oscilloscope features a comprehensive selection of 30 automated measurement functions. But that's not all—it also boasts mathematical algorithms for addition, subtraction, multiplication, division, Fast Fourier Transform (FFT), and inversion. Elevate your testing game today!
