Tool Kit of 550W Variable Speed Milling Mill Machine Precision Vertical Turret Milling Machine

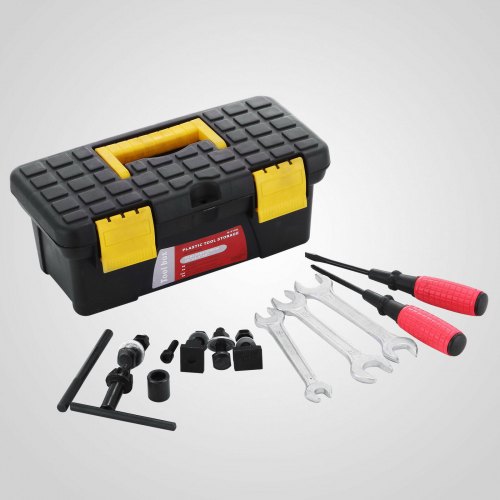

***This listing includes 1 Tool Kit of this milling machine ONLY!!!***

Detailed Introduction of This Drilling/Milling Machine are As Follows:

This mini drilling/milling machine with lathe bed can handle most materials. It has a 550watt motor with variable speed drive, The working table with t-slots can enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±90° from vertical. It is supplied with 13mm chuck accessory kit. for adjusting and setting.

The lathe bed is made of high grade iron. The rigidity of lathe, the handiness and accuracy of the v-slideways are obtained by raw materials, heat hardening and grinding. This machine is DC motor driven. The spindle speed is variable from 20-2500rpm. The feed speed can be adjusted according to the requirements of different workpieces.

Application

1. This is a quality mini mill Ideal for the professional engineer or model maker alike.

2. The precision mini lathe is designed to preform various types of processing jobs. Counterface timing, drilling, threading, and cutting jobs on materials made up of round bar and bar materials can be preformed with this machine. The machine can be used in areas such as mini precision parts processing, sample processing and modeling works.

Note

This machine is suitable to use only from 12°C-35°C（53.6℉-95℉).

• Head swivels ±90° vertically
• Adjustable gibs on table precision
• Adjustable stops on table
• Straightforward gear drive mechanism
• Robust construction
• Extra wide cross table
• Chuck Arbor Bolt provides tightening of drilling chuck through the spindle
• Rack and pinion feed for drilling operations
• Safety guard with microswitch according to EU-requirements
• Available in metric leadscrews
• START / STOP switch incorporates emergency STOP

• Motor power: 550W
• Drilling capacity: 13mm /0.51"
• Face milling capacity: 30mm /1.18"
• End milling capacity: 16mm/0.63"
• Longitudinal travel: 100mm/3.94"
• Cross travel: 250mm /9.84"
• Spindle stroke: 200mm /7.87"
• Working table size: 460X 112mm/18.11"x4.41"
• Max distance spindle to table: 220mm /8.66"
• Spindle taper: MT3
• T-slot: 10mm /0.39"
• Spindle speed: 20 - 2500rpm
• Spindle rotary angle: -45°~+45°
• Dimension: 368X673X685mm /14.5"x 26.5"x27"
• X-Axis Travel Bed: 300mm/11.81"
• Y-Axis Travel Bed: 140mm/5.51"
• Z-Axis Travel Bed: 220mm/8.66"
• TableSize: 460*110mm/18.11"x4.33"
• Tool Kit Gross Weight: 17 kg/37.5 lb

• Tool Kit Packege Dimensions (L x W x H): 68 x 21 x 18 cm/26.8" x 8.3" x 7.1"
