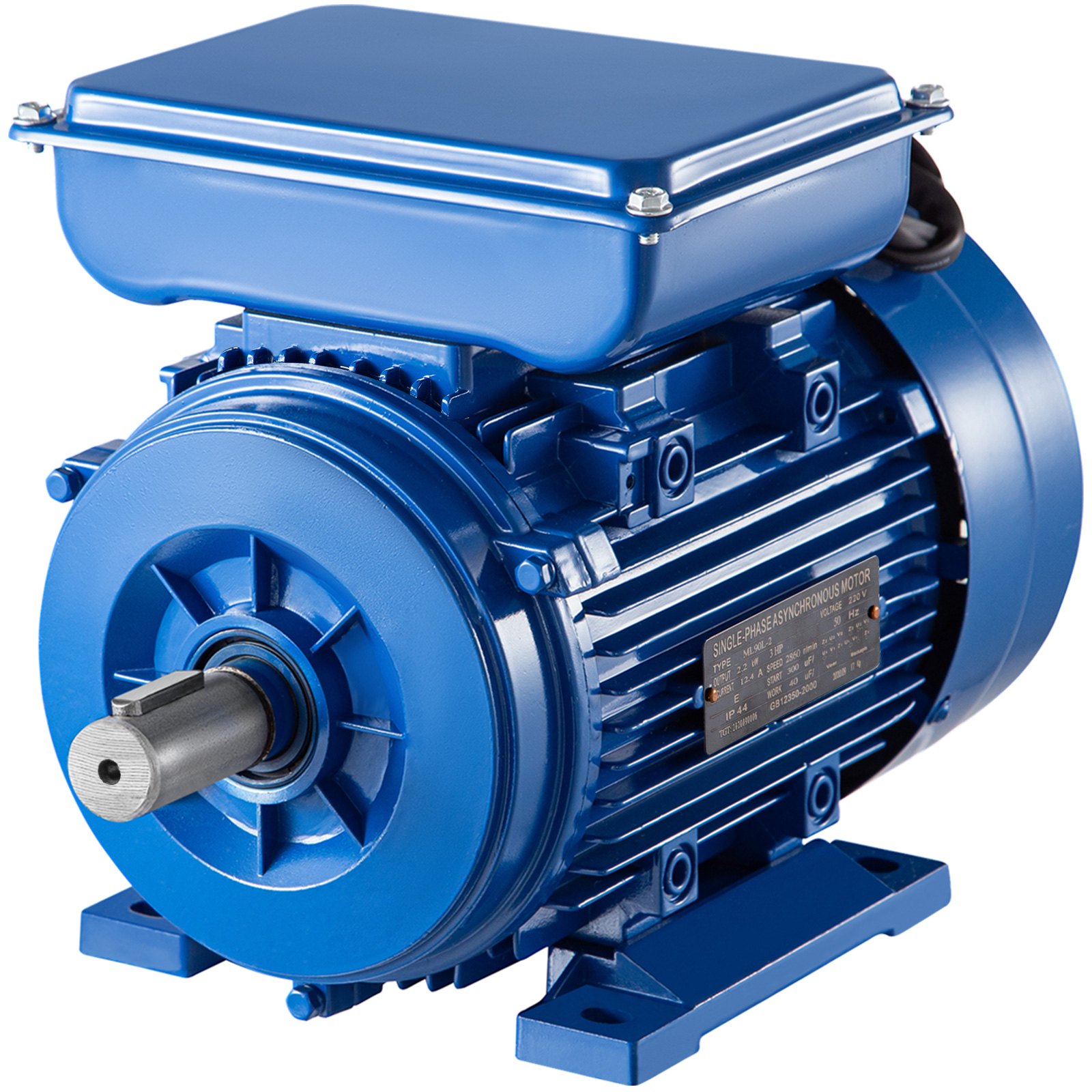

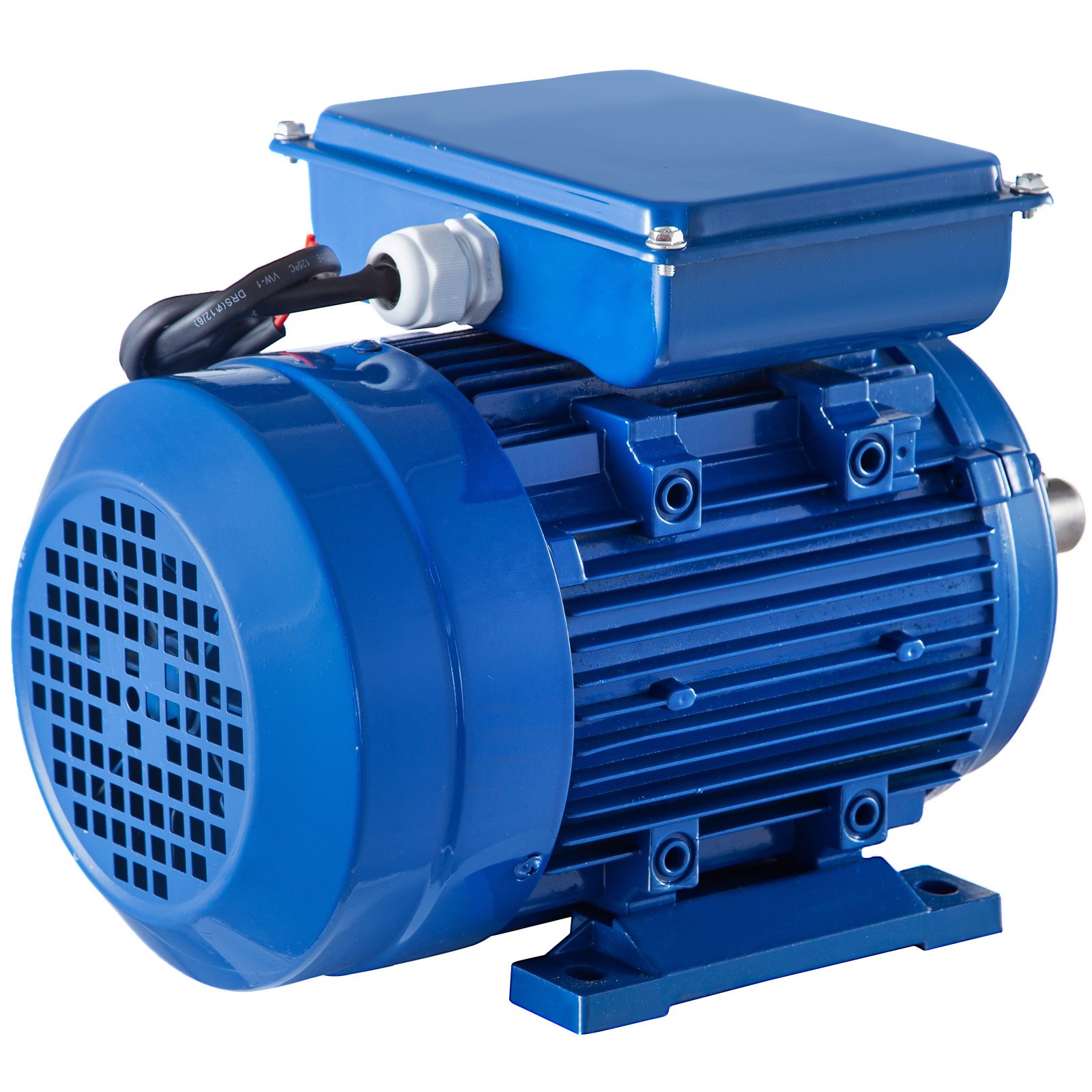

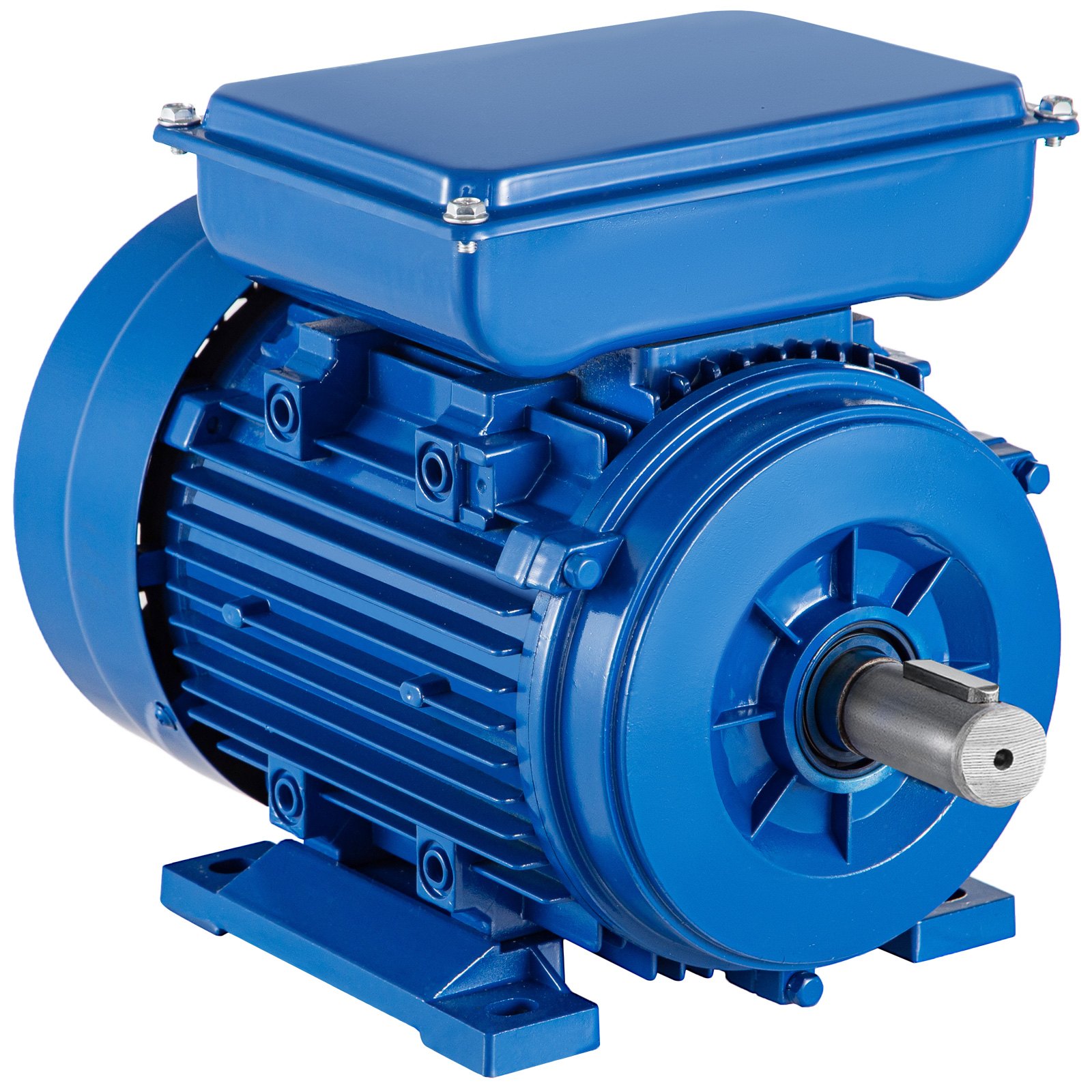

2.2 kW 2860 RPM Single Phase Asynchronous Motor
The listing is about a 2.2 kW single-phase asynchronous motor which converts electrical energy into mechanical energy. The 50 cm/19.6'' terminal wire is included to facilitate the connection between the motor and electrical appliances. It is a single-phase AC electric motor that turns at 2860 RPM with a lightweight aluminum frame commonly used to match water pumps, agricultural machinery, medical appliances, and other fields.
- Aluminum Alloy Construction
- Pure Copper Motor
- High-Speed Cooling Fan
- Protective & Stable
Premium Aluminum Alloy Structure
This electric motor is made of aluminum alloy material, which is anti-vibration and anti-deformation. It has high strength and is able to resist oxidation, compression.
Powerful Electric Motor
The asynchronous electric motor features a 100% pure copper core for high conductivity and high-temperature resistance and saves energy in a long time.
Excellent Performance

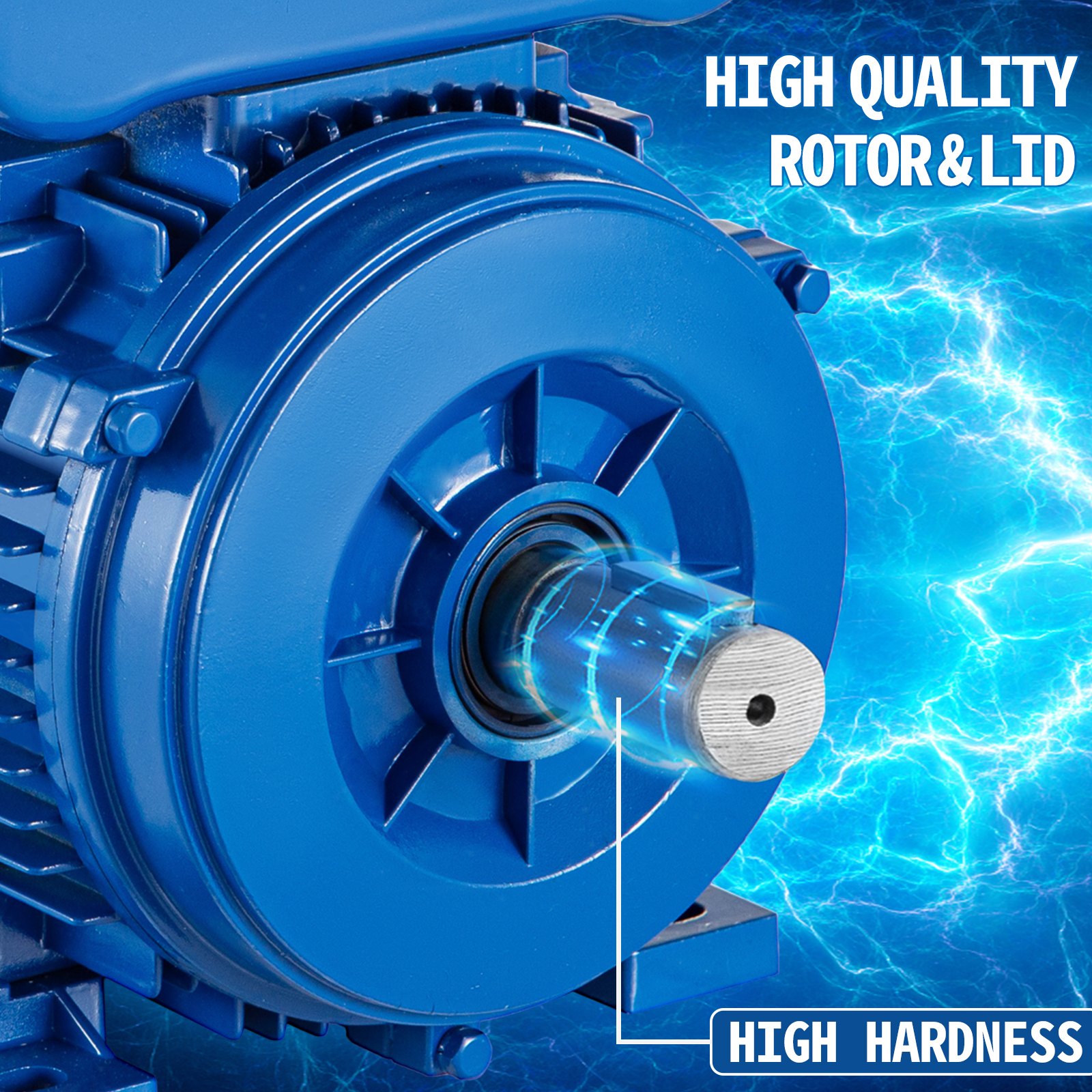

This 2.2 kW single-phase asynchronous motor runs at 3 HP, and the maximum speed is 2860 RPM. High hardness shaft is more durable, insulation class: F.

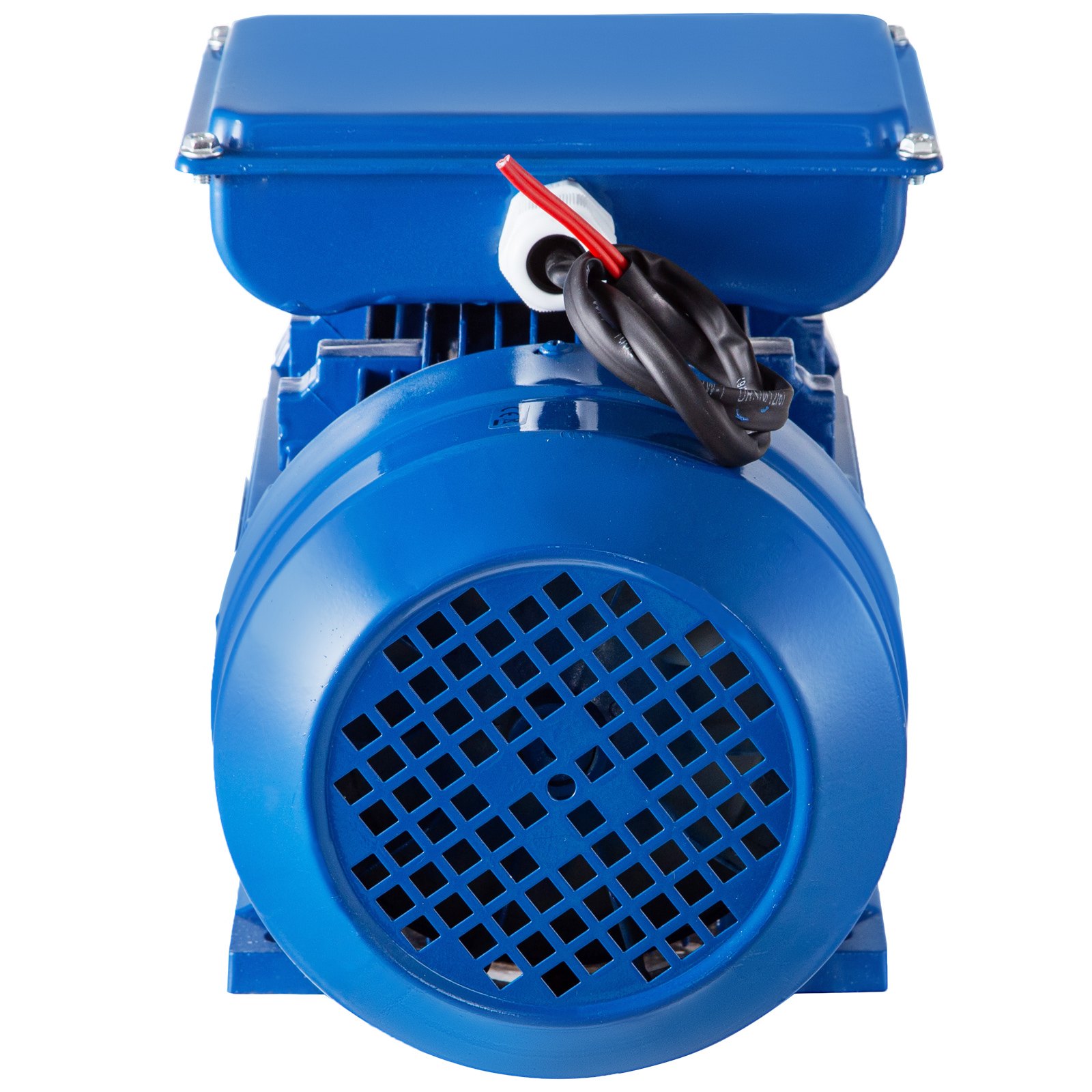

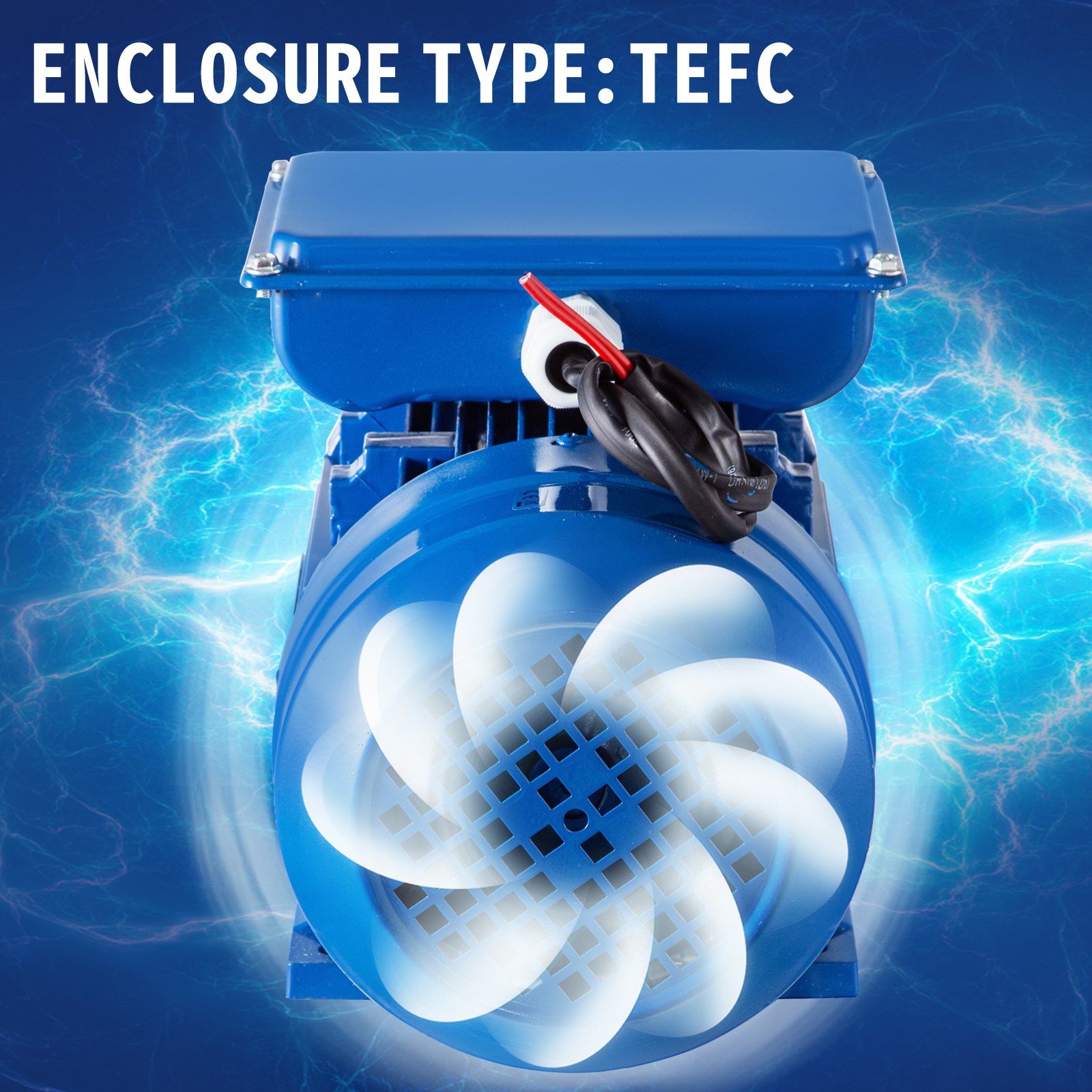

Strong & Efficient Fan
The built-in fan cooling system provides better heat dissipation to prevent overheating. There is a mesh design that can prevent foreign objects from being involved in the motor.

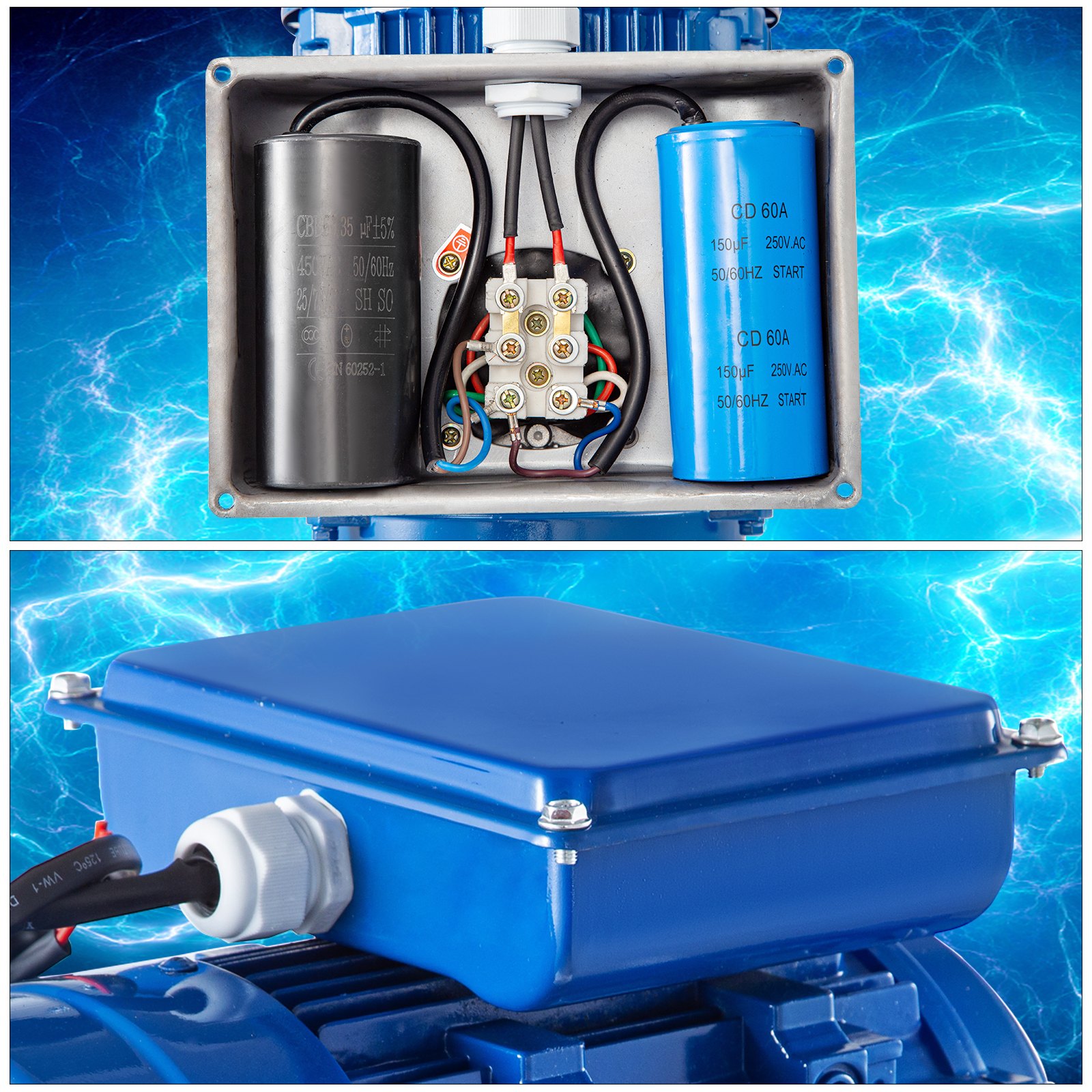

Enclosed Junction Box
This single-phase motor is designed with a fully enclosed frame to protect the cable area from any water or dust entering the body, thus improving the cable efficiency and extending the service life.

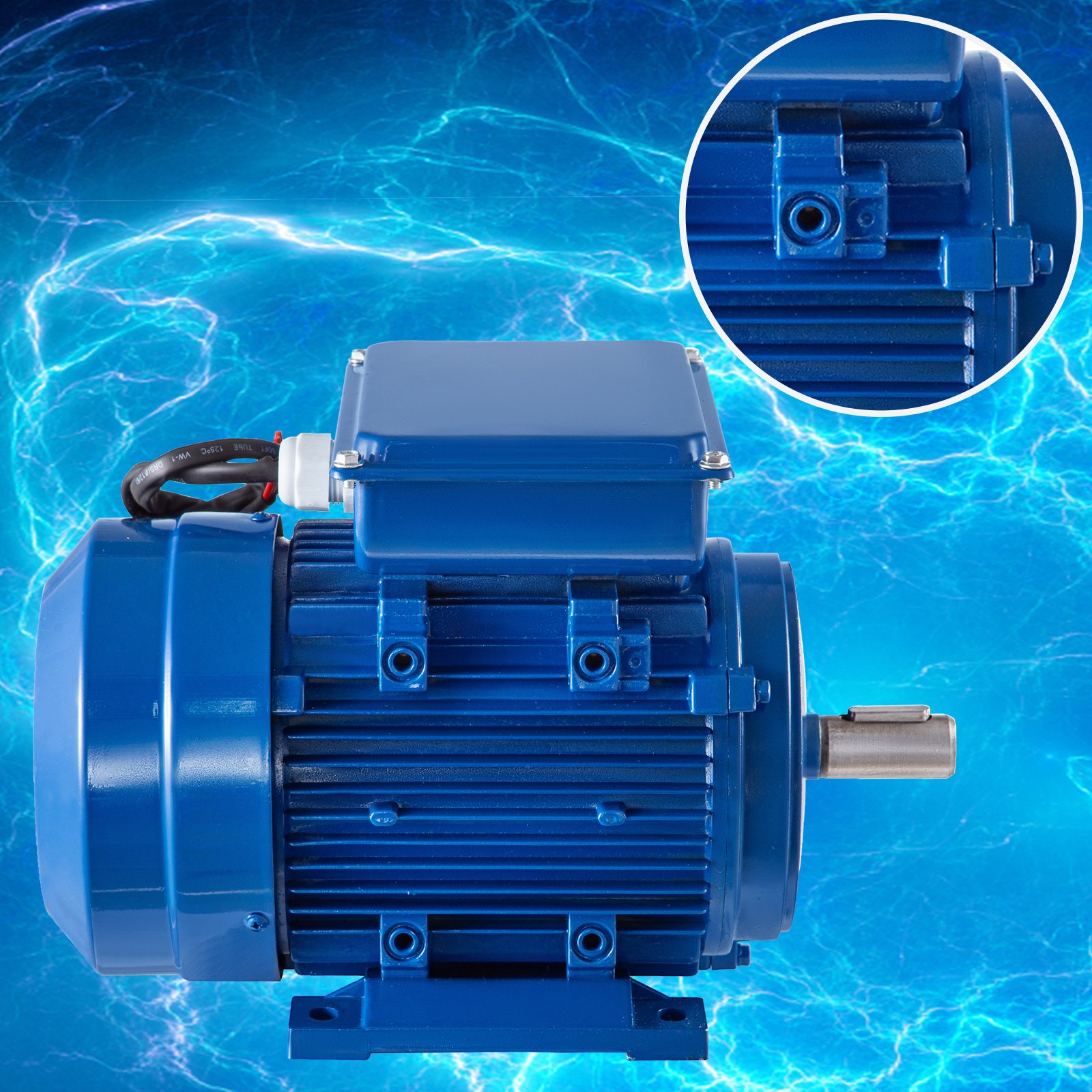

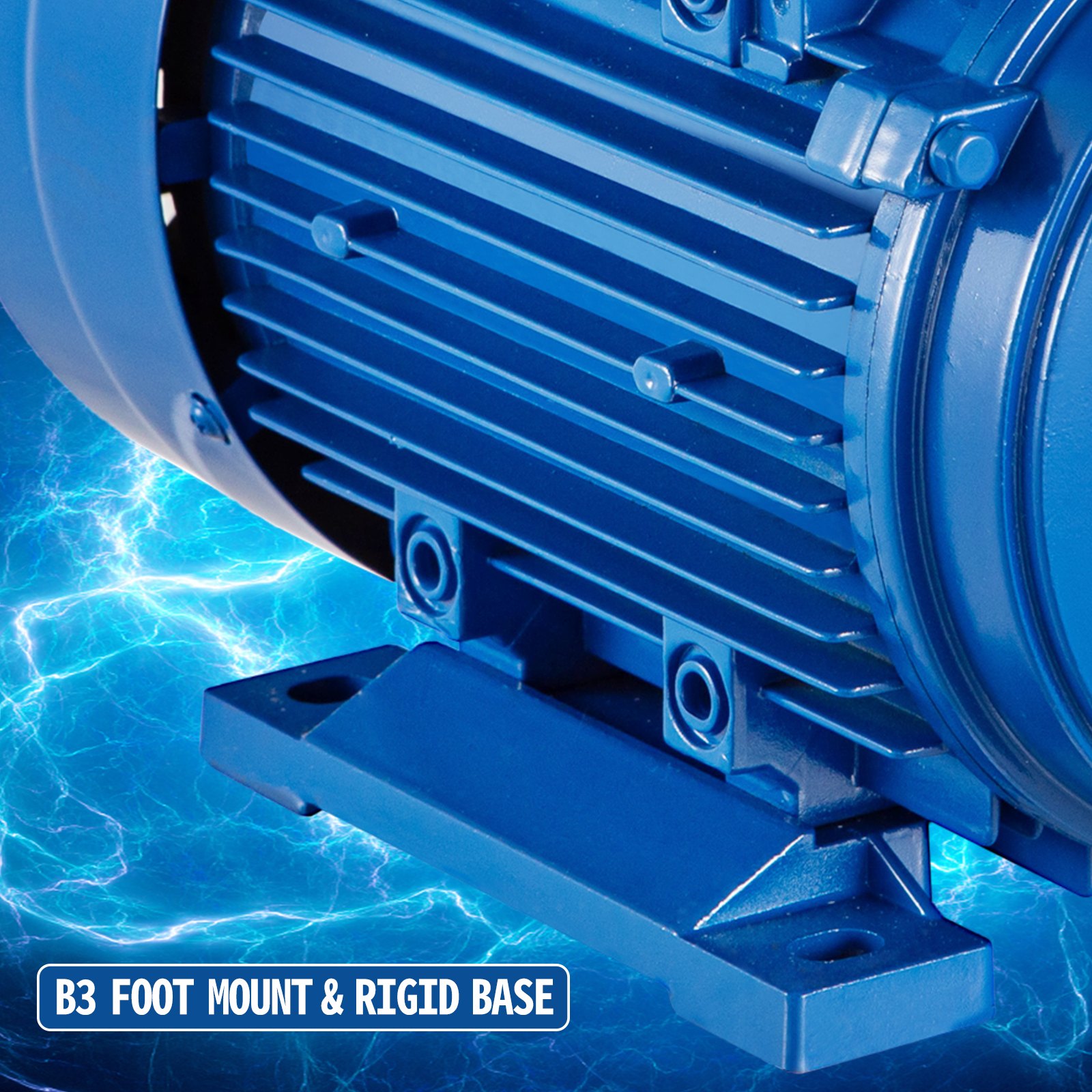

Mounting Bracket Included
The electric motor is equipped with a sturdy mounting bracket at the bottom to reinforce the motor's stability in working stability and reduce friction.
Package Content
- 1 x Electric Motor
- 1 x Product Manual
Specifications
- Type: ML90L-2
- Phase: Single Phase
- Voltage: 220V 50Hz
- Output: 2.2kW 3HP
- Current: 14.2A
- Speed: 2860 r/min
- Shaft Length: 50 mm/1.97''
- Shaft Diameter: 24 mm/0.94'' Keyed Shaft
- IP Rating: IP44
- Mounting Type: B3
- Start Capacitance: 300uF
- Work Capacitance: 40uF
- Enclosure Type: TEFC
- Insulation Class: F
- Reversible/Non-Reversible: Reversible
- AC Motor Type: Asynchronous Motor
- Net Weight: 17 kg/37.48 lbs

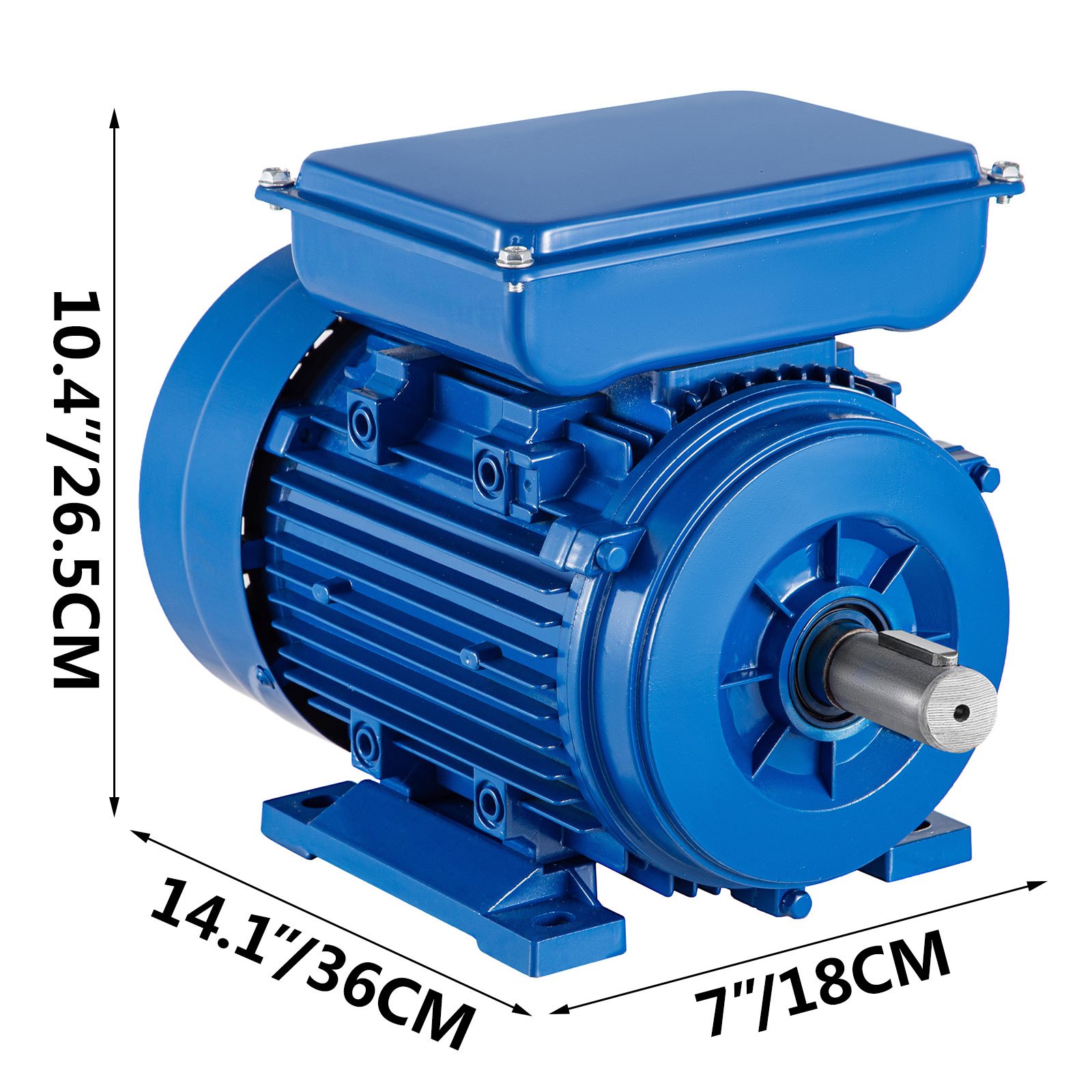

- Motor Size(L x W x H): 360 x 180 x 265 mm/14.17 x 7.09 x 10.43''
