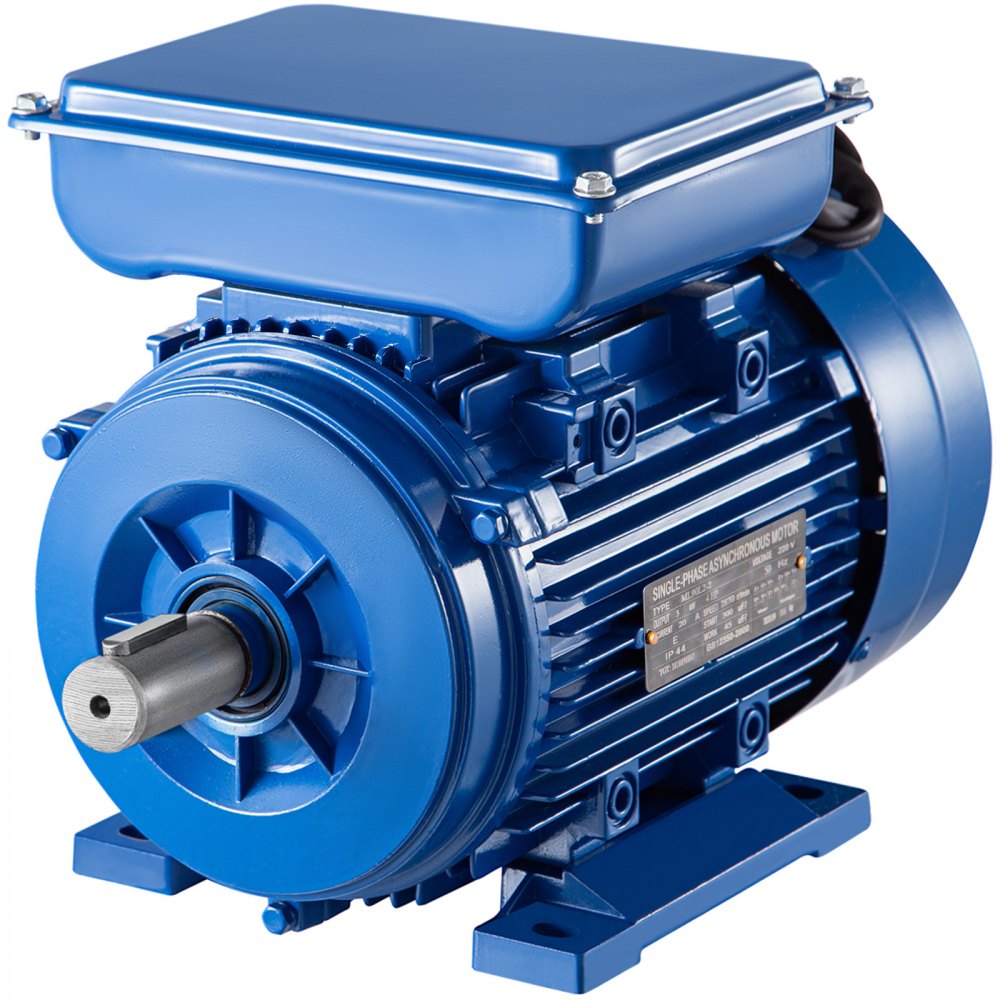

Vevor Single Phase Asynchronous Motor Electric Motor 3 Kw Motor B3foot Mount
0 0 Reviews
185 99 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
- 【ALUMINUM ALLOY CONSTRUCTION】- This single-phase asynchronous motor adopts an aluminum alloy shell for heat-resistant, cold-resistant, corrosion-resistant. The robust and reliable aluminum material can well protect the motor and internal circuit from thermal overload.
- 【PURE COPPER MOTOR】- The single-phase electric motor features a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor is made by high tech, finish for anti-water and anti-rust, and the rotor lid for keeping it clean.
- 【HIGH-SPEED COOLING FAN】- Even in dusty or damp environments, the big fan at one end cools the motor in hours' running, which can reduce energy costs or overhead, and lower operating temperature, thereby extending winding lifetimes.
- 【PROTECTIVE & STABLE】- The electric motor features a waterproof and dustproof enclosed junction box to be used outdoors. Even in a high-temperature space, it continues to work effectively. It includes the mounting bracket for stable operation.
- 【MULTIPLE APPLICATION】- The asynchronous motor is commonly used in industrial and agricultural production, transportation, commercial and household appliances, medical appliances, and other fields. It is suitable for water pumps, fans, shredders, etc.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
See all 0 reviews
About this item
Description

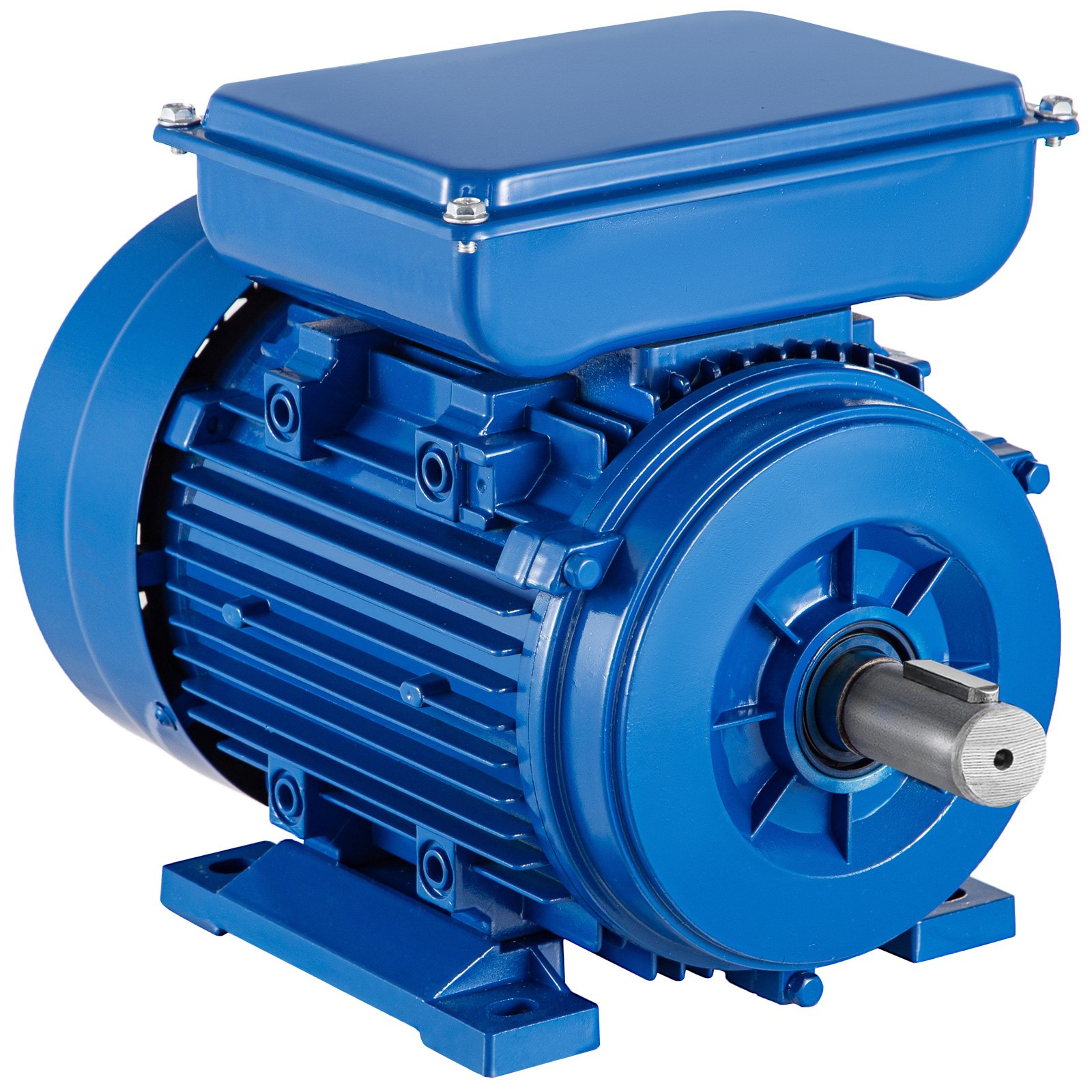

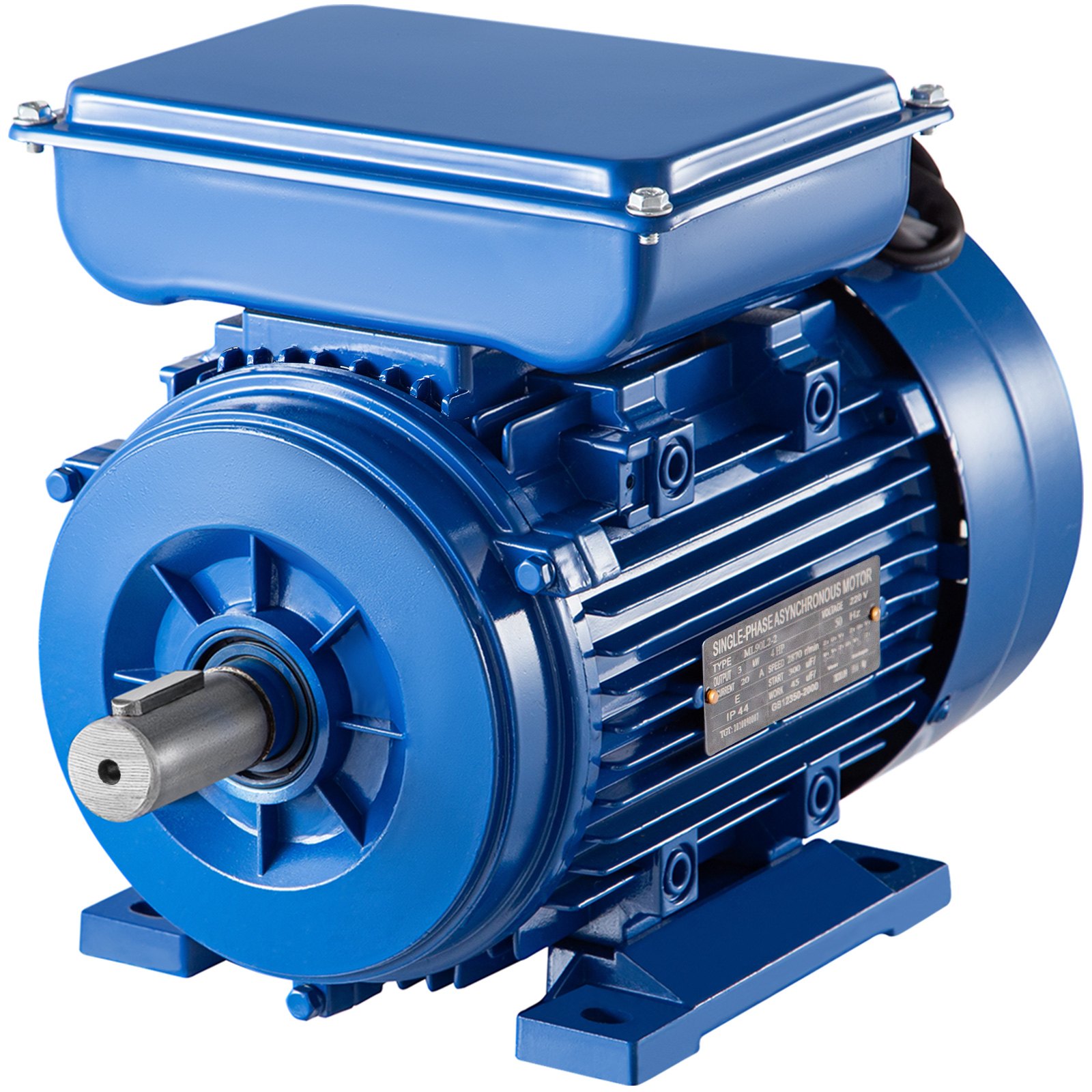

3 kW 2870 RPM Single Phase Asynchronous Motor
The listing is about a 3 kW single-phase asynchronous motor which converts electrical energy into mechanical energy. The 50 cm/19.6'' terminal wire is included to facilitate the connection between the motor and electrical appliances. It is a single-phase AC electric motor that turns at 2870 RPM with a lightweight aluminum frame commonly used to match water pumps, agricultural machinery, medical appliances, and other fields.
- Aluminum Alloy Construction
- Pure Copper Motor
- High-Speed Cooling Fan
- Protective & Stable
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

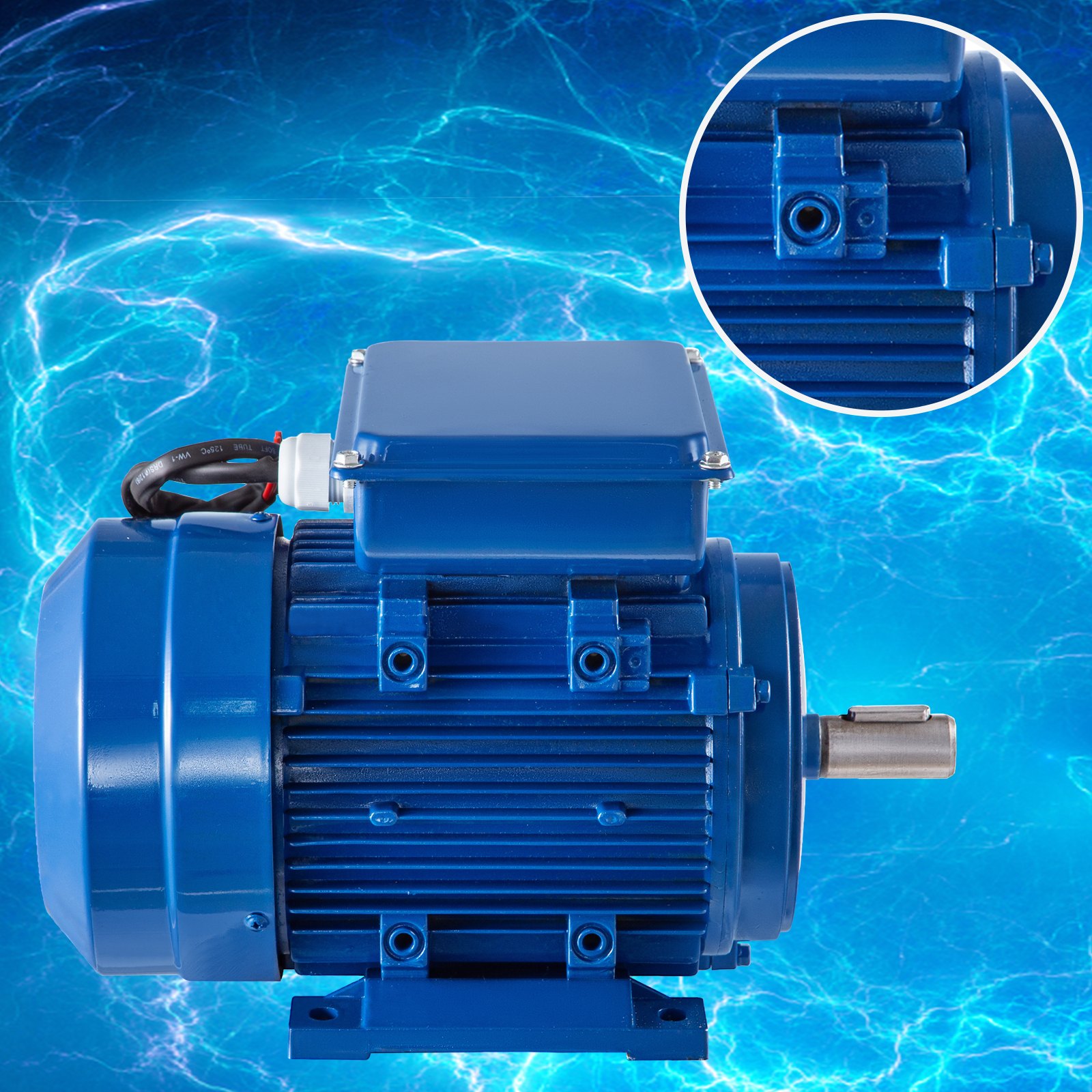

Premium Aluminum Alloy Structure
This electric motor is made of aluminum alloy material, which is anti-vibration and anti-deformation. It has high strength and is able to resist oxidation, compression.
Powerful Electric Motor
The asynchronous electric motor features a 100% pure copper core for high conductivity and high-temperature resistance and saves energy in a long time.
Excellent Performance

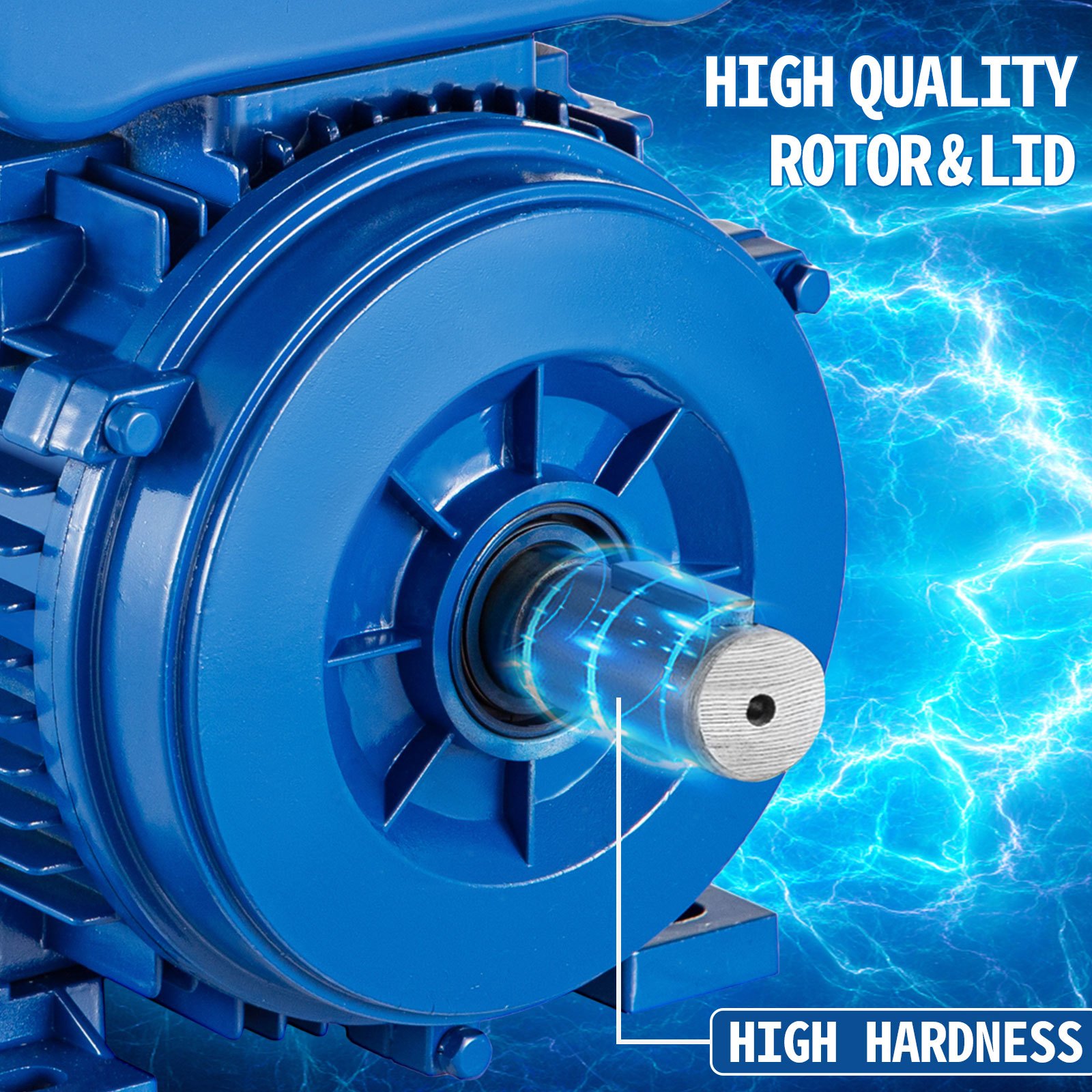

This 3 kW single-phase asynchronous motor runs at 4 HP, and the maximum speed is 2870 RPM. High hardness shaft is more durable, insulation class: F.

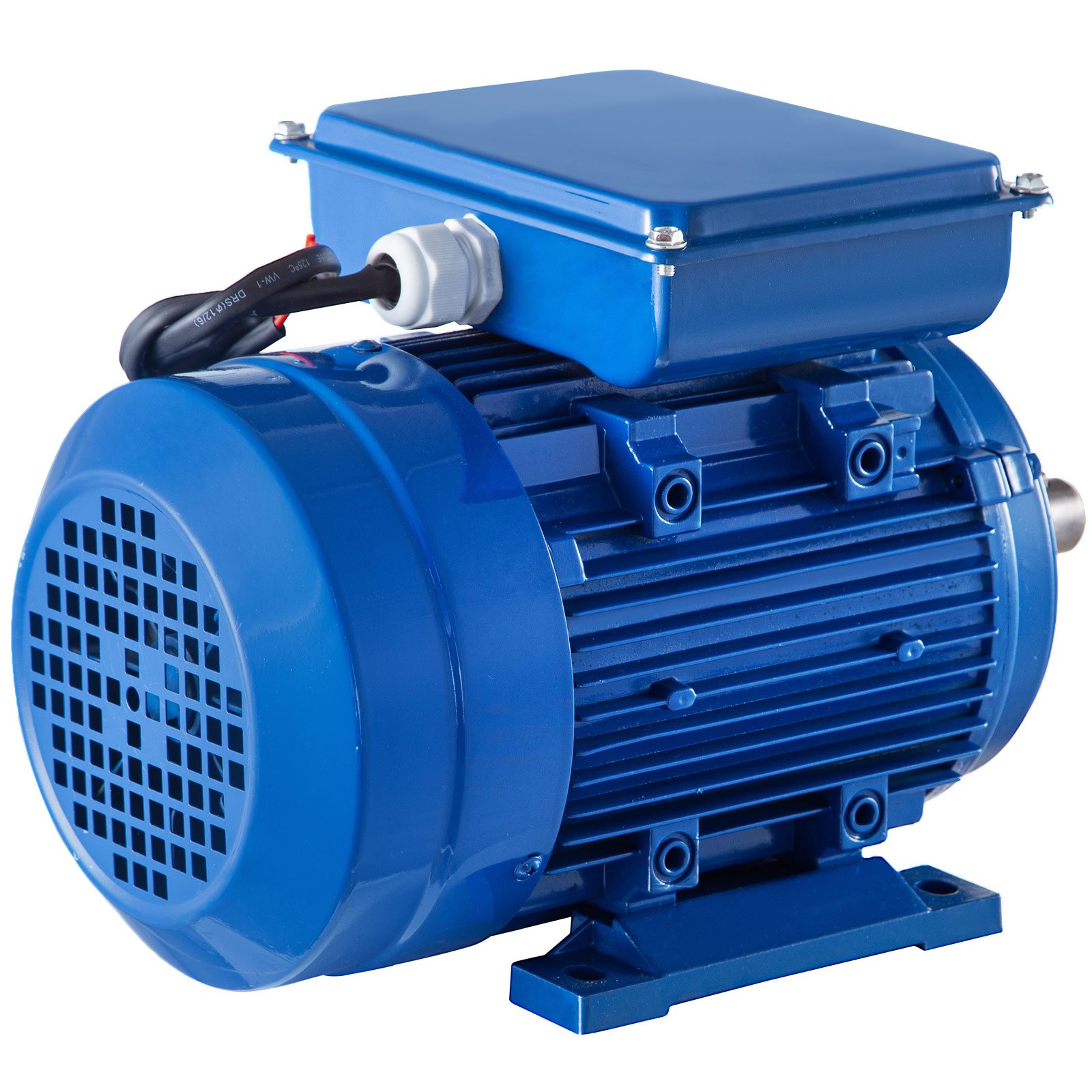

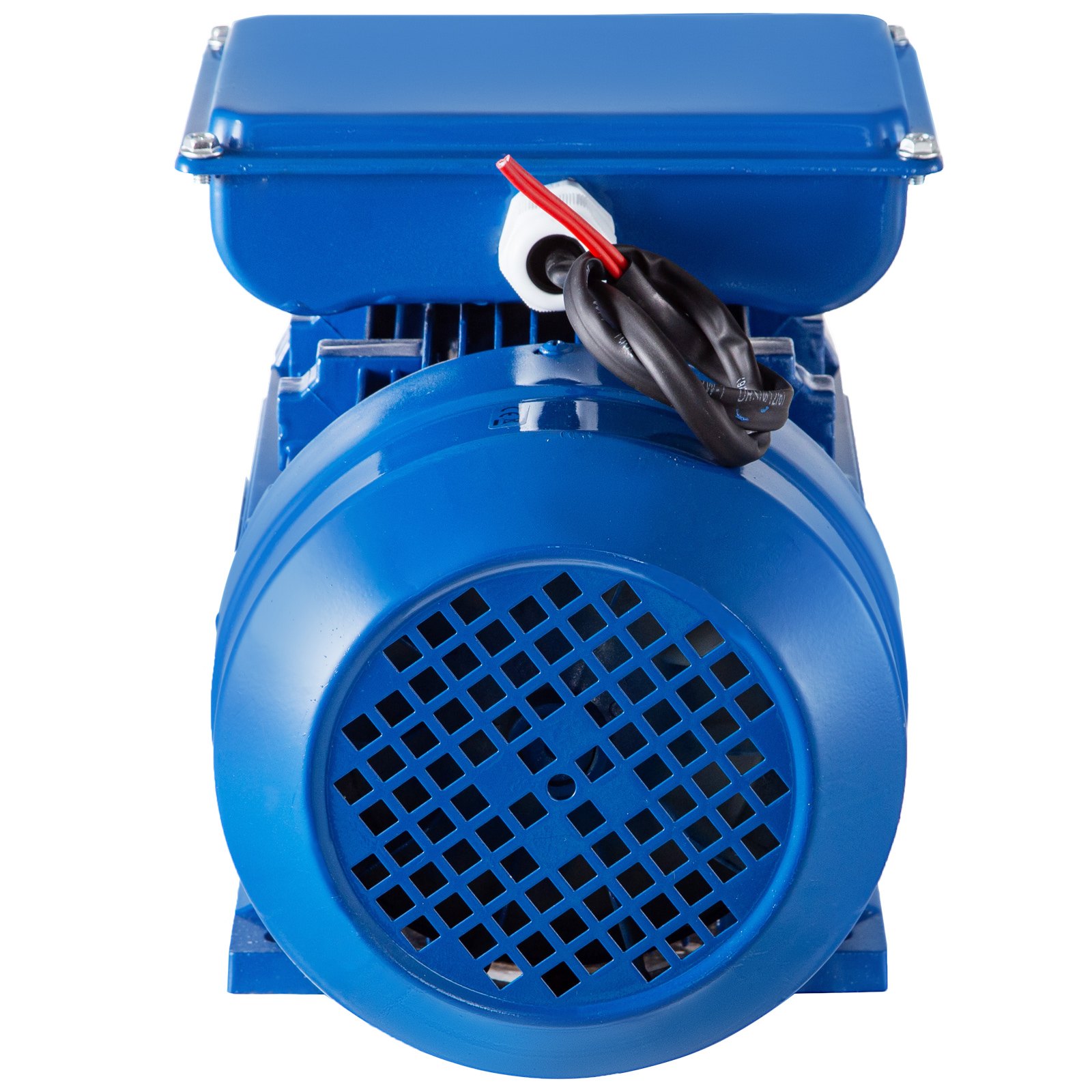

Strong & Efficient Fan
The built-in fan cooling system provides better heat dissipation to prevent overheating. There is a mesh design that can prevent foreign objects from being involved in the motor.

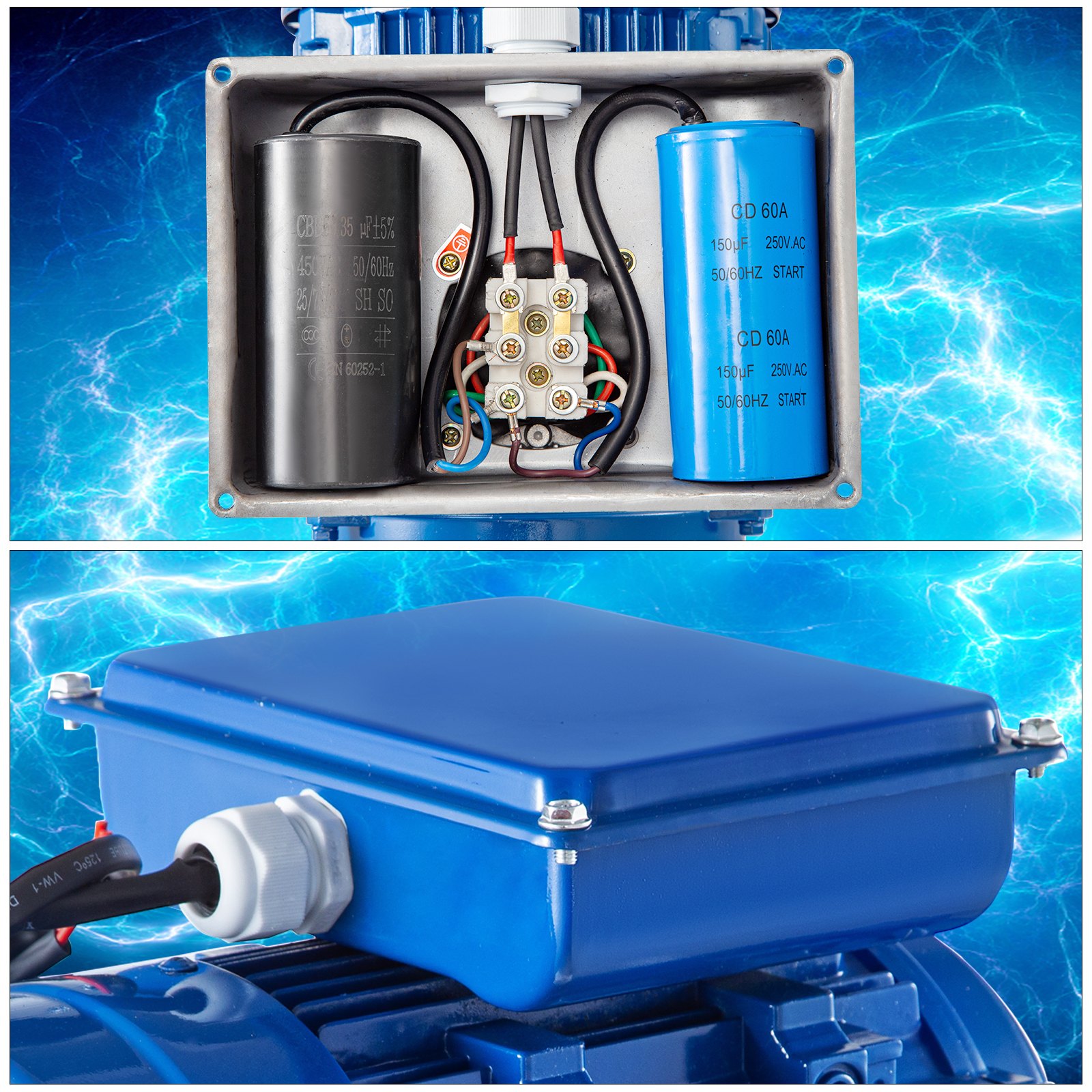

Enclosed Junction Box
This single-phase motor is designed with a fully enclosed frame to protect the cable area from any water or dust entering the body, thus improving the cable efficiency and extending the service life.

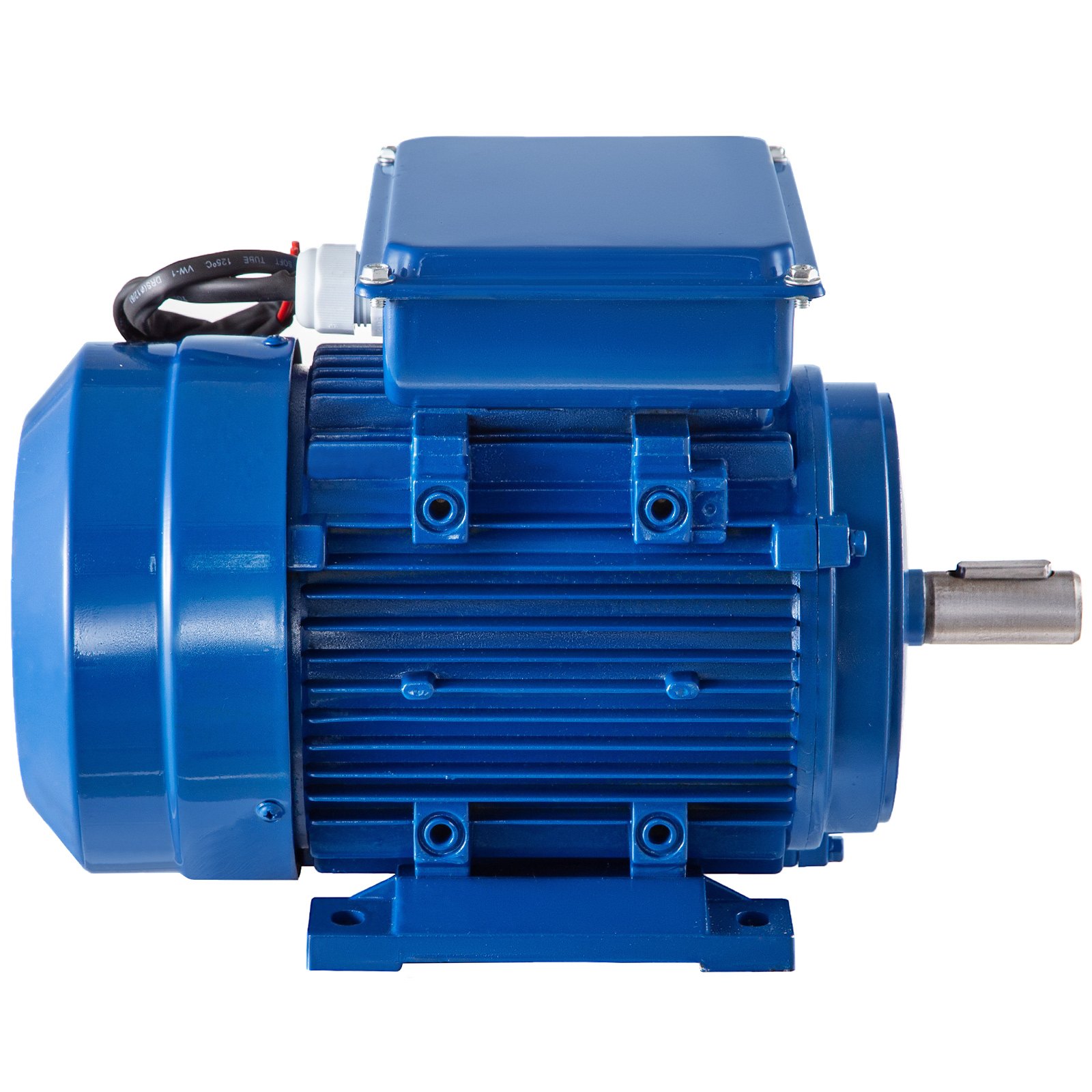

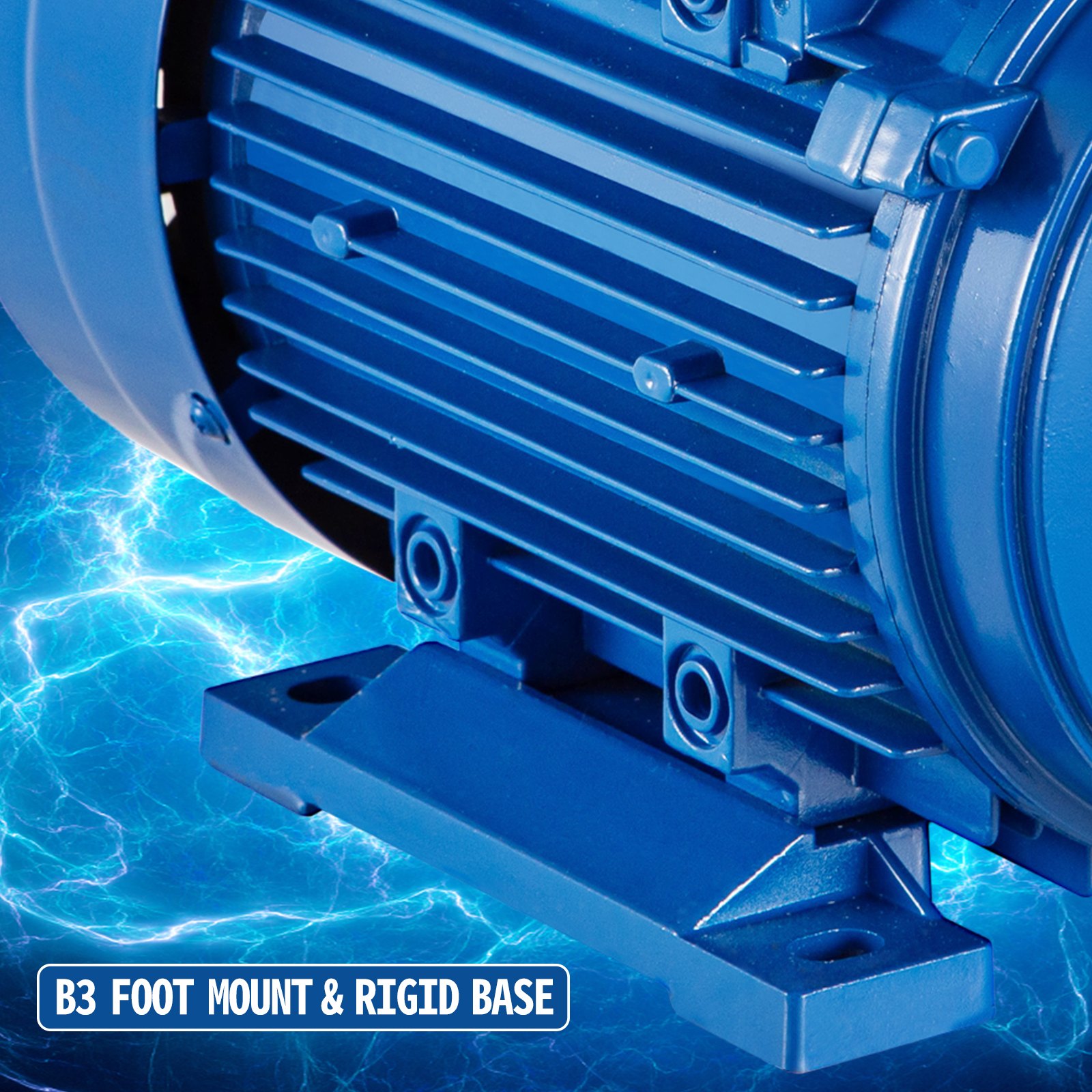

Mounting Bracket Included
The electric motor is equipped with a sturdy mounting bracket at the bottom to reinforce the motor's stability in working stability and reduce friction.
Specifications
- Type: ML90L2-2
- Phase: Single Phase
- Voltage: 220V 50Hz
- Output: 3kW 4HP
- Current: 20A
- Speed: 2870 r/min
- Shaft Length: 50 mm/1.97''
- Shaft Diameter: 14 mm/0.55'' Keyed Shaft
- IP Rating: IP44
- Mounting Type: B3
- Start Capacitance: 300uF
- Work Capacitance: 45uF

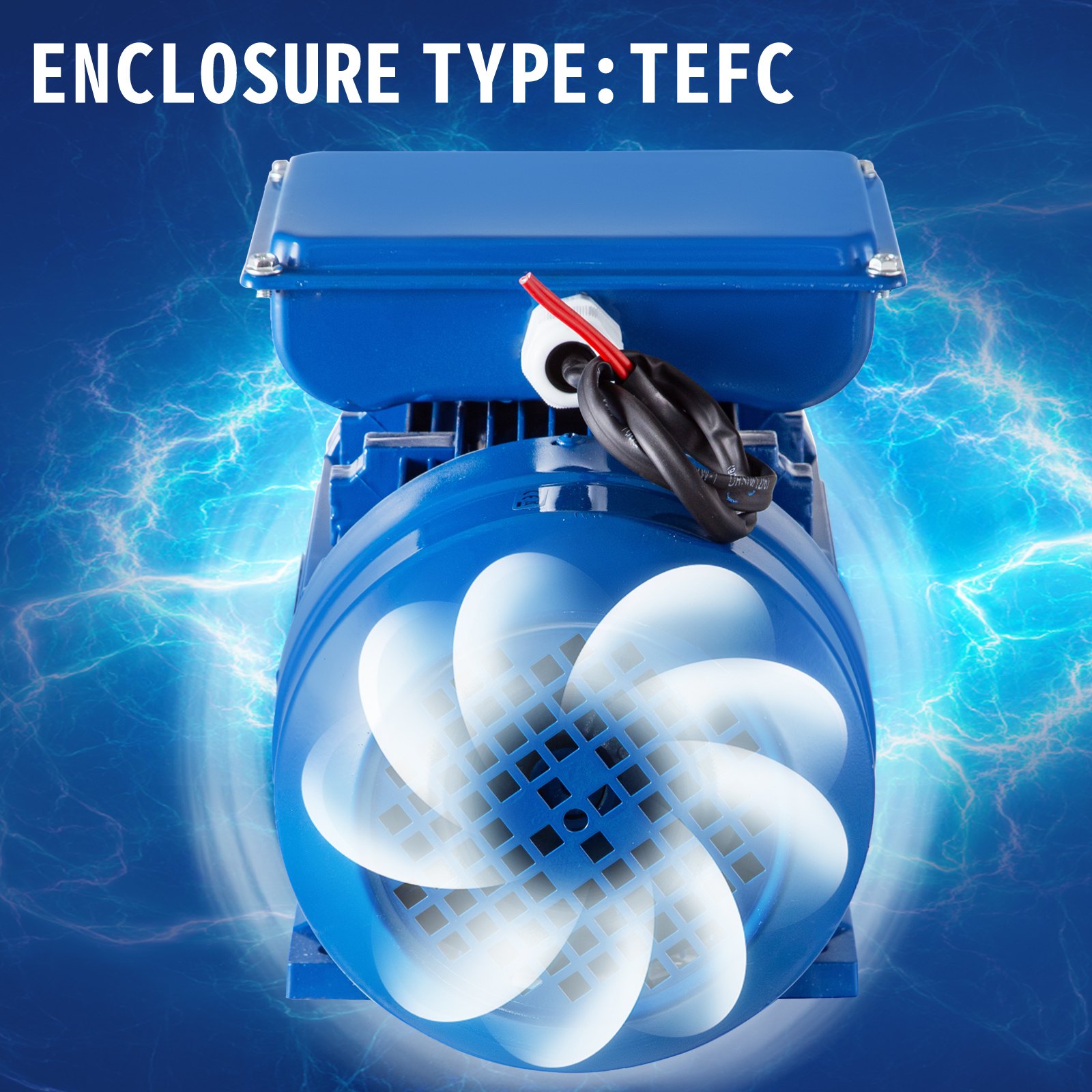

- Enclosure Type: TEFC
- Insulation Class: F
- Reversible/Non-Reversible: Reversible
- AC Motor Type: Asynchronous Motor
- Net Weight: 19.6 kg/43.21 lbs

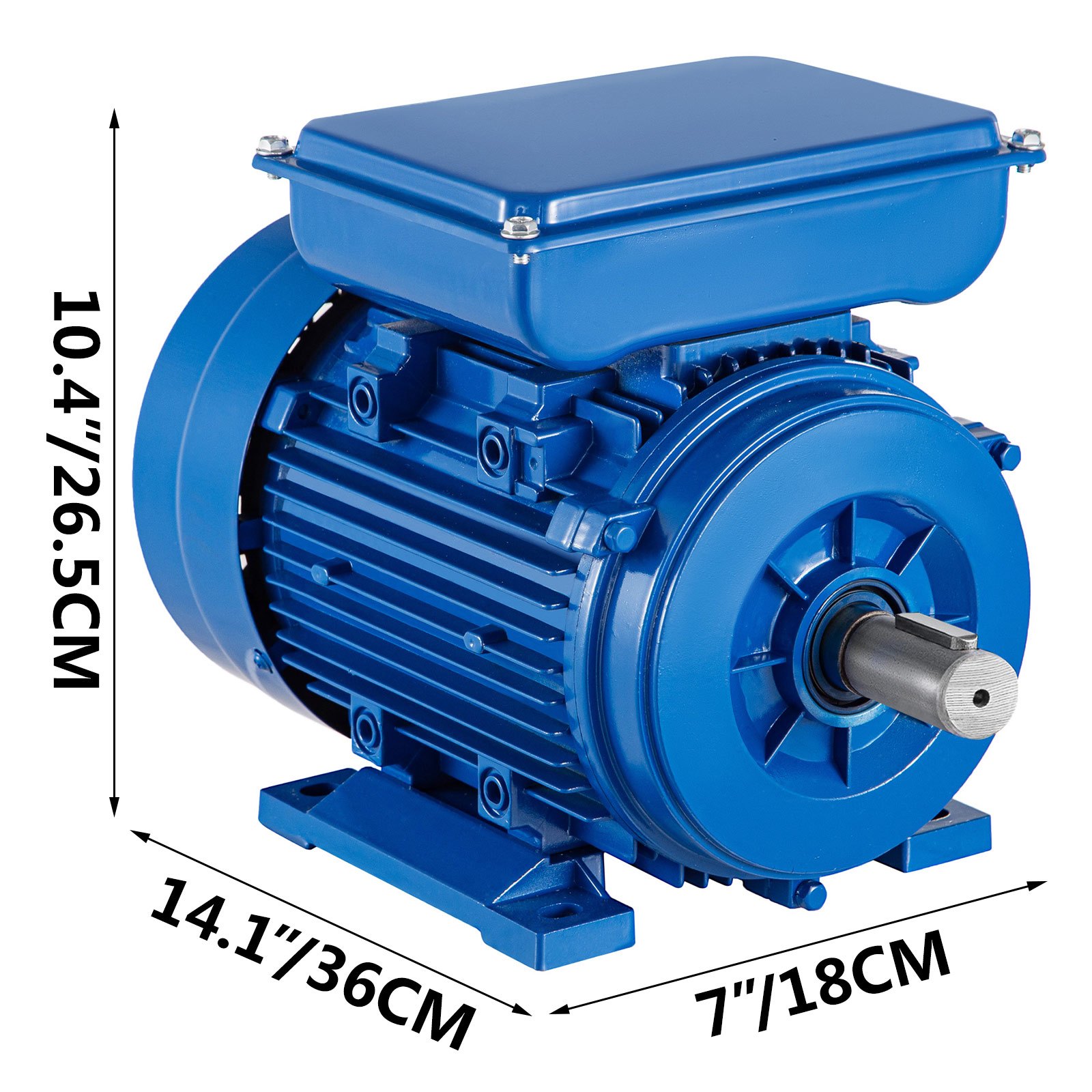

- Motor Size(L x W x H): 360 x 180 x 265 mm/14.17 x 7.09 x 10.43''
Package Content
- 1 x Electric Motor
- 1 x Product Manual
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3 kW 2870 RPM Single Phase Asynchronous Motor
The listing is about a 3 kW single-phase asynchronous motor which converts electrical energy into mechanical energy. The 50 cm/19.6'' terminal wire is included to facilitate the connection between the motor and electrical appliances. It is a single-phase AC electric motor that turns at 2870 RPM with a lightweight aluminum frame commonly used to match water pumps, agricultural machinery, medical appliances, and other fields.
- Aluminum Alloy Construction
- Pure Copper Motor
- High-Speed Cooling Fan
- Protective & Stable
Premium Aluminum Alloy Structure
This electric motor is made of aluminum alloy material, which is anti-vibration and anti-deformation. It has high strength and is able to resist oxidation, compression.
Powerful Electric Motor
The asynchronous electric motor features a 100% pure copper core for high conductivity and high-temperature resistance and saves energy in a long time.
Excellent Performance
This 3 kW single-phase asynchronous motor runs at 4 HP, and the maximum speed is 2870 RPM. High hardness shaft is more durable, insulation class: F.
Strong & Efficient Fan
The built-in fan cooling system provides better heat dissipation to prevent overheating. There is a mesh design that can prevent foreign objects from being involved in the motor.
Enclosed Junction Box
This single-phase motor is designed with a fully enclosed frame to protect the cable area from any water or dust entering the body, thus improving the cable efficiency and extending the service life.
Mounting Bracket Included
The electric motor is equipped with a sturdy mounting bracket at the bottom to reinforce the motor's stability in working stability and reduce friction.
Package Content
- 1 x Electric Motor
- 1 x Product Manual
Specifications
- Type: ML90L2-2
- Phase: Single Phase
- Voltage: 220V 50Hz
- Output: 3kW 4HP
- Current: 20A
- Speed: 2870 r/min
- Shaft Length: 50 mm/1.97''
- Shaft Diameter: 14 mm/0.55'' Keyed Shaft
- IP Rating: IP44
- Mounting Type: B3
- Start Capacitance: 300uF
- Work Capacitance: 45uF
- Enclosure Type: TEFC
- Insulation Class: F
- Reversible/Non-Reversible: Reversible
- AC Motor Type: Asynchronous Motor
- Net Weight: 19.6 kg/43.21 lbs
- Motor Size(L x W x H): 360 x 180 x 265 mm/14.17 x 7.09 x 10.43''
