Features & Details

• Mainstream Pump Model: The pump model 48 Frame Motor is a perfect replacement for the OEM model. We also include two 2 in/5.6 cm connectors to fit a variety of bathtubs. Note that the SPA pump depends on the input power, not the output power. Check the parameters of your old pump before purchasing.
• Two-Speed Design: To better meet the actual application, we set two speeds: high speed 1100W (flow rate 35 m³/h) and low speed 250W (flow rate 14 m³/h). This strong power comes from the pure copper wire motor with anti-creep bearings to control the impeller speed. Moreover, each motor has passed the 80,000 times electric cycle test to work stably for a long time.
• Seal Against Leakage: Anti-leakage is the key to the SPA pump for hot tubs, so we only use Fluororubber shaft seals, which have good resistance to high temperature, corrosion, oil, and aging and are able to maintain stable sealing performance in harsh working environments. It effectively avoids the leakage of fluids and particles. You can enjoy different types of soaking massages without worrying about infiltration problems.
• 90° Rotational Interface: The SPA pump head and interface can be rotated by simply disassembling the screws, and the angle of the pump can be easily adjusted so that it can be adapted to tight spaces or special angle installation requirements. This design simplifies the structure of the liquid transfer pipe, making the piping connection more flexible and easy to install while also facilitating future maintenance work.
• Secure Operation: To strengthen security, we have accessed Texas Instruments Thermal Protection, characterized by high precision, fast response, and low power consumption and can effectively monitor the motor temperature. When the temperature exceeds the set value, it will automatically disconnect the circuit to protect the motor from damage, and you can use it with confidence.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

HSP1100II

Interface Rotation Angle

90°

Speed Type

2 Speed

High Speed Horsepower / Flow / Head Lift

1100W / 35 m³/h / 13 m

Low Speed Horsepower / Flow / Head Lift

250W / 14 m³/h / 2.8 m

Description

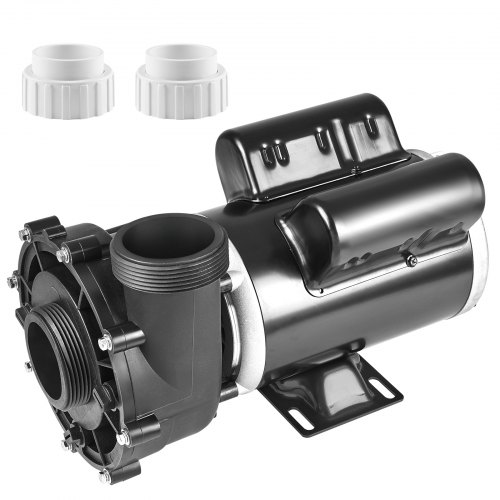

VEVOR 48 Frame Motor Dual-Speed SPA Pump

Our SPA pump for hot tub has a two-speed design, high speed 1100W/ low speed 250W, and the included 2-inch inlet and outlet ports perfectly fit the existing bathtub. Pure copper motor passes 80,000 times electric cycle test, combined with anti-creep bearings for smooth operation.

To meet the actual application better, we set two speeds: high speed 1100W (flow rate 35 m³/h) and low speed 250W (flow rate 14 m³/h). The motor is equipped with anti-creep bearings, which can work stably for a long time through 80,000 times of electric cycle tests.

Anti-leakage is the key to the SPA pump for hot tubs, so we only use Fluororubber shaft seals, which have good resistance to high temperature, corrosion, oil, and aging and are able to maintain stable sealing performance in harsh working environments.

This hot tub SPA pump features Texas Instruments thermal protection, characterized by high precision, fast response, and low power consumption. When the motor temperature exceeds the set value, it will automatically disconnect the circuit to protect the motor from damage.

1. Please read and follow all instructions before installing and using. 2. Connected to protected power circuits only. 3. Suitable for permanently installed pools. 4. Seal all connections and fittings after installation. 5. Abnormal operation must be checked after disconnecting the power supply.
