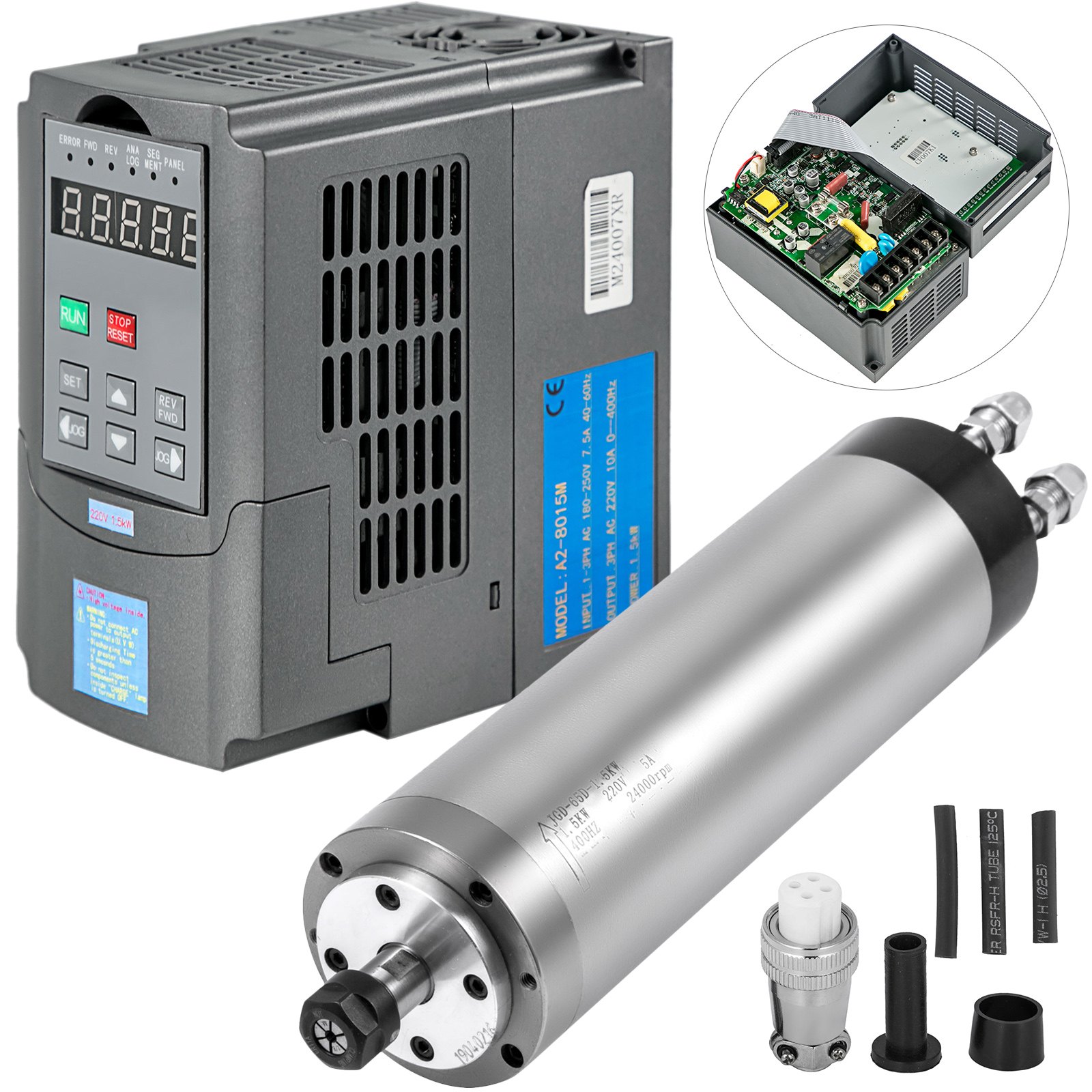

VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit
+12
More
VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit

VEVOR 1.5KW Water Cooled Spindle Motor with 2HP 1.5KW 7A Variable Frequency Drive Inverter VFD Spindle Motor Kit

0 0 Reviews
174 99   €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+. Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now

  • This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.
  • 【PRODUCT DETAILS】- The 1.5KW water cooled spindle motor's speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 2HP 1.5KW 7A variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
  • 【PREMIUM QUALITY】- The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
  • 【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
  • 【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.

Frequently Bought Together

Reviews
About this item
Questions and Answers
Explore

Reviews

No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Top Reviews
Reviews for Current Item Verified Purchase Photos and video only

About this item

Description
unashoppingifytemplatenew
This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor. Speed: 8000-24000 R/min. Runout off: less than 0.005mm. Power: 1.5 KW. Frequency: 400 Hz.ER11(3.175mm,4mm,6mm).
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.

  • 【PRODUCT DETAILS】- The 1.5KW water cooled spindle motor's speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 2HP 1.5KW 7A variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
  • 【PREMIUM QUALITY】- The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
  • 【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
  • 【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
  • 【WORKS COOPERATIVELY】- The water cooled spindle, together with variable frequency drive inverter, it's definitely a nice combination to imporve the work efficiency and performace of the VFD..
  • Product Parameters
The water-cooled spindle motor features stable performance and low noise, with 8000-24000 R/min and 400 Hz frequency.The 2HP 1.5KW 7A VFD is 220V inpute voltage, 208-240VAC output voltage, 48-63 Hz inpute frequency, 1 or 3 phase inpute phase, 3 phase outpute phase.
  • Superior Quality

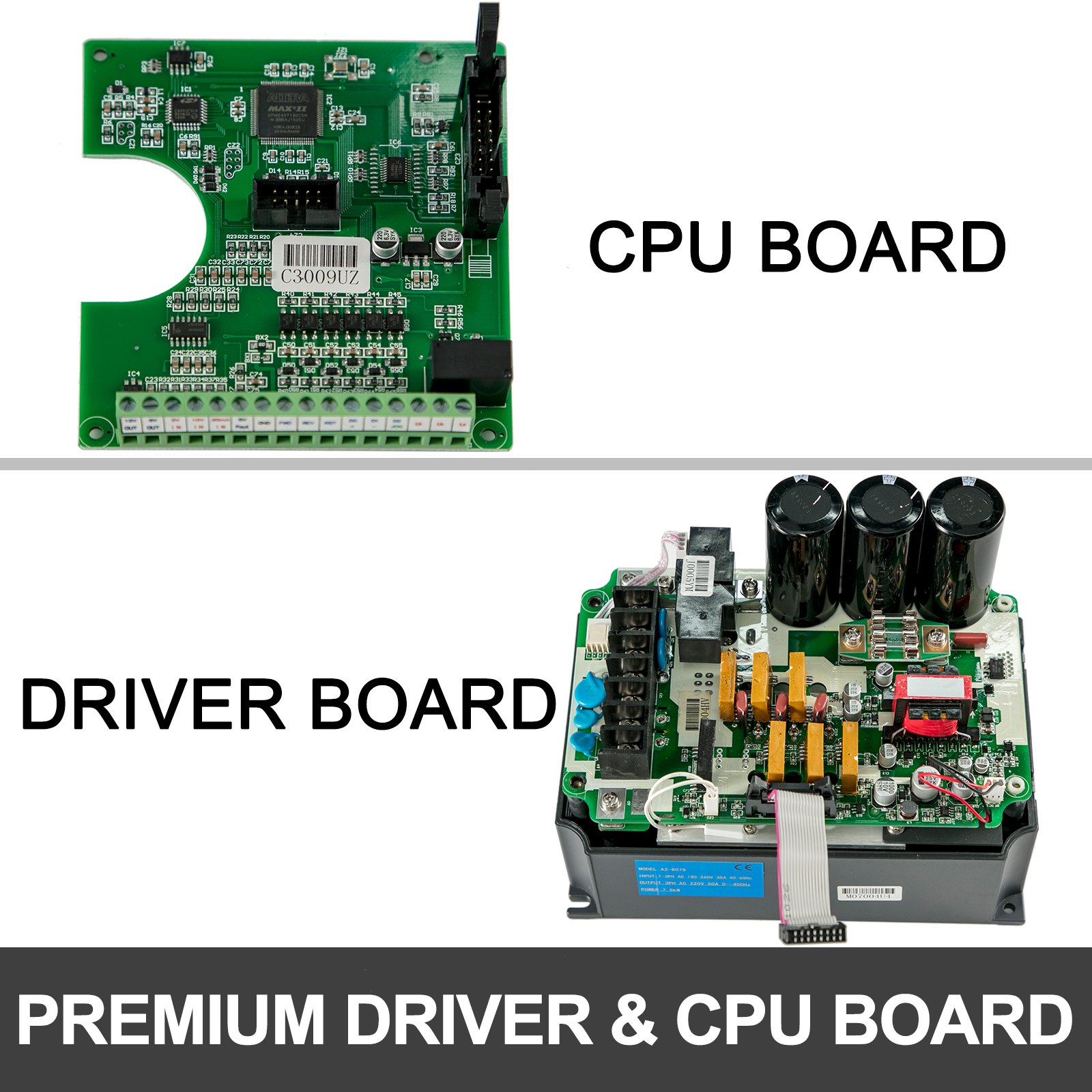

Both of the VFD and water cooled spindle motor use the superior material to make. They are exquisite in appearance and fine in workmanship. The fabulous materials provide them stable perfromance and a great experience of use.
  • Excellent Performance
The PID control technology that uses advanced calculous PID closed-loop arithmetic is applied in the VFD. That gives it quick responding speed as well as high suitability. It also supports low output ratting torque0.5HZ-150% and low speed running ability.

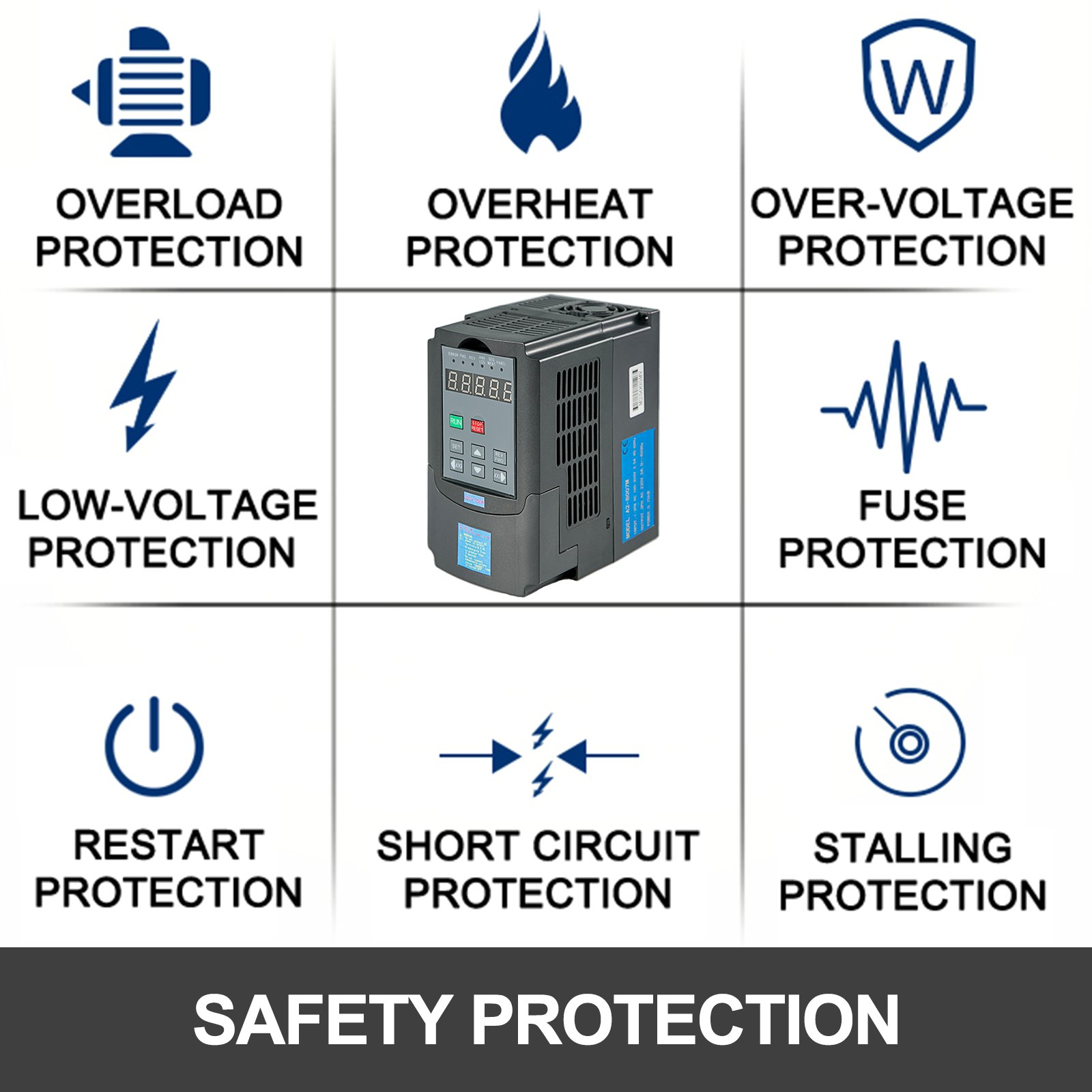

  • Perfect Protection System
The VFD has perfect protection systems such as the overload protection, short circuit starting protection and fuse protection. If something wrong happens, the machine will stop in time, which will help recuce the damage to the product.
  • Easy PLC Function
Easy PLC function of the VFD drive can realize 16 legs of speed and inverter control function with extremely strong anti-jamming capability. It has many advantages like small size, light weight and low energy consumption.
  • Fast Assemble
All devices needed for installation is provided in the box. The English manual will be provided for the variable frequency drive inverter. It's easy and convenient for you to finish a fast assemble.
Technical Parameters for Variable Frequency Drive Inverter
  • Input Voltage: 220 V
  • Output Voltage: 208-240 VAC ( analogous to Input Voltage )
  • Input Frequency: 48-63 Hz
  • Output Frequency: 0-400 Hz

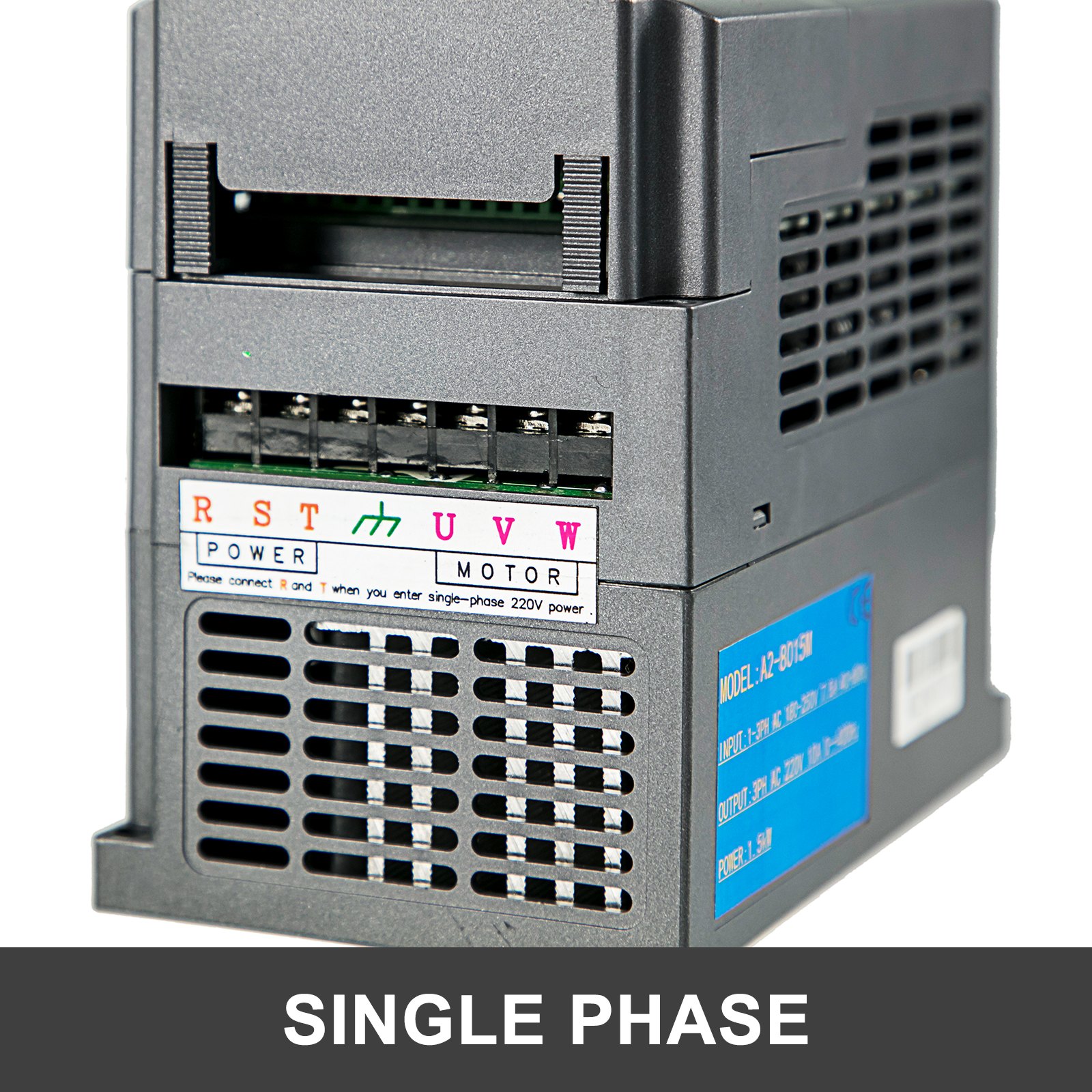

  • Input Phase: 1 or 3 phase as you like
  • Output Phase: 3 phase
  • Control Mode:SPWM
  • Input Power:220V class：220±15%
  • 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
  • Working Temperature:-10~40 ℃
  • Humidity:0-95% Relative Humidity (without dew)
  • Vibration: Below 0.5G

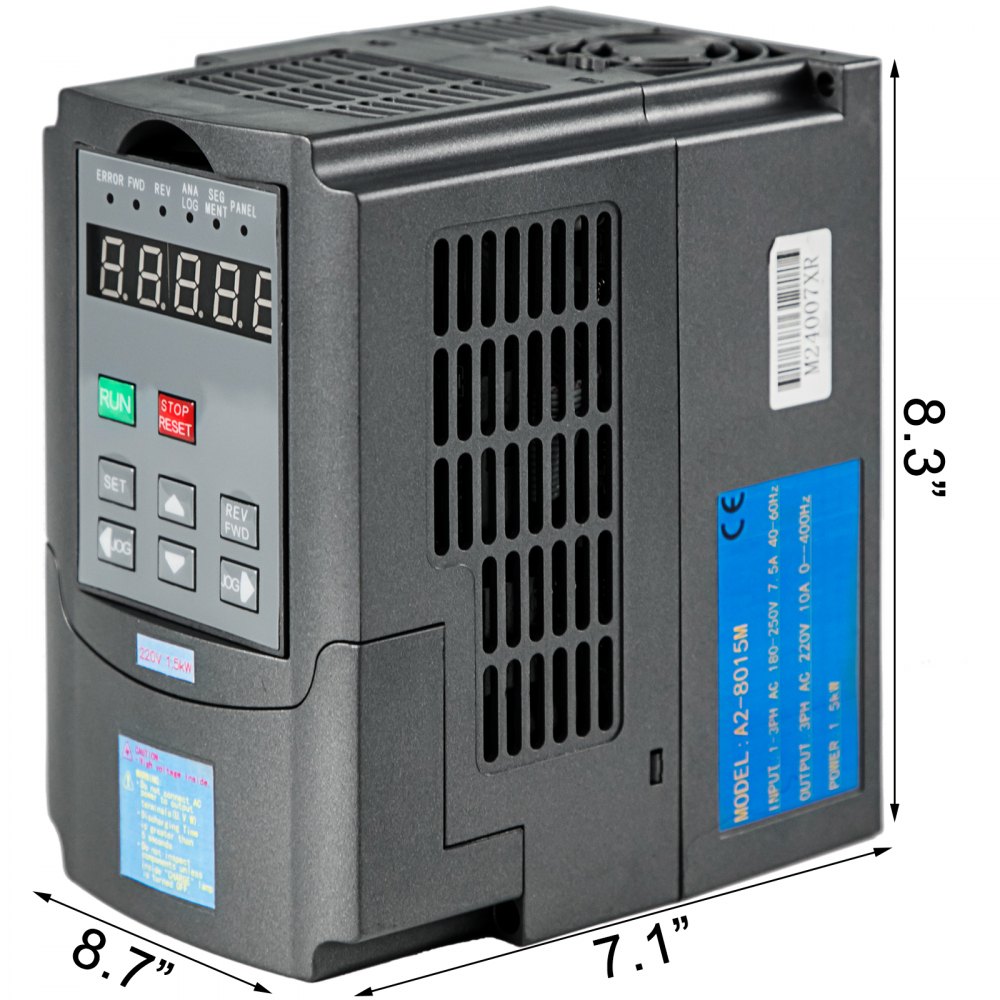

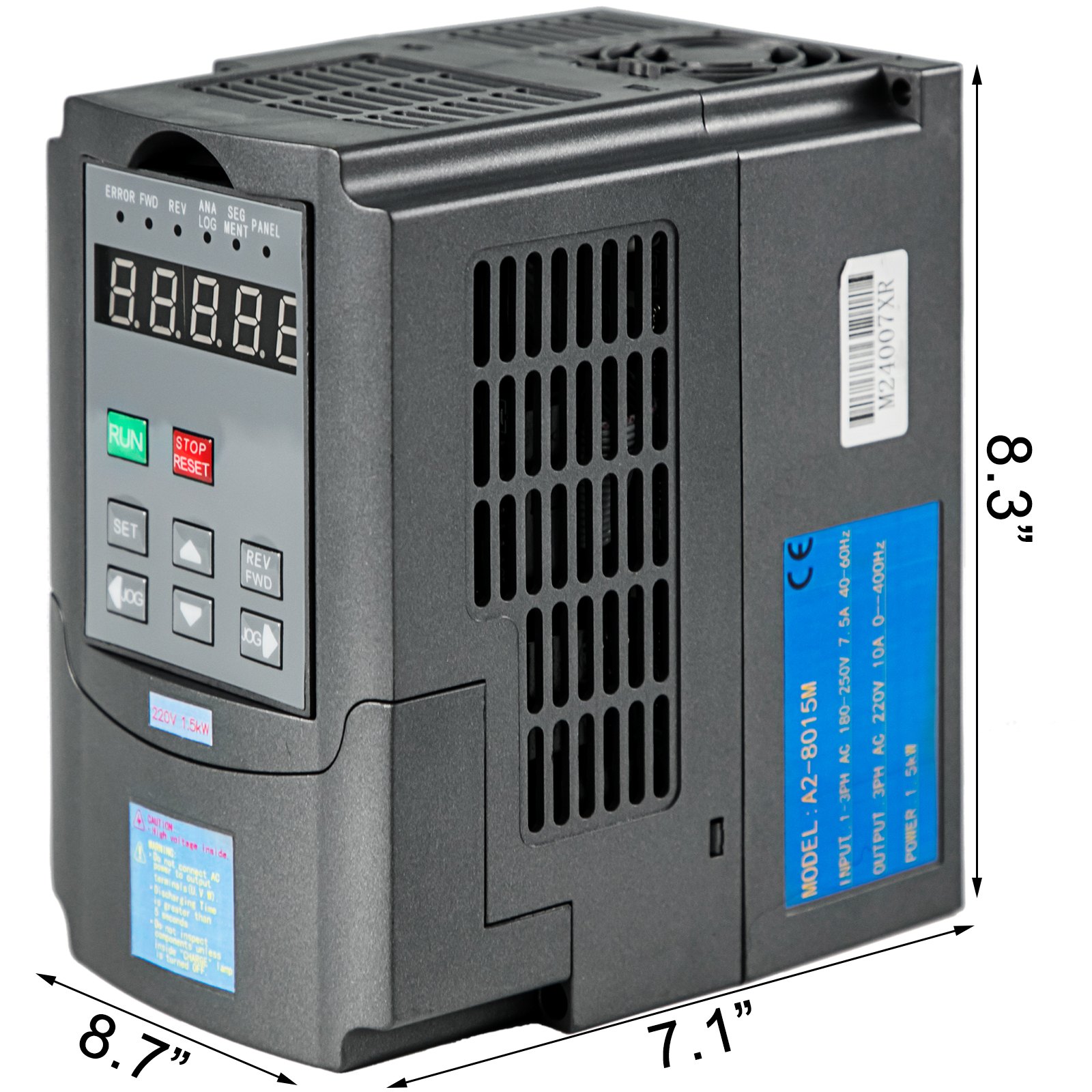

  • Dimension: 22 x 18 x 21 cm (L x W x H)

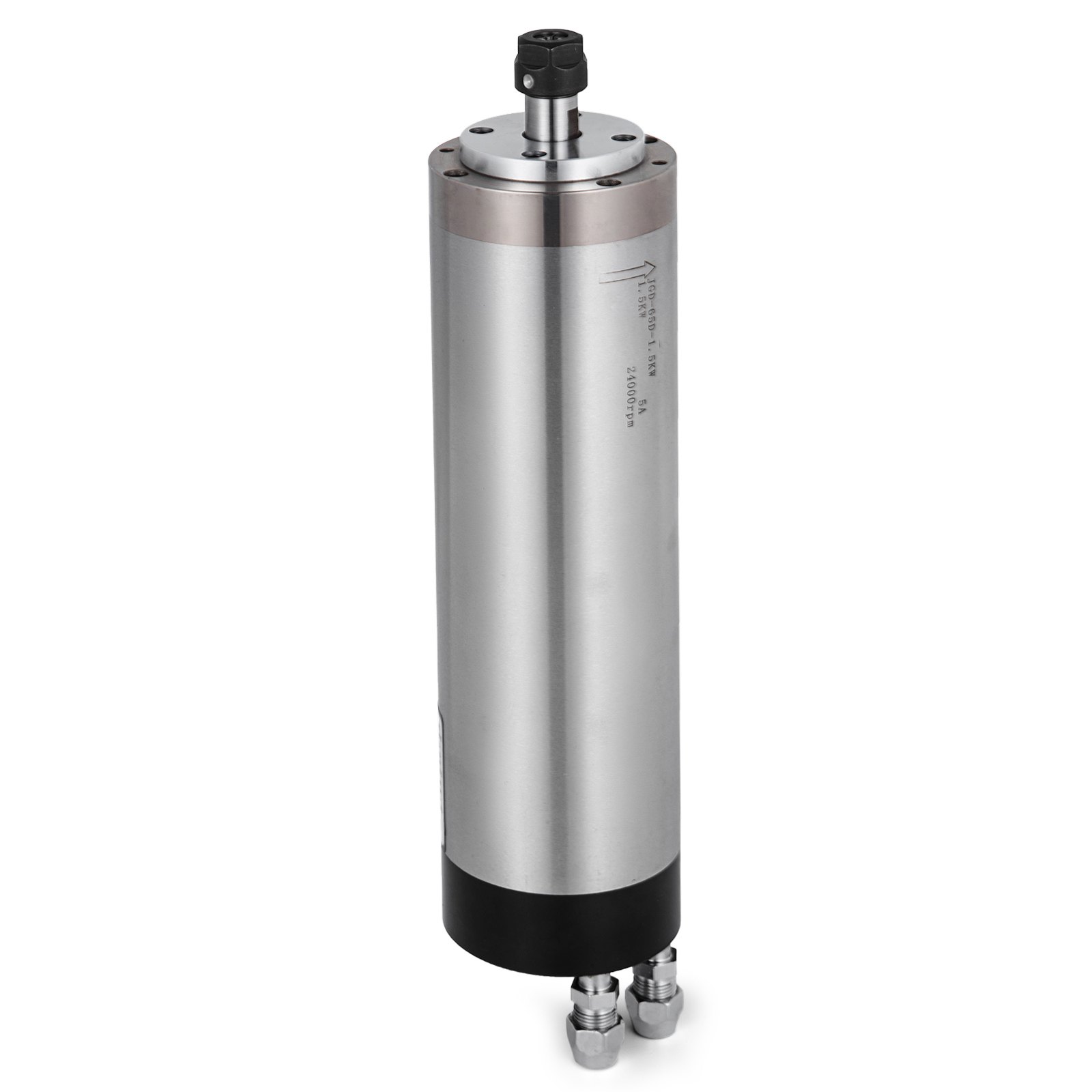

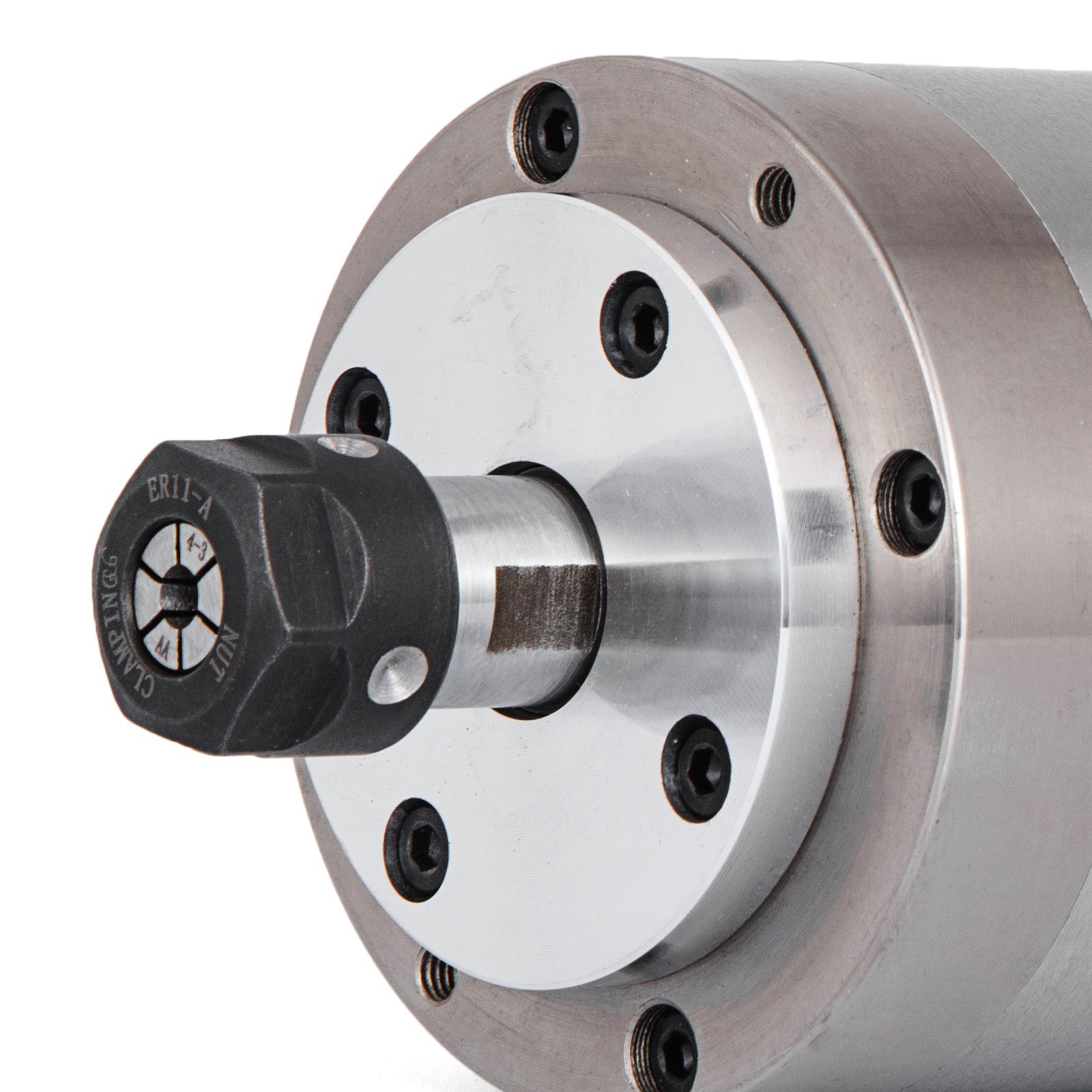

Technical Parameters for Spindle Motor

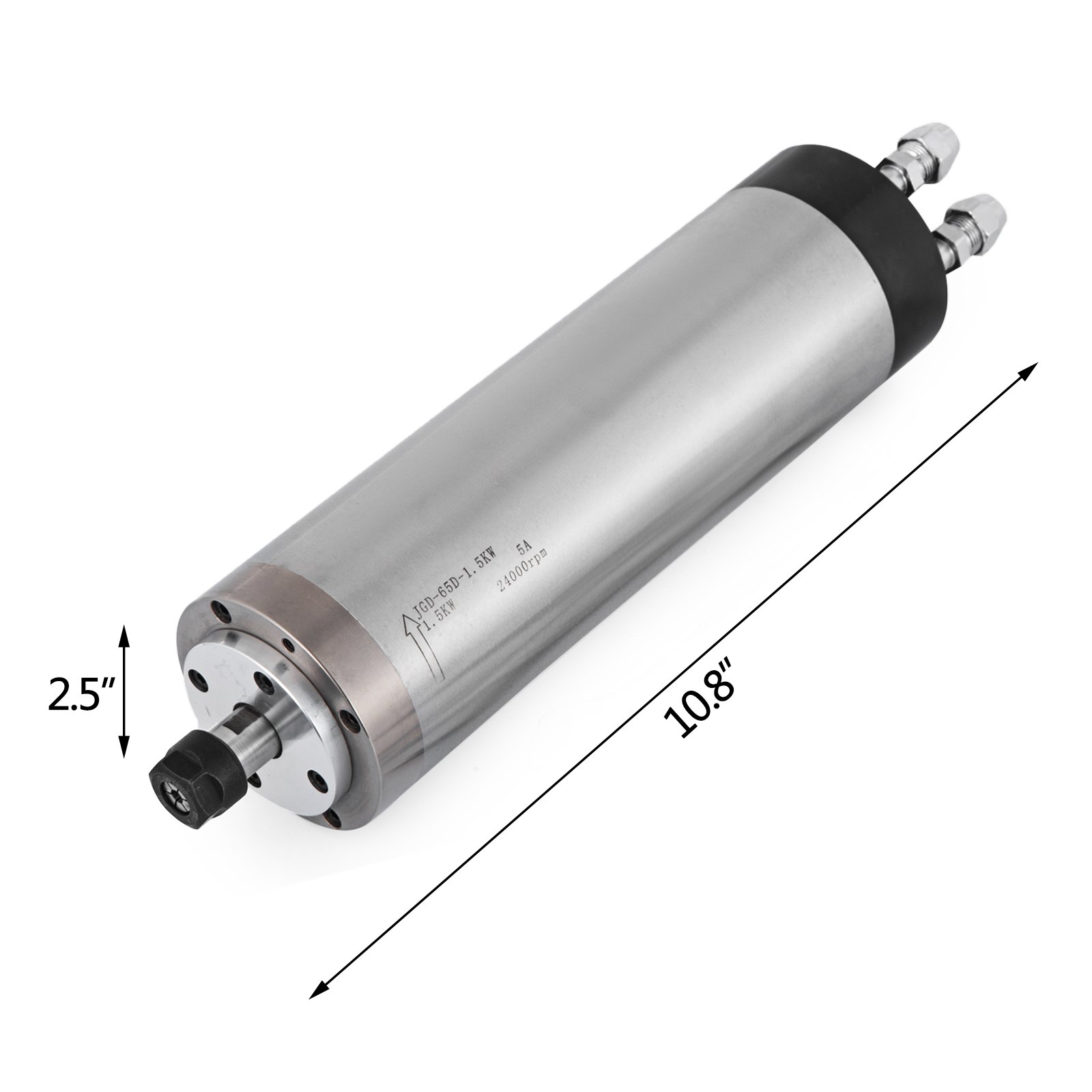

  • Spec: φ65x188 mm (Diameter:65mm x Length:188mm)
  • Power: 1.5 KW
  • Voltage: 220V~250V
  • Frequency: 400 Hz
  • Speed:8000-24000 R/min
  • Water Cooling
  • Runout off: less than 0.005 mm
  • Grease Lubrication
  • Product Dimension: 29 x 13 x 12 cm (L x W x H)
  • Gross Weight：3.2KG(7.05 lbs)
Package for Variable Frequency Drive Inverter
  • 1 x 1.5KW Variable Frequency Drive Inverter
  • 1 x English Manual
Package for Spindle Motor

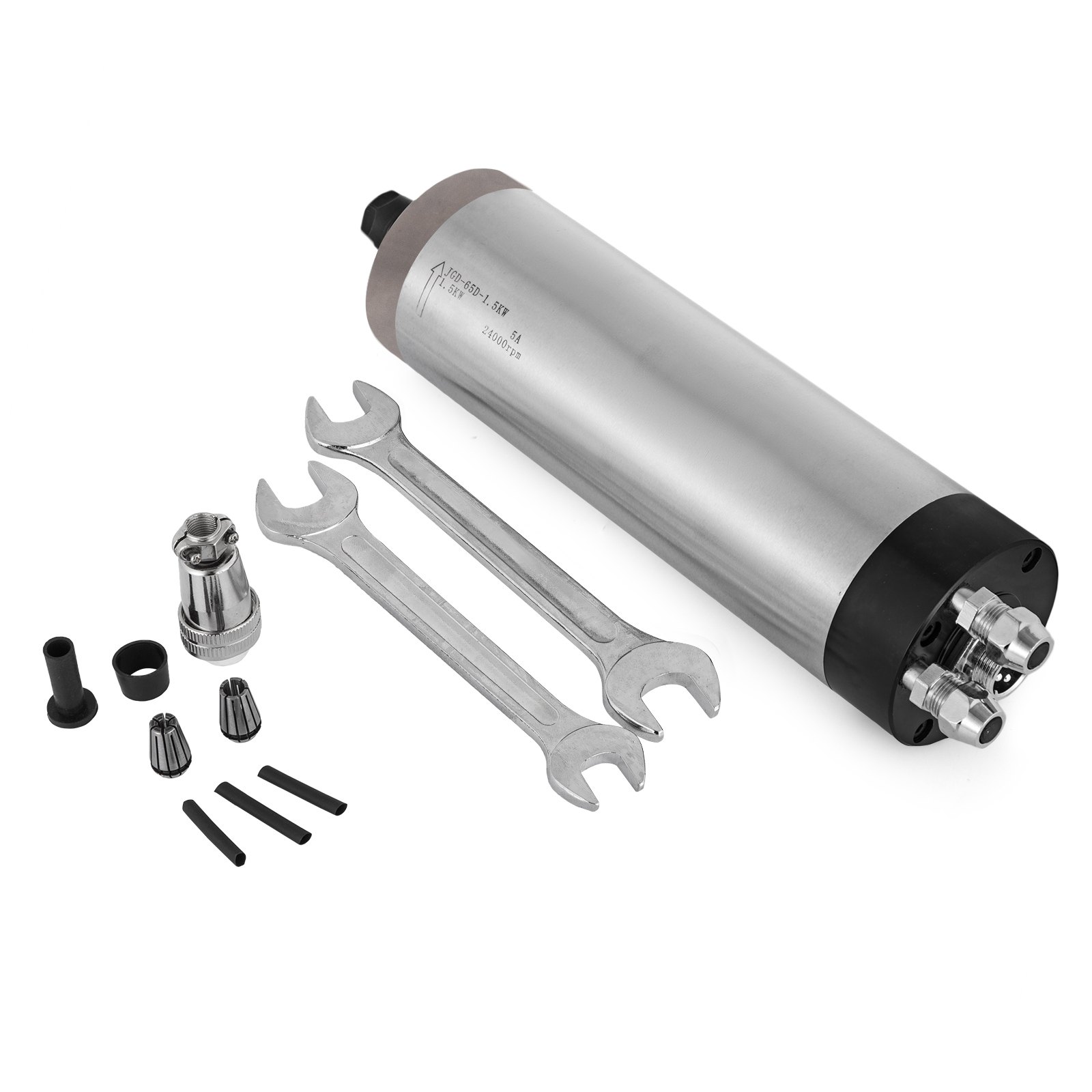

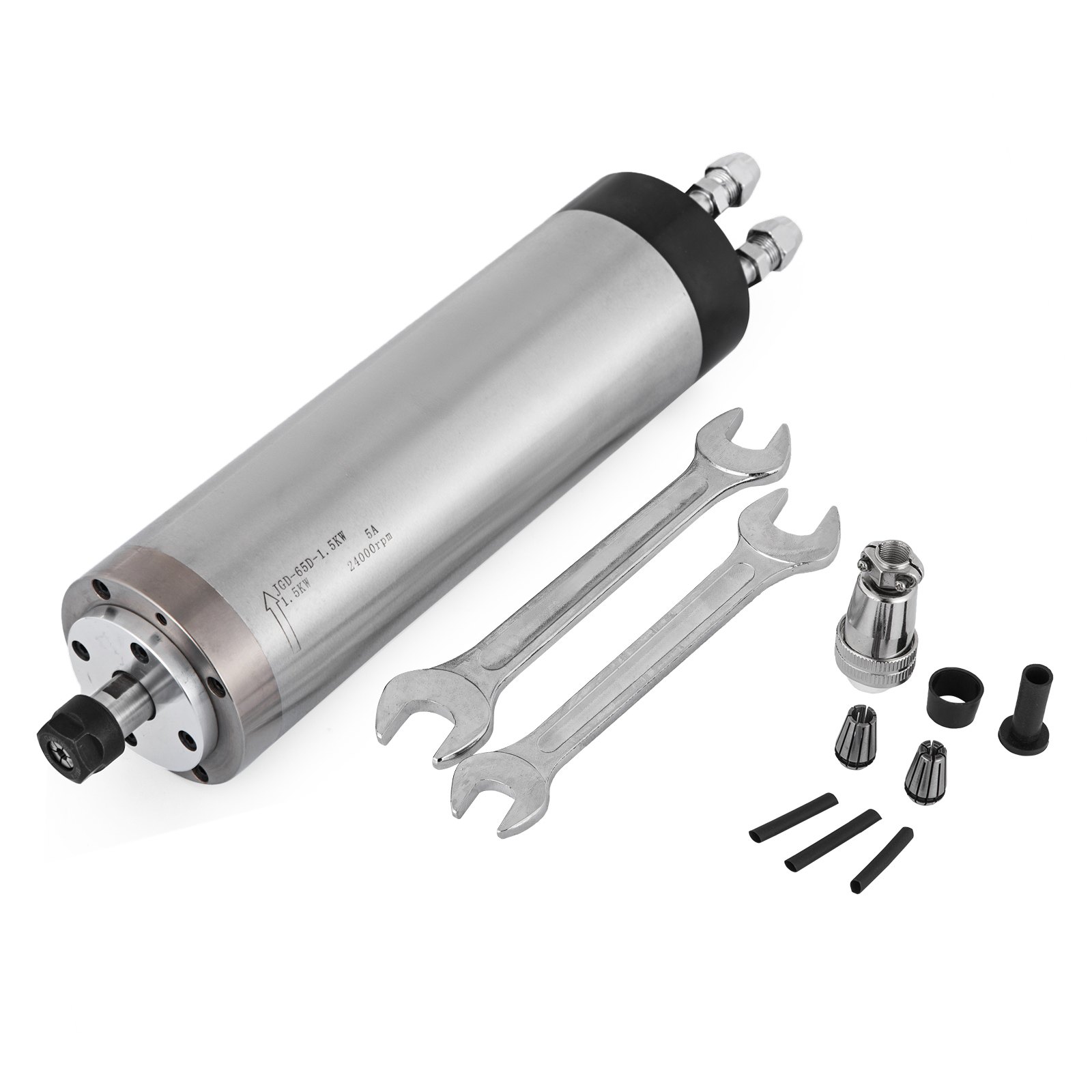

  • 1 x 1.5KW Water Cooled Spindle Motor
This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor. Speed: 8000-24000 R/min. Runout off: less than 0.005mm. Power: 1.5 KW. Frequency: 400 Hz.ER11(3.175mm,4mm,6mm).
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.

  • 【PRODUCT DETAILS】- The 1.5KW water cooled spindle motor's speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 2HP 1.5KW 7A variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
  • 【PREMIUM QUALITY】- The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
  • 【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
  • 【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
  • 【WORKS COOPERATIVELY】- The water cooled spindle, together with variable frequency drive inverter, it's definitely a nice combination to imporve the work efficiency and performace of the VFD..
  • Product Parameters
The water-cooled spindle motor features stable performance and low noise, with 8000-24000 R/min and 400 Hz frequency.The 2HP 1.5KW 7A VFD is 220V inpute voltage, 208-240VAC output voltage, 48-63 Hz inpute frequency, 1 or 3 phase inpute phase, 3 phase outpute phase.
  • Superior Quality
Both of the VFD and water cooled spindle motor use the superior material to make. They are exquisite in appearance and fine in workmanship. The fabulous materials provide them stable perfromance and a great experience of use.
  • Excellent Performance
The PID control technology that uses advanced calculous PID closed-loop arithmetic is applied in the VFD. That gives it quick responding speed as well as high suitability. It also supports low output ratting torque0.5HZ-150% and low speed running ability.
  • Perfect Protection System
The VFD has perfect protection systems such as the overload protection, short circuit starting protection and fuse protection. If something wrong happens, the machine will stop in time, which will help recuce the damage to the product.
  • Easy PLC Function
Easy PLC function of the VFD drive can realize 16 legs of speed and inverter control function with extremely strong anti-jamming capability. It has many advantages like small size, light weight and low energy consumption.
  • Fast Assemble
All devices needed for installation is provided in the box. The English manual will be provided for the variable frequency drive inverter. It's easy and convenient for you to finish a fast assemble.
Technical Parameters for Variable Frequency Drive Inverter
  • Input Voltage: 220 V
  • Output Voltage: 208-240 VAC ( analogous to Input Voltage )
  • Input Frequency: 48-63 Hz
  • Output Frequency: 0-400 Hz
  • Input Phase: 1 or 3 phase as you like
  • Output Phase: 3 phase
  • Control Mode:SPWM
  • Input Power:220V class：220±15%
  • 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
  • Working Temperature:-10~40 ℃
  • Humidity:0-95% Relative Humidity (without dew)
  • Vibration: Below 0.5G
  • Dimension: 22 x 18 x 21 cm (L x W x H)

Technical Parameters for Spindle Motor

  • Spec: φ65x188 mm (Diameter:65mm x Length:188mm)
  • Power: 1.5 KW
  • Voltage: 220V~250V
  • Frequency: 400 Hz
  • Speed:8000-24000 R/min
  • Water Cooling
  • Runout off: less than 0.005 mm
  • Grease Lubrication
  • Product Dimension: 29 x 13 x 12 cm (L x W x H)
  • Gross Weight：3.2KG(7.05 lbs)
Package for Variable Frequency Drive Inverter
  • 1 x 1.5KW Variable Frequency Drive Inverter
  • 1 x English Manual
Package for Spindle Motor
  • 1 x 1.5KW Water Cooled Spindle Motor
