Features & Details

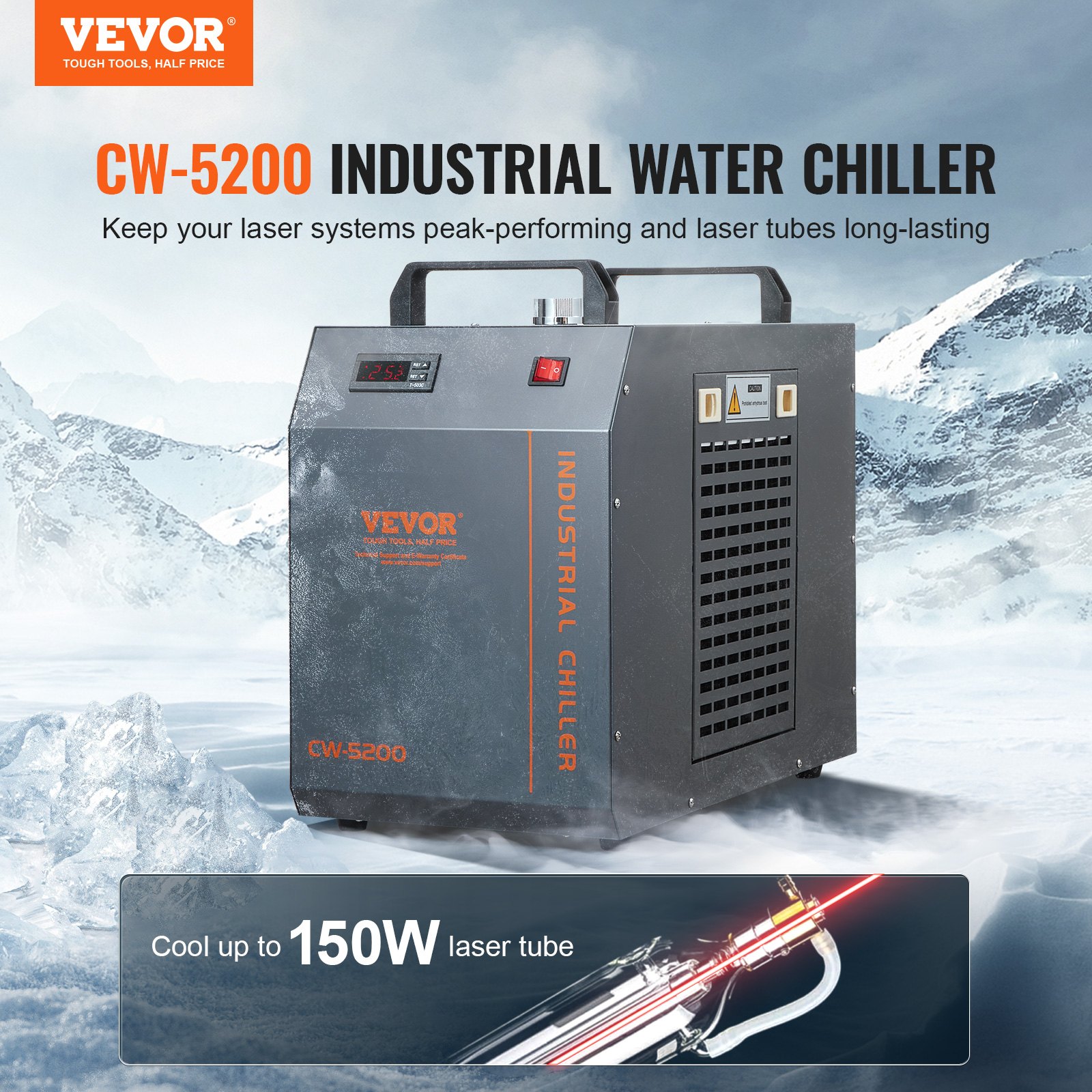

- CW-5200 Industrial Chiller: Our industrial chiller is equipped with a 30W high-power water pump, achieving a maximum flow rate of 13L/min, designed to cool CO₂ laser tubes during operation efficiently. It ensures optimal performance of the laser system and extends the life of the laser tubes, cooling laser tubes up to 150W.

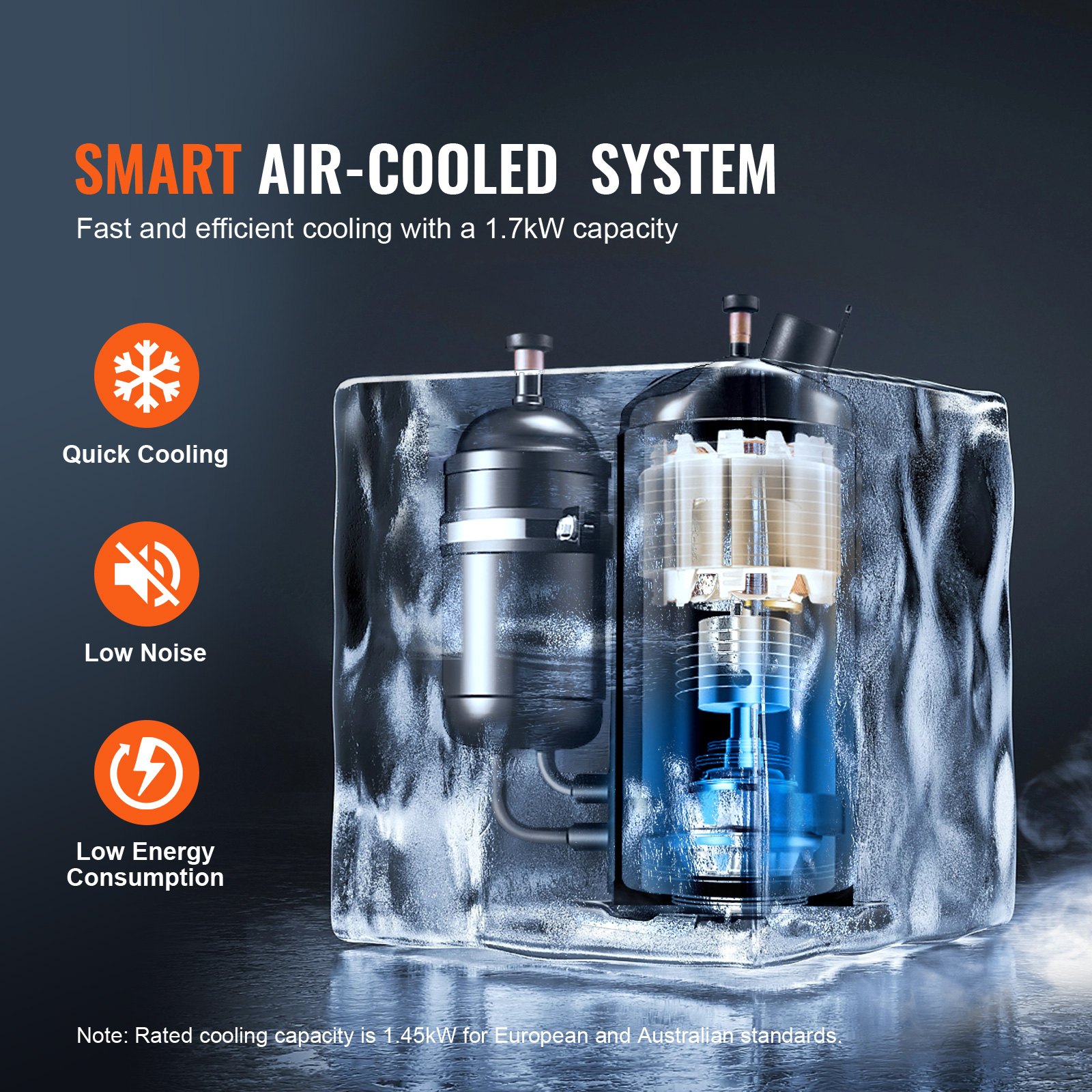

- 1.45kW Cooling Capacity: Our industrial water chiller is equipped with a compressor that uses the standard R134a refrigerant, quickly reducing temperatures to your preset levels. It delivers a fast and effective cooling solution, ensuring that your laser cutting and engraving machines stay cool throughout their operation. Keep your equipment at the perfect temperature for optimal functionality.

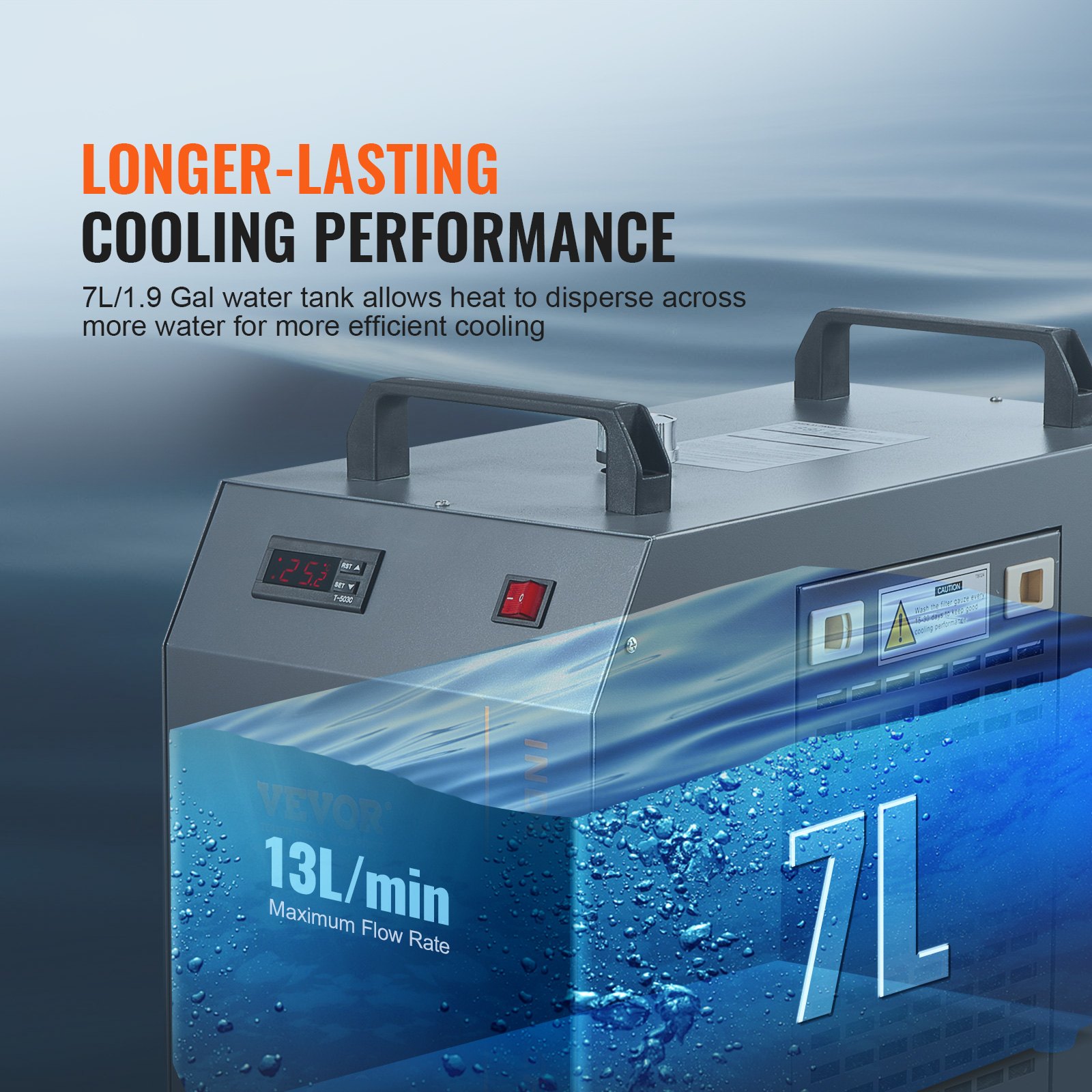

- Longer-Lasting Cooling Effect: Featuring a large 7L water tank, our industrial water chiller allows heat to dissipate across a greater volume of water, offering a more sustained cooling effect. The clear observation window keeps you informed about when it's time to refill water. Say goodbye to constant check-ups and hello to continuous, seamless cooling.

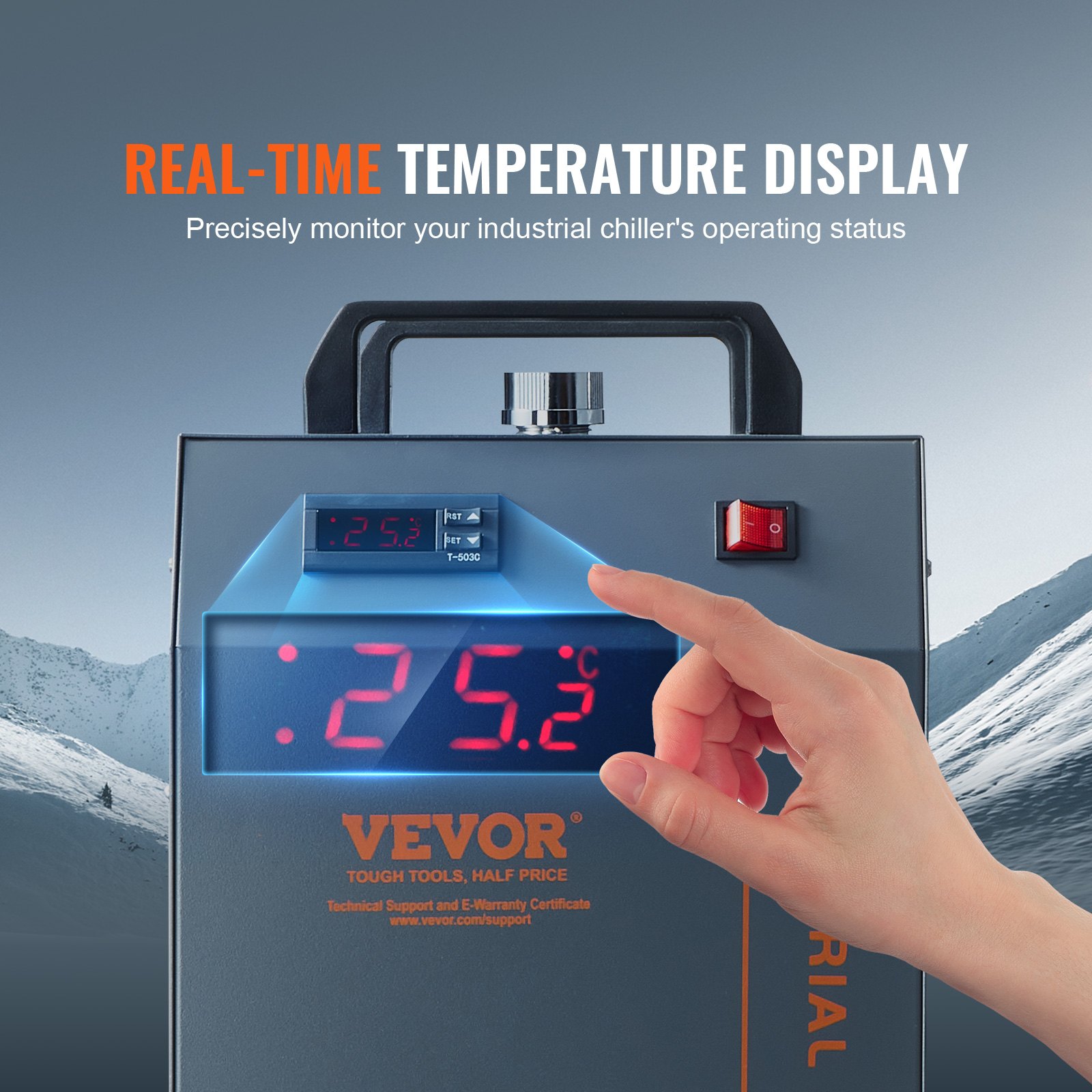

- Instant Water Temperature Display: Experience real-time precision with our industrial chiller, equipped with an accurate temperature monitor that displays current water temperatures directly on the screen. Enhanced with 2 status indicator lights, ensuring you can precisely monitor the operational status of your industrial chiller. Stay informed and in control with real-time updates for peak performance!
- Multiple Alarm Functions: Our professional laser chiller enables continuous monitoring with internal sensors, indicator lights, and built-in alarms. It is equipped with multiple alarm functions, including flow alarm, over temperature alarm, and water pump failure alarm, allowing you to focus on your work with peace of mind, knowing that your cooling system is fully safeguarded against potential issues.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 9 reviews
Reviews 4.9
All reviews are from verified purchases
THOMAZ
Reviewed on Dec 26,2025
I loved this product, it is of excellent quality
See Less
See More
Ivan
Reviewed on Nov 23,2025
Perfect for our Omtech 80W Co2 laser. Easy to use. Works great
See Less
See More
Gabriel
Reviewed on Oct 14,2025
I use it to cool a ball mill that makes spreadable chocolate. It cools very well.
See Less
See More
Dusan
Reviewed on May 31,2025
After a two weeks of the use, I am not happy how noisy this thing is once the compressor kicks in. I have set up the chiller to 17 degrees and the compressor starts working when the temperature reach 19 degrees. That is fine, but it behave strange I would say. It brings the temperature down to 18.3 degrees, then it goes up to 19 and finally down to 17. Then the compressor stops, but temperature keeps going down to around 14.5 degrees. It takes around 10-15 minutes and those are very noise minutes :)
Overall, it does it's job so can not complain about that, but that noise....
See Less
See More
See all 9 reviews
About this item

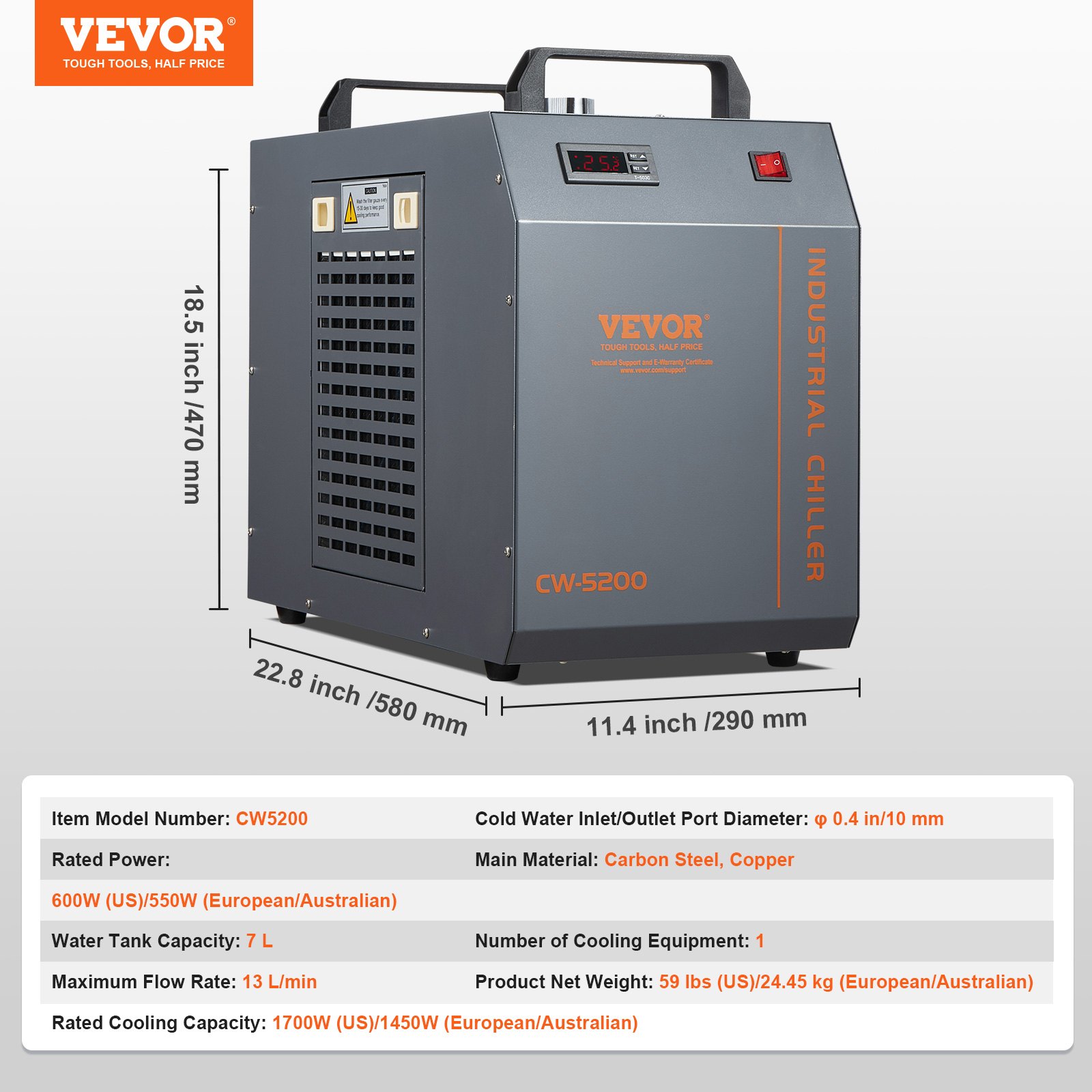

Product specification
- Item Model Number
- CW5200
- Rated Power
- 550W
- Water Tank Capacity
- 7 L
- Maximum Flow Rate
- 13 L/min
- Rated Cooling Capacity
- 1450W
- Cold Water Inlet/Outlet Port Diameter
- φ 0.4 in/10 mm
- Main Material
- Carbon Steel, Copper
- Refrigerant
- R134a
- Number of Cooling Equipment
- 1
- Product Net Weight
- 24.45 kg
Description

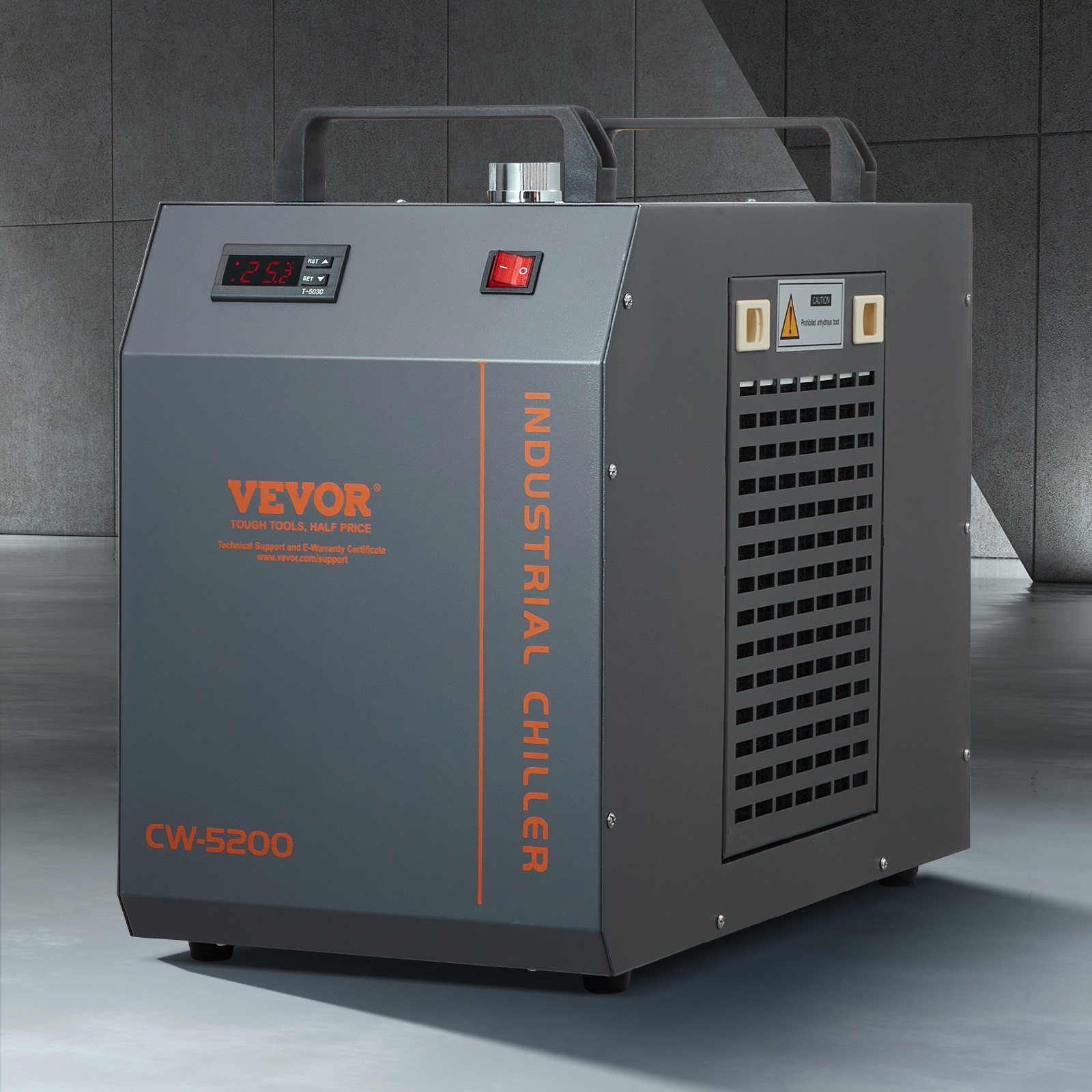

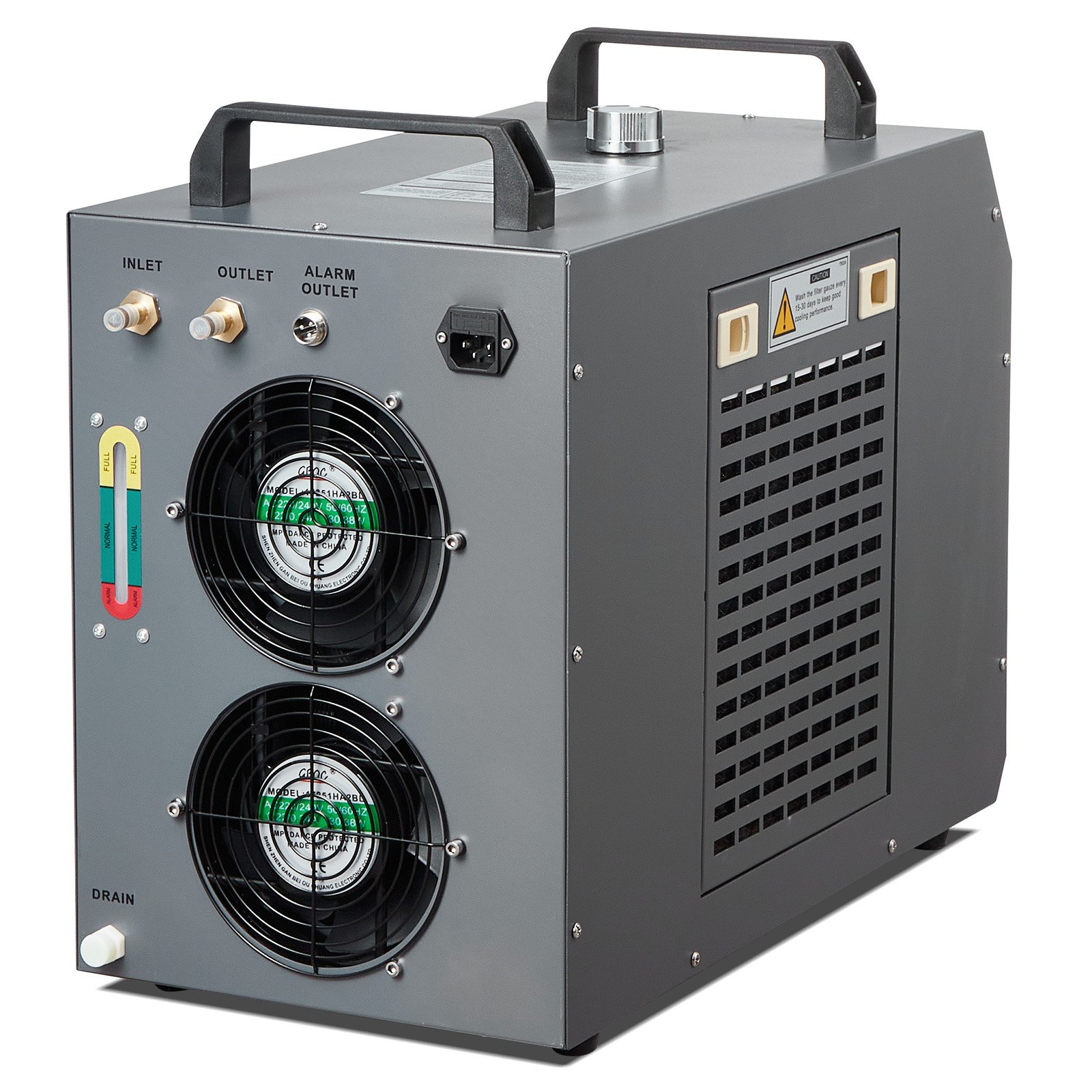

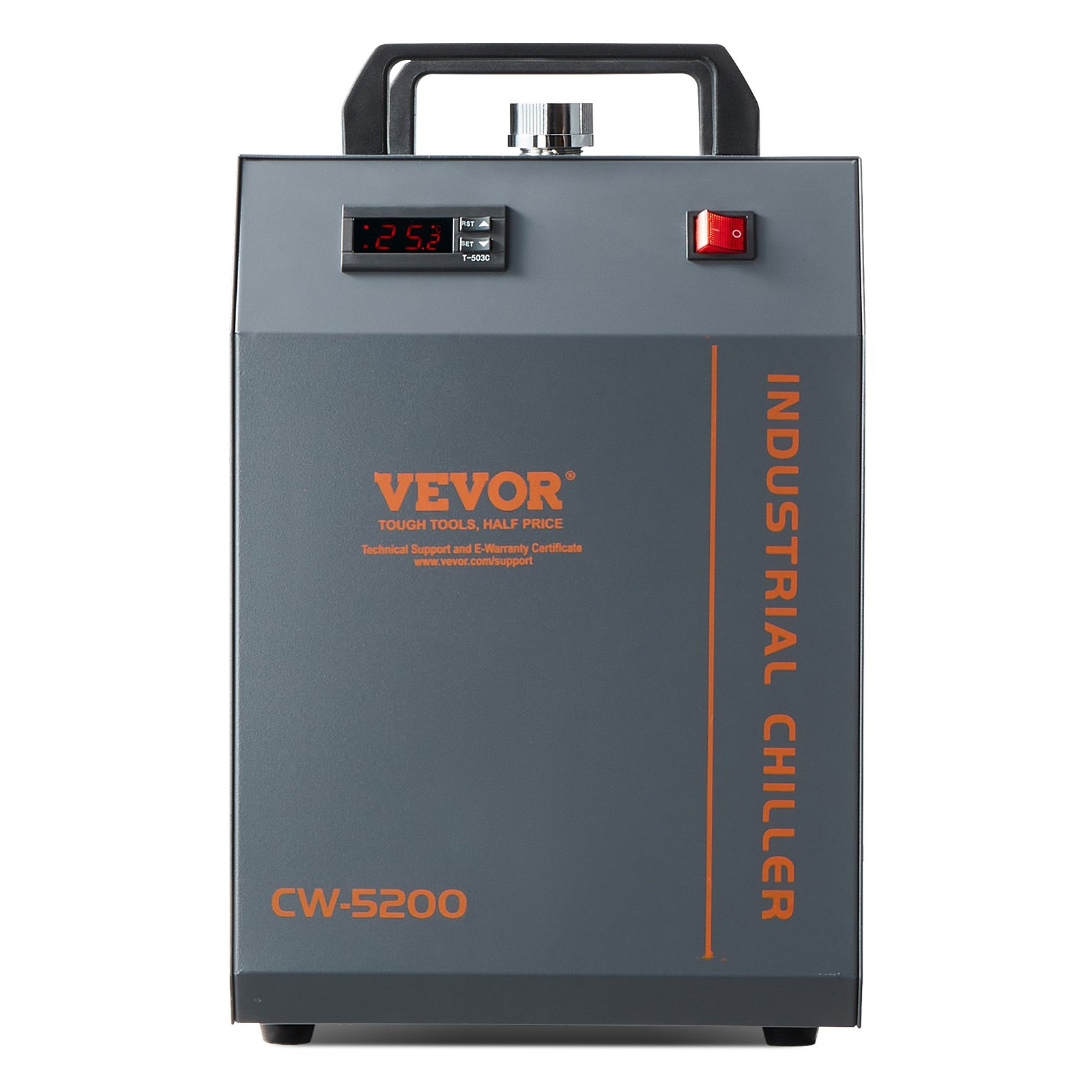

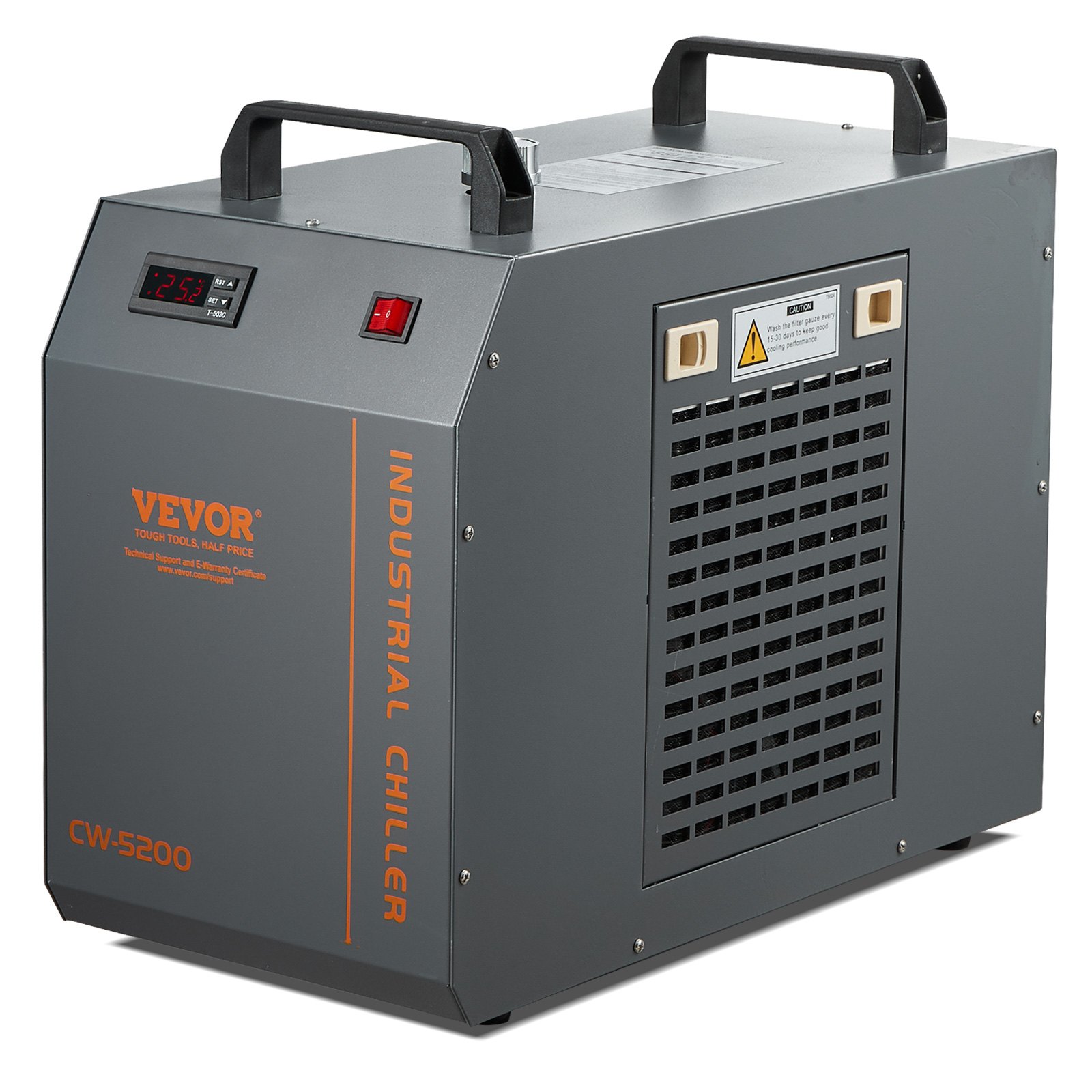

CW-5200 Industrial Water Chiller
Our CW-5200 industrial chiller features a built-in compressor for machinery requiring compact water cooling solutions. With a 7L water tank and built-in cooling fan for superior ventilation, it is ideal for CO₂ laser engraving machines with laser tubes rated up to 150W.
Equipped with a powerful water pump, our industrial chiller guarantees that water flows at the perfect speed to swiftly dissipate heat from your laser tubes, resulting in highly efficient cooling performance.

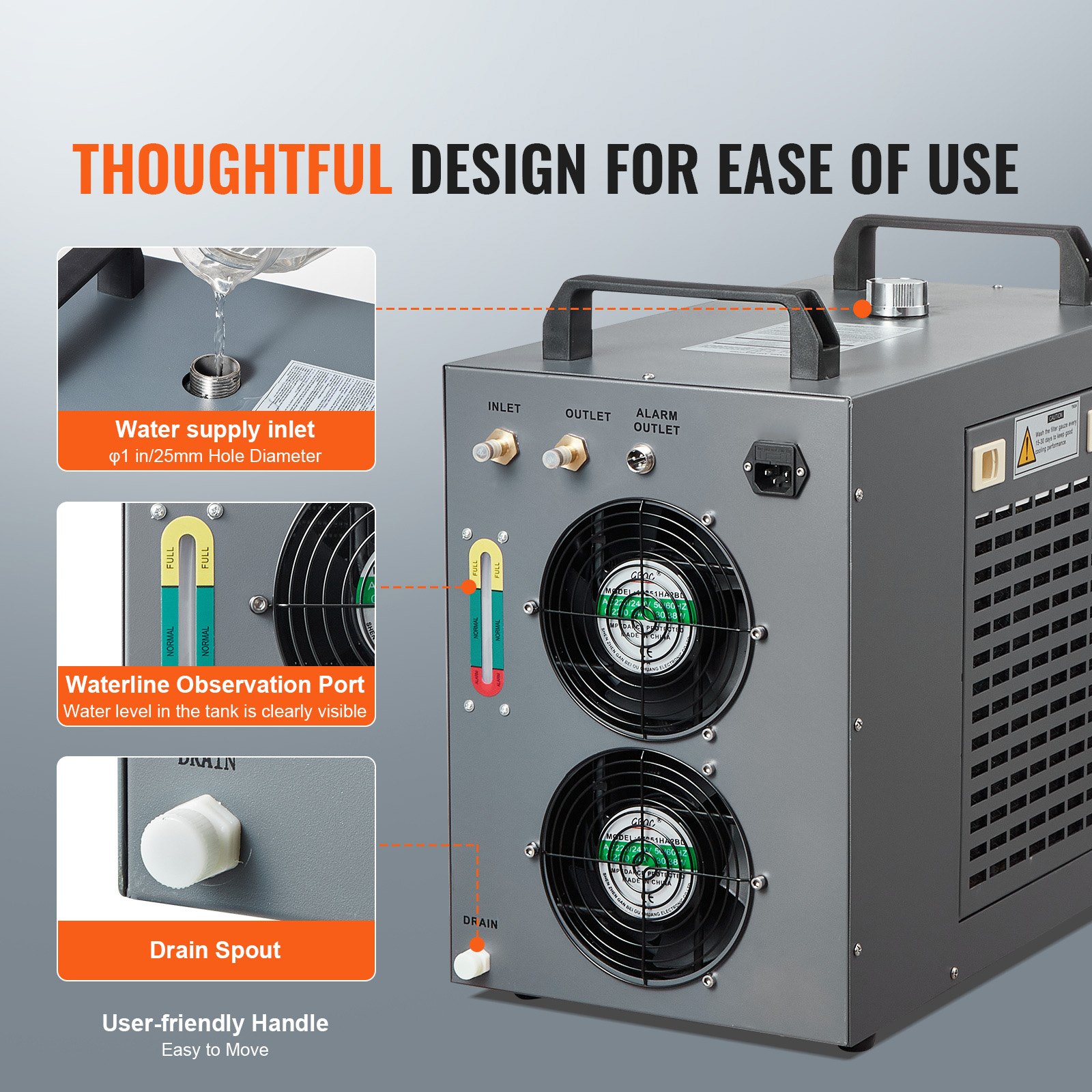

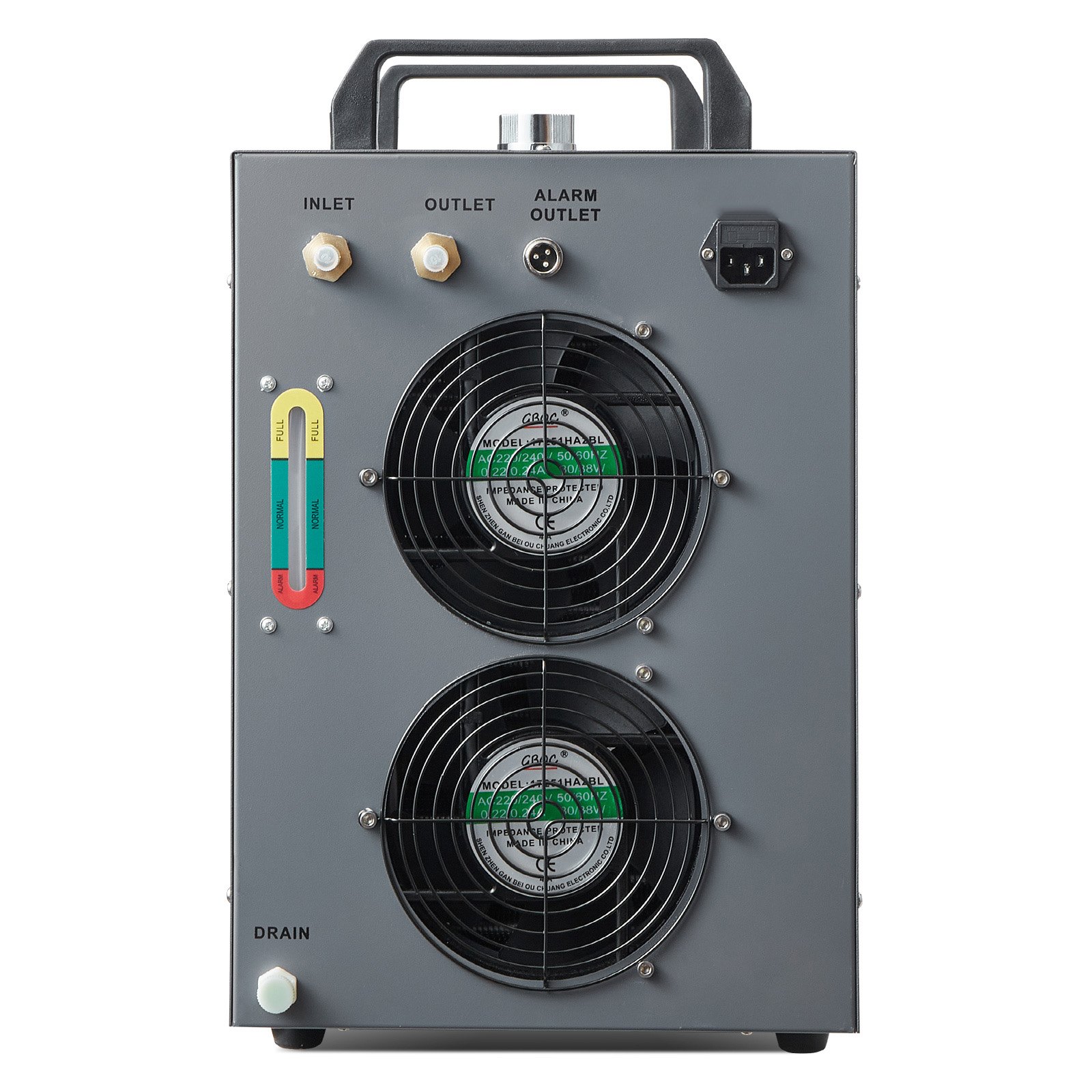

Our industrial water chiller is equipped with visual water level, allowing you to directly monitor the water level in the tank, making it effortless to determine when a water refill is needed. It maintains optimal cooling efficiency and avoiding heat dissipation issues caused by low water levels.
The overcurrent protection automatically cuts off the power if the current exceeds secure thresholds. The flow alarm actively monitors the water flow to remain within the preset normal range. The overtemperature alarm continuously tracks the temperature, avoiding potential damage from overheating.

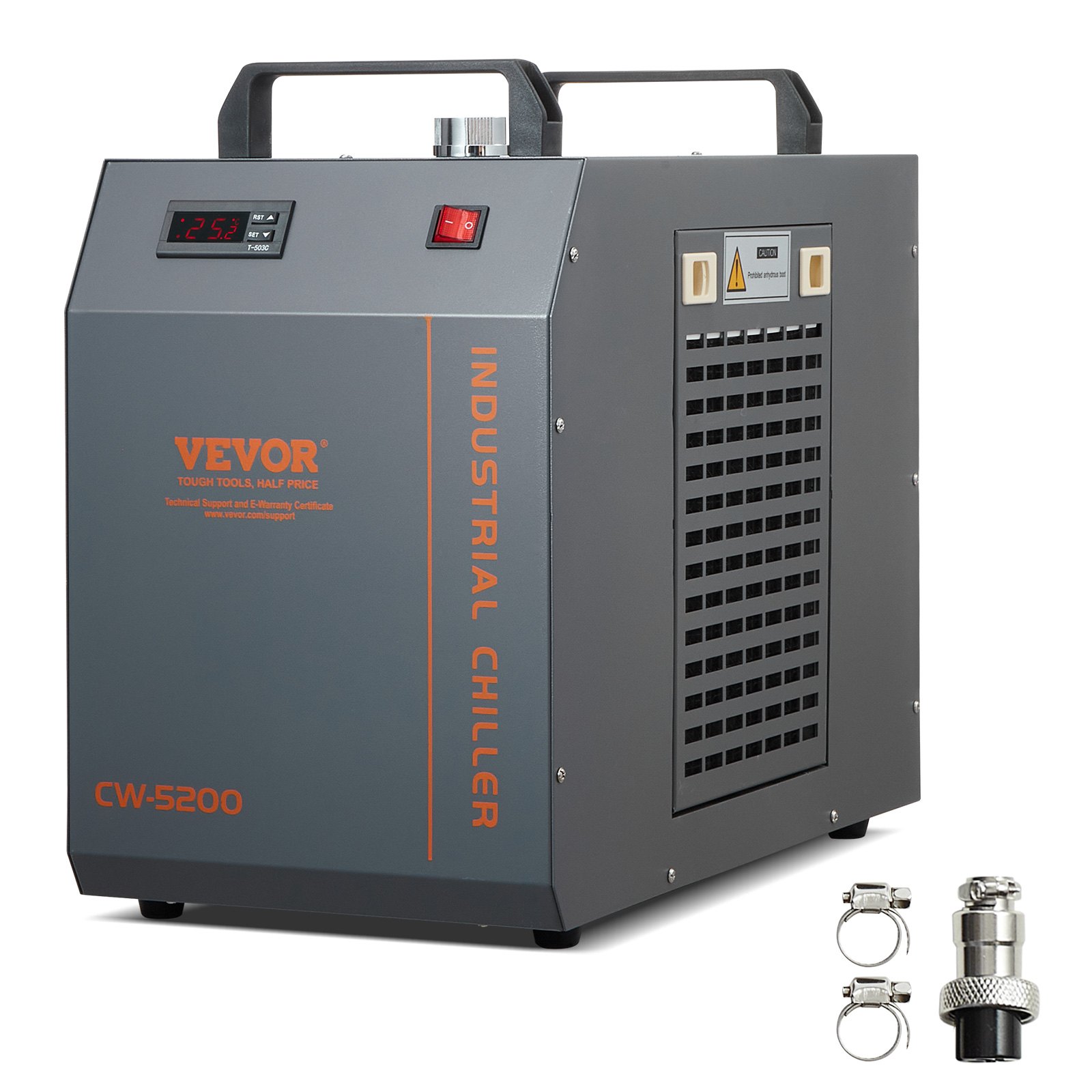

Our water chiller comes with 2 sealing hoops and a Teflon tape, designed to reinforce the seals at connection points, ensuring stability and give you an extra layer of security, keeping your setup leak-free and functioning flawlessly.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (6)
what ratio of propylene glycol to distilled water is recommended fo the 5202 chiller? (I live in a area where it does drop below freezing)
The ratio is 2:1.
By vevor
Helpful
(
0
)
What size is the thread on the drain plug?
Dear Customer, Thanks for your inquiry.
It is 1 mm spacing thread.
By vevor
Helpful
(
0
)
Potrebujem chladiť vodu na plus 2 stupne . Je niečo take v ponuke? Prietok aspoň 7l /min.
Najnižšia teplota chladenia je 15 ℃, 2 ℃ nestačí.
By vevor
Helpful
(
0
)
Hi. Does it have a built-in water pump? If yes on what pressure does it deliver the 13 l/min?
It has a built-in water pump, and when it is turned on, it will output water at maximum capacity, and the water flow rate cannot be adjusted.
By vevor
Helpful
(
0
)
What is the maximum static pressure, for flow into inlet port? Can it take 10 bar?
No, it cannot take 10 bars.
By vevor
Helpful
(
0
)
