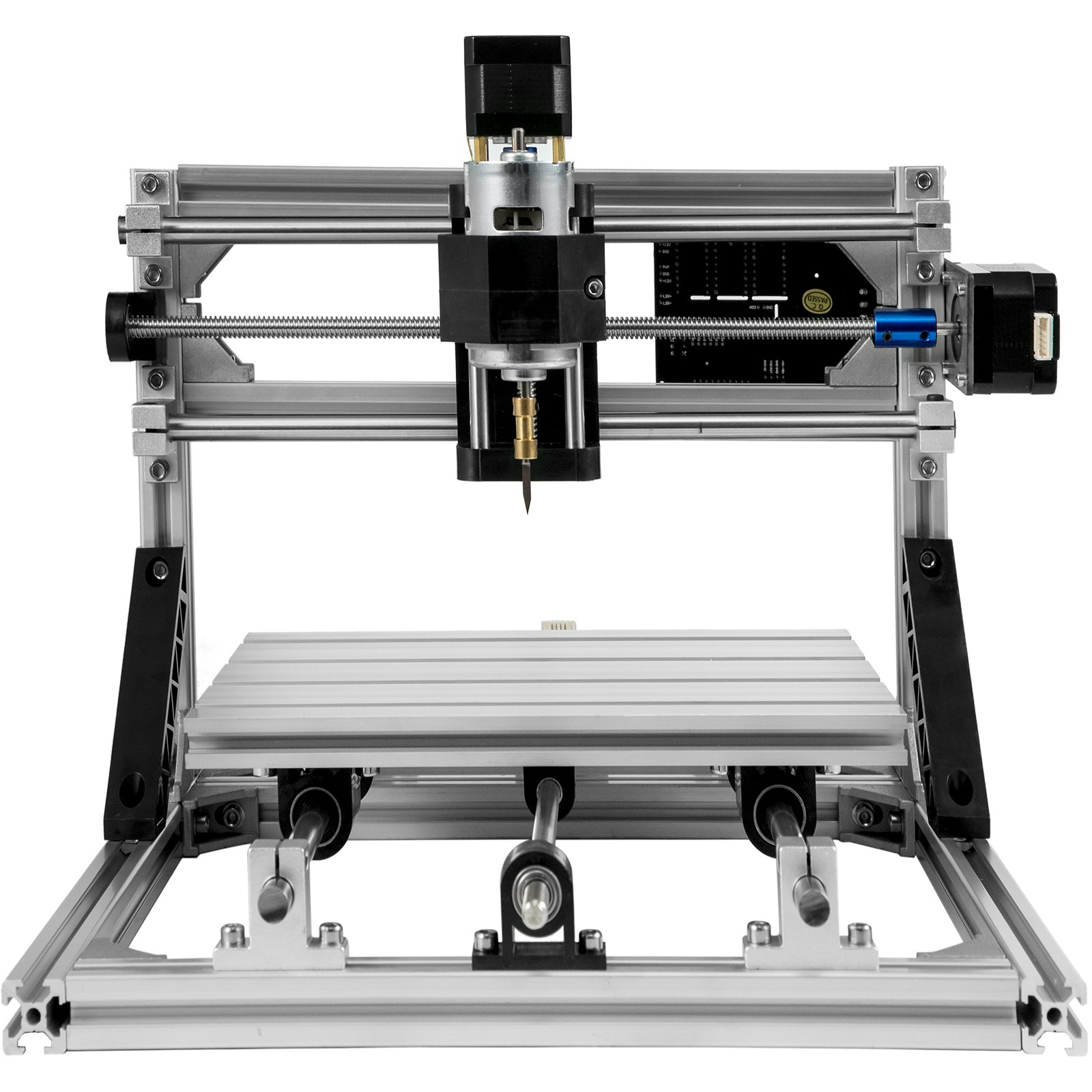

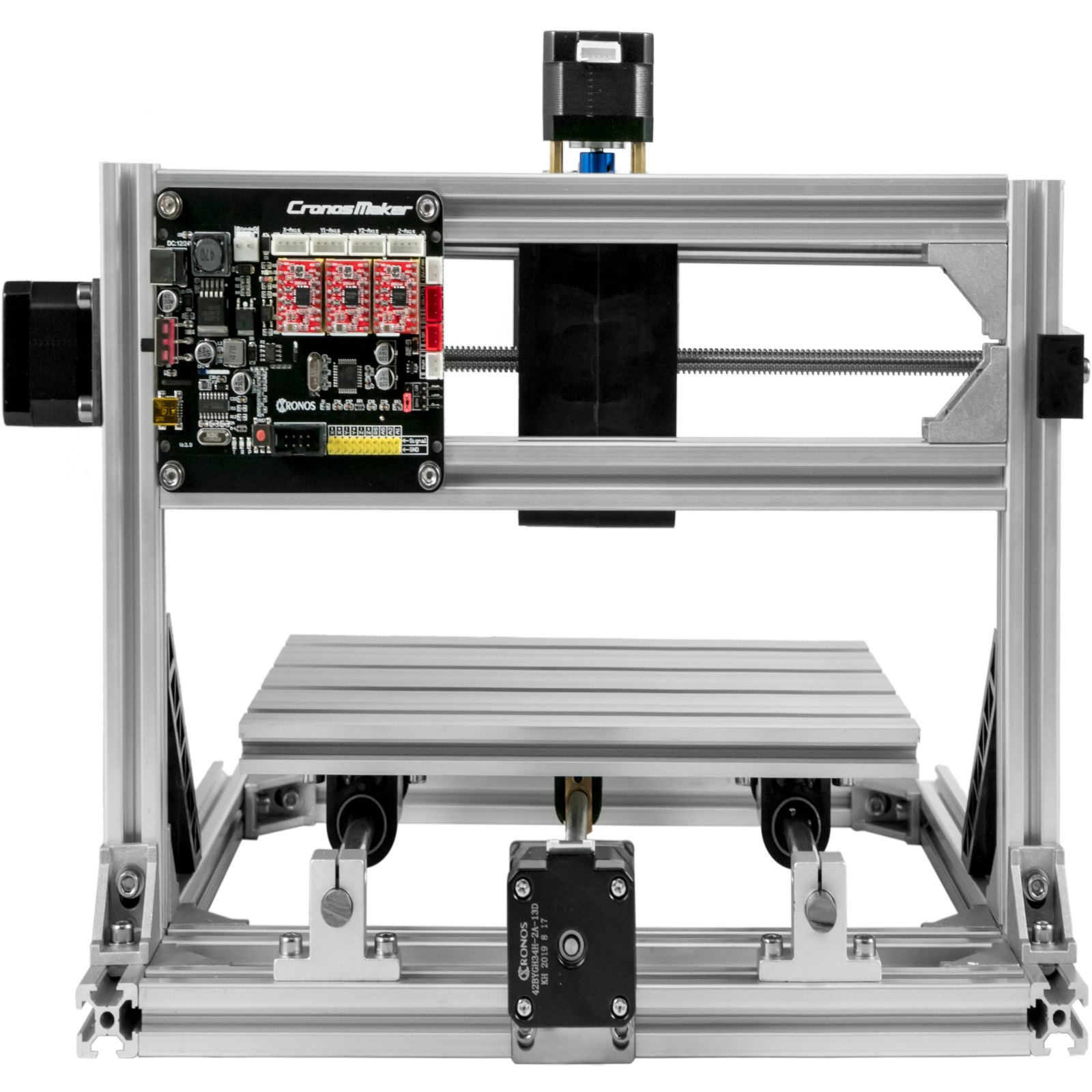

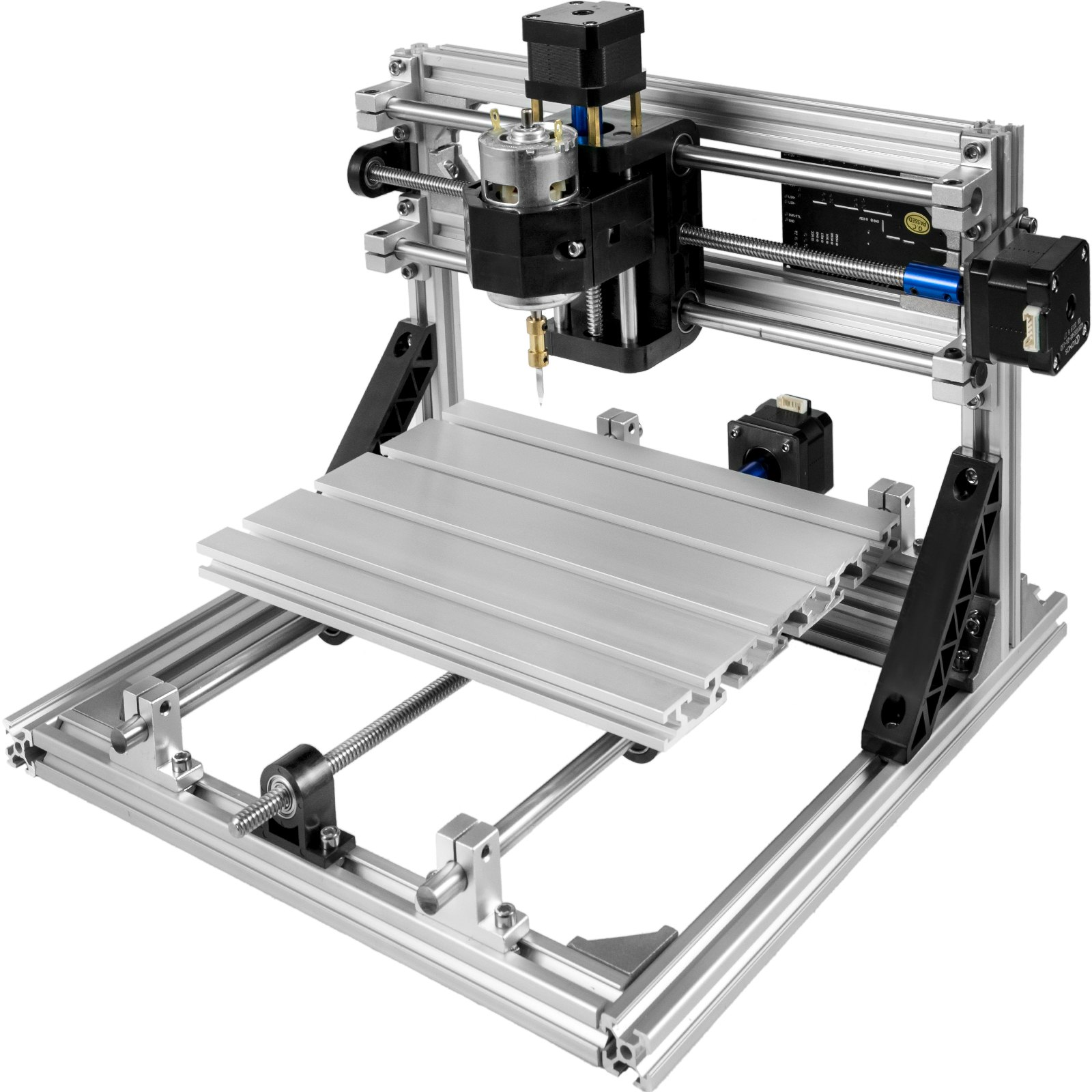

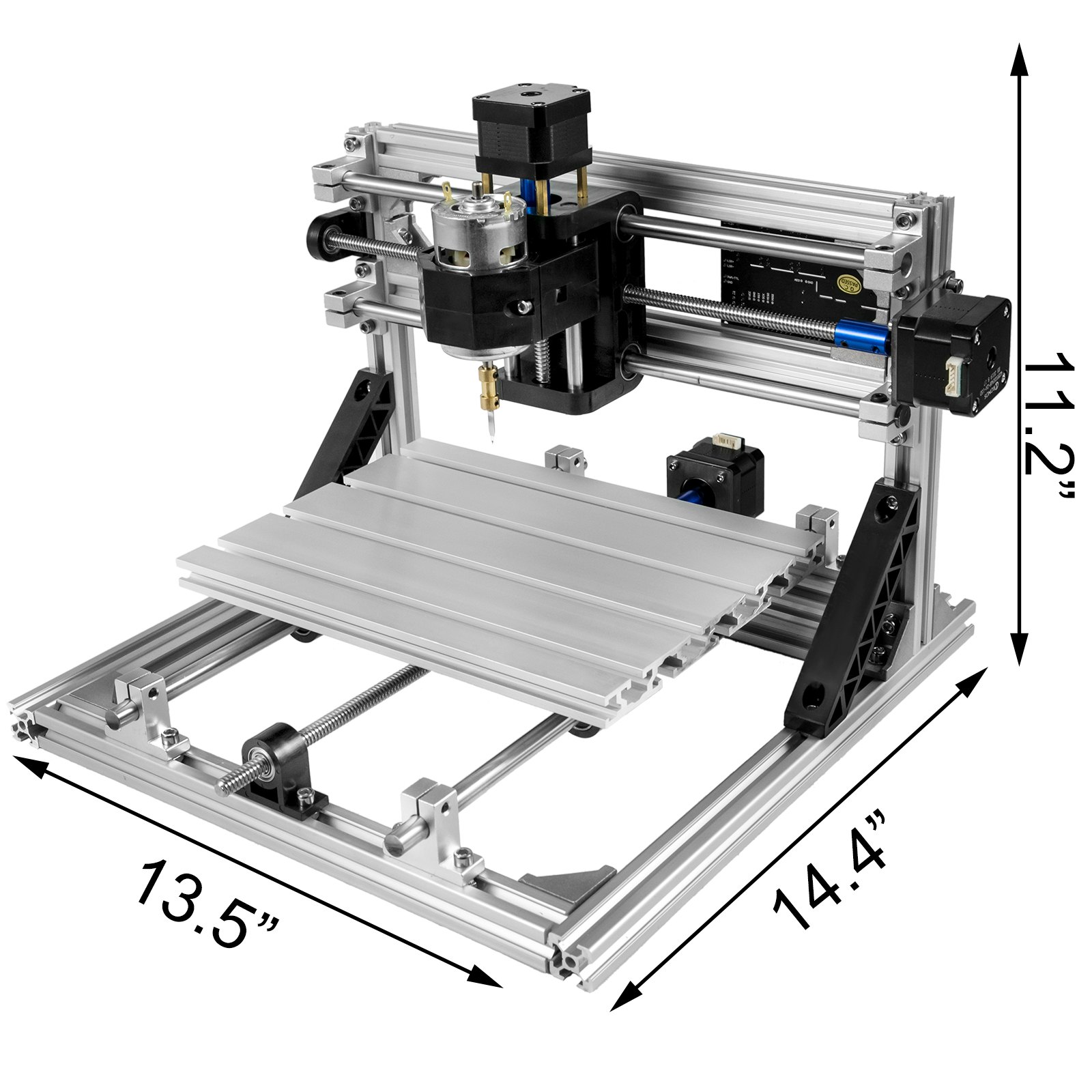

CNC 2418 DIY Engraving Machine
This CNC engraving machine with effective working travel of 9.4"(X)x7.1"(Y)x1.6"(Z), is made of aluminum profiles and black injection molding materials. It features USB port, GRBL control board, and an offline controller, able to be controlled easily with/without computers. It can be used to engrave all types of plastics, soft aluminum, woods, PVCs, etc., which is an excellent affordable self-learning engraving tool!
- Premium Quality
- Ease Of Use
- Convenient Control
- High Performance

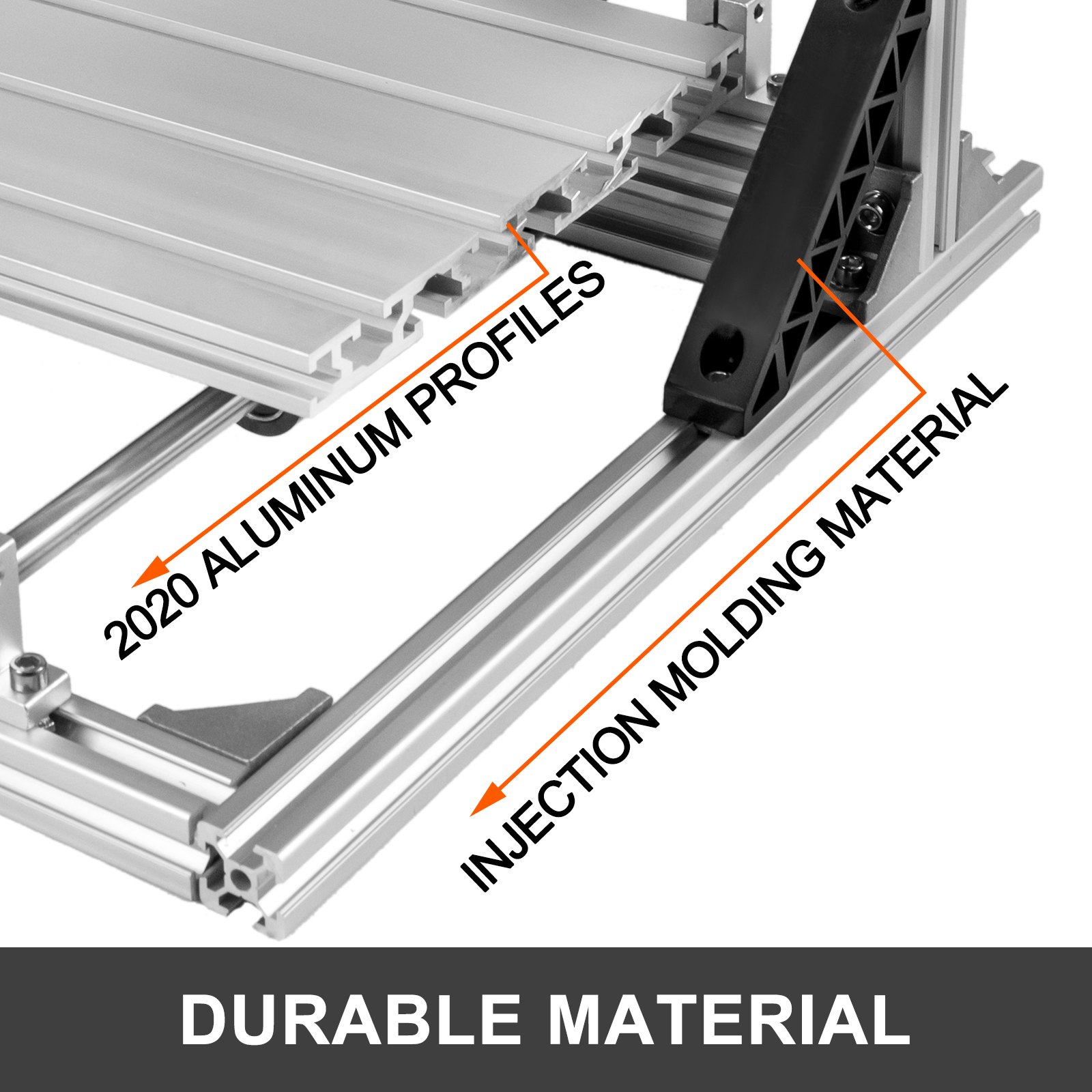

Durable Material
Made of 2020 aluminum profiles and black injection molding material, which is of good appearance, high precision and durability.

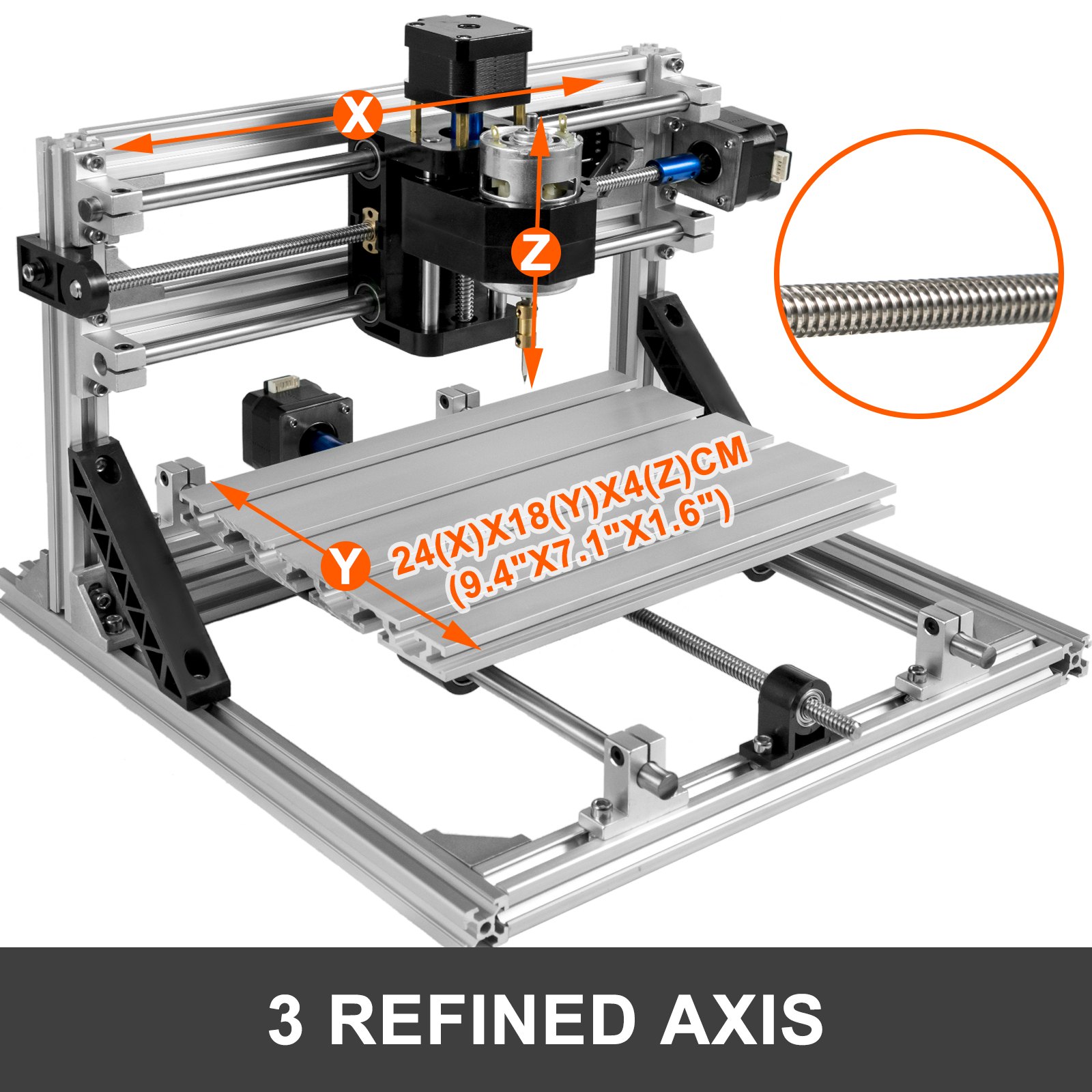

3 Refined Axis
3 axis is able to realize plane engraving, with effective working travel of 240(X)x180(Y)x40(Z)mm (9.4"x7.1"x1.6"). The driving units consists of T8 stainless steel screw rods.

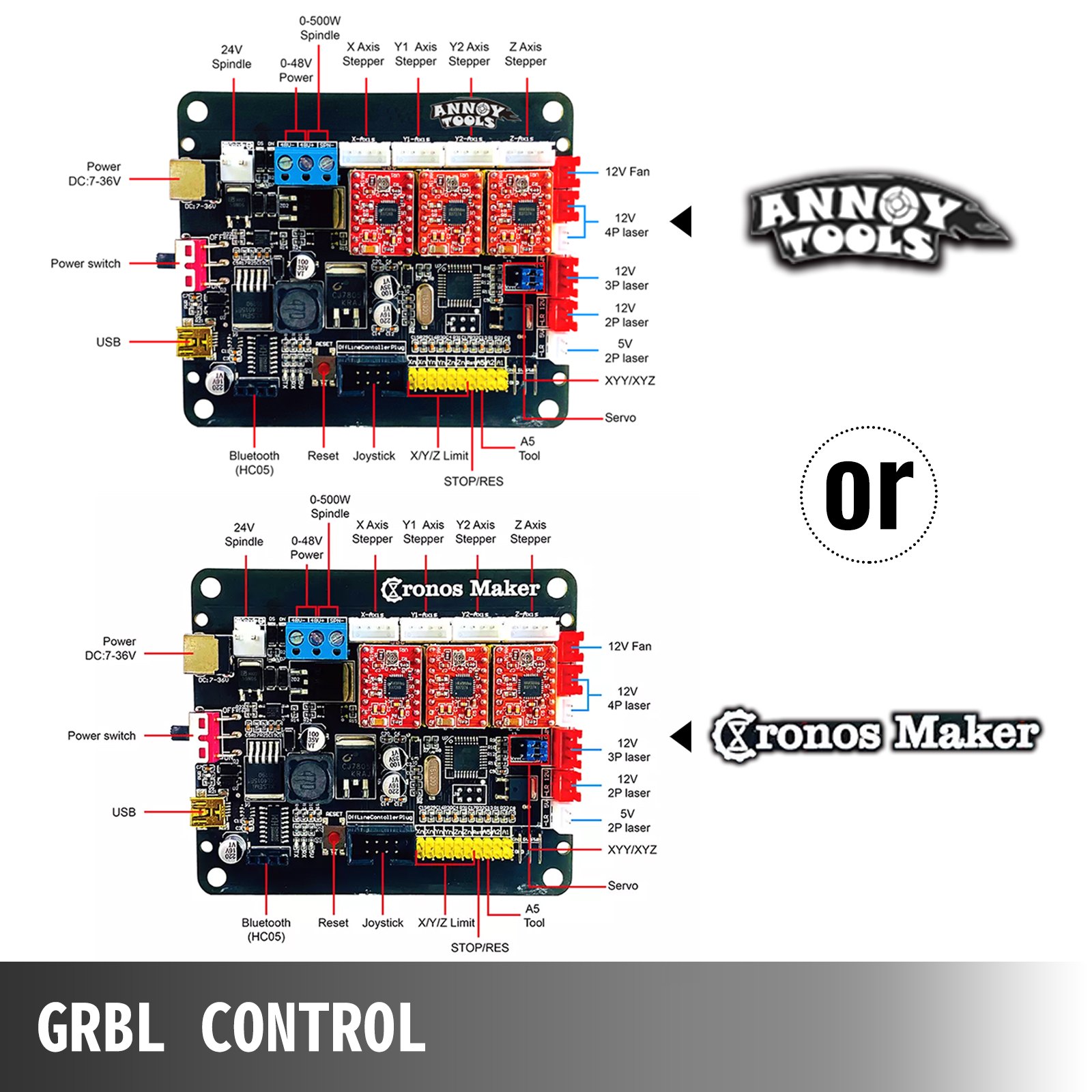

GRBL Control Board
Can be connected to a computer via a USB interface. Able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance.

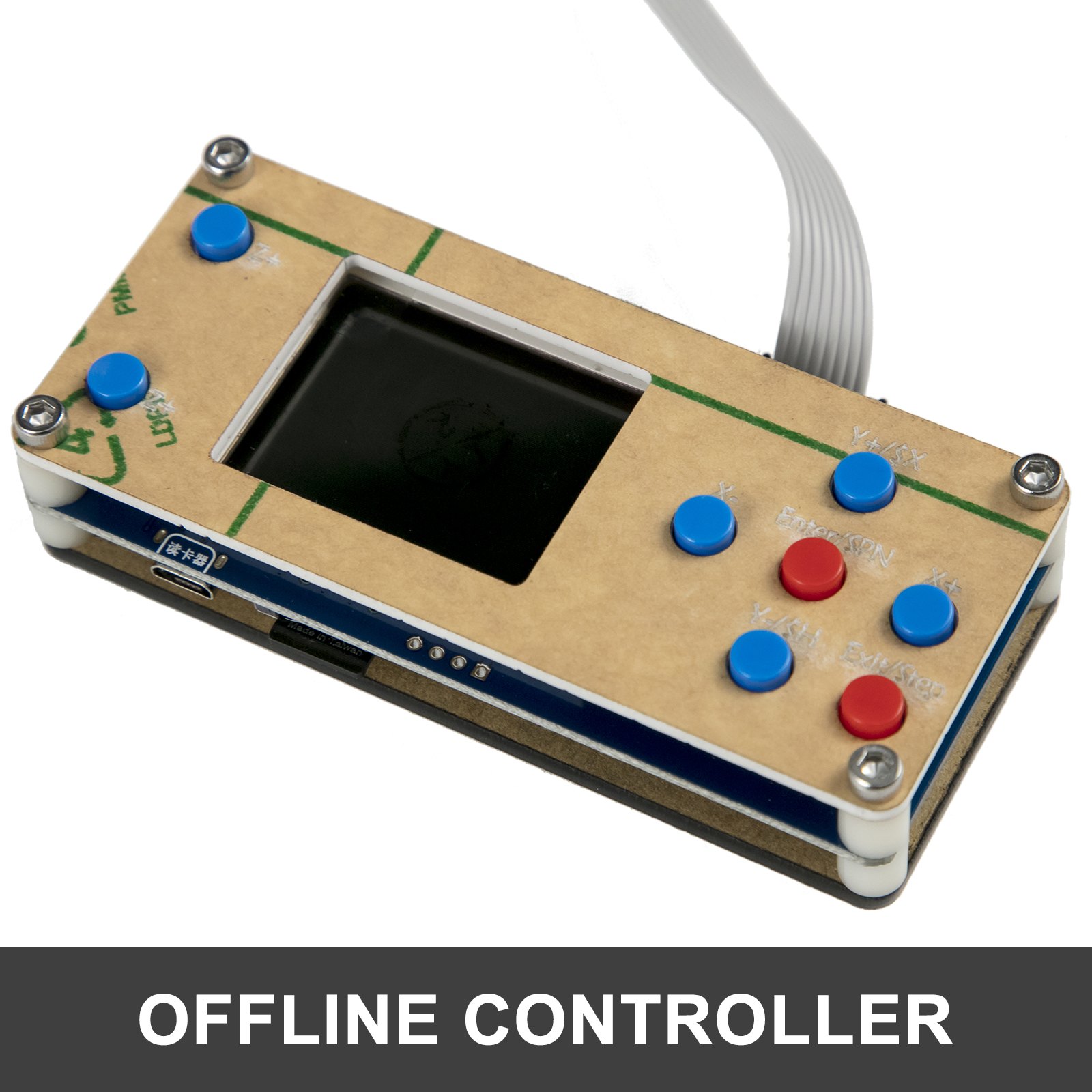

Offline Controller
A multifunctional offline controller is configured to remotely control the engraver without connecting to a computer.

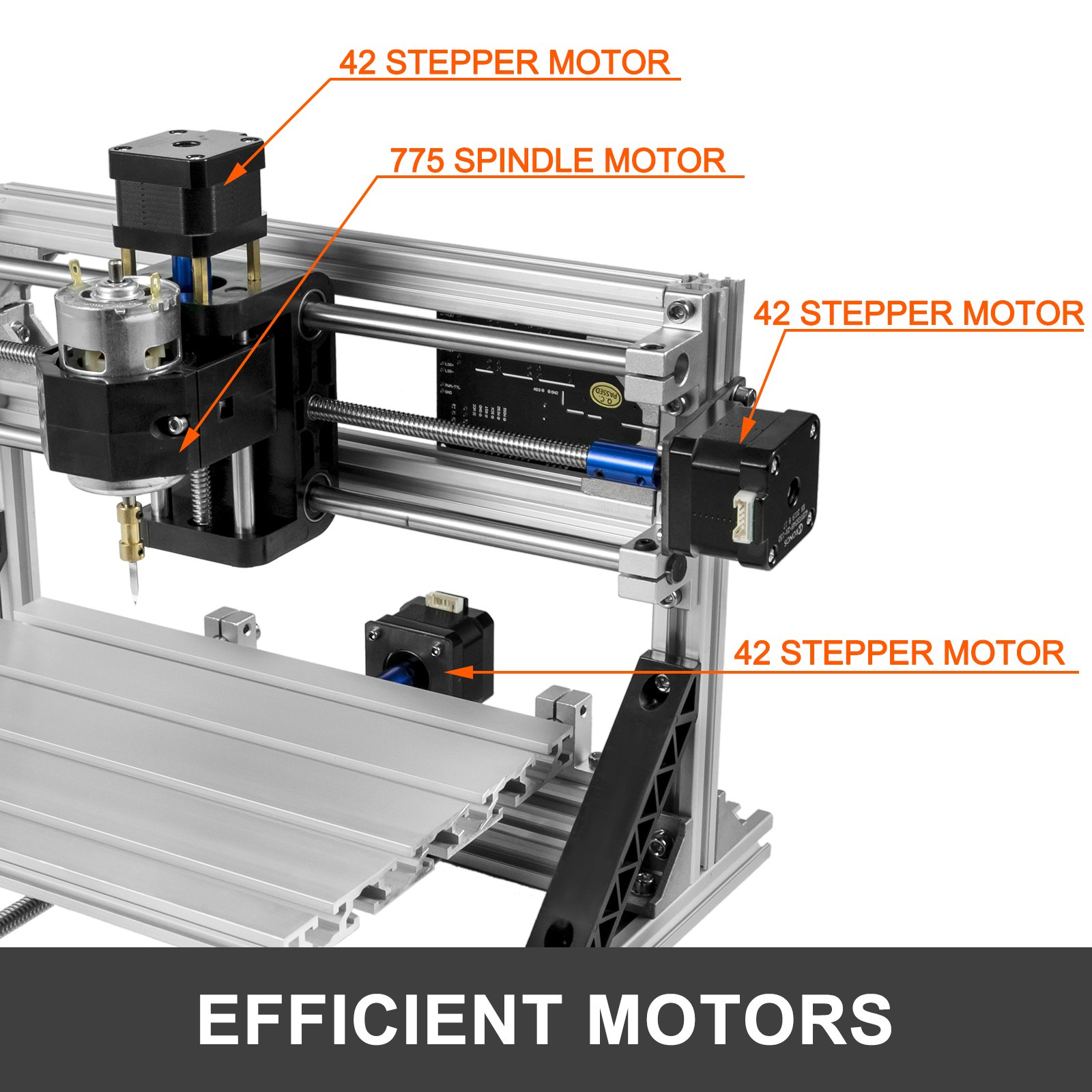

Efficient Motors
Three 42 stepper motors are included on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min.
Wide Application
Capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, and a wide range of other soft materials.

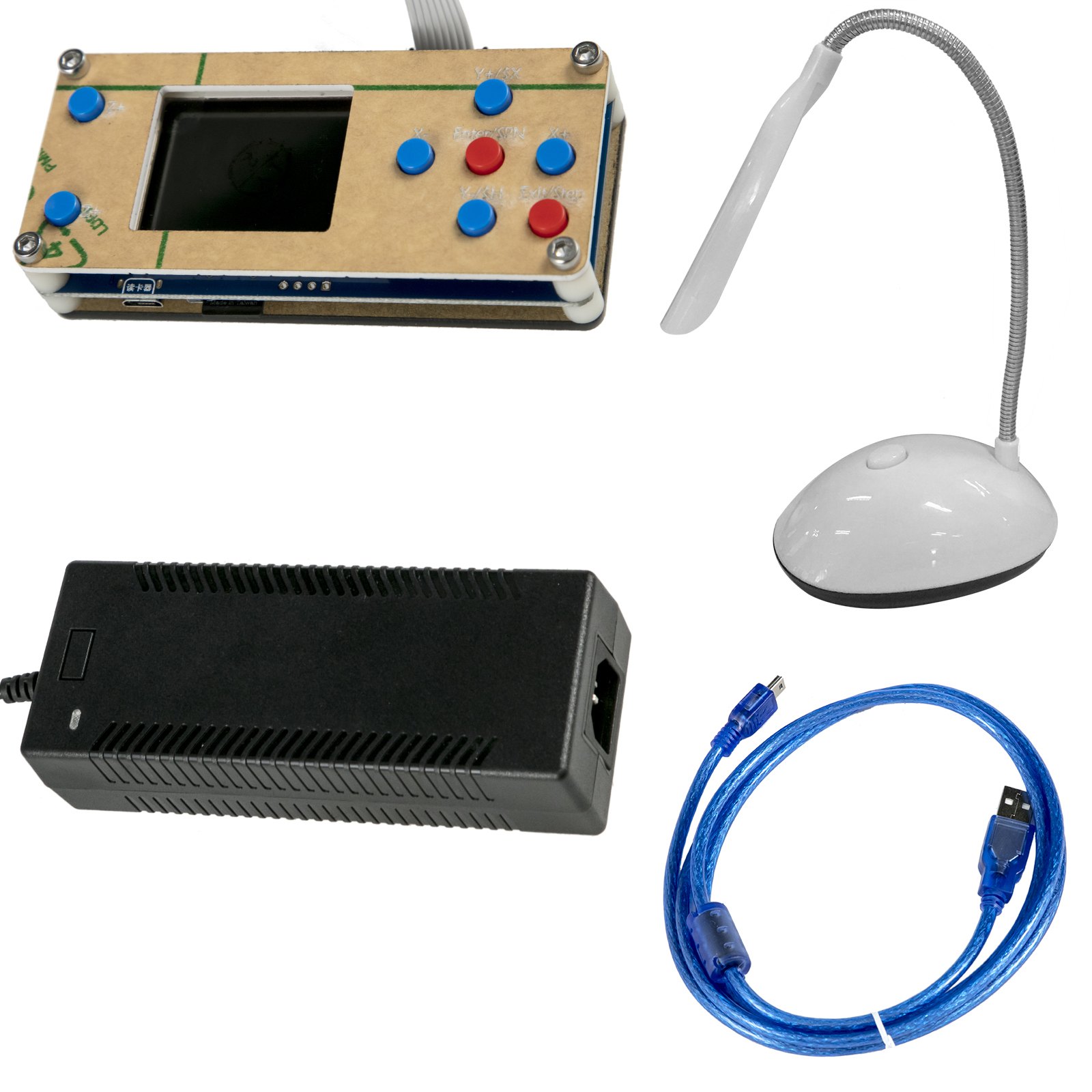

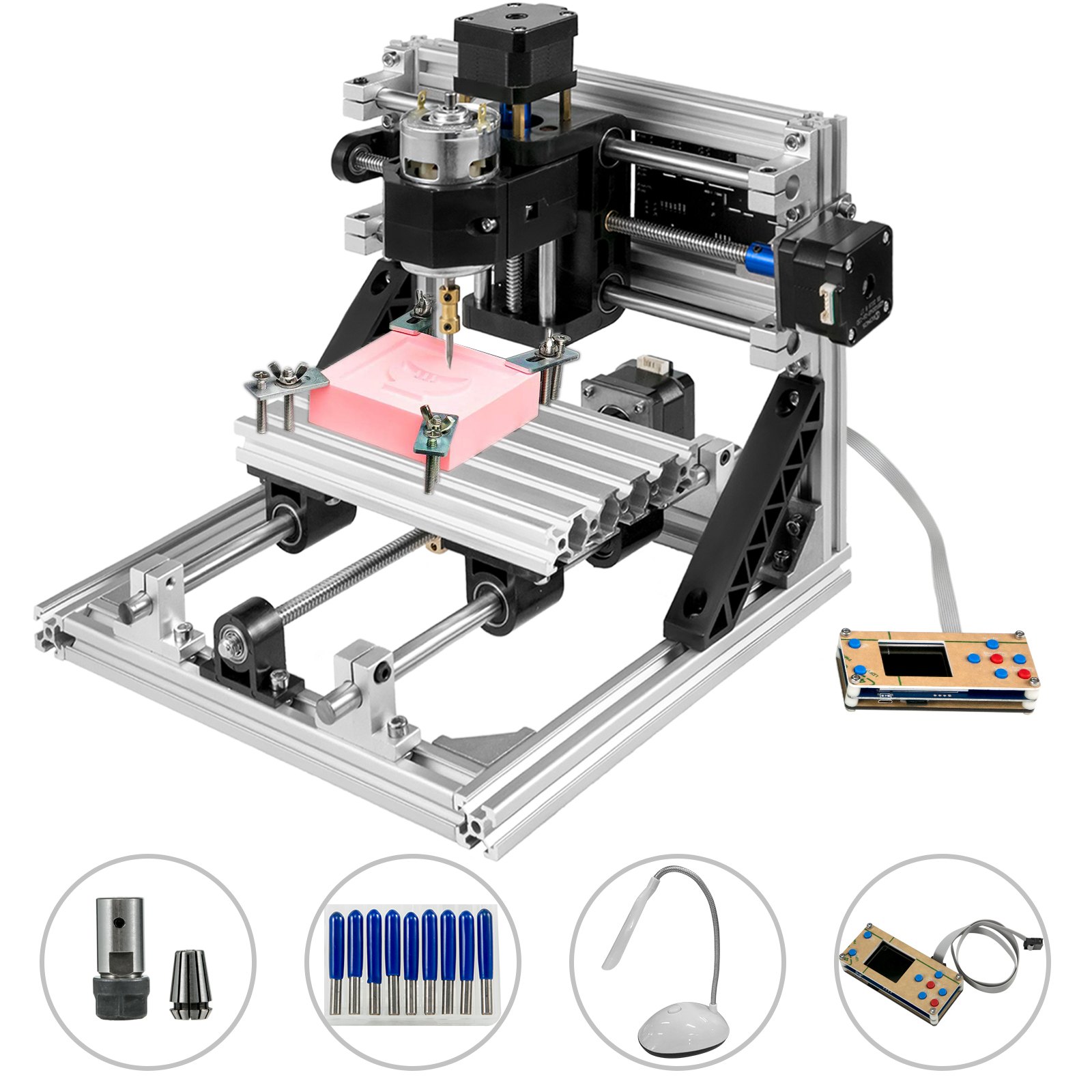

Package Content
- 1 x CNC 2418 Router Kit
- 1 x Offline Controller
- 1 x USB Drive
- 1 x Table Lamp
- 1 x Set of Tools
Specifications
- Effective Working Travel: 24(X)x18(Y)x4(Z)cm (9.4"x7.1"x1.6")
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm/min
- Input Power: DC 24V
- Positional Accuracy: 0.08-0.1mm (0.003"-0.004")
- Gross Weight: 16.2 lbs (7.36 kg)
