VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood
MGDKJ3018M5.5W001V2

VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood

See All Customer Reviews
171 Reviews 5 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【DURABLE ALUMINUM PROFILES】 - CNC 3018 PRO is an upgraded version of 3018 CNC. The frame is mainly made of aluminum alloy and bakelite materials, with high strength and high precision. Also, it has two pieces of acrylic bezels on both sides, so you can safely monitor the engraving process. The working travel of this engraving machine is 300(X) x 180(Y) x 45(Z) mm.
  • 【UPGRADED THREE AXES】 - Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of T8 stainless steel screw rods whose lead distance is 4 mm. It uses double copper nuts to clear round trip errors.
  • 【GRBL & OFFLINE CONTROL】 - The GRBL control features an XYZ axis drive and full functionality. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.
  • 【HIGH-SPEED MOTORS】 - This CNC engraving machine is equipped with three 42 stepper motors and a 775 (12-36V) 24V spindle motor with a rotational speed of 10000r/min. Also, an extra 5500mw laser whose wavelength is 450nm is available for you. And the engraver supports Windows XP SP3, win7, win8, win10 (32/64), macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • 【EFFORTLESS OPERATION】 - For your convenience, we provide a detailed user manual, assembly instructions, and installation video. Assemble the engraver machine according to the installation instructions; then, you can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVCs, PCBs, and many more.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR CNC 3018 Pro CNC Router 300×180×45 mm CNC Machine 5.5W GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood
Description Specification Questions and Answers Reviews

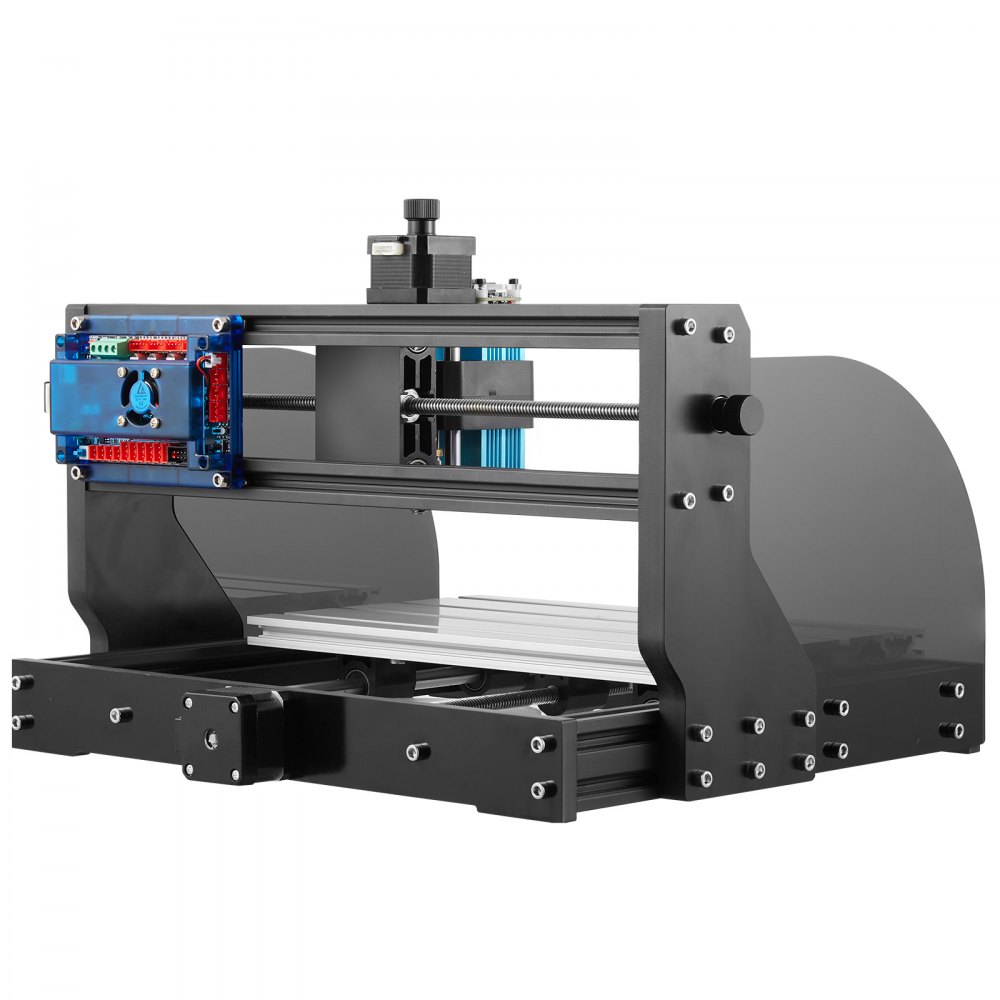

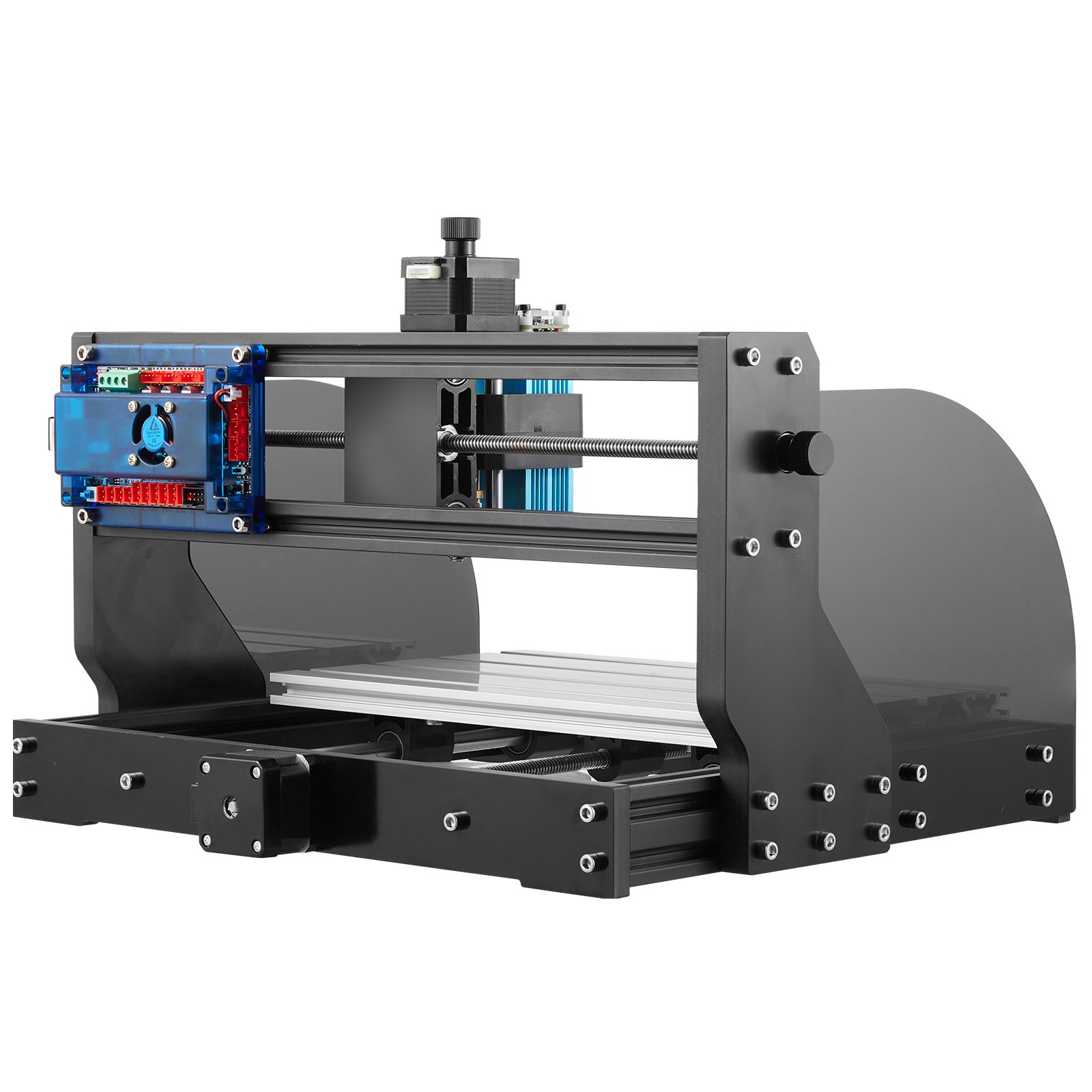

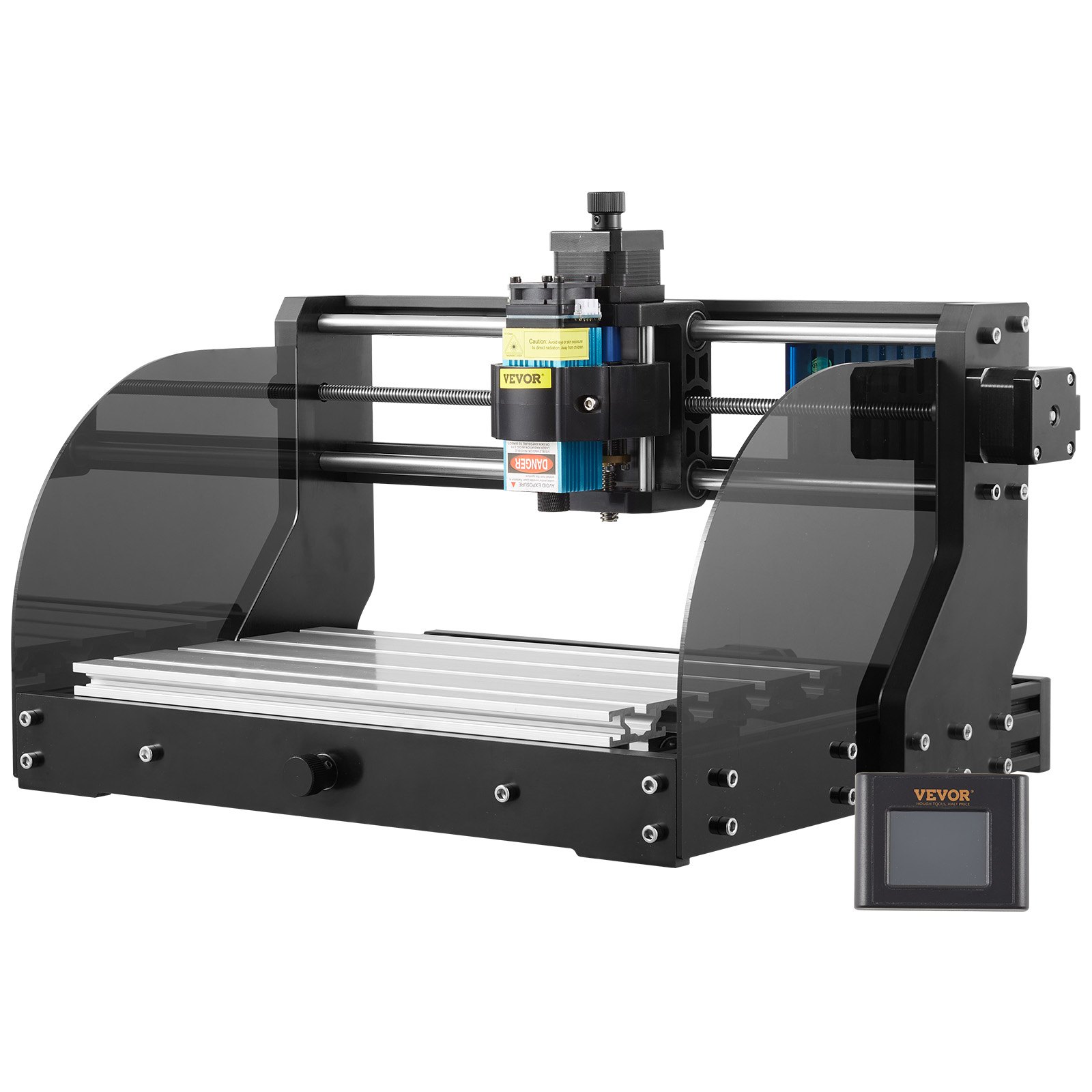

CNC 3018 Pro MAX Engraving Machine
This CNC engraving machine with an effective working area of 11.8"(X)x7.1"(Y)x1.8"(Z) is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Durable Aluminum Profiles
  • Upgraded Three Axes
  • GRBL & Offline Control
  • High-Speed Motors
  • Effortless Operation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

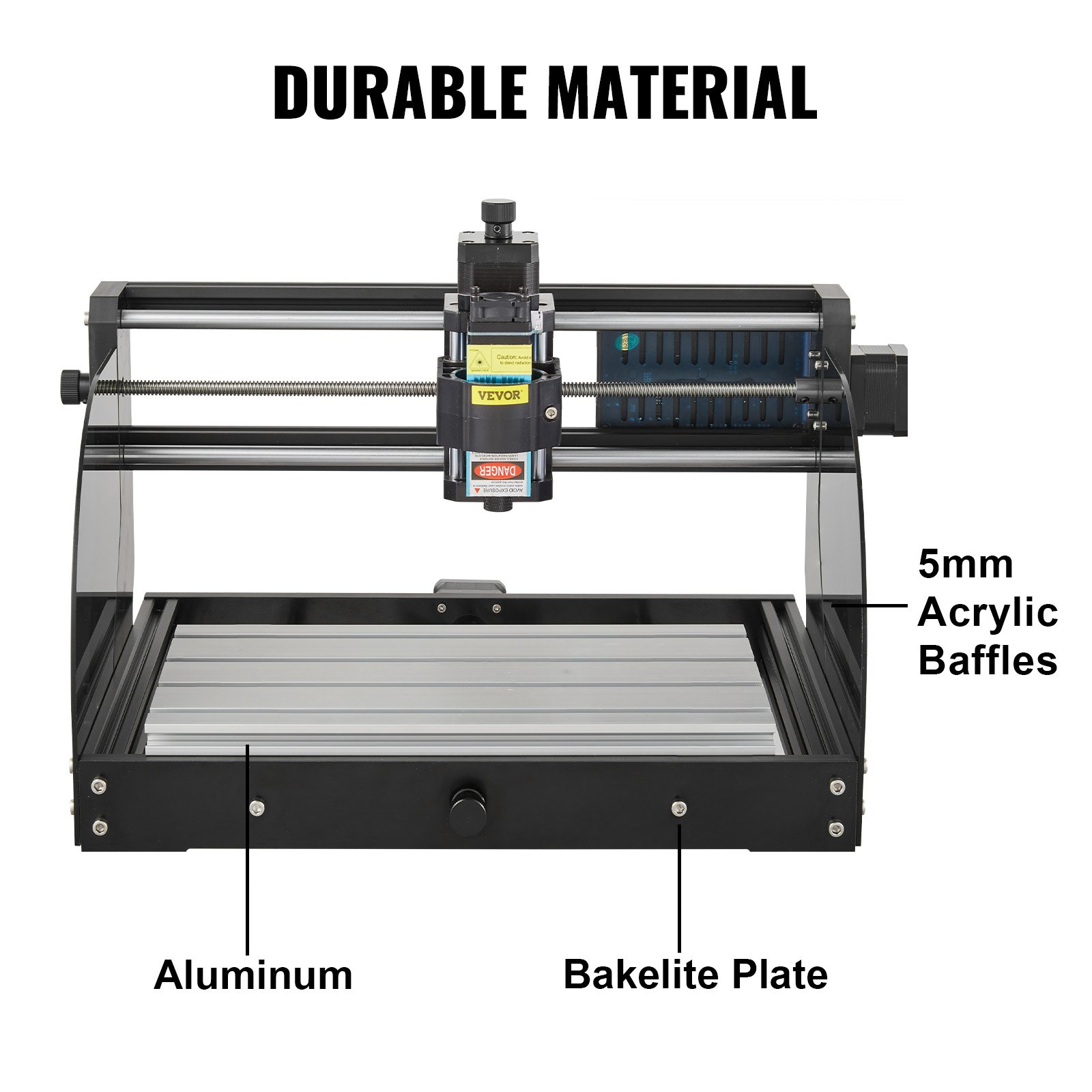

Aluminum Material
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides help you monitor the engraving process conveniently.

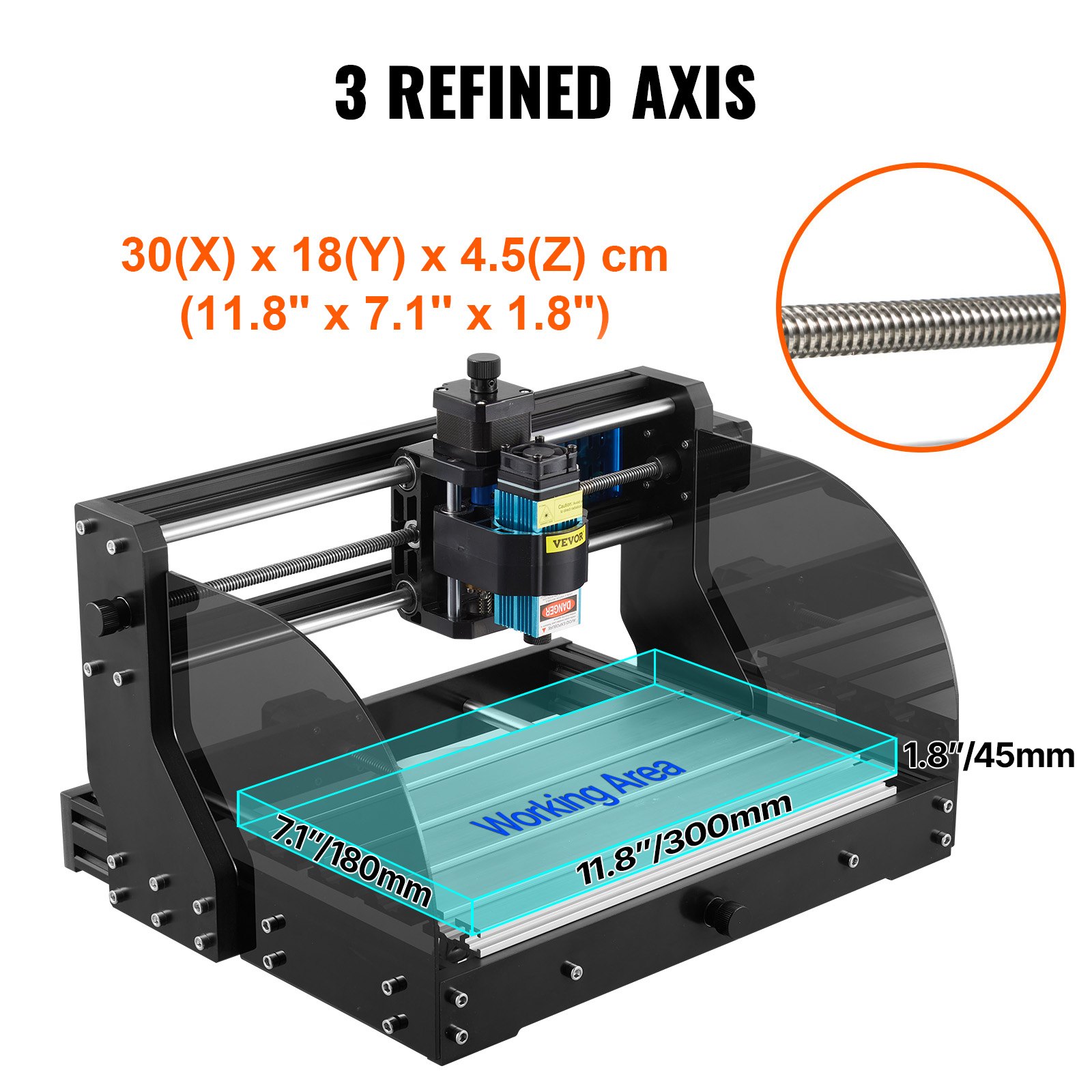

Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.

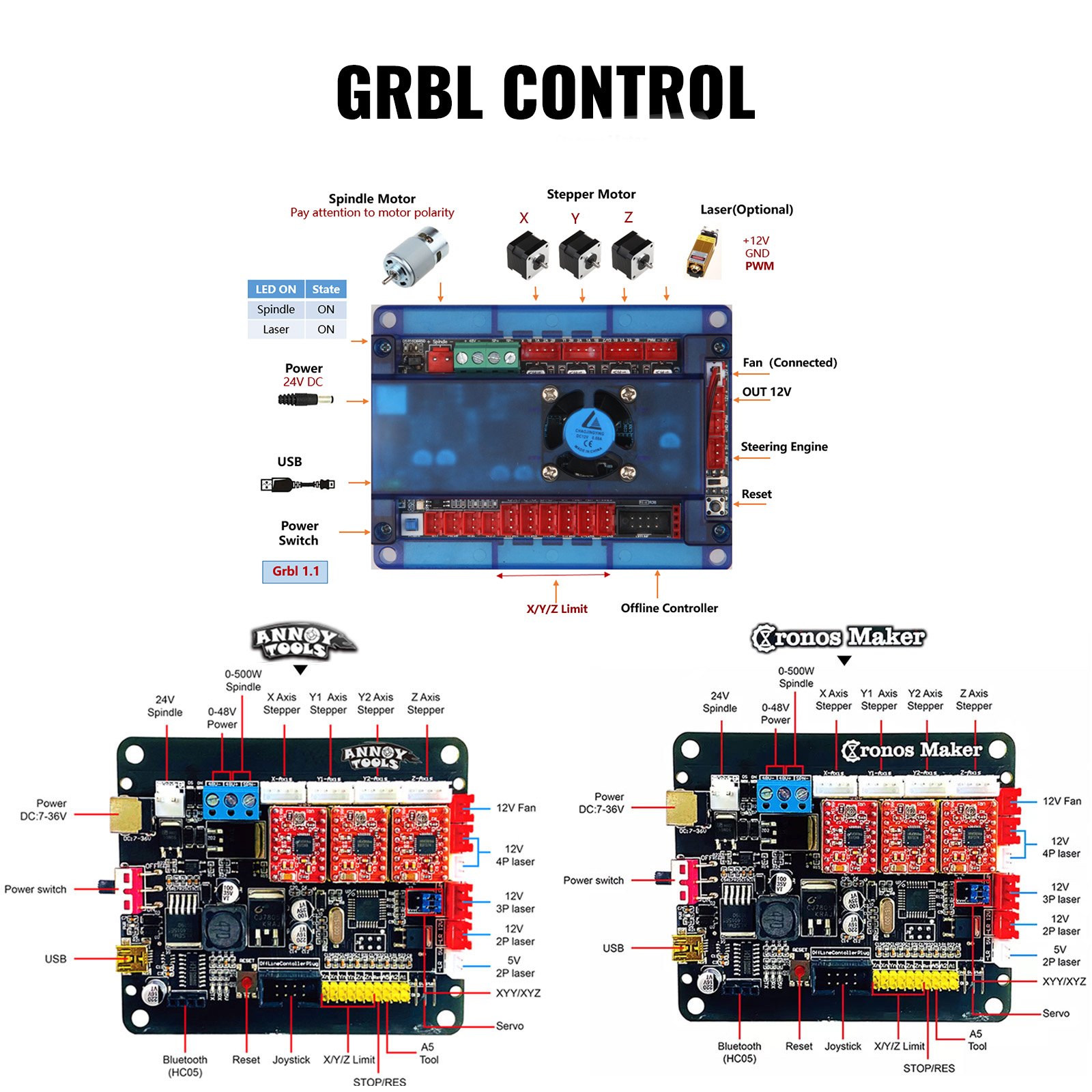

GRBL Control Board
The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.

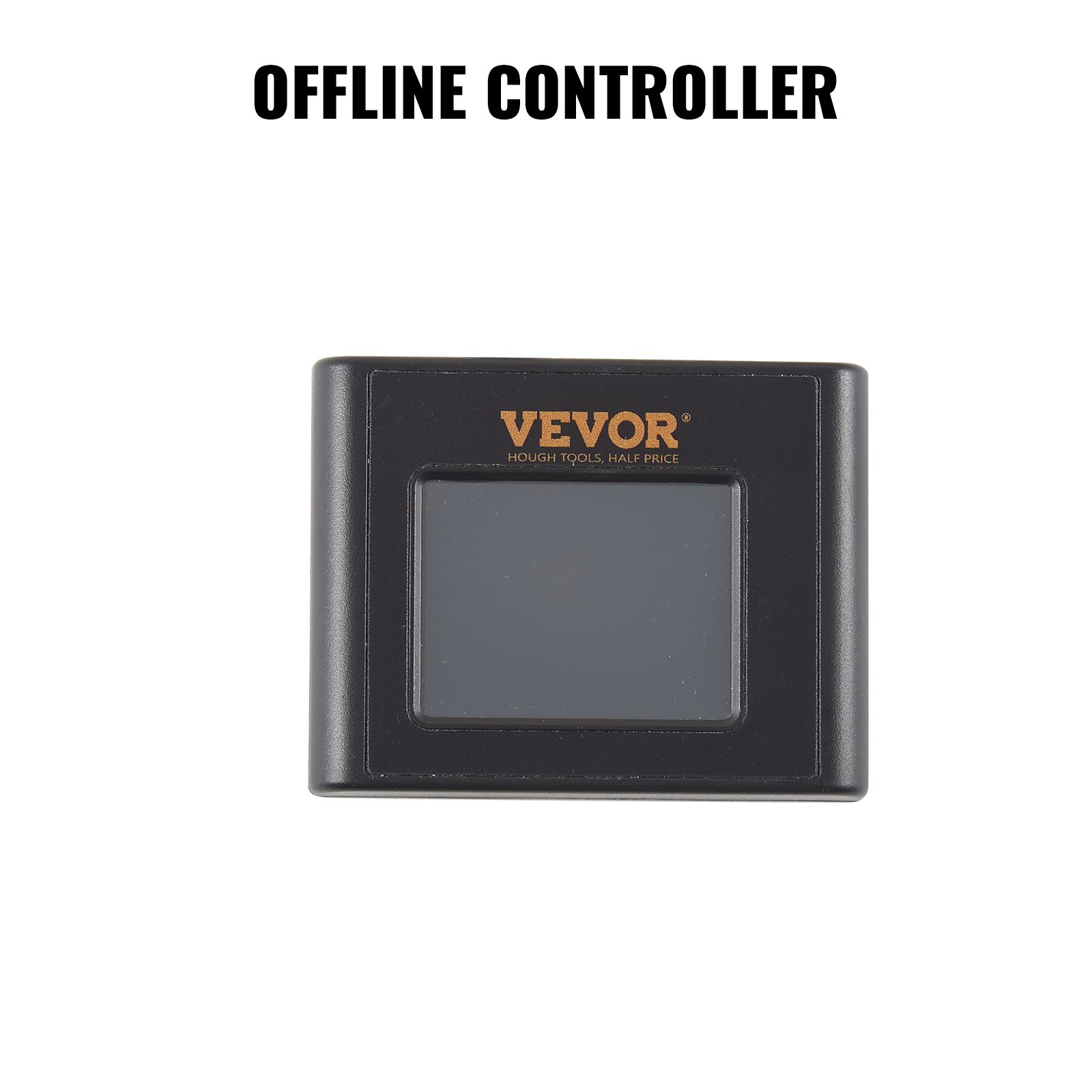

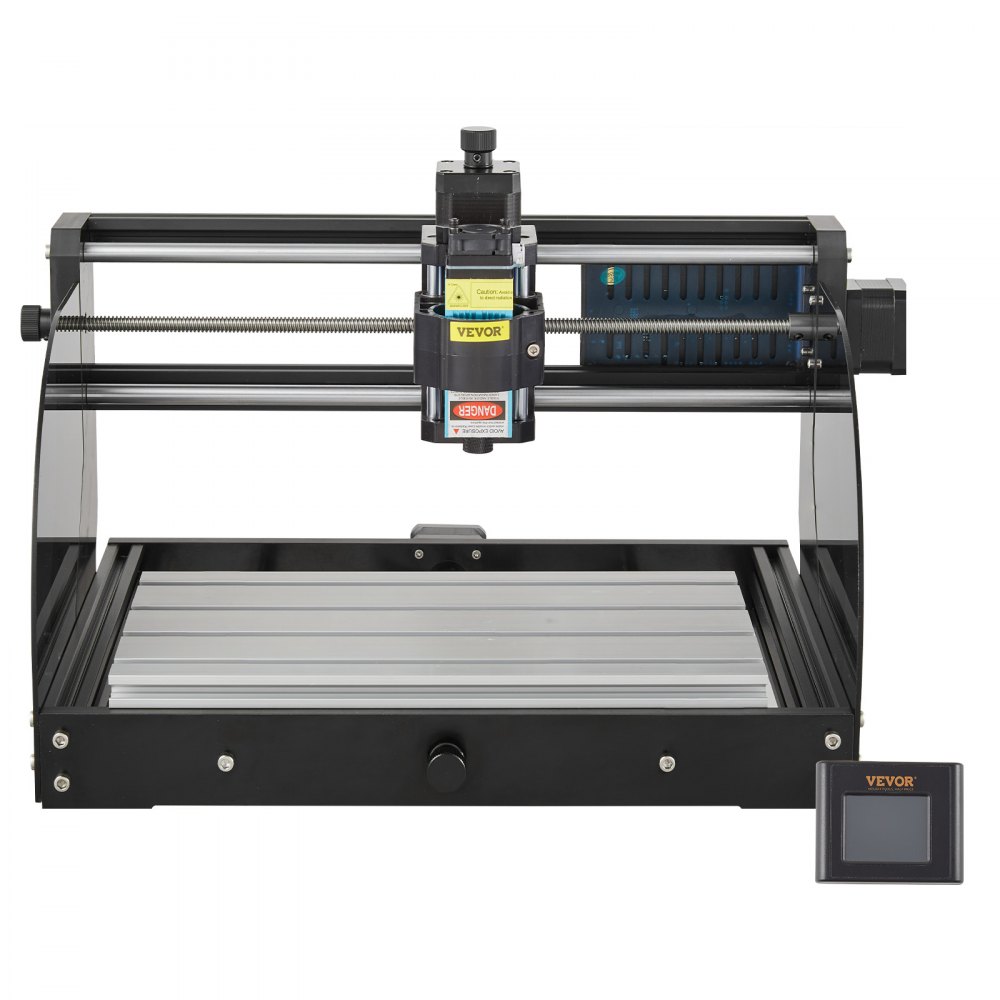

Offline Controller
An offline controller of the CNC router is also included for easy remote control without a computer to improve your working efficiency.
High-efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.

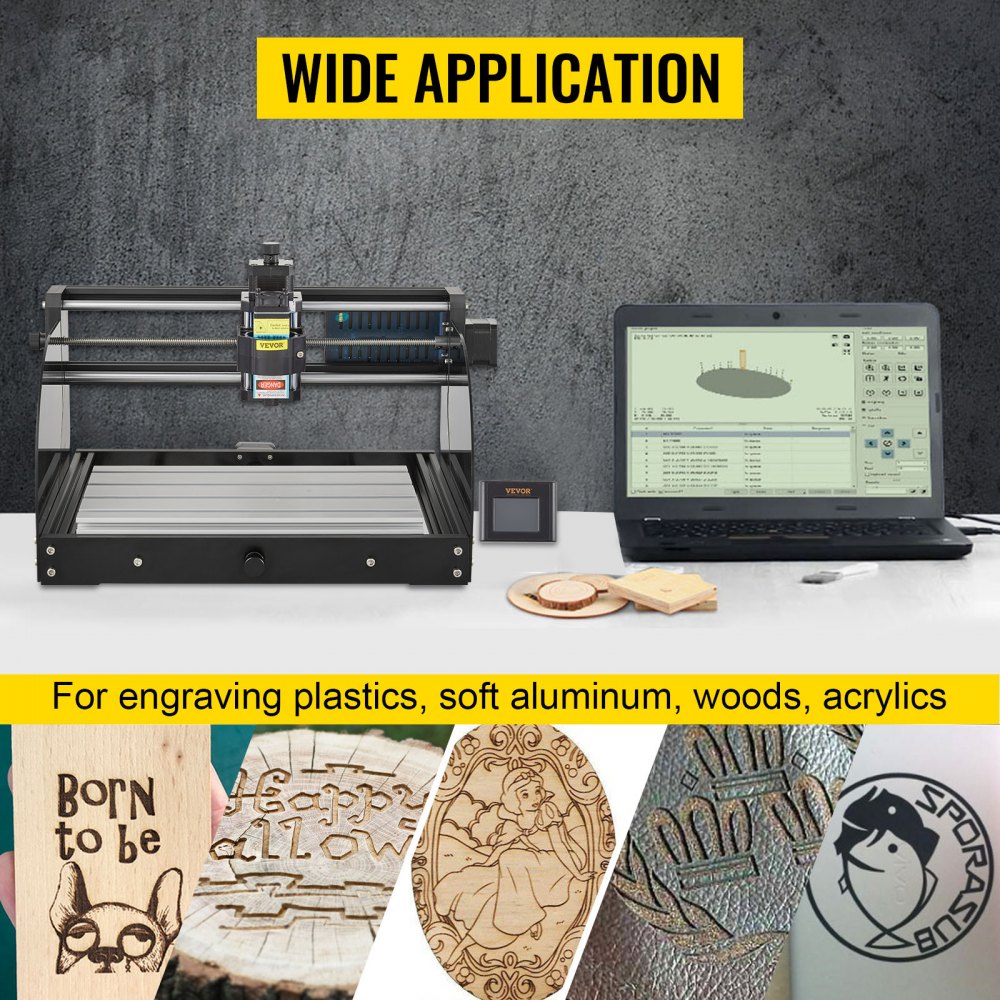

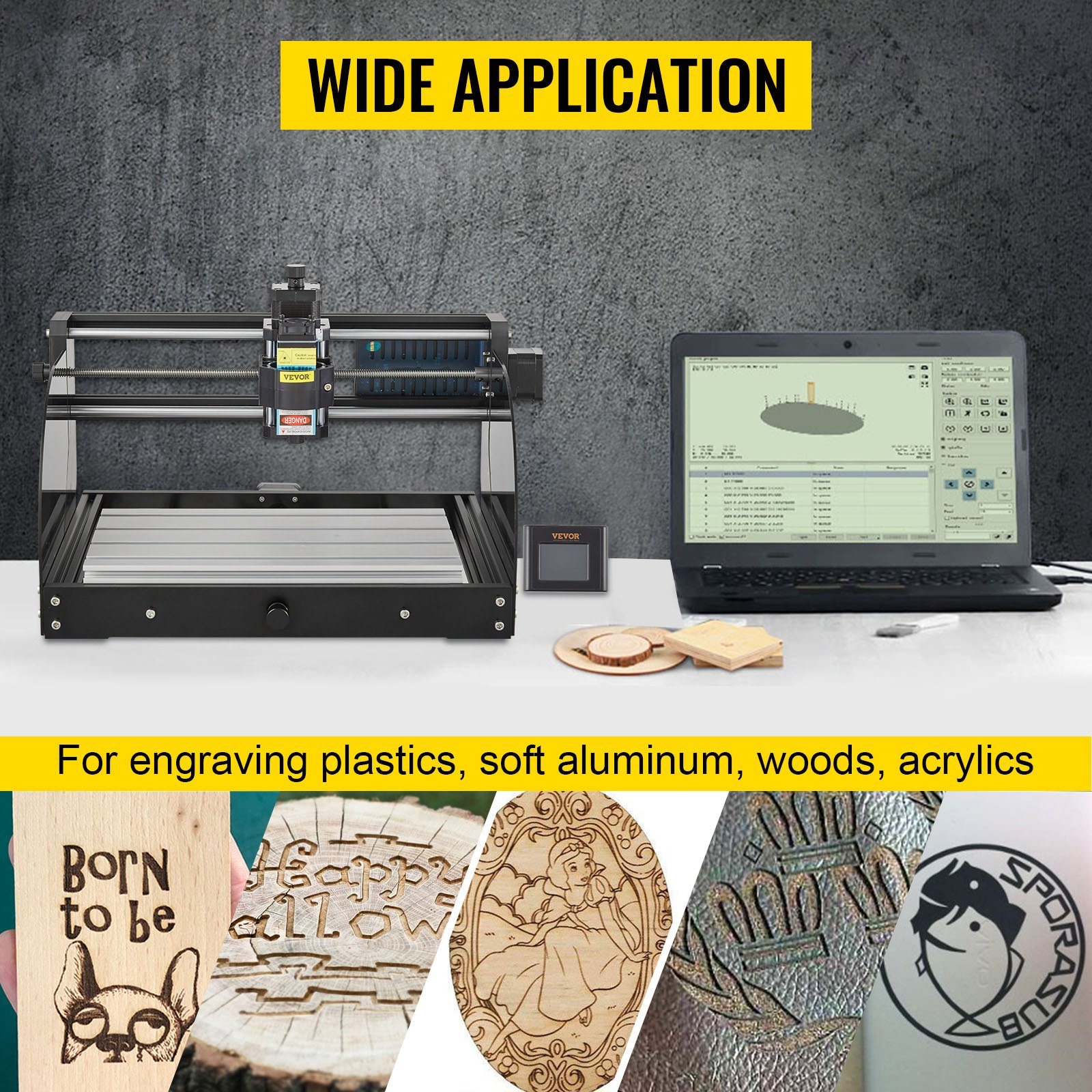

Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications
  • Model: VG-S3018 Pro MAX
  • Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
  • Materials: Aluminum Profile & Bakelite
  • Control Software: GRBL Control
  • Input Power: DC 24V 5A
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Driving Units: T8 Stainless Steel Screws
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm

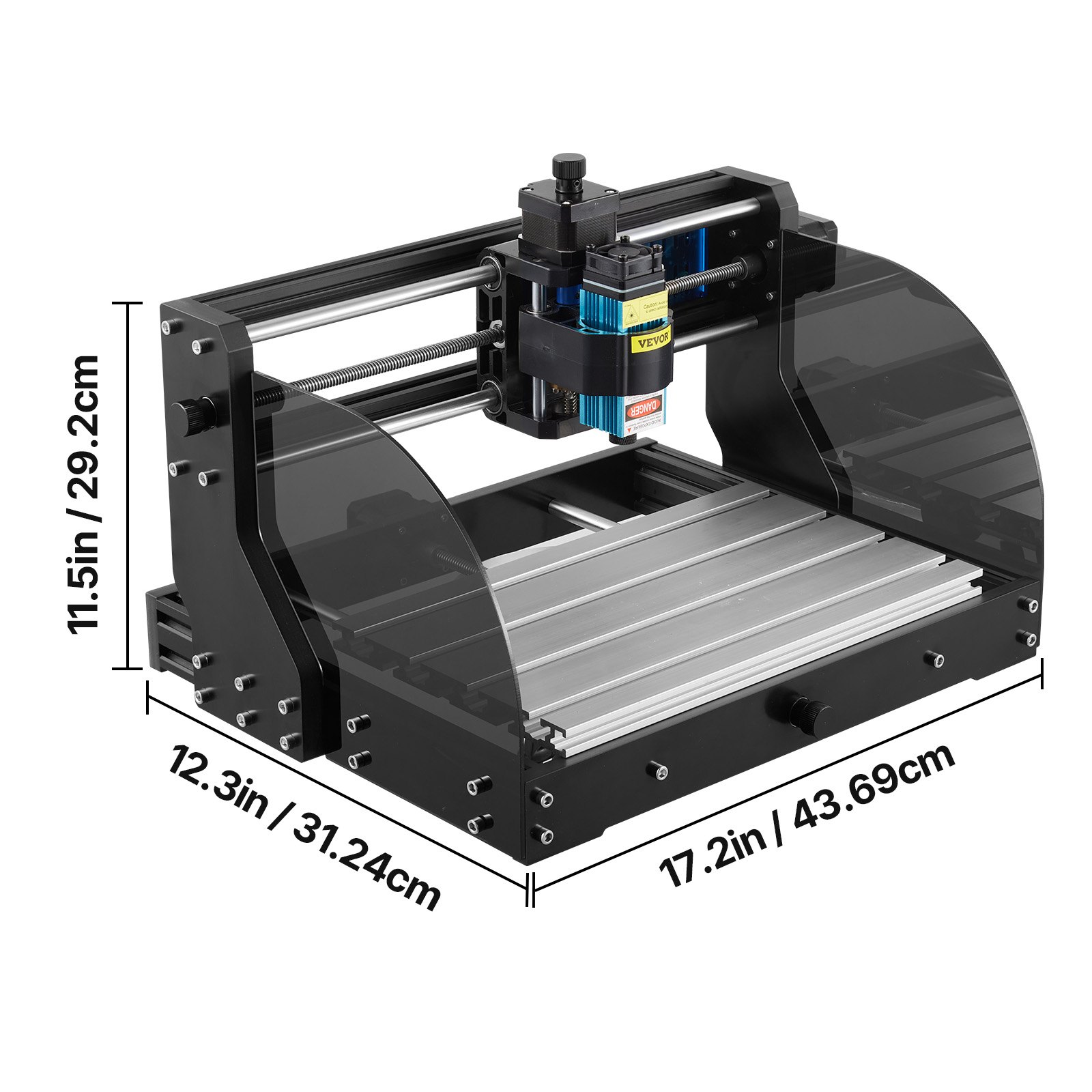

  • Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

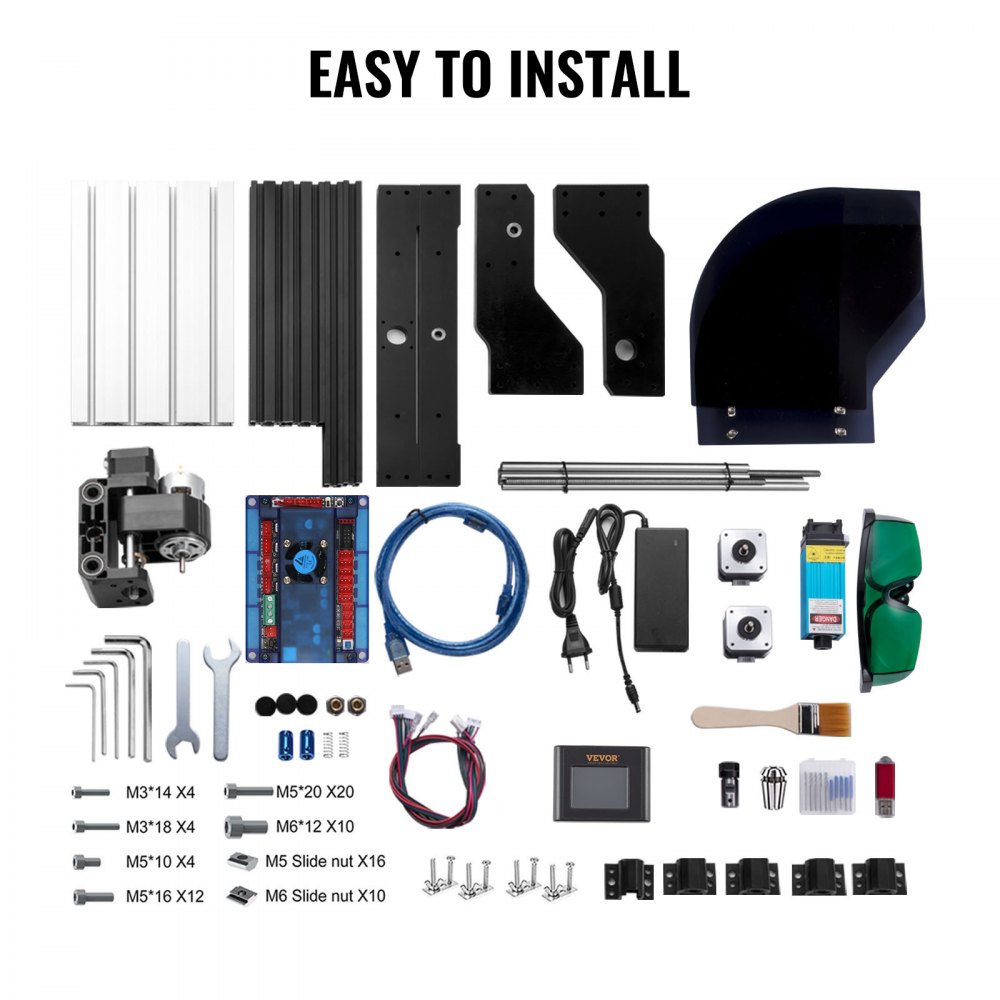

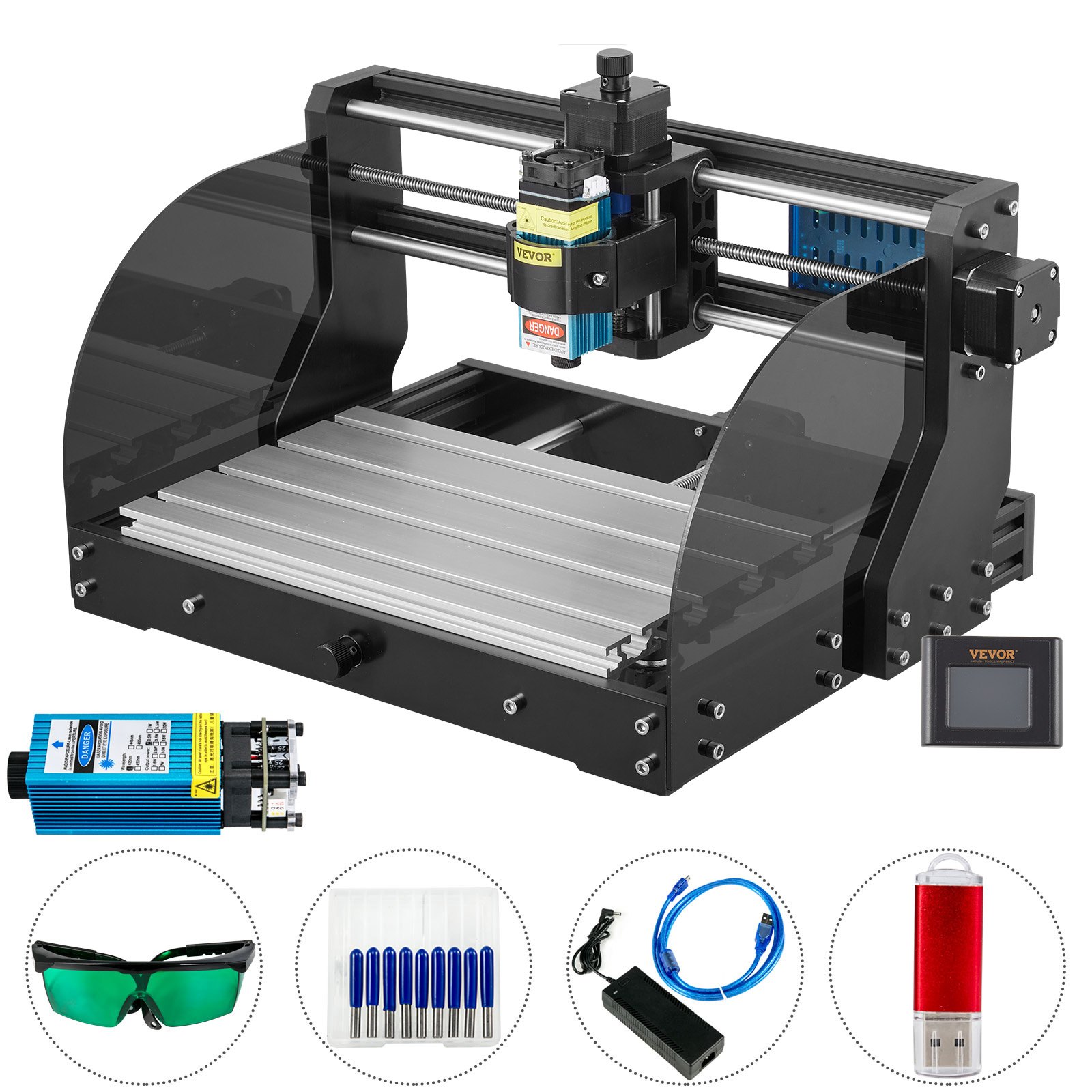

Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 5500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
CNC 3018 Pro MAX Engraving Machine
This CNC engraving machine with an effective working area of 11.8"(X)x7.1"(Y)x1.8"(Z) is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Durable Aluminum Profiles
  • Upgraded Three Axes
  • GRBL & Offline Control
  • High-Speed Motors
  • Effortless Operation
Aluminum Material
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides help you monitor the engraving process conveniently.
Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
GRBL Control Board
The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.
Offline Controller
An offline controller of the CNC router is also included for easy remote control without a computer to improve your working efficiency.
High-efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 5500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
Specifications
  • Model: VG-S3018 Pro MAX
  • Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
  • Materials: Aluminum Profile & Bakelite
  • Control Software: GRBL Control
  • Input Power: DC 24V 5A
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Driving Units: T8 Stainless Steel Screws
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm
  • Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Specification

Model
VG-S3018 Pro MAX
Effective Working Area(X x Y x Z)
11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
Materials
Aluminum Profile & Bakelite
Control Software
GRBL Control
Input Power
DC 24V 5A
Spindle Speed
10000 rpm
Stepping Motor
Size 42, 12V; Torque
Driving Units
T8 Stainless Steel Screws
Cutter Diameter
0.125" / 3.175 mm
Positioning Accuracy
0.003"-0.004" / 0.08-0.1 mm
Item Dimension
15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Manual
Download Link
Questions and Answers
5 Questions
or Ask a Question
Kuinka paljon se painaa ja mikä on työkappaleen enimmäiskoko?
Answer This Question
Tuotteen paino on 8,15 kg.
By vevor
Helpful ( 0 )
Model: VG-S3018 Pro MAX I have Mach3 on my p.C. can i use this with the control board supplied with this machine. If i must change the breakout board Which one do you suggest I use to replace the fitted one. Please
Answer This Question
1. The machine does not support Mach3. Our machine supports mach2 software. The Candle software for tool engraving supports the .nc file format for executing G code. You can use CAM software to convert pictures or CAD into G code files, and then use the provided Candle software is used to realize relief or cutting. 2. You can find the control motherboard online. It is a three-axis one and can be powered by 24V.
By vevor
Helpful ( 0 )
Ola voces fabricam maquinas para gravação em tubo de aço inox com diametro de 8,00 e 11,00mm http://jcsresistenciaseletricasjcs.blogspot.com/
Answer This Question
Não.
By vevor
Helpful ( 0 )
Can hand made pens be engraved with this machine?
Answer This Question
No, this is not feasible.
By vevor
Helpful ( 0 )
Good day, I am interested in: 3018 Pro Cnc Router +5.5w Laser Engraver Engraving Machine W/ Offline Controller. could you send me the documentation, maybe a 3D model please? I would like to study it first and know more about the machine. Well thank you.
Answer This Question
For more information, refer to the file in the link: http://qiniu.vevor.net/20200319134320813.pdf
By vevor
Helpful ( 0 )

Customer Reviews

4.7 Out of 5
Based on 171 reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
171 Review(s)
Clear filters
dan relf dan relf
Very impressed
A fantastic quality piece of technology. It works very well, with a very smooth finish on the job.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
xrayman xrayman
Does a good job
I decided to buy this laser engraver as I needed to make some name plates for my granddaughter's garden Wendy house. The machine was relatively easy to build providing you follow the instructions to the letter, the online videos are also helpful. Up to now it works very well with the work I have done. I have not tried to use it for spindle engraving but I suspect it will do the job. The software that came with the machine seem to be straightforward to use and to install. The software installs well on most Windows systems from XP to Windows 11.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Mel Mel
Best value CNC Router
Recently purchased the 3018 Pro CNC Router with 5W laser. Great value for money and excellent quality. This engraving machine has much thicker supports for the X gantry than most of the competition, which should be a major selling point for any budget router engraver. Everything fitted correctly and I had no build problems whatsoever. The supplied software is more than sufficient to get started with but might need to upgrade the software when more experience is gathered in order to exploit the full potential of the machine. Given the money spent on this machine, I am extremely impressed with all aspects including fast delivery. I am also in the market for a Mini Lathe, so given this experience, I will definitely look at the supplier for my next purchase. 10 out of 10
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Oli Oli
Excellent kit to make a start
Has all the essentials for an introduction into CNC. Easy to assemble Works quickly out of box Very easy to upgrade
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Alexander Sievewright Alexander Sievewright
Vevor 3040
Great little machine could do with having home switch's fitted from new rather than the buyer trying to fit them. Also a grbl main board like the 3018 would be better than the mach 3 you would be able to control the spindle speed from the software rather than a knob on the box
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Skera Skera
Hungary
Lehetne akár teljes 5 csillagos az értékelésem , de ez egyenlőre nem megoldható ! Most már talán 2 hónapja is a tulajdonomba van . Az összeszerelés jó és szórakoztató , de egyszerűen nem lehet fel telepíteni és működésre bírni ! Így nyíltan kimondható ,hogy van egy 70 ezres pórfogó , ami annyi időt elvett a működéséhez ami bőven több mint az értéke ! Remélem , hogy még idén munkába tudom állítani .
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
RDG Interior&Design RDG Interior&Design
The cnc it's not working properly
I don't recommend to qny one to buy this product I spent £500 for nothing The machine was buid wrong,it's not keep the vectors, I have to slow down the machine and still not doing a job properly I try it to set up properly. No waste your money on a bad ingineering plan product I will send it back ,its not a point to keep it
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Marika Marika
Purchasing manager
Please be so kind and send to me your invoice to this order to e-mail: elkomp@elkomp.cz. I tried to print it, but it is still in mode "generating" Thanks a loot for your kind support. Maria Rakociova
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Tommy Tommy
None
Ok CNC to the price, X axis a little flimsy, but useable, if X gantry was 5cm higher and a firm alu plate insted and very thin alu plate it will be a amazing buy, even for 10% more price. And home/END switches would be nice.. But all in all, not a bad CNC.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Aliale09 Aliale09
Vevor CNC3018
Very good device. Works perfect with Java-based software UGSplatform under Linux to send G-Code. The code might be prepared using Inkscape SVG being uploaded to jscut.org. Also autonomous controller with micro-SD card works well with the code and WiFi. No need for extrenal power supply to feed the autonomous controller. Very practical and usefull thing.
See More See Less
