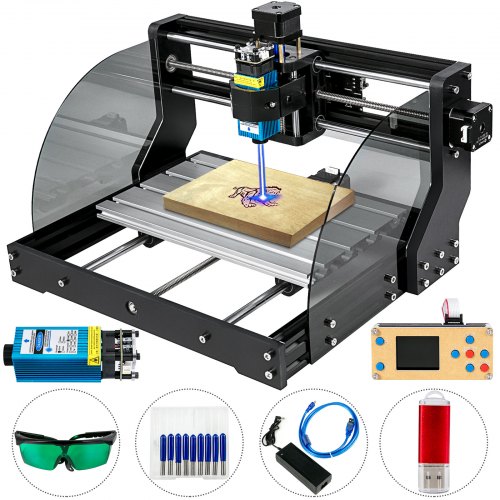

VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood
MGDKJ3018M500MW01V2

VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood

See All Customer Reviews
48 Reviews 6 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • 【DURABLE ALUMINUM PROFILES】 - CNC 3018 PRO is an upgraded version of 3018 CNC. The frame is mainly made of aluminum alloy and bakelite materials, with high strength and high precision. Also, it has two pieces of acrylic bezels on both sides, so you can safely monitor the engraving process. The working travel of this engraving machine is 300(X) x 180(Y) x 45(Z) mm.
  • 【UPGRADED THREE AXES】 - Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of T8 stainless steel screw rods whose lead distance is 4 mm. It uses double copper nuts to clear round trip errors.
  • 【GRBL & OFFLINE CONTROL】 - The GRBL control features an XYZ axis drive and full functionality. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.
  • 【HIGH-SPEED MOTORS】 - This CNC engraving machine is equipped with three 42 stepper motors and a 775 (12-36V) 24V spindle motor with a rotational speed of 10000r/min. Also, an extra 500mw laser whose wavelength is 405nm is available for you. And the engraver supports Windows XP SP3, win7, win8, win10 (32/64), macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • 【EFFORTLESS OPERATION】 - For your convenience, we provide a detailed user manual, assembly instructions, and installation video. Assemble the engraver machine according to the installation instructions; then, you can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVCs, PCBs, and many more.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood
Description Specification Questions and Answers Reviews
CNC 3018 Pro MAX Engraving Machine
This CNC engraving machine with an effective working area of 11.8"(X)x7.1"(Y)x1.8"(Z) is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Durable Aluminum Profiles
  • Upgraded Three Axes
  • GRBL & Offline Control
  • High-Speed Motors
  • Effortless Operation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Aluminum Material
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides help you monitor the engraving process conveniently.
Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
GRBL Control Board
The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.
Offline Controller
An offline controller of the CNC router is also included for easy remote control without a computer to improve your working efficiency.
High-efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications
  • Model: VG-S3018 Pro MAX
  • Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
  • Materials: Aluminum Profile & Bakelite
  • Control Software: GRBL Control
  • Input Power: DC 24V 5A
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Driving Units: T8 Stainless Steel Screws
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm
  • Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
CNC 3018 Pro MAX Engraving Machine
This CNC engraving machine with an effective working area of 11.8"(X)x7.1"(Y)x1.8"(Z) is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Durable Aluminum Profiles
  • Upgraded Three Axes
  • GRBL & Offline Control
  • High-Speed Motors
  • Effortless Operation
Aluminum Material
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides help you monitor the engraving process conveniently.
Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
GRBL Control Board
The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.
Offline Controller
An offline controller of the CNC router is also included for easy remote control without a computer to improve your working efficiency.
High-efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
Specifications
  • Model: VG-S3018 Pro MAX
  • Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
  • Materials: Aluminum Profile & Bakelite
  • Control Software: GRBL Control
  • Input Power: DC 24V 5A
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Driving Units: T8 Stainless Steel Screws
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm
  • Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Specification

Model
VG-S3018 Pro MAX
Effective Working Area(X x Y x Z)
11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
Materials
Aluminum Profile & Bakelite
Control Software
GRBL Control
Input Power
DC 24V 5A
Spindle Speed
10000 rpm
Stepping Motor
Size 42, 12V; Torque
Driving Units
T8 Stainless Steel Screws
Cutter Diameter
0.125" / 3.175 mm
Positioning Accuracy
0.003"-0.004" / 0.08-0.1 mm
Item Dimension
15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Manual
Download Link
Questions and Answers
6 Questions
or Ask a Question
Do you have a tutorial about how can I fit any material for cutting ? With your software it's very hard to work .
Answer This Question
The Candle software for tool engraving supports the .nc file format for executing G-code. You can use CAM software to convert pictures or CAD into G-code files, and then use the provided Candle software to achieve relief or cutting.
By vevor
Helpful ( 1 )
Good evening, I want to ask about the VG-S3018 Pro MAX model, does the package include the engraving router or just the laser?
Answer This Question
This product is dual-purpose, including tool engraving + a 0.5W low-power laser, which can realize two uses: tool processing and laser surface engraving.
By vevor
Helpful ( 0 )
What is the PWM frequency of the spindle driver and the laser driver?
Answer This Question
Its motor power is about 70W, and the laser PWM is controlled by the laser engraving software provided with the product.
By vevor
Helpful ( 0 )
Does she accept stl files?
Answer This Question
It cannot be directly engraved using STL and must be converted into a standard G-code file.
By vevor
Helpful ( 0 )
Diametro do laser? profundidade de corte em madeira ou plástico?
Answer This Question
O ponto do laser é de cerca de 0,08 mm e 500 miliwatts é a potência mínima do laser. Geralmente é usado para gravação de superfície simples em madeira, couro, papel colorido, etc. corte, você pode usar a fresadora CNC. A função de faca está concluída.
By vevor
Helpful ( 0 )
