Name: VEVOR CNC 3018 Pro 2500MW 300×180×40mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood
Brand: VEVOR
SKU: DKJ3018PRO2.5W001V2
Price: 212.99 EUR
Availability: OutOfStock
Rating: 4.8 (48 reviews)

VEVOR CNC 3018 Pro 2500MW 300×180×40mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive 5,00€ off on your first three app orders. Only App.

Download Now

Exclusive 5,00€ off on your first three app orders. Only App.

Scan the QR code to download

About this item

CNC 3018 Router Machine: The 2500mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
Sturdy Material: The frame is mainly made of aluminum alloy and bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.

See More See Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

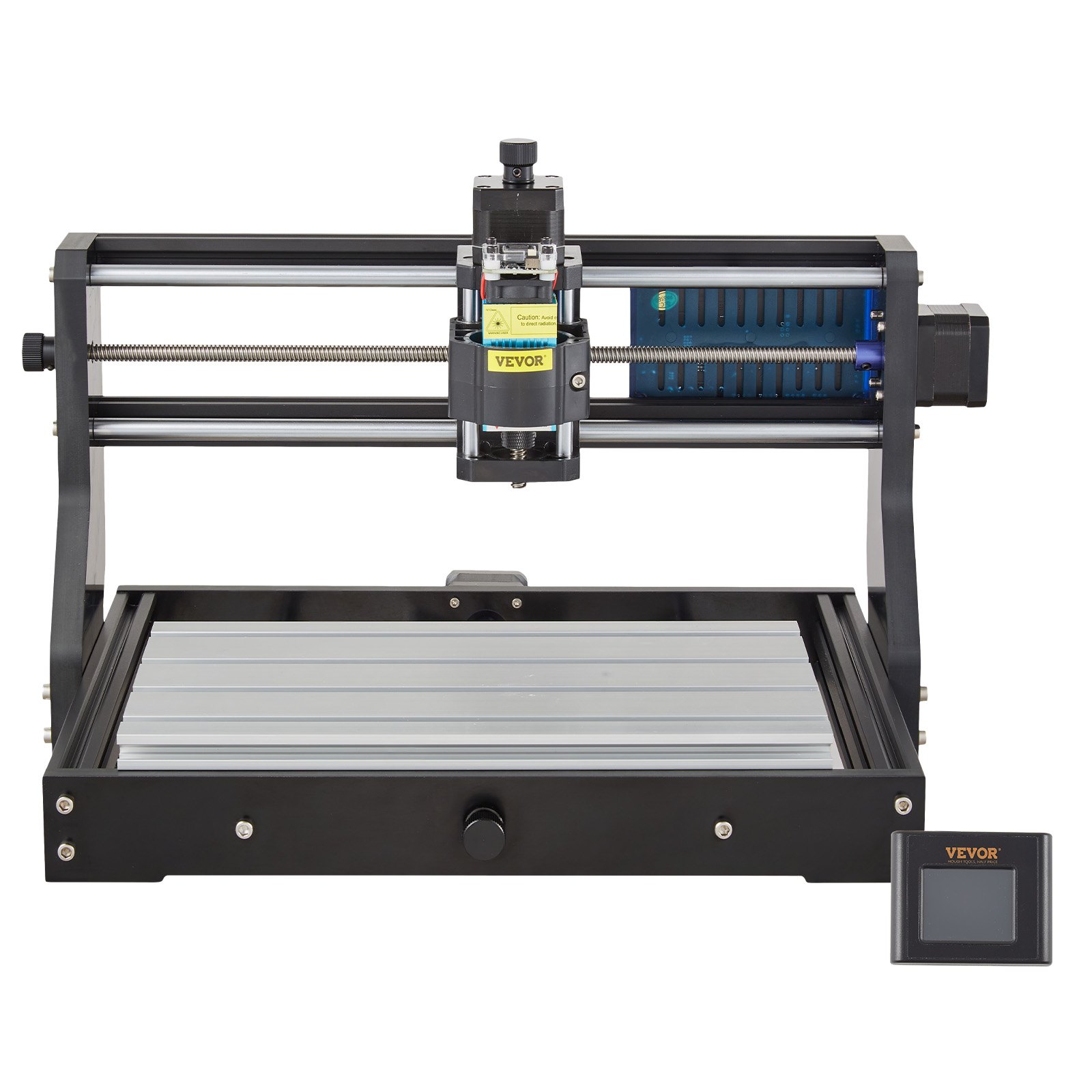

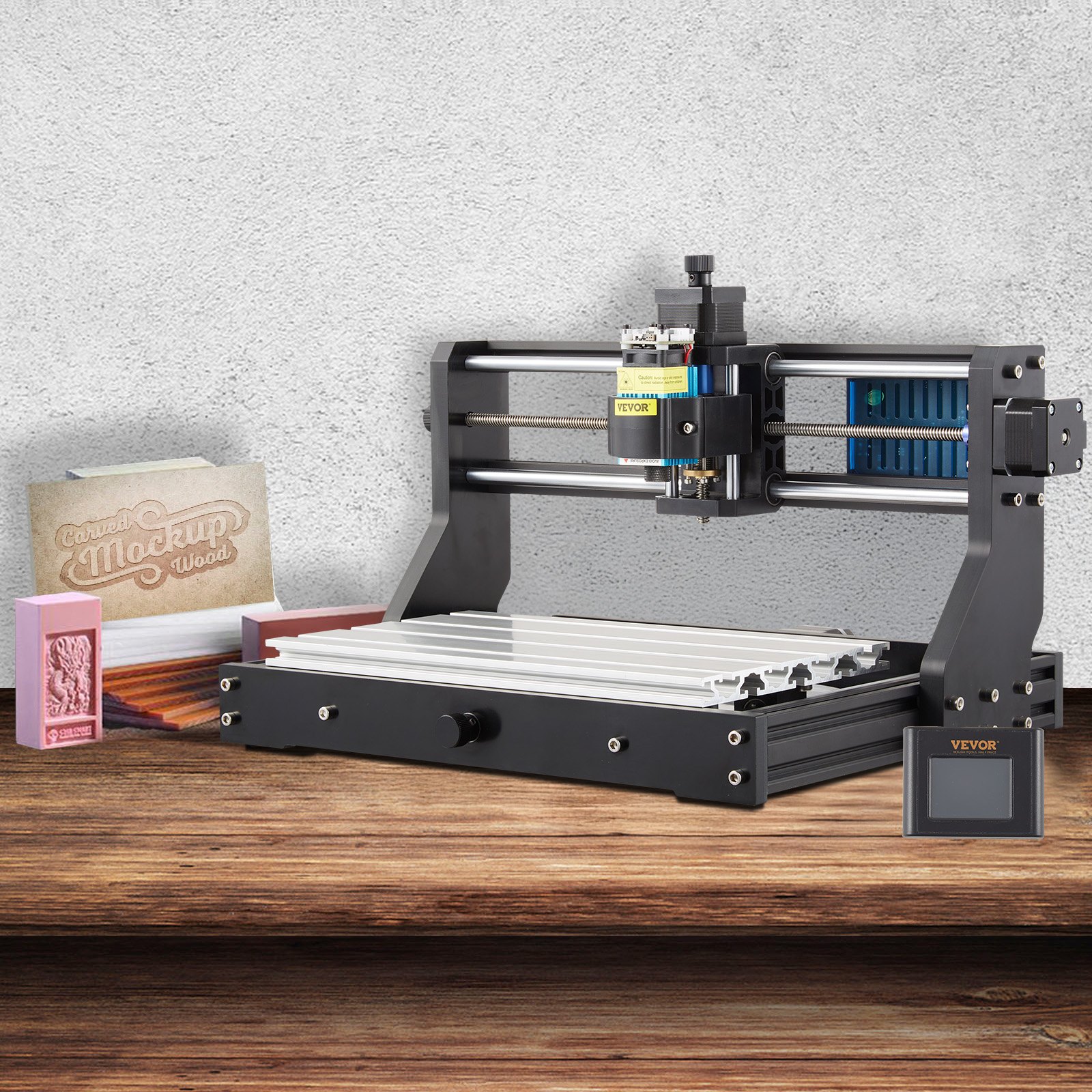

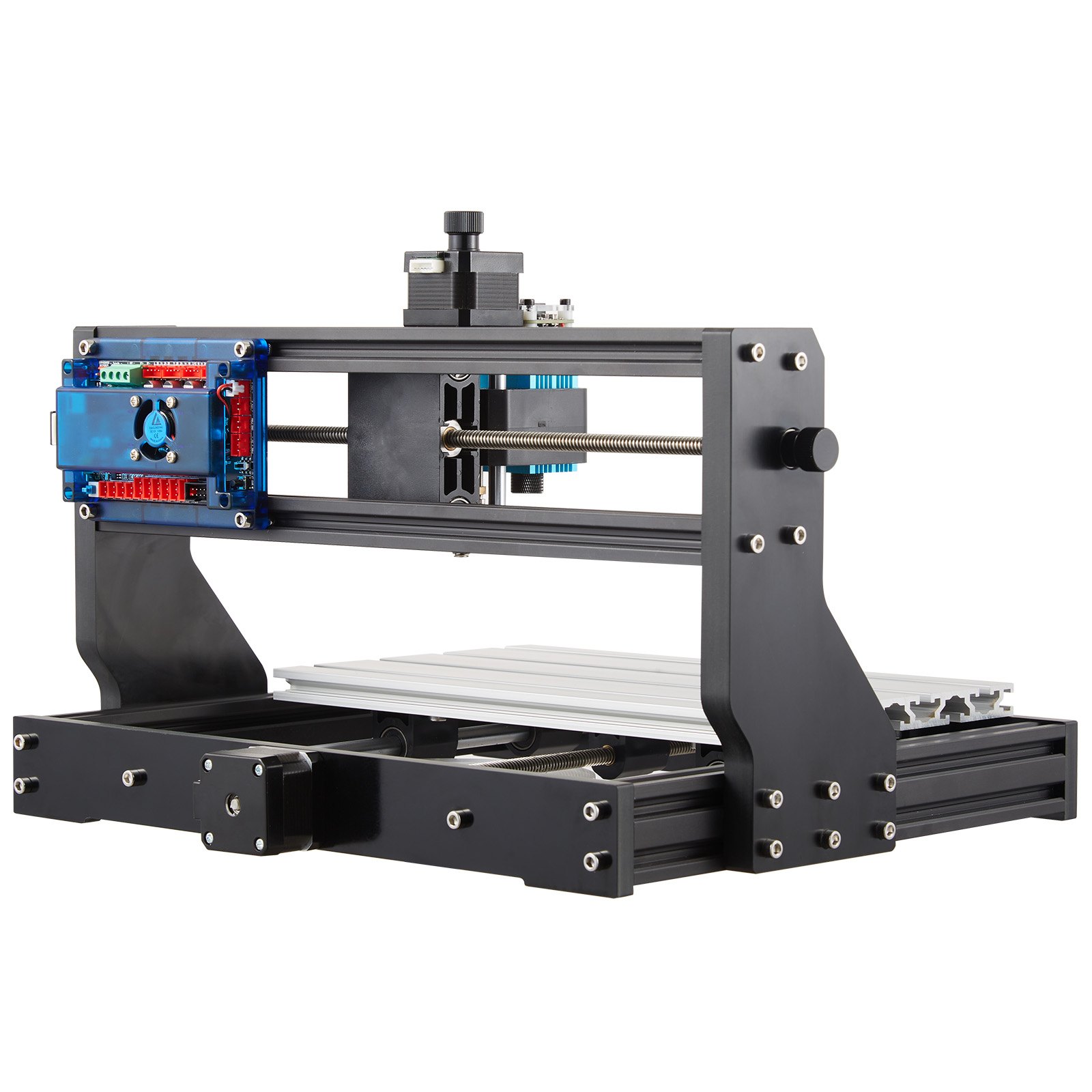

CNC 3018 Engraving Machine

Easy to Use & Upgrade Material & Complete Accessories

This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool!

CNC 3018 Router Machine
Large Working Area
Excellent Motor
Upgraded Control Board
Sturdy Material

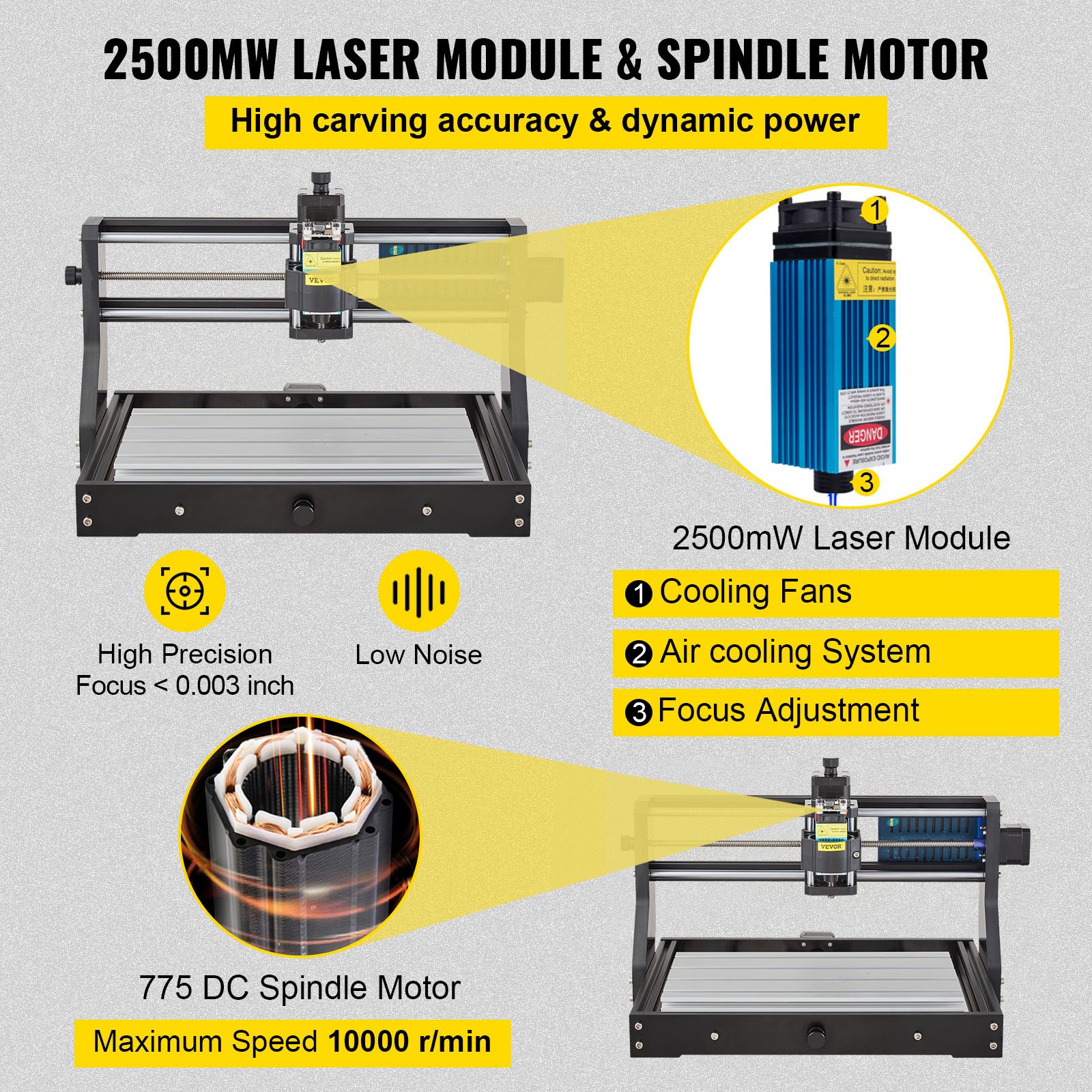

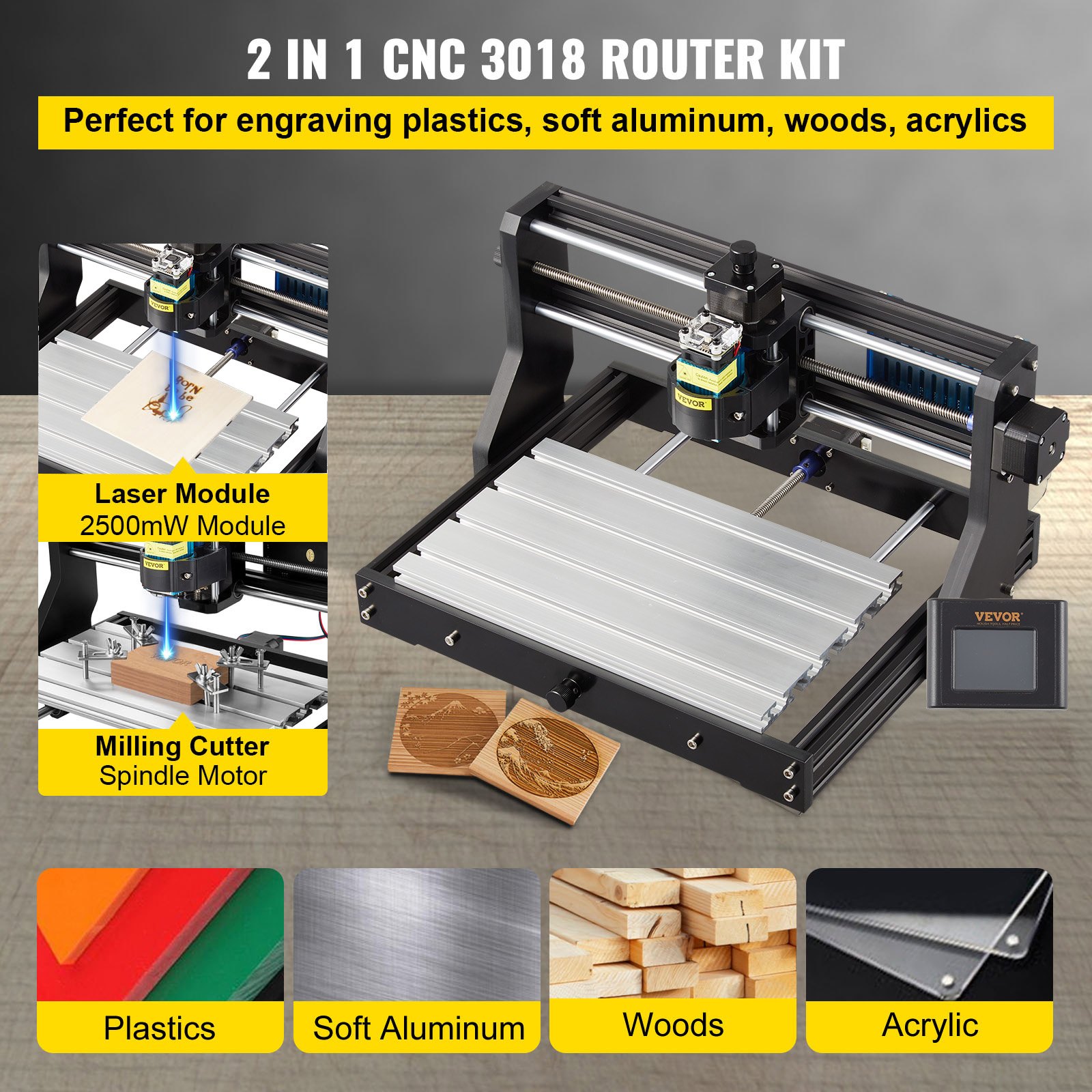

2500mW Laser Module & Spindle Motor

The 2500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.

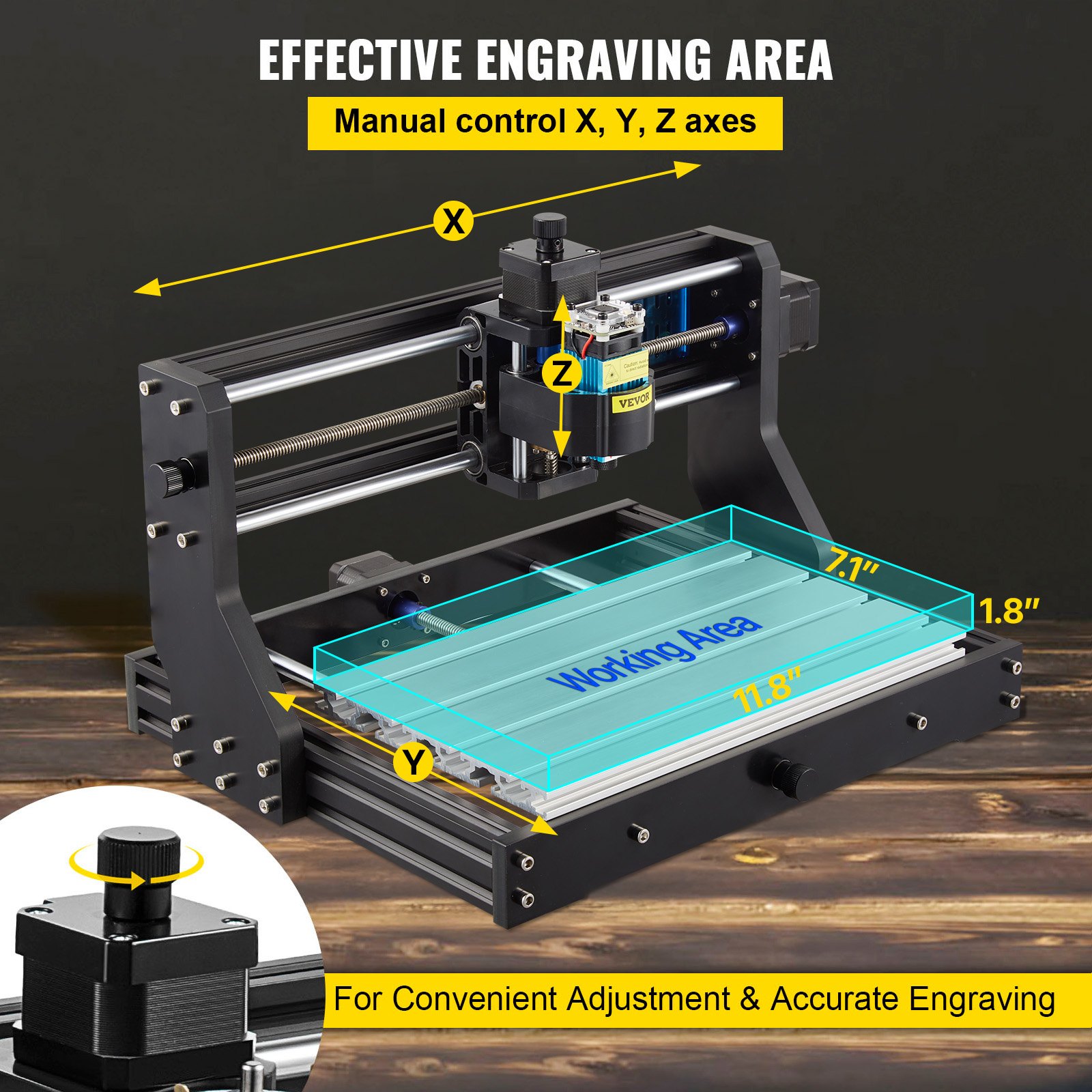

Large Working Area

The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.

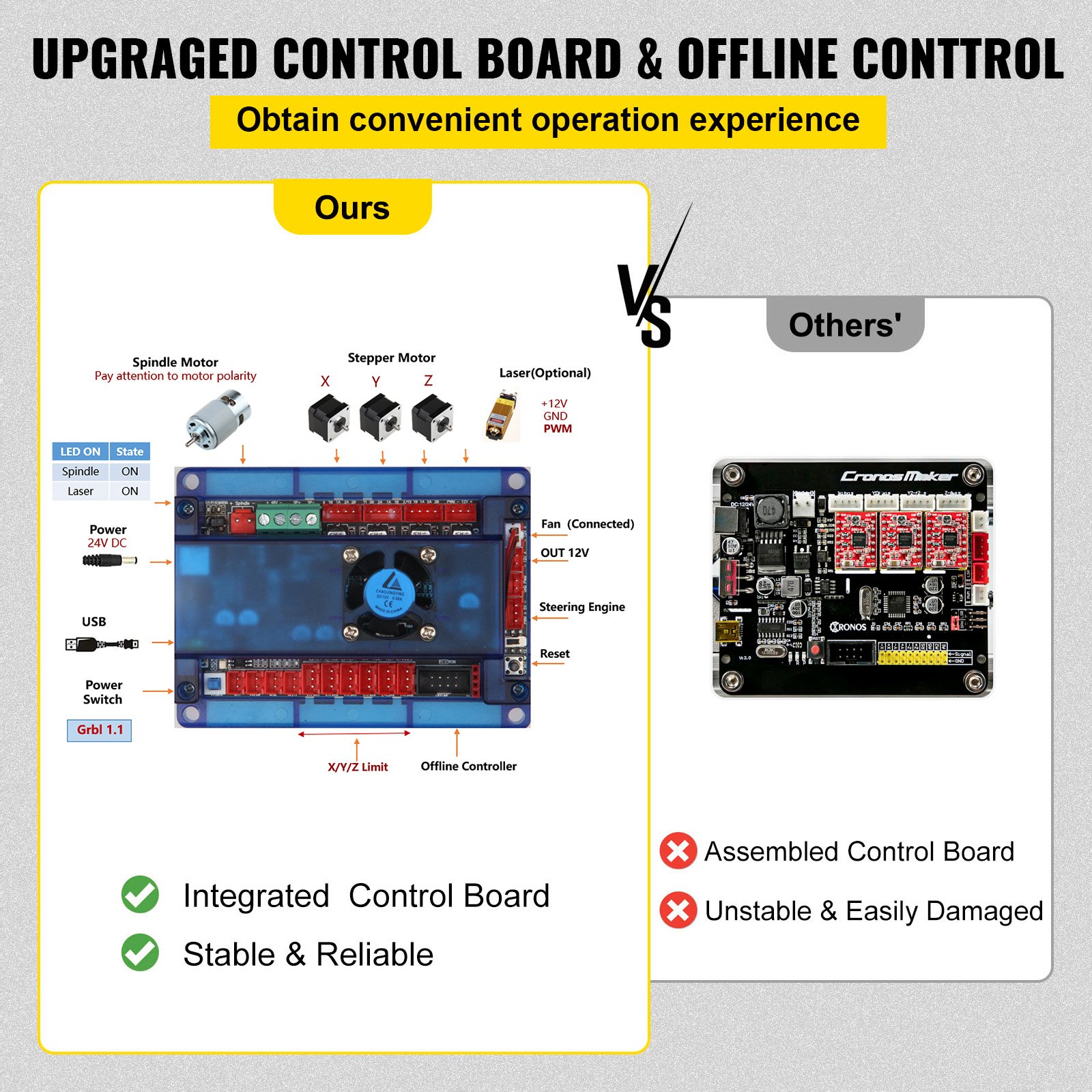

Functional Control Board

The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.

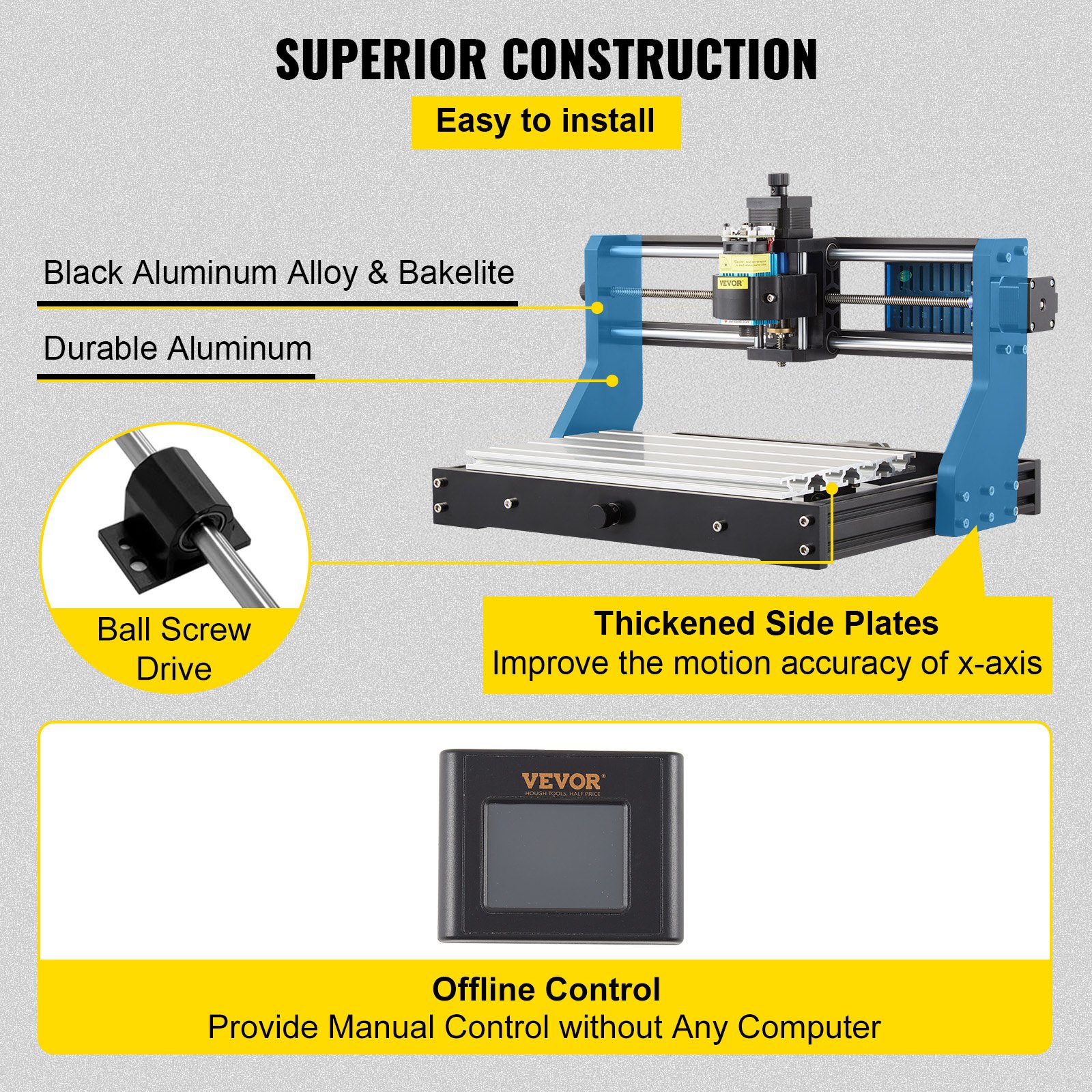

Extraordinary Quality

Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.

Easy to Install

We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.

Wide Application

This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

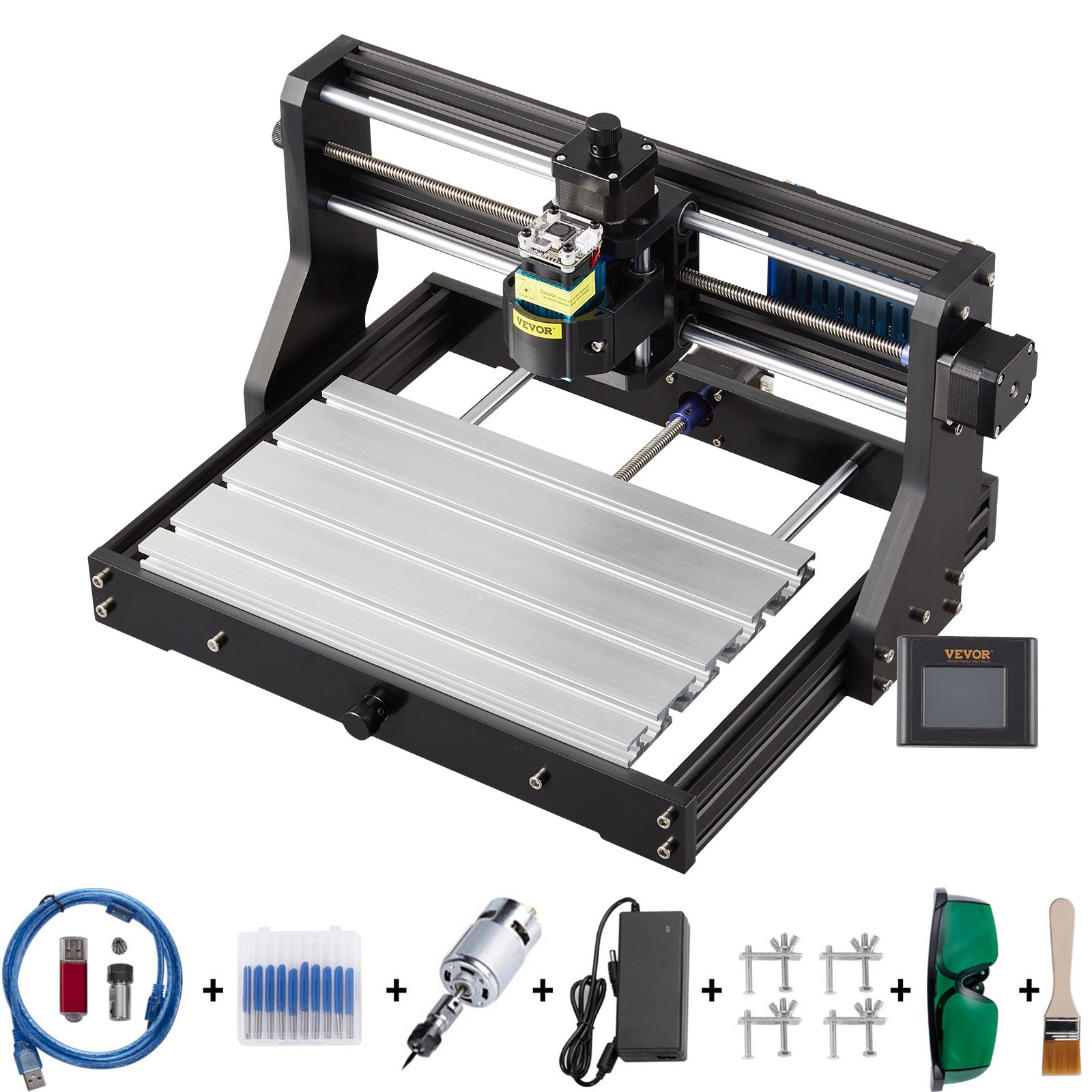

Package Content

1 x 3018 CNC Router Kit
1 x 2500mw Laser Module
1 x Spindle
1 x U-Disk (Software & Instruction)
1 x Set of Milling Cutter
1 x Pair of Protective Glasses
1 x USB Cable
1 x Power Supply
1 x Set of Tools
1 x Brush
1 x Manual

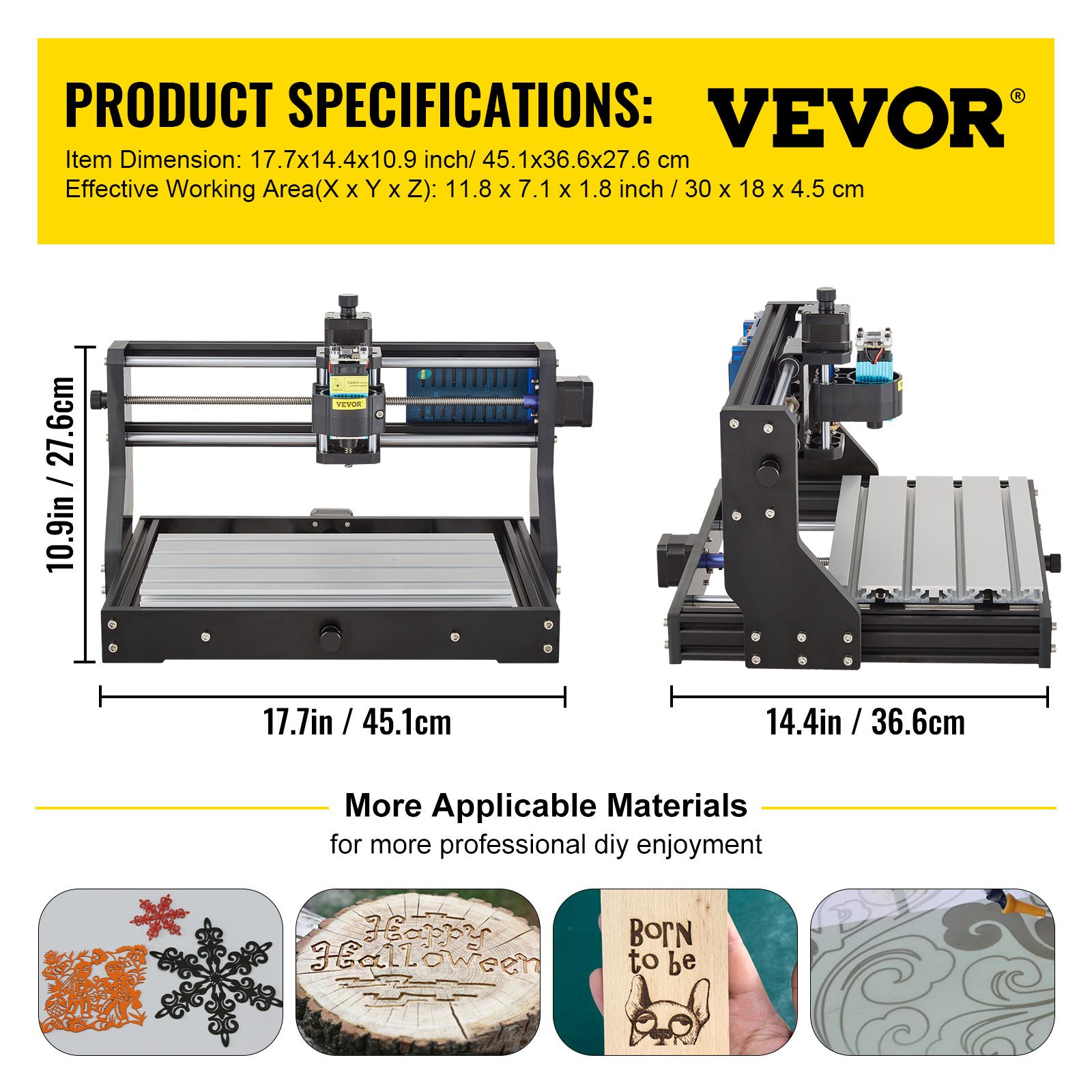

Specifications

Model: VG-S3018 Pro
Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
Materials: Aluminum Profile & Bakelite
Input Power: DC 24V 5A
Driving Units: T8 Stainless Steel Screws
Spindle Speed: 10000 rpm
Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
Control Software: GRBL Control
Cutter Diameter: 0.125" / 3.175 mm
Positioning Accuracy: 0.003 inch/ 0.07 mm
Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

Specification

Model: VG-S3018 Pro

Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm

Materials: Aluminum Profile & Bakelite

Input Power: DC 24V 5A

Driving Units: T8 Stainless Steel Screws

Spindle Speed: 10000 rpm

Stepping Motor: Size 42, 12V; Torque

Control Software: GRBL Control

Cutter Diameter: 0.125" / 3.175 mm

Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm

Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Manual: Download Link

Un produs excelent cu un pret rezonabil. Foarte bine realizat Functioneaza perfect. Este foarte flexibil datorita posibilitatii de deplasare oferite de butoanele de deplasare manuala pe axele XYZ

A good machine just a little fiddly to put together. The machine it's self is easy to use once set up and the programme is also easy to use. I am not so keen on the cutting it can take a few attempts to get the settings correct to achieve a clean cut

Koneen rajat tulevat suht. nopeasti vastaan mutta jos ei vaadi paljon, saa koneelta hyvään hintaan kaiken tarpeellisen. Kappaleen kiinnityssysteemi tuottaa harmaita hiuksia, ulkopuolisen tekemät YouTube-ohjeet auttavat enemmän kuin ohjekirja mutta kyllä silläkin pääsee liikkeelle.

Customer Reviews

4.8 Out of 5

Based on 48 reviews

Ratings by Features

Price 4.8
Quality 4.6
Features 4.6
Easy to Use 4.7
See More See Less

48 Review(s)

Clear filters

Catalin

Calin

The laser power is not good for some applications, and the software it's not useful for engraving. But, with another software works nice and easy.

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Liviu

CNC3018

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

3018

Zariadenie je ok len stale cakam na fakturu aj po pokuse 2 krat kontaktovat support stale nemam fakturu

Kimple

Cnc

Ihan ok. Kasaaminen vei paei tuntia. Nyt opetelemaan käyttöä. Yutubesta apua käyttämiseen. Näillä mennään

Danni

Mrd

Petri

Hyvä aloitus-cnc

Florian

Mr.

The product arrived very quickly, It was well packed. There was few tricks during installation, but all things are well documented and was fun. The product fits my needs very well in my lab, good quality at a reasonable price. The presentation on the web page is good, but the lack of some details it gave me some hesitation to buy, although now I'm very satisfied.

djboby

VEVOR CNC 3018 Pro with 2500mW laser

A good price and fast delivery. For small tasks it is very good. The laser module is very weak and the focus, being adjustable, is quite difficult to adjust. However, I also had successful attempts. The assembly is quite simple, especially if you watch the tutorials on YouTube. Pay attention to the Z axis, it must be adjusted. It should be noted that the electronic part also includes the motor drivers that are mounted directly on the motherboard and therefore cannot be replaced in case of need. CNC 3018 pro from Vevor comes with several accessories: a dust brush; protective eyewear; some milling bits; offline controller; fixing clips and a 24V/5A power supply, these being a good start. I also made a small upgrade to it. I added a cable management and a motor connector.
