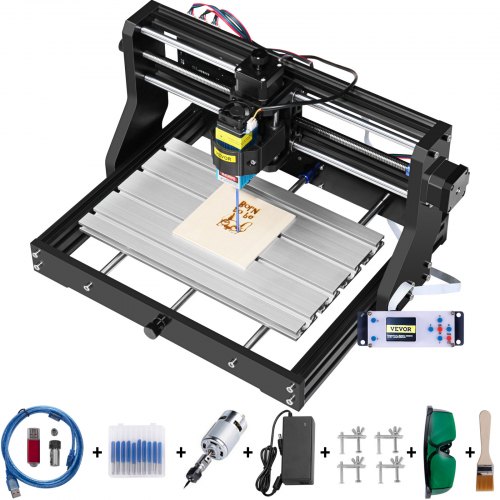

VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood
DKJ3018PRO500MW01V2

VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood

See All Customer Reviews
50 Reviews 6 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

30 x 18 cm

  • 30 x 18 cm
  • 30 x 20 cm
  • 40 x 40 cm

0.5 W

  • 15 W
  • 120 W
  • 5.5 W
  • 0.5 W
  • 300W
  • 2.5 W

About this item

  • CNC 3018 Router Machine: The 500mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
  • Sturdy Material: The frame is mainly made of aluminum alloy and bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR CNC 3018 Pro 500mw 300×180×45mm CNC Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood
30 x 18 cm 0.5 W
Description Specification Questions and Answers Reviews
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
500mW Laser Module & Spindle Motor
The 500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Wide Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications
  • Model: VG-S3018 Pro
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
  • Materials: Aluminum Profile & Bakelite
  • Input Power: DC 24V 5A
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003 inch/ 0.07 mm
  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
500mW Laser Module & Spindle Motor
The 500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Wide Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
Specifications
  • Model: VG-S3018 Pro
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
  • Materials: Aluminum Profile & Bakelite
  • Input Power: DC 24V 5A
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003 inch/ 0.07 mm
  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

Specification

Model
VG-S3018 Pro
Effective Working Area(X x Y x Z)
11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
Materials
Aluminum Profile & Bakelite
Input Power
DC 24V 5A
Driving Units
T8 Stainless Steel Screws
Spindle Speed
10000 rpm
Stepping Motor
Size 42, 12V; Torque
Control Software
GRBL Control
Cutter Diameter
0.125" / 3.175 mm
Positioning Accuracy
0.003"-0.004" / 0.08-0.1 mm
Item Dimension
15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Manual
Download Link
Questions and Answers
6 Questions
or Ask a Question
with the 15 w laser module why no grayscale?
Answer This Question
Requirements for grayscale engraving: 1. The source image is a grayscale image. 2. Select the line grayscale engraving mode on the software. 3. Turn down the power of the software. It is easy to directly engrave black with high power. 4. It is also related to the reaction of the engraving material itself after high-temperature carbonization. It is better to use wood carving to make it more obvious.
By vevor
Helpful ( 1 )
Buna ziua Ma intereseaza daca pot grava pixuri metalice?
Answer This Question
Nu, nu puteți grava pixuri metalice.
By vevor
Helpful ( 0 )
Which cheapest model can be recommended for PCB printed circuit boards?
Answer This Question
The machine is suitable for DIY PCB engraving. If the accuracy requirements are very high, it may not be able to achieve it. It depends on your actual requirements.
By vevor
Helpful ( 0 )
Can this milling cutter mill in 0.35mm copper in a PCB Board (Printed circuit board for electronics)?
Answer This Question
It is not recommended to use it for PCB processing that requires too high precision, because this is a DIY machine.
By vevor
Helpful ( 0 )
I bought this machine already with the idea of upgrading to a 500w spindle and Stepper Motor Nema 17 71Ncm 1.8A z axis and two Nema 17 Stepper motor 59Ncm 2A xy axis. Can the 5A powered controlboard handle all that? Upgrading a power supply to a 10A can fix that?
Answer This Question
It may not support it, and the control board cannot drive a 500W motor.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 50 reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
50 Review(s)
Clear filters
magnistor magnistor
pista
Korekt, gyors szállítás, a rendelésnek megfelelő áru. Az "X" vezeték rúdja gyári állapotban elég gyenge, ezért azt 12mm átmérőjűre cseréltem -így lényegesen merevebb a szerkezet. A maró motor teljesítménye elég, de gravírtűhöz elkelne nagyobb fordulatzsám. Az 500mW lézer csak gravírozáshoz elég. Szerettem volna az 5.5Wattos lézerrel megvenni, de ez a lehetőséget ebben az árkategóriában nem volt akínálatukban. Végálláskapcsolókat kapott a gép, azzal is jól működik. Összességében meg vagyok elégedve a termékkel! Üdvözlettel: István
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ef Ef
Cnc
Great piece of equipment & for the money well worth a buy. Very easy to set up & with the duel use of cnc & lazer it's very versatile
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Catalin Catalin
Calin
The laser power is not good for some applications, and the software it's not useful for engraving. But, with another software works nice and easy.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Liviu Liviu
CNC3018
Un produs excelent cu un pret rezonabil. Foarte bine realizat Functioneaza perfect. Este foarte flexibil datorita posibilitatii de deplasare oferite de butoanele de deplasare manuala pe axele XYZ
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
3018 3018
3018
Zariadenie je ok len stale cakam na fakturu aj po pokuse 2 krat kontaktovat support stale nemam fakturu
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Kimple Kimple
Cnc
Ihan ok. Kasaaminen vei paei tuntia. Nyt opetelemaan käyttöä. Yutubesta apua käyttämiseen. Näillä mennään
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Danni Danni
Mrd
A good machine just a little fiddly to put together. The machine it's self is easy to use once set up and the programme is also easy to use. I am not so keen on the cutting it can take a few attempts to get the settings correct to achieve a clean cut
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Petri Petri
Hyvä aloitus-cnc
Koneen rajat tulevat suht. nopeasti vastaan mutta jos ei vaadi paljon, saa koneelta hyvään hintaan kaiken tarpeellisen. Kappaleen kiinnityssysteemi tuottaa harmaita hiuksia, ulkopuolisen tekemät YouTube-ohjeet auttavat enemmän kuin ohjekirja mutta kyllä silläkin pääsee liikkeelle.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Florian Florian
Mr.
The product arrived very quickly, It was well packed. There was few tricks during installation, but all things are well documented and was fun. The product fits my needs very well in my lab, good quality at a reasonable price. The presentation on the web page is good, but the lack of some details it gave me some hesitation to buy, although now I'm very satisfied.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
djboby djboby
VEVOR CNC 3018 Pro with 2500mW laser
A good price and fast delivery. For small tasks it is very good. The laser module is very weak and the focus, being adjustable, is quite difficult to adjust. However, I also had successful attempts. The assembly is quite simple, especially if you watch the tutorials on YouTube. Pay attention to the Z axis, it must be adjusted. It should be noted that the electronic part also includes the motor drivers that are mounted directly on the motherboard and therefore cannot be replaced in case of need. CNC 3018 pro from Vevor comes with several accessories: a dust brush; protective eyewear; some milling bits; offline controller; fixing clips and a 24V/5A power supply, these being a good start. I also made a small upgrade to it. I added a cable management and a motor connector.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
