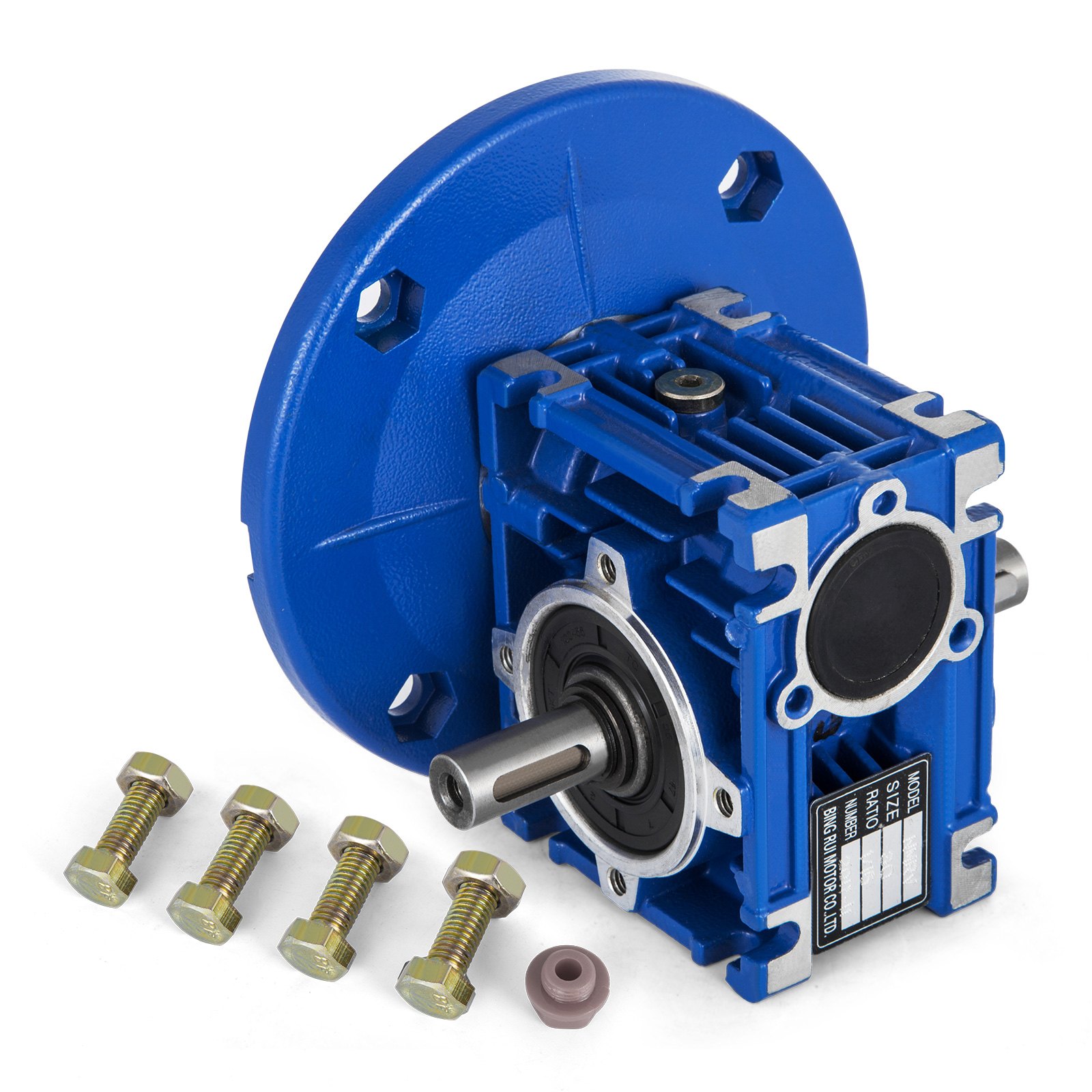

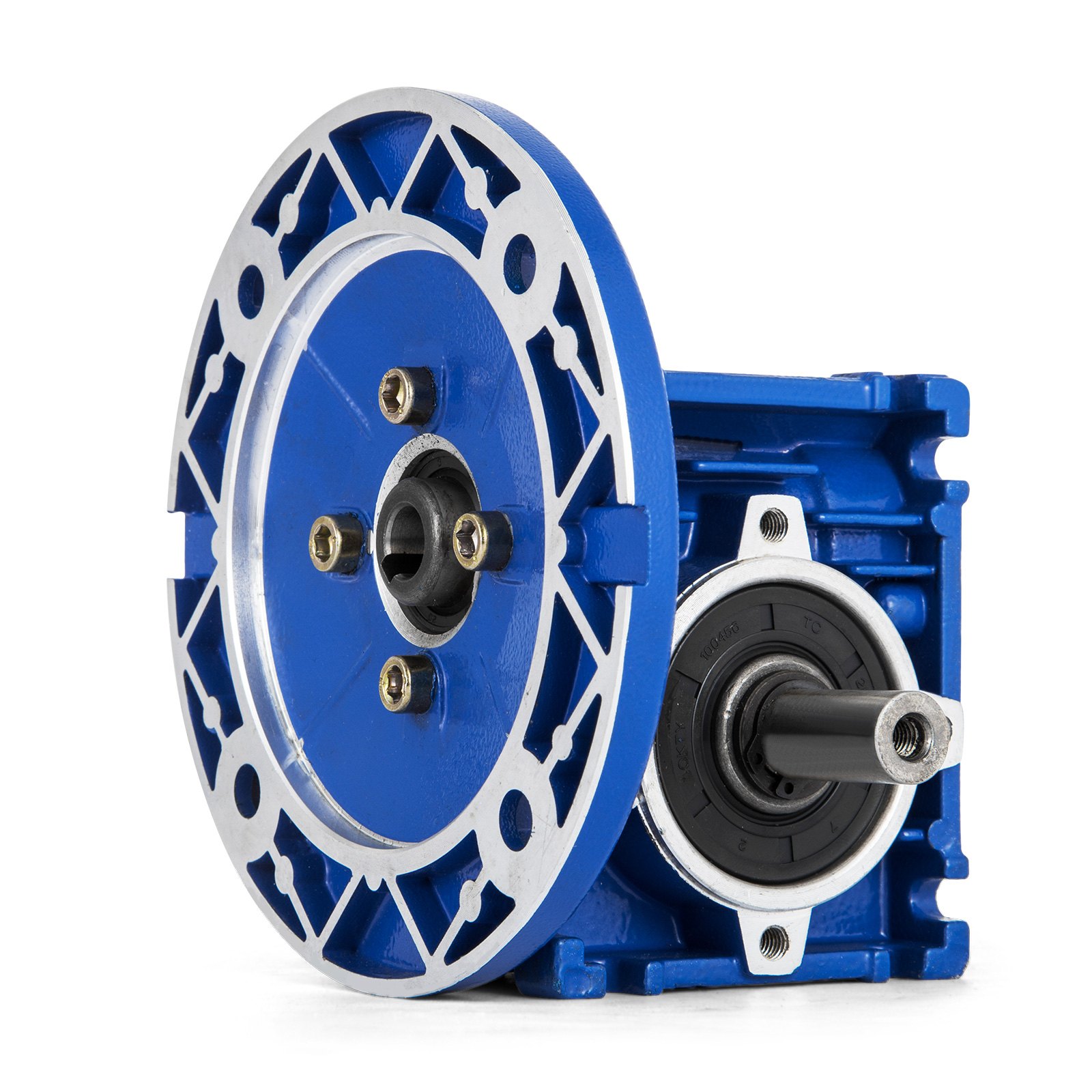

Nmrv30 Right Angle Worm Gearbox / Speed Reducer / Size 30 / 14mm Dual Shaft
0 0 Reviews
37 79 €
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now

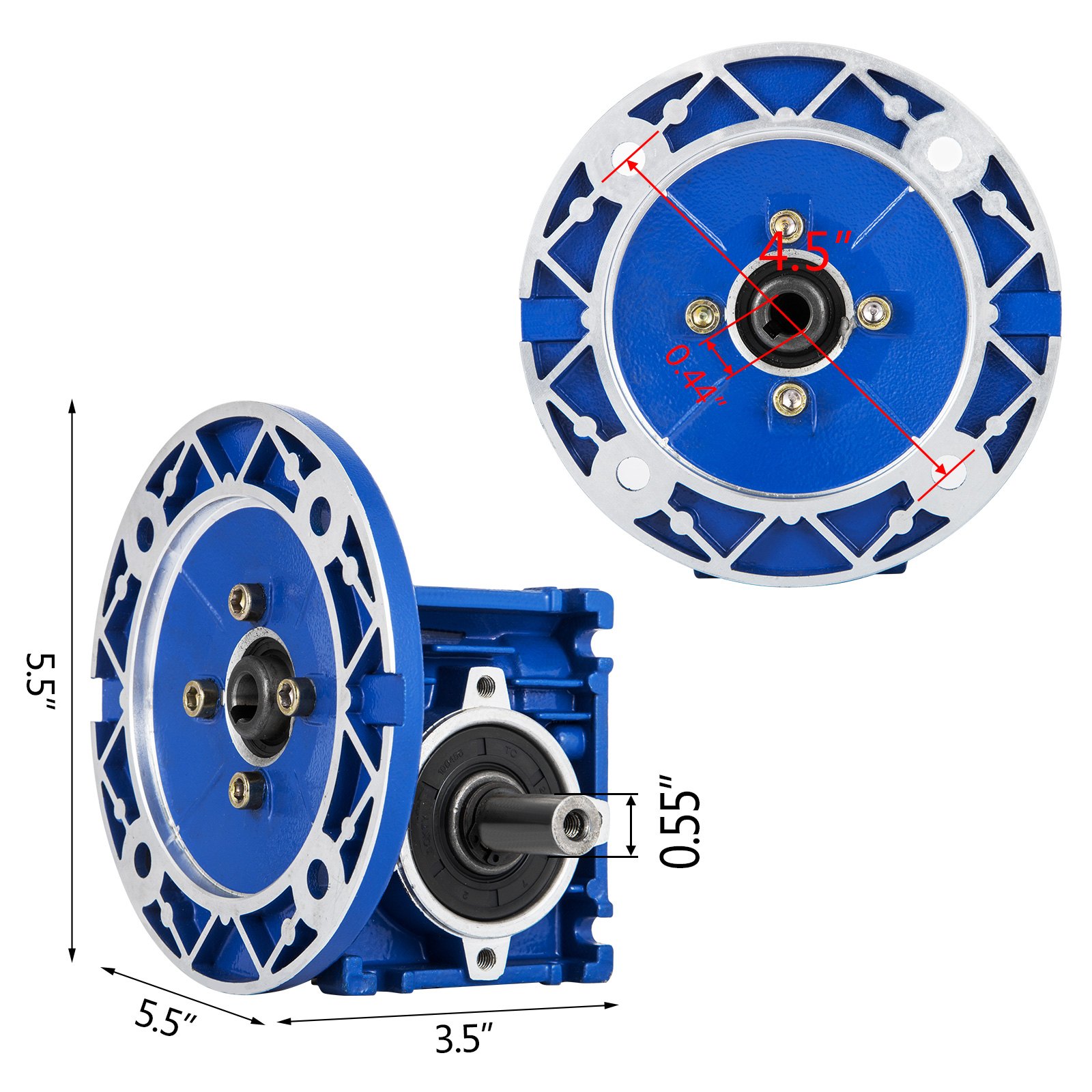

- This 15:1 ratio speed reducer is rated for 0.38 HP input at 1750 RPM on a hollow 0.43" diameter x 1-7/8" long keyed shaft and 63B5 mounting flange. Output is 159 lb/in on a hollow 0.55" diameter x 2-1/2" long keyed shaft.
- High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.
- You can add a single output shaft (0.55" x 1-1/2" usable) or a double output shaft (2X 0.55" x 1-1/2" usable) from Ebay.
- Products characteristics
- NMRV series worm gear reducer is a new generation of product developed by our company ,on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Top Reviews
About this item
Description
Applications:
This15:1 ratio speed reducer is rated for 0.38 HP input at 1750 RPM on a hollow 0.43" diameter x 1-7/8" long keyed shaft and 63B5 mounting flange.Output is 159 lb/in on a hollow 0.55" diameter x 2-1/2" long keyed shaft.
High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.
You can add a single output shaft (0.55" x 1-1/2" usable) or a double output shaft (2X 0.55" x 1-1/2" usable) from Ebay.
Products characteristics:
NMRV series worm gear reducer is a new generation of product developed by our company ,on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad.
Main materials:
1. Housing: die-cast aluminum alloy (frame size 025 to 090); cast iron (frame size:110- 150).
2. Worm: 20Cr, carbonize & quencher heat treatment make the hardness of gear's surface up to 56-62 HRC ,retain carburetion layer's thickness between 0.3 and 0.5mm after precise grinding.
3. Worm wheel: wearable stannous bronze alloy.
Aluminum alloy housing:
1.Shot blasting and special antiseptic treat-mint on the aluminum alloy surface.
2.After phosphate, paint with RAL5010 blue or silvery white paint.
Structures:
Output shaft, turn arm, slider, Fixed CAM, Ball ring, speed CAM ,operating cover, cabinet, pressure plate, will spring, block circle, motor shaft.
This15:1 ratio speed reducer is rated for 0.38 HP input at 1750 RPM on a hollow 0.43" diameter x 1-7/8" long keyed shaft and 63B5 mounting flange.Output is 159 lb/in on a hollow 0.55" diameter x 2-1/2" long keyed shaft.
High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.
You can add a single output shaft (0.55" x 1-1/2" usable) or a double output shaft (2X 0.55" x 1-1/2" usable) from Ebay.
Products characteristics:
NMRV series worm gear reducer is a new generation of product developed by our company ,on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad.
Main materials:
1. Housing: die-cast aluminum alloy (frame size 025 to 090); cast iron (frame size:110- 150).
2. Worm: 20Cr, carbonize & quencher heat treatment make the hardness of gear's surface up to 56-62 HRC ,retain carburetion layer's thickness between 0.3 and 0.5mm after precise grinding.
3. Worm wheel: wearable stannous bronze alloy.
Aluminum alloy housing:
1.Shot blasting and special antiseptic treat-mint on the aluminum alloy surface.
2.After phosphate, paint with RAL5010 blue or silvery white paint.
Structures:
Output shaft, turn arm, slider, Fixed CAM, Ball ring, speed CAM ,operating cover, cabinet, pressure plate, will spring, block circle, motor shaft.
- Made of high-quality aluminum alloy, lightweight, non-rusting
- Large output torque
- Smooth in running and low in noise, can work long time in dreadful conditions
- High in radiating efficiency
- Good-looking in appearance, durable in service life and small in volume
- Suitable for overall sides installation
- Brand: VEVOR
- Model: NMRV030
- Max. Rated Horsepower: 0.38 HP
- Max. Rated Torque: 159 LB/IN
- Ratio: 15:1
- Max. Rated RPM: 1750 RPM
- Flange: 63B5
- Material: Cast Aluminum
- Hole Input Diameter: 11 mm (0.43 inch)
- Hole Output Diameter: 14 mm (0.55 inch)
- Color: Blue
- Input Shaft Length / Depth: 1-7/8''
- Unit of Measurement: Inch
- Series: 30
- 2 years Warranty
- 1 X 15:1 Ratio Speed Reducer
- 1 X Users' manual
