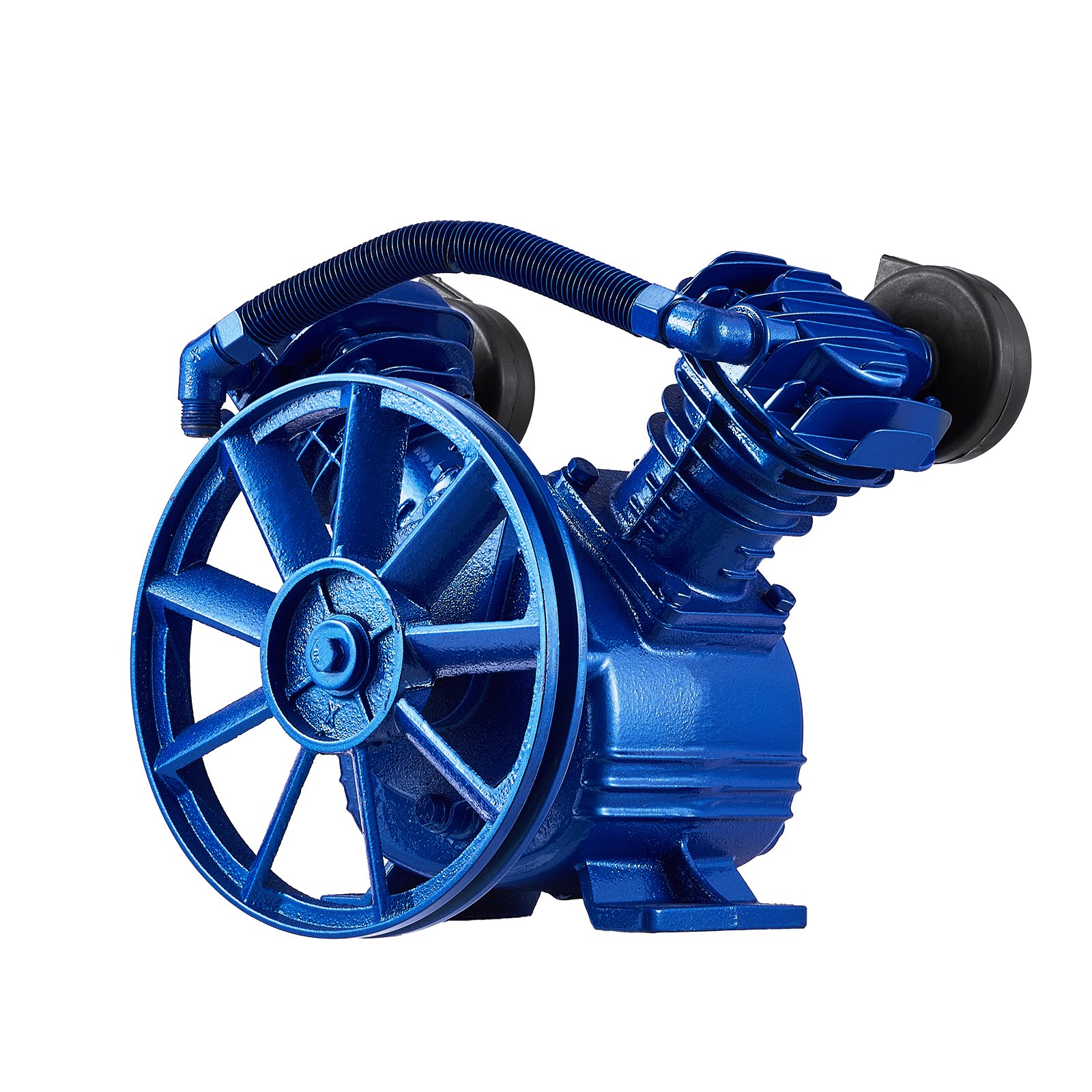

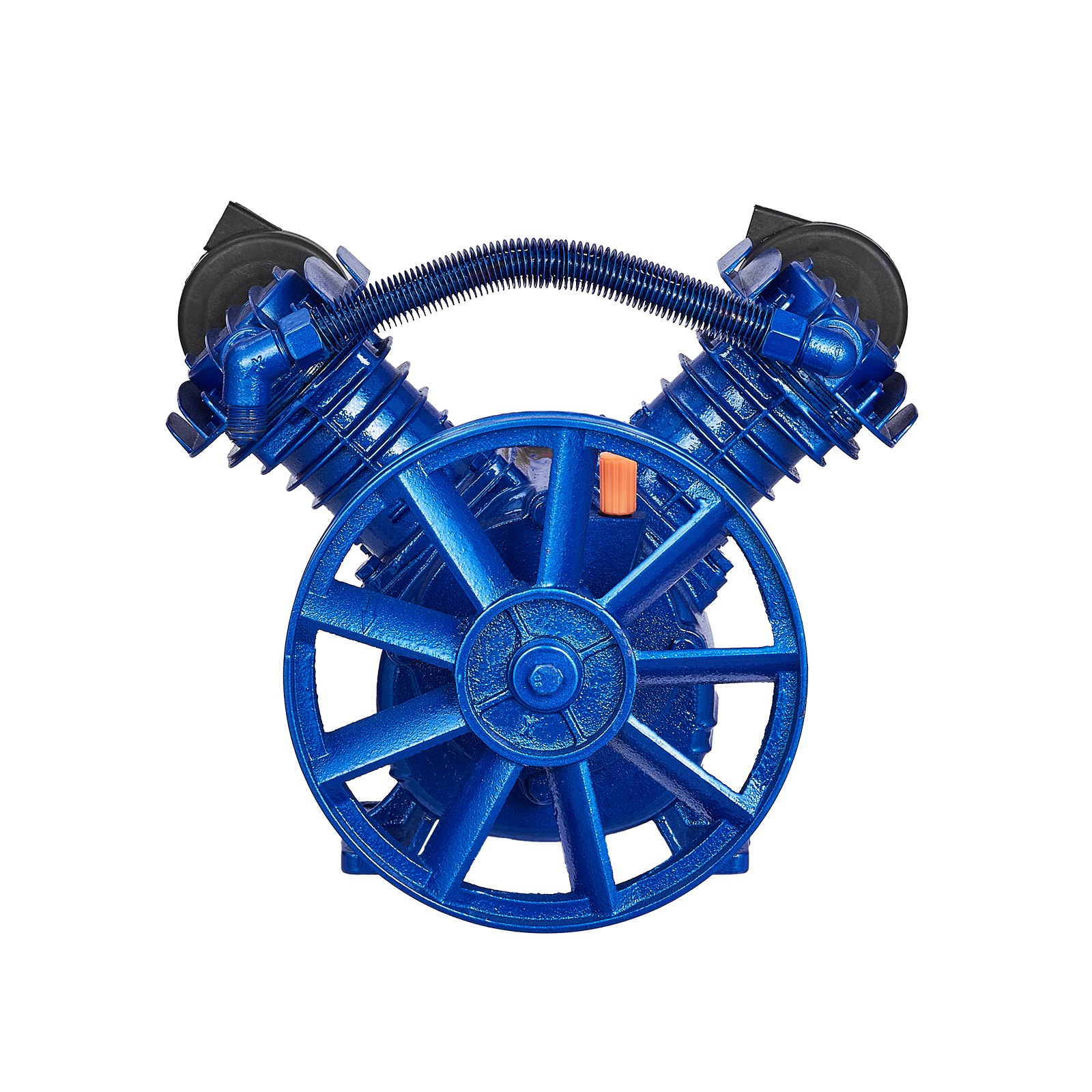

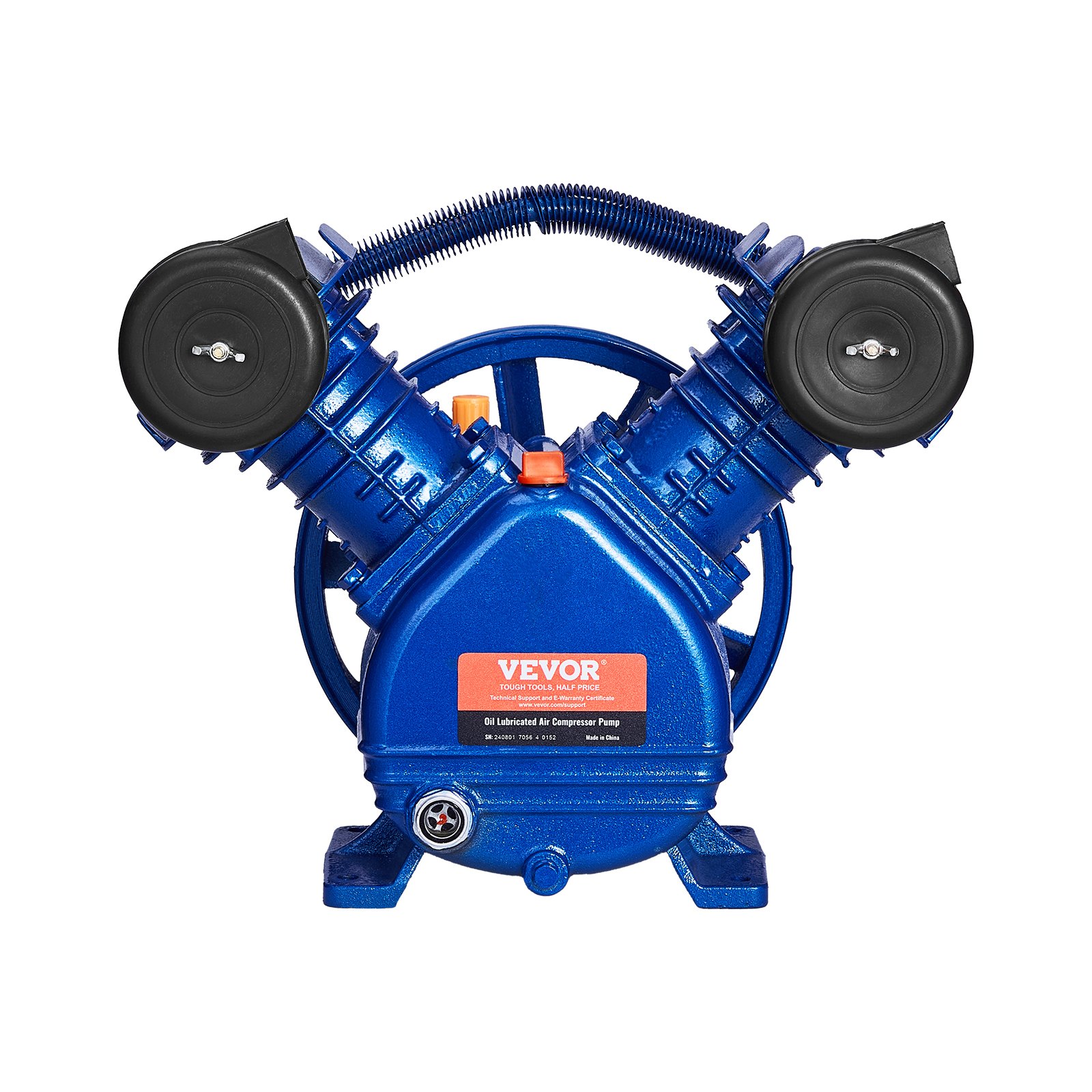

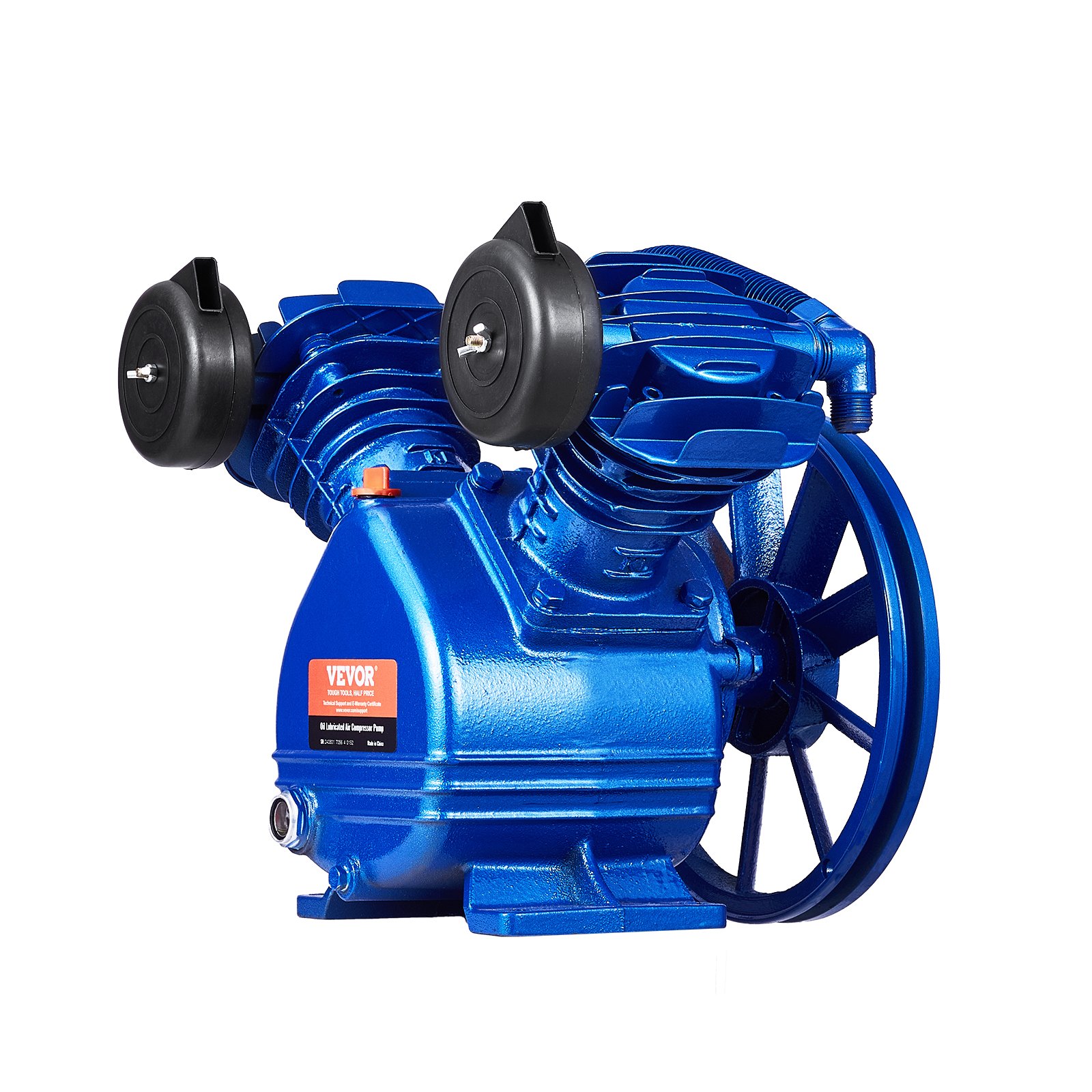

VEVOR Air Compressor Pump Head 3HP 6.25CFM @ 90PSI 2-Cylinder Piston Pump Head

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive DKr.5.00 off for your first three orders on the App.
Download Now
Exclusive DKr.5.00 off for your first three orders on the App.
Scan the QR code to download

Double Cylinder Pump Head

  • Triple Cylinder Pump Head
  • Double Cylinder Pump Head
  • Piston Pump Head

3 hp

  • 10HP
  • 5.5 hp
  • 3 hp

About this item

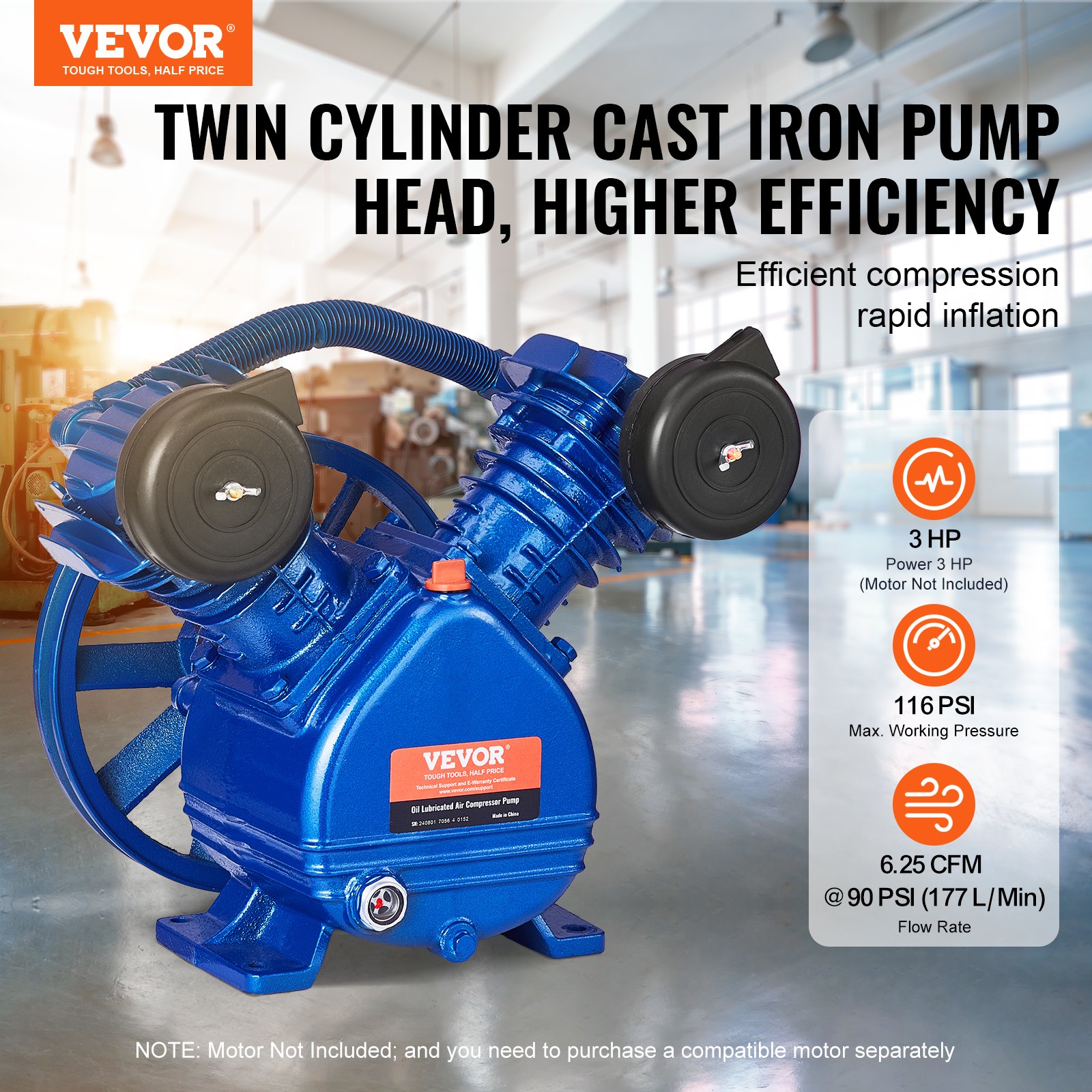

  • 3HP Air Compressor Pump Head: VEVOR 3HP twin-cylinder air compressor pump head features 6.25 CFM @ 90 PSI air delivery rate and 116PSI max working pressure, provides a continuous and sufficient air supply for a wide range of equipment, ideal for tire inflation, spray painting, woodworking, and more tasks. (NOTE: Motor Not Included)

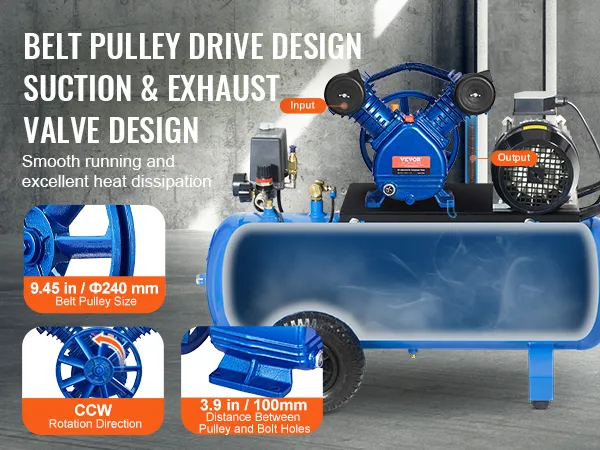

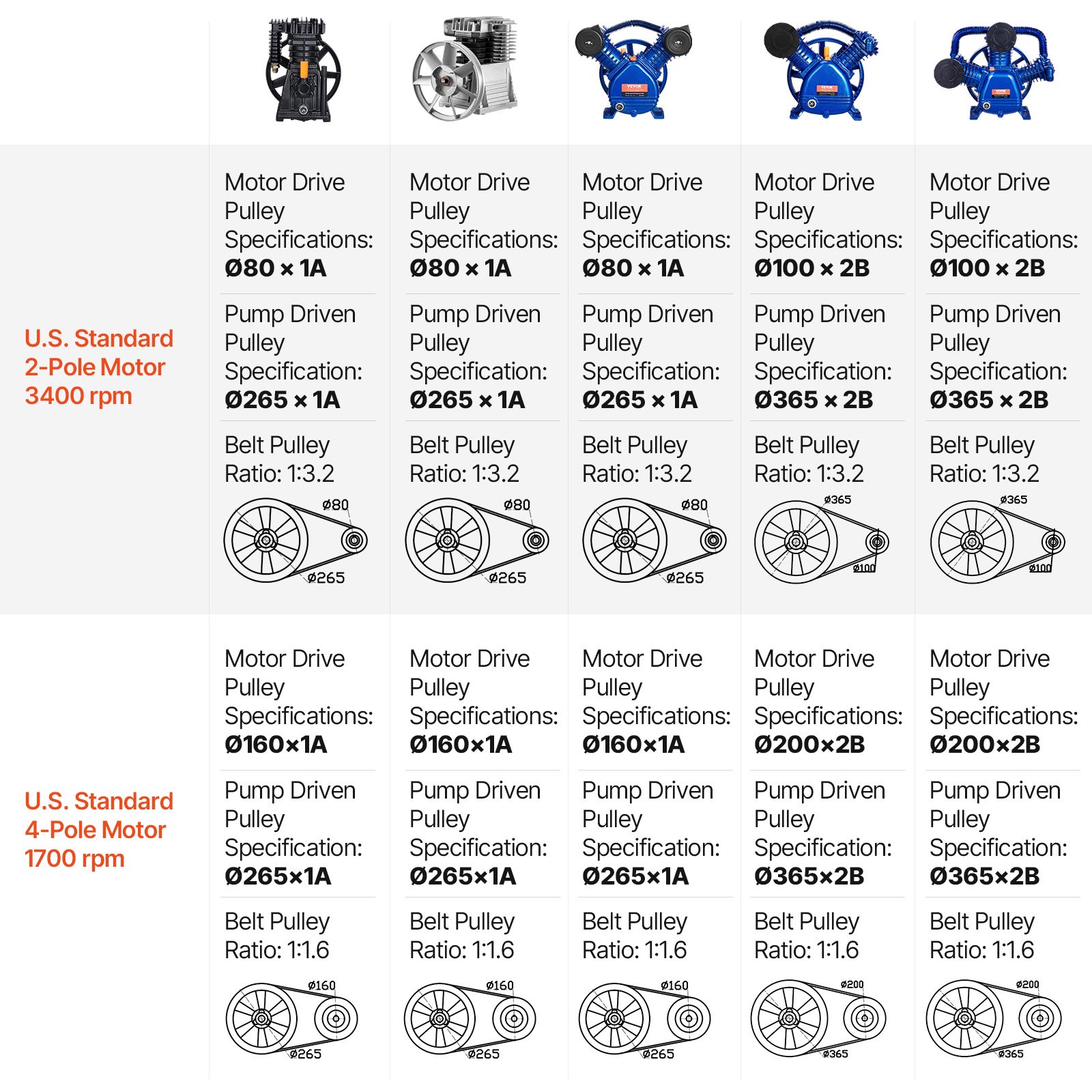

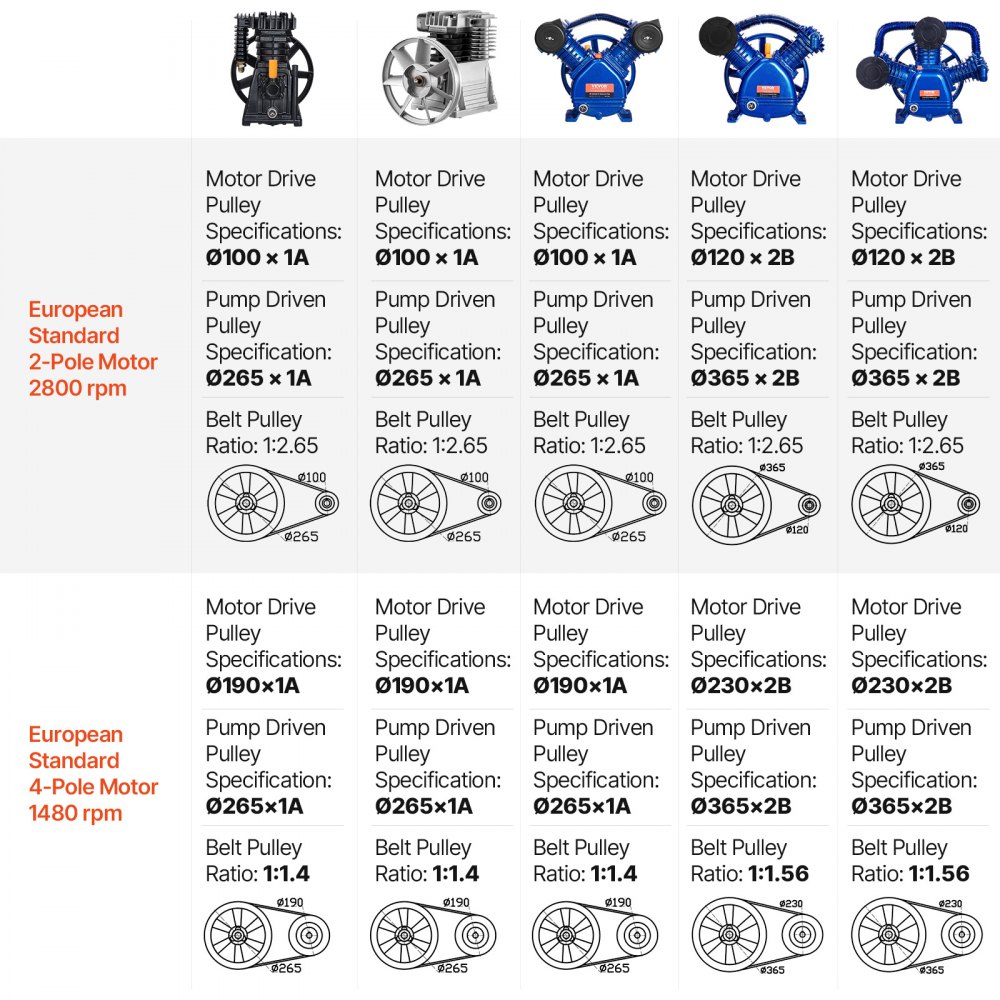

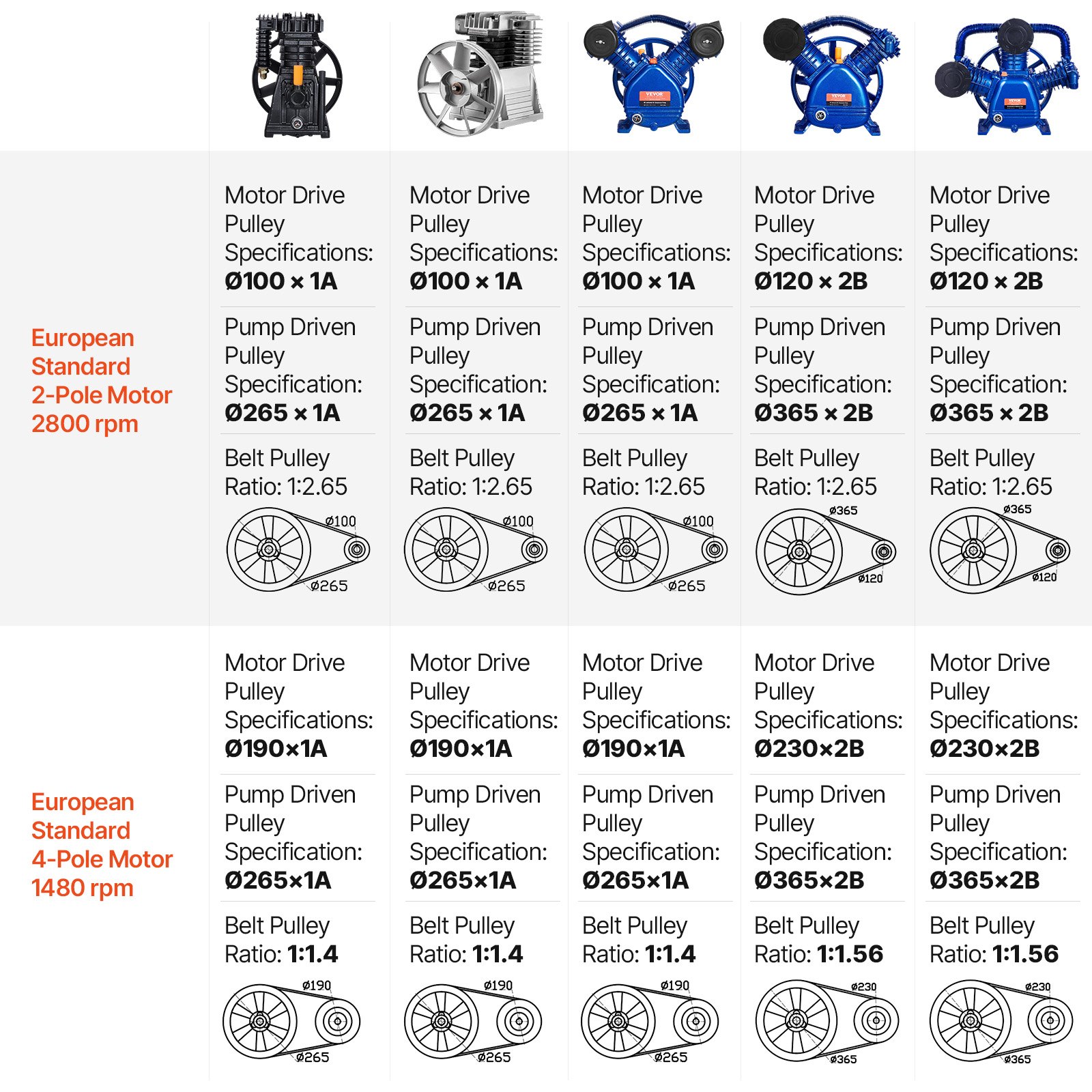

  • Proven Belt-Driven Design: Utilizing the proven belt-driven design to avoid bearing displacement, our single-stage V type pump head provides excellent compression and smooth running. (Installation notes: When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.)

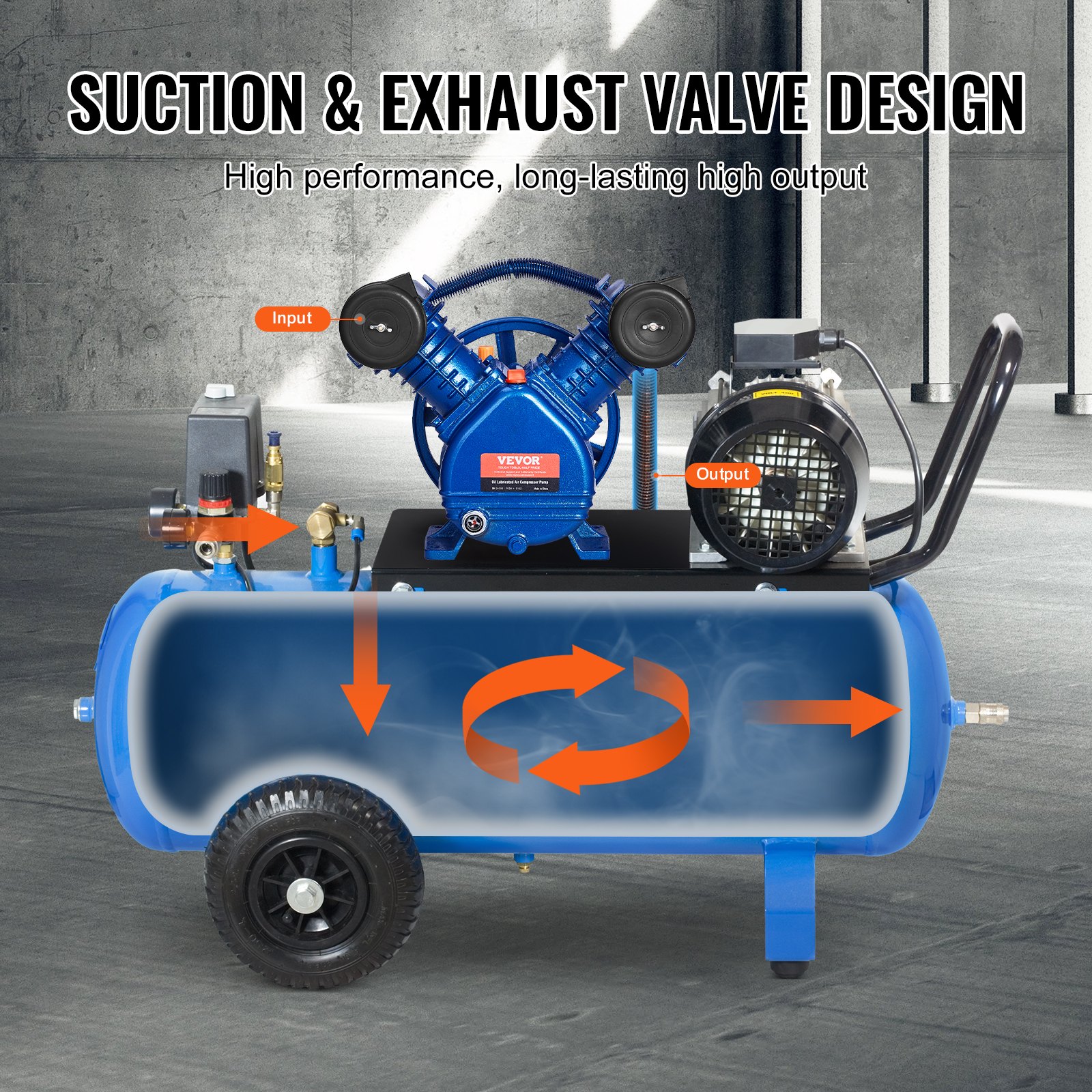

  • Superior Features: This oil lubricated air compressor pump features an high-quality intake and exhaust valve design, precision cylinder, efficient heat dissipation fins, and air filter to enhance stability and extend service life, and the convenient oil observation mirror allows users to easily monitor the oil level.
  • Durable and Efficient: The compact piston pump head is mainly made of durable cast iron, which offers excellent wear resistance and is not easily damaged. Coupled with its high efficiency and low energy consumption, it delivers powerful pneumatic performance while helping you save on operational costs.
  • Wide Applications: VEVOR 3HP air compressor pump head is widely used in chemical, light industry, textile, mining, construction, home decoration, woodworking shops, auto repair, etc. It delivers reliable compressed air to meet the demands of various equipment and tools, greatly enhancing your work efficiency.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air Compressor Pump Head 3HP 6.25CFM @ 90PSI 2-Cylinder Piston Pump Head
Double Cylinder Pump Head 3 hp
Trust VEVOR Air Compressor Pump for Efficient Compression

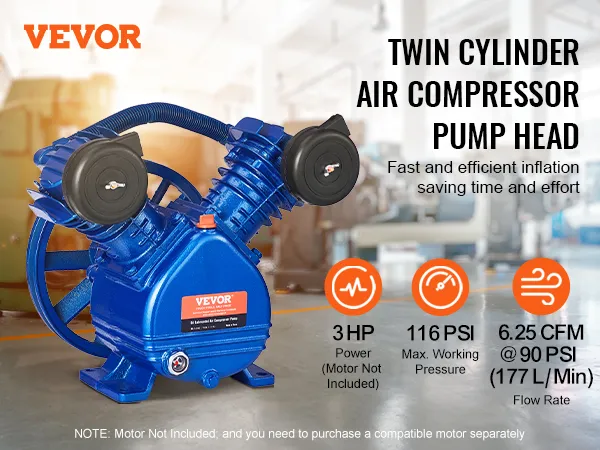

VEVOR 3HP twin-cylinder air compressor pump head is your go-to solution for your pneumatic needs. It boasts an impressive air flow of 6.25 CFM @ 90 PSI, 116 PSI maximum working pressure and single-stage compression, delivering a steady and abundant air supply for a variety of applications.

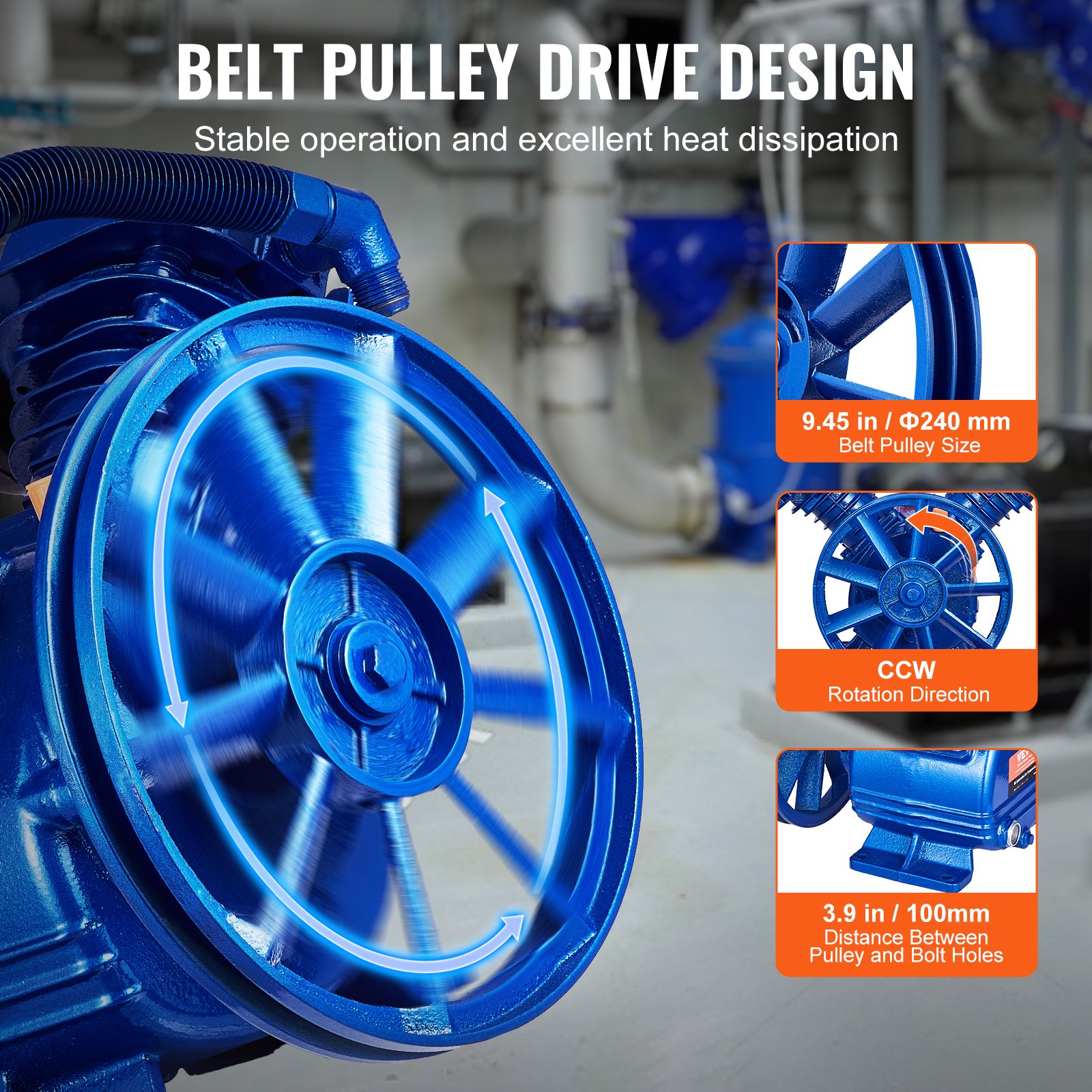

Our oil-lubricated piston pump head features a belt-driven design that enhances efficient compression while delivering smooth operation. It promotes efficient heat dissipation, extends lifespan, and ensures consistent performance over time.

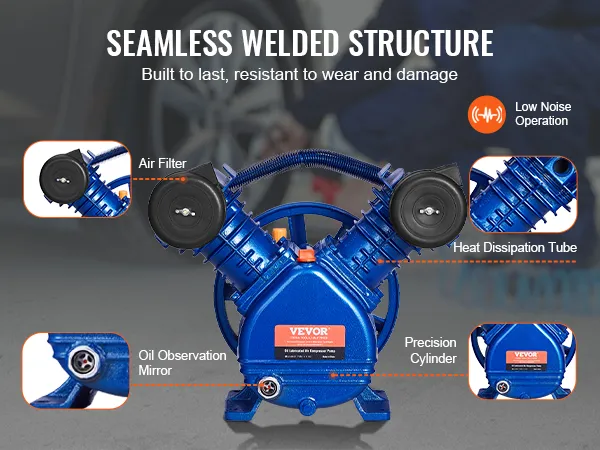

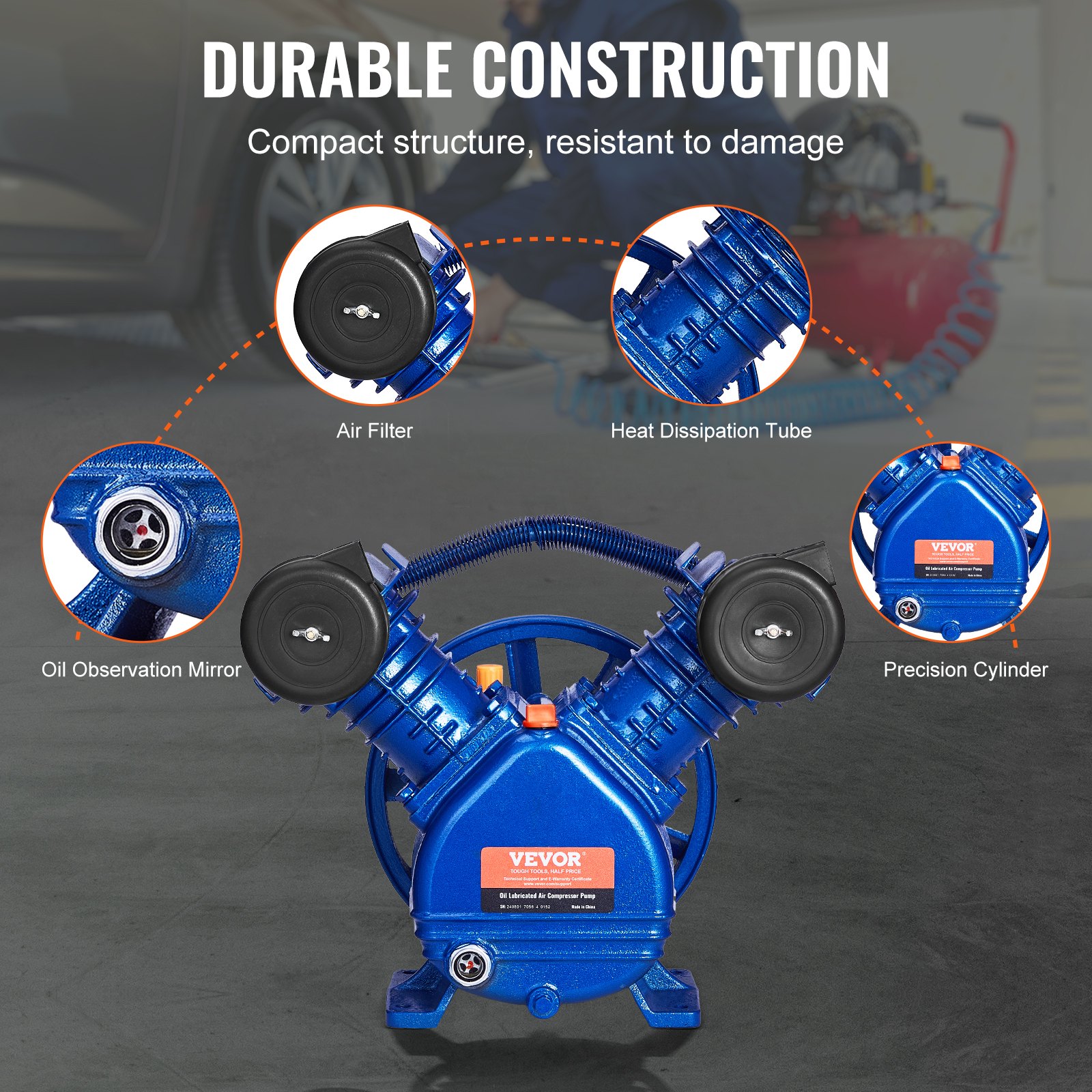

This compressor pump head features a seamless welding structure that offers excellent wear resistance and damage tolerance, making it capable of withstanding long-term use. It is equipped with an oil observation window, allowing users to easily monitor oil levels.

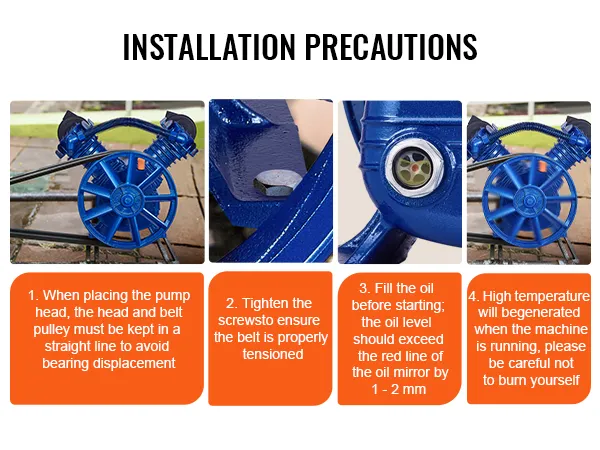

Ensuring that your compressor pump head replacement operates efficiently and safely is crucial. Following these simple precautions will help you maximize the pump head's performance and ensure its long-term stability.

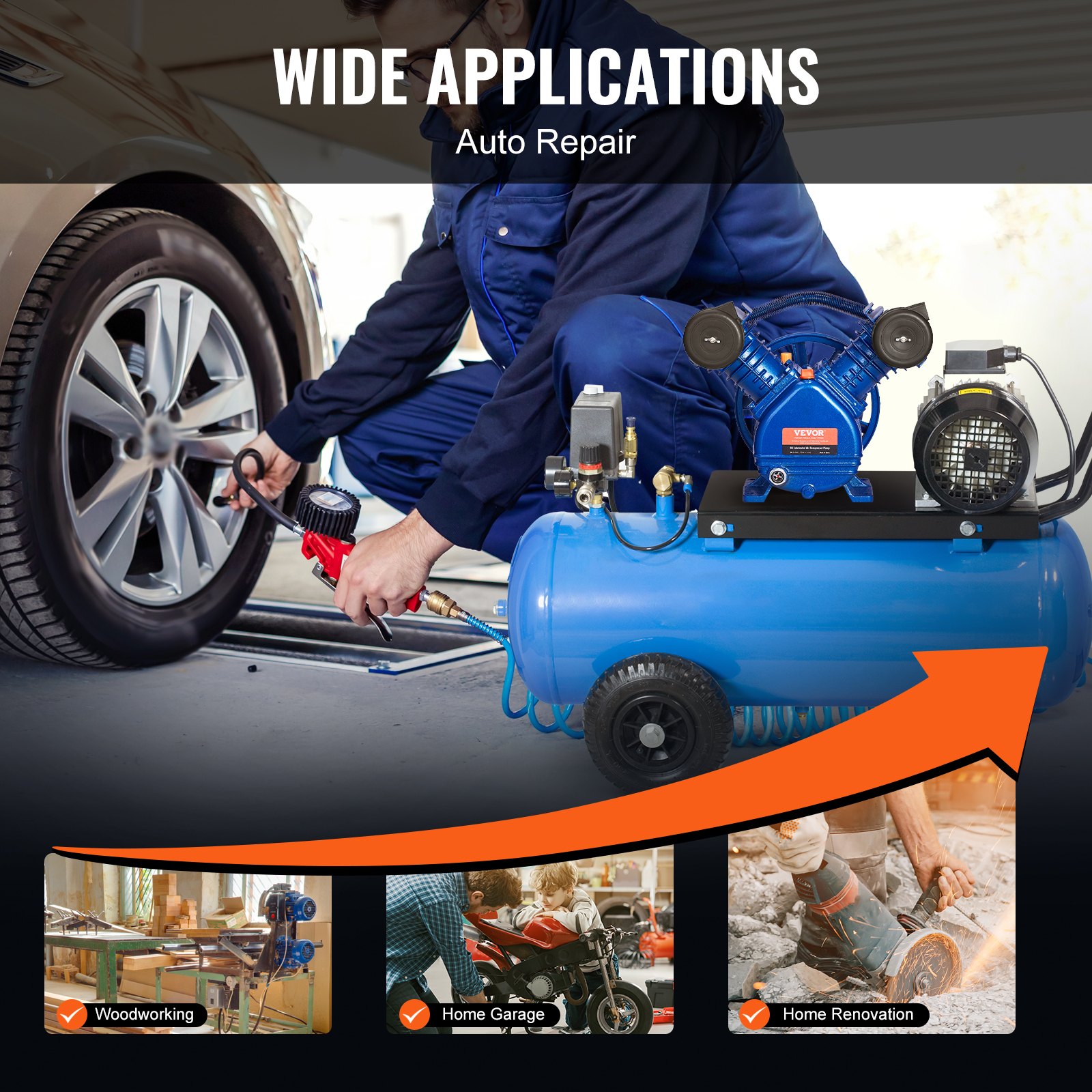

This twin-cylinder air compressor pump is widely applicable in auto repair, woodworking shops, home garages, renovation projects, and more. It provides reliable air supply to meet diverse inflation needs and boost work efficiency.

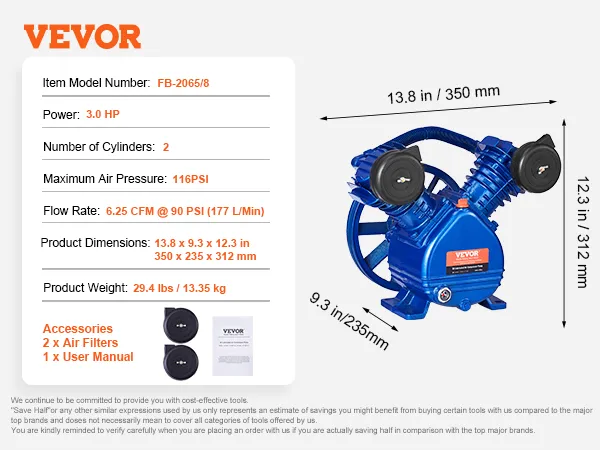

Specification

Item Model Number
FB-2065/8
Power
3.0 HP
Number of Cylinders
2
Maximum Air Pressure
116 PSI
Flow Rate
6.25 CFM @ 90 PSI (177 L/Min)
Product Dimensions
13.8 x 9.3 x 12.3 in / 350 x 235 x 312 mm
Product Weight
29.4 lbs / 13.35 kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
33 Review(s)
Clear filters
Aliona Tocilat Aliona Tocilat
Bomba de compresor
Ja avariou depois de dois dias e nao consigo resolver o problema, esta mal nao recomendo o Vevor,material de vevor nao presta
Vargen Vargen
Hobbymekaniker
Gamla kompressorn skar så jag beställde denna istället för original som var tre gånger dyrare. Lite pyssel att få tag på en ny rem till det mindre remhjulet och linjera in då originalhålen för att skruva fast den inte passade men nu fungerar det bra
Jukka S. Jukka S.
Works well and good quality.
My old compressor reached end of the line and then I decided to build better new one and of corse needed new pump block. Quality/price -ratio is good and no obvious shortcomings or quality problems. Produces air quite fast. Shaft rotation is counter- clockwise and output is 3/4". It does not vibrate a lot when running. I use compressor mineral oil wit this unit and seems to work with no problems. Pumping 50 liter tank from 8 to 10 bar only takes about 30 seconds. I have not yet used this a lot, so far I'm satisfied and can recommend this product. Quick delivery.
Luís almeida Luís almeida
Boa relação qualidade/preço
Compre com a sua função, a um preço acessível, boa qualidade de fabrico, bastante silencioso e bem acondicionado para o seu transporte.
Mikko Mikko
Hintansa väärtti
Tuotto hyvä, vähän äänekäs mutta wörtti hankinta kun vanha kompura halutaan elvyttää. Toimitus oli nopea ja tuote hyvin pakattu. Aika näyttää kuinka pitkäikäinen tuote on kyseessä
kaszasa kaszasa
Mr.
Eddig miden rendben volt, remélem, hosszú életű lesz. Az olajtöltő sapkáját kicsit másképp oldottam volna meg, kicsapódik rajta az olaj.
Gonçalo Gonçalo
Factura
É possivel obter factura com numero fiscal, do artigo comprado? Se sim gostaria que me enviassem a mesma. Nome Gonçalo Rosado da Fonseca, Lda, Nif:509381472, Estremoz, Portugal. Fico a aguardar os vossos comentários. Cumprimentos Gonçalo Rosado da Fonseca
Iain P Iain P
Cheap and seems good
Cheap but reasonably quiet and efficient
Geoff Geoff
You can count on YouTube
Received item was damaged with defects but got a full refund
Rolle rörkrök Rolle rörkrök
Rörmontör
Fungerar som den skall.Lätt att montera.Borrade bara hålen lite fel i plattan.Var ju mitt fel-Bytte ut en gammal KGK-kompressor 3 Hk motor.
