About this item
150 HP Hydraulic Steering Kit: Our 150 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 24ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys！

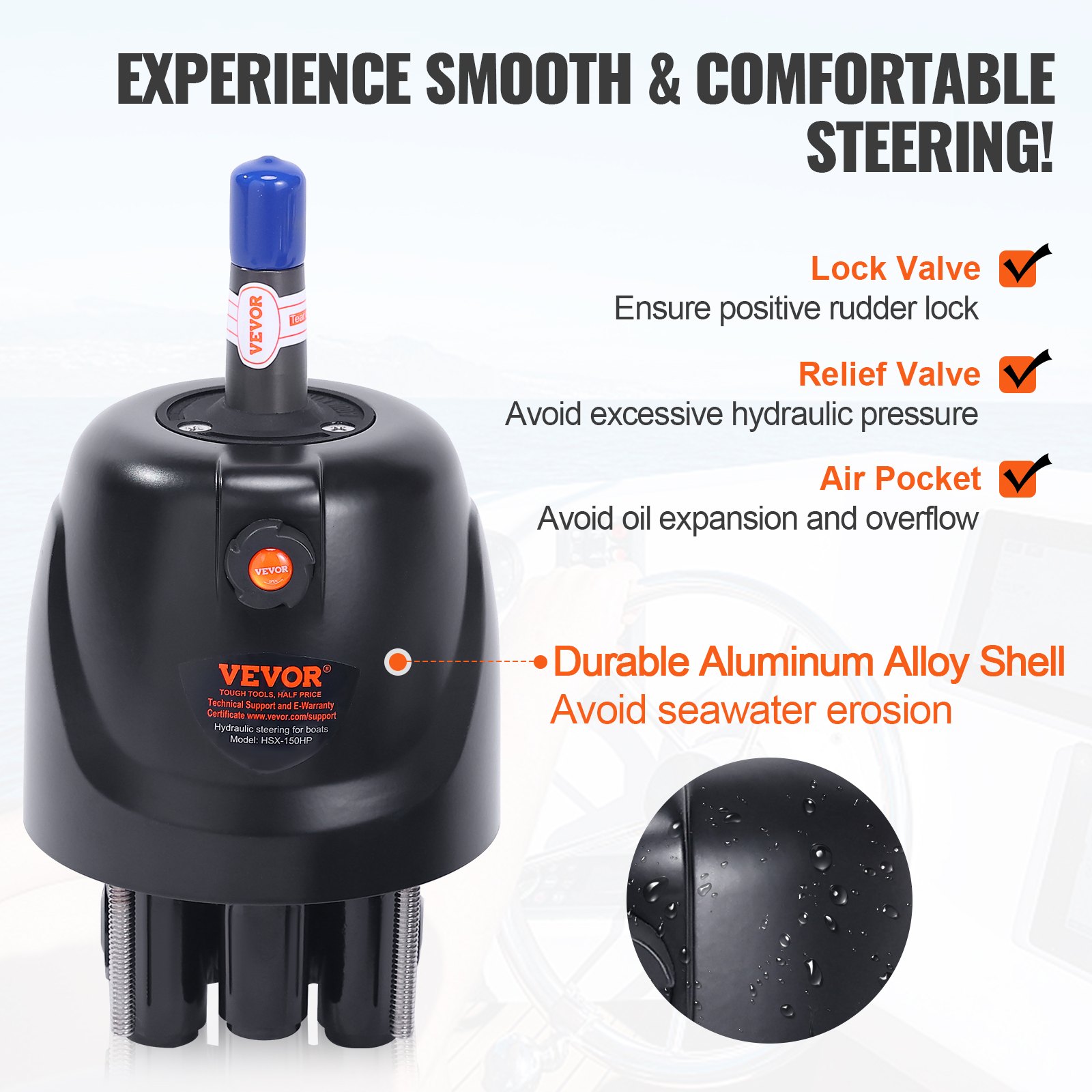

Two-Way Locking Valve: Our advanced hydraulic pump features a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.

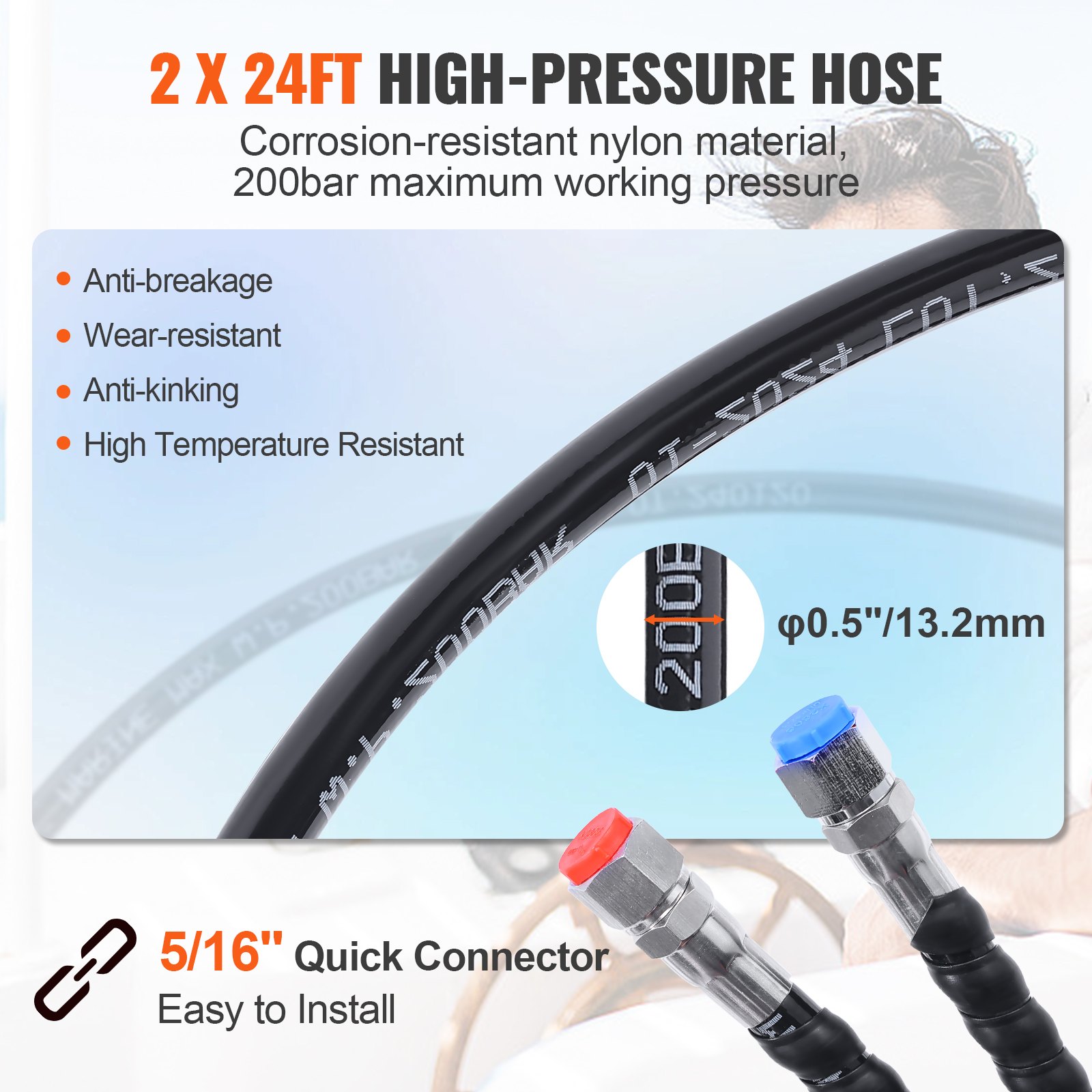

2x24FT Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.

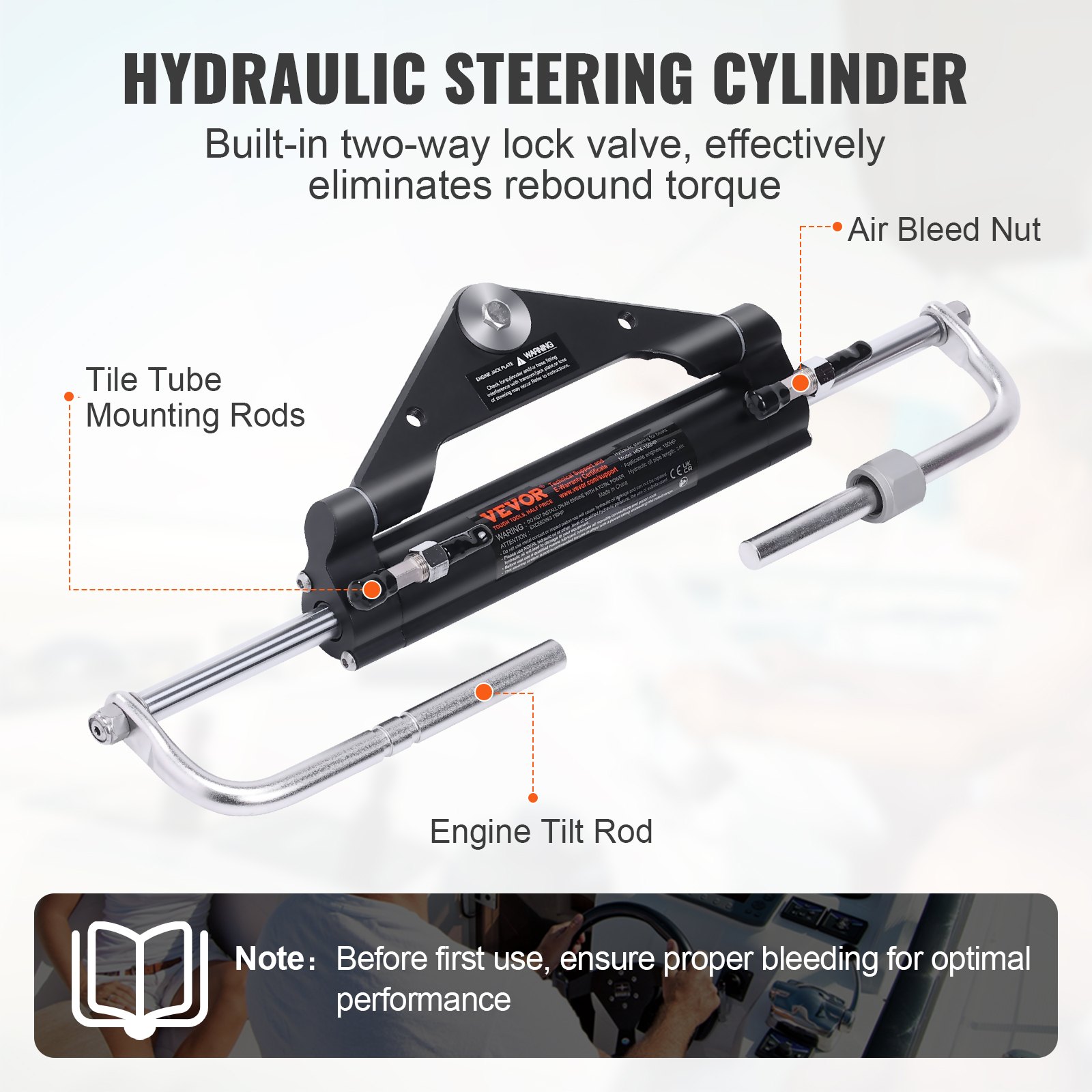

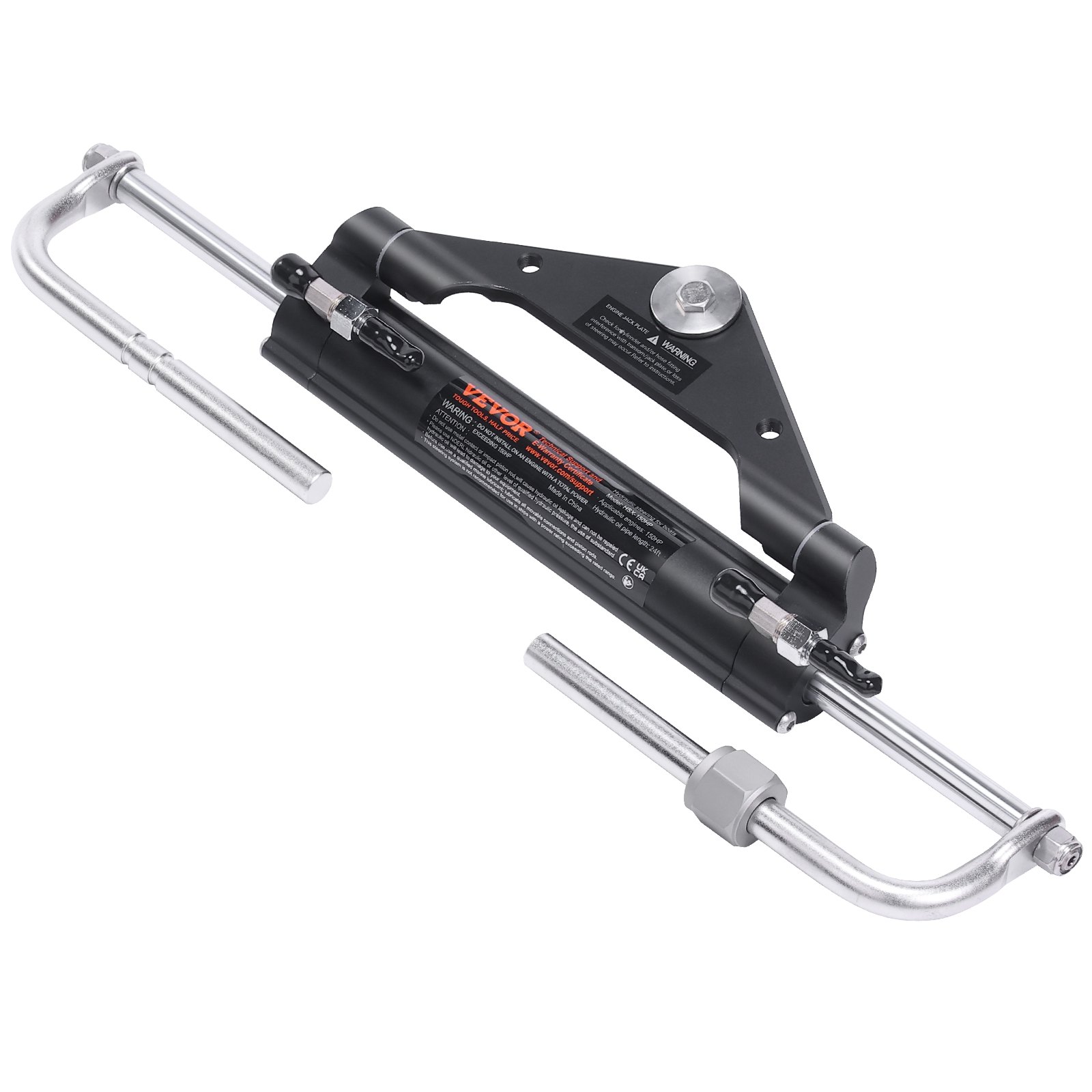

High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 400kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.

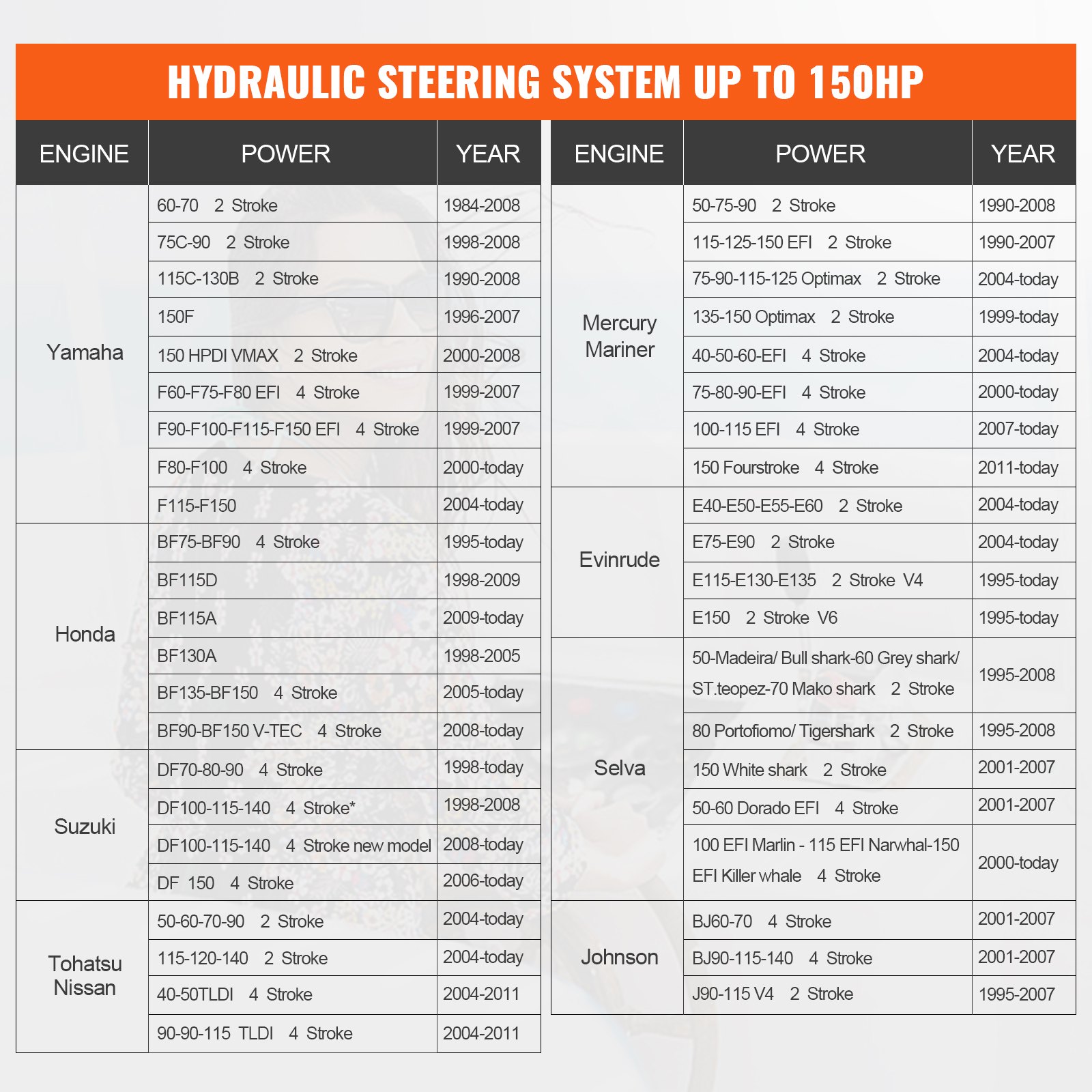

Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 150HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.
Our kit enables the installation of a hydraulic steering system on engines up to 150HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.
Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.

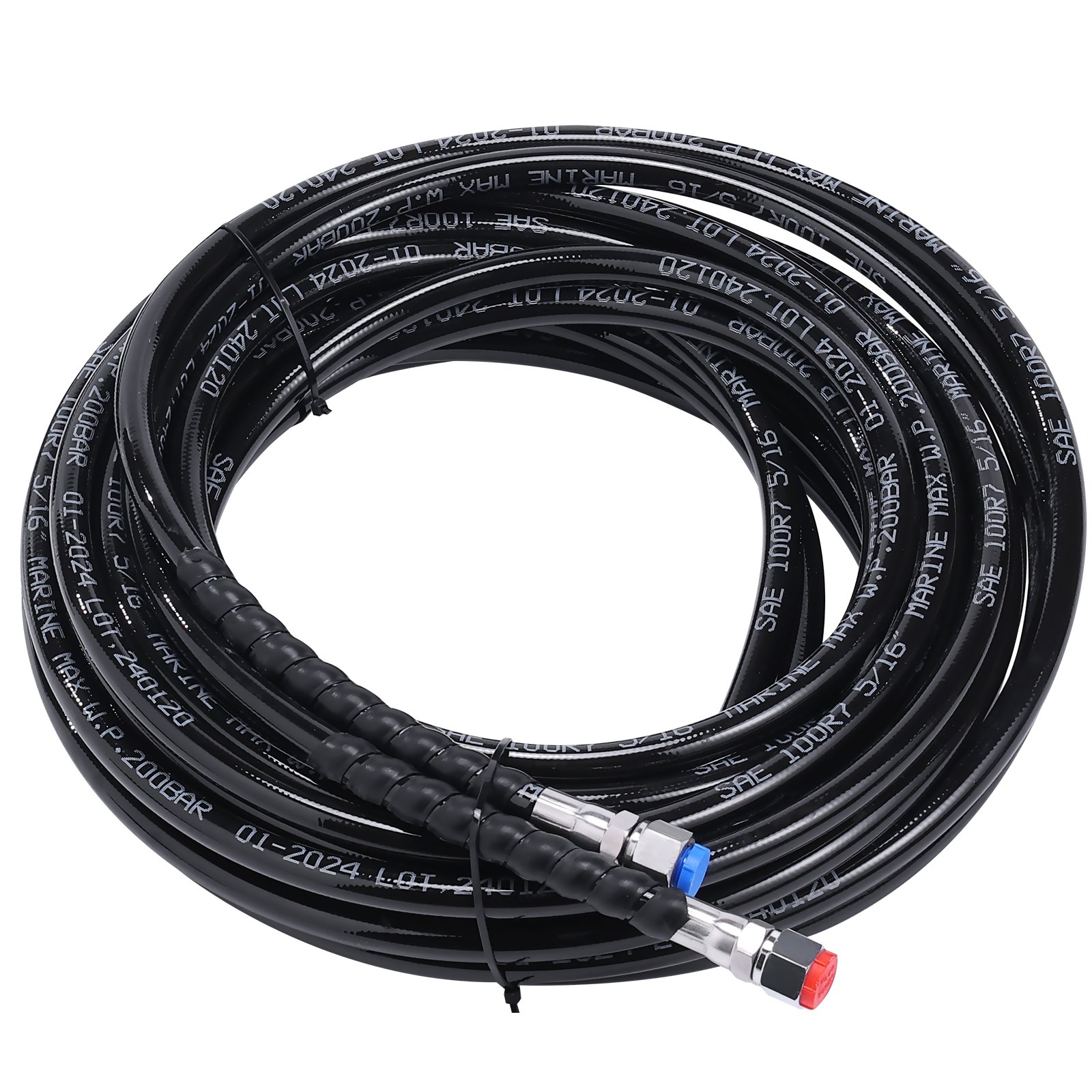

Our hydraulic steering for boats comes with 24 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.

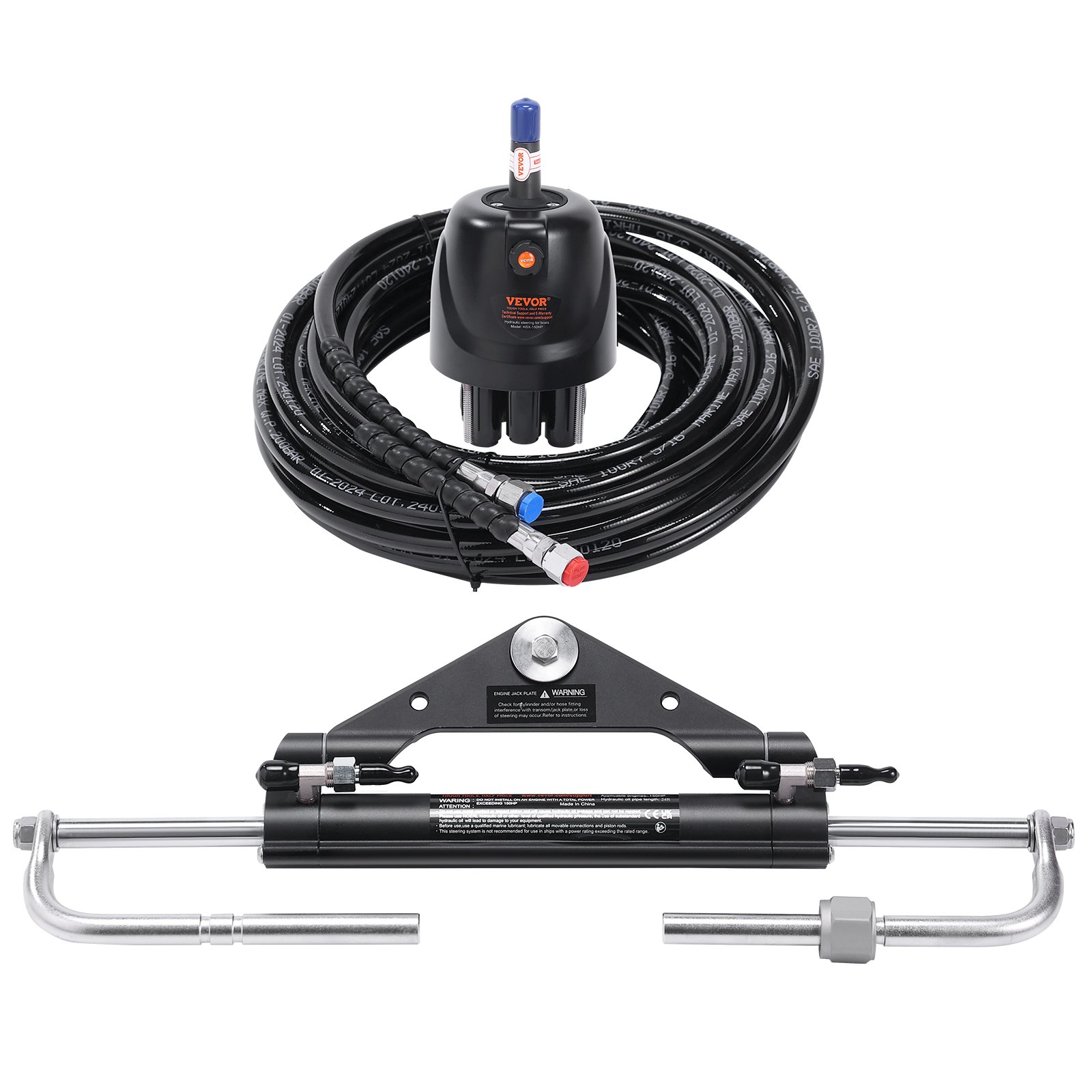

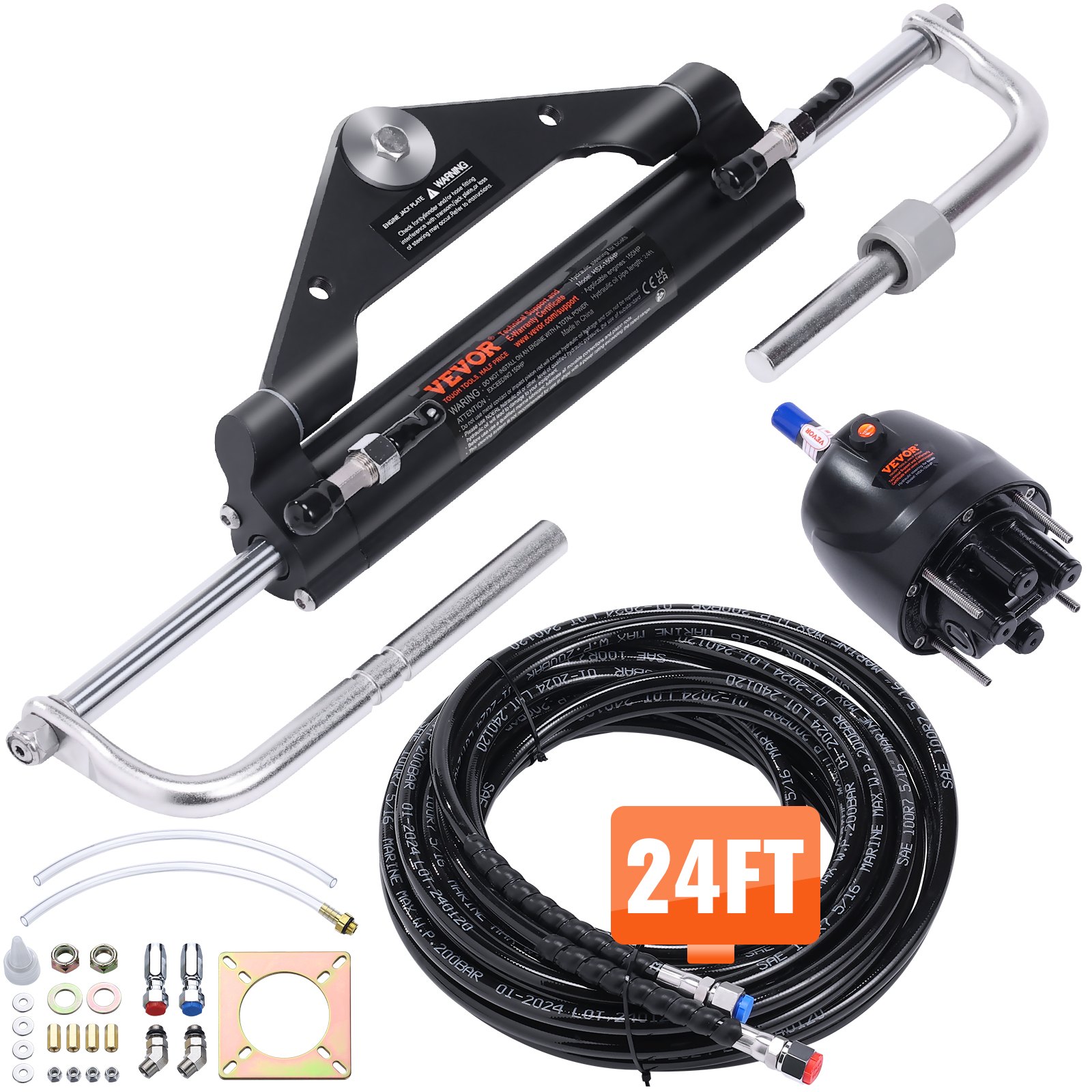

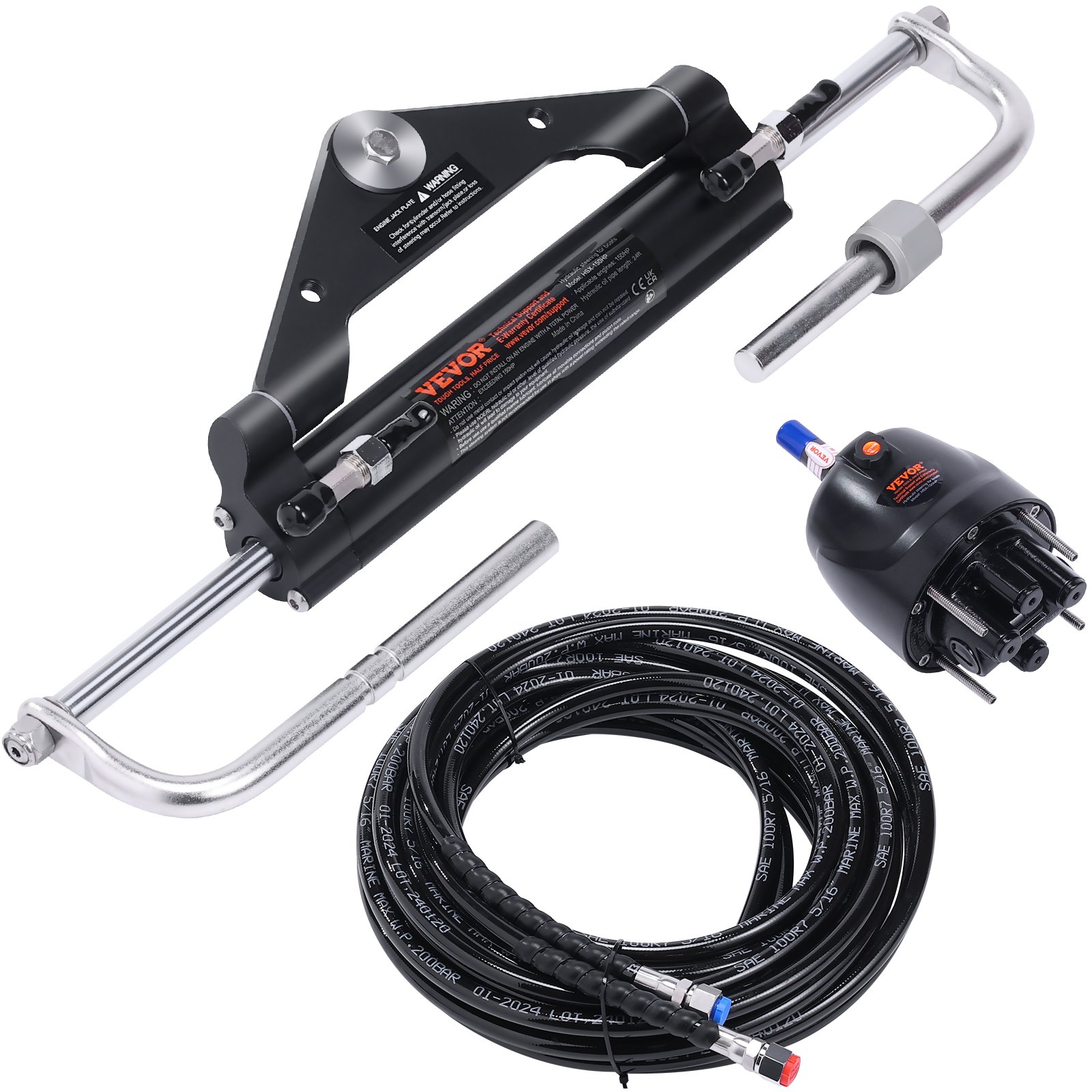

Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 24-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.
Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.

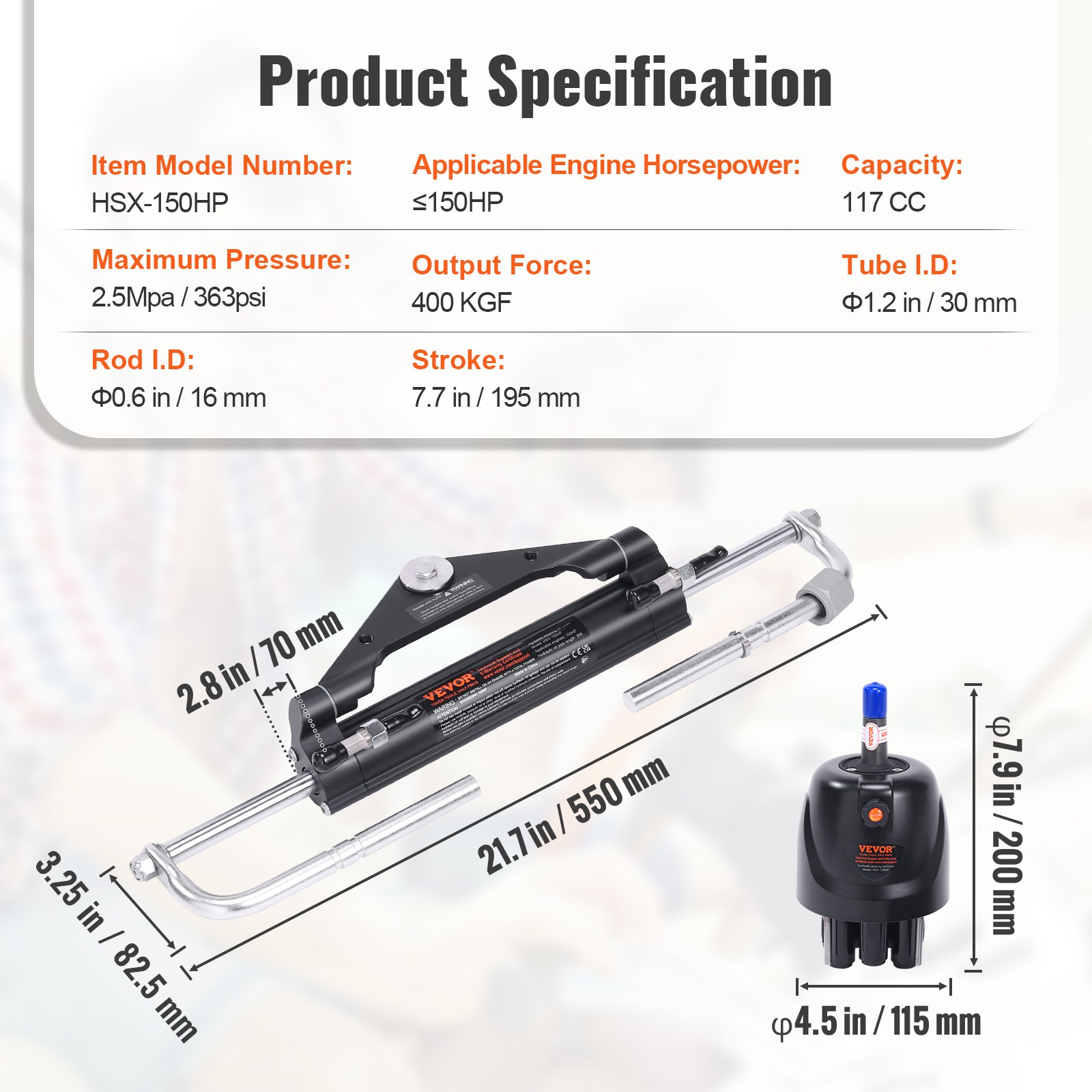

Specification
Item Model Number
HSX-150HP
Applicable Engine Horsepower
≤150HP
Maximum Pressure
2.5Mpa/363psi
Output Force
400 KGF
Capacity
117 CC
Tube I.D
Φ1.2 in/30 mm
Rod I.D
Φ0.6 in/16 mm
Stroke
7.7 in/195 mm
Questions and Answers
Typical questions asked about products: Is the product durable? ...
I would suggest anyone with an engine bigger than 50hp should go for the 150hp hydraulic system. Spend the extra few euros. Its probably a better system. I went for the 90hp with an 80hp engine thinking it would be good enough. But I dont believe it is. So buyer beware go for the stronger system. I'm sorry I didn't. If I was to buy again I wouldn't buy the 90hp. So dont be fooled by there stats. Go bigger. Much better. Other than that great price and a good system. So far. Only used it twice will have to wait till next year. And also it pulls hard to the right .cant let go of steering wheel. But I think I fixed that with the steering tab on engine.
excellently packaged. quality product. everything needed in the package.55555.when I do additional testing, I will know one hundred percent because everything is fine.
needed more clearance because of a jack plate, flipped it upside down, reversed the lines and got more clearance than I had with the old cable steering ,not as quick as the old rack & pinion but way easier to steer feels like power steering.
