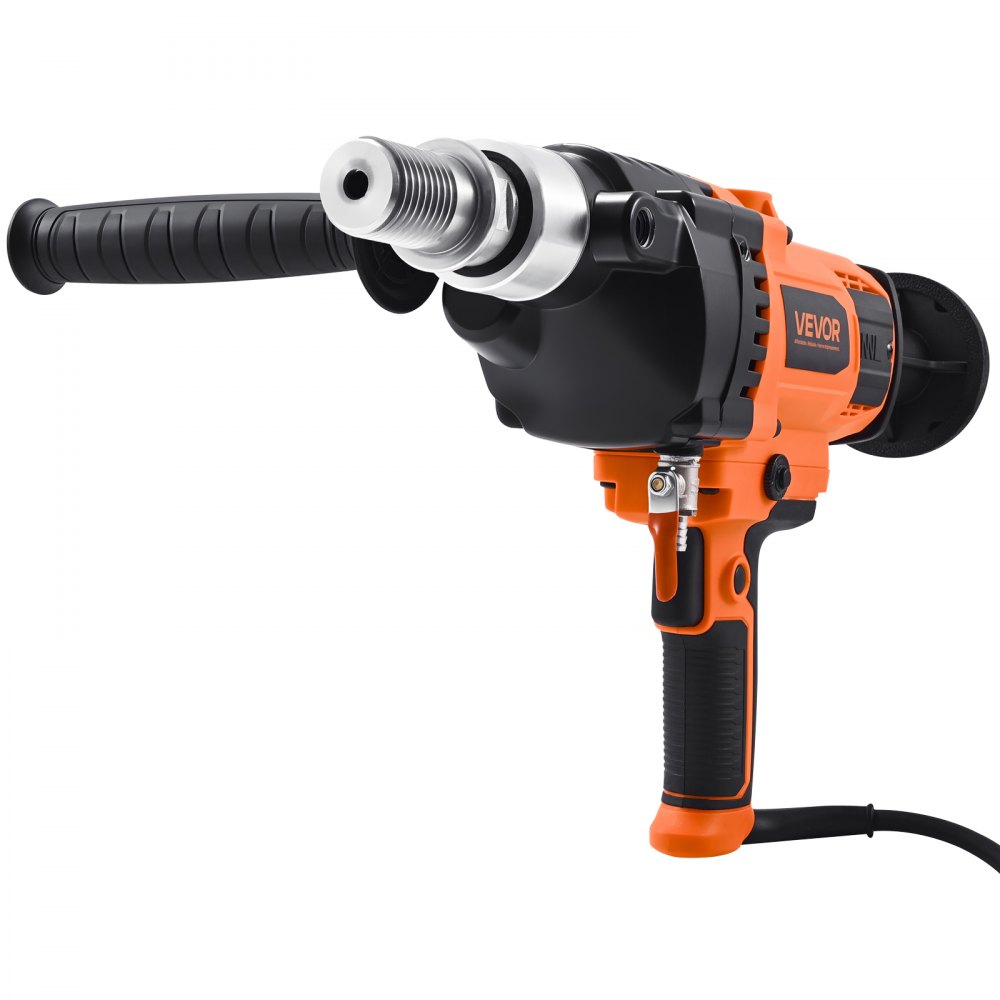

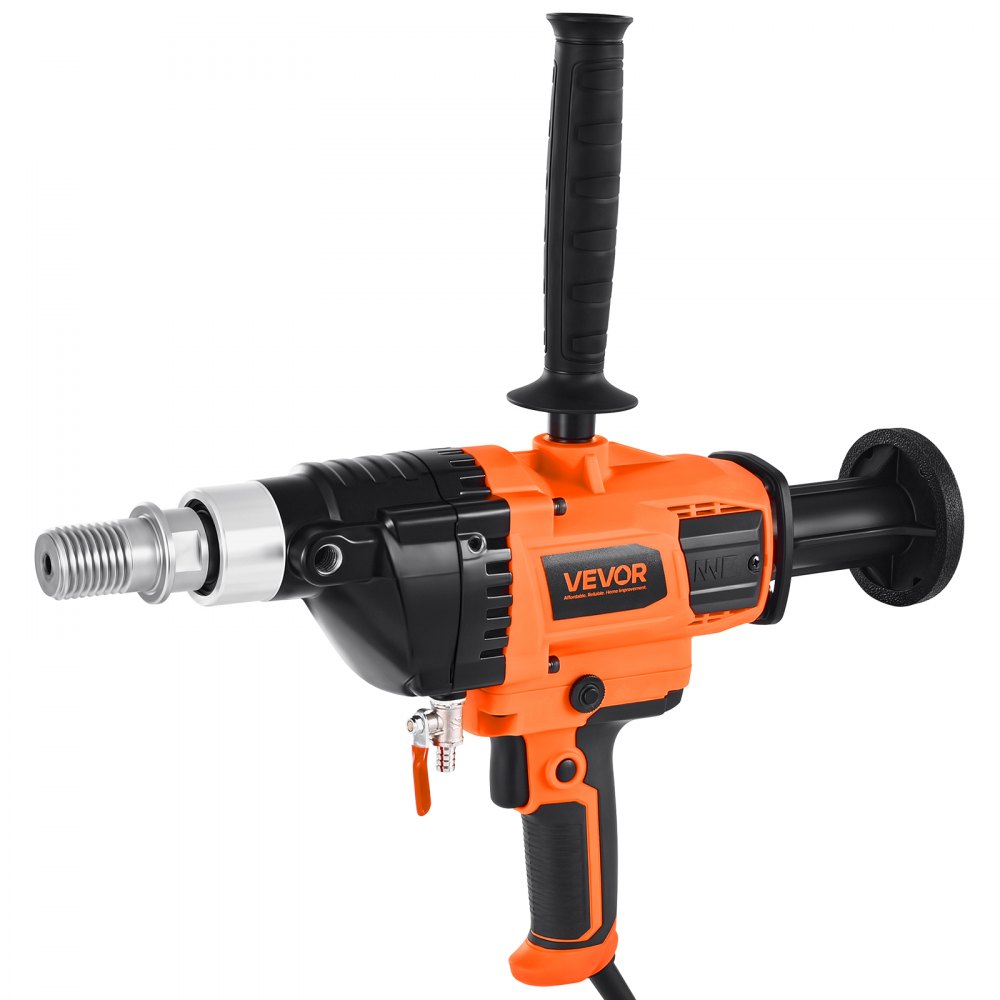

VEVOR Diamond Core Drilling Machine, 20-160 mm Drilling Diameter, Handheld Dry and Wet Concrete Core Drill Rig with 4 Drill Bits, 0-1800RPM Variable Speed, UNC1 1/4-7, for Concrete Brick Stone, 2000W

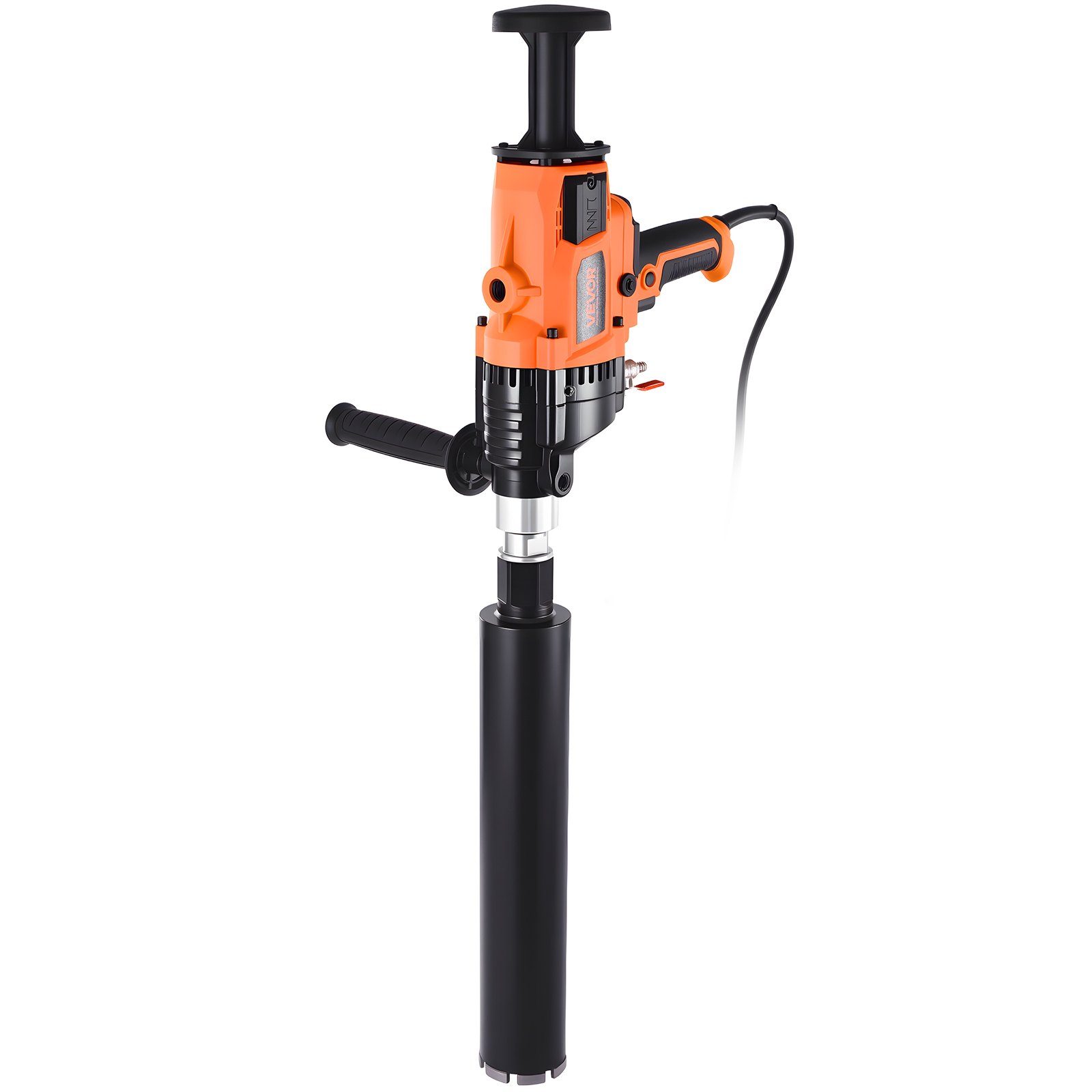

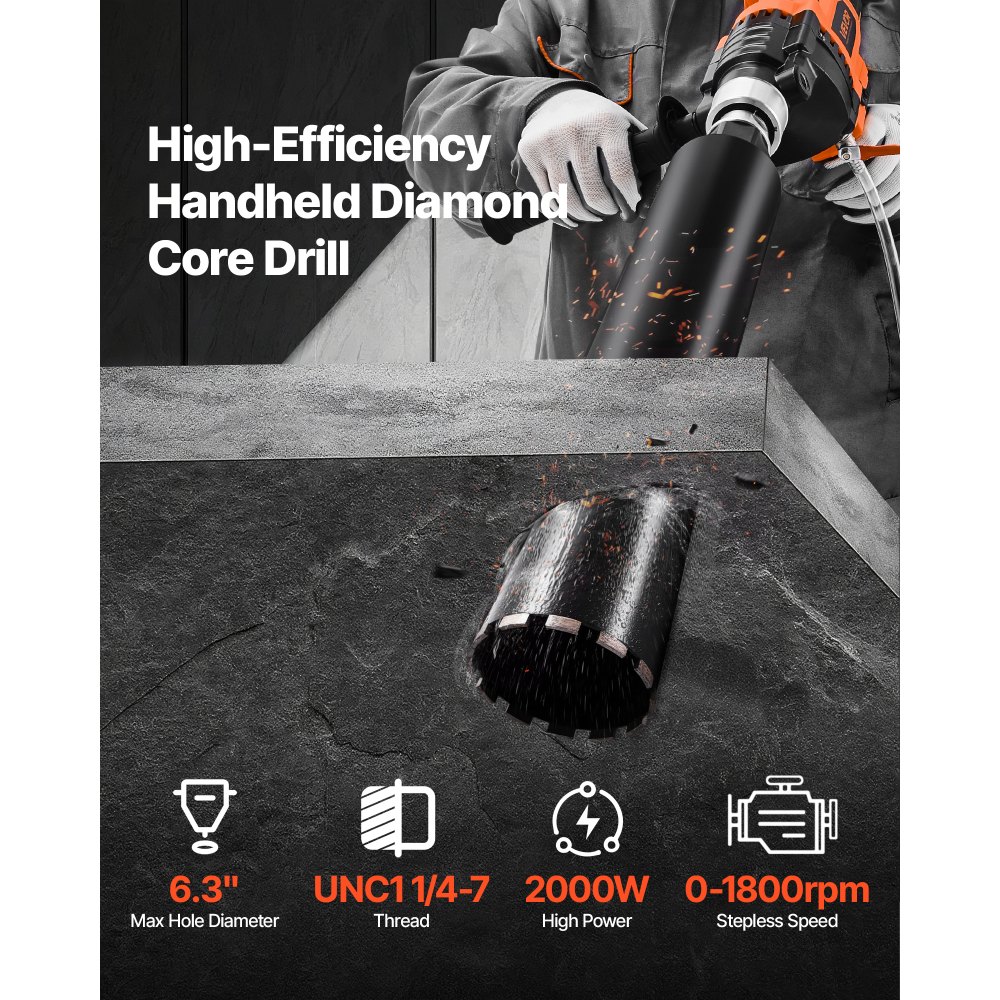

Handheld Concrete Core Drill with 2000W Motor and 0-1800RPM Variable Speed

The handheld concrete core drill has a 2000W max load motor with a no-load draw of 900W, so it has plenty of reserve power when the bit encounters hard aggregate or rebar in the middle of the hole. Long drilling sessions on tough materials do not cause thermal shutdown. Variable speed from 0 to 1800 RPM so that the operator can dial in the exact rotational rate for the material and hole diameter being used.

High RPMs will cause premature wear of the segments, so larger bit diameters and harder surfaces require slower speeds. At higher velocities, it will cut through softer brick and stone without compromising bore quality. The full range in a single handheld unit means no switching between machines for different material types on mixed surface jobs. The operator controls the speed over the session. Not a factory setting, which makes performance at one end of the spectrum poor.

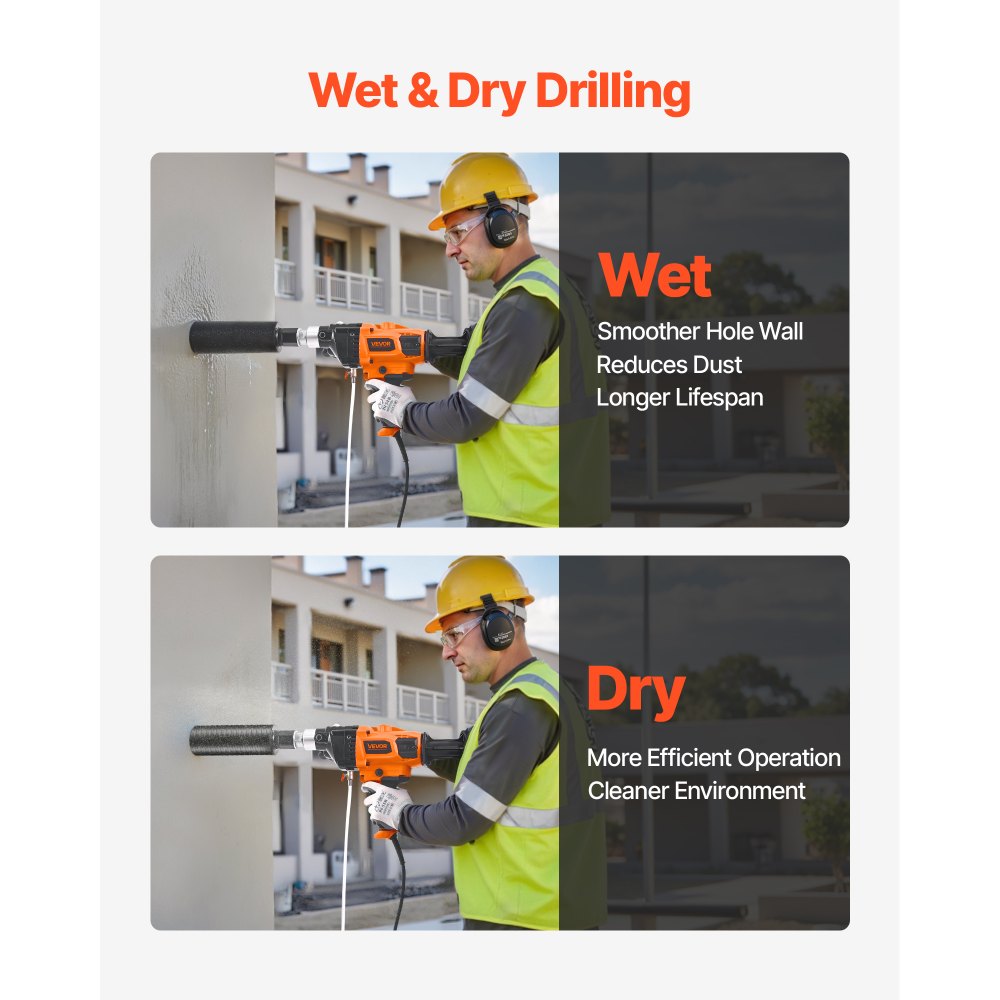

Wet and Dry Drilling Modes for Superior Hole Quality on Any Surface

The handheld concrete core drill machine features wet and dry drilling modes, allowing the operator to choose the best method for the job. In wet drilling, water is fed down the bore via the barbed water inlet, constantly flushing debris away and cooling the bit face during the cut. The result is a cleaner hole wall, less dust on the job site, and a much longer bit life than dry operation with the same diameter can achieve.

Dry drilling is suitable for outdoor work and in situations with limited water supply or concerns about water runoff onto adjacent finished surfaces. The machine handles both without any changes to the configuration, other than the water connection. If you’re doing indoor renovations, running pipes through walls, installing AC penetrations, or running conduit, wet mode keeps dust down and maintains the smoothness of the holes. Dry mode applies to sites where wet drilling is not practical due to setup time and water availability.

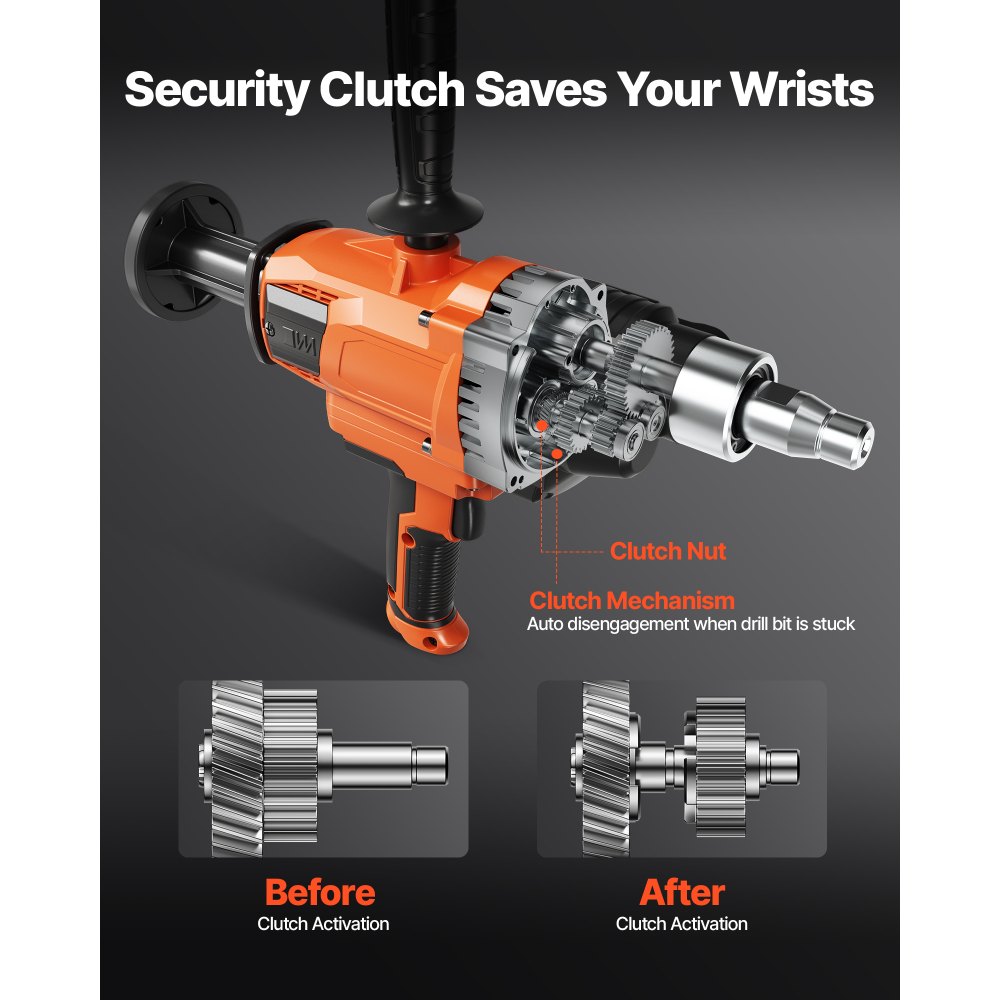

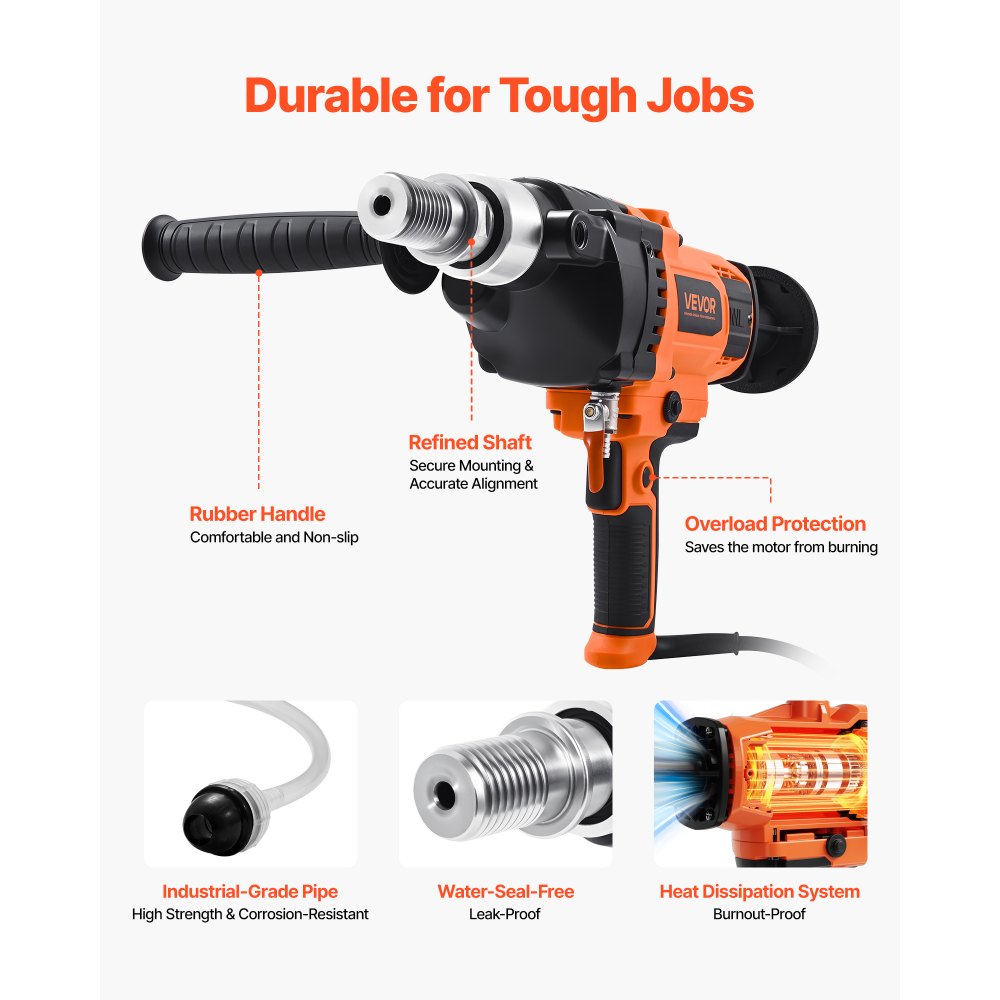

Built-In Clutch and Water Seal Free Design for Safer, Uninterrupted Operation

The built-in clutch can sense resistance on the bit. It will automatically trip when the drill hits an obstruction beyond its rated threshold, such as rebar, dense aggregate pockets, or unexpected material transitions. If the bit suddenly seizes and the clutch does not disengage, the entire motor torque is transmitted back through the frame to the operator's hands and wrists. On a 2000W machine, that reaction force is for real. It cuts itself off automatically before damage occurs. The water seal free design eliminates one of the common failure points of standard wet-core drills.

Conventional water seals deteriorate under heat and pressure cycling, resulting in water leakage into the motor housing and electrical failures mid-job. By removing the seal, this failure mode is eliminated from the machine's failure risk. It is the most likely to fail part in wet operation, and it is not there. The workflow continues without interruption thanks to the clutch and seal free design. The two most frequent causes of sudden drilling failures are eliminated, protecting the operator and the machine.

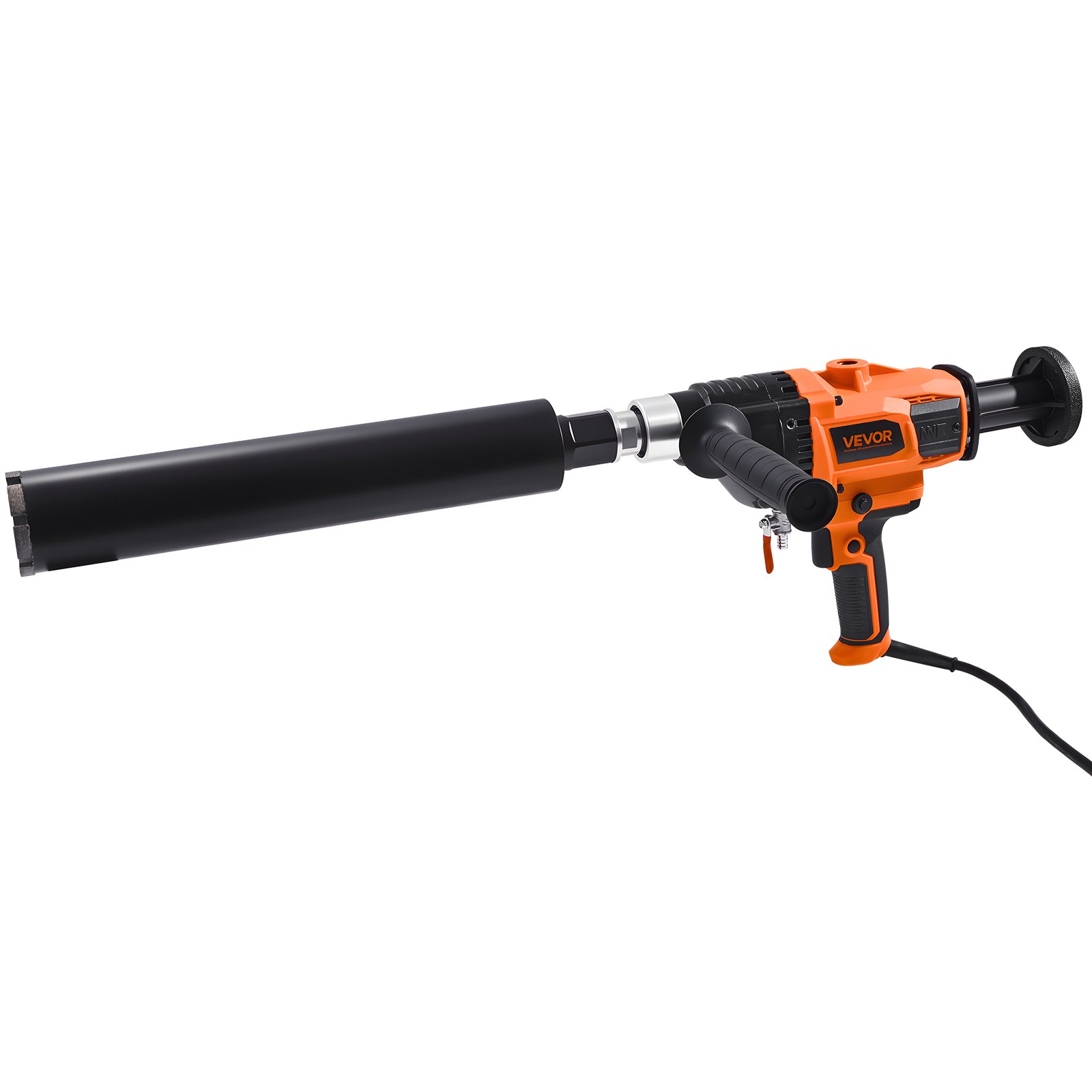

Handheld Concrete Core Drill with Lightweight Aluminum Body and Steel Output Shaft

The machine body is cast aluminum, a material that can handle jobsite impacts and repeated use while keeping the total machine weight at 11.9 lbs. When using a handheld concrete core drill for multi-hole jobs or elevated drilling positions, the weight adds up, causing fatigue faster than most operators realize. That number remains low with aluminum without sacrificing structural rigidity under load. The steel output shaft retains its dimensional accuracy under the axial and radial loads imposed by core drilling in the drivetrain.

A shaft deflects under load, introducing runout into the bit and resulting in a bore wider than the intended diameter and a less accurate hole. The reinforced PVC water hose completes the durability picture – crack-resistant under repeated pressurization cycles and flexible enough to route around obstacles without kinking or restricting flow mid-operation. Those material choices show up in the way the machine runs after 100 holes, not just the first 10.

20–160 mm Drilling Range and UNC 1 1/4-7 Thread for Broad Compatibility

Brick drilling capacity ranges from 20 to 160 mm (0.8 to 6.3 in) for small conduit penetrations to large-diameter openings for pipe runs and AC sleeves. The drilling capacity in concrete ranges from 20 to 83 mm (0.8 to 3.3 in) and can withstand the resistance of reinforced concrete at these diameters without overloading the motor.

The UNC1 1/4-7 external thread output shaft is a standard professional spec and will accept a wide variety of third party core bits, other than the four supplied in the kit. If the job requires a diameter not in the included set, it is easy to find a compatible bit; no adapters or reducers are needed. The 13.0 x 9.8 x 3.9-inch frame is compact enough to fit into wall cavities and tight interior corners where larger rigs cannot be placed.

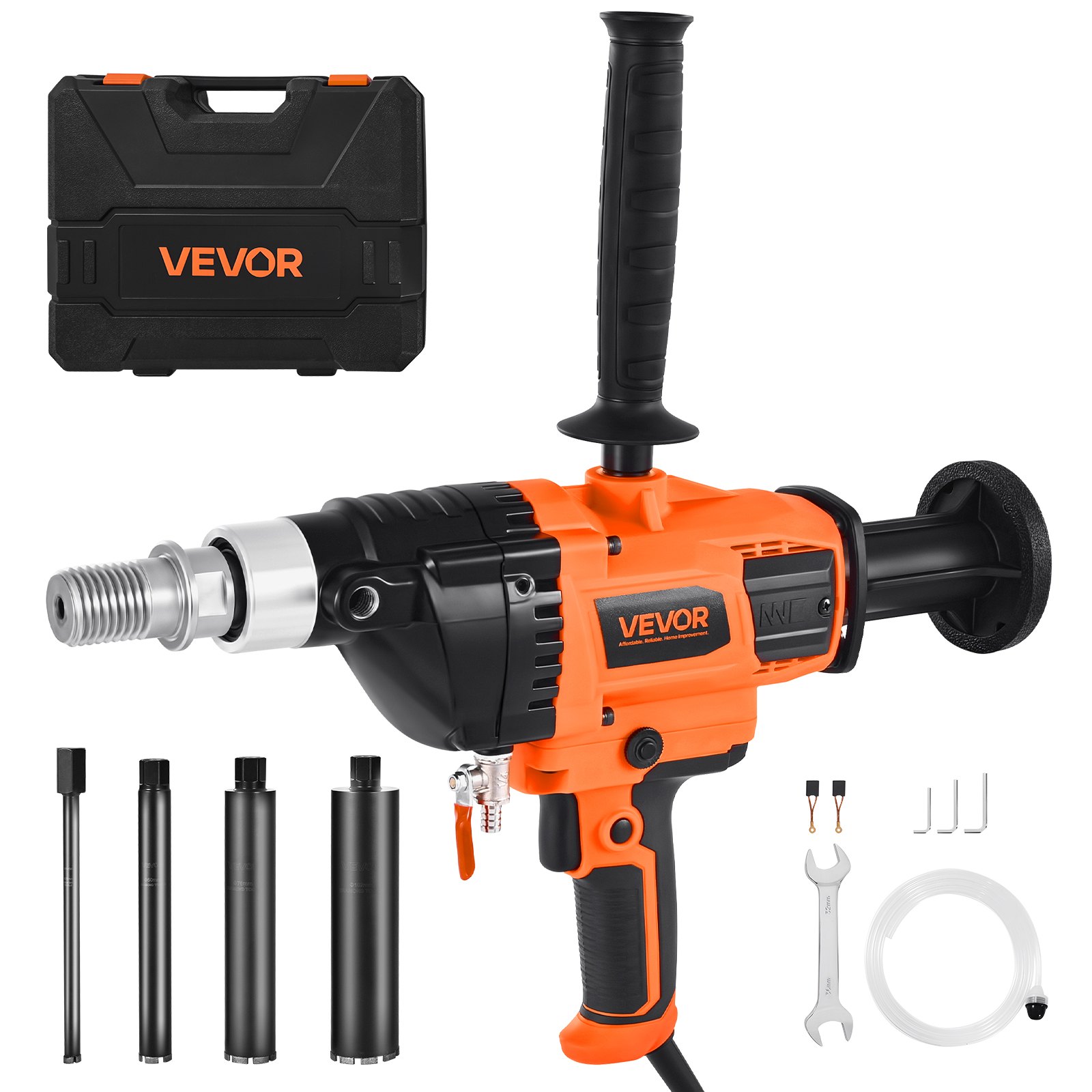

Four Premium Drill Bits Included for Immediate Professional Use

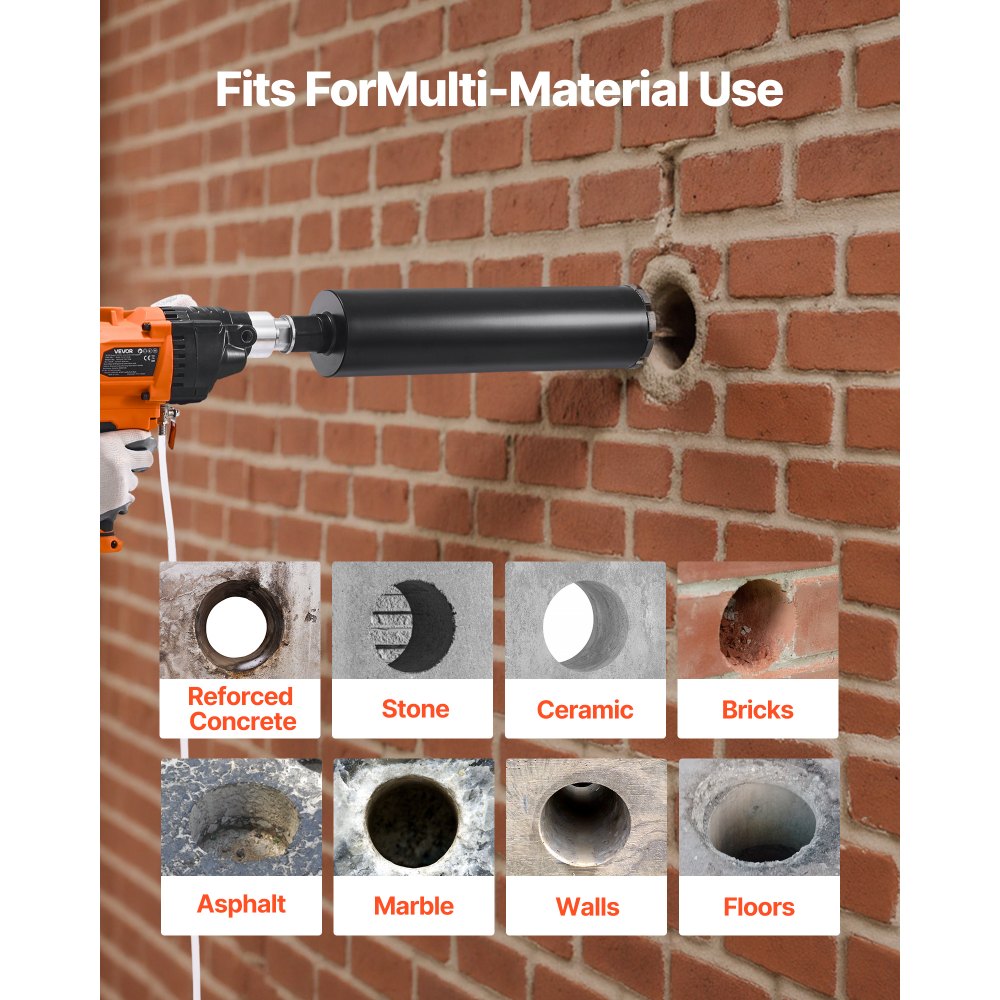

The kit includes four diamond core bits in 1 in., 2 in., 3 in., and 4 in. sizes for the most common penetration diameters in residential and commercial applications. All four cut through reinforced concrete, brick, marble, and stone without having to swap bits for different materials across a standard job scope. With four sizes included, the machine is ready for most penetration jobs right away, with no additional procurement needed.

The kit weighs 32.6 lbs with all accessories, which is manageable for solo transport between locations. Bit set for drilling between 20 and 160 mm. Variable speed control. A complete solution for installers, contractors, and renovation crews that need one machine to do all core drilling jobs in different materials and site conditions.
