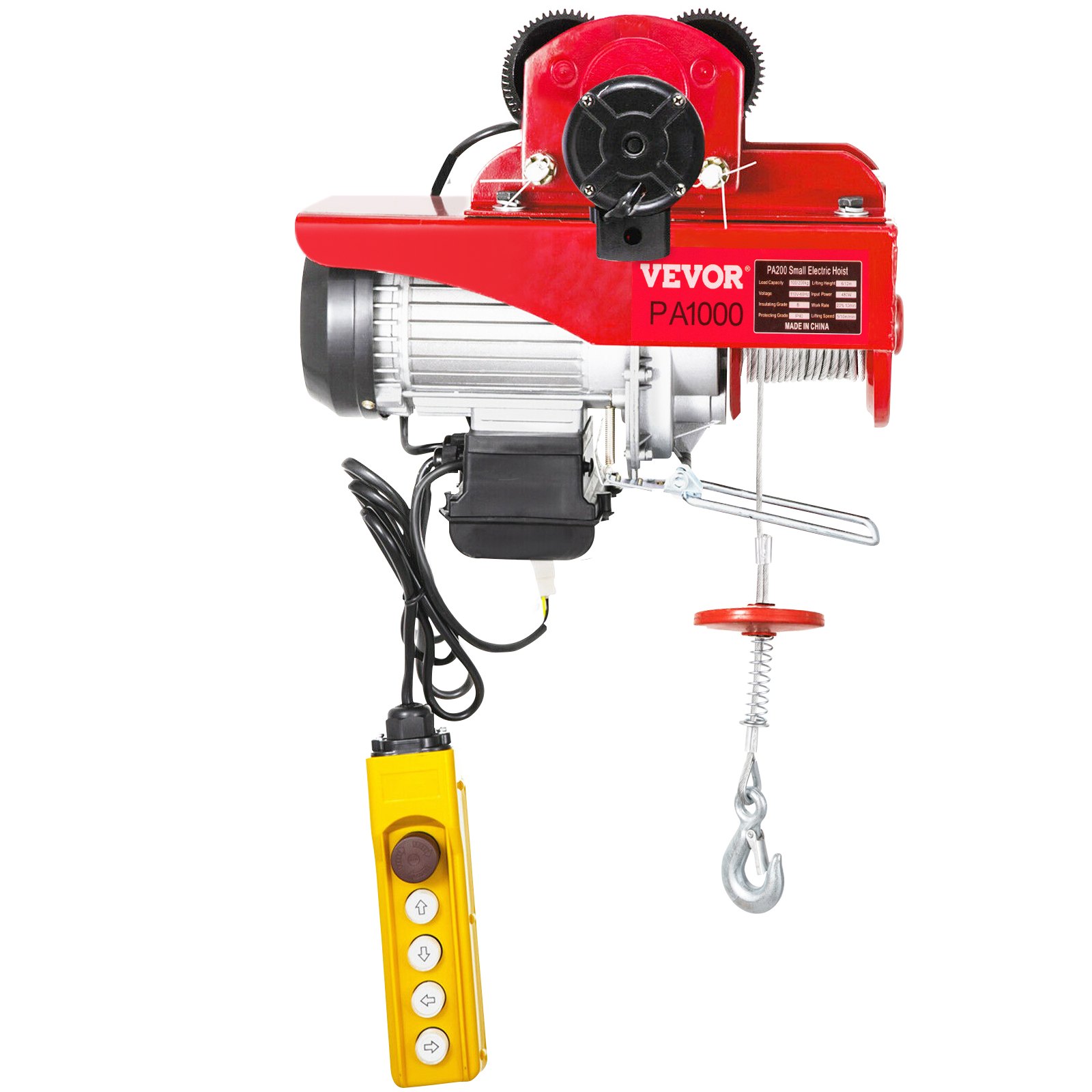

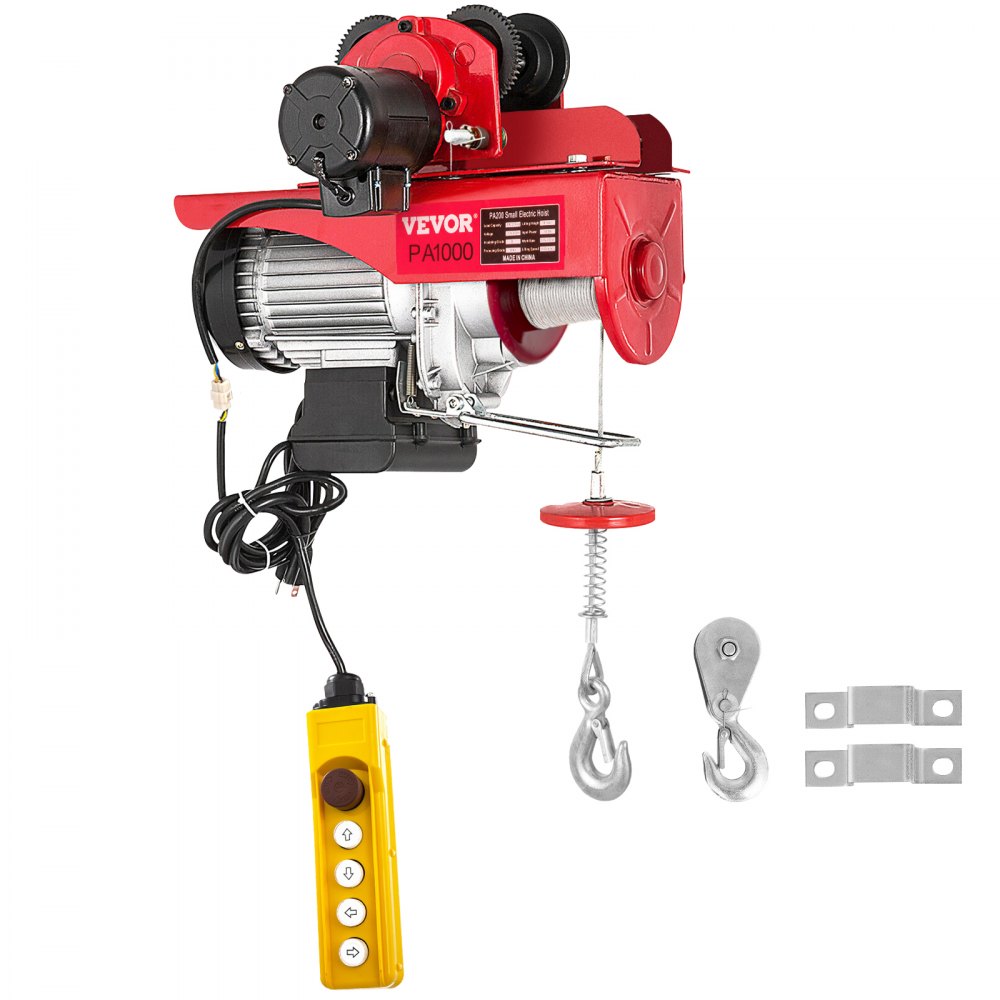

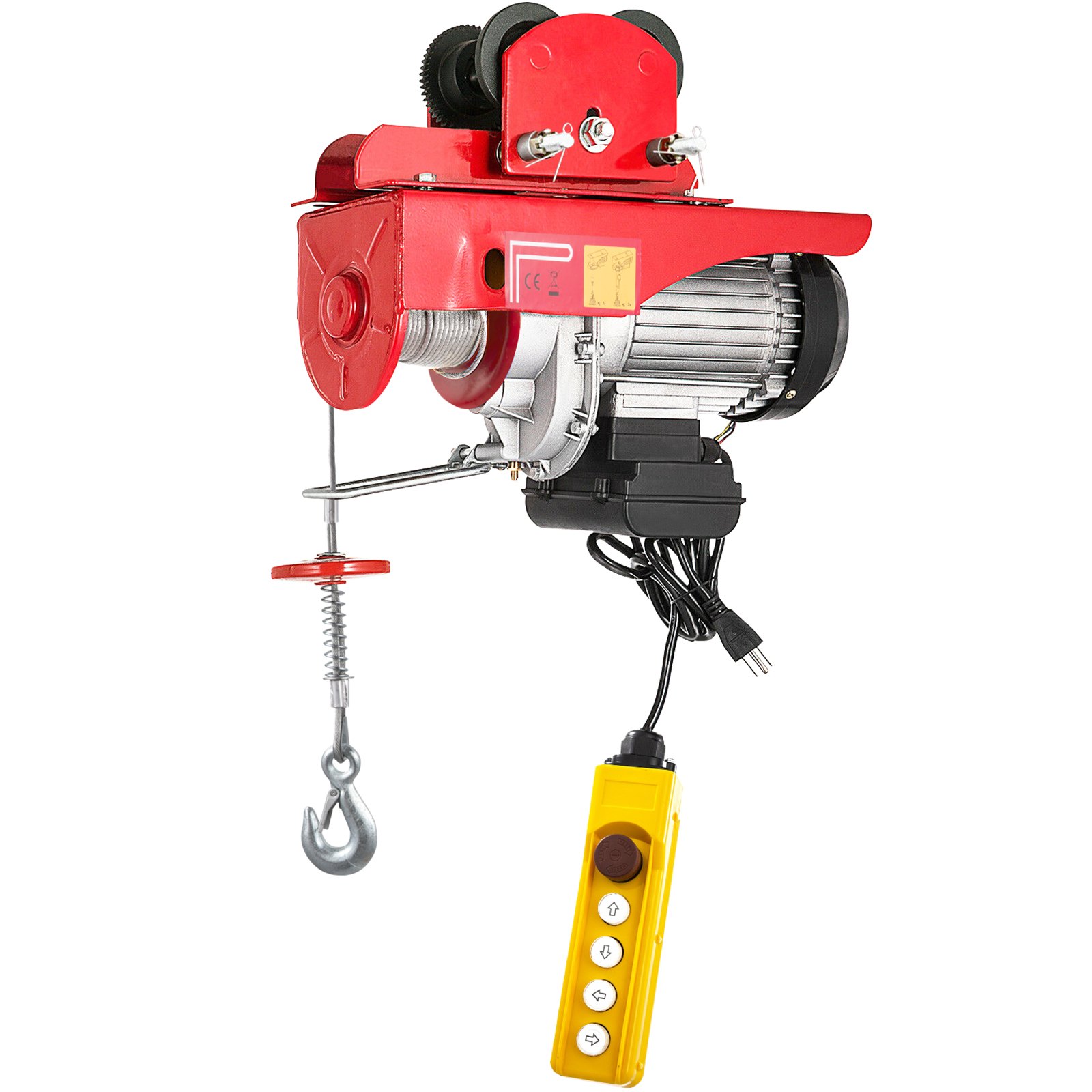

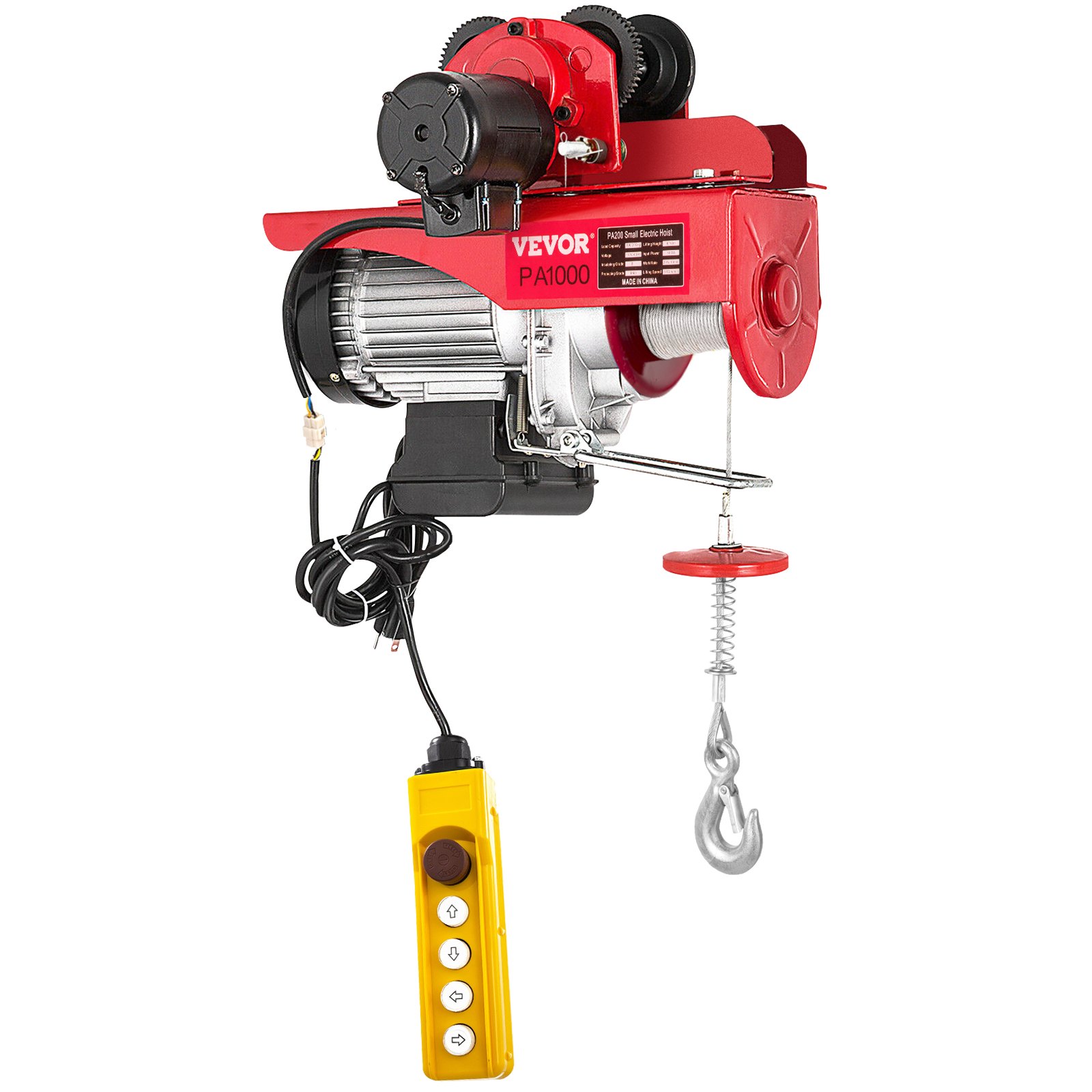

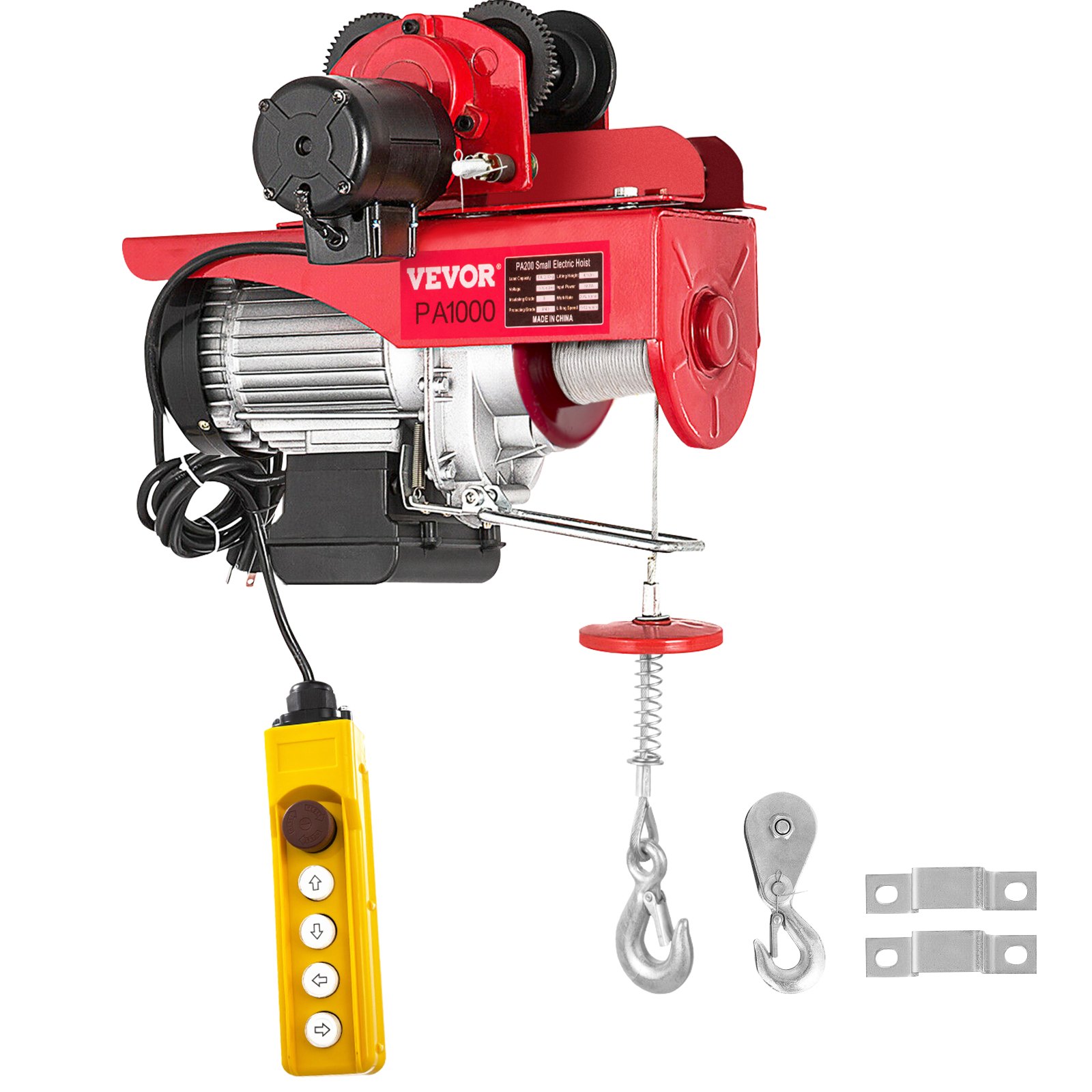

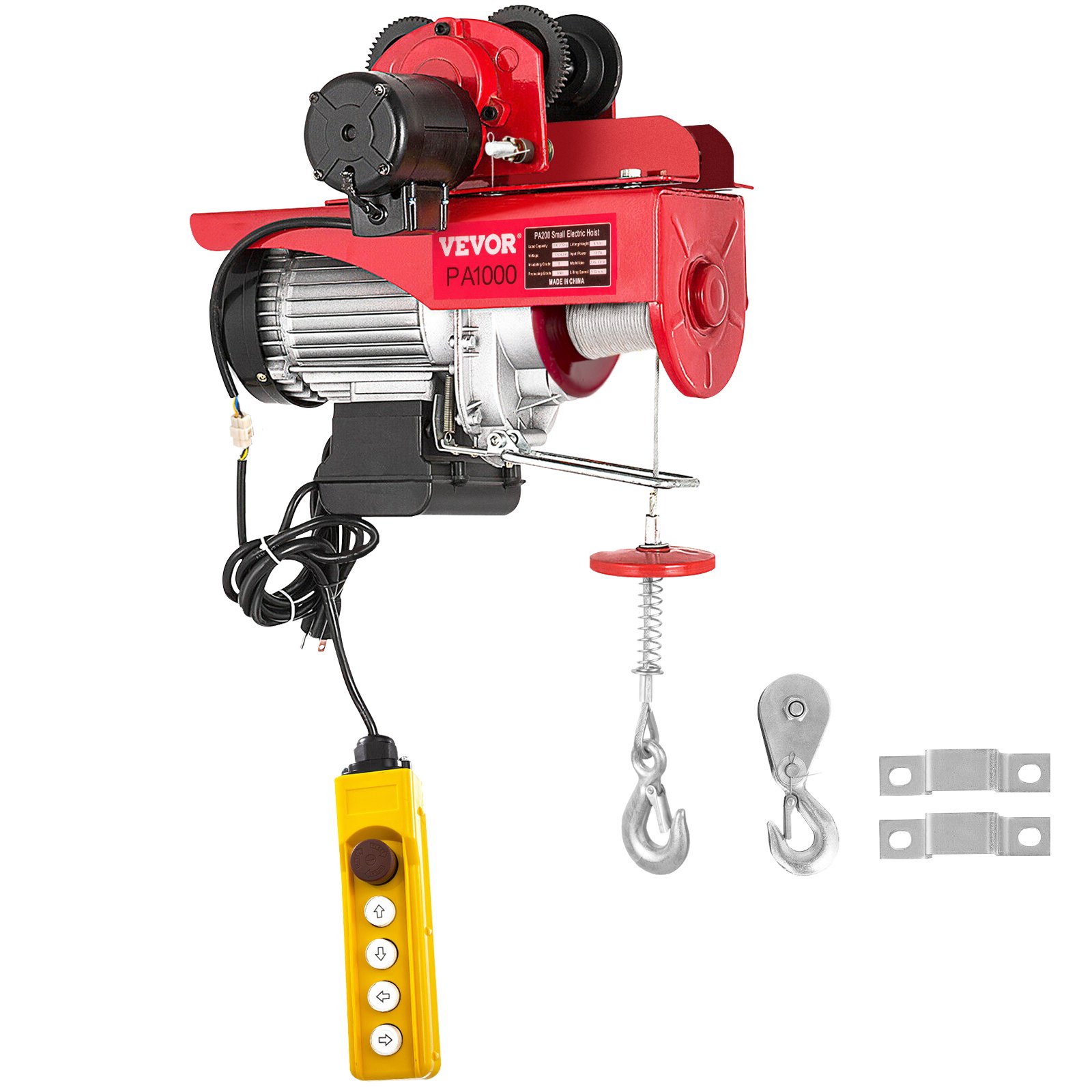

VEVOR Electric Wire Rope Hoist with Trolley, Electric Wire Rope Hoist with Trolley Remote Control Industry 1000KG/2200LBS Capacity

Wire Rope Electric Hoist with Integrated Trolley for 2-Axis Load Movement

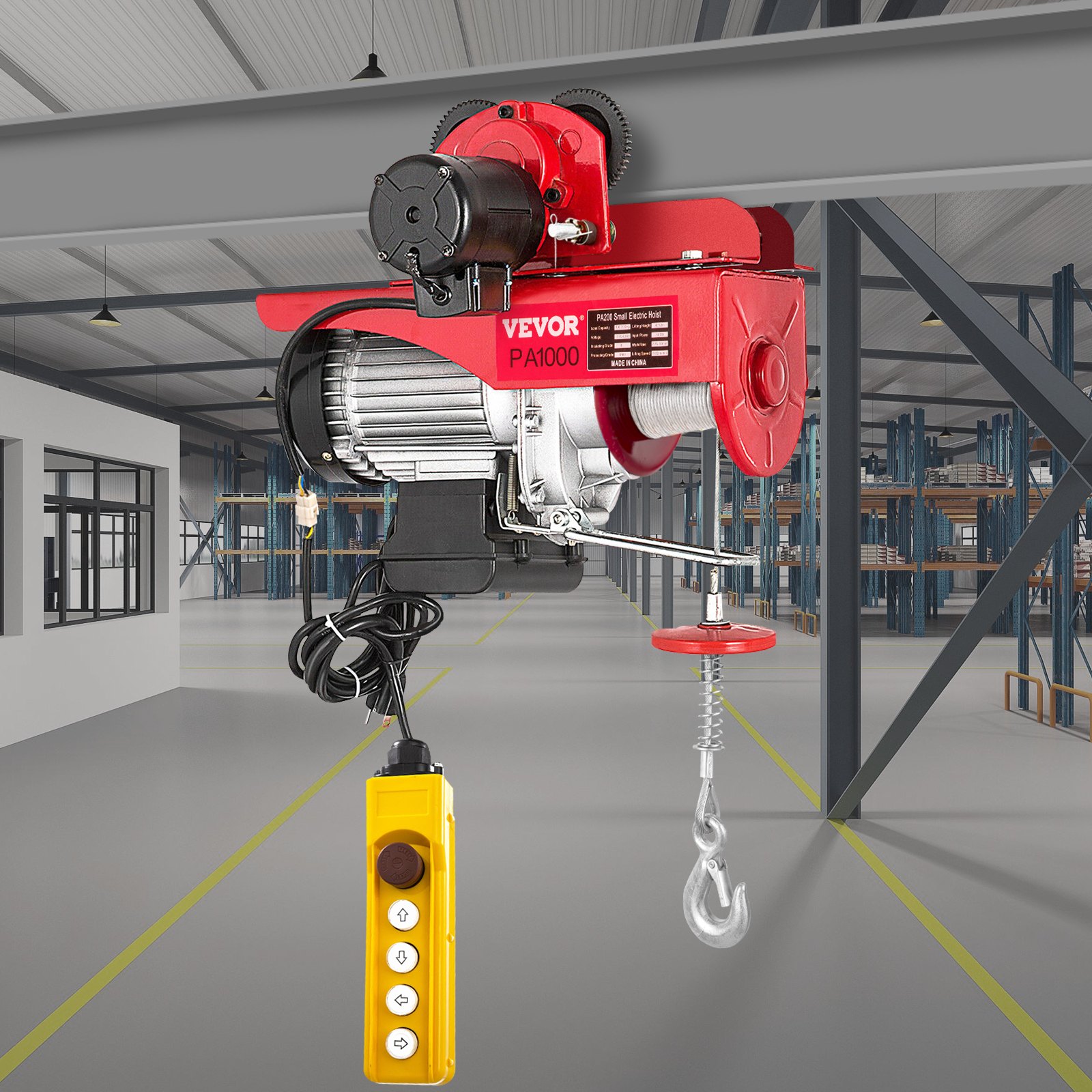

What sets this VEVOR wire rope electric hoist apart from fixed-point ceiling hoists is the integrated electric trolley. This system enables loads to be both lifted vertically and traversed horizontally along an overhead beam in a single coordinated setup. Instead of pulling a load straight up and then moving or pushing it by hand, operators can use the remote to move the trolley left or right along the beam track and place heavy items exactly where they need to go without touching the load.

With this two-axis feature, a simple lifting tool becomes a real material handling system. In production lines, assembly areas, and loading bays, being able to move a load laterally across the workspace makes work much more efficient and reduces the risk of moving items by hand.

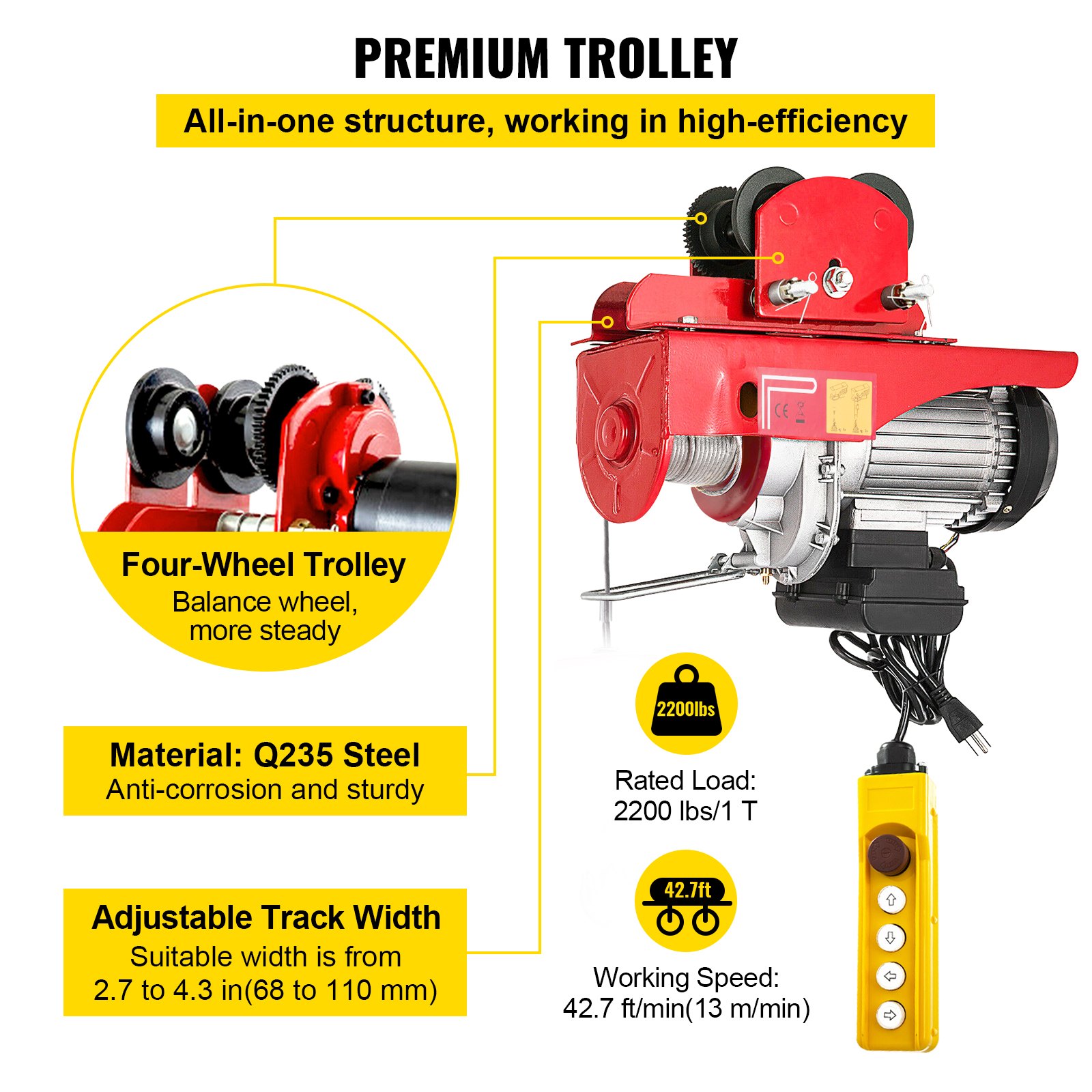

Q235 Steel Four-Wheel Trolley with Adjustable Track Width for Beam Compatibility

The Q235 steel used to make the electric trolley is a structural grade known for its corrosion resistance and load-bearing capacity. Four hardened wheels with sealed bearings move easily along the beam flange at 42.7 ft/min (13 m/min). This allows for fast side-to-side movement of up to 2200 lbs (1 metric ton) without bearing wear or wheel deformation over time.

With the washers and nuts included in the kit, you can adjust the track width to fit beam flange widths from 2.7 inches (68 mm) to 4.3 inches (110 mm). This range of compatibility includes many common I-beams and H-beams used in workshop, warehouse, and industrial building construction. This means the trolley can be used with existing infrastructure without needing to be custom-made or requiring changes to beams.

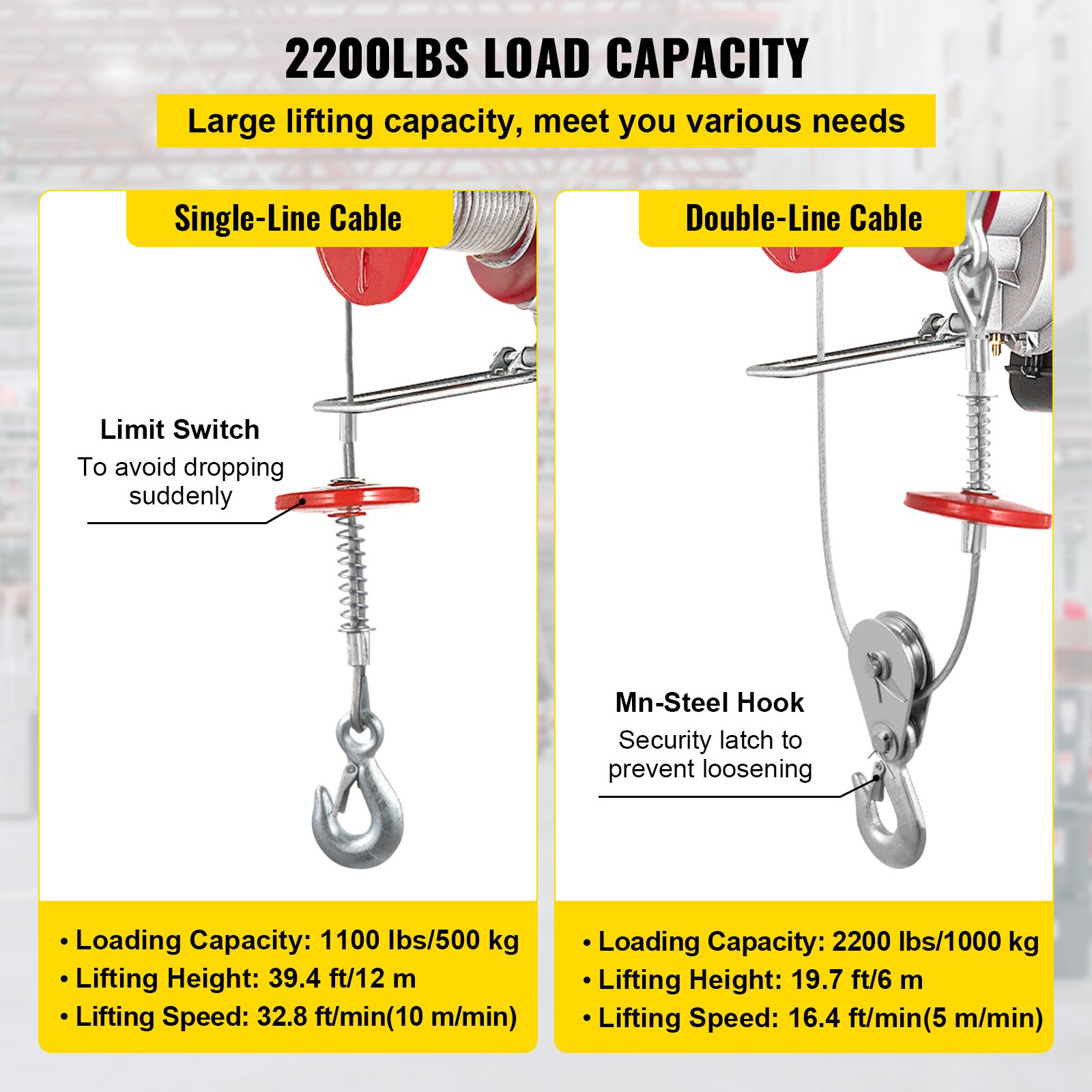

2200 lbs Dual-Line Lifting Capacity for Industrial and Commercial Applications

It can lift to 2200 pounds (1000 kg) in double-line mode at 16.4 feet per minute (5 m/min) and up to 1100 pounds (500 kg) in single-line mode at 32.8 feet per minute (10 m/min). Depending on the load, this dual-mode capacity system lets operators choose between speed and strength. Lighter items move faster in single-line mode, while maximum tonnage needs the mechanical advantage of a double-line setup.

With a capacity of 1 tonne, this wire rope electric hoist can handle heavy loads such as machine parts, structural steel sections, engine assemblies, stone blocks, bundles of wood, and palletized goods. Because it combines lifting and horizontal travel, this system can serve as an alternative to larger overhead crane systems in smaller facilities.

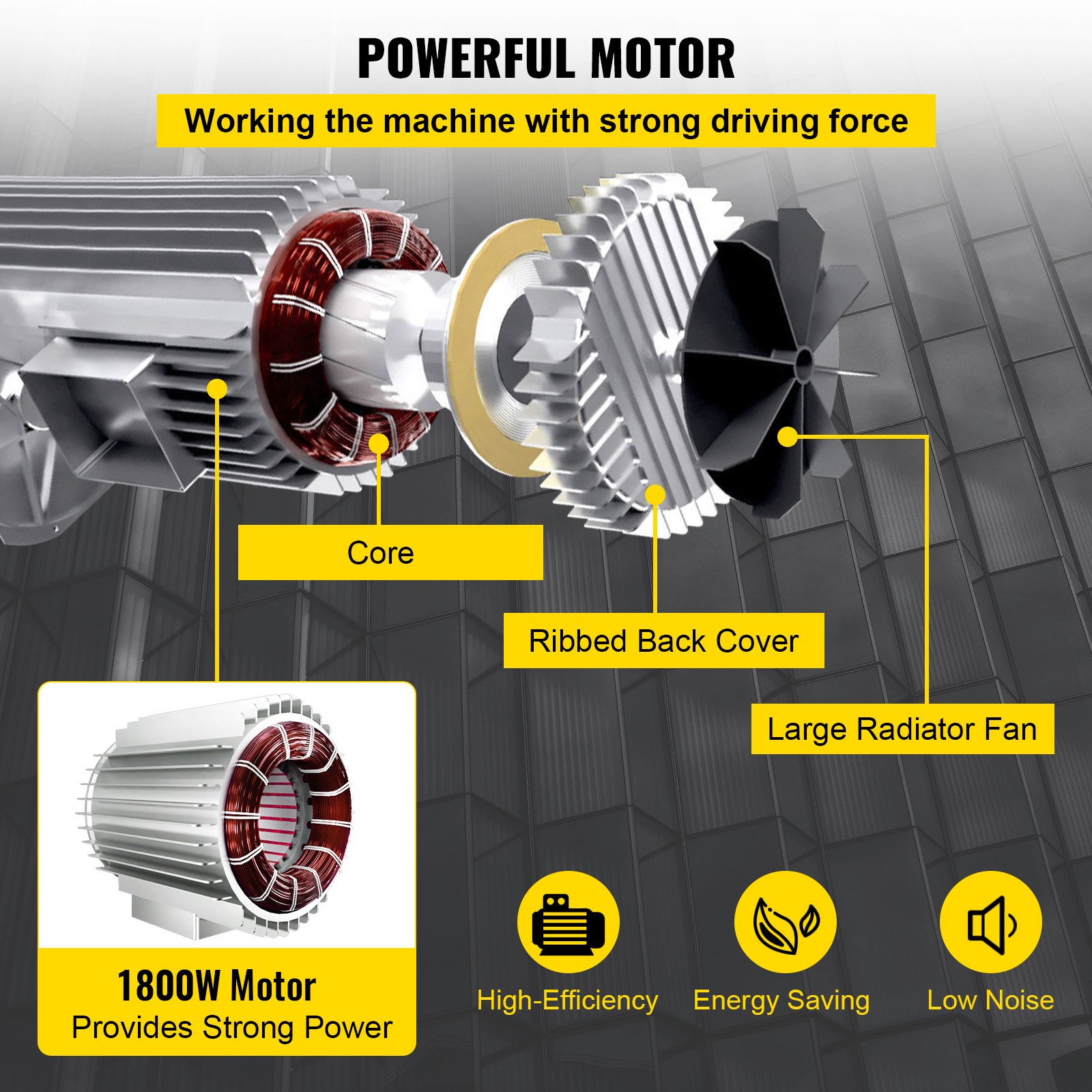

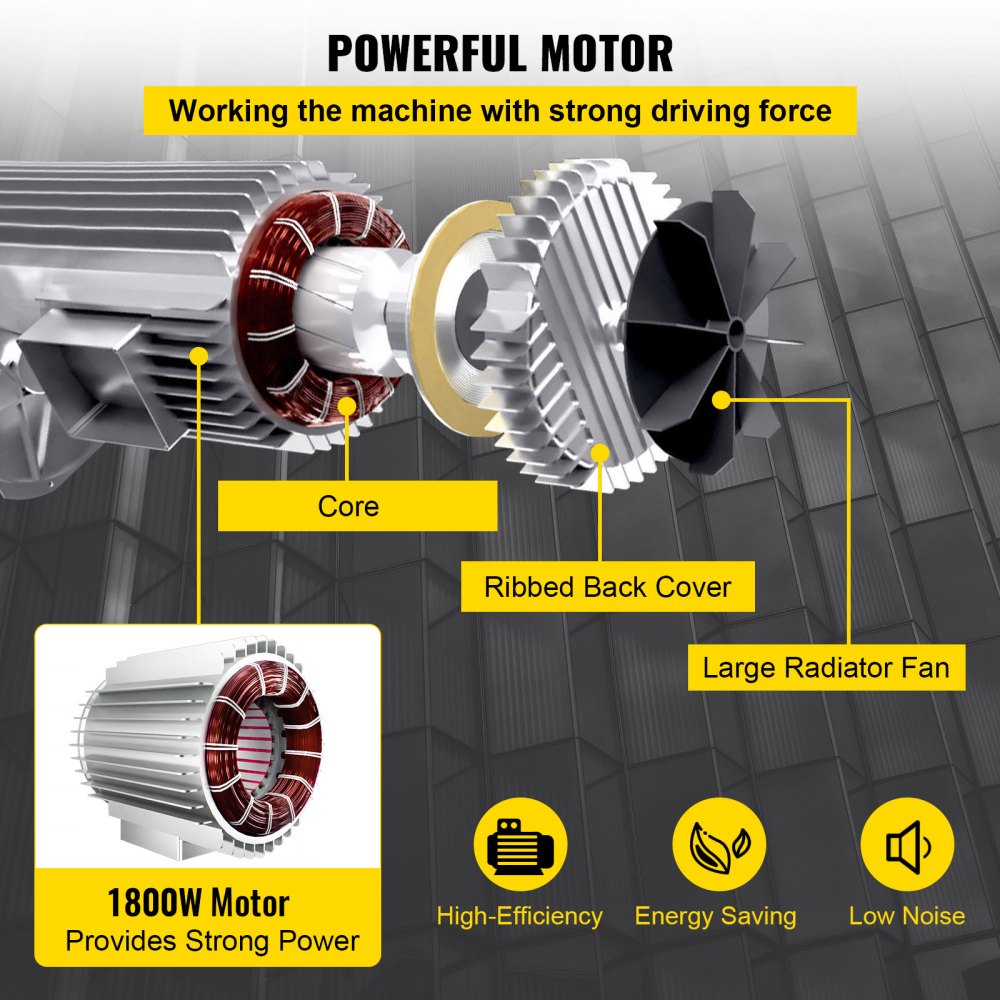

1800W Aluminum-Housed Motor with Rapid Heat Dissipation for Low-Noise Operation

An aluminum alloy housing surrounds the 1800W motor and does two things at once: it protects the motor from rust and wear and tear in a workshop setting, and it also actively removes heat that builds up during long-term use. A big radiator fan helps with this cooling process by preventing heat buildup that would otherwise cause safe shutdowns or premature motor overheating during long work sessions.

The aluminum housing helps dissipate heat while supporting stable motor operation during extended use. Even though it has an 1800W output, the motor operates efficiently and quietly under average load, delivering consistent torque without the shaking and noise associated with lower-quality cast-iron motor housings.

6mm Galvanized Steel Cable with Mn-Steel Hook for Secured Heavy-Load Handling

Galvanizing the steel wire rope makes it resistant to rust in wet, oily, and chemically rich industrial settings. The 6mm diameter wire rope can support up to 2,200 pounds, which is the hoist's full rated load. The galvanized steel wire rope is designed for reliable lifting performance and corrosion resistance.

The manganese steel hook has a built-in safety latch that keeps the load connection from disengaging while the hoist is in use. This reduces one of the main reasons loads fall when using a hoist. When the hook reaches the upper travel limit, a built-in limit switch automatically stops the motor. This prevents the cable drum from overwinding, which could damage it or cause dangerous over-travel.

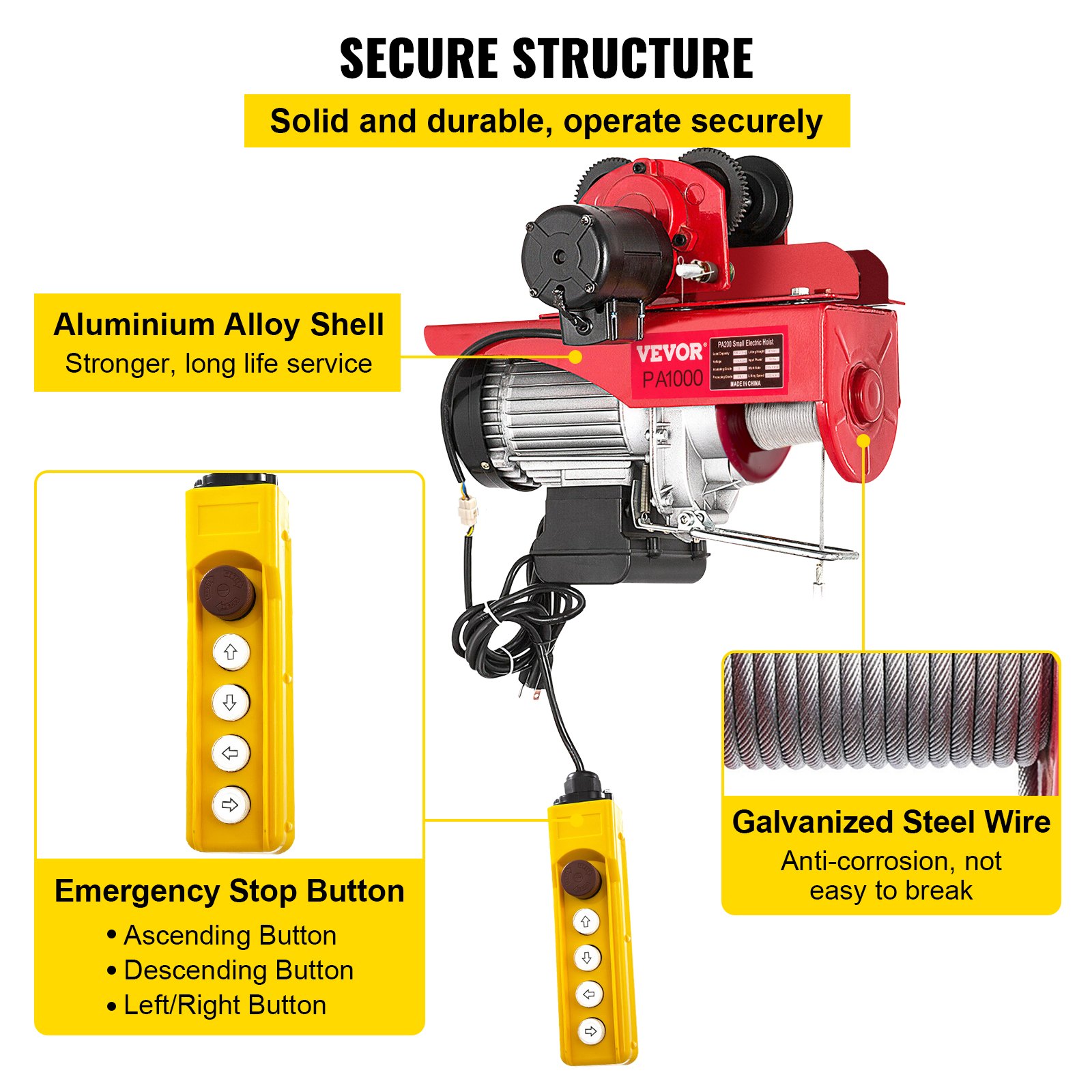

4-Button Wired Remote with Emergency Stop for Full Directional Control

With just one hand, the wired remote control's four specific buttons (up, down, left (trolley traverse), and right (trolley traverse)) let you perform all the important operations. This combined control layout lets the operator handle both vertical lift and horizontal beam travel from a single controller, so they do not have to move their hands or switch between devices during a move. The 4.6-foot (1.4-meter) cord gives you a good distance to work from the load while you are using it.

The remote control has an emergency stop button that shuts down the entire system at once, stopping both the hoist motor and the trolley drive. This is a must when moving 1000 kg loads in places where sudden obstacles, load shifts, or people entering the work area require immediate stopping.

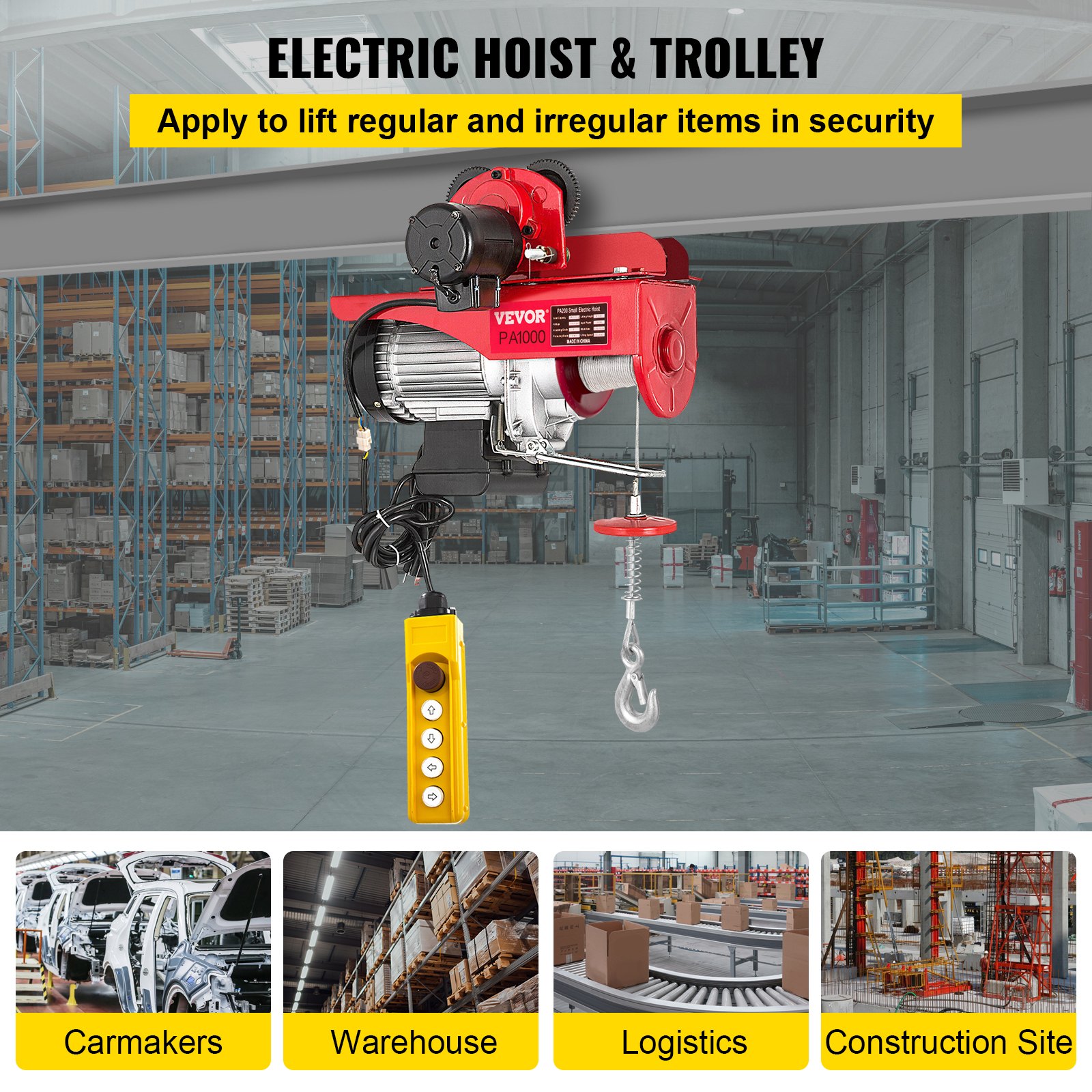

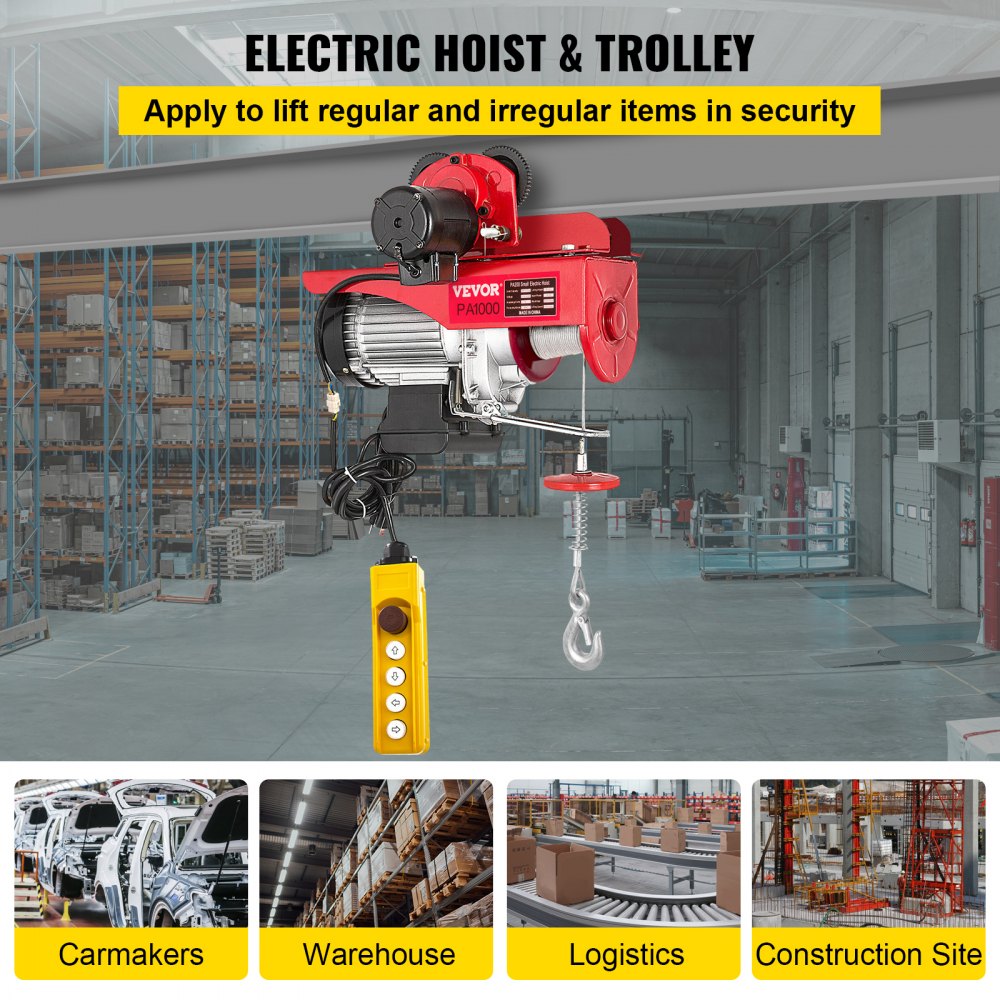

Wire Rope Electric Hoist Built for Factories, Warehouses, and Construction Sites

This wire rope electric hoist with trolley is designed for demanding environments where a ceiling-mount fixed-point hoist is simply not enough. It moves heavy parts along assembly lines and between workstations in factories and production plants without cluttering up the floor like mobile lifting equipment does. As it moves along a beam span, it effectively moves palletized goods and bulk materials in warehouses and logistics centers.

The steel and aluminum construction is built for long-term use, even under demanding working conditions. Its adjustable trolley fits beam flange widths from 68 mm to 110 mm, making installation suitable for many standard I-beams and H-beams. You can either permanently install this VEVOR unit in a factory or use it on a job site on a part-time basis.
