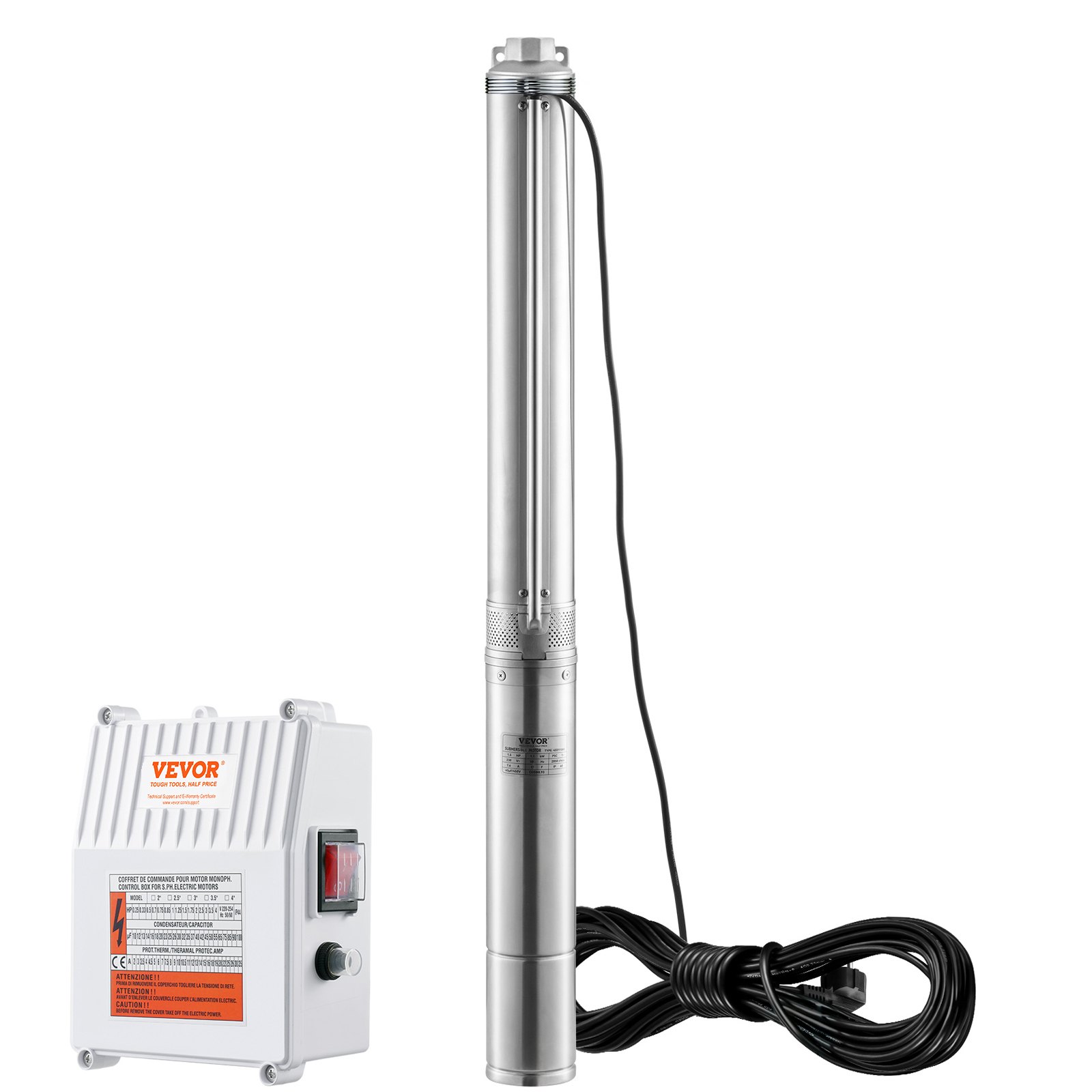

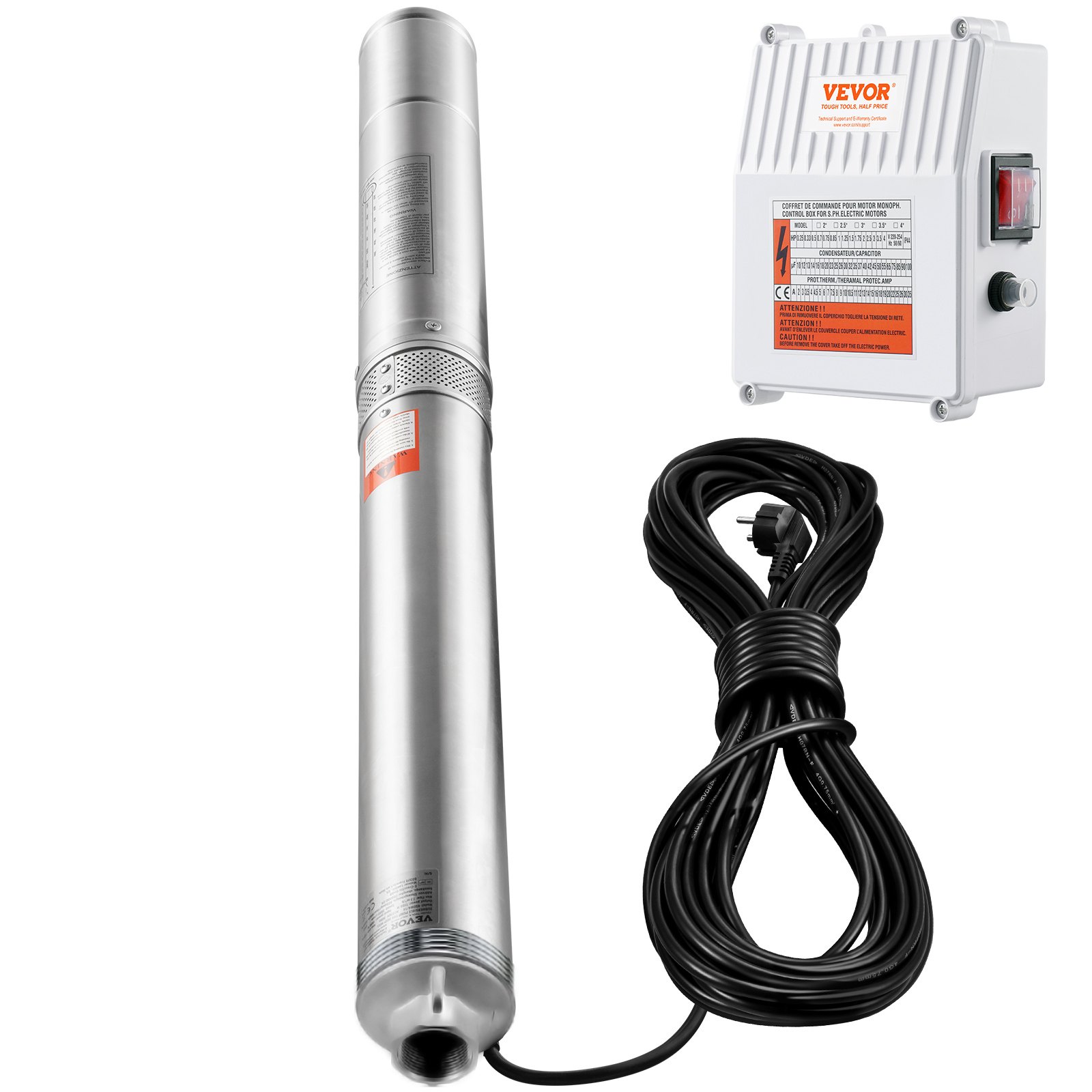

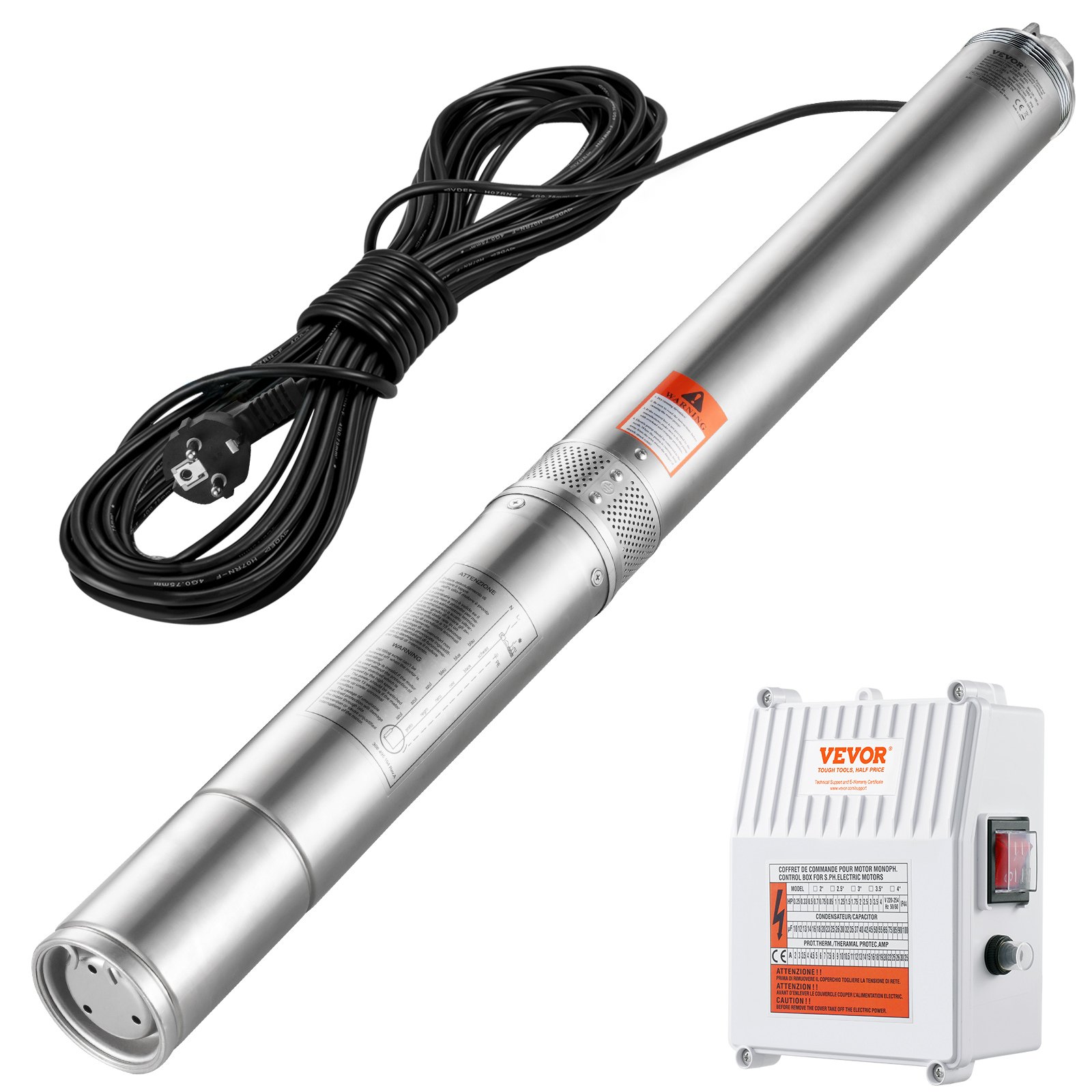

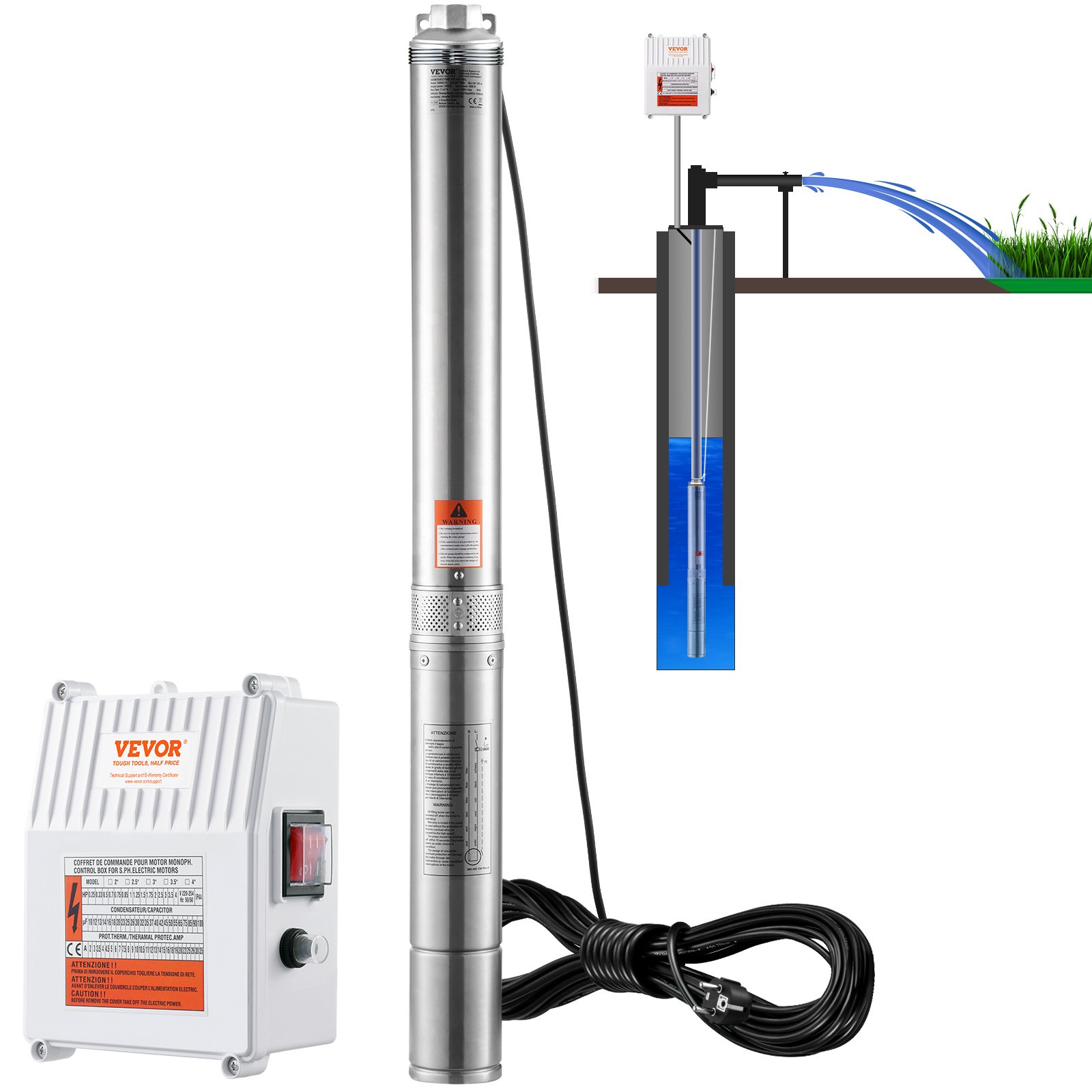

VEVOR Deep Well Submersible Pump, 1500W 230V 50Hz, 9.8 m³/h 108 m Head, with 19.4 m Cord & External Control Box, Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof

1500W Power with 15-Stage Impellers for Maximum Flow and Deep Lift

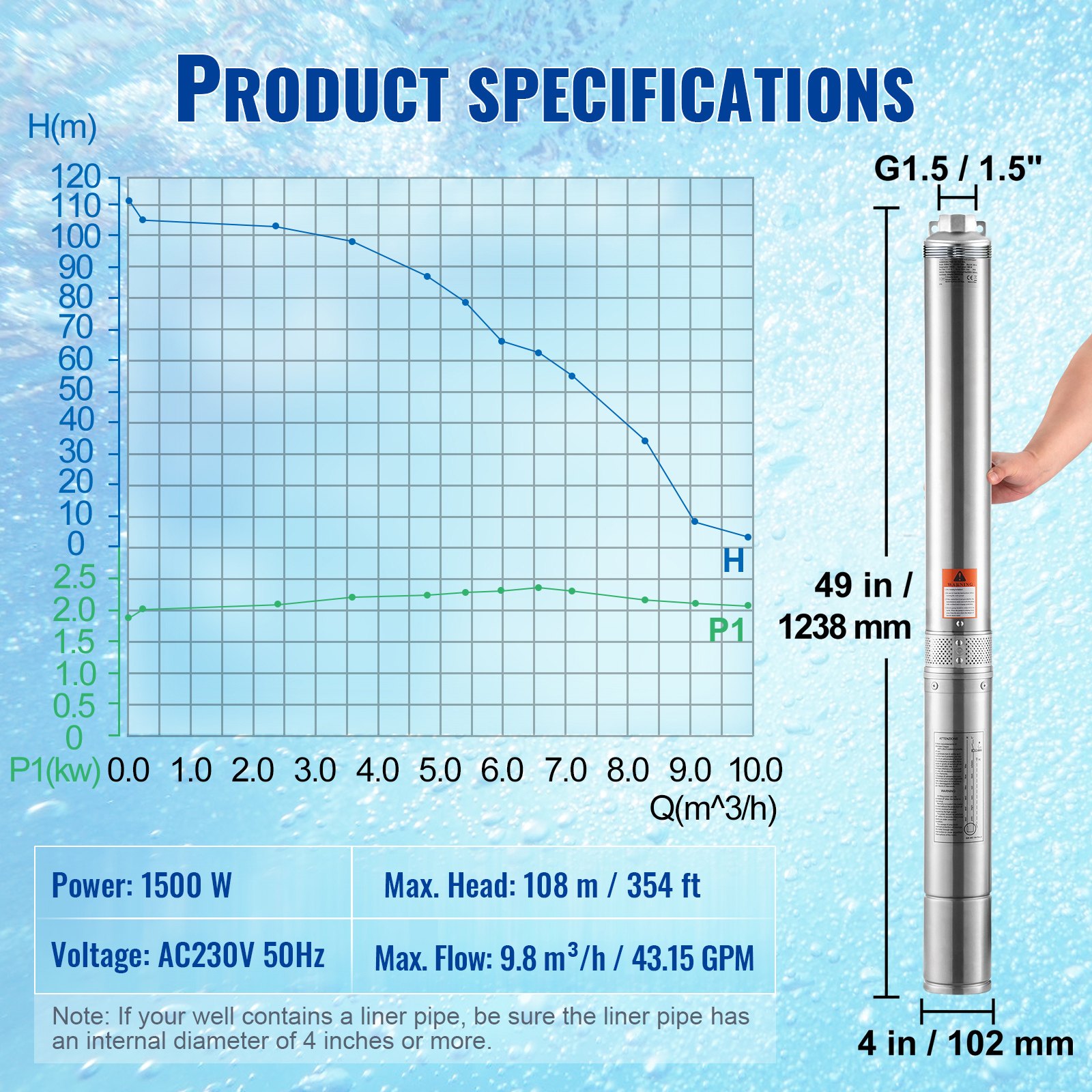

High-demand water-supply applications require a pump that can deliver high flow rates and reach great heights. This deep submersible pump is rated at 1500W (2HP). It has a 15-stage polypropylene impeller assembly that gradually increases pressure at each stage to a maximum head of 354 feet (108 meters) and a maximum flow of 9.8 m³/h (43.15 GPM). The multi-stage design allows the pump to maintain high discharge pressure at great depths where a single-stage design would fail.

The impeller assembly is designed to run at 2,850 RPM and deliver reliable rotational output for continuous operation, sustaining flow rate and pressure delivery throughout extended daily run cycles. Its G1.5" discharge outlet enables the delivery of a large volume of water. It is compatible with the commonly used agricultural irrigation pipes as well as large-scale residential or industrial supply pipes.

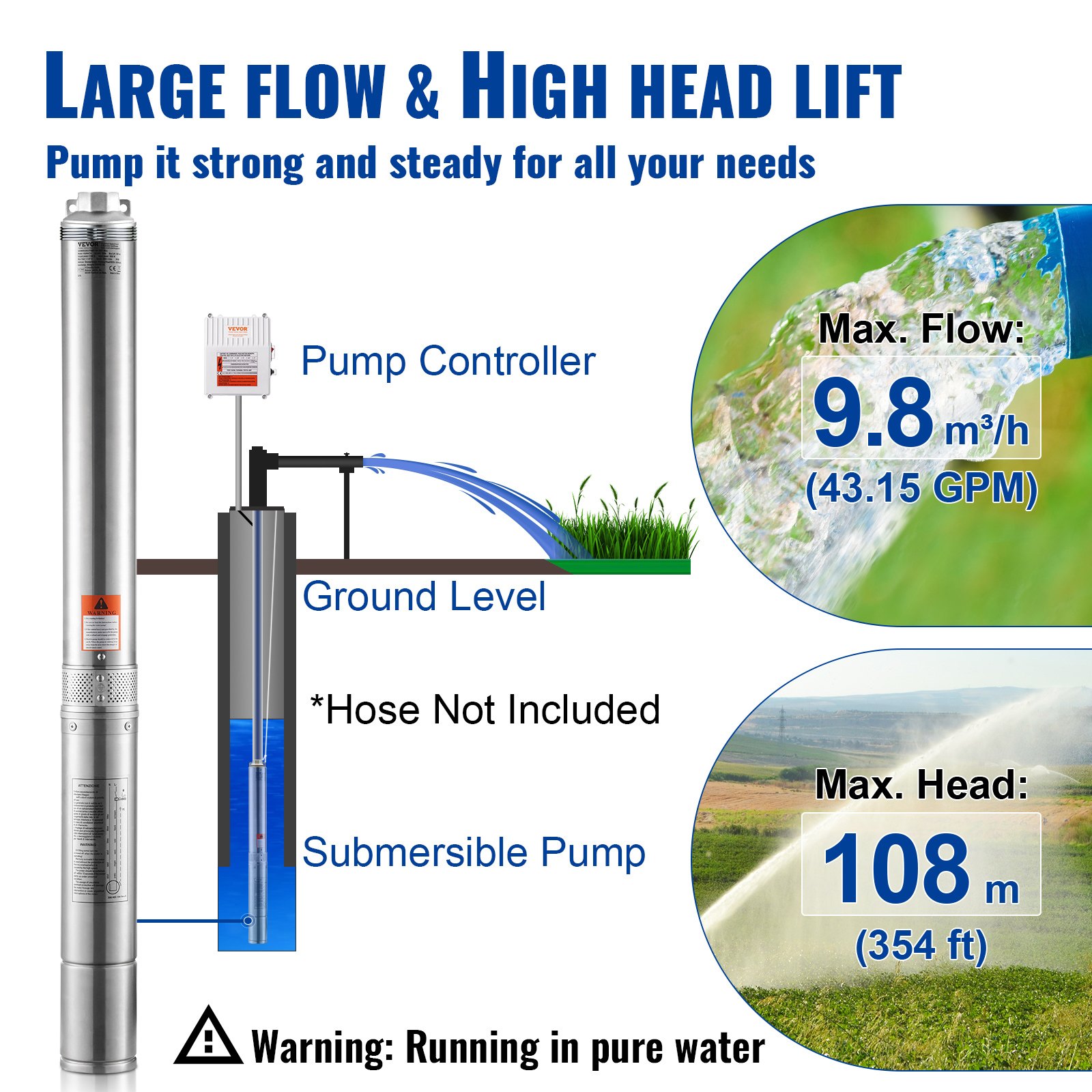

Deep Submersible Pump with 9.8 m³/h Flow and 354 ft Head Capacity

This deep submersible pump is designed for high-capacity water transfer applications requiring strong flow rates and high lift performance. A maximum flow rate of 9.8 m³/h (43.15 GPM) meets large-volume delivery requirements. The maximum head of 354 feet (108 meters) permits lifting water from deep boreholes and wells at a useful pressure that lower-capacity pumps cannot provide. The pump operates on AC 230V, 50Hz power and can be connected directly to standard residential and agricultural electrical systems.

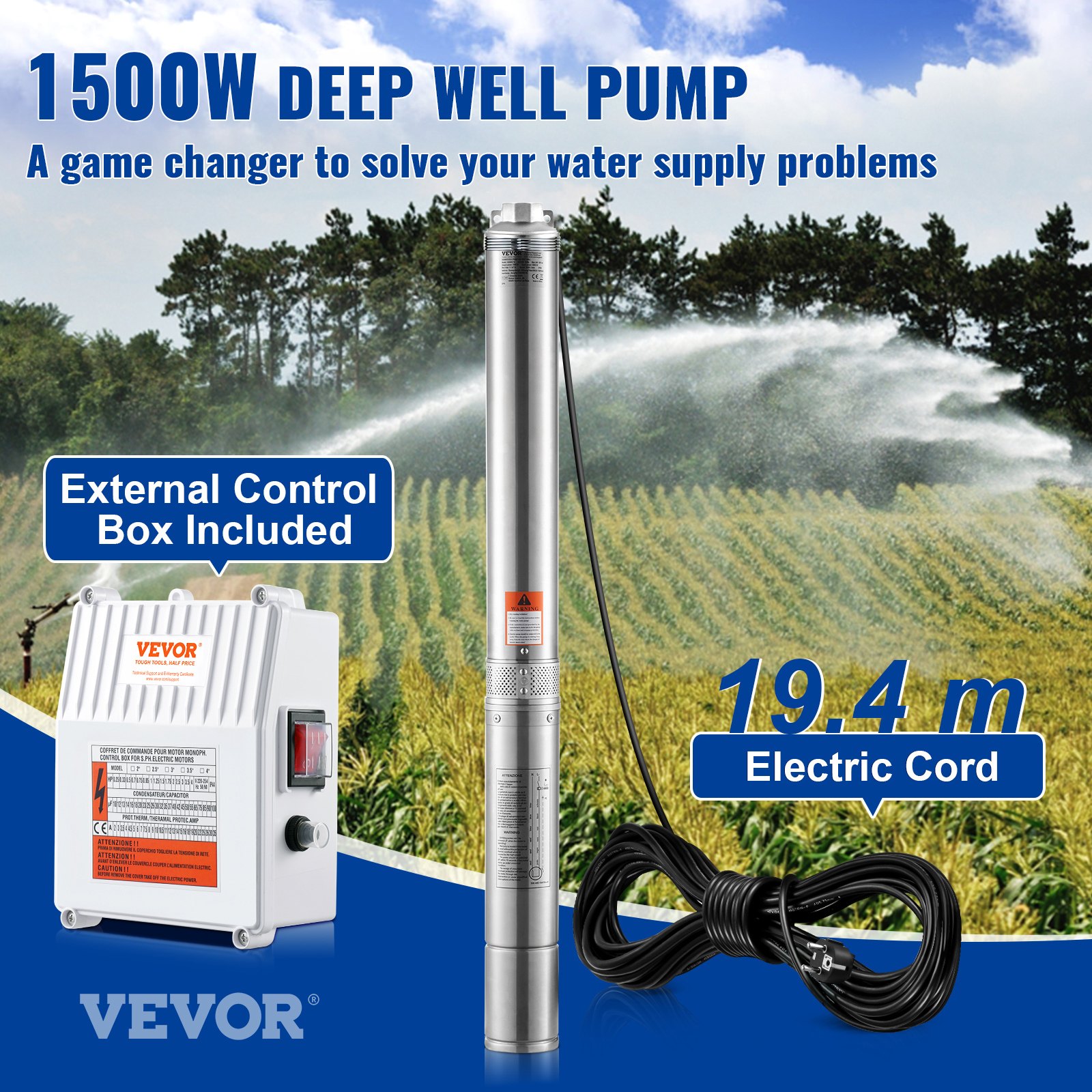

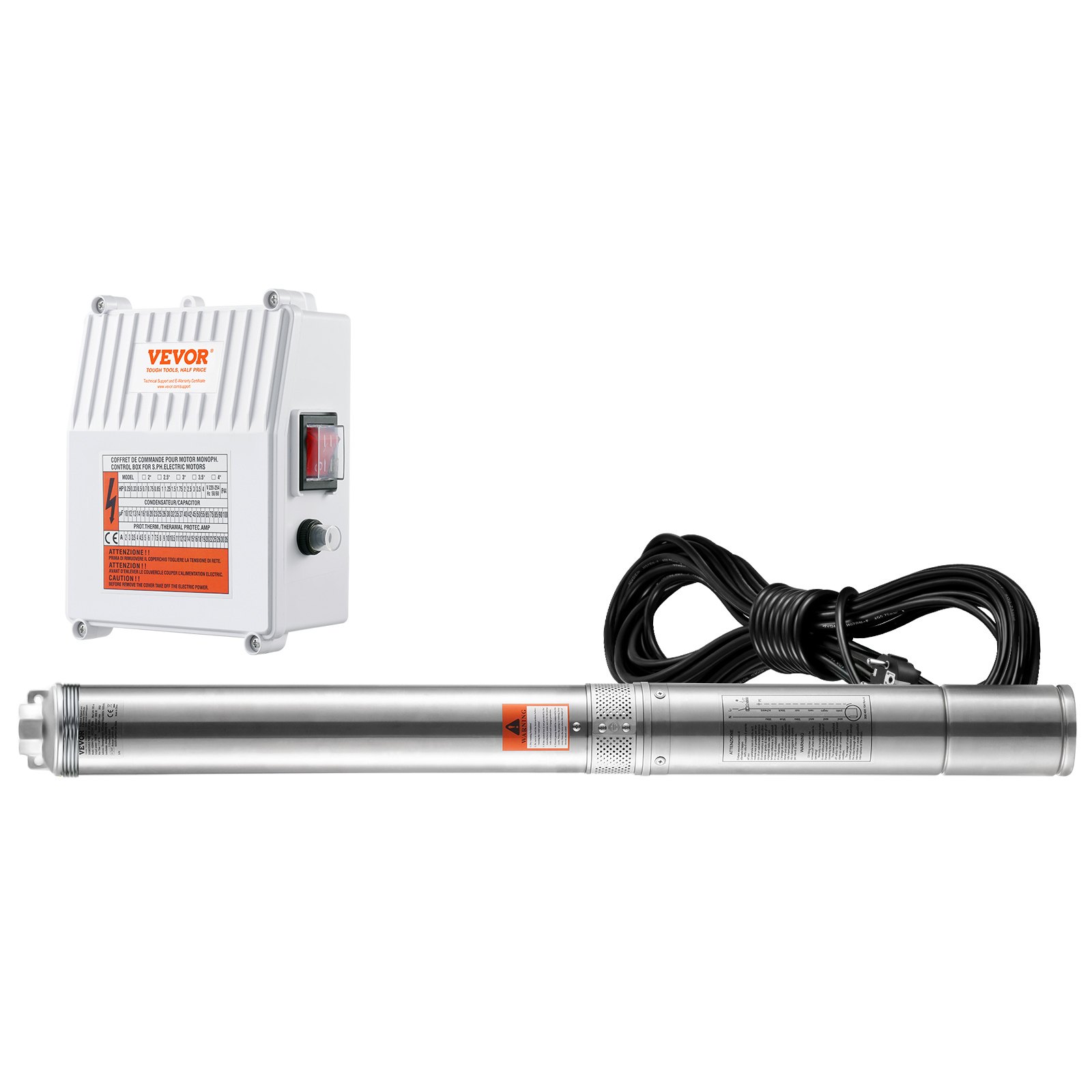

The internal diameter of the well casing must be at least 10 mm larger than the pump’s outer diameter to ensure proper installation clearance and sufficient water circulation around the motor housing during operation. Power cord length: 19.4 m (63.65 ft). External control box: supplied; ready to plug in upon installation. All controls are at surface level, and no special equipment or additional wiring is required for normal deep-well applications.

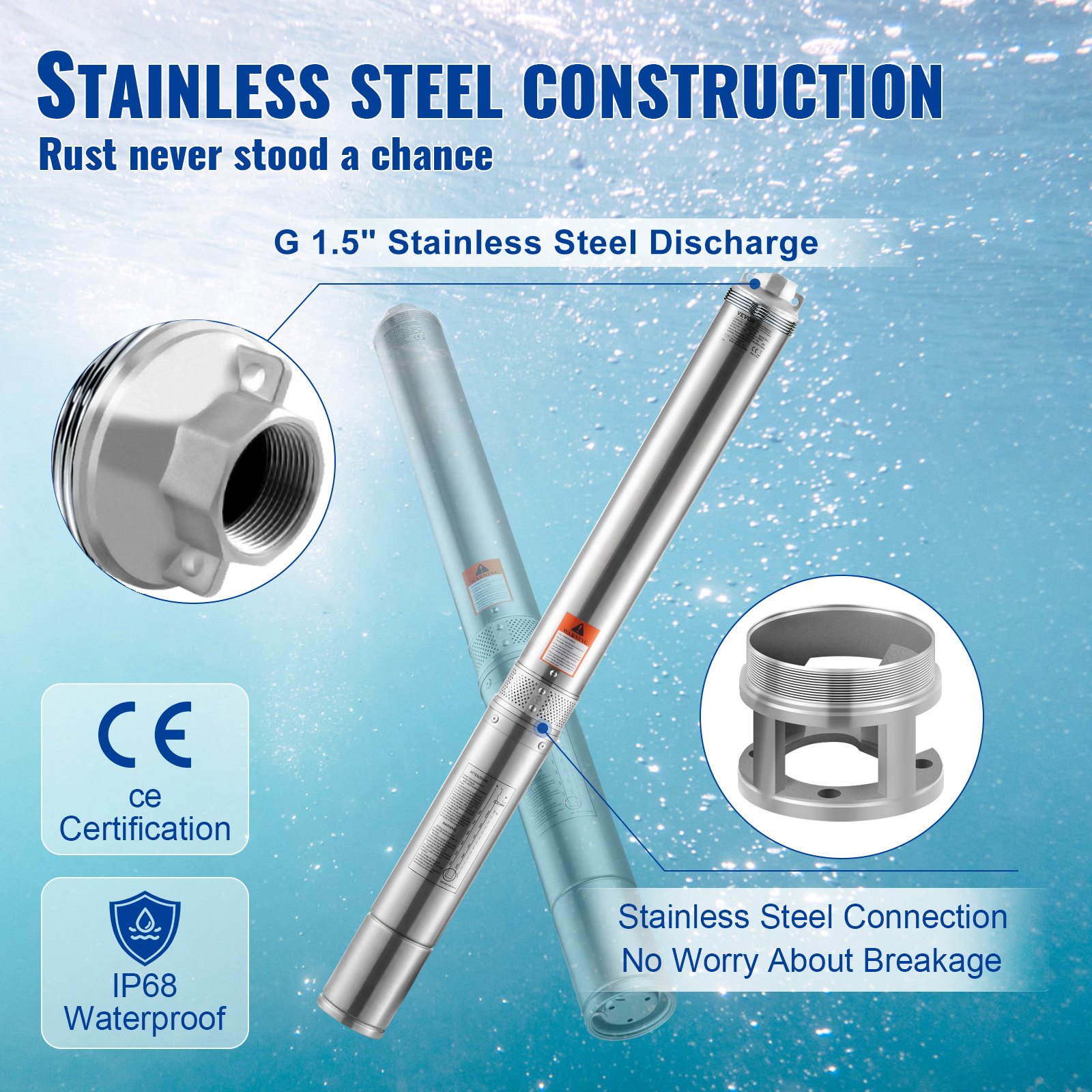

Full Stainless Steel Build and IP68 Certification for Corrosion-Free Durability

For any pump intended for permanent deep-well installation, material integrity over time is a must, and this device is manufactured to that standard. The entire frame, from the outlet fittings to the connecting components, is made of stainless steel; thus, the contact surfaces are corrosion-resistant. Unlike pumps that use stainless steel on selected external panels alone, this full-frame construction ensures structural integrity over years of continual submersion in mineral-rich, chemically changing, or naturally harsh water conditions.

The deep submersible pump is fully rated for prolonged underwater operation at depth; all internal components are protected from water ingress during sustained submersion, and it is IP68 waterproof-certified. CE certification confirms that the pump meets European safety and electrical performance standards, offering an impartial measure of build quality beyond the manufacturer’s own specifications. The full stainless steel construction, IP68 waterproofing, and CE certification provide consumers with confidence in the pump’s structural and operational longevity over a long service life when installed as a permanent fixture in a deep well or borehole.

Copper Motor with Overload Protection for Consistent Long-Term Operation

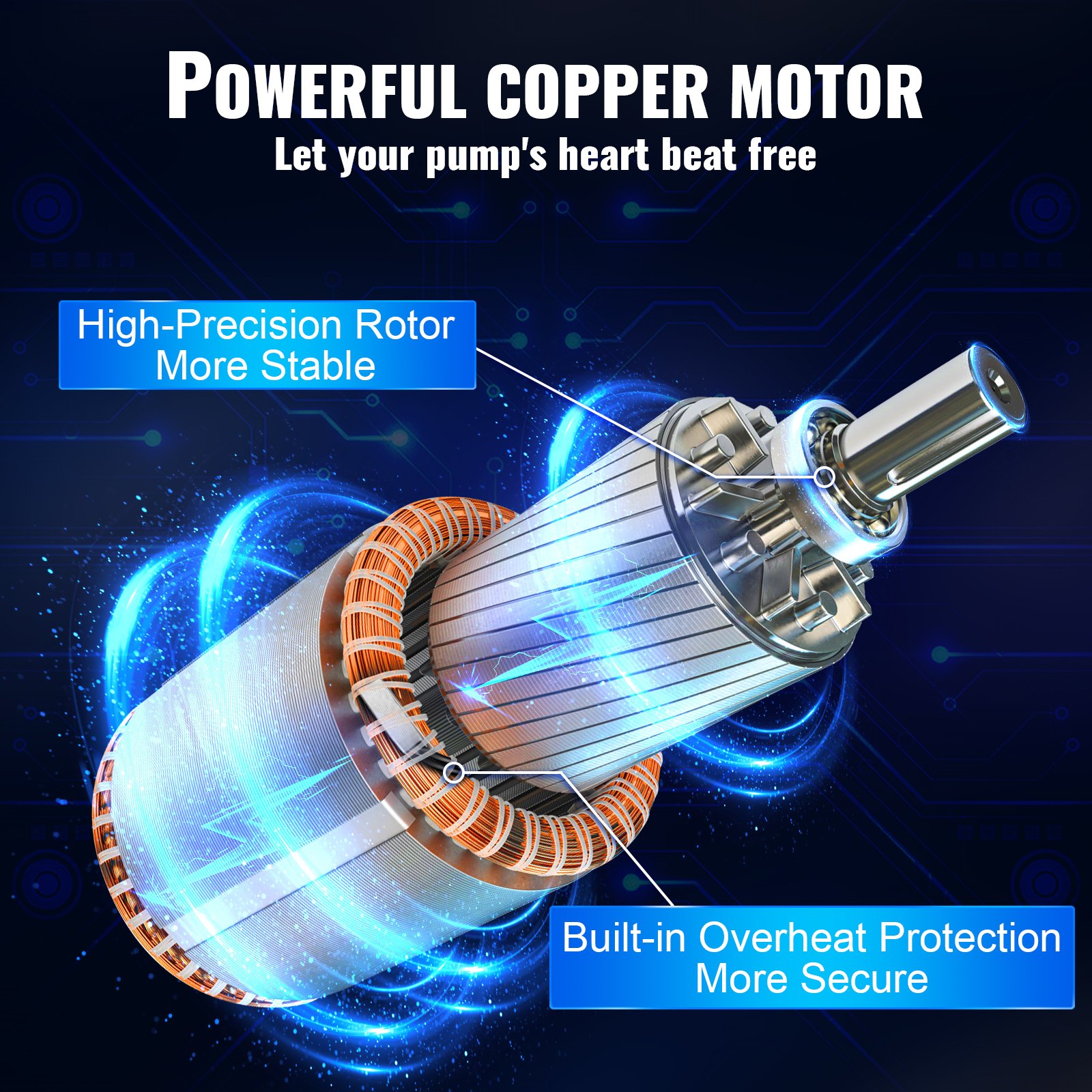

A pure copper wire motor and a high-precision rotor are key to the long-term performance and reliability of the pump. The copper winding, offering greater electrical conductivity and thermal efficiency than aluminum-wound options, ensures steady power output and a consistent flow rate during extended working hours, with no loss of efficiency. The high-precision rotor helps minimize mechanical vibration during high-speed operation, reducing wear and tear on internal components and helping deliver sustained performance over years of regular daily use.

The pump also features built-in overload protection for safer unattended operation. If the motor experiences abnormal conditions, such as rotor obstruction, reduced water flow around the motor housing, or prolonged operation above acceptable thermal limits, the protective mechanism will automatically shut down the pump before any harm can occur. To prevent overheating and maintain performance, the pump should always operate with adequate water levels, as idling can cause rapid motor overheating that the overload protection mechanism cannot completely prevent.

Built-In Check Valve and Filtration Mesh for Clean, Reliable Water Delivery

Two incorporated mechanical elements operate continuously throughout system operation to maintain system integrity and protect water quality. The integral check valve prevents backflow when the pump stops, maintaining the water column pressure in the supply line, so the pump does not have to reprime from an empty column with each start-up cycle. If there are long vertical supply runs or elevated storage tanks, it is strongly recommended that an external check valve be added to the built-in unit to better handle larger backflow volumes.

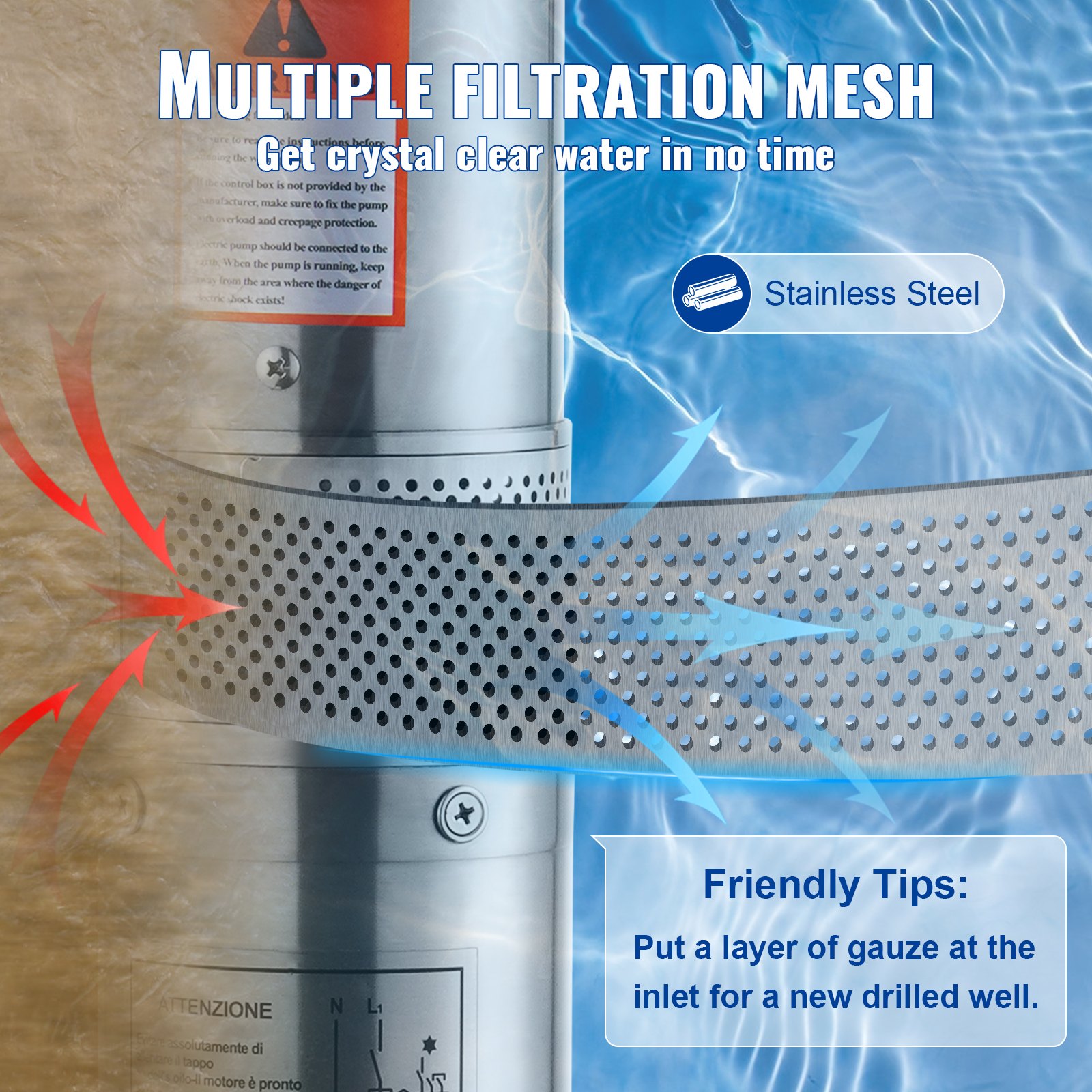

A stainless steel filtration mesh at the pump inlet intercepts sediment, debris, and particulate matter before they reach the impeller stages or motor housing, safeguarding the precision internal components from abrasive wear during continuous operation. The gauze layer right over the filtration inlet provides supplemental filtration for newly drilled wells. During the early period of operation, there may be high levels of granular sediment until well stabilization and reduced sediment levels occur.

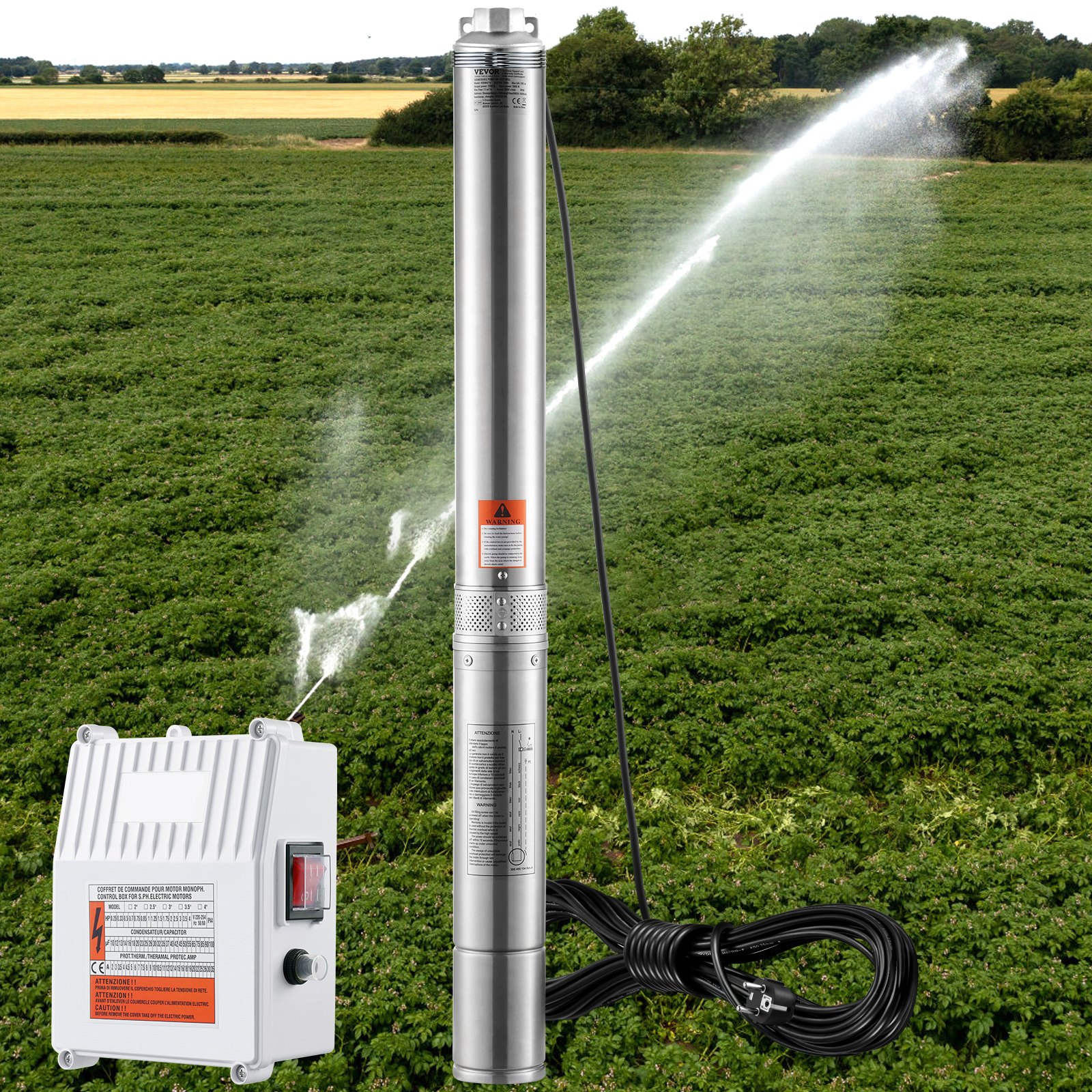

Deep Submersible Pump for Industrial, Agricultural, and Residential Applications

The operational scope of this deep submersible pump makes it a versatile solution for a wide range of professional and home water supply requirements. It is suitable for industrial water transfer, large-scale agricultural field irrigation, farmland distribution systems, livestock watering networks, residential household supply, garden irrigation, and extraction from deep wells, reservoirs, canals, and rivers. The 9.8 m³/h flow capacity and 354-foot head specification place it at the demanding end of each application category, handling peak demand without compromising pressure.

The pump delivers reliable supply pressure to domestic fixtures and garden systems from deep private wells for residential and off-grid applications. Proper installation practices are critical, regardless of application, including checking casing clearance, avoiding dry running, using the gauze inlet precaution for new wells, and following the manufacturer’s specifications to ensure that this pump delivers its full rated performance and a long, reliable service life in every deployment scenario.
