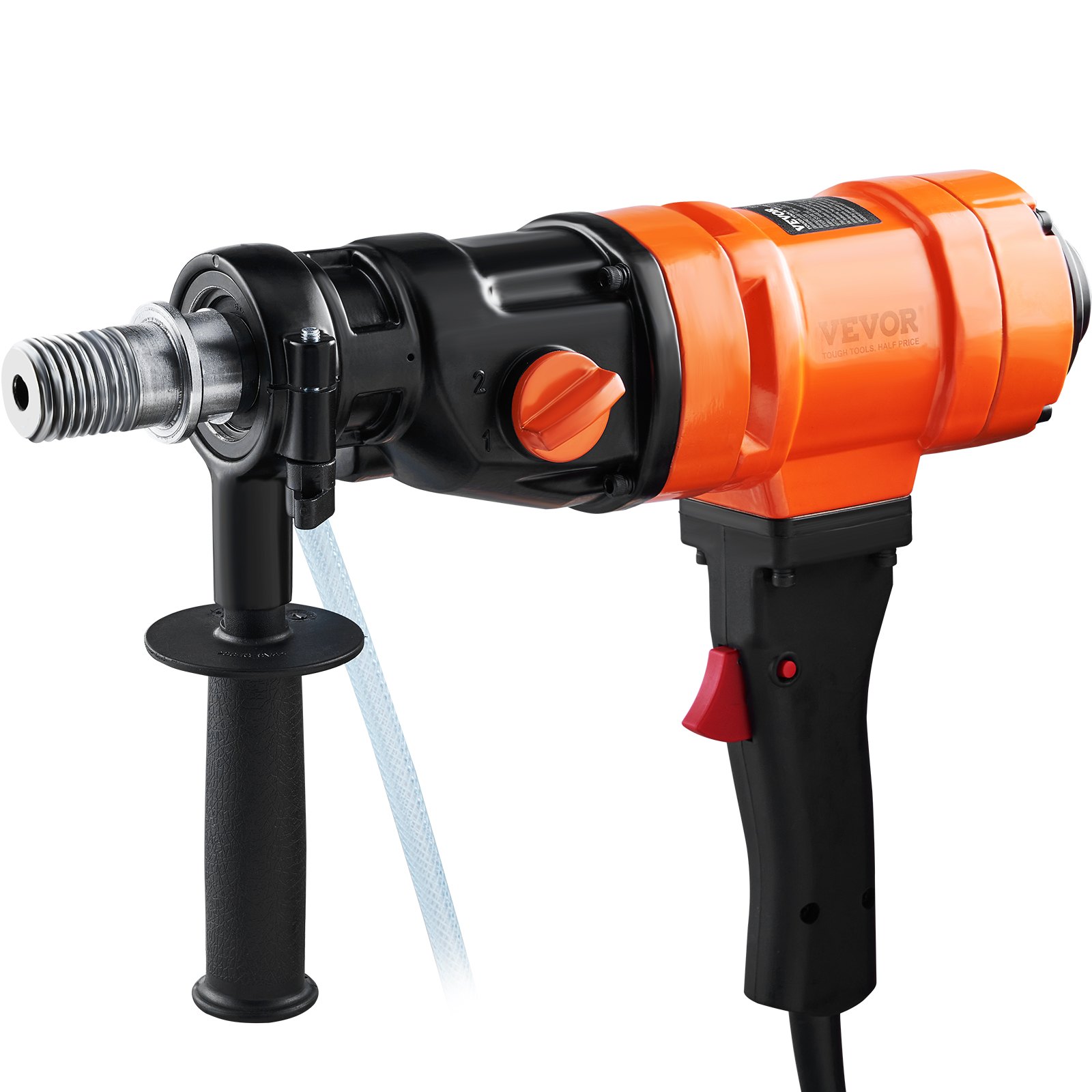

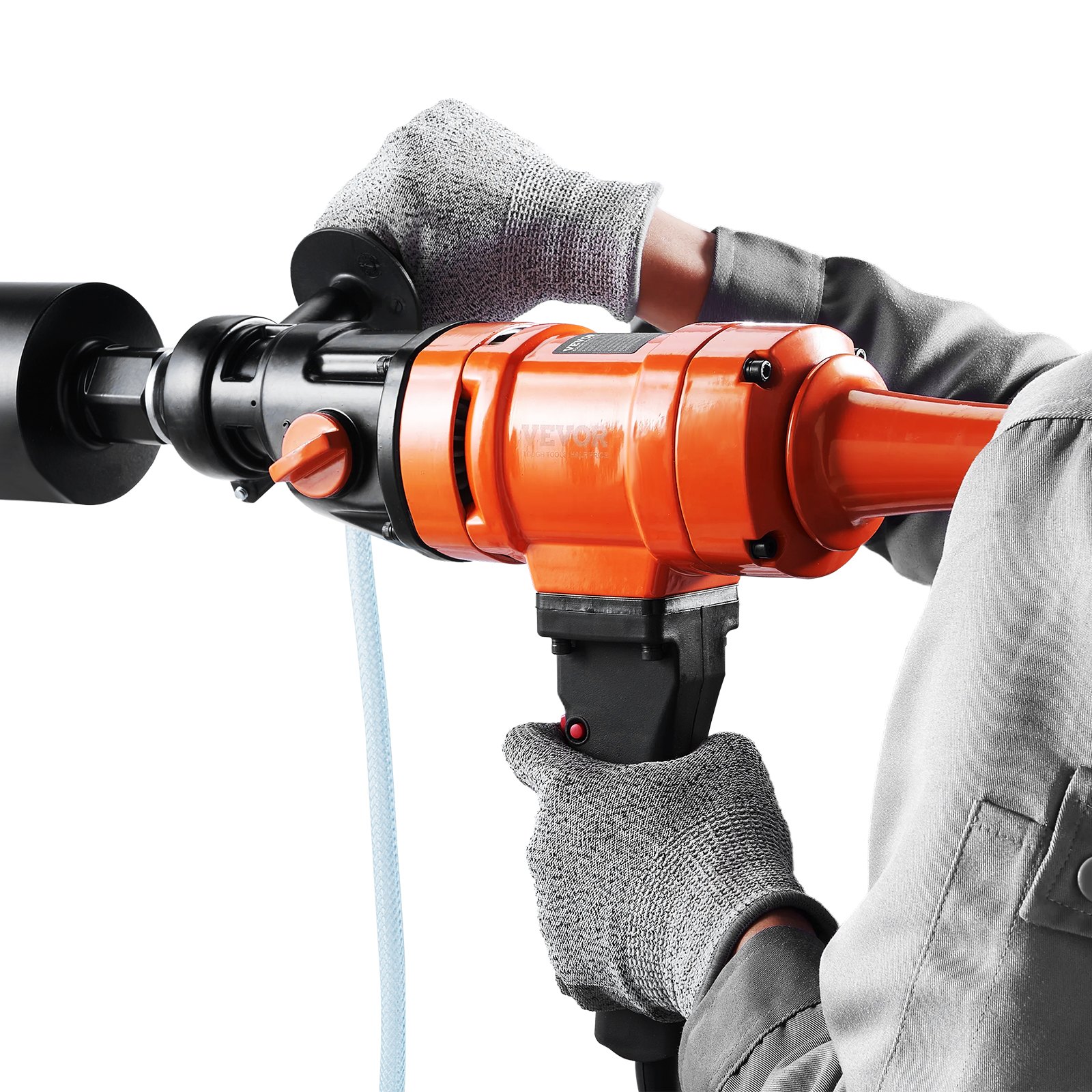

VEVOR Diamond Core Drill Machine Handheld Concrete Core Drill Rig 10.2 cm Bit 1500W

Diamond Core Drill Machine with 1500W Motor and Dual-Speed Gearbox for Consistent Power

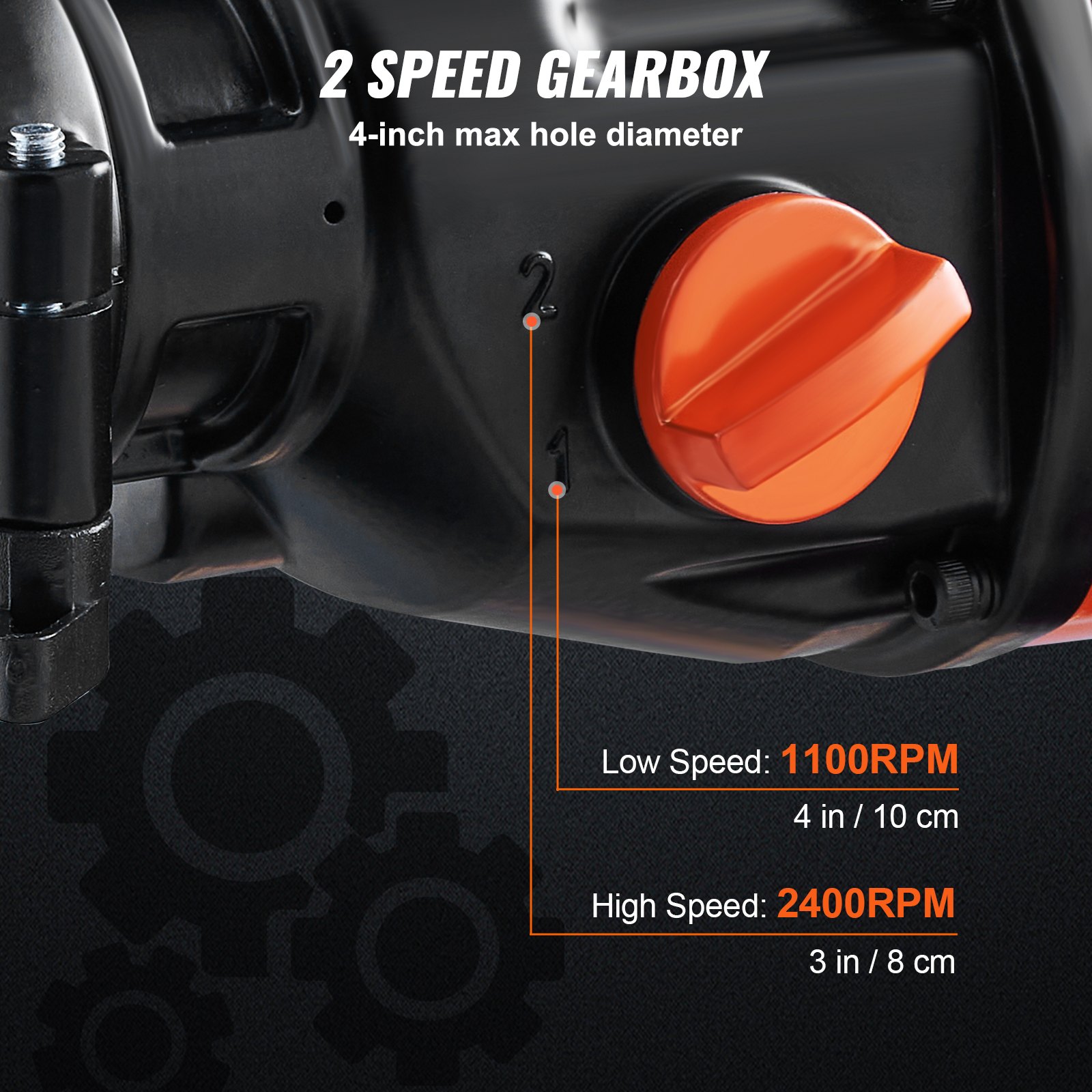

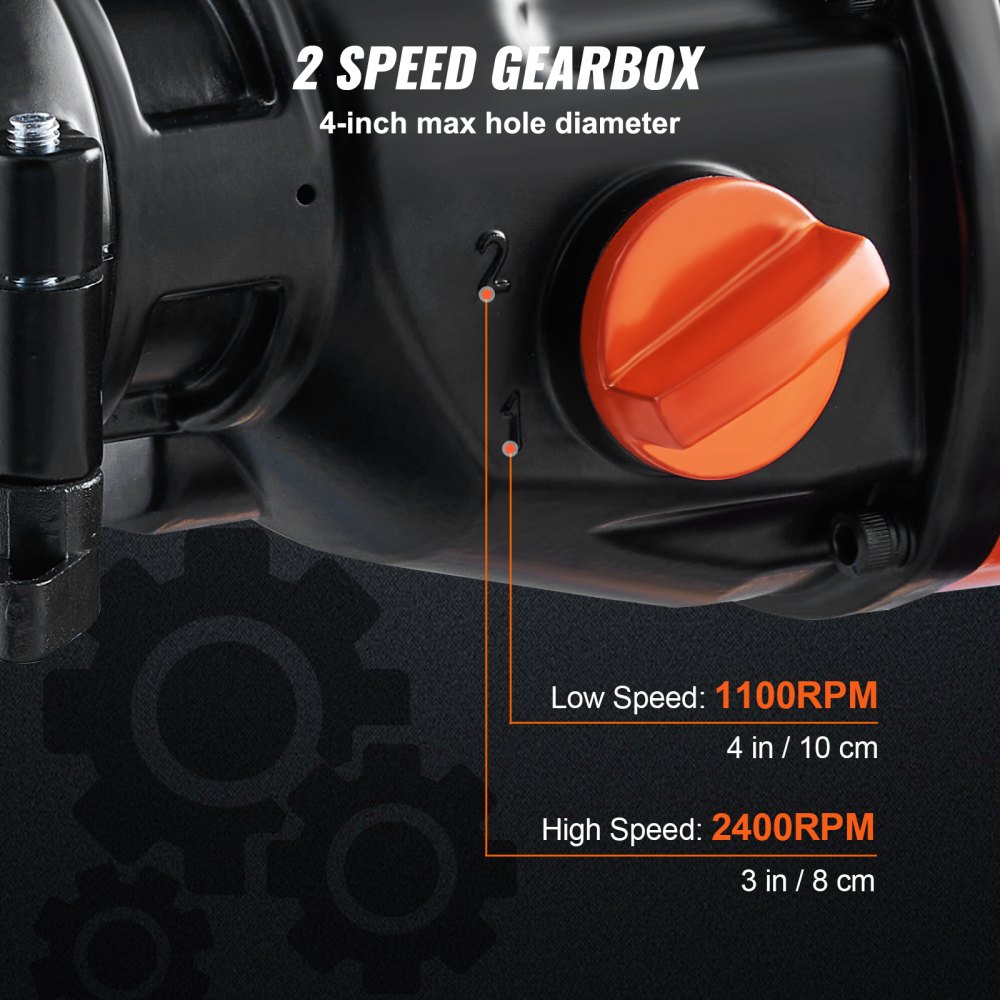

The diamond core drill machine is powered by a 1500W-rated motor that draws 860W at full load. It provides some reserve capacity if resistance is encountered mid-drill. The motor provides aggressive, steady output for long periods without thermal shutdown on dense materials such as reinforced concrete or marble. A two-speed gearbox (950 RPM and 2100 RPM) lets the operator match rotational speed to the material being drilled.

A lower speed is better in harder, denser materials, where the slower penetration rate creates a cleaner bore and reduces bit wear. Red brick cuts faster through softer materials at higher speeds without compromising hole quality. Having both speeds in one machine means there is no need to change tools when switching between material types on mixed-surface jobs. The gearbox gives the operator control, rather than locking the operator into a single fixed setting that compromises performance at one end of the material range.

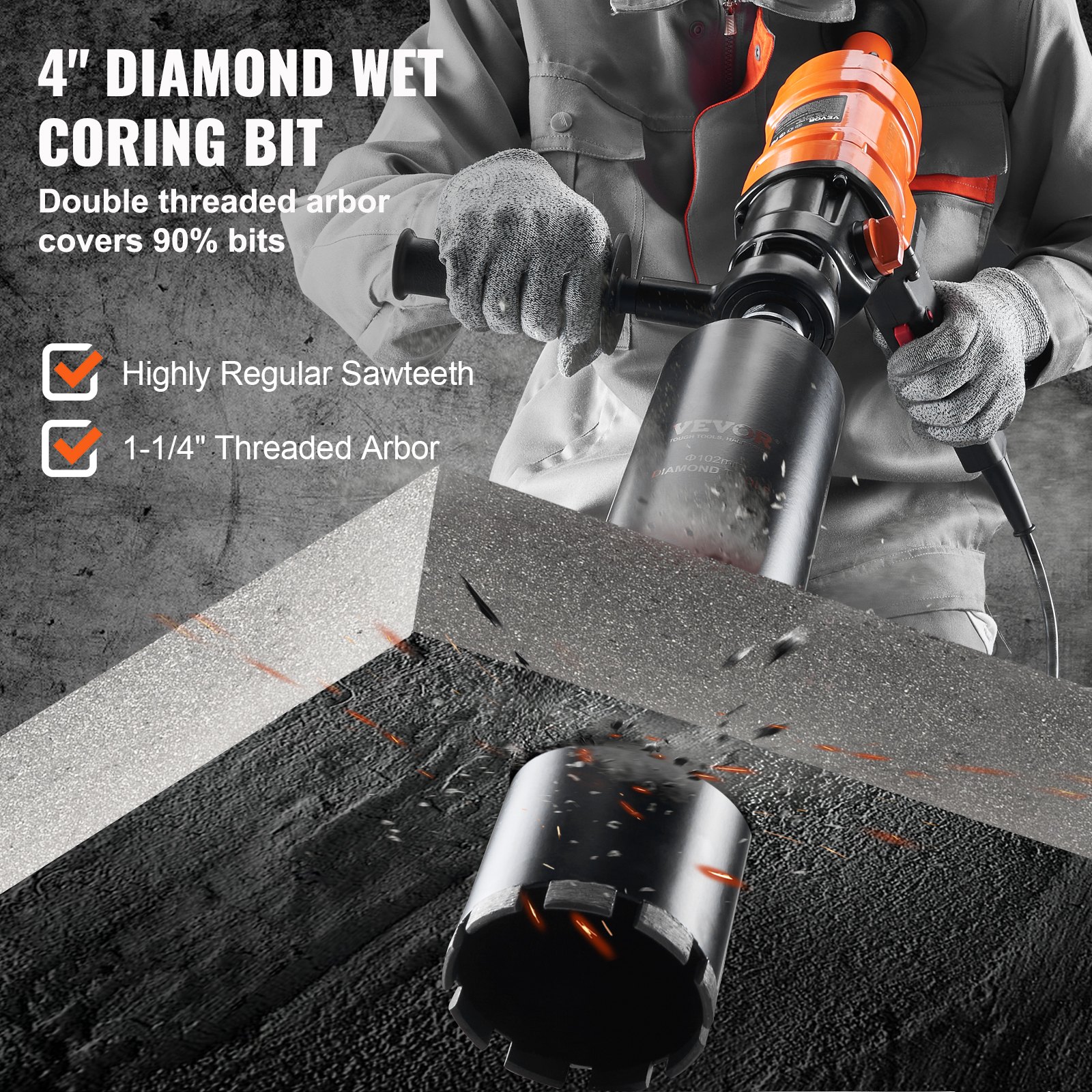

4-Inch Wet Drilling Capacity with Industrial-Grade Core Bit Included

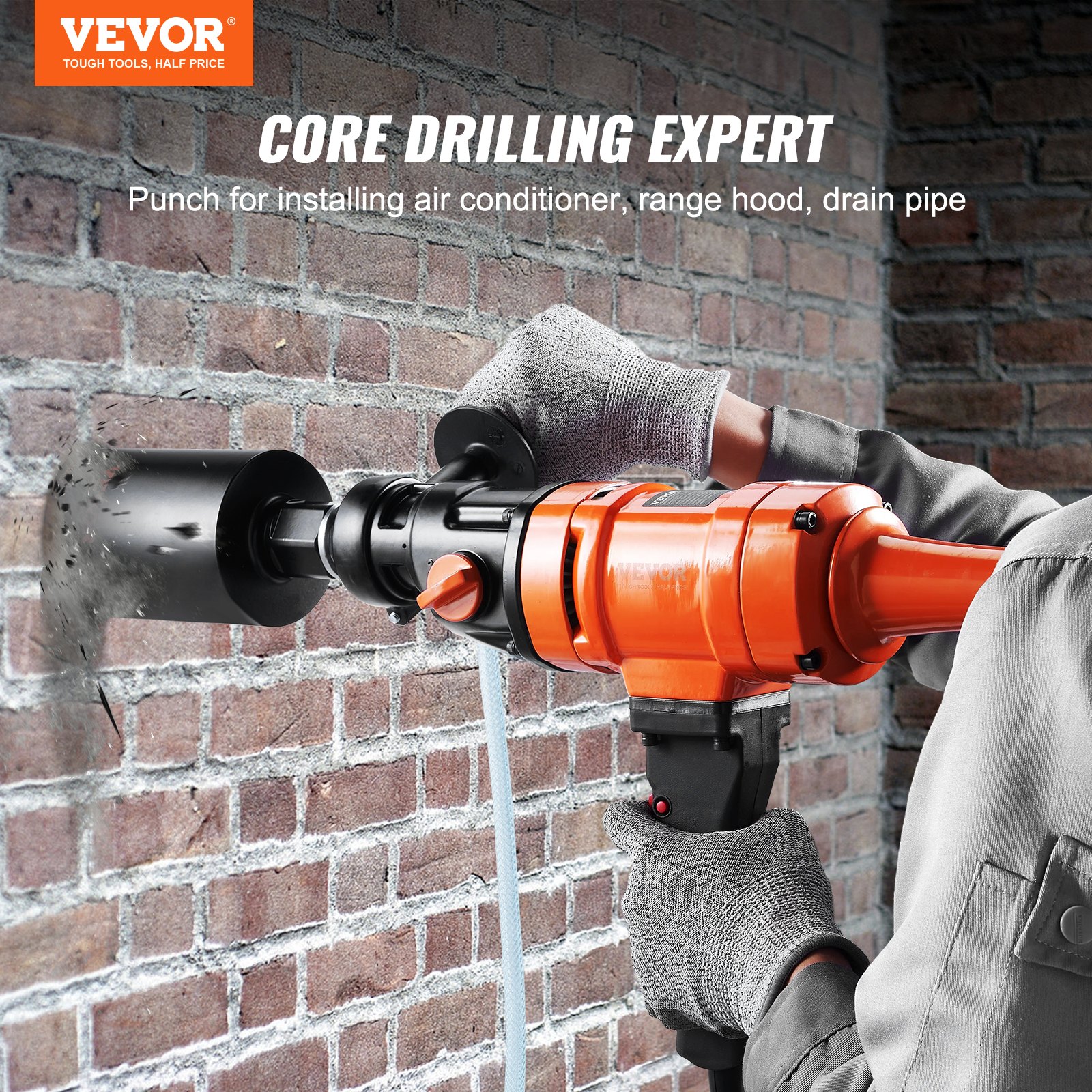

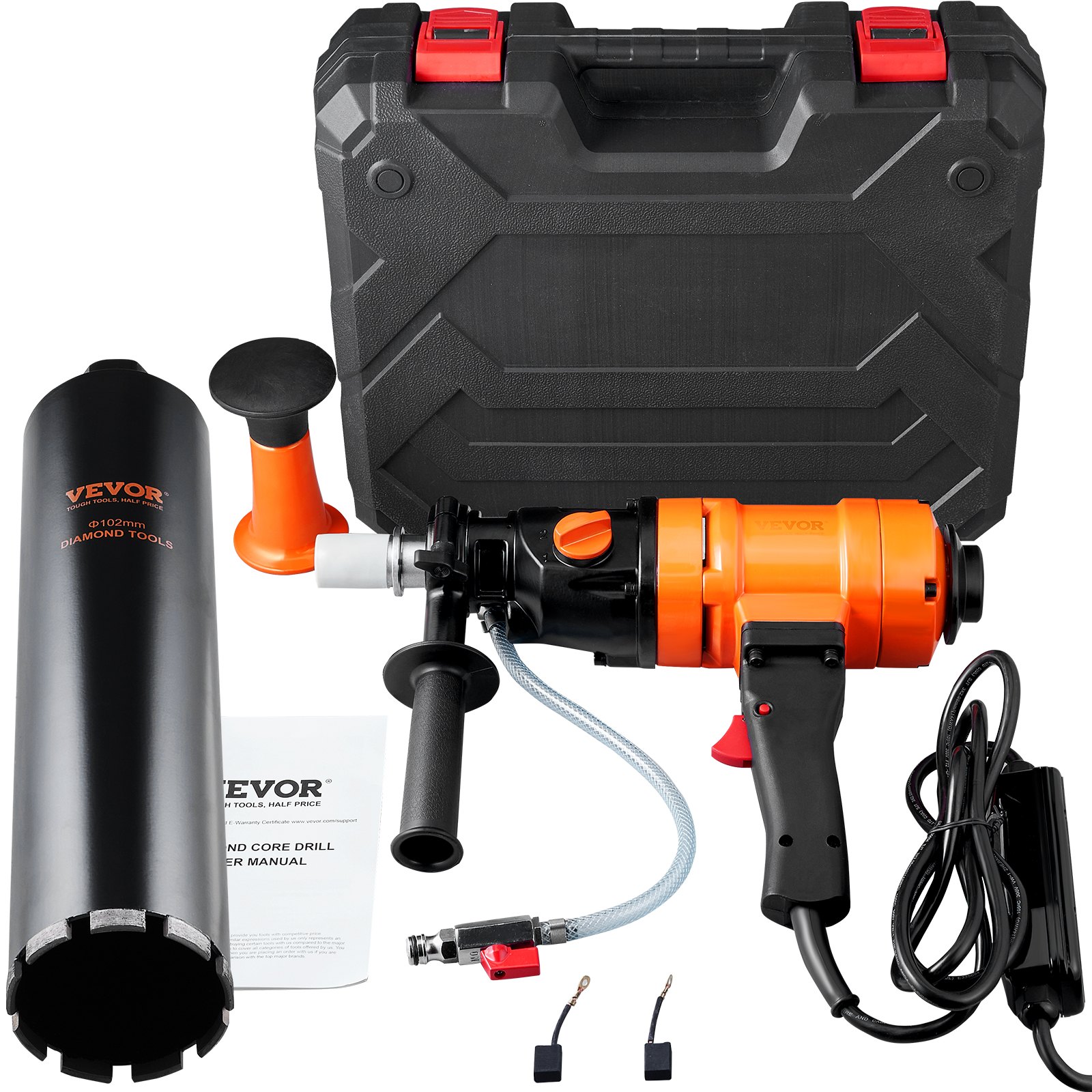

The drill works on bore diameters of 3.1-4 inches (8-10.2 cm), the size range needed for AC pipe penetrations, kitchen drainage routing, and stair railing anchors. The kit includes a 4-inch core bit (1-1/4” thread), so you don’t need to buy a separate bit before the first job. Wet drilling cools the bit throughout the operation and flushes debris from the bore as the depth increases.

Dry drilling at a 4-inch diameter generates enough heat to degrade the bit's segment bonding and create dust buildup that reduces the effective hole size. The wet method provides a constant diameter from entry to full depth and greatly increases bit service life. The maximum drilling depth of 15.75 inches (40 cm) easily handles standard wall and slab thicknesses in residential and light commercial construction, eliminating the need to make multiple passes from opposite sides.

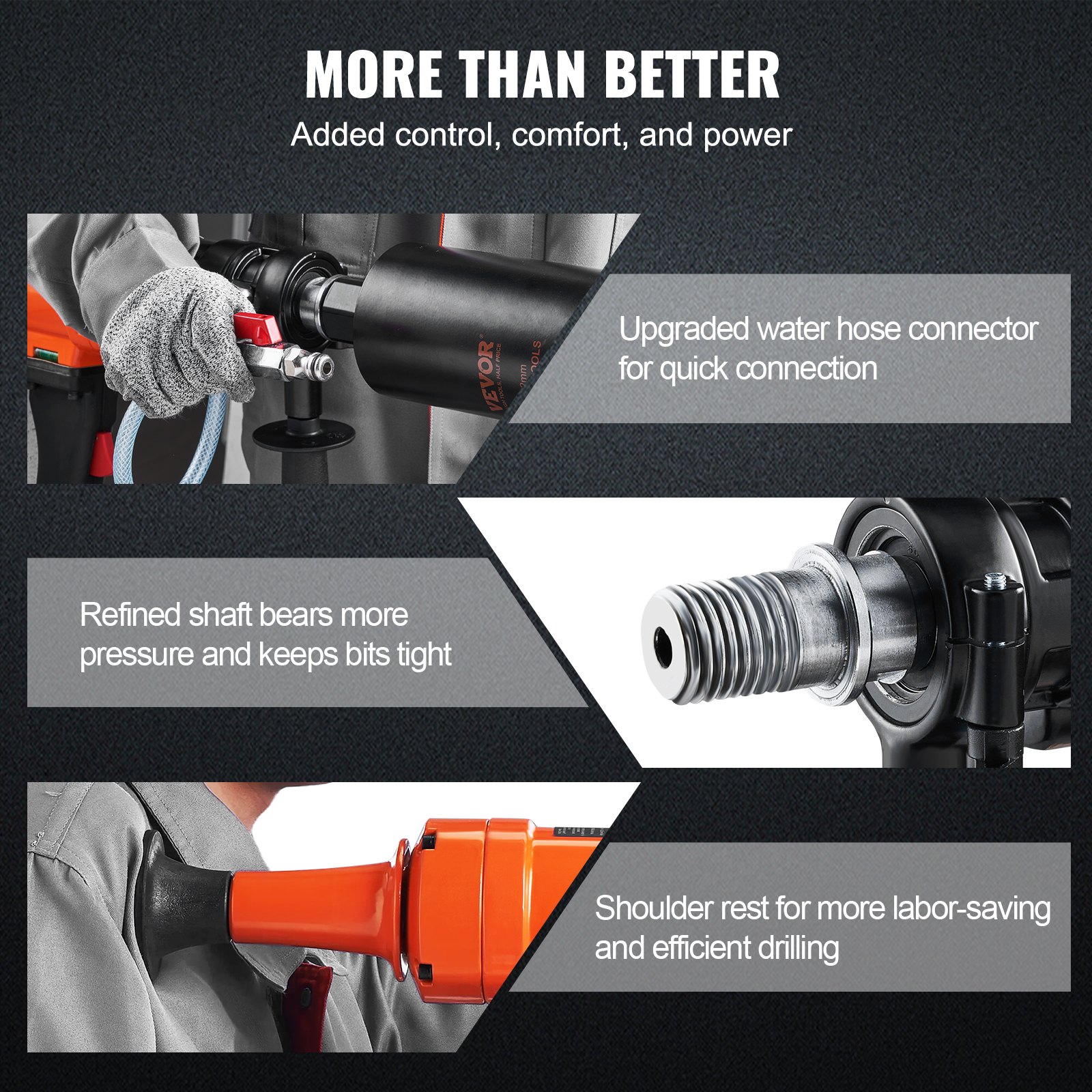

Rustproof Output Shaft and One-Touch Water Connector for Reliable Operation

The output shaft is made of rustproof steel and is designed to withstand the continuous axial and radial forces from handheld core drilling on the drivetrain. Any shaft that corrodes or flexes under load will introduce runout to the bit's rotation and tend to open the bore beyond the intended diameter, reducing hole accuracy on jobs where fit tolerance is important. The one-touch water connector provides a quick connection to a secure supply line and pressure stability during drilling.

The flush rate is directly dependent on the consistency of water flow, which, in turn, controls heat at the bit face and debris removal in the bore. A connector that vibrates loose or requires manual adjustment during drilling disrupts the drilling rhythm and risks overheating the bit before the next water pass. The forged shaft and the connector are both areas where build quality shows up directly in hole quality -- and both are built to take the pressure this motor puts out.

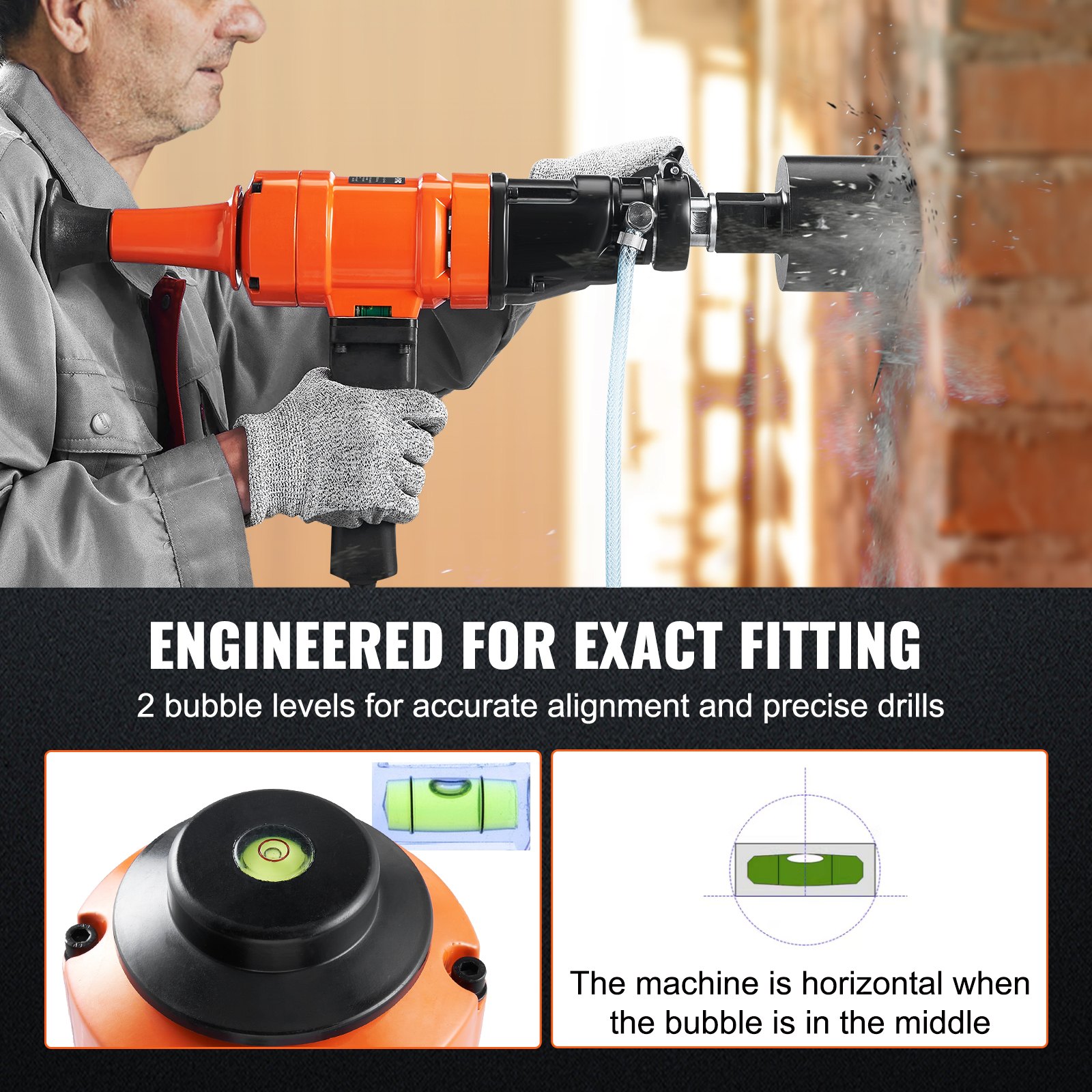

Diamond Core Drill Machine with Dual Bubble Levels for Accurate Hole Alignment

Two fluorescent yellow-green bubble levels are mounted on the drill housing, so the bubbles are visible from either side during operation. One of the more difficult control challenges on a handheld core drill is maintaining a true horizontal or vertical bore angle while managing motor torque and water flow; the dual levels address it directly. Each level is positioned to independently check alignment on two axes, both before drilling starts and in the early entry phase when angle errors are easiest to correct.

Fluorescent coloring makes the bubble easy to read in low-light conditions, where standard clear levels are difficult to read quickly. For jobs where multiple holes are needed at the same height, such as running parallel pipe penetrations or installing multiple AC units along a wall, having consistent level readings across holes eliminates layout errors that would otherwise require patching or repositioning anchor hardware later.

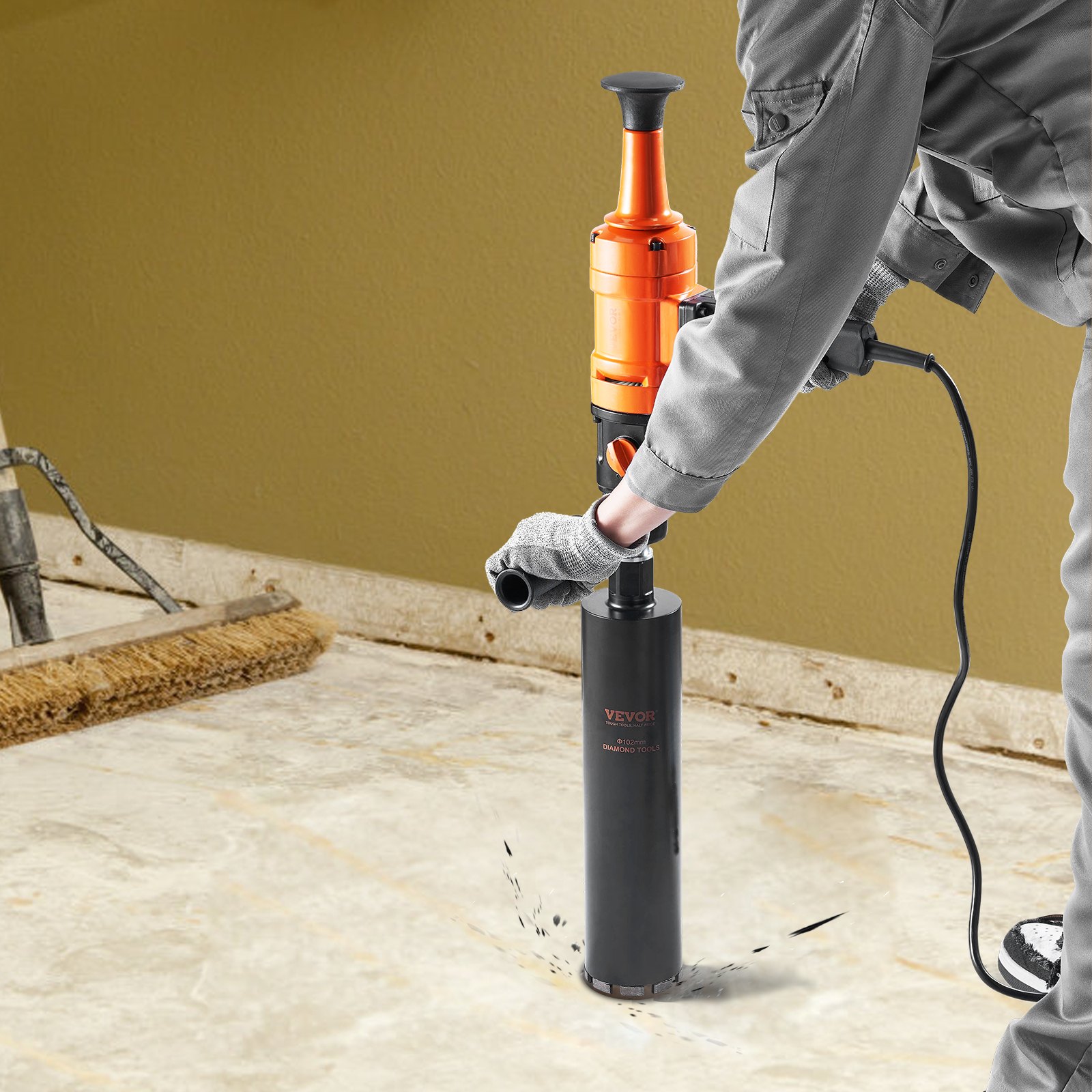

15.75 in Drilling Depth and 1-1/4" Arbor for Wide Material Compatibility

15.75 inches (40 cm) max depth handles wall and slab thicknesses typical of residential and commercial construction without repositioning mid-hole. The included bit is a perfect match for this depth rating at Φ4 x 15.75 inches, so the machine and bit form a matched system rather than requiring the operator to find a compatible bit separately.

The 1-1/4" thread arbor is a common professional standard, with a large selection of 3rd party core bits in different diameters and segment configurations. That compatibility matters when job specs require a bore size different from the included 4-inch bit. The arbor accepts standard replacement bits without adapters.

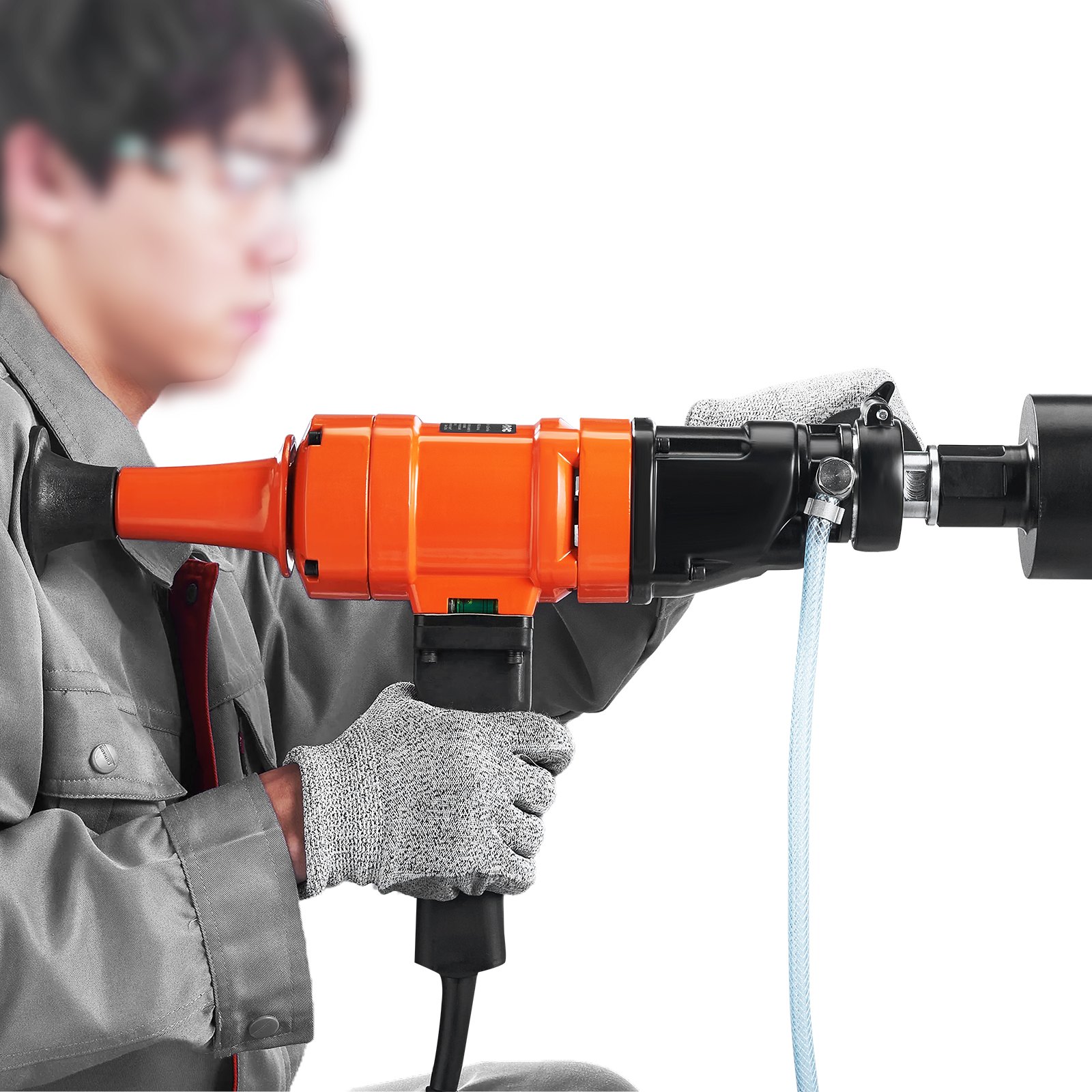

Shoulder Rest and Compact Handheld Frame for Fatigue-Free Maneuverability

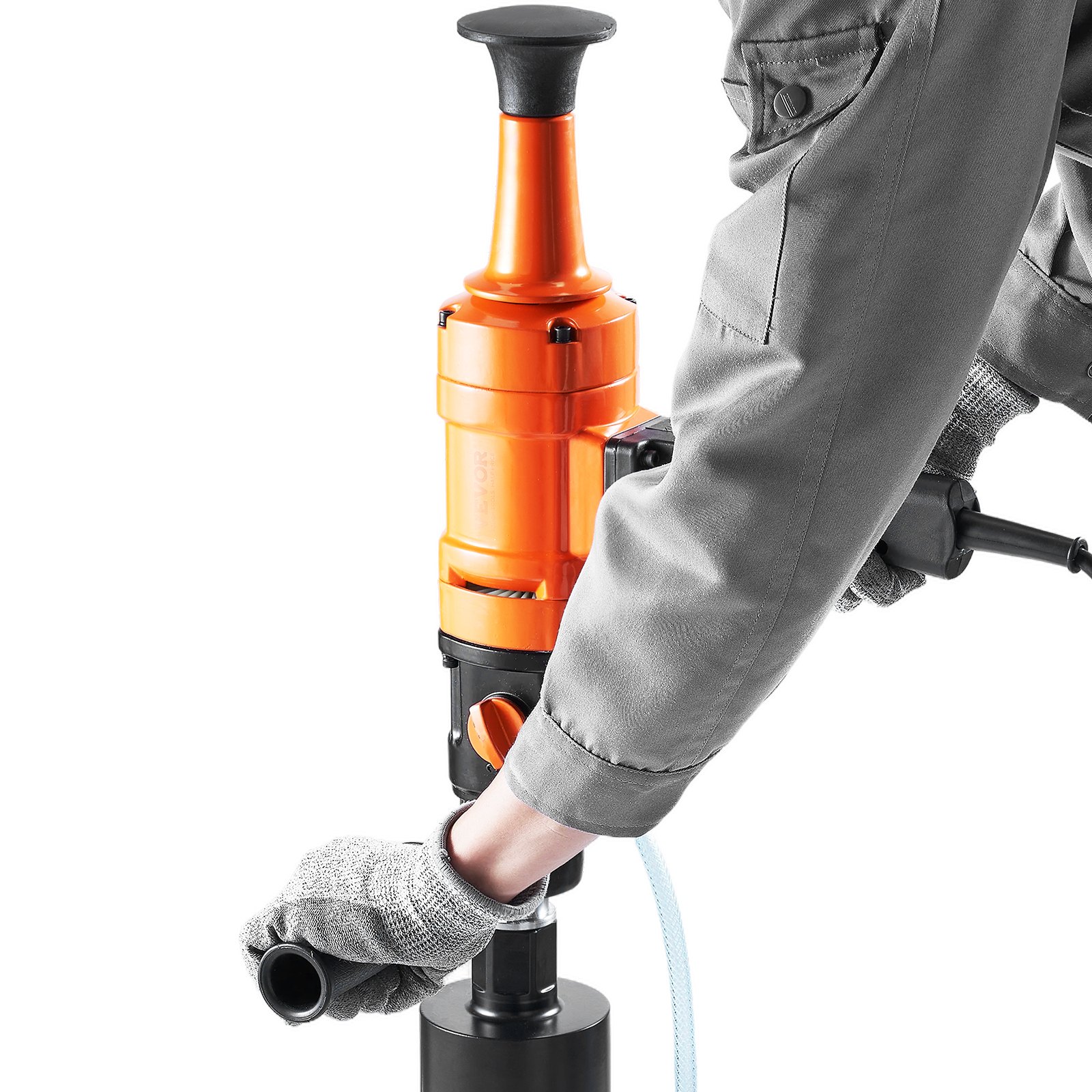

The shoulder rest allows the operator to carry the drill and support it on the body during use, transferring the 25.59 lb weight over the shoulder rather than holding it entirely with the arms. On jobs with multiple holes or elevated drilling positions, arm fatigue builds up fast without a brace point. The shoulder rest extends the time the operator can work accurately before having to stop.

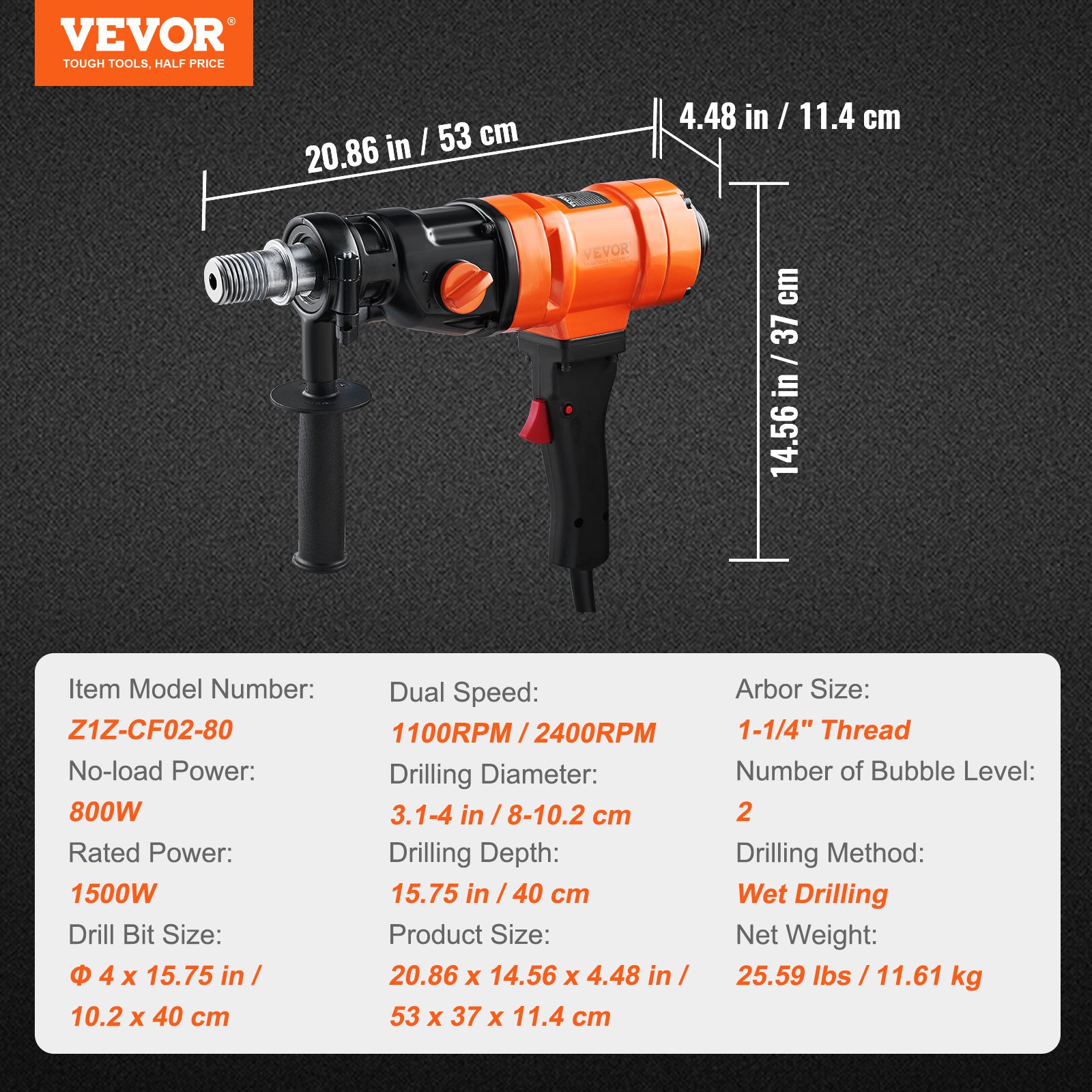

The overall frame measures 20.86 x 14.56 x 4.48 inches, keeping the footprint small enough to maneuver in tight wall cavities, utility chases, and interior corners that larger rigs cannot reach. Its compact size makes it easy to transport between job sites. The handheld format and shoulder rest make this diamond core drill machine practical for solo operation over a full day of varied drilling tasks.
