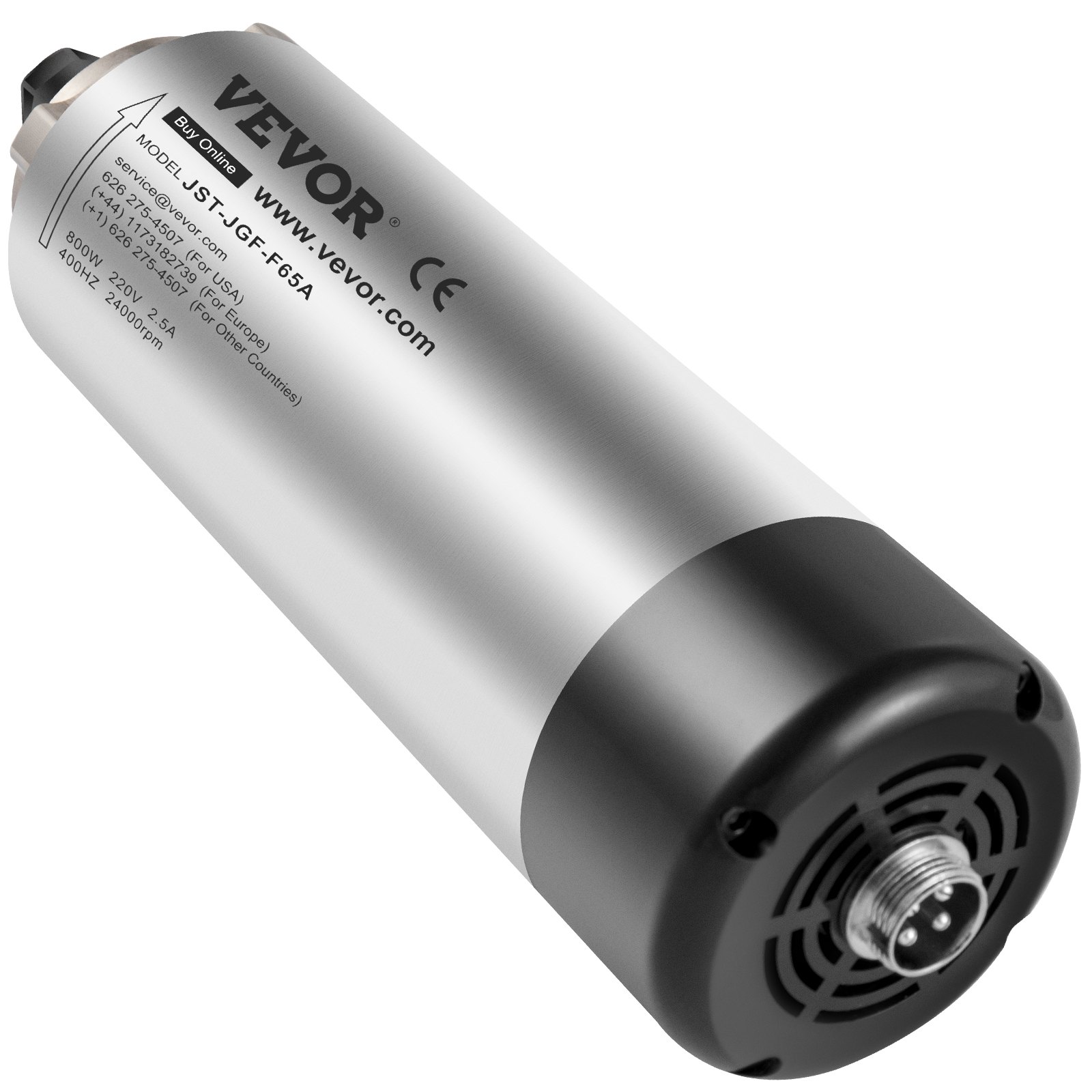

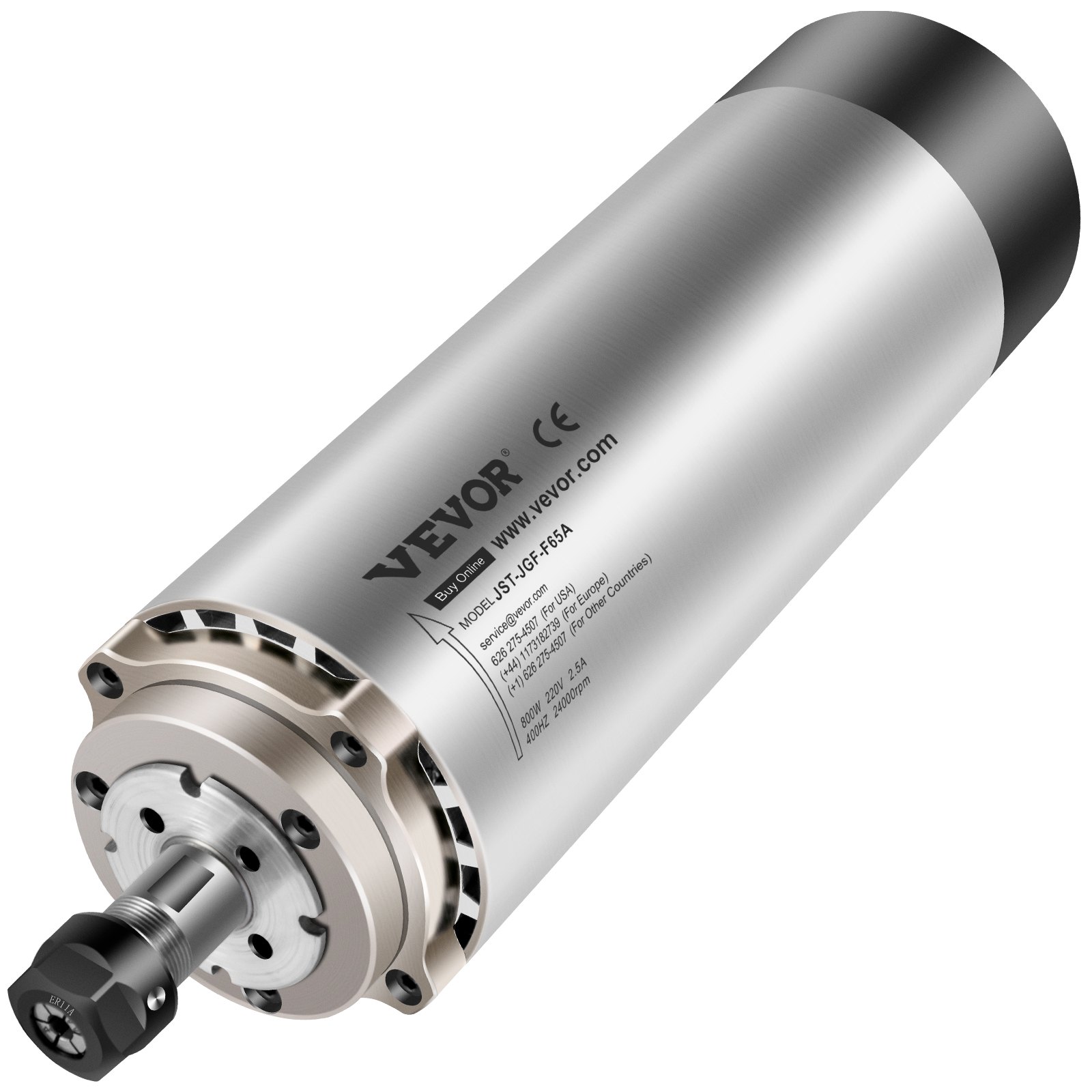

VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
+12
More
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding

VEVOR High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding

4.7 246 Reviews
89 90   €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+. Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now

Features & Details

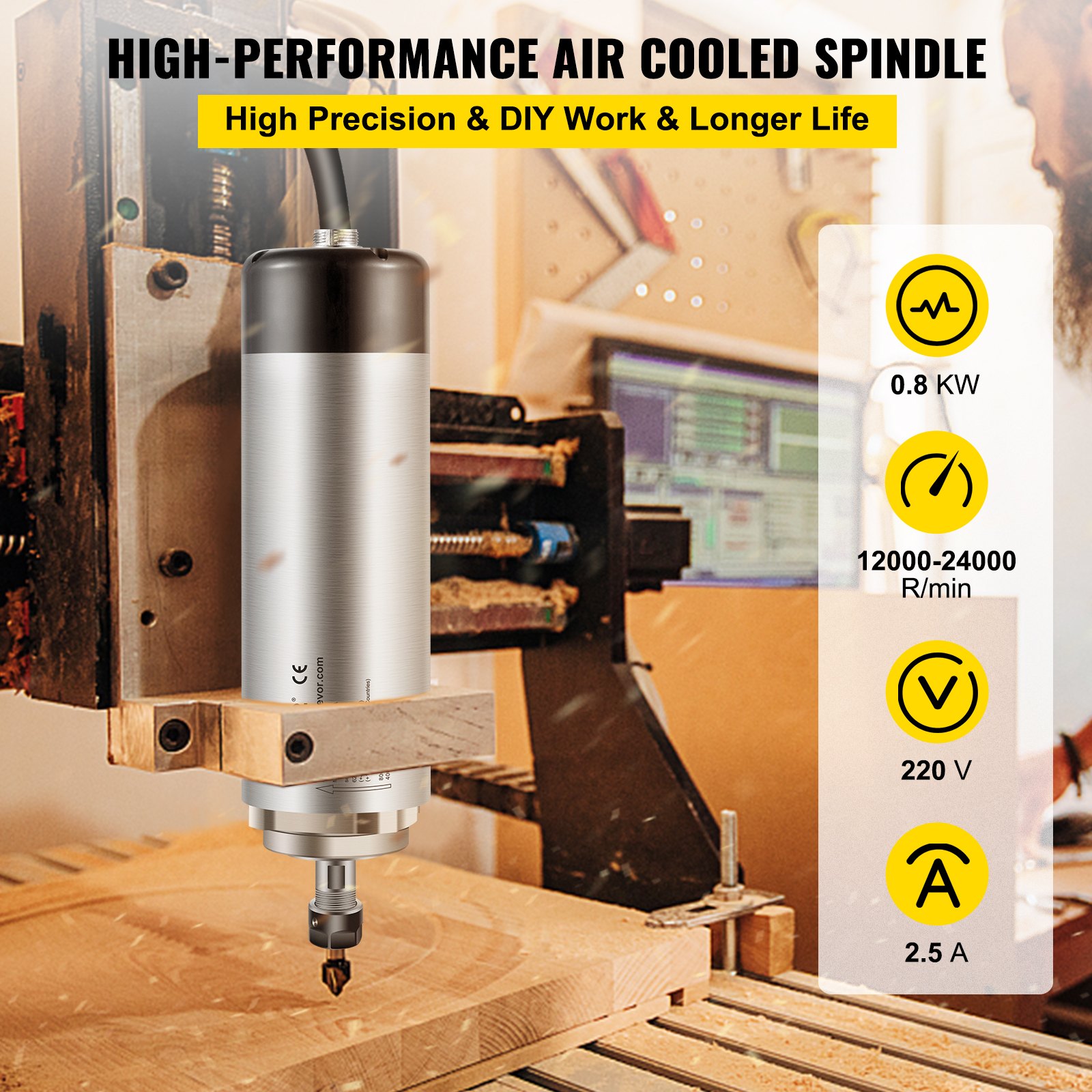

  • Technical Parameters: Spec: φ2.6 x 8 in (Diameter: 6.5 cm x Length: 20.3 cm); Power: 0.8KW; Voltage: 220V; Current: 2.5A; Collet Size: ER11; Bearings: 4 bearings; Frequency: 200-400 Hz; Speed: 12000-24000 R/min; Runout off: less than 0.002 mm. Mainly used for engraving machine or used with frequency converter.

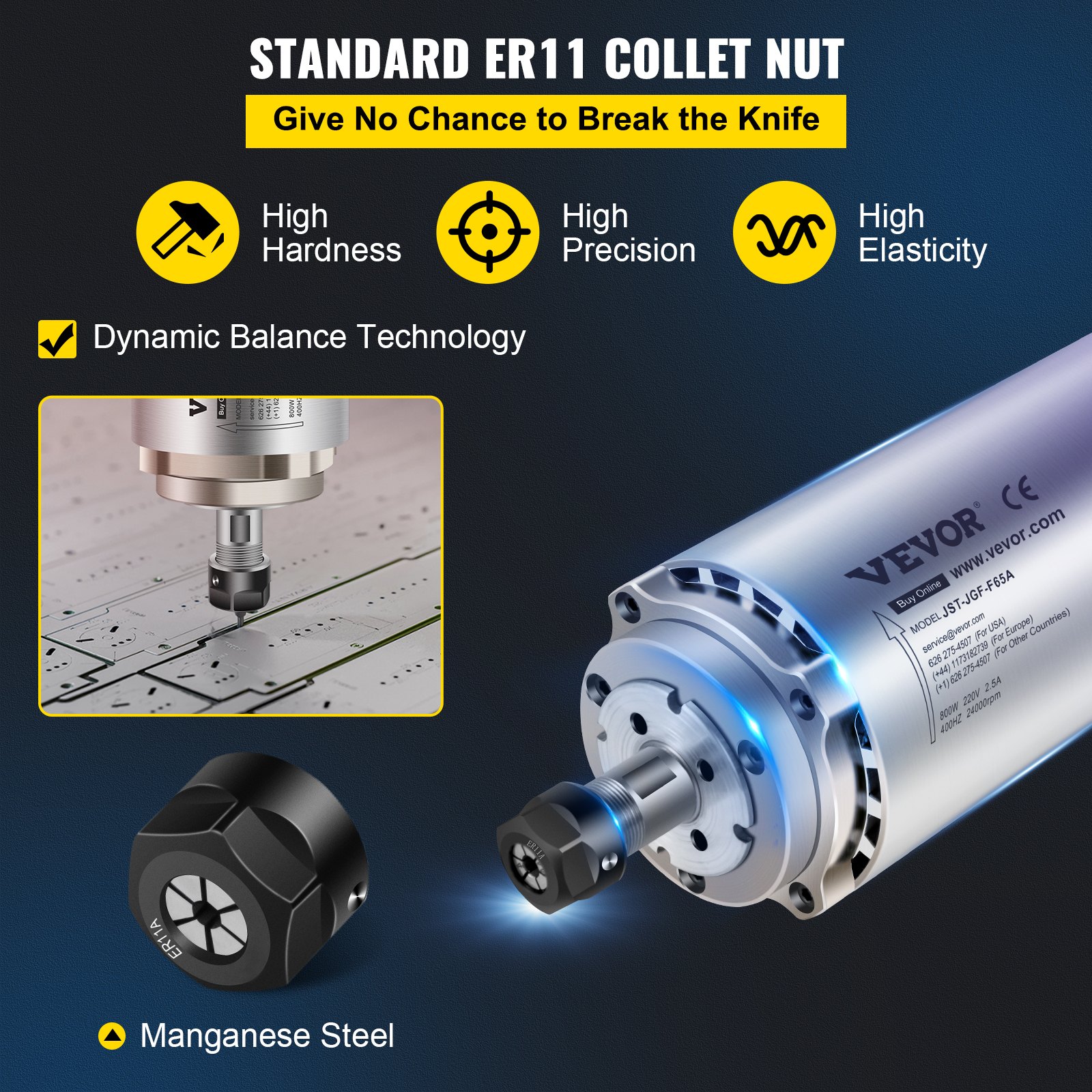

  • ER11 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
  • Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.

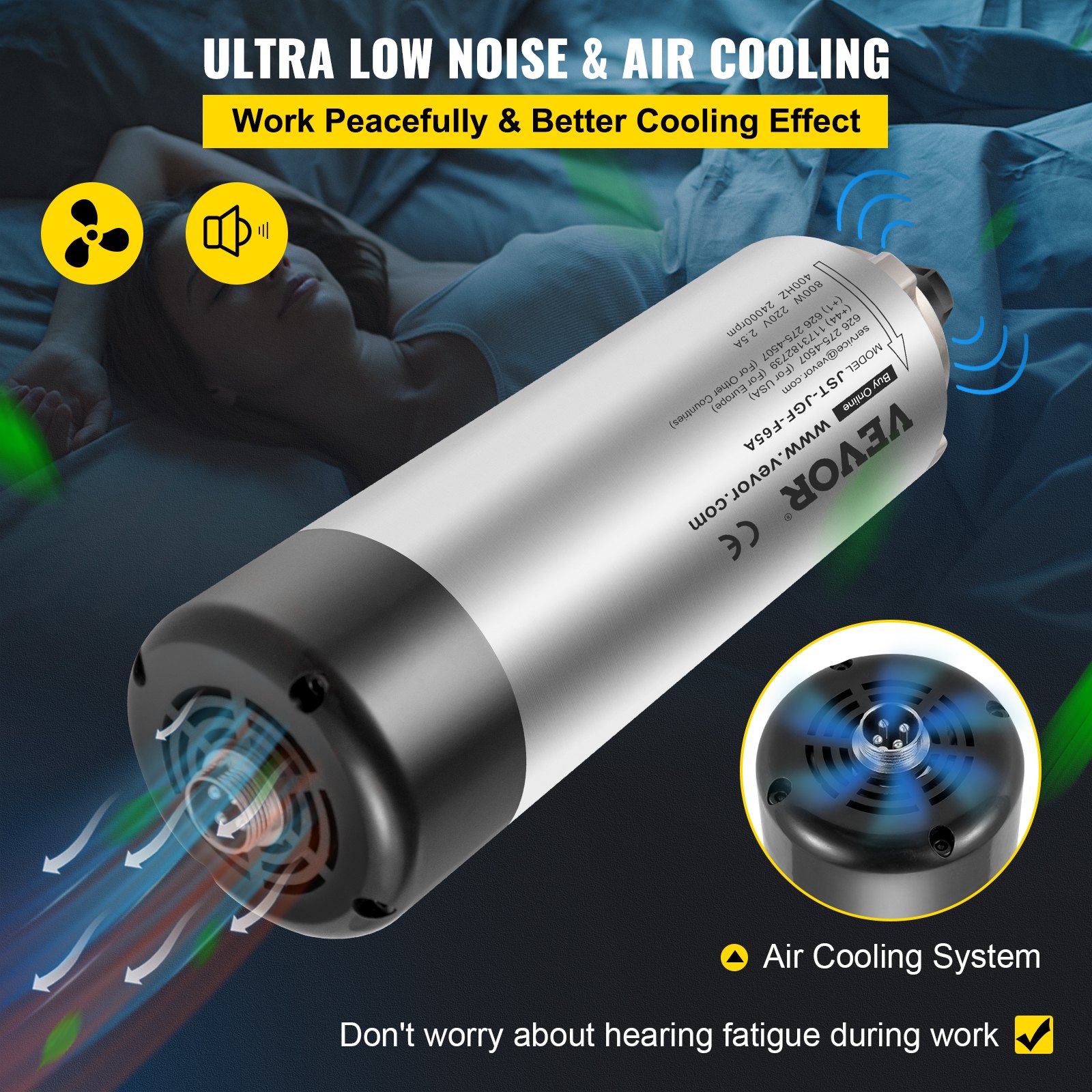

  • Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
  • Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.

Product specification

  • Spec 65 x 180 mm (Diameter
  • Power 0.8 KW
  • Frequency 400 Hz
  • Speed 0-24000 R/min
  • Runout off less than 0.005 mm
  • ER11 collet chuck (3.175 mm, 4 mm, 6 mm)

Frequently Bought Together

Reviews
About this item
Questions and Answers
Explore

Reviews 4.7
All reviews are from verified purchases
Average rating based on 246 reviews

See all 246 reviews

About this item

Product specification
Spec
65 x 180 mm (Diameter
Power
0.8 KW
Frequency
400 Hz
Speed
0-24000 R/min
Runout off
less than 0.005 mm
ER11 collet chuck
(3.175 mm, 4 mm, 6 mm)
Gross Weight
2.7 KG(5.95 lbs)
Product Dimension(Approximated)
10" L x 3" W
Voltage
220V~250V (We also stock 110V~120V item for the country like the USA and Canada. Please contact us for item stock)
Description

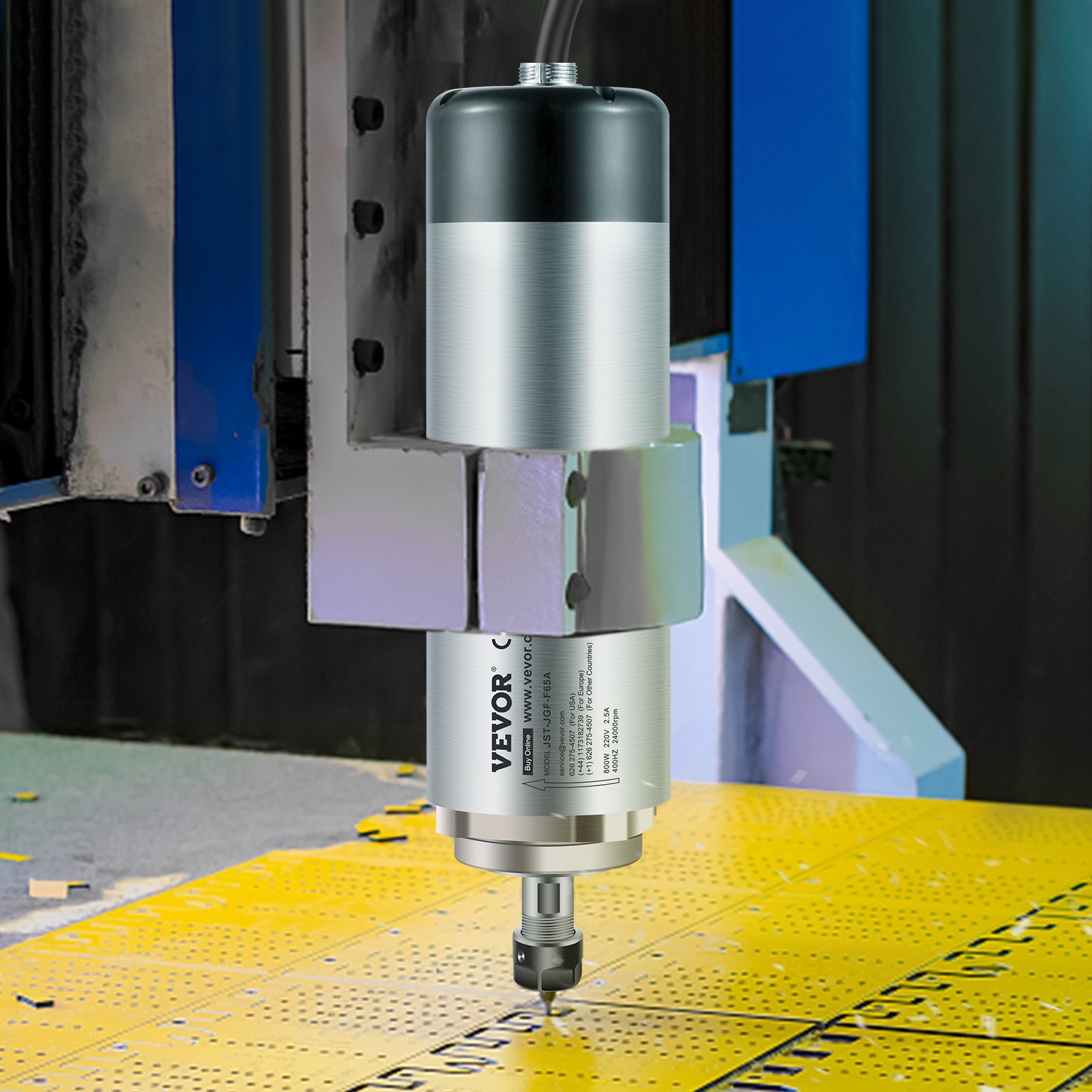

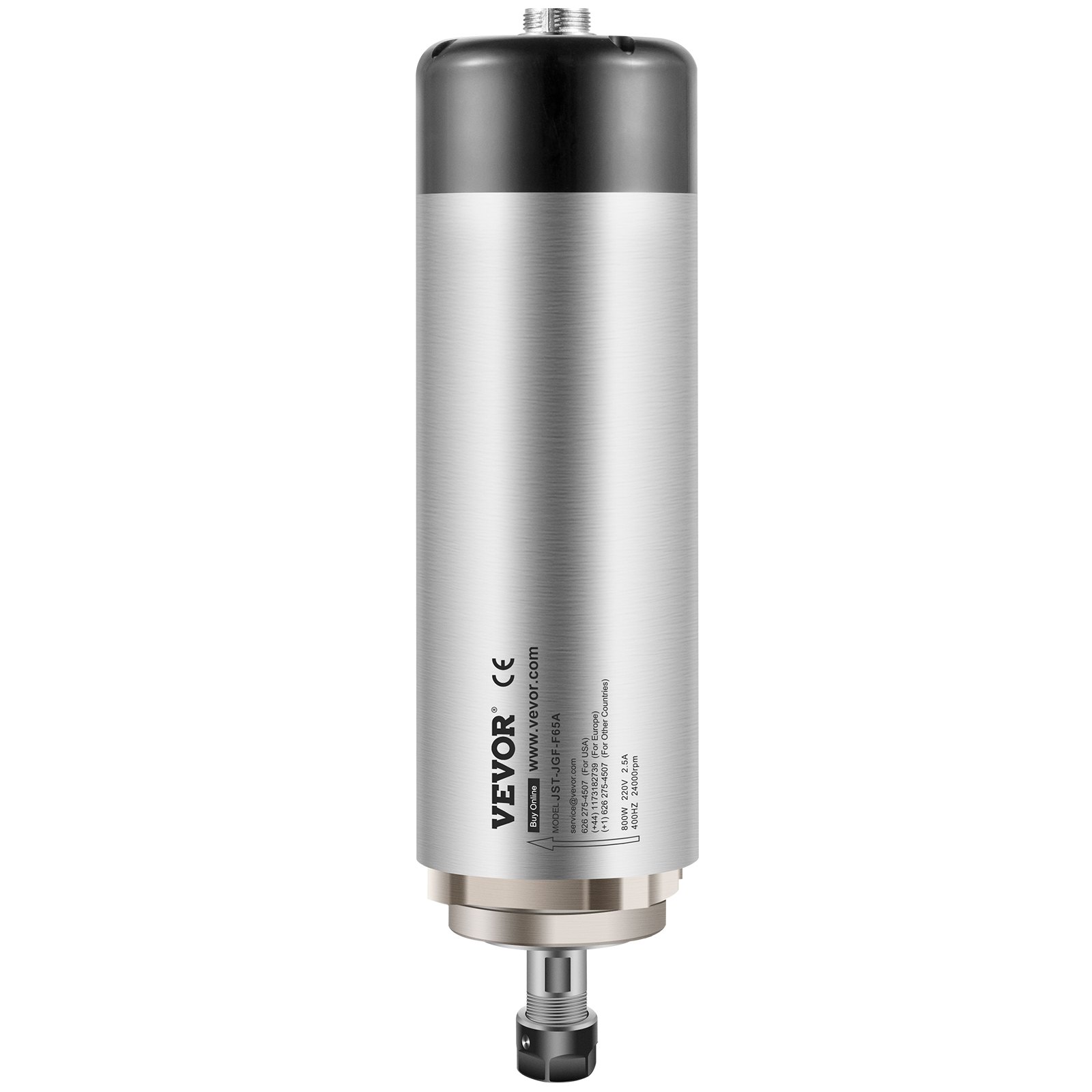

0.8KW Air Cooled Spindle Motor
ER11 Collet & Four Bearings & 12000-24000 R/min
These spindle motors adopt imported bearings and high-quality stainless steel materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
  • Technical Parameters
  • ER11 Standard Collet
  • Powerful Bearing
  • Low Noise & Heat Dissipation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER11 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.

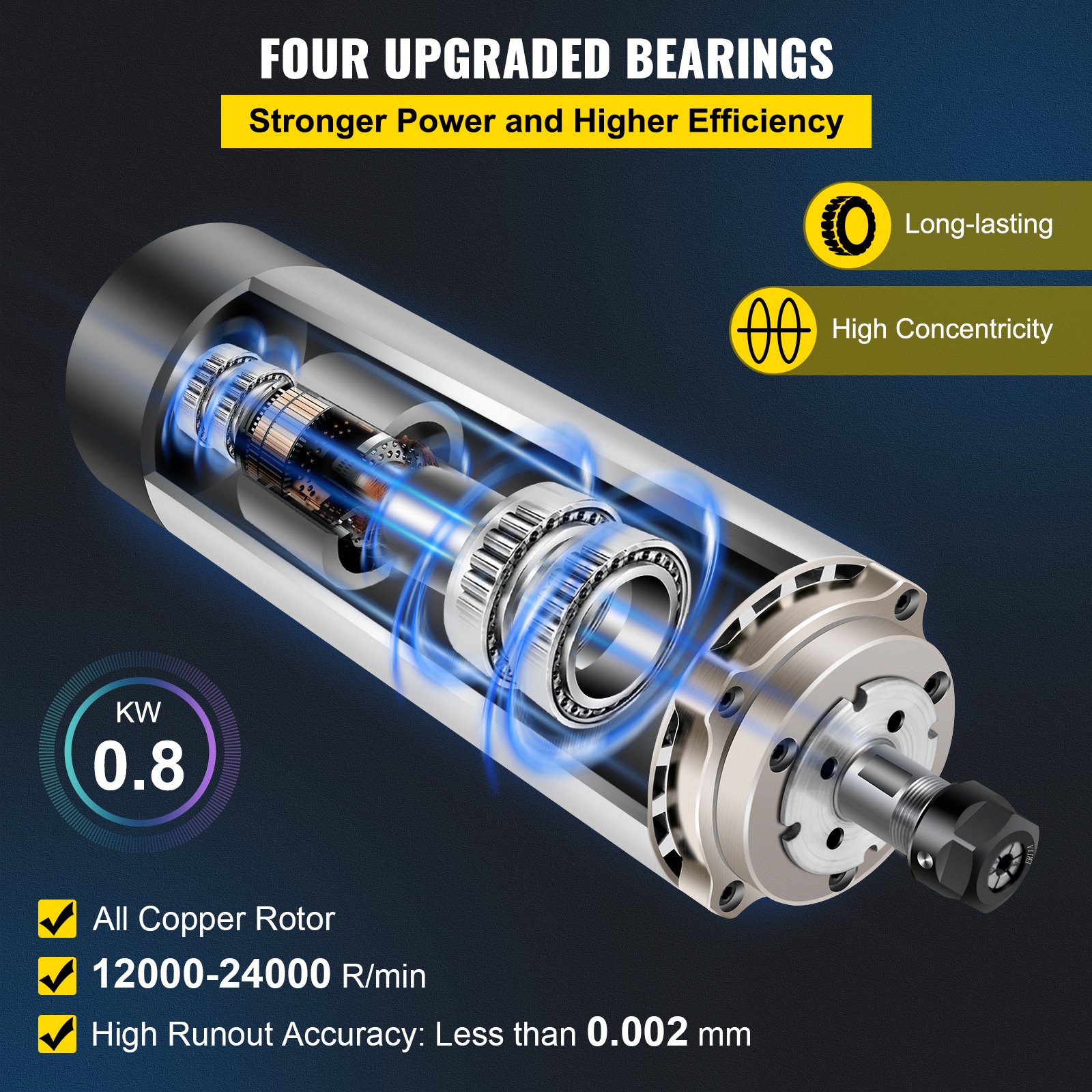

Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (12000-24000 R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.

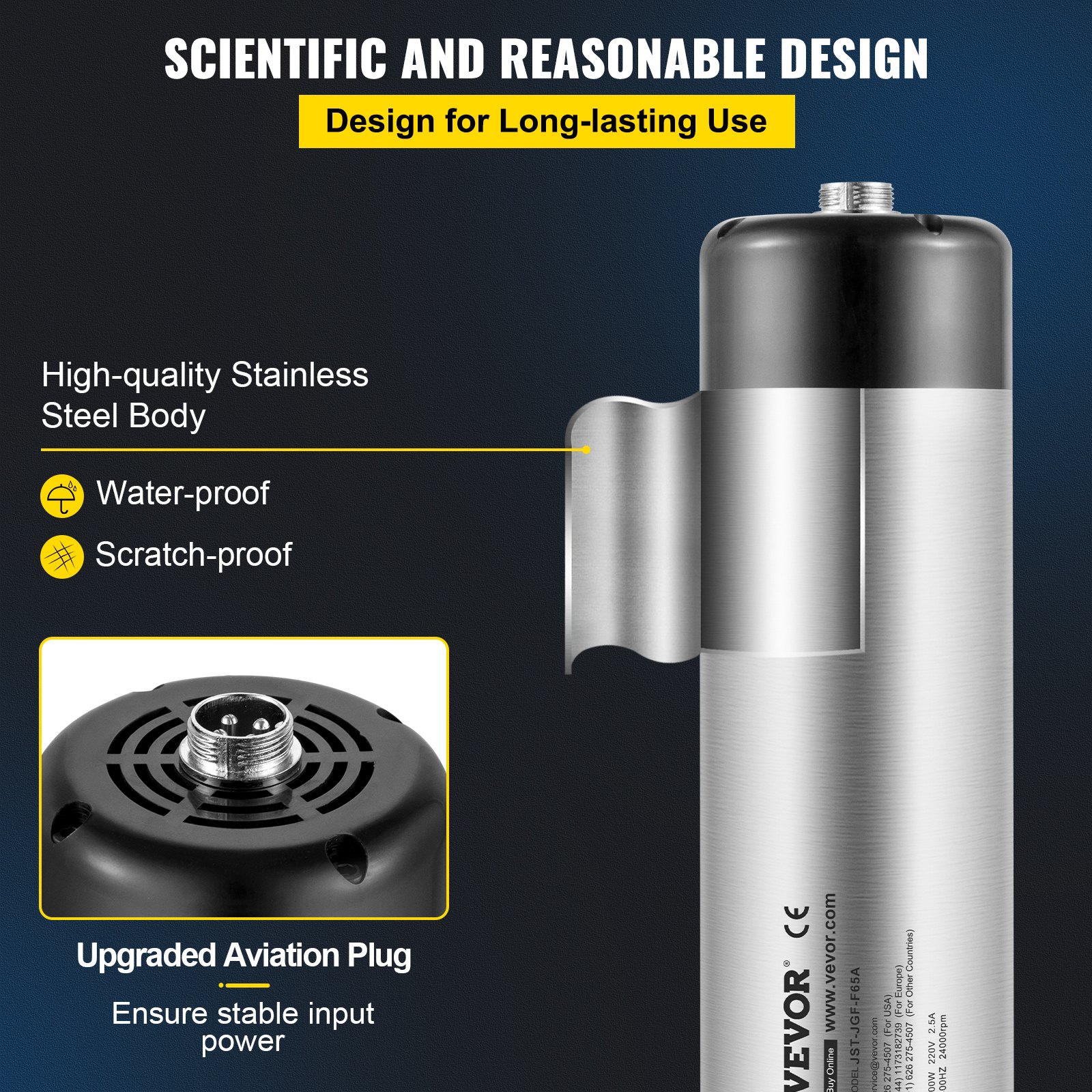

Premium Material
The stainless steel body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in upgraded aviation plug, which is simple to make the current flow and achieve the predetermined function of the circuit, effectively improving the stable and smooth operation.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.

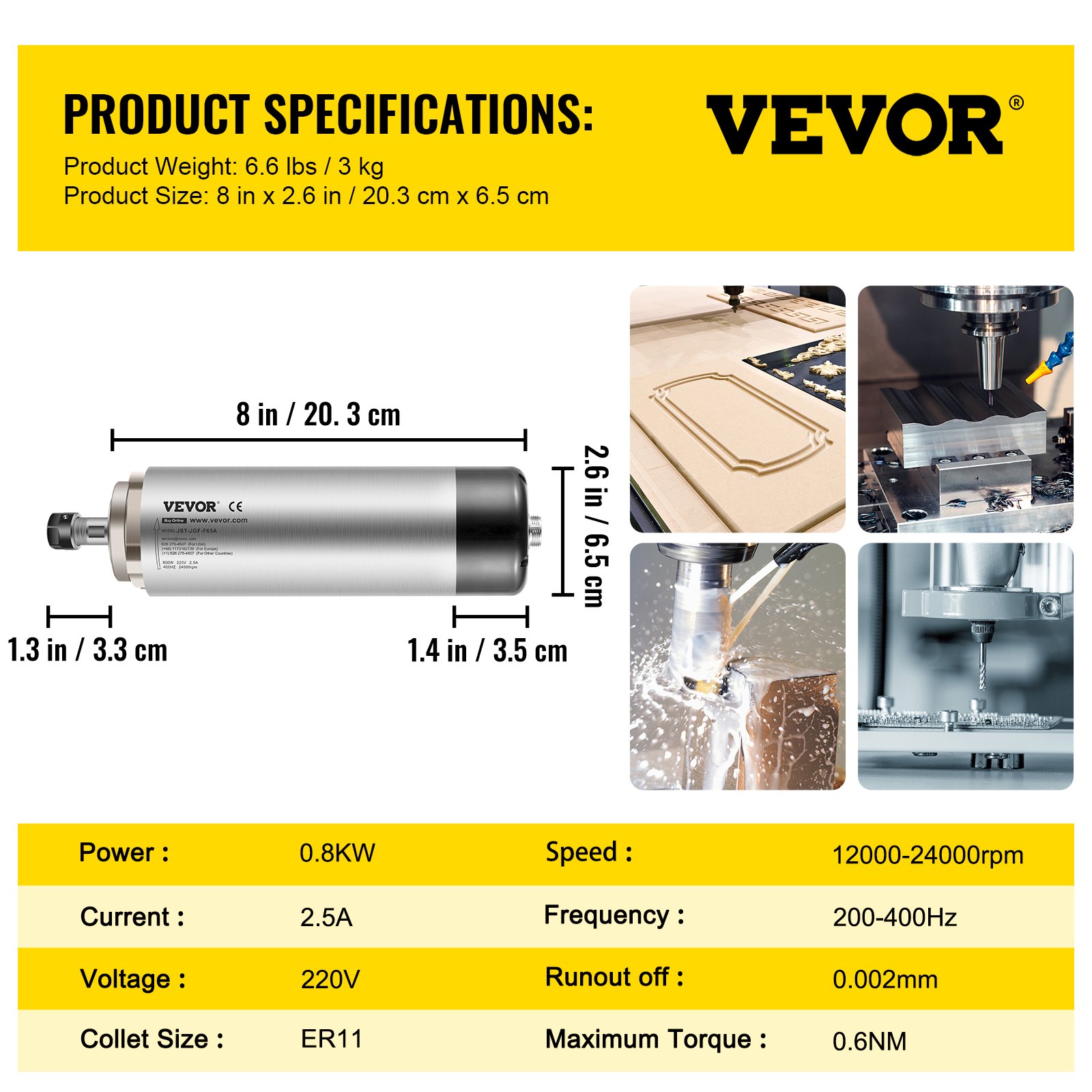

Specifications
  • Power: 0.8 KW
  • Voltage: 220V
  • Frequency: 200-400 Hz
  • Speed: 12000-24000 R/min
  • Runout off: Less than 0.002 mm
  • Maximum Torque: 0.6NM
  • Product Dimension: 2.6 x 8 in / 6.5 x 20.3 cm
  • Weight: 6.6 lbs / 3 kg
Package Content
  • 1 x Air Cooled Spindle Motor
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
0.8KW Air Cooled Spindle Motor
ER11 Collet & Four Bearings & 12000-24000 R/min
These spindle motors adopt imported bearings and high-quality stainless steel materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
  • Technical Parameters
  • ER11 Standard Collet
  • Powerful Bearing
  • Low Noise & Heat Dissipation
Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER11 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (12000-24000 R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The stainless steel body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in upgraded aviation plug, which is simple to make the current flow and achieve the predetermined function of the circuit, effectively improving the stable and smooth operation.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Package Content
  • 1 x Air Cooled Spindle Motor
Specifications
  • Power: 0.8 KW
  • Voltage: 220V
  • Frequency: 200-400 Hz
  • Speed: 12000-24000 R/min
  • Runout off: Less than 0.002 mm
  • Maximum Torque: 0.6NM
  • Product Dimension: 2.6 x 8 in / 6.5 x 20.3 cm
  • Weight: 6.6 lbs / 3 kg
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (7)

7 Questions
Ask a Question
Hey what do i need to run disk 0,8kw spindle
Answer This Question
It is recommended to use a 1.5kw, 220v inverter.
By vevor
Helpful ( 2 )
Is cable included?
Answer This Question
No, it does not include cable.
By vevor
Helpful ( 1 )
Dobrý deň. Zakúpil som si toto vreteno. Aké je zapojenie konektoru. Mal som k tomu schému obrázku ale nemôžem ju nájsť.
Answer This Question
Produkt sa dodáva s konektormi, ale káble a menič si musíte zakúpiť sami. Odporúča sa použiť frekvenčný menič 1,5kw 220v.
By vevor
Helpful ( 1 )
Hey what do i need to run disk 0,8kw spindle
Answer This Question
It is recommended to use a 1.5kw, 220v inverter.
By vevor
Helpful ( 0 )
Where is the air intake on the spindle, top or bottom?
Answer This Question
It's the black plastic cover on the bottom.
By vevor
Helpful ( 0 )
