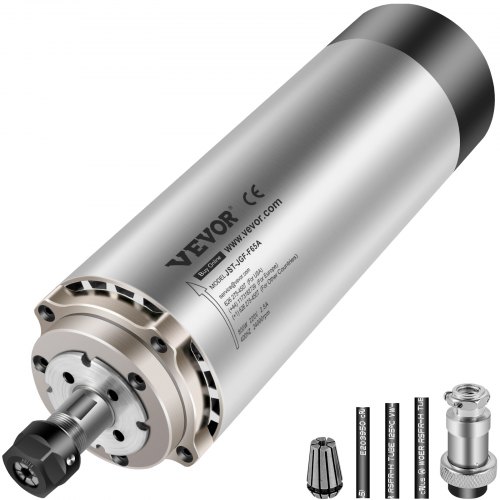

High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
0.8KW风冷电机

High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding

See All Customer Reviews
61 Reviews 5 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

Round

  • Round
  • Square

0.8KW

  • 0.8KW
  • 2.2KW
  • 1.5KW
  • 4KW
  • 3 kW

About this item

  • Technical Parameters: Spec: φ2.6 x 8 in (Diameter: 6.5 cm x Length: 20.3 cm); Power: 0.8KW; Voltage: 220V; Current: 2.5A; Collet Size: ER11; Bearings: 4 bearings; Frequency: 200-400 Hz; Speed: 12000-24000 R/min; Runout off: less than 0.002 mm. Mainly used for engraving machine or used with frequency converter.
  • ER11 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
  • Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
  • Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
  • Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

High Speed 0.8KW Air Cooled Spindle Motor Engraving Milling & Grinding
Round 0.8KW
Description Specification Questions and Answers Reviews
0.8KW Air Cooled Spindle Motor
ER11 Collet & Four Bearings & 12000-24000 R/min
These spindle motors adopt imported bearings and high-quality stainless steel materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
  • Technical Parameters
  • ER11 Standard Collet
  • Powerful Bearing
  • Low Noise & Heat Dissipation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER11 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (12000-24000 R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The stainless steel body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in upgraded aviation plug, which is simple to make the current flow and achieve the predetermined function of the circuit, effectively improving the stable and smooth operation.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Specifications
  • Power: 0.8 KW
  • Voltage: 220V
  • Frequency: 200-400 Hz
  • Speed: 12000-24000 R/min
  • Runout off: Less than 0.002 mm
  • Maximum Torque: 0.6NM
  • Product Dimension: 2.6 x 8 in / 6.5 x 20.3 cm
  • Weight: 6.6 lbs / 3 kg
Package Content
  • 1 x Air Cooled Spindle Motor
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
0.8KW Air Cooled Spindle Motor
ER11 Collet & Four Bearings & 12000-24000 R/min
These spindle motors adopt imported bearings and high-quality stainless steel materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
  • Technical Parameters
  • ER11 Standard Collet
  • Powerful Bearing
  • Low Noise & Heat Dissipation
Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER11 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (12000-24000 R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The stainless steel body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in upgraded aviation plug, which is simple to make the current flow and achieve the predetermined function of the circuit, effectively improving the stable and smooth operation.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Package Content
  • 1 x Air Cooled Spindle Motor
Specifications
  • Power: 0.8 KW
  • Voltage: 220V
  • Frequency: 200-400 Hz
  • Speed: 12000-24000 R/min
  • Runout off: Less than 0.002 mm
  • Maximum Torque: 0.6NM
  • Product Dimension: 2.6 x 8 in / 6.5 x 20.3 cm
  • Weight: 6.6 lbs / 3 kg

Specification

Spec
65 x 180 mm (Diameter
Power
0.8 KW
Frequency
400 Hz
Speed
0-24000 R/min
Runout off
less than 0.005 mm
ER11 collet chuck
(3.175 mm, 4 mm, 6 mm)
Gross Weight
2.7 KG(5.95 lbs)
Product Dimension(Approximated)
10" L x 3" W
Voltage
220V~250V (We also stock 110V~120V item for the country like the USA and Canada. Please contact us for item stock)
Questions and Answers
5 Questions
or Ask a Question
Is cable included?
Answer This Question
No, it does not include cable.
By vevor
Helpful ( 0 )
Dobrý deň. Zakúpil som si toto vreteno. Aké je zapojenie konektoru. Mal som k tomu schému obrázku ale nemôžem ju nájsť.
Answer This Question
Produkt sa dodáva s konektormi, ale káble a menič si musíte zakúpiť sami. Odporúča sa použiť frekvenčný menič 1,5kw 220v.
By vevor
Helpful ( 0 )
Where is the air intake on the spindle, top or bottom?
Answer This Question
It's the black plastic cover on the bottom.
By vevor
Helpful ( 0 )
what is the recommended VFD for this 0.8kw air cooled spindle?
Answer This Question
1.5kw 220v.
By vevor
Helpful ( 0 )
Do I need a VFD To drive this spindle motor?
Answer This Question
Yes, you do.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 61 reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
61 Review(s)
Clear filters
David Ricardo David Ricardo
Spindler
Produto de optima qualidade, recomendo. Optimo para CNC O envio foi rapido e tudo recebido bem acomodado. Recomendo
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Balcan Corina elena Balcan Corina elena
Motor spindle 3kw
Foarte serioși ca firma recomand cu încredere și preturile atractive merită 1000 de stele un firma serioasa
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ian Ian
Beautiful bit of kit
this is one solid bit of kit. so many negative reviews though and only think they either have had bad luck or simply have no idea on how to set them up or to use it. mine is use on a daily basis and ok they get a bit warm but never had a problem. Two of my colleagues loved my upgrade so they asked me to install the same setup on their machines. Love it
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Marky Marky
2.2kw air cooled spindle
Seems like a robust piece of kit. Is heavy spindle motor much heavier than a dewalt router. Plug was fiddly to solder up need an extra pair of hands for that. Haven't run it yet as the vfd controller I bought had a faulty button so couldn't change the parameters. Will update this once I've given it a run but hopefully quieter than palm router.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Helen Helen
Spindle
Tool is amazing, but if you want to use it with 220 you need to buy matching inverter for additional 80 euros which is not mentioned.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Ion Apostol Ion Apostol
Mr
It is as expected. It has all accesories to work from start but does heat up prety quickly. Is not as good that 400w ...
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Don B Don B
Inventor
Perfect, It works fine in my mill. Only limitation in the aircooled version is rpm it is 20 000 to 24 000. No lower than 20000..
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Jaromir Jaromir
very good spindle for the price
Very nice for small homemade CNC - MPCNC in my case. Using with PWM to 0-10V converter for programmatic regulation, works great.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Josef Nyberg Josef Nyberg
Mr
Bra kvalitet för priset går tyst och fint, jag är mycket nöjd, använder det till min cnc. Följer med 1/8" 4mm samt 6mm collet
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Palmqvist Palmqvist
mr
Must say !. JUST BAUGHT A SHAPEOKO CNC AND WAS ABOUTH TO PUT ON A HAND ROUTER, AND DECIDED TO BUY THIS ROUTER, AND WHAT A LUCK, I LIVE IN AN APARTMENT BUILDING AND THE NOISE FROM THE SPINDLE IS NOT EXCISTING. AND THE PRICE IS JUST A LITTLE HIGHER THAN A TRIM ROUTER. SO TOP GRADE TO THIS. I WIL MAKE A VIDEO LATER ON. i must also say that the manual instruction on connecting was wrong, and the support took days to come back, and since i wanted it to run i had to figure out my self howto connect it that was not ok, so support is way to slow.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
