Features & Details

• 30/50 PSI Pressure Switch: Experience robust water flow with our advanced 30/50 PSI pressure switch. This high-pressure range ensures stronger water flow for demanding applications while reducing pump cycling. Less frequent starts mean extended shallow well pump life and efficient performance for your high-pressure needs.
• High-Efficiency Water Transfer: Equipped with a 1.6HP (1176W) motor, our shallow well pump with pressure tank delivers a maximum flow rate of 1320 GPH (5600 L/H), a head lift of up to 164 FT (50 M), and a suction depth of 26.3 FT (8 M). Ideal for long-distance water delivery with impressive efficiency.
• Built to Last, Reliable Performance: The water pressure booster pump head is crafted from 304 stainless steel, renowned for its corrosion resistance and lack of water contamination, ensuring a clean water source. The 5-gallon (19-liter) steel pressure tank features a smooth, electrostatic finish for enhanced durability and resistance to corrosion and stains.
• Enhanced Protection for Peace of Mind: Our pump includes built-in thermal overload protection that automatically shuts down the motor if temperatures exceed safe levels, preventing damage from overheating. Additionally, a rear-mounted fan and large cooling vents provide effective heat dissipation to keep the pump running smoothly.
• Thoughtful Designed Accessories: To avoid backflow and maintain stable water pressure, we include a check valve with your shallow well pump. This ensures a hassle-free setup—simply connect your hoses and start using your pump right away. (Note: For first-time use, make sure to fill the pump with water through the discharge port to avoid damage from running dry.)

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

FSGP1200Cinox-2

Maximum Horsepower

1.6 HP / 1176W

Maximum Flow Rate

1320 GPH / 5600 L/H

Head Lift & Suction Lift

164 ft / 50 m & 26.3 ft / 8 m

Inlet/Outlet Caliber

G1

Pressure Tank Capacity

5 Gallons / 19 Liters

Pressure Switch

30-50 PSI

Net Weight

29.76 lbs / 13.5 kg

Description

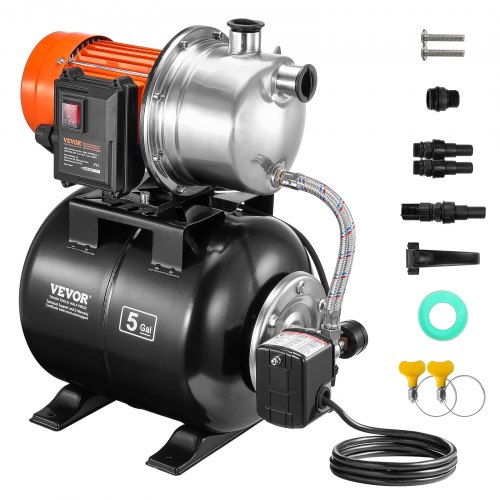

1.6 HP (1176W) Shallow Well Pump with Pressure Tank

Discover the ultimate water supply solution with our 1.6 HP shallow well pump! Featuring a 30/50 PSI pressure switch, 1320 GPH max flow, 164 ft max head, a check valve, and a garden hose connection kit, this pump is ready to go right out of the box and ideal for long-distance water transfer!

Boasting a maximum head of 164 ft (50 m) and a flow rate of 1320 GPH (5600 L/H), this shallow well pump with pressure tank efficiently handles long-distance water transport. Its impressive 26.3 ft (8 m) suction lift capability allows for water extraction from deeper wells or sources.

Designed with extensive cooling vents and a built-in fan, this shallow well pump with tankensures rapid heat dissipation during operation. Automatic shut-off protects the motor from overheating, safeguarding against potential damage.

Ideal for agricultural irrigation, home water supply, industrial use, and commercial systems. Our water pressure booster pump with pressure tank features stable pressure and flow make it ideal for efficient irrigation, ensuring uniform watering for crops and reliable water supply for various needs.

Regularly check all components and fasteners for secure operation. Routine cleaning of the irrigation pump and pipes helps avoid clogs and corrosion, ensuring long-term performance.
