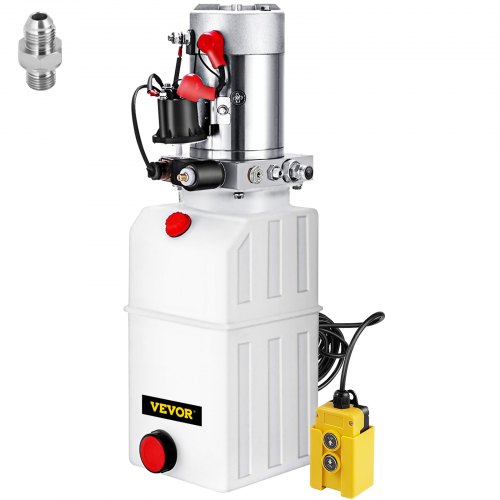

VEVOR hydraulic power unit with white tank and control switch. VEVOR hydraulic power unit showcased on an industrial vehicle background. VEVOR hydraulic power unit with truck demonstrating lifting and lowering capabilities. VEVOR hydraulic power unit with remote control and sae#6 connector. VEVOR hydraulic power unit with labeled components including motor, valves, and reservoir. VEVOR hydraulic power unit for dump truck, scissor lift, and cherry picker. VEVOR hydraulic power unit with dimensions 21in x 6.1in x 6.1in.
6LCZYYBSLDZY00001V0

VEVOR Hydraulic Pump Power Unit DC 12V 6L Double Acting Hydraulic Pump 6 Quart Hydraulic Pump Hydraulic Pump For Dump Trucks

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Pump Power Unit DC 12V 6L Double Acting Hydraulic Pump 6 Quart Hydraulic Pump Hydraulic Pump For Dump Trucks
VEVOR hydraulic power unit for dump trailer with a 6 quart single acting pump in the foreground.
VEVOR hydraulic power unit with white tank, motor, and attached control box.
Hydraulic Pump
6 Quart & Single Acting & 12V DC
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 6-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic power unit single acting, 0.37-5.5kw, 12v dc, 6 quart capacity.
Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 6-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
VEVOR hydraulic power unit with 6 quart reservoir, sae#6 connector, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
VEVOR hydraulic power unit: quick start, lifting, control box, power up, gravity down.
Quick Start&Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
VEVOR hydraulic power unit with a sturdy plastic tank, electric motor, and reinforced structure.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
VEVOR hydraulic power unit with simple installation for horizontal truck mount.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic power unit in action with dump trucks, forklift, and crane.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
VEVOR hydraulic power unit with attached control pendant, measuring 21in x 6.1in.
Specifications
  • Tank Material: Plastic
  • Displacement of hydraulic pump: 0.562-4.350GPM (0.75-5.8ML/R, Applicable to all single power unit for 4, 6, 8, 10 quart).
  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port).
  • Rated speed: 2850R/MIN
  • Motor power: 0.37-5.5KW (Applicable to all single power unit for 4, 6, 8, 10 quart)
  • Motor voltage: DC12V
  • Fuel tank: 6L
  • Single acting Power-Up/ Gravity Down
  • 1500 PS Max Relief Setting on B port
  • 6 Quart Translucent Reservoir
  • SAE # 1 Port, Horizontal mount
  • Hand held pendant with about 15 feet(117in/ 4.5 m)removal cord and start solenoid
VEVOR hydraulic power unit with control box and valve fitting.
Package Content
  • 1× 6 Quart Single Acting Hydraulic Pump
  • 1× English Manual
  • Several related accessories (Including connectors)
VEVOR hydraulic power unit for dump trailer with a 6 quart single acting pump in the foreground.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic power unit with white tank, motor, and attached control box.
Hydraulic Pump
6 Quart & Single Acting & 12V DC
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 6-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
VEVOR hydraulic power unit single acting, 0.37-5.5kw, 12v dc, 6 quart capacity.
Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 6-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
VEVOR hydraulic power unit with 6 quart reservoir, sae#6 connector, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
VEVOR hydraulic power unit: quick start, lifting, control box, power up, gravity down.
Quick Start&Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
VEVOR hydraulic power unit with a sturdy plastic tank, electric motor, and reinforced structure.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
VEVOR hydraulic power unit with simple installation for horizontal truck mount.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic power unit in action with dump trucks, forklift, and crane.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
VEVOR hydraulic power unit with control box and valve fitting.
Package Content
  • 1× 6 Quart Single Acting Hydraulic Pump
  • 1× English Manual
  • Several related accessories (Including connectors)
VEVOR hydraulic power unit with attached control pendant, measuring 21in x 6.1in.
Specifications
  • Tank Material: Plastic
  • Displacement of hydraulic pump: 0.562-4.350GPM (0.75-5.8ML/R, Applicable to all single power unit for 4, 6, 8, 10 quart).
  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port).
  • Rated speed: 2850R/MIN
  • Motor power: 0.37-5.5KW (Applicable to all single power unit for 4, 6, 8, 10 quart)
  • Motor voltage: DC12V
  • Fuel tank: 6L
  • Single acting Power-Up/ Gravity Down
  • 1500 PS Max Relief Setting on B port
  • 6 Quart Translucent Reservoir
  • SAE # 1 Port, Horizontal mount
  • Hand held pendant with about 15 feet(117in/ 4.5 m)removal cord and start solenoid

6 Quart Hydraulic Power Unit: Ideal for Trailer Dumping and Car Lifting

This hydraulic power unit excels in the field of dump trailers and car lifting. It has a 6-quart metal reservoir, ensuring enough hydraulic fluid storage. The design of the unit ensures consistent performance and reliability. It provides the necessary power, whether you need to lift heavy loads or dump materials. Our strong construction ensures durability. This makes it an excellent tool for various applications. You can use it for both professional and personal use. Due to its versatility, our unit meets the demands of tough tasks, making your operations smoother.


Easy Installation Process of the Hydraulic Power Pack 12V DC

This hydraulic power pack installation process is straightforward. With clear instructions and well-labeled components, you can set it up quickly. The unit has a handheld pendant and a ten-foot removable cord, simplifying the operation. The installation is manageable even if you have little experience with hydraulic systems. Plug-and-play design reduces the time and effort required for setup. This ease of installation ensures you start using the unit promptly, improving your productivity.


Cost-Effectiveness and Reliable Performance of the Single Acting Hydraulic Pump

The single-acting hydraulic pump provides excellent value for money. It combines affordability with reliable performance, making it a cost-effective solution for your hydraulic needs. The pump's design ensures consistent power delivery and efficient operations. Despite its budget-friendly price, it does not compromise on quality or durability. The unit's performance is comparable to more expensive alternatives, making this a smart investment. This cost-effectiveness makes it available to a broader range of users, increasing its appeal.


High-Quality Construction Ensures Durability and Longevity of the Hydraulic Power Pack

The building quality of this hydraulic power pack is amazing. This unit has a strong metal reservoir, which guarantees longevity and durability in the long run. It is built to handle the rigors of heavy-duty use. The materials used in its construction are of high quality, reducing the risk of wear and tear. These durable materials ensure the unit remains functional for extended periods, decreasing the need for frequent replacements. Investing in this durable hydraulic power pack means you can count on it for years.


Quick and Efficient Delivery of the Dump Trailer Hydraulic Pump

The delivery process for this dump trailer hydraulic pump is efficient and reliable. Orders are processed and shipped promptly, ensuring you receive your unit on time. Packaging is strong, protecting the contents during transit. Even if the box shows wear or tear, internal components remain secure. This efficient delivery system ensures you can use your hydraulic pump immediately. The quick turnaround time improves your operational efficiency, making it a user-friendly choice.


Comprehensive User Manual for Easy Operation of the Hydraulic Power Unit for Car Lifting

This hydraulic power unit has a comprehensive user manual. The manual provides clear instructions on installation, operation, and maintenance. It is written in simple terms. This makes it easy to grasp the details. The manual also includes troubleshooting tips for fixing common issues quickly. A complete guide ensures you can operate the unit efficiently, improving your overall experience. Clear instructions are available so that users of all skill levels can understand it easily.


Excellent Customer Service and Support for the 6 Quart Hydraulic Power Unit

The customer service and support for this 6-quart hydraulic power unit are excellent. If you face any issues or have questions, their support team is ready to help. Their responsive customer service guarantees prompt resolution of any concerns. This level of support provides peace of mind, knowing you have reliable assistance if needed. Customer satisfaction guarantees you the best experience with your hydraulic power unit. This support system enhances the overall value of the product. It makes it an efficient choice.


See More

Specification

Tank Material
Plastic
Displacement of hydraulic pump
0.562-4.350GPM (0.75-5.8ML/R, Applicable to all single power unit for 4, 6, 8, 10 quart).
Relief valve pressure
22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port).
Rated speed
2850R/MIN
Motor power
0.37-5.5KW (Applicable to all single power unit for 4, 6, 8, 10 quart)
Motor voltage
DC12V
Fuel tank
6L
Single acting Power-Up/ Gravity Down
1500 PS Max Relief Setting on B port
6 Quart Translucent Reservoir
SAE # 1 Port, Horizontal mount
Hand held pendant with about 15 feet(117in/ 4.5 m)removal cord and start solenoid
Questions and Answers
1 Questions
24 voltosba esteleg lenne?
A feszültség 12 volt.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
35 Review(s)
Clear filters
Tamás Muráncsik Tamás Muráncsik
Mechanic
Apukám nagyon örült neki, és nagyon jól működik utánfutó billentésére. Gyorsan megérkezett nagyon jól be volt csomagolva minden a legnagyobb rendben volt.
Ian Roberts Ian Roberts
Md
Excellent quality ideal for what I’ve set it up to do 5star quality and service easy to set up just add oil and power
Miguel Miguel
Ótimo
Produto ótimo, até ao momento muito satisfeito com o produto e sei desempenho. Recomendo para precise de uma bomba igual a esta
Tom Hagenlund Tom Hagenlund
Privat
Veldig bra produkt. Har montert den på min varehenger, og den fungerer helt perfekt og som forventet.
Josit Josit
Single action Hydraulic power unit
Fast delivery to Slovakia - 4Days. Item as described, good quality great price. Fast delivery to Slovakia - 4Days. Item as described, good quality great price.
Slasher Slasher
Ideal for the intended purpose
Does the job it was bought for. Good value for money. Quick delivery.
Derek Davidson Derek Davidson
Good performance
Good buy for the money. Easy installation does the job it needs to do. Good performance. Derek Davidson
r_olness r_olness
it is working well!
It worked for 4 up and downs with my boatlift. I took it apart and cleaned the filters and put new oil in. It still doesn_ work!I sent it back and ordered a new one which is now working very well!
Siahou Siahou
Bon produit
Pour remplacer une centrale hydraulique d'un benne Iveco 3t5. Conforme mes attentes, cependant la notice m_iterait d'_re plus compl_e et plus explicite.
Vevor Customer Vevor Customer
Problema de conecxion resuelto.
La bomba tiene mucha potencia. Es para levantar remolque del coche.
