VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection
24VXXZXQ10INE56HBV2

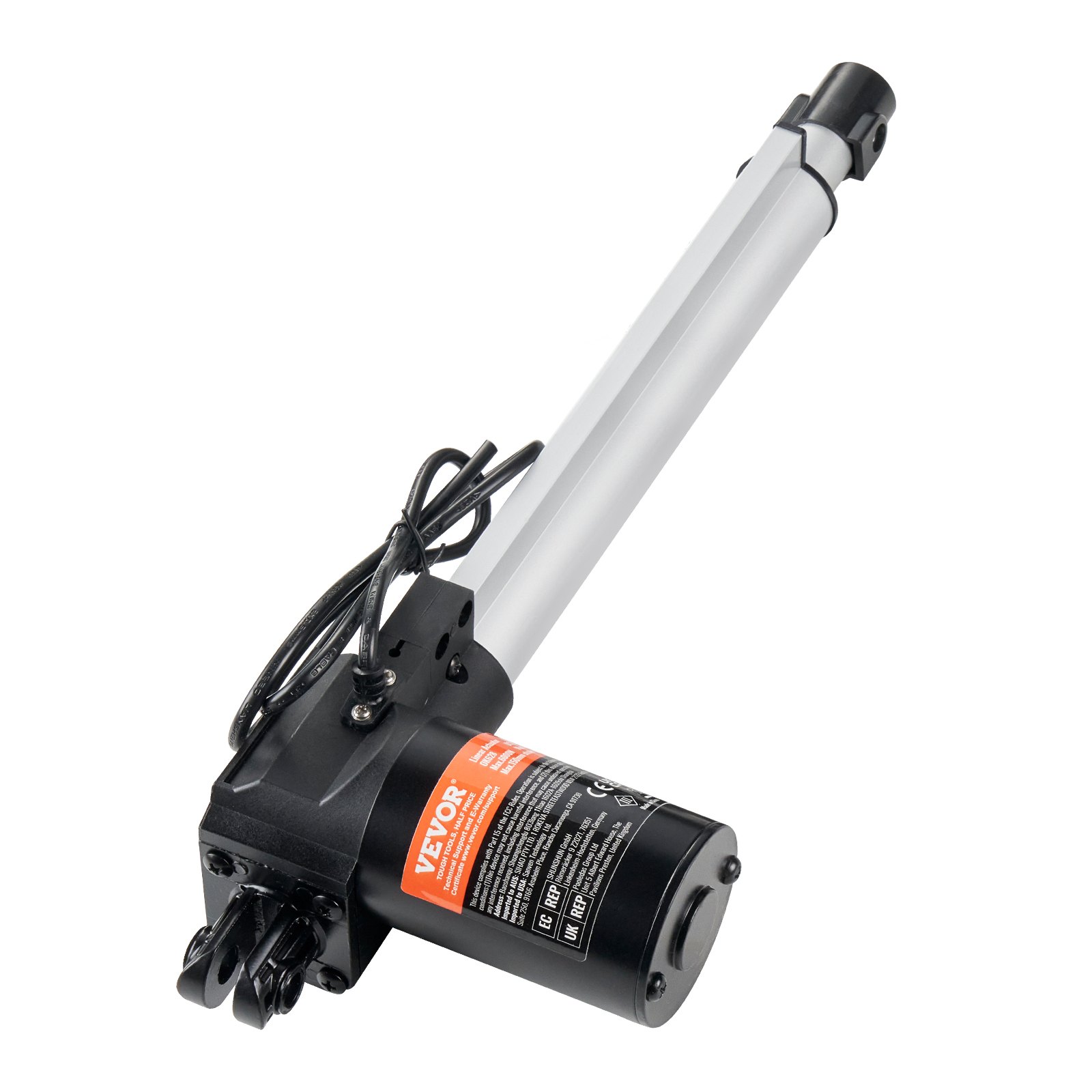

VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive Ft5 off for your first three orders on the App.
Download Now
Exclusive Ft5 off for your first three orders on the App.
Scan the QR code to download

10 inch

  • 13 inch
  • 10 inch

About this item

  • Complete Electric Actuators Kit: VEVOR linear actuator kit includes necessary components for easy assembly. 220lbs/1000N robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows, versatile for both home and industrial use.
  • Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
  • Versatility Unleashed: Get ready for a quiet revolution! VEVOR's linear motion actuator, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!
  • IP44 Protection Rating: Featuring an IP44 protection rating, VEVOR motion actuator kit excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)
  • Key Specifications: Stroke Length: 10 inch (250mm); Travel Speed: 0.98 in/s (25mm/s); Retracted Length: 18.11" (460mm); Extended Length: 28.11" (710mm); Input Voltage: AC100-240V; Duty Cycle: 10%. Efficiency is at its highest when the actuation force is approximately 75% of its maximum value.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection
10 inch
Move Faster, Work Smarter: Enable Automation in Every Step
VEVOR 24v linear actuator with powerful motor, precise motion, 1000n force, and 50db low noise operation.
VEVOR 24v linear actuator with powerful motor, precise motion, 1000n force, and 50db low noise operation.
Experience 0.98"/s high-speed movement and 220lbs actuation force with VEVOR 24V linear actuator kit ! Powered by robust motor and offering precise rotation, it delivers strong support and high-efficiency motion for furniture adjustment, automation systems, mechanical equipment, and more.
VEVOR 24v linear actuator enhancing home with lifting curtain, height-adjustable desk, bed angle adjustment.
VEVOR 24v linear actuator enhancing home with lifting curtain, height-adjustable desk, bed angle adjustment.

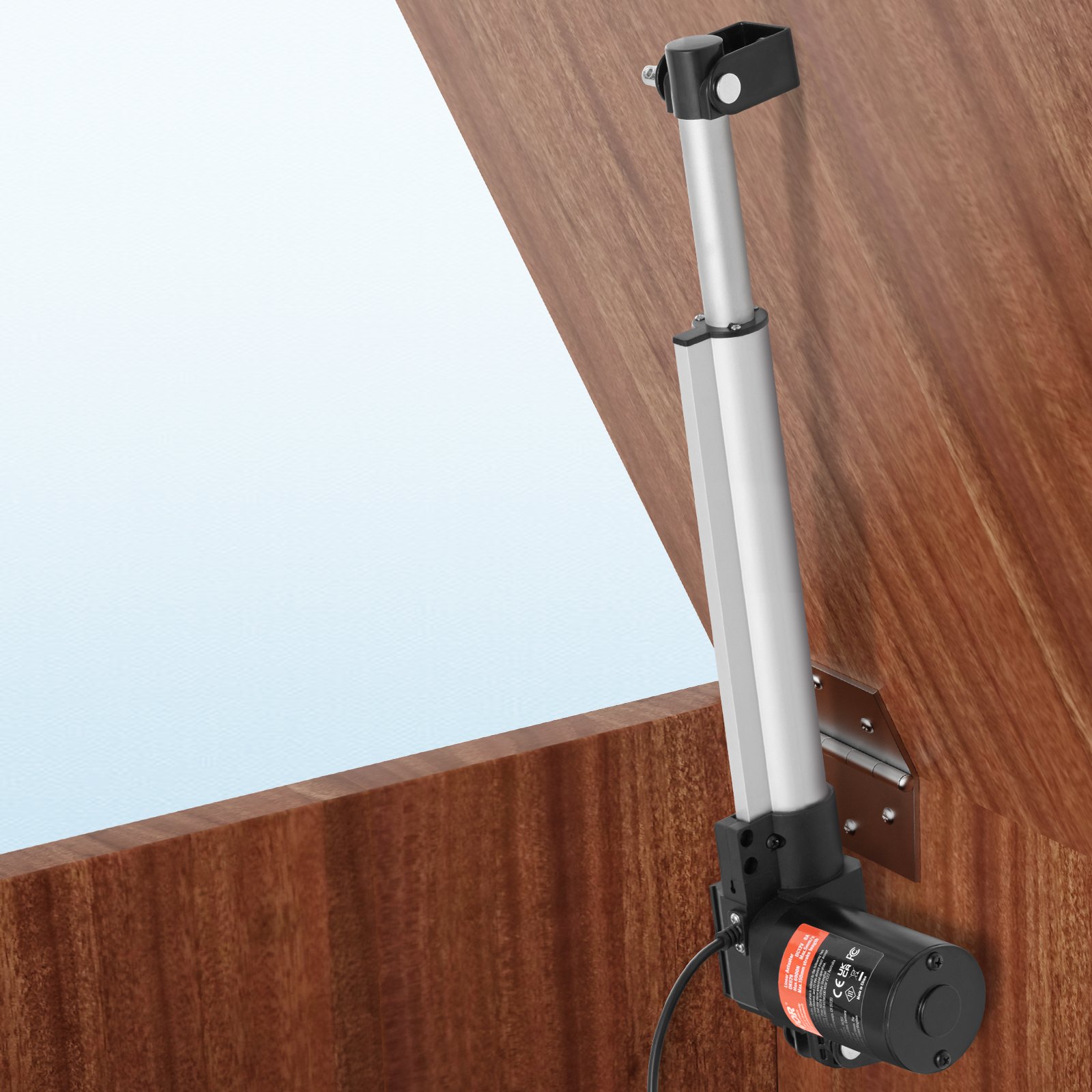

Seamlessly integrating into your living spaces, our motion linear actuator not only facilitates automatic raising and lowering of curtains and height adjustment systems but also drives electric door systems. It delivers more convenient, comfortable, and intelligent living experiences.
versatile for home use VEVOR 24v linear actuator, protects against dust, humidity, and water splashes.
versatile for home use VEVOR 24v linear actuator, protects against dust, humidity, and water splashes.

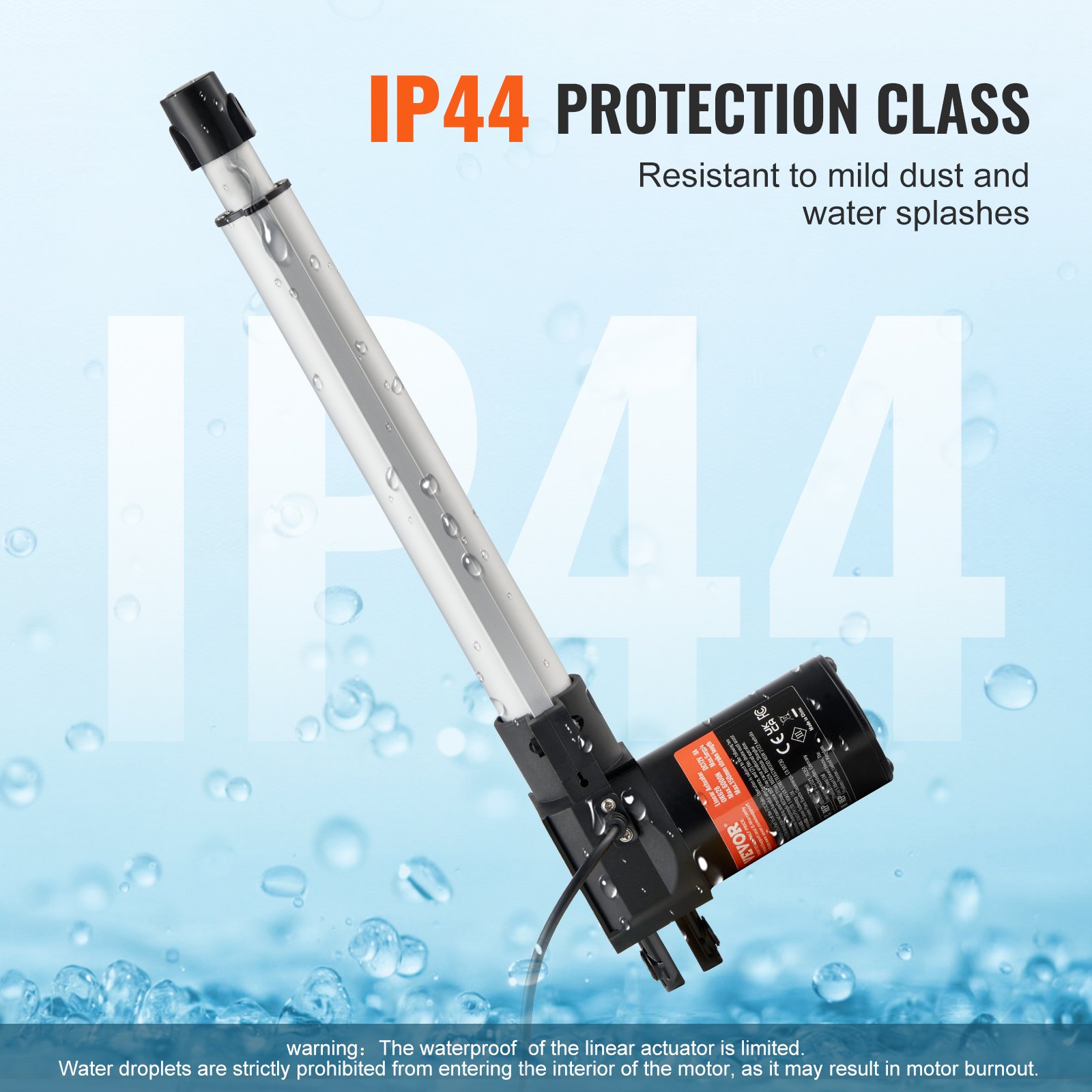

With an IP44 protection rating, our linear motion actuator provides reliable protective performance, maintaining stability in the face of dust, solid particles, and light splashing water.(Caution: Water should not penetrate the interior of the motor, as it may result in motor burnout)

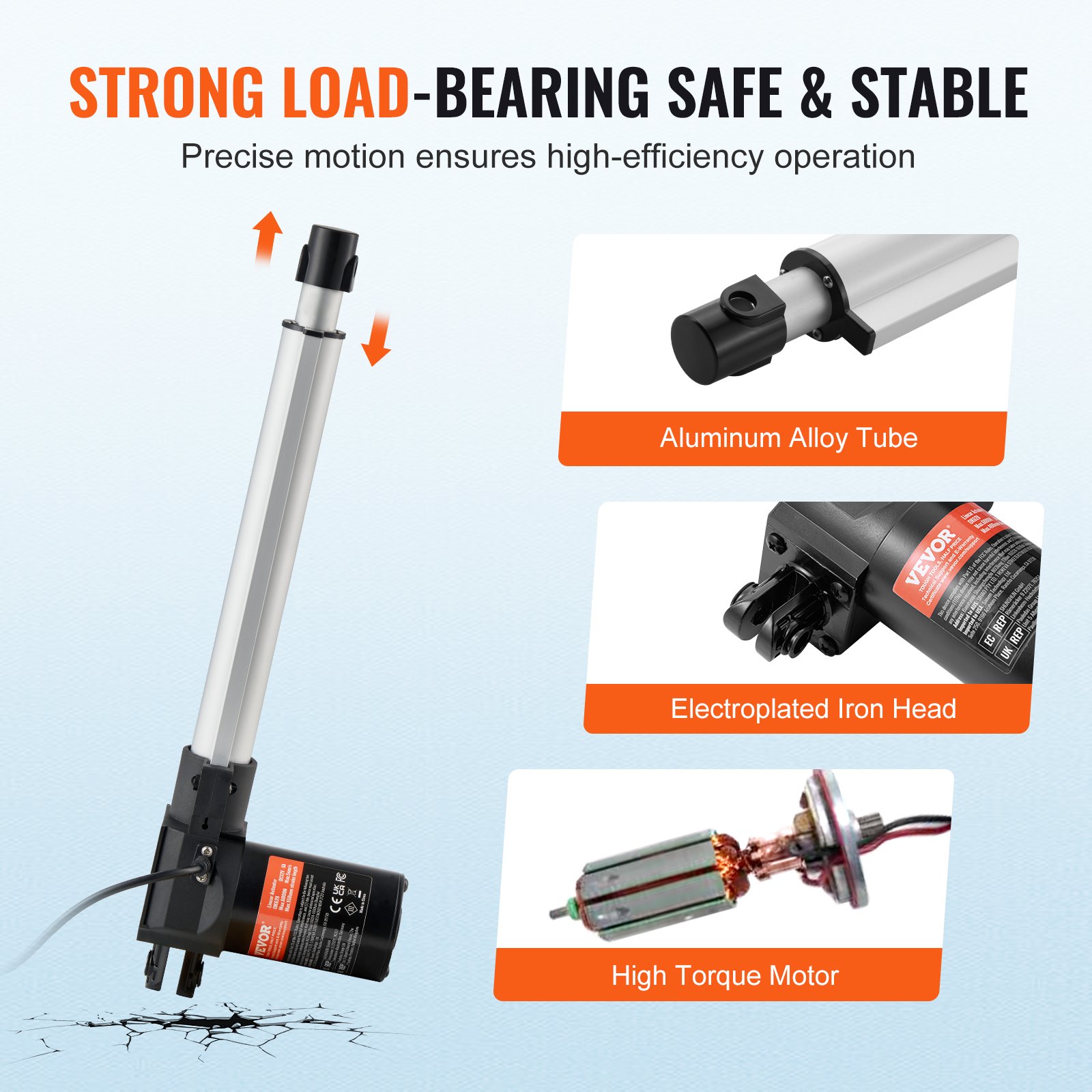

VEVOR 24v linear actuator showing durability, high torque motor, and waterproof, corrosion-resistant design.
VEVOR 24v linear actuator showing durability, high torque motor, and waterproof, corrosion-resistant design.
Crafted with precision and using high-quality materials, our stroke linear actuator ensures high precision and strength, significantly extending its lifespan. Engineered to endure frequent use, it maintains high stability, offering steadfast support for your various tasks.

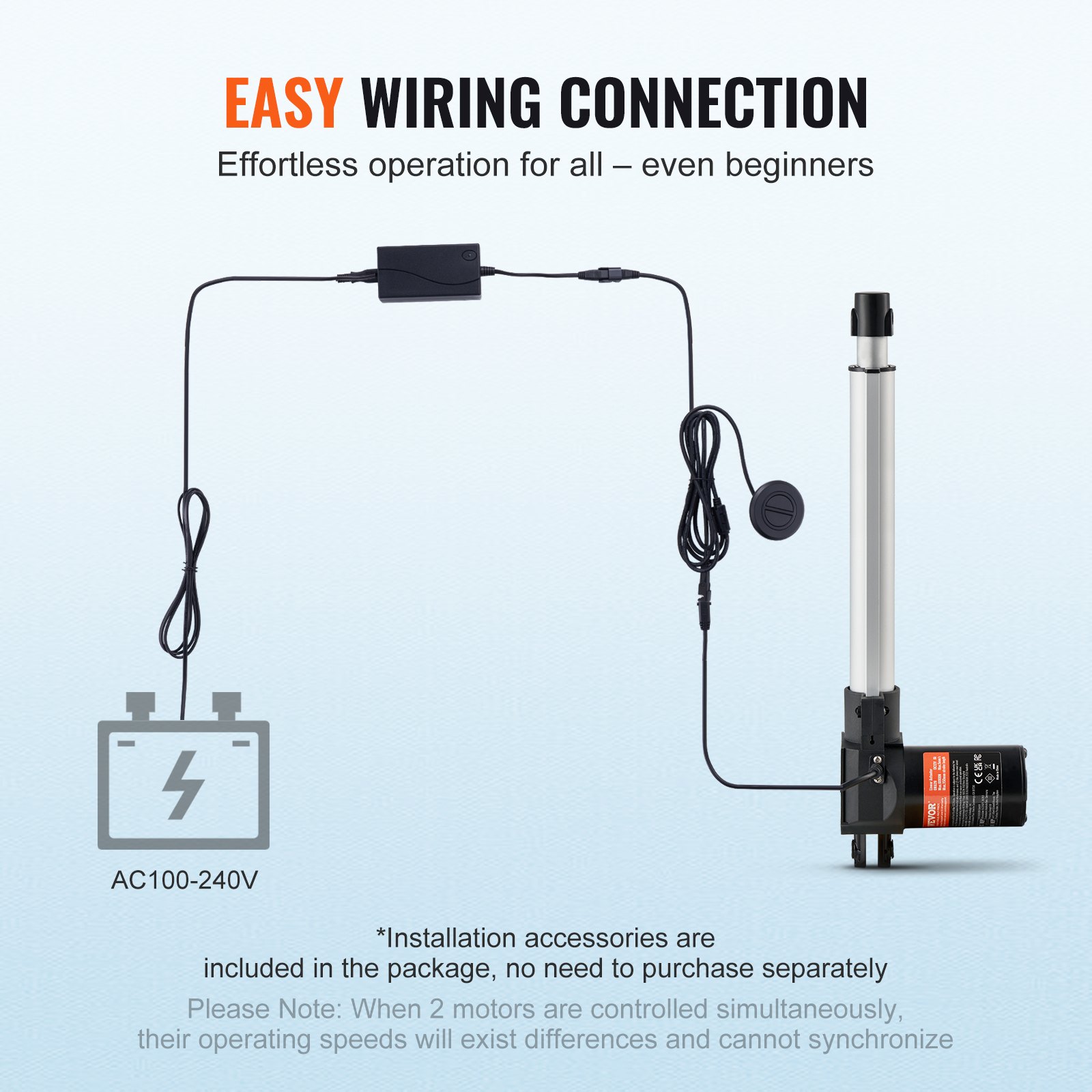

VEVOR 24v linear actuator with controller and complete wiring kit for optimal performance.
VEVOR 24v linear actuator with controller and complete wiring kit for optimal performance.

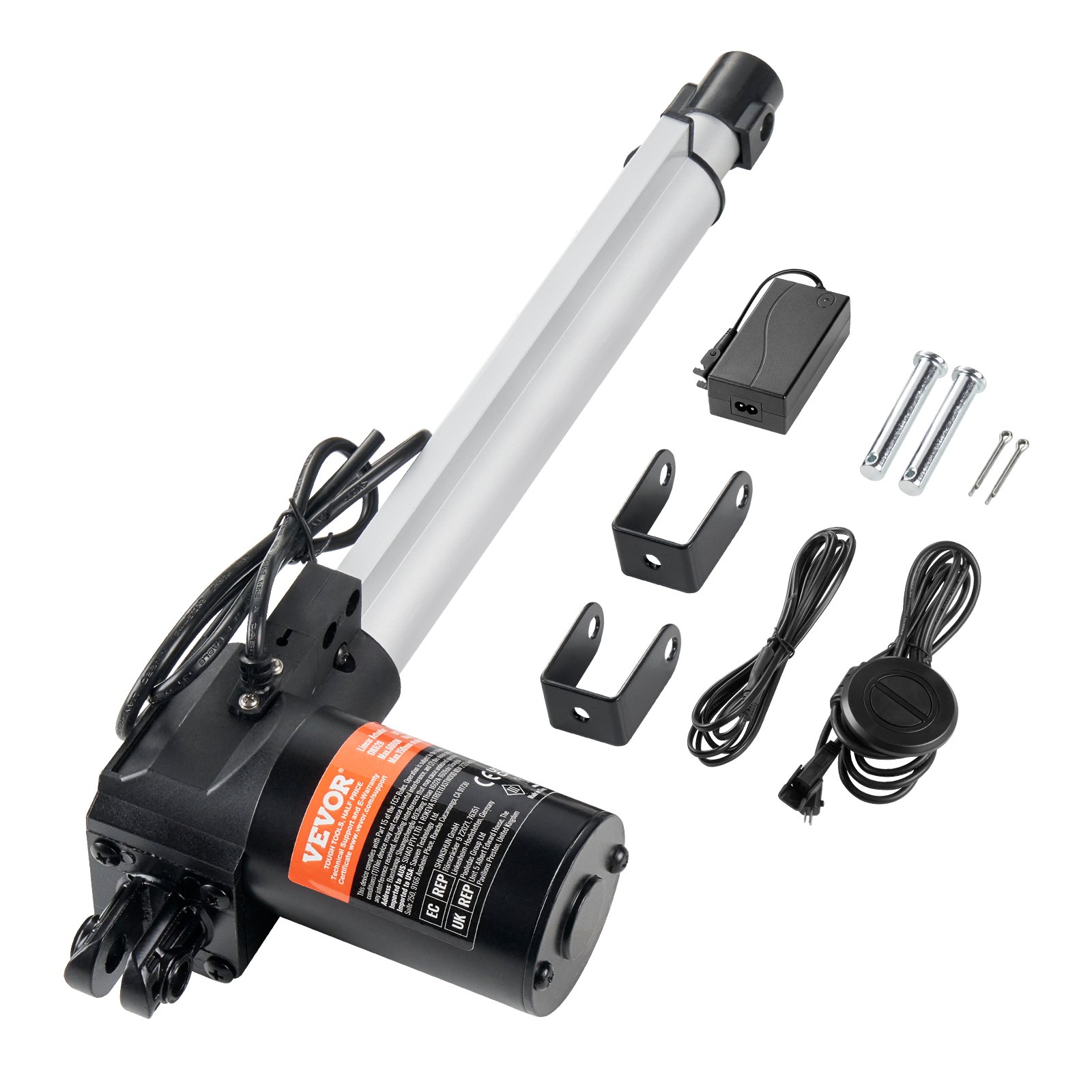

Actuator kit includes the necessary components for easy assembly, including adapter power supply, power cord, mounting brackets and a set of mounting accessories. With these components, you can quickly and easily install the linear actuators to your electric devices.

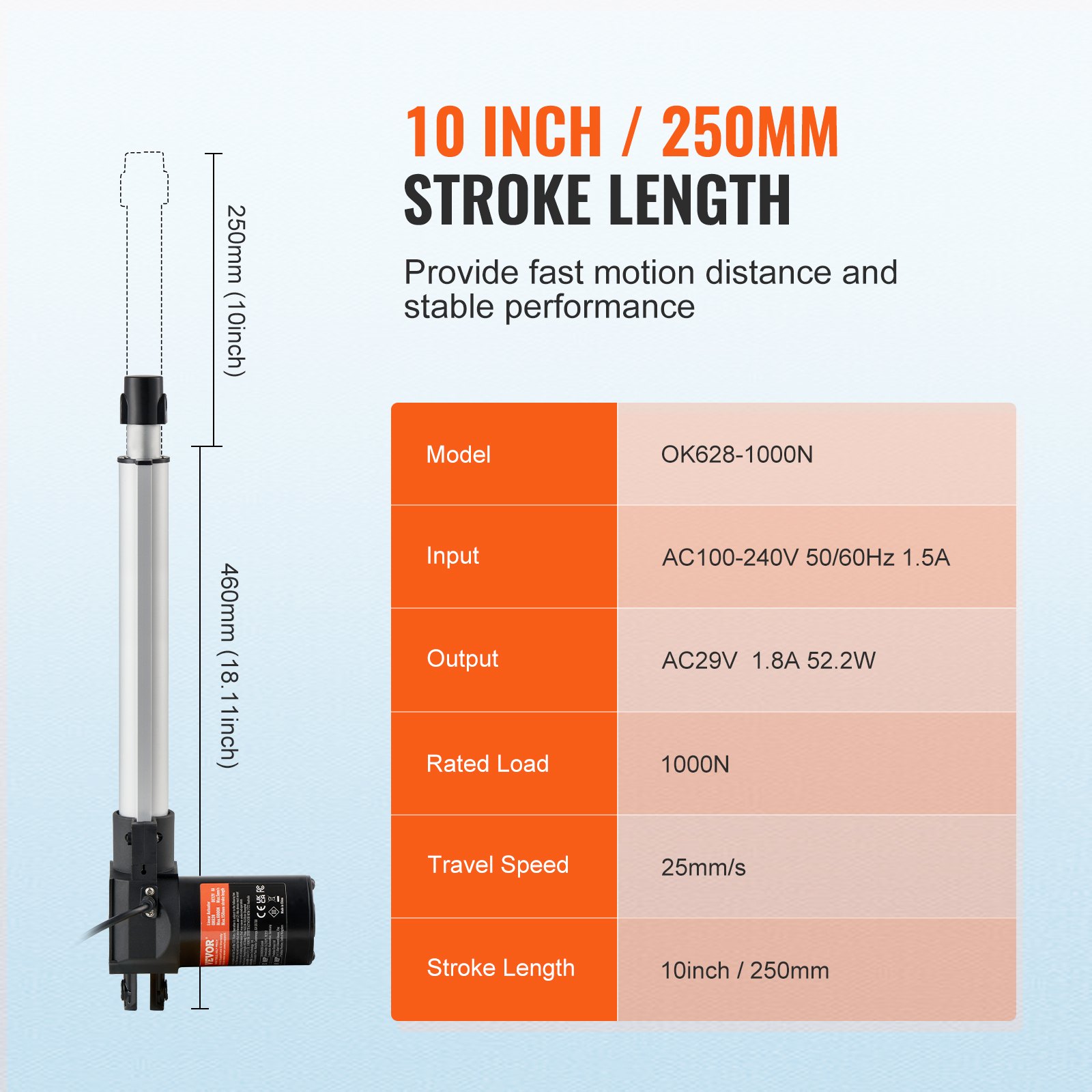

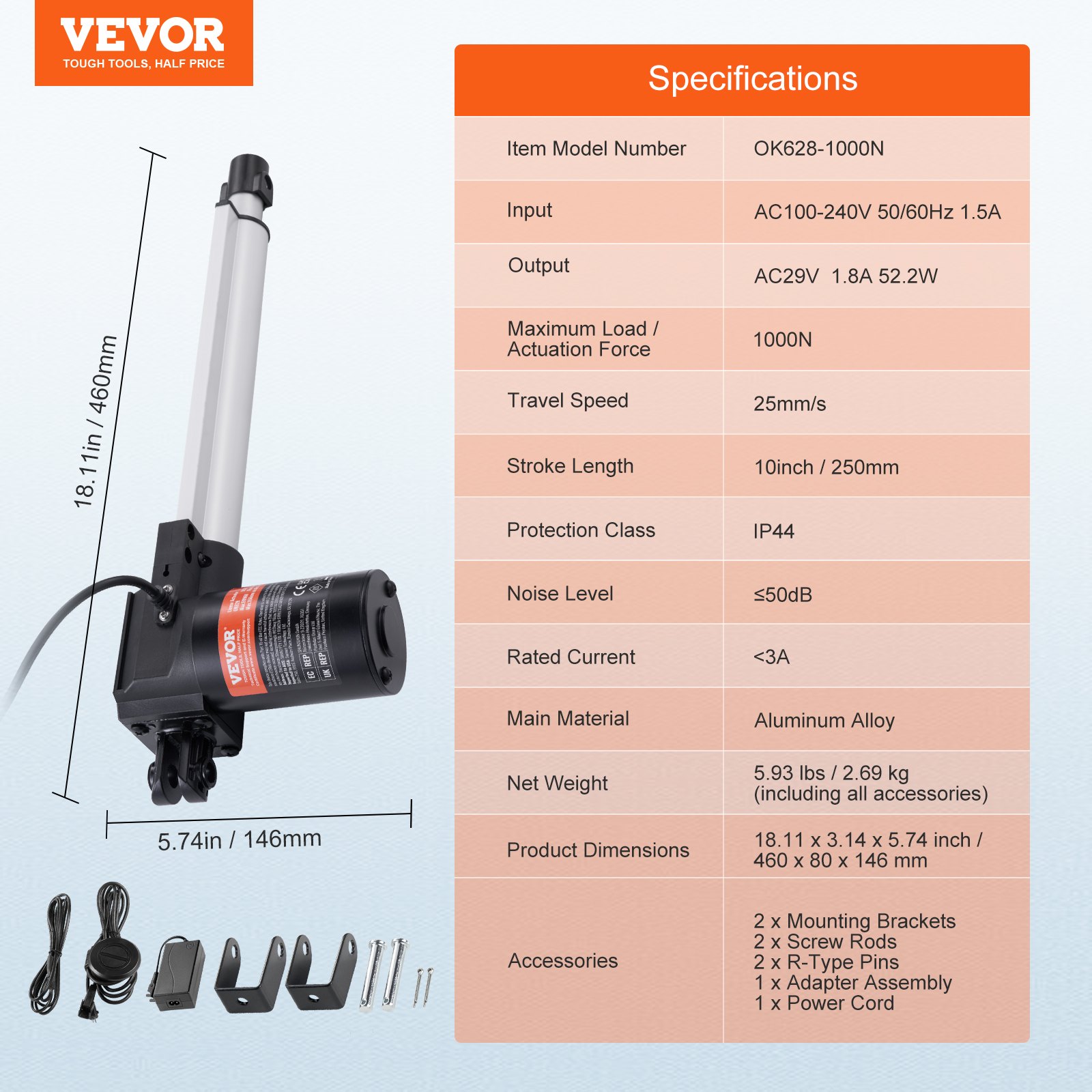

VEVOR 24v linear actuator ok628-1000n with specifications, accessories, and dimensions.
VEVOR 24v linear actuator ok628-1000n with specifications, accessories, and dimensions.

Specification

Item Model Number
OK628
Input
AC100-240V 50/60Hz 1.5A
Maximum Load/Actuation Force
1000N
Travel Speed
0.98inch/s / 25mm/s
Stroke Length
10 inch / 250 mm
Protection Class
IP44
Noise Level
≤50dB
Rated Current
<3A
Main Material
Aluminum Alloy
Net Weight
5.93 lbs / 2.69 kg (including all accessories)
Product Dimensions
18.11 x 3.14 x 5.74 inch / 460 x 80 x 146 mm
Questions and Answers
1 Questions
How to increase the travel speed?
No, it is not adjustable.
