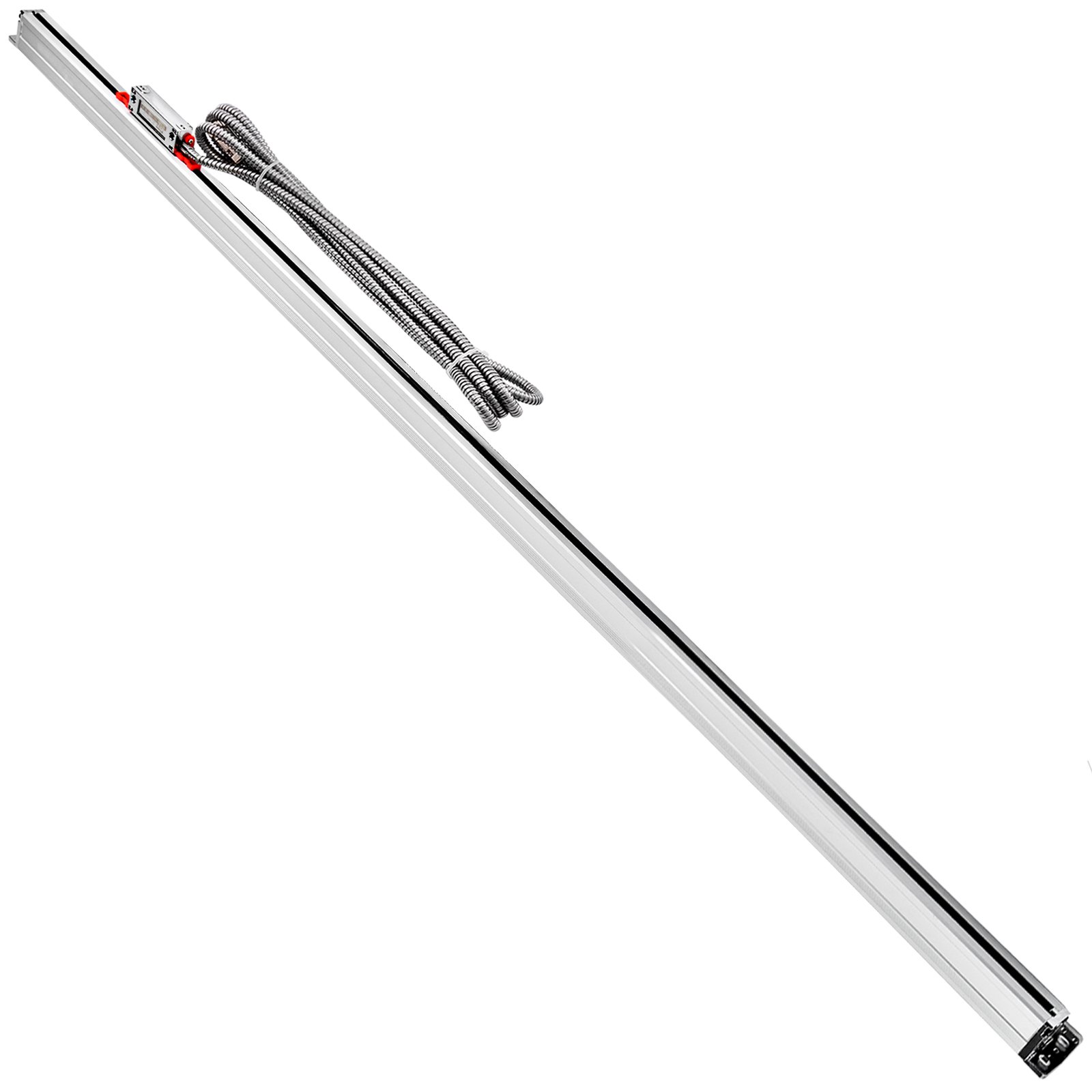

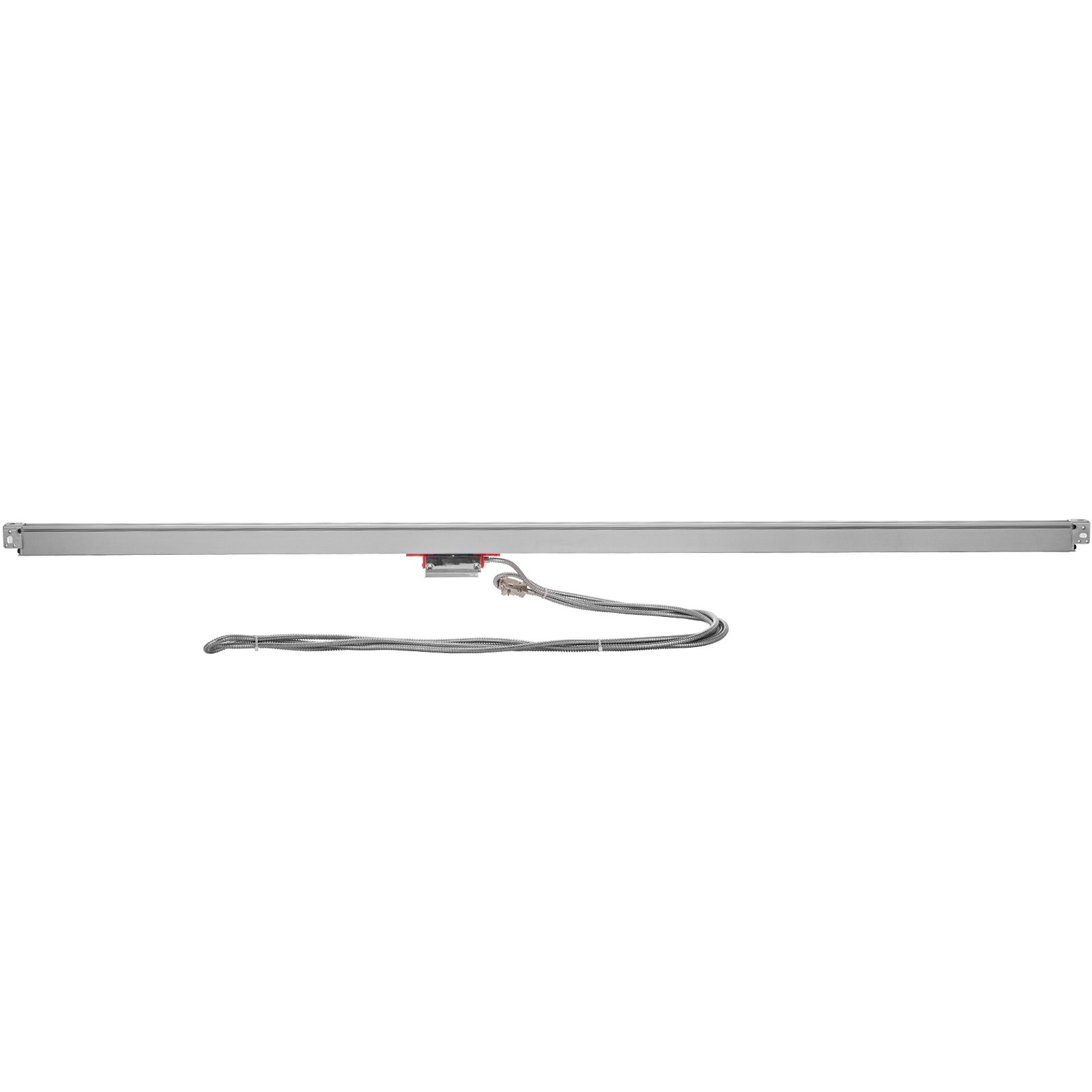

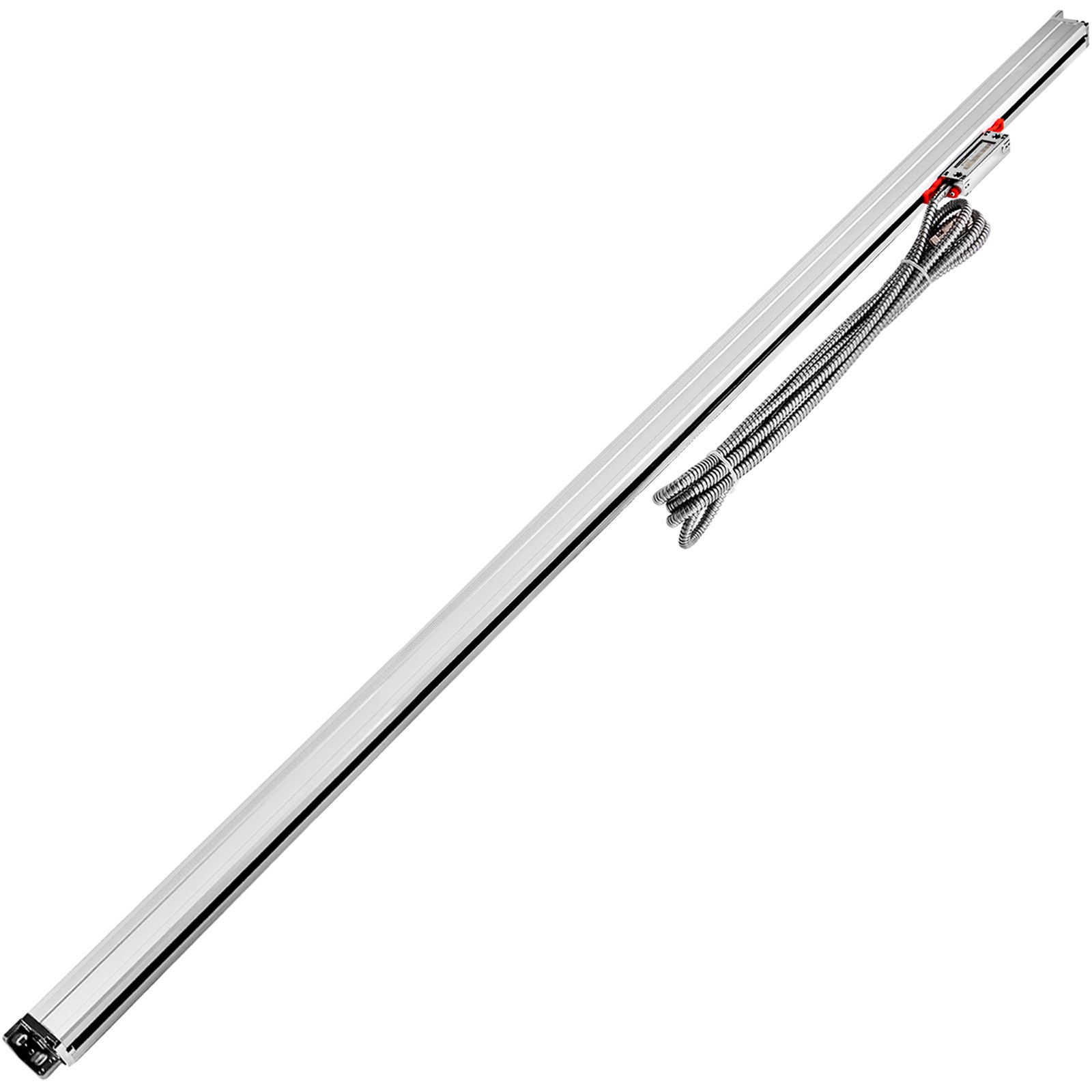

1800MM Precision Linear Scale
Our linear scale is a type of encoder with broad applications. It features optimal structure, good appearance, and high rigidity. It is specifically designed for large machine tools and able to meet most general machine users' needs. The linear scale is suitable for the metalworking, such as lathes, cylindrical grinders, milling machines, surface grinders.
- High Performance
- Durable Aluminum Construction
- Standard Signal Cable
- Stable Slide Part
Excellent Efficiency

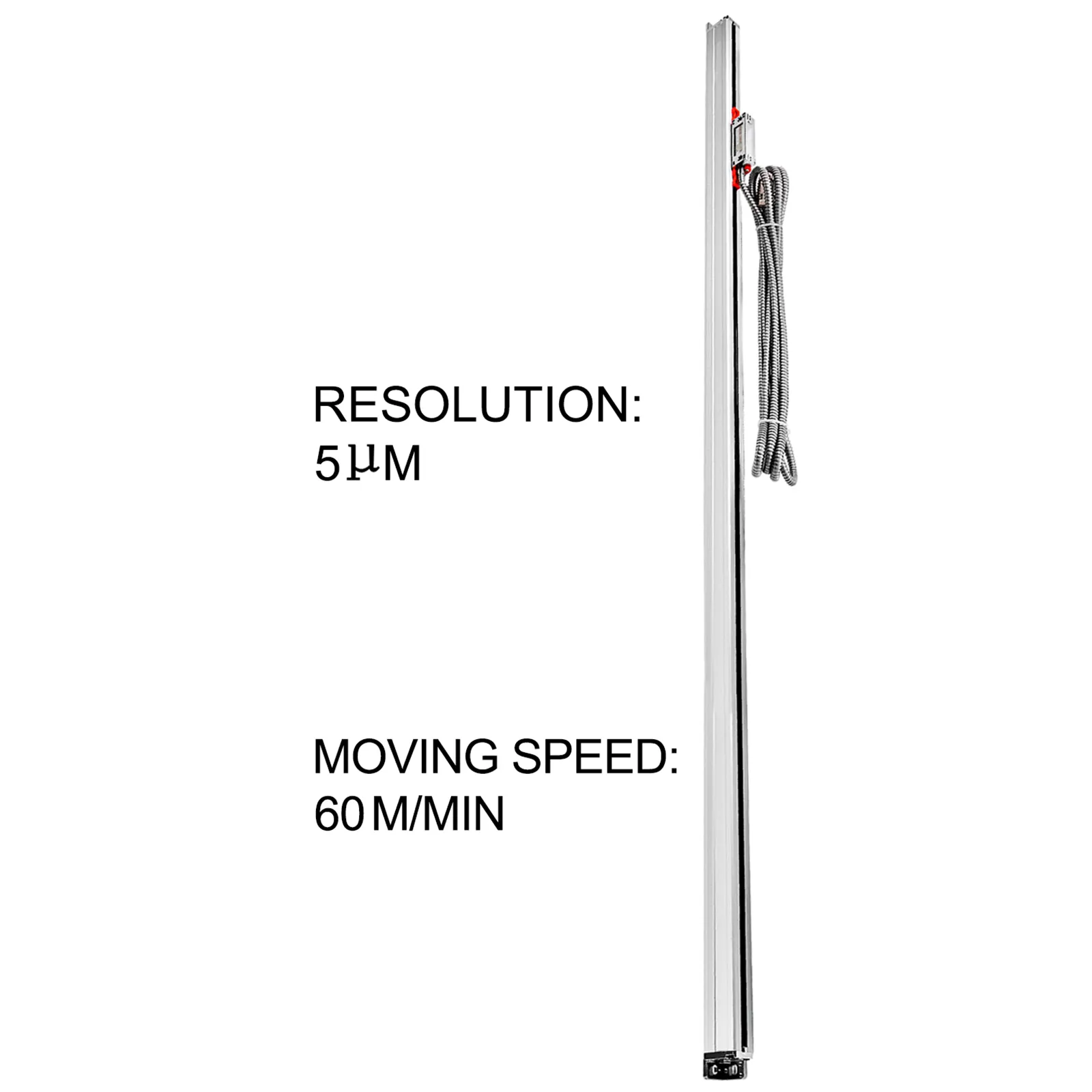

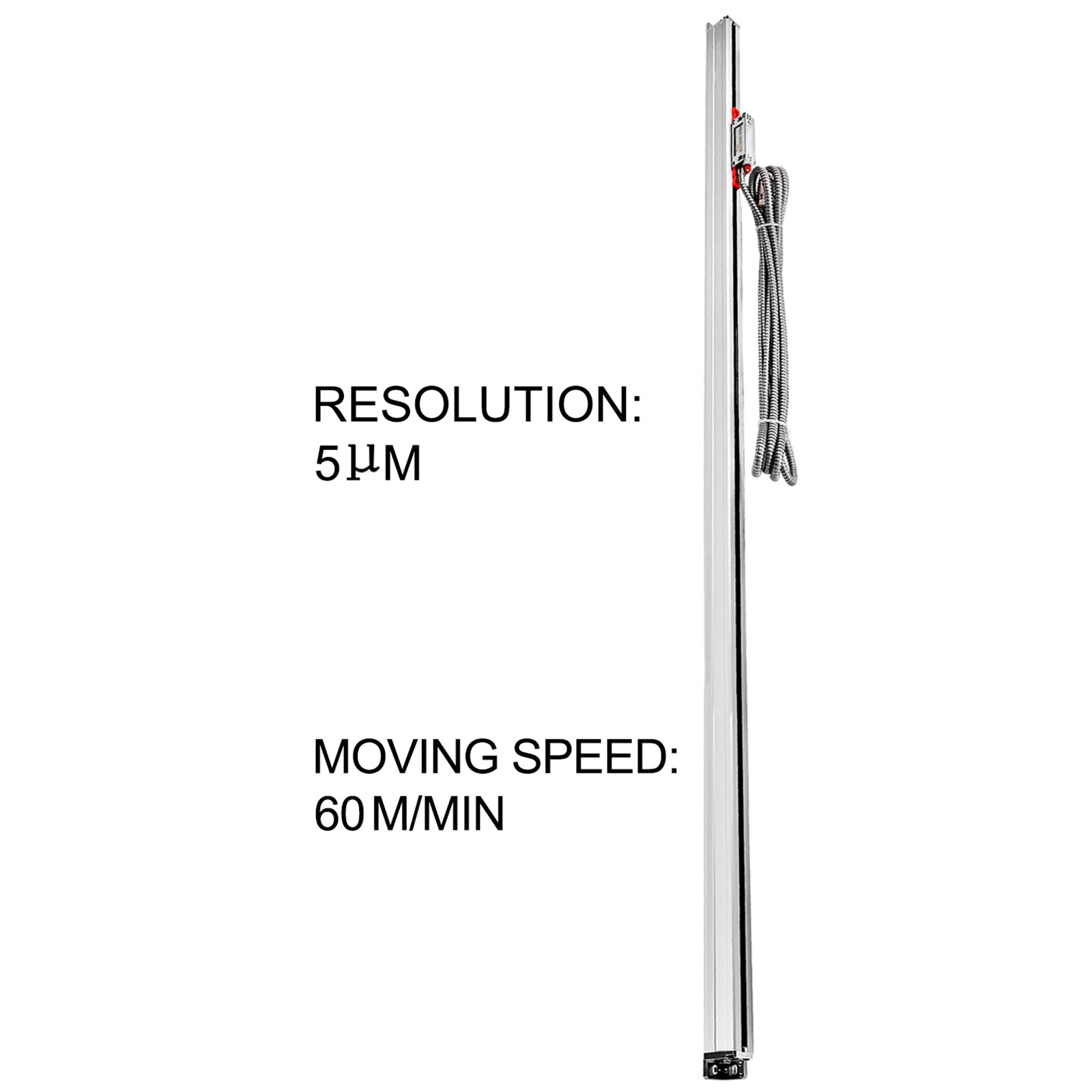

The moving speed is 60 m/min with 5μm resolution for higher working performance. 9 DB connector is suitable for different digital readouts.

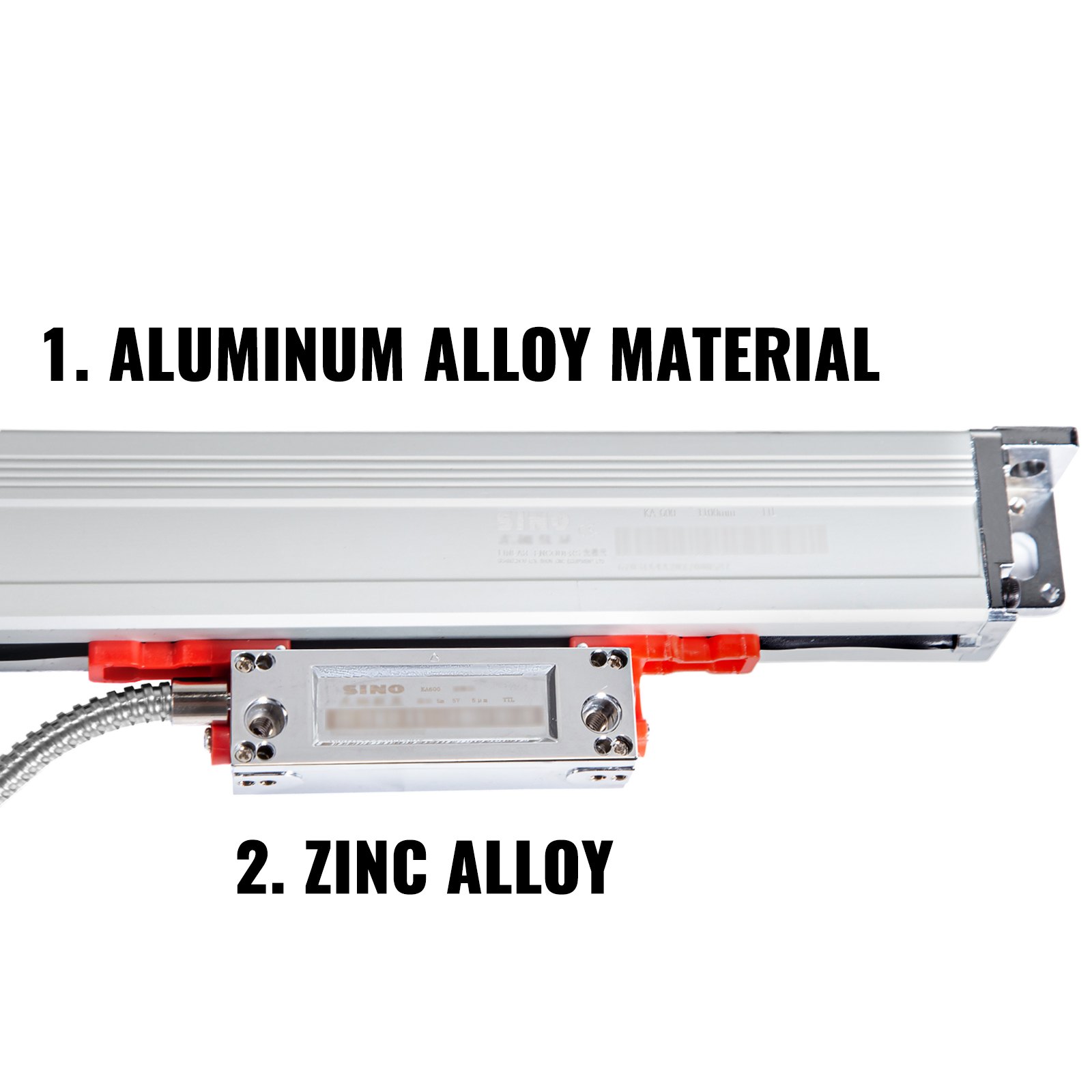

Sturdy Aluminum Alloy
The scale body applies an aluminum profile, which is anti-vibration and anti-deformation. The read head is made of chrome-plated zinc alloy for high abrasive resistance.

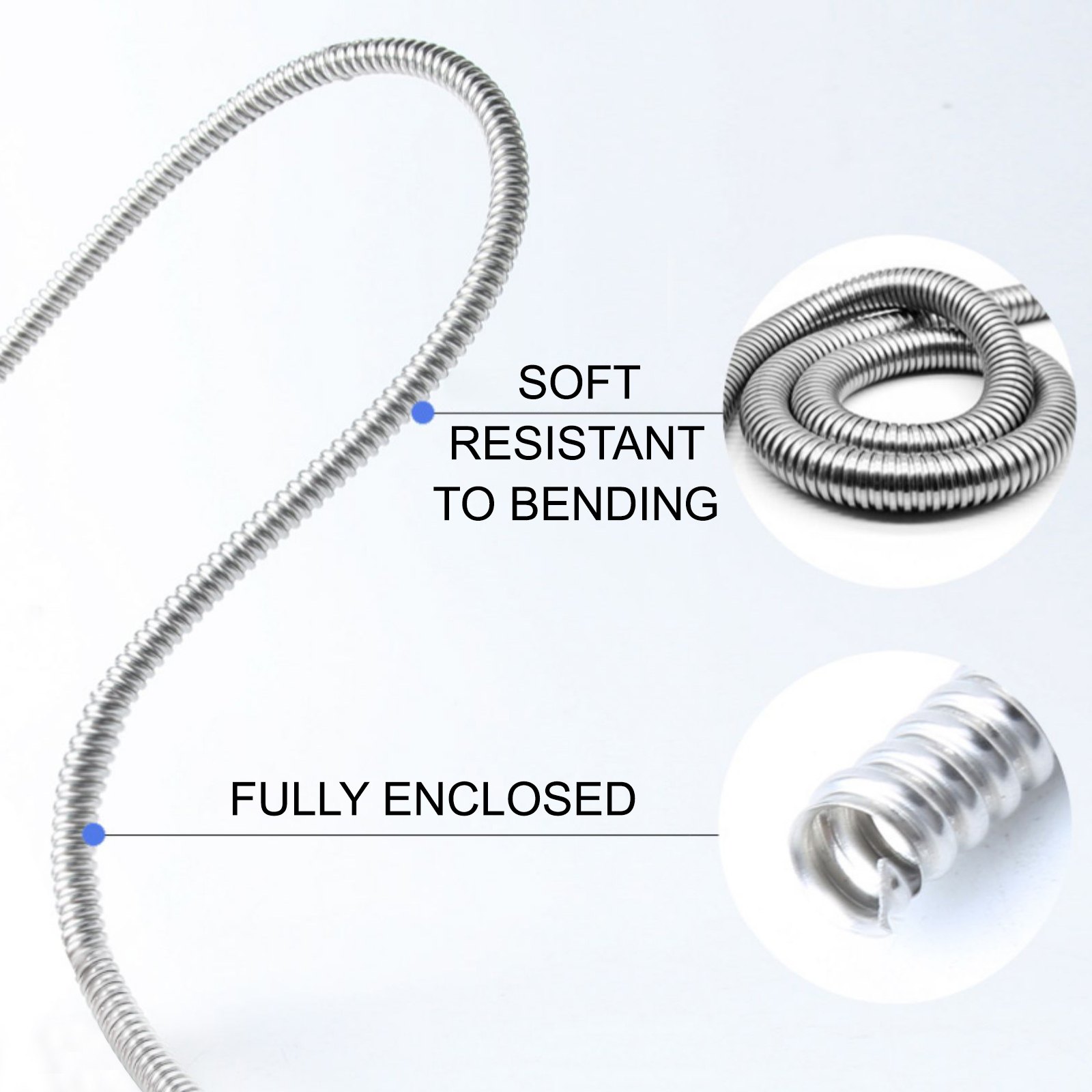

3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit and has high flexibility, bending resistance. Customized lengths can be provided according to the users' needs.

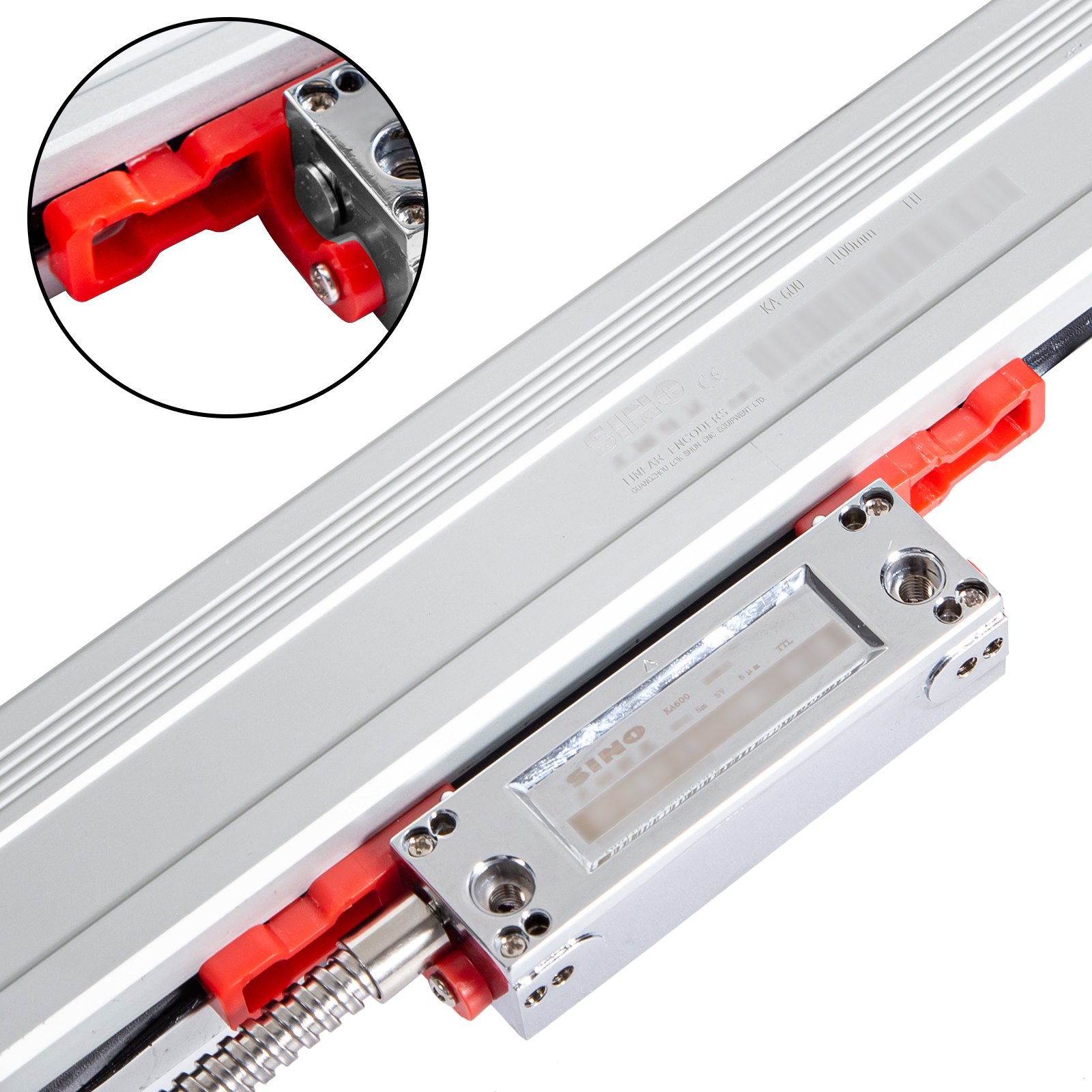

5 Bearing System
The sliding part is designed with a five-bearing system for smooth operation. The red plastic clip can fix the ruler to prevent damage during transportation.
Effortless to Install

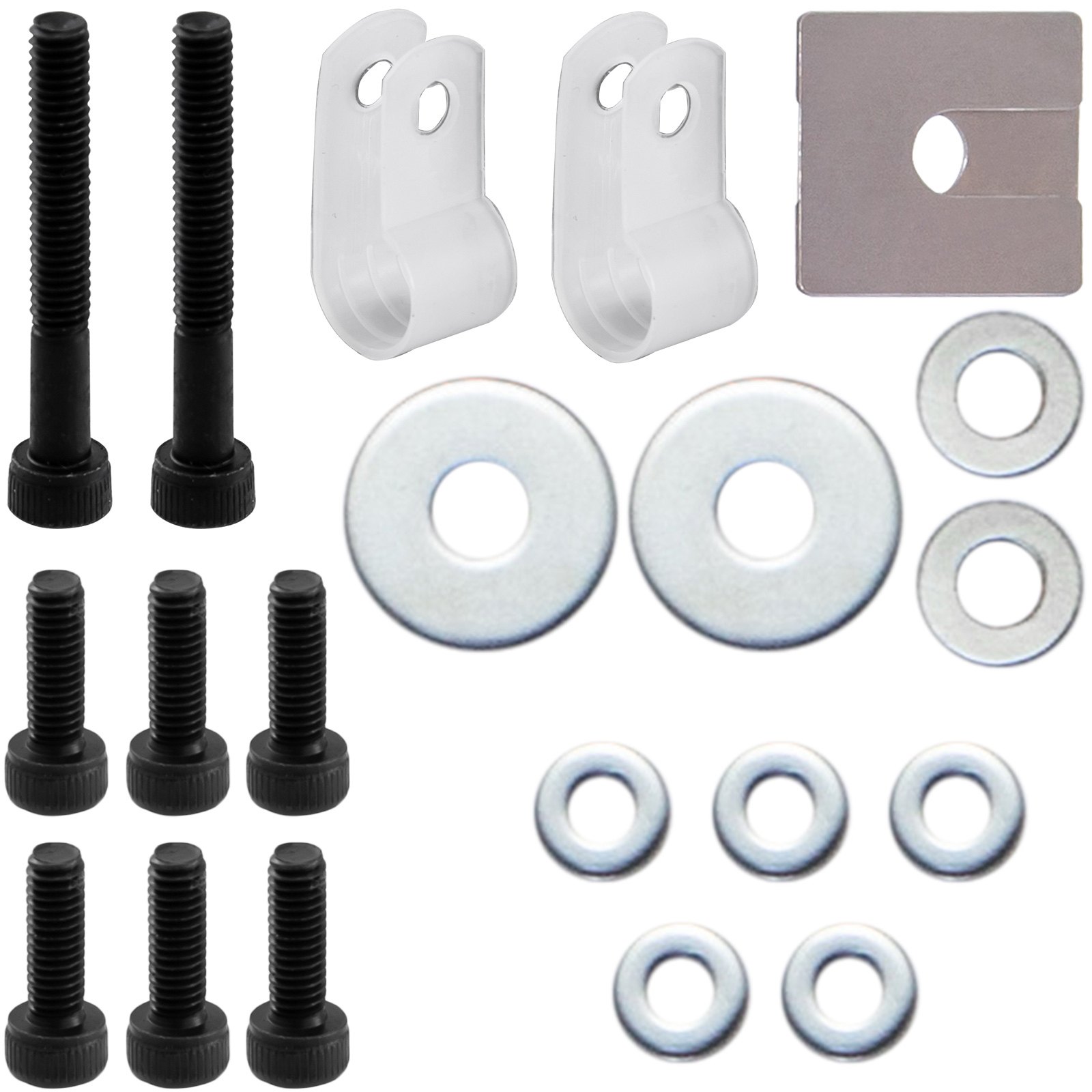

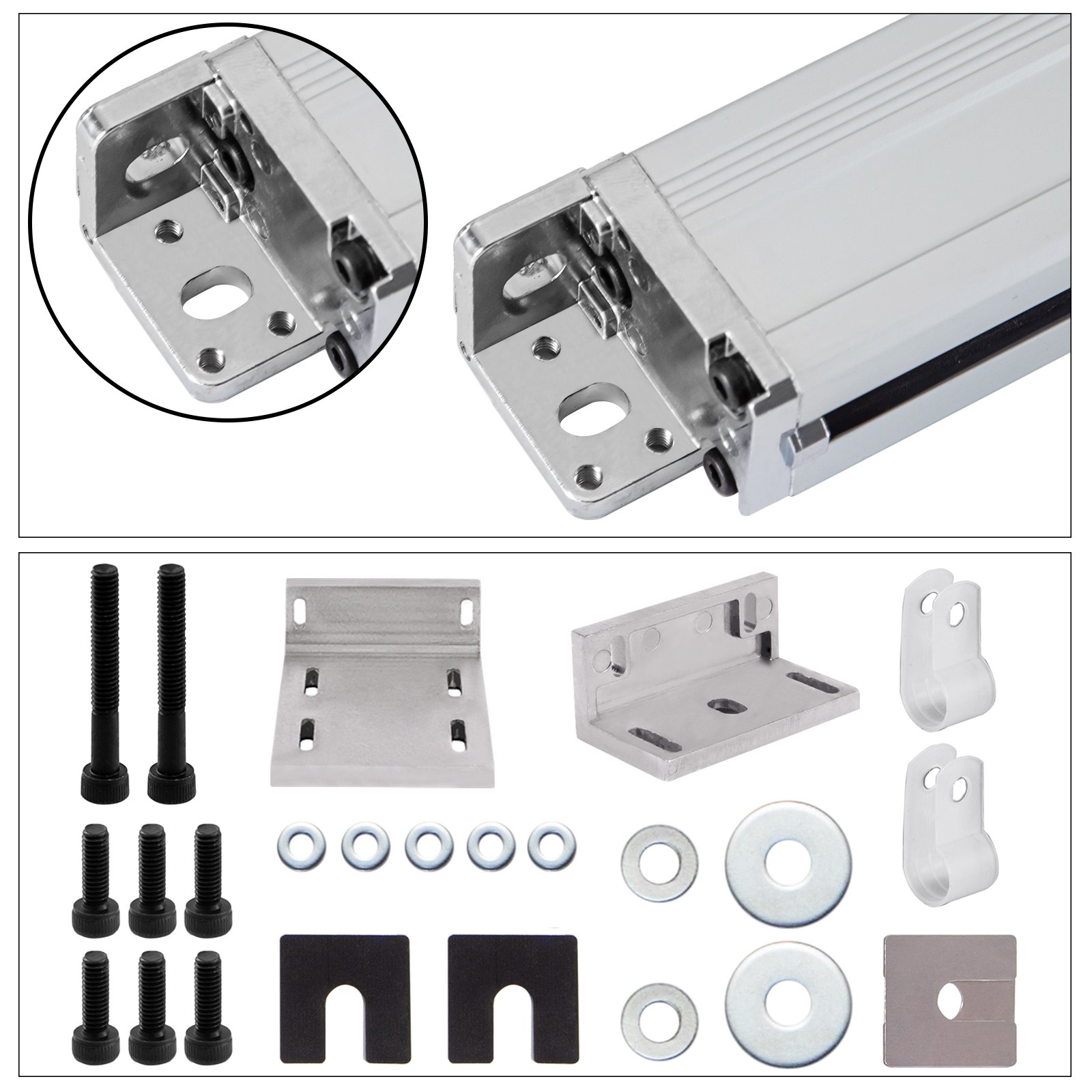

High accuracy linear scale features multiple installation holes for your convenient installation. Individualized components make it easier to mount and maintain.

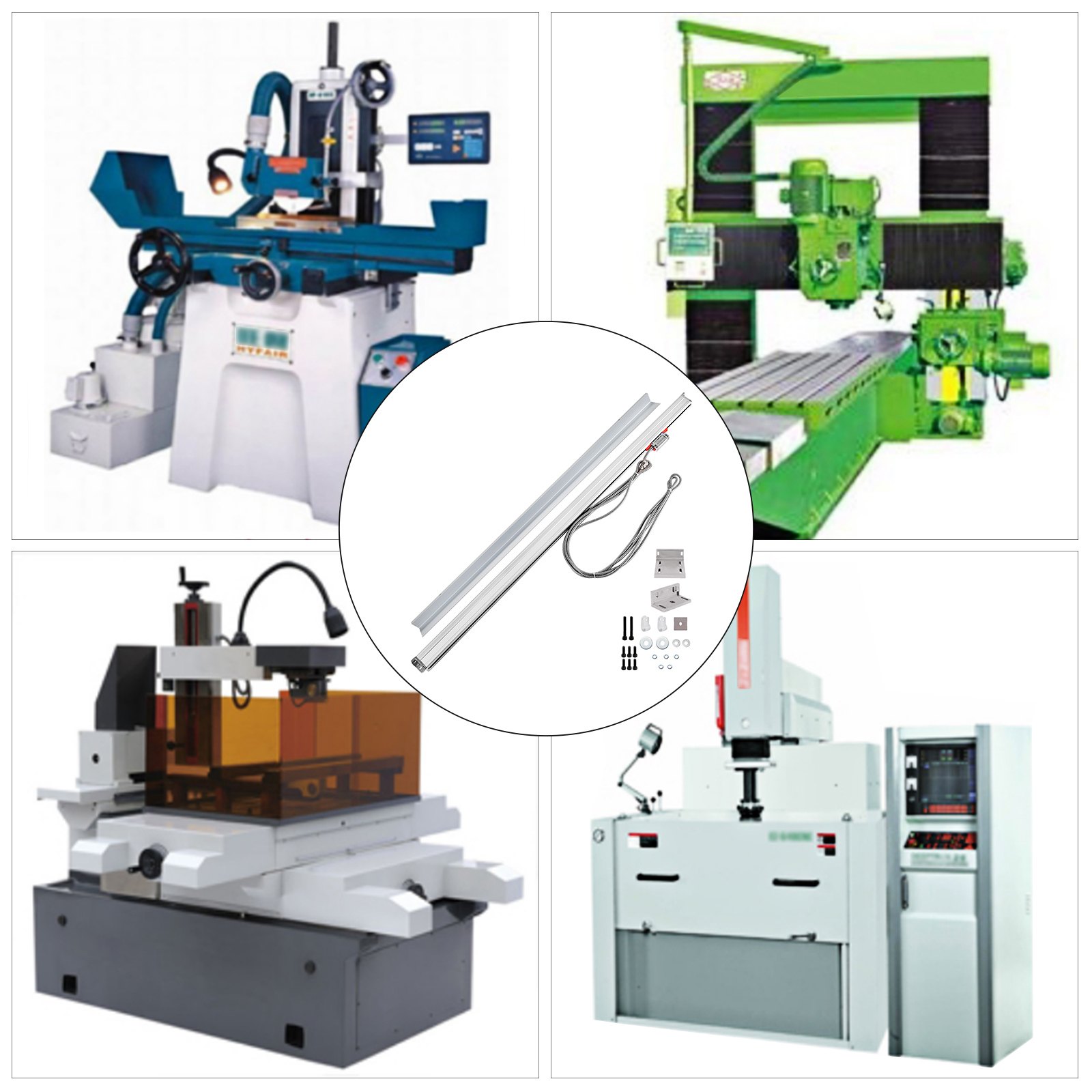

Wide Application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines. You can use it to achieve the functions of movement controlling, position monitoring, and coordinate measurement, etc.

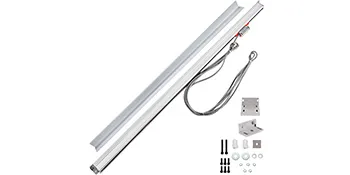

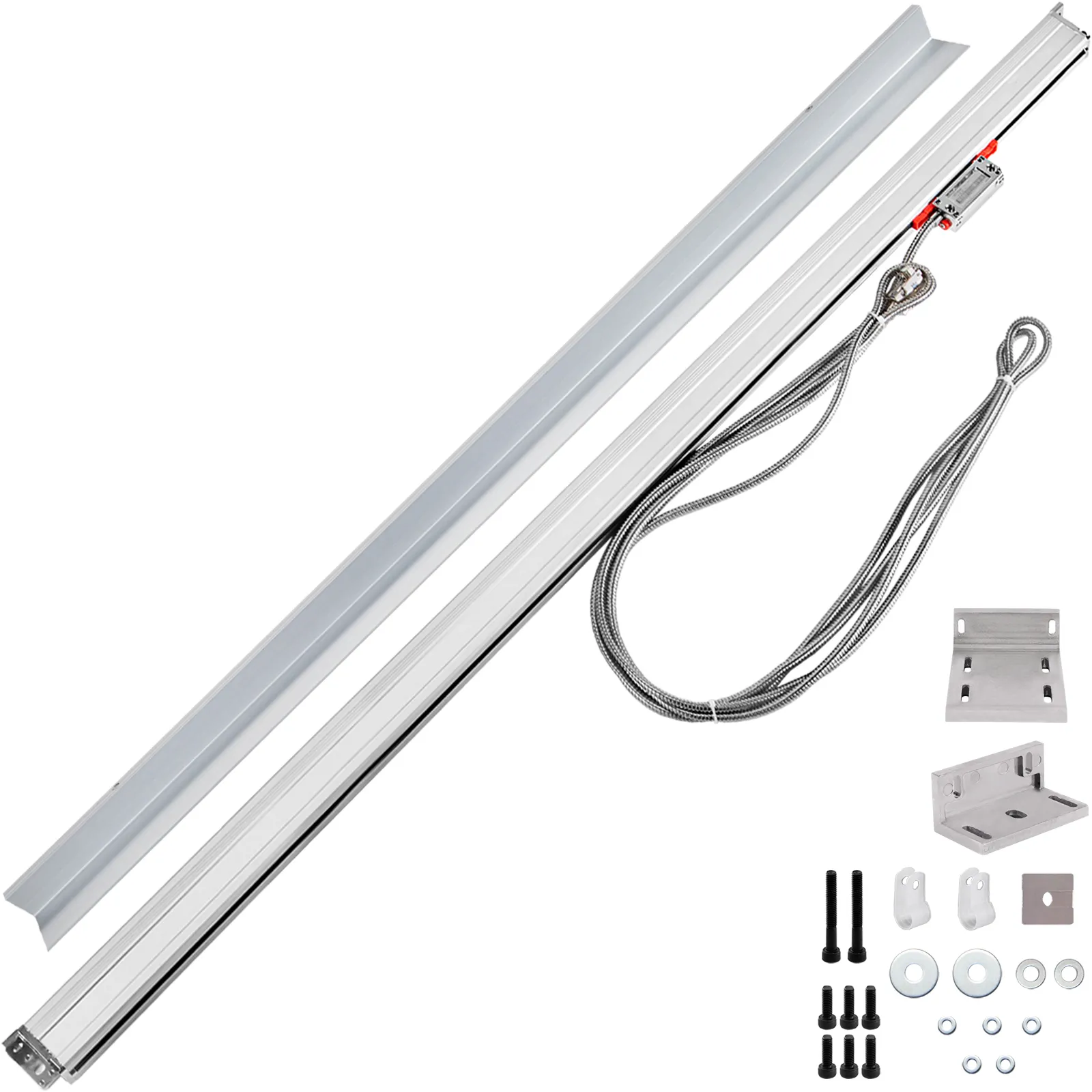

Package Content
- 1 x Linear Scale
- 1 x L Profile
Specifications
- Model: KA600
- Resolution: 5μm
- Precision: 5μm
- Travel Length: 70.87''/1800 mm

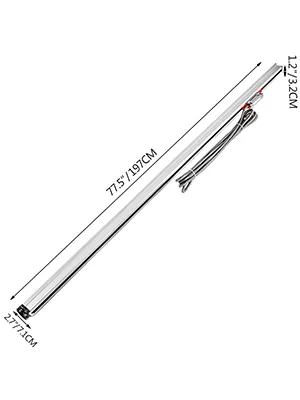

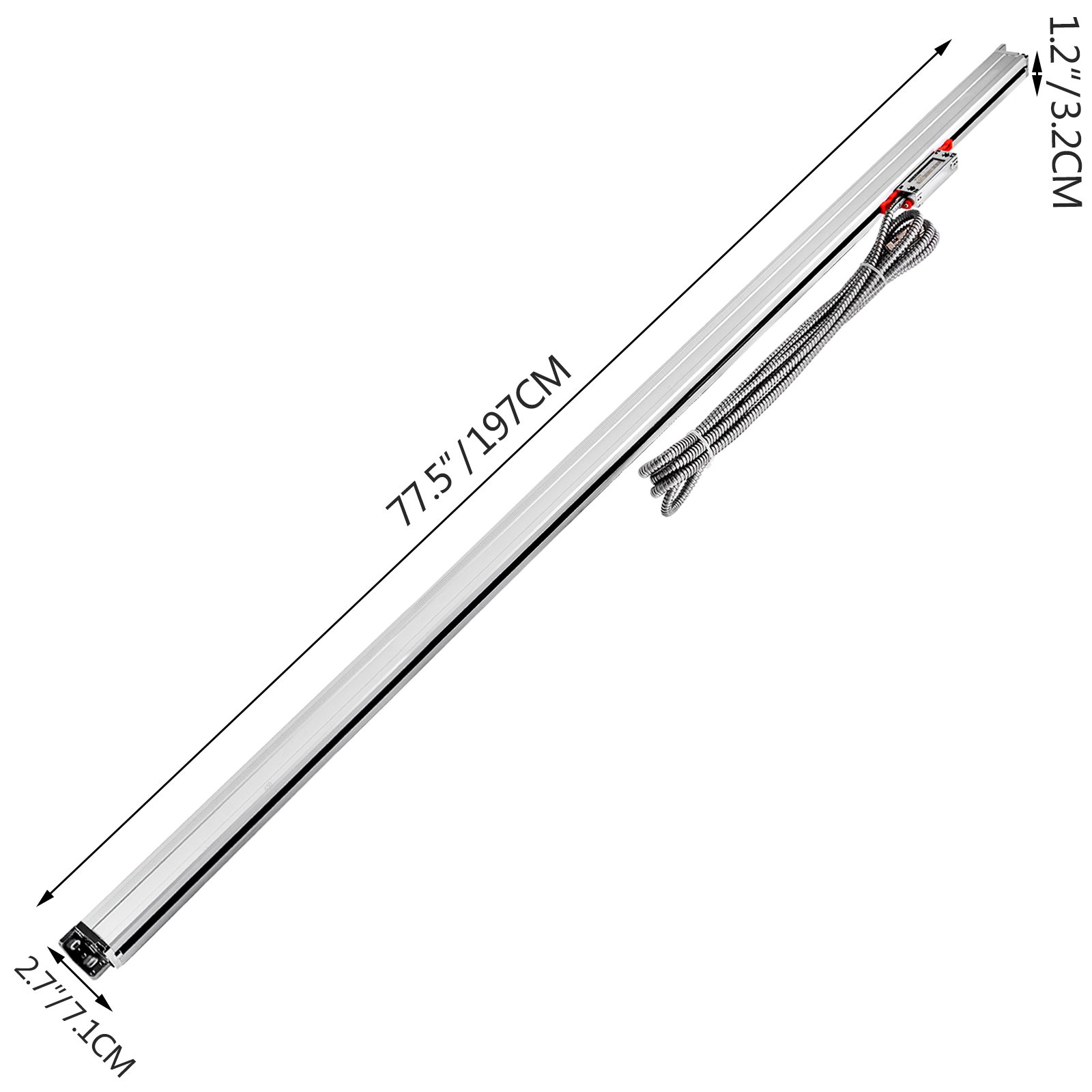

- Encoder Overall Dimension: 77.56''/1970 mm
- Power Supply: 5V ± 5％, 80mA
- Connector: 9DB
- Moving Speed: 60 m/min
- Signal Cable Length: 118.11''/3 m
- Input Signal: TTL
- Working Temperature: 0-45℃/0-113℉
