Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine
GZCDCK3-470-5U001V9

Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • 【HIGH PERFORMANCE】- Our linear scale has passed strict quality inspection. It meets the standard of accuracy and stiffness. 18.5''(470 mm) travel Length and 5μm resolution are able to achieve good straightness and precise measurement.
  • 【DURABLE ALUMINUM CONSTRUCTION】- This lathe linear scale adopts an aluminum profile scaling body that is anodized to be more resistant to oxidation. The read head is die-casted with hard chrome for more corrosion resistance—reasonable appearance for good rigidity.
  • 【STANDARD SIGNAL CABLE】- This high accuracy linear scale is equipped with a 3 m signal cable. The signal cable is protected by multi-layer shielded wire steel and a soft metal shell. It has the excellent waterproof and anti-interference performance.
  • 【STABLE SLIDE PART】- The slide part of this dro linear scale features a reliable five-bearing system with excellent repeated positioning, which makes the measurement result more stable. The red plastic part can help fix the ruler and make it easier to transport.
  • 【CONVENIENT & PRACTICAL】- The lathe linear scale has slotted end blocks for easy and adjustable installation. Besides, multiple mounting holes are more accessible to fix to the brackets position and additional mounting hardware. So it has a wide range of applications.

Frequently Bought Together

People Who Bought This Item Also Bought

Vevor Precision Linear Scale Linear Glass Scale 470 Mm Dro Lathe Milling Machine
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
470MM Precision Linear Scale
Our linear scale is a type of encoder with broad applications. It features optimal structure, good appearance, and high rigidity. It is able to meet the needs of the majority of general machine users. The linear scale is suitable for the metalworking, such as lathes, cylindrical grinders, milling machines, surface grinders.
  • High Performance
  • Durable Aluminum Construction
  • Standard Signal Cable
  • Stable Slide Part

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Excellent Efficiency

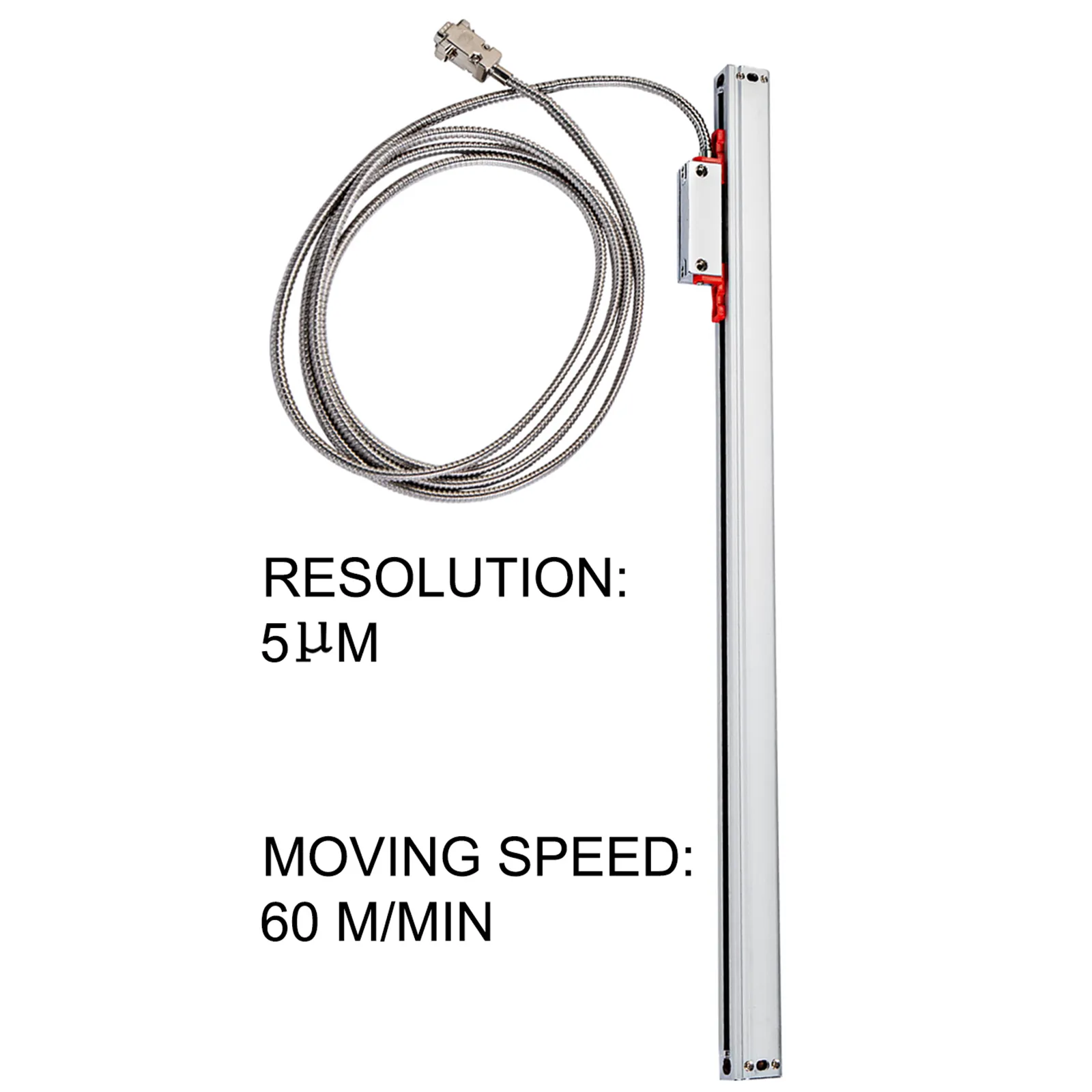

The moving speed is 60 m/min with 5μm resolution for higher working performance. 9 DB connector is suitable for different digital readouts.

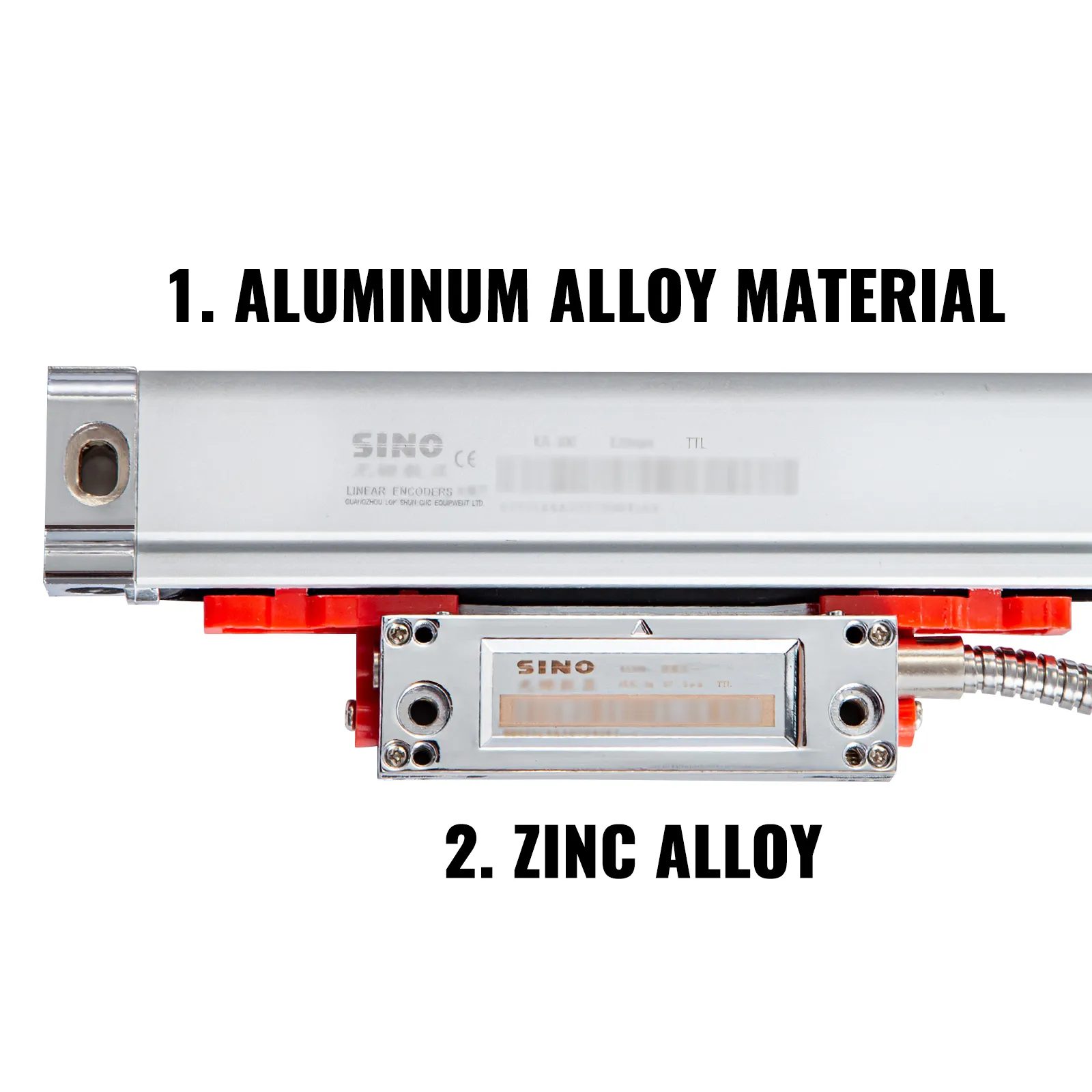

Sturdy Aluminum Alloy
The scale body applies an aluminum profile, which is anti-vibration and anti-deformation. The read head is made of chrome-plated zinc alloy for high abrasive resistance.

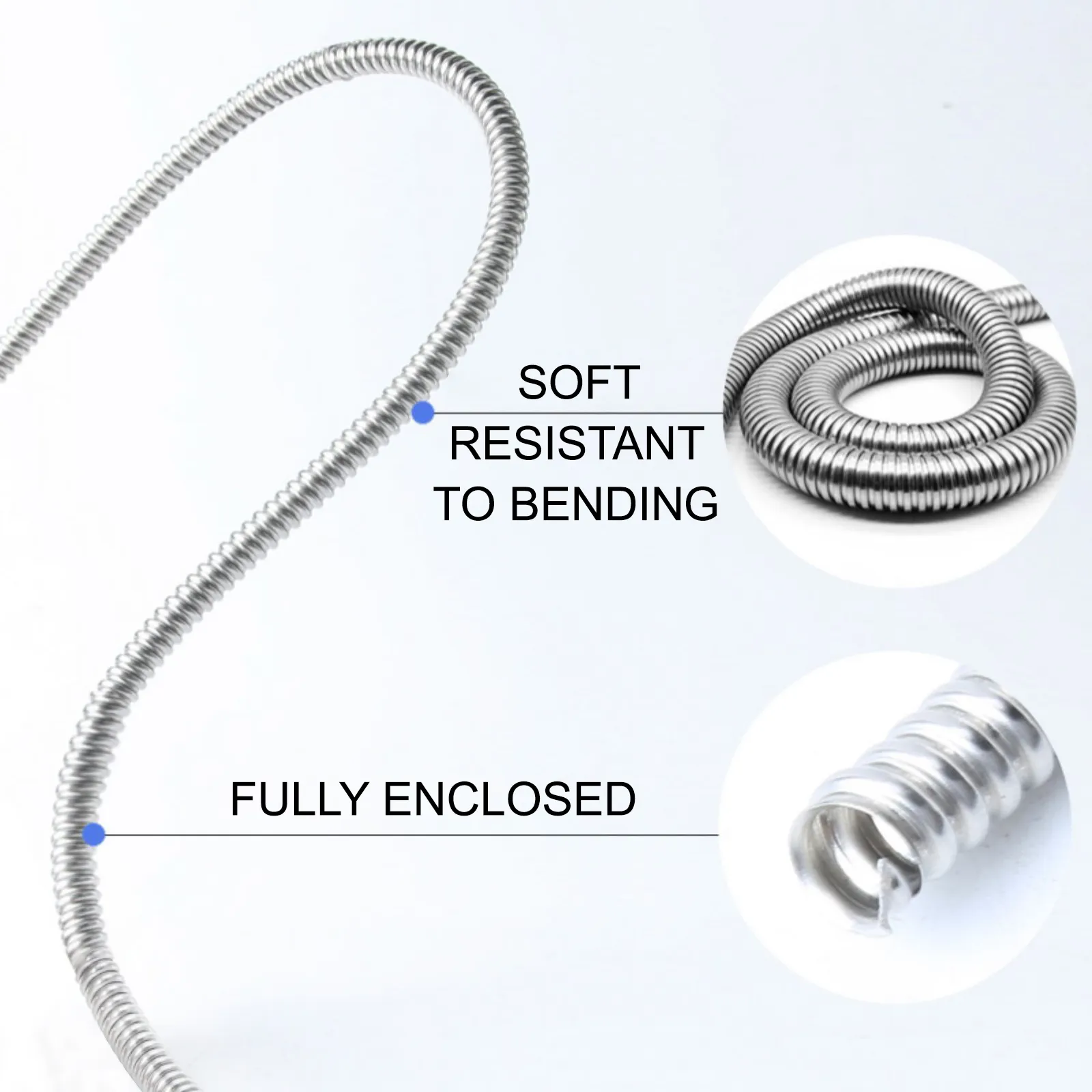

3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit and has high flexibility, bending resistance. Customized lengths can be provided according to the users' needs.

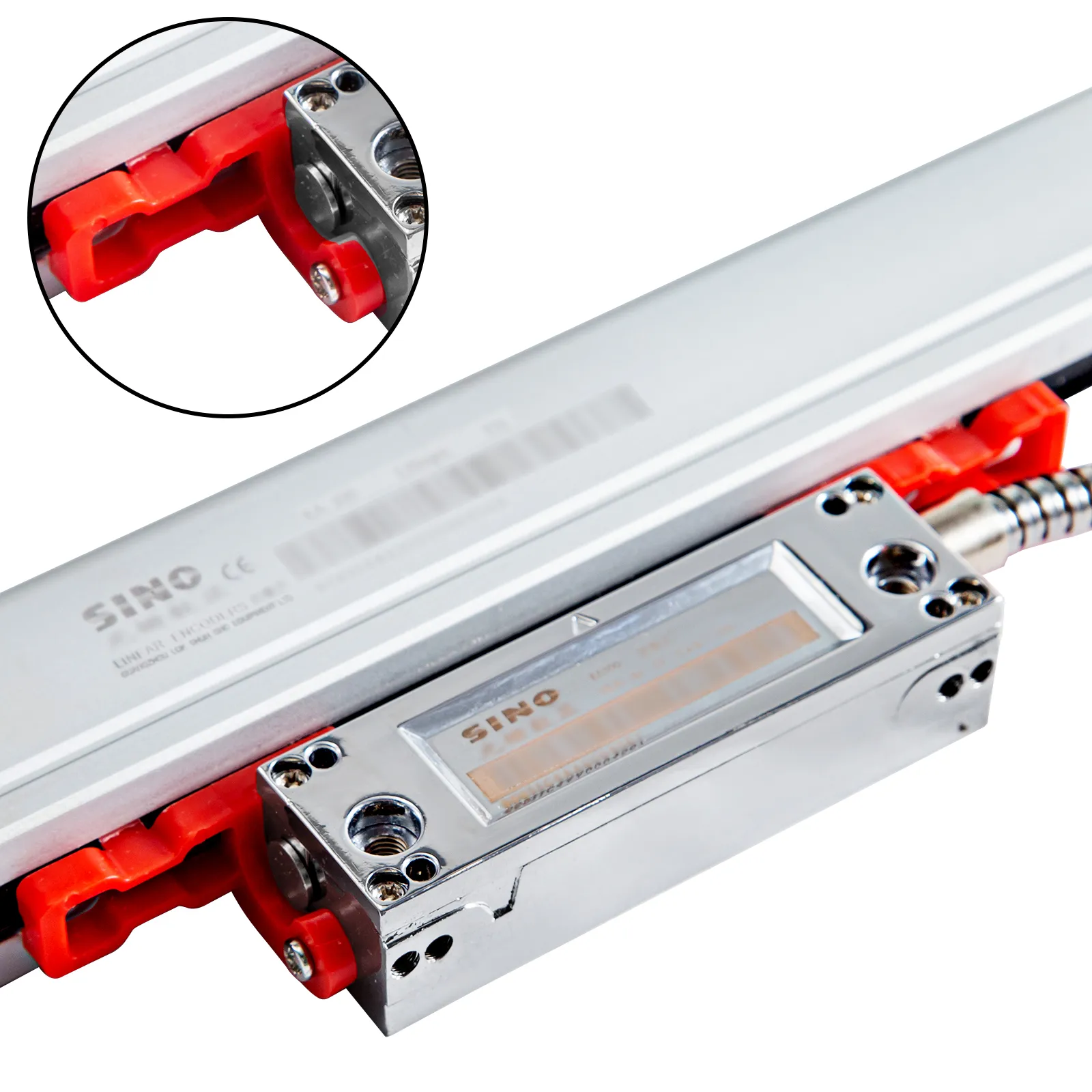

5 Bearing System
The sliding part is designed with a five-bearing system for smooth operation. The red plastic clip can fix the ruler to prevent damage during transportation.

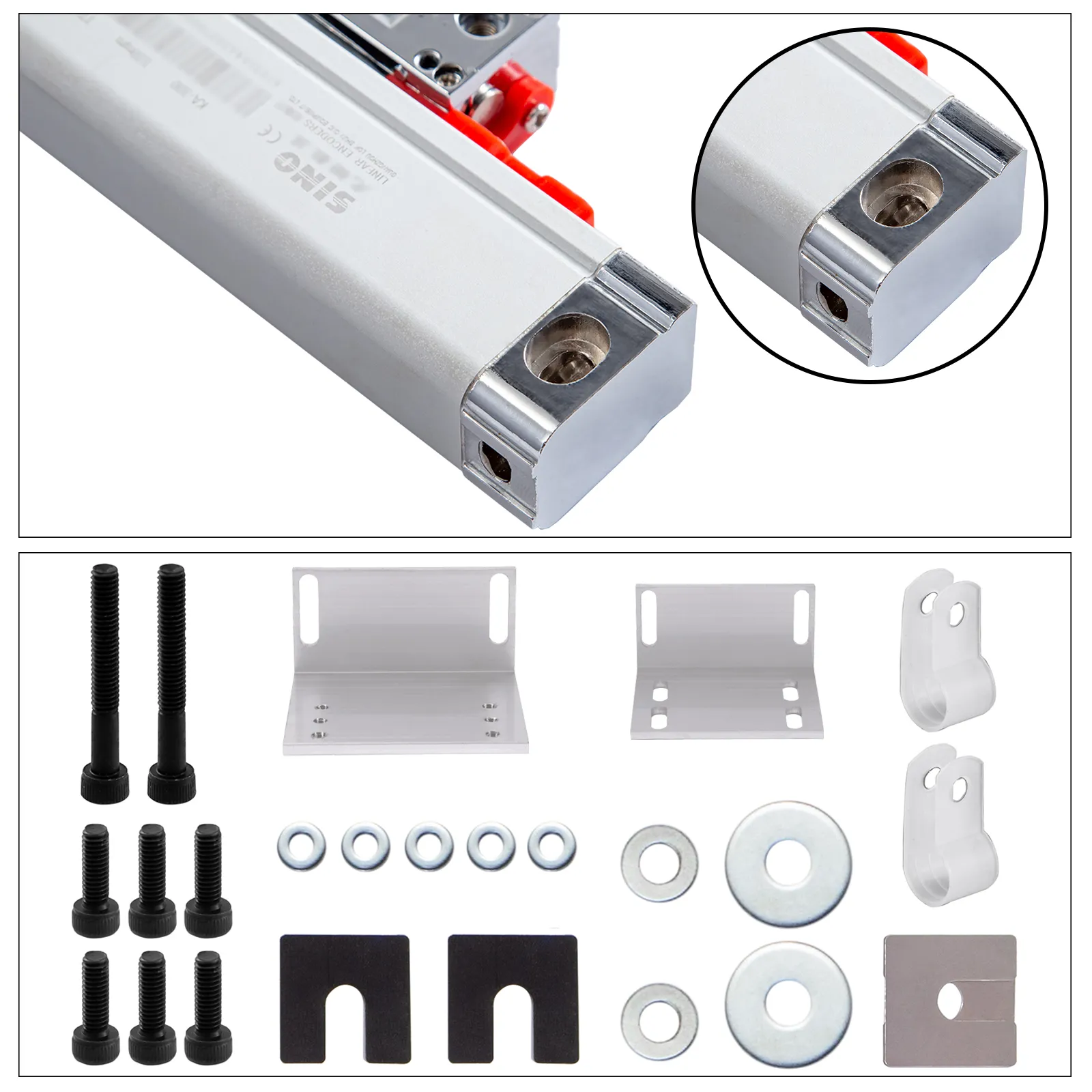

Effortless to Install
High accuracy linear scale features multiple installation holes for your convenient installation. Individualized components make it easier to mount and maintain.

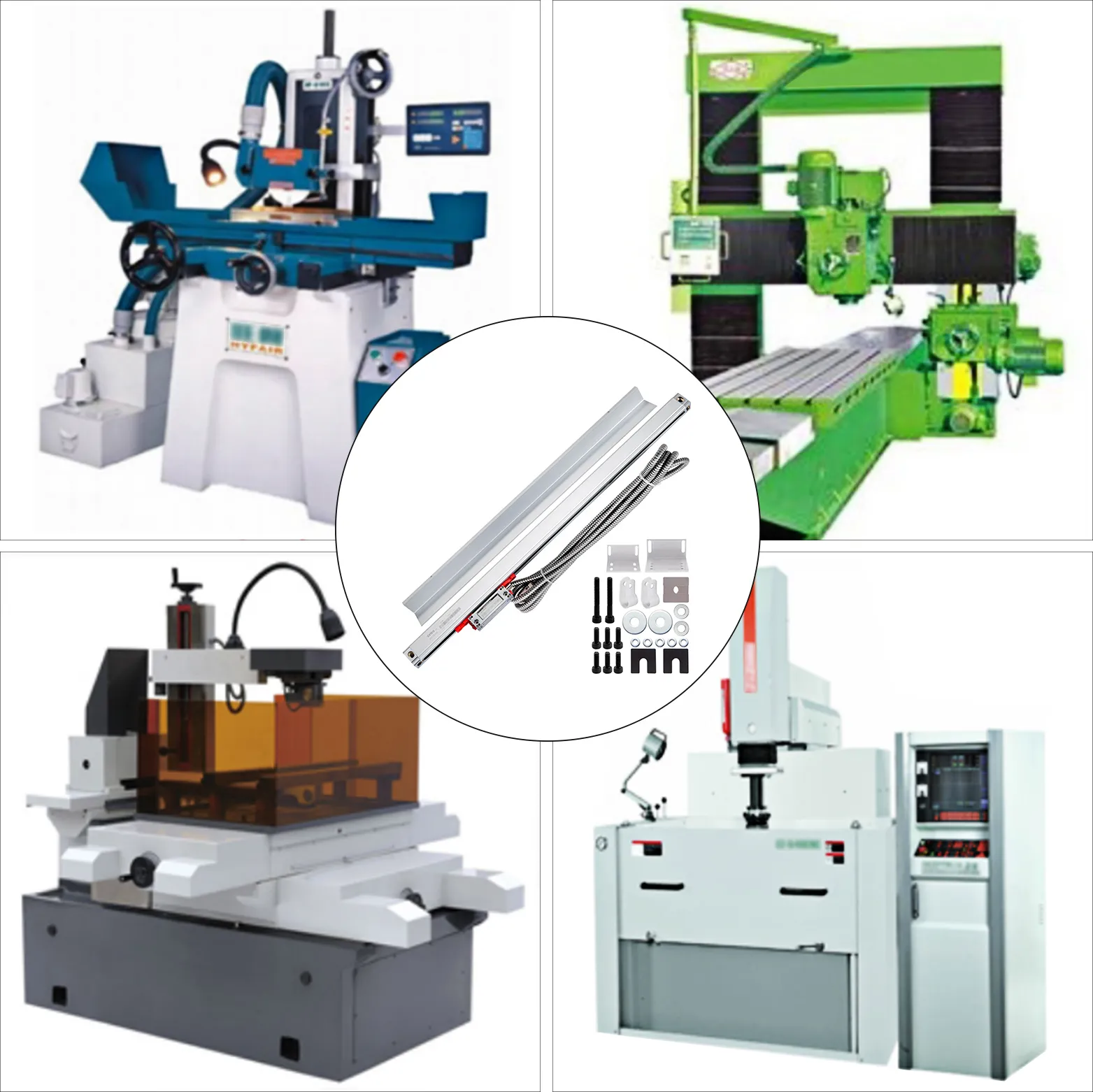

Wide Application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines. You can use it to achieve the functions of movement controlling, position monitoring, and coordinate measurement, etc.
Specifications
  • Model: KA300
  • Axes: 1 Axis
  • Resolution: 5μm
  • Travel Length: 18.5''/470 mm

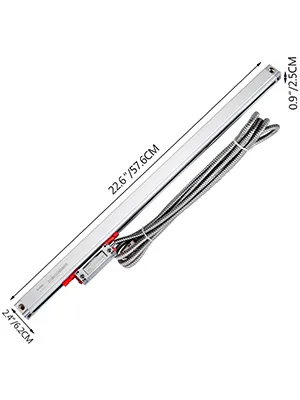

  • Scale Length: 22.68''/576 mm
  • Power Supply: 5V ± 5%, 80mA
  • Connector: 9DB
  • Moving Speed: 60 m/min
  • Signal Cable Length: 118.11''/3 m
  • Input Signal: TTL/RS422
  • Operating Temperature: 0-45℃/0-113℉

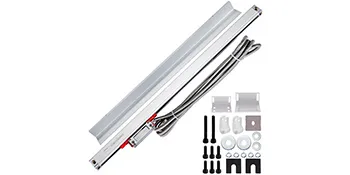

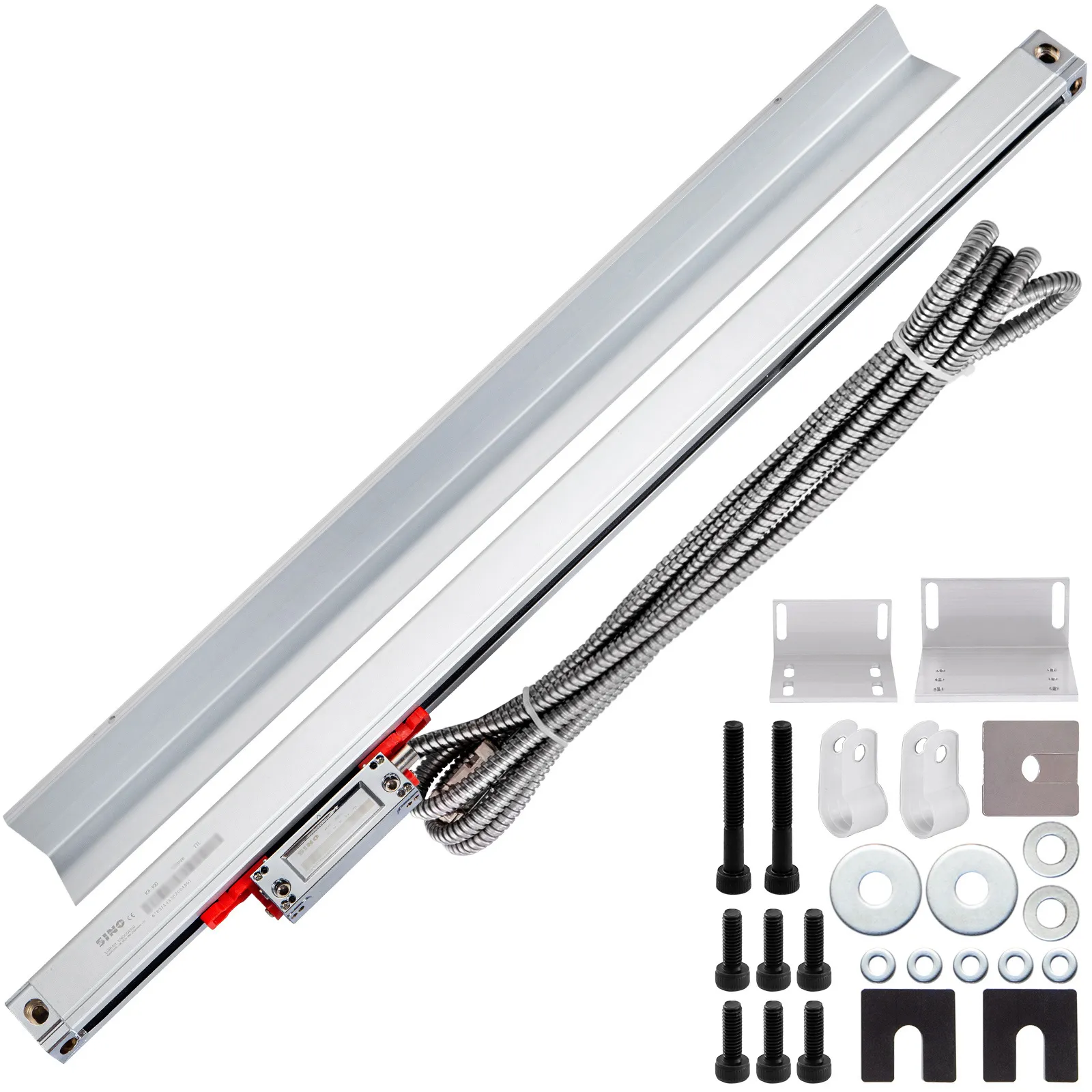

Package Content
  • 1 x Linear Scale
  • 1 x L Profile
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
470MM Precision Linear Scale
Our linear scale is a type of encoder with broad applications. It features optimal structure, good appearance, and high rigidity. It is able to meet the needs of the majority of general machine users. The linear scale is suitable for the metalworking, such as lathes, cylindrical grinders, milling machines, surface grinders.
  • High Performance
  • Durable Aluminum Construction
  • Standard Signal Cable
  • Stable Slide Part
Excellent Efficiency
The moving speed is 60 m/min with 5μm resolution for higher working performance. 9 DB connector is suitable for different digital readouts.
Sturdy Aluminum Alloy
The scale body applies an aluminum profile, which is anti-vibration and anti-deformation. The read head is made of chrome-plated zinc alloy for high abrasive resistance.
3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit and has high flexibility, bending resistance. Customized lengths can be provided according to the users' needs.
5 Bearing System
The sliding part is designed with a five-bearing system for smooth operation. The red plastic clip can fix the ruler to prevent damage during transportation.
Effortless to Install
High accuracy linear scale features multiple installation holes for your convenient installation. Individualized components make it easier to mount and maintain.
Wide Application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines. You can use it to achieve the functions of movement controlling, position monitoring, and coordinate measurement, etc.
Package Content
  • 1 x Linear Scale
  • 1 x L Profile
Specifications
  • Model: KA300
  • Axes: 1 Axis
  • Resolution: 5μm
  • Travel Length: 18.5''/470 mm
  • Scale Length: 22.68''/576 mm
  • Power Supply: 5V ± 5%, 80mA
  • Connector: 9DB
  • Moving Speed: 60 m/min
  • Signal Cable Length: 118.11''/3 m
  • Input Signal: TTL/RS422
  • Operating Temperature: 0-45℃/0-113℉

Specification

Model
KA300
Axes
1 Axis
Resolution
5μm
Travel Length
18.5''/470 mm
Scale Length
22.68''/576 mm
Power Supply
5V ± 5%, 80mA
Connector
9DB
Moving Speed
60 m/min
Signal Cable Length
118.11''/3 m
Input Signal
TTL/RS422
Operating Temperature
0-45℃/0-113℉
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
86 Review(s)
Clear filters
Einari Tervo Einari Tervo
Supervisor
this product fit my device really well. the package it came in was good and the product arrived intact. installation was relatively easy
Egil Stålesen Egil Stålesen
Sir
Det er veldig bra teit og fint
ariscats ariscats
Pensioner. former designer
I wood like having more selections for the lentght of scales.My lathe has an ominal 750 mm annd i installed a 1000 mm scale. I was able to accomodate it and the installation went perfect. Accuracy was cheched using Jo blocks to 200mm and was perfect at least to my ability to perform the measurment. Price is very good and i consider installing another set on my mill. ariscats
Felhasználó Felhasználó
Mr.
Már nem először vásárolom, most is mint eddig mindig, tökéletesen működik. Felszerelni egyszerű, 100%-osan pontos és stabil szerkezet.
Jarl Åge Haugan Jarl Åge Haugan
Non
I'm very pleased. This is easy to assemble and accurate in use. Vevor also has good customer service.
Dro Dro
Dro
Set unit up was straight forward. Although did has to use some of the linear compensation. To get it bang on
Hobbyist Hobbyist
Happy with digital scales and DRO
I have bought digital scales plus a readout unit from Vevor and I'm quite happy with the kit so far. The scales (Chinese of course) are affordable, come well packaged and arrived undamaged. The readout unit likewise. Plugged the leads from the scales into the readout, switched the readout on, and everything worked first time. Plug and play. Have been busy trying to mount the scales onto a hobbyijst's drill/milling machine and that seems to work as well. A sensible set of screws, washers, and cable fasteners are included and I only had to drill and tap holes for the M4 scres to mount the scales. So far managed to install two out of three scales and they work. The aluminium tubing that encloses the glass scales has slots on that take the mounting screws. The slot that takes the reading head is covered by a rubber lips that are pushed open by the reading head and close behind it to prevent dirt from entering. It's possible to fine-adjust the position of the scales before you tighten the screws and fix the scales in place. The reading head comes with threaded holes for the mounting screws, so you want to fix the scales first and then mark, drill, and fix the reading head. I haven't been able to verify the accuracy of the scales yet (I'm going to check it with a dial indicator when everything is installed), but I'm confident that it will be ok. I believe that the readout allows for calibration of the scale but I haven't tested it yet. Recommended
Stane Stane
Lathe
Well packed, fast delivery, good comunication. I will try in future days, everything looks good. Top slide is maybe a litle bit weak.
duster duster
Great product
Just what you need for accurate measuring
Mike M Mike M
Well made
This seems like a quality product. It installed easily, and works well. I deduct a star for the complete lack of installation instructions (Apart from the label on the sliders, which say 'remove red gasket and use'- but do not say what they are to be used for!). I figured out how to mount the display on its bracket once I realized one of the bolts was the wrong size. Every installation will be different, but some guidance would help. The operating manual is fine, very close to English.At the very reasonable price, I am pleased with this product.
