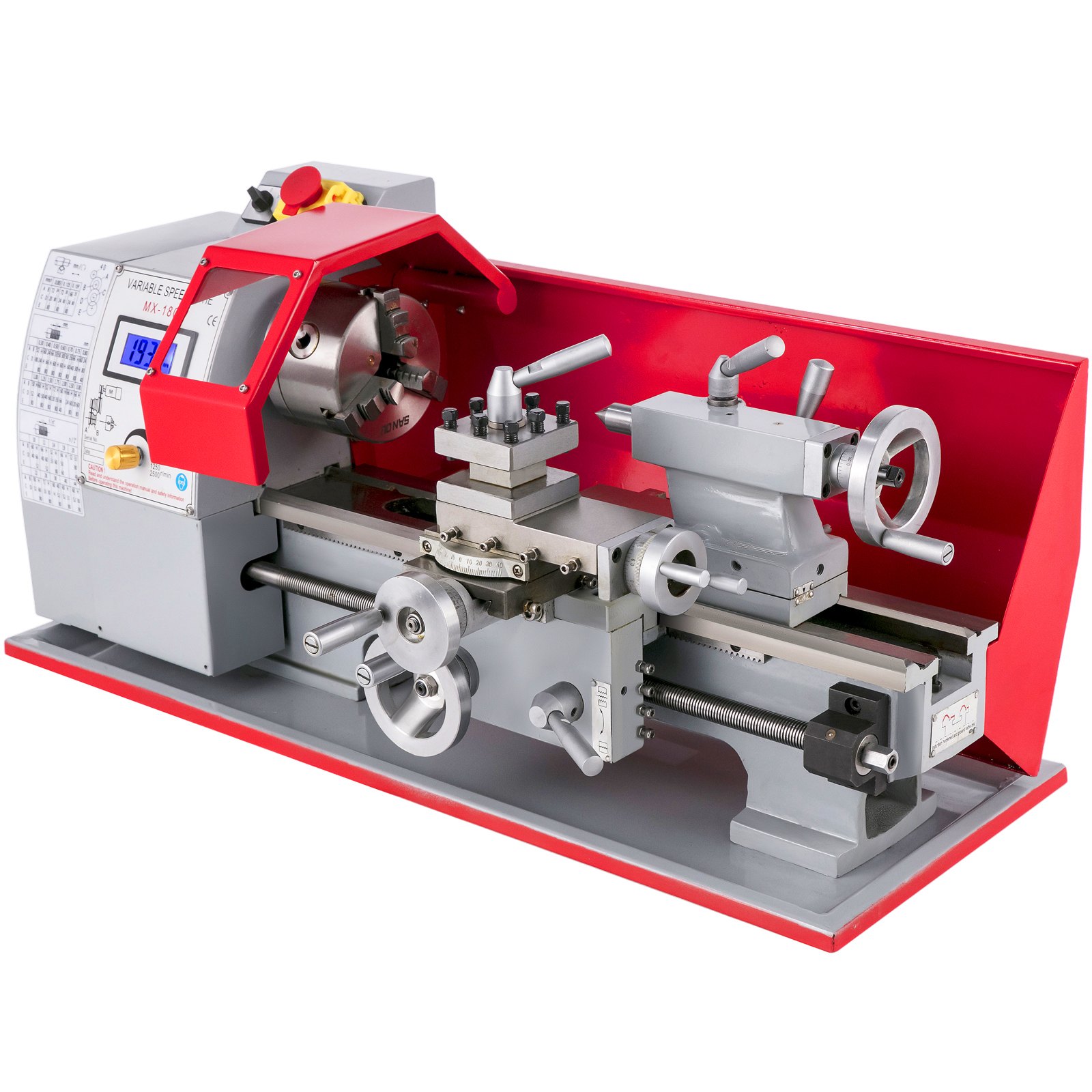

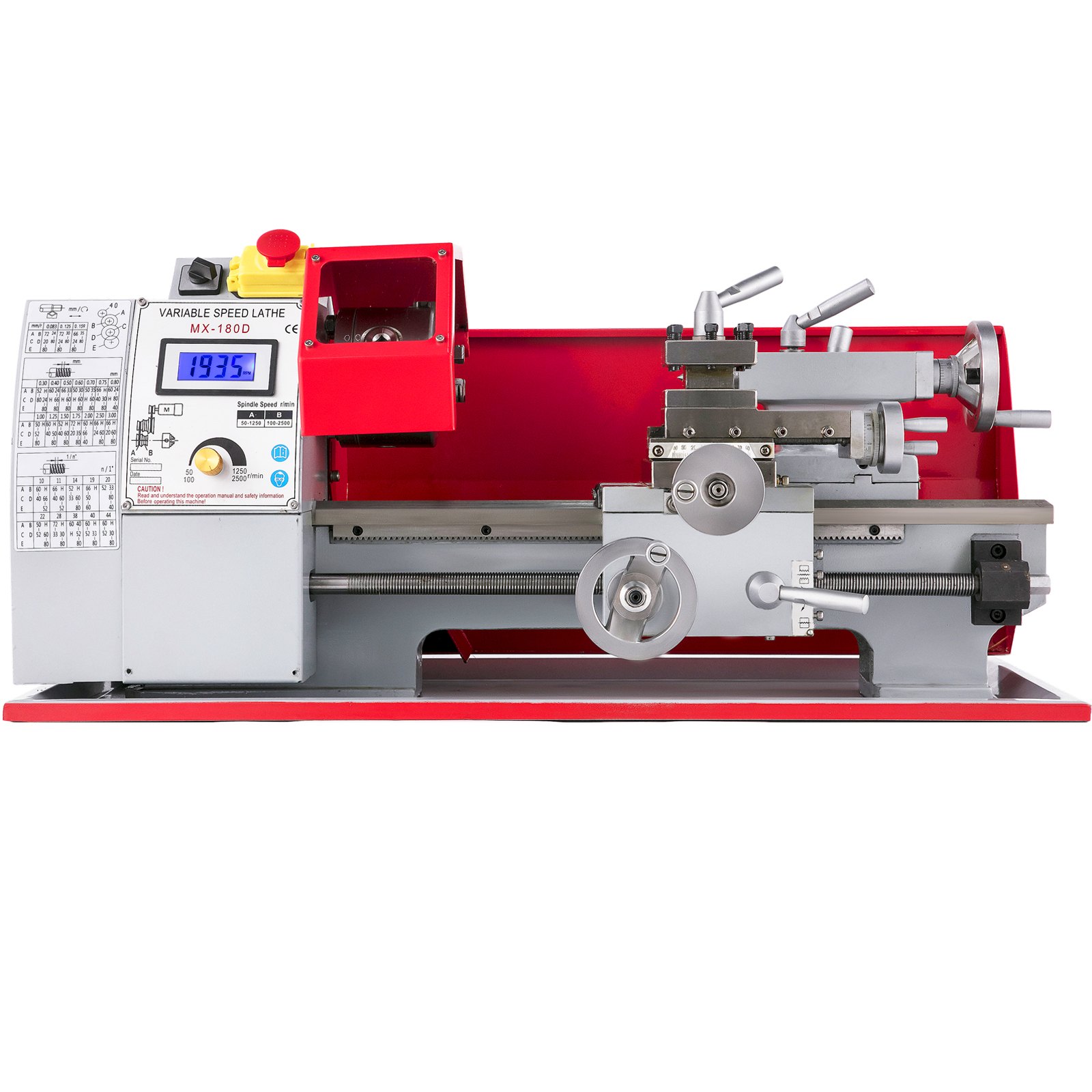

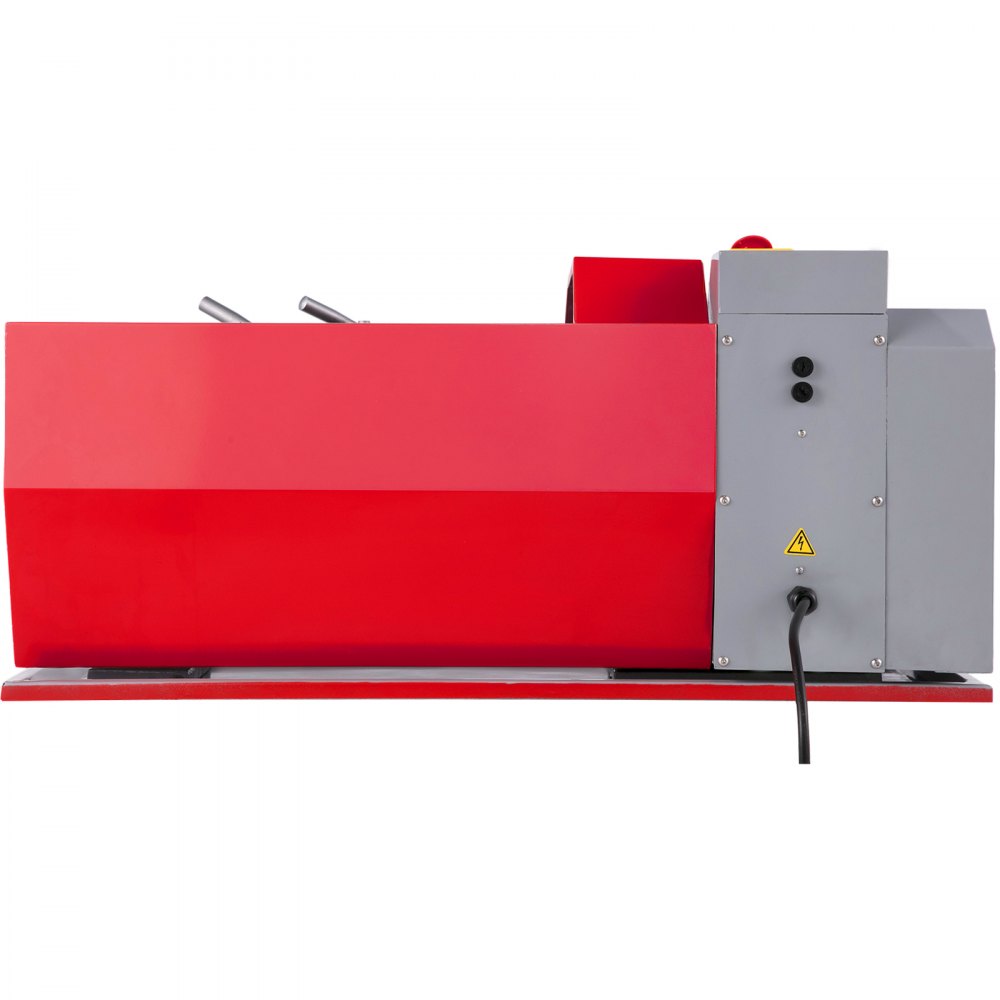

VEVOR 7×12 Mini Metal Turning Lathe machine Automatic Metal Wood Drilling 600W Metalworking Woodworking Motorized Cutter Milling

994.99€
994.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

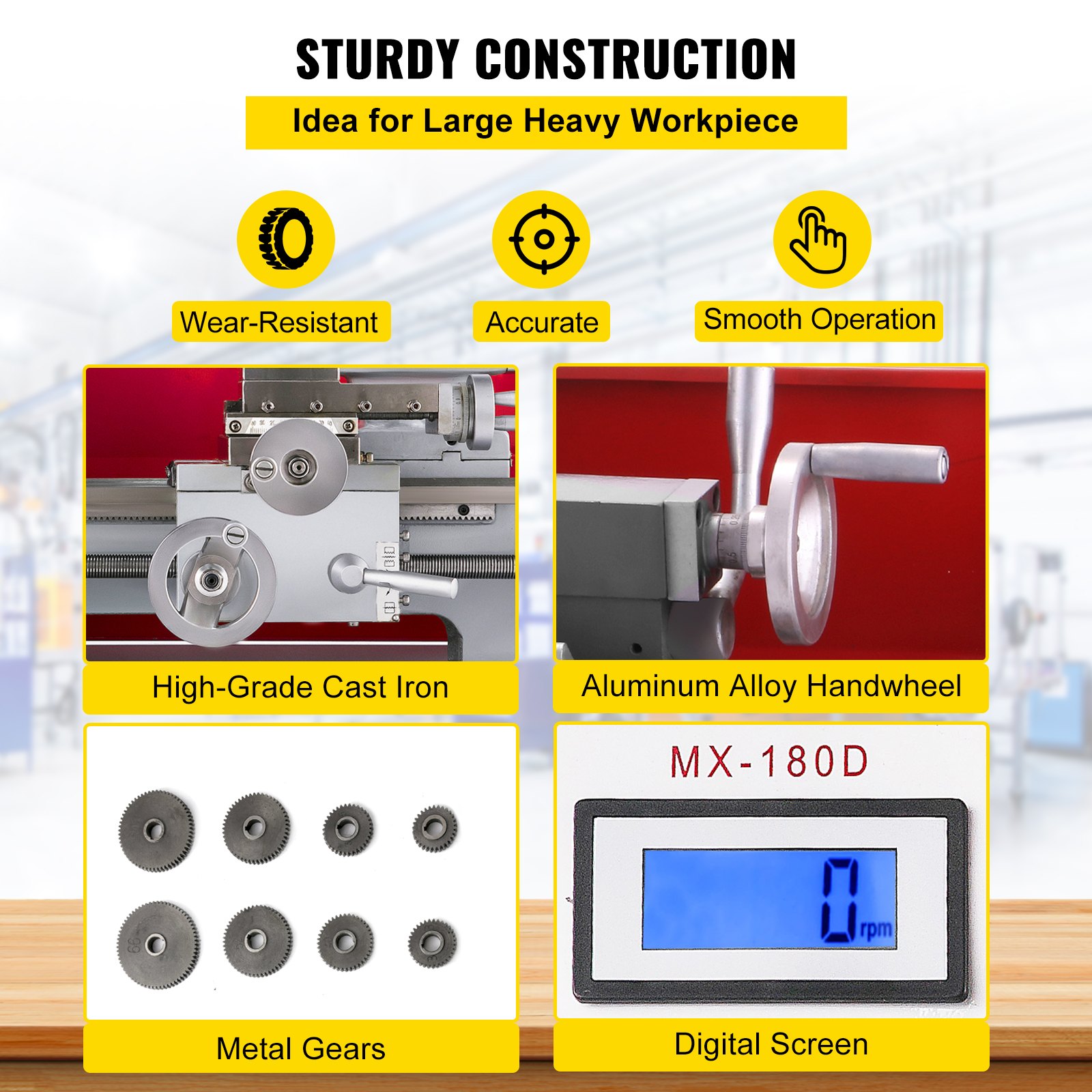

  • 【STURDY & DURABLE CONSTRUCTION】 - The mini lathe features a finish that stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.

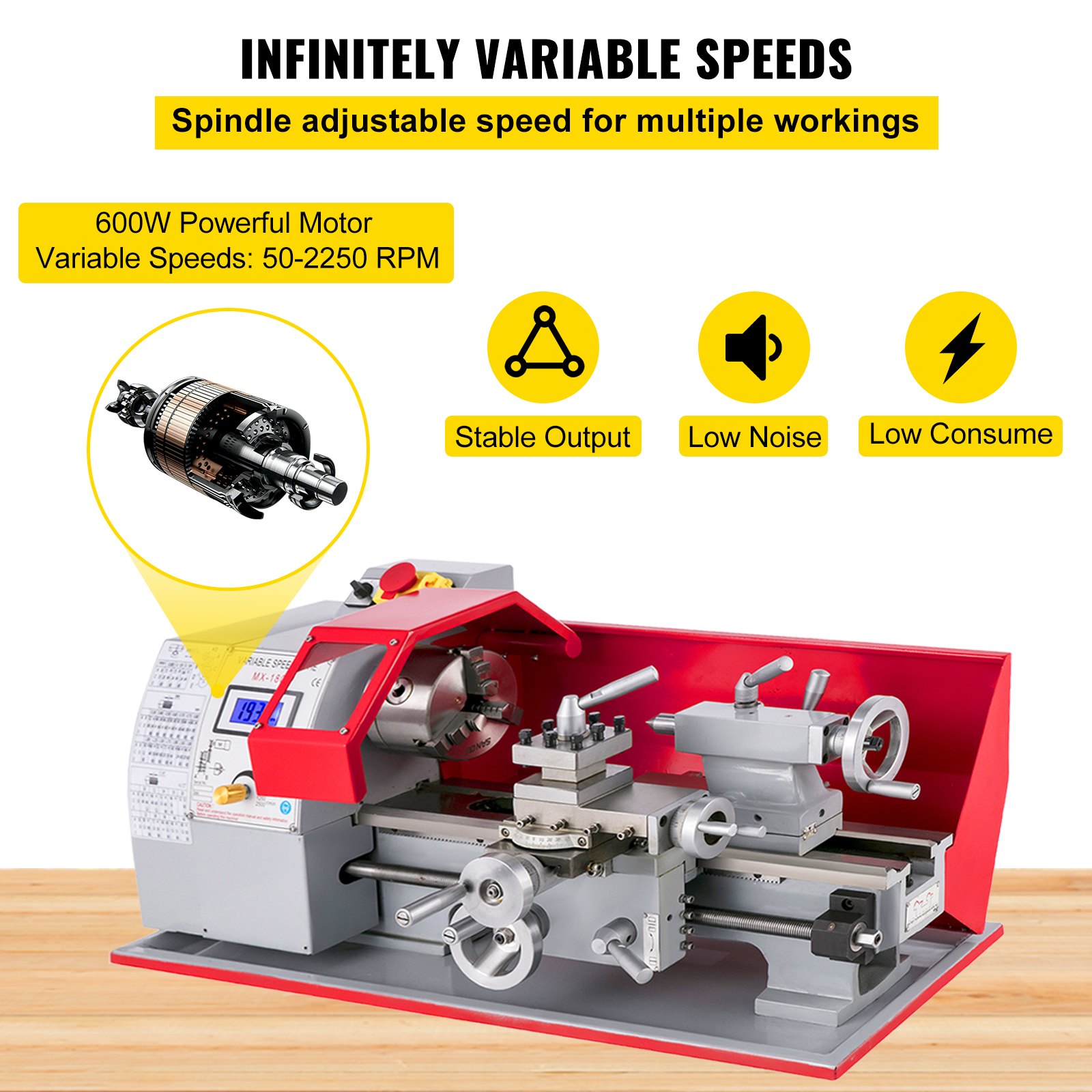

  • 【INFINITELY VARIABLE SPEEDS】 - Revolving Speed Range: 50-2500 rpm. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.

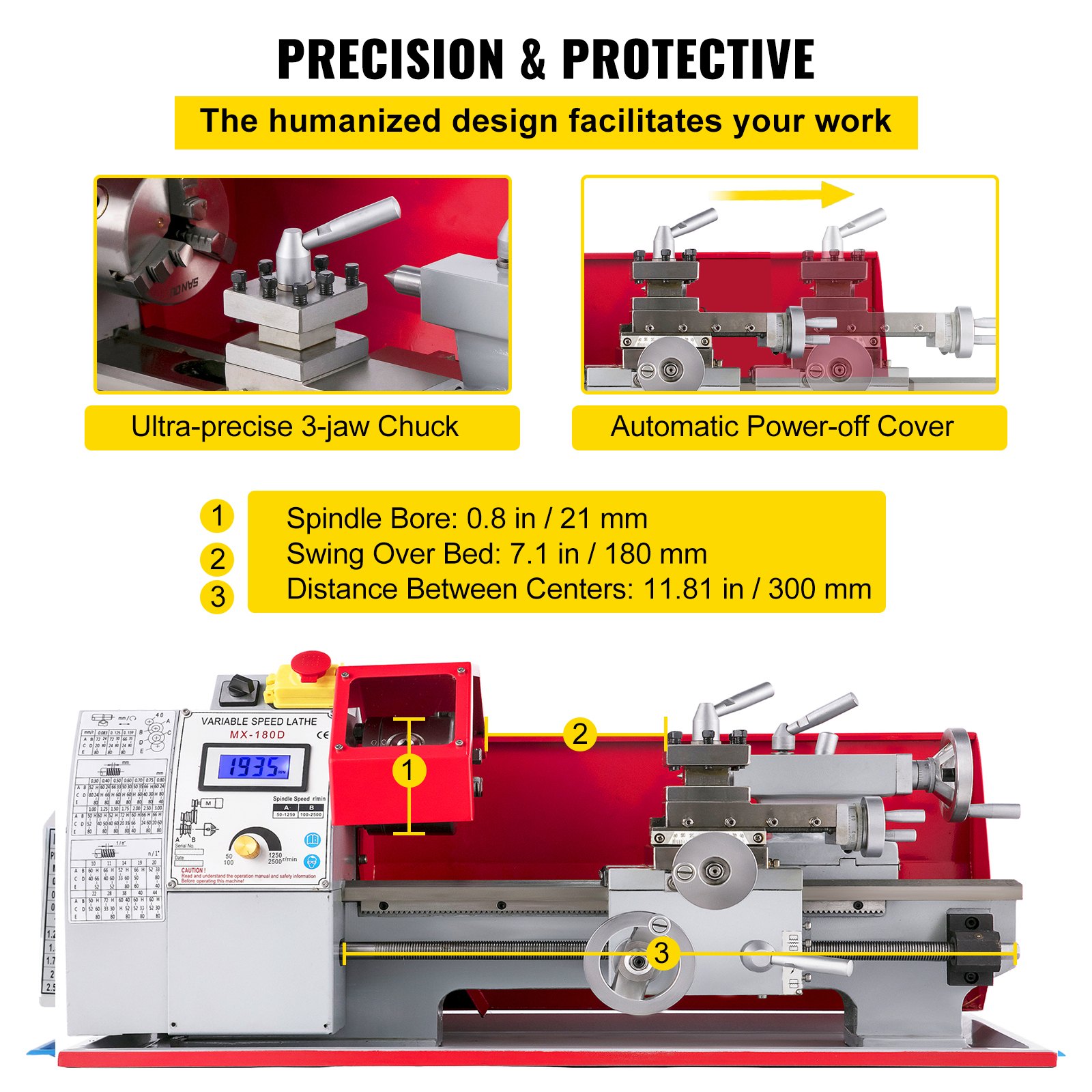

  • 【WORKS WITH PRECISION】 - Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, which clamps raw materials tight, and a backsplash guard that ensures your safety during operation.

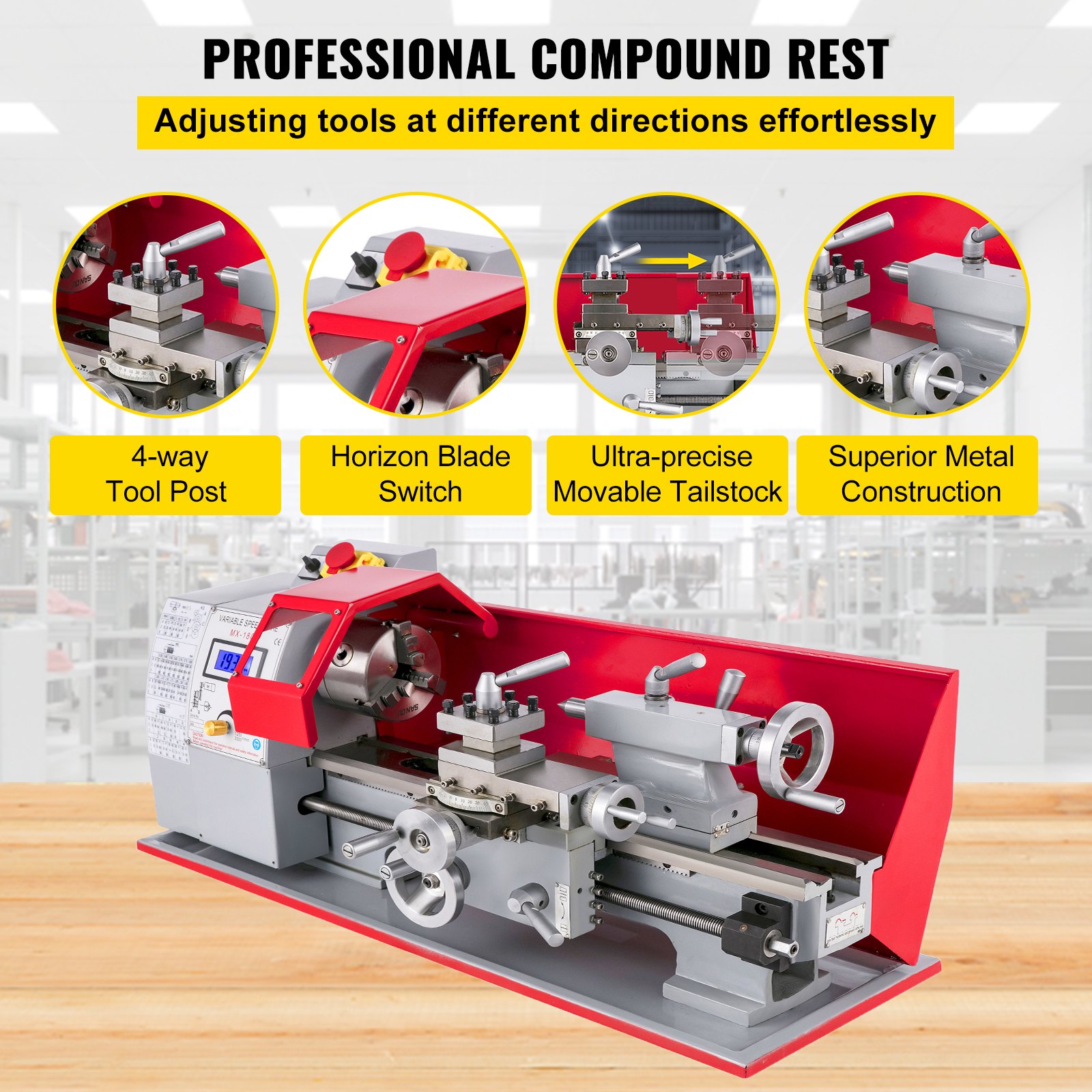

  • 【FASTER & MORE EFFECTIVE】 - Swing Over Bed: 7.1"/180 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting, and bevel cutting possible.

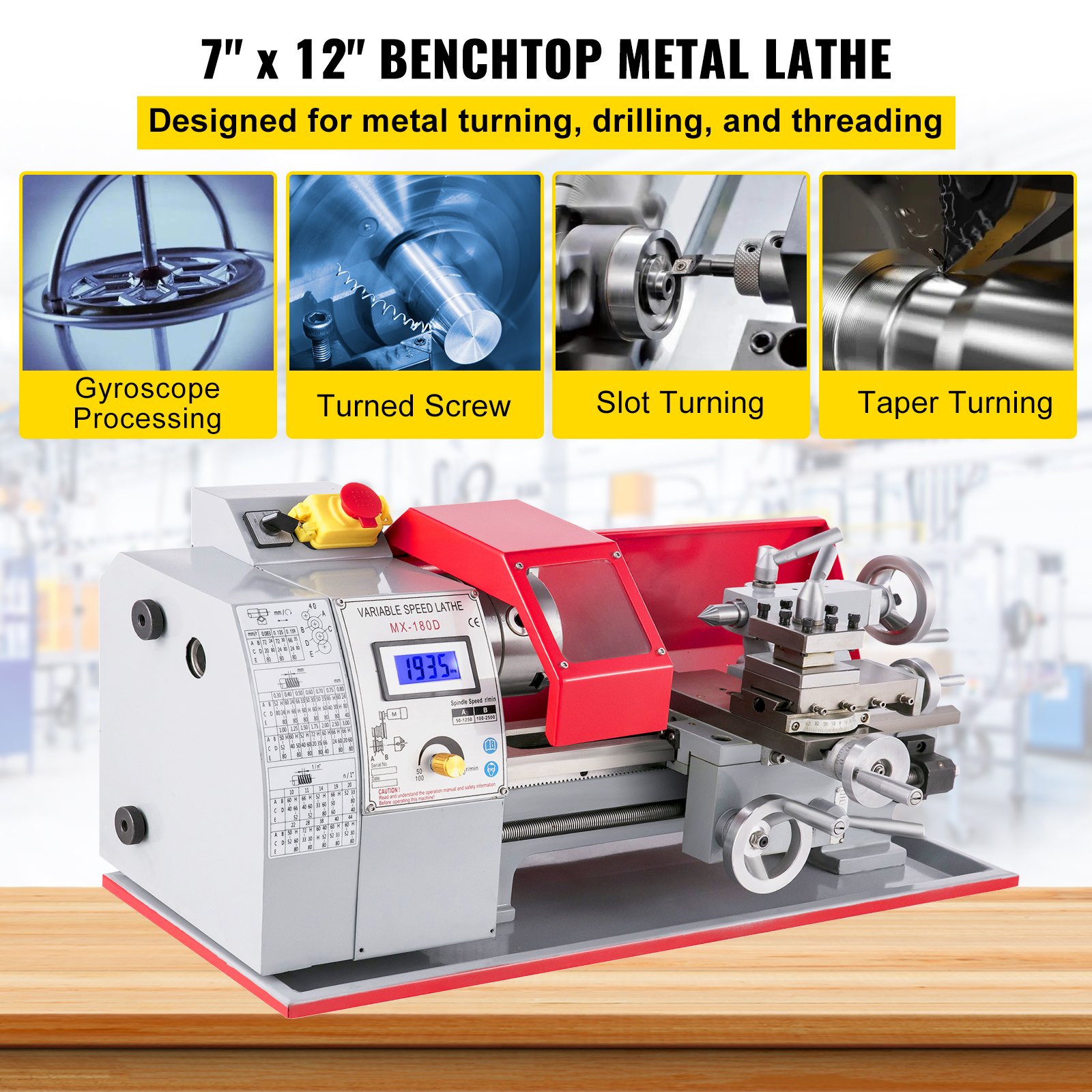

  • 【WIDE APPLICATION】 - The lathe produces precision work without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 7×12 Mini Metal Turning Lathe machine Automatic Metal Wood Drilling 600W Metalworking Woodworking Motorized Cutter Milling
Only 1 Left, order soon
unashoppingifytemplatenew


Features & Details


  • 【STURDY & DURABLE CONSTRUCTION】 - The mini lathe features a finish that stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.
  • 【INFINITELY VARIABLE SPEEDS】 - Revolving Speed Range: 50-2500 rpm. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
  • 【WORKS WITH PRECISION】 - Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, which clamps raw materials tight, and a backsplash guard that ensures your safety during operation.
  • 【FASTER & MORE EFFECTIVE】 - Swing Over Bed: 7.1"/180 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting, and bevel cutting possible.
  • 【WIDE APPLICATION】 - The lathe produces precision work without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
Specifications
  • Power: 600W; 220V/50Hz
  • Distance Between Centers: 11.8" (300 mm)
  • Swing Over Bed: 7.1" (180 mm)
  • Swing Over Cross Slide: 3.7" (95 mm)
  • Taper of Spindle Bore: MT3
  • Spindle Bore: 0.8" (21 mm)
  • Range of Spindle Speeds: 50-2500 RPM
  • Range of Threads: 10-44T.P.I (0.5-3 mm)
  • Max. Slide Travel: 2.2" (55 mm)
  • Cross Slide Travel: 3" (75 mm)
  • Tailstock Quill Travel: 2.4" (60 mm)
  • Taper of Tailstock Quill: MT2

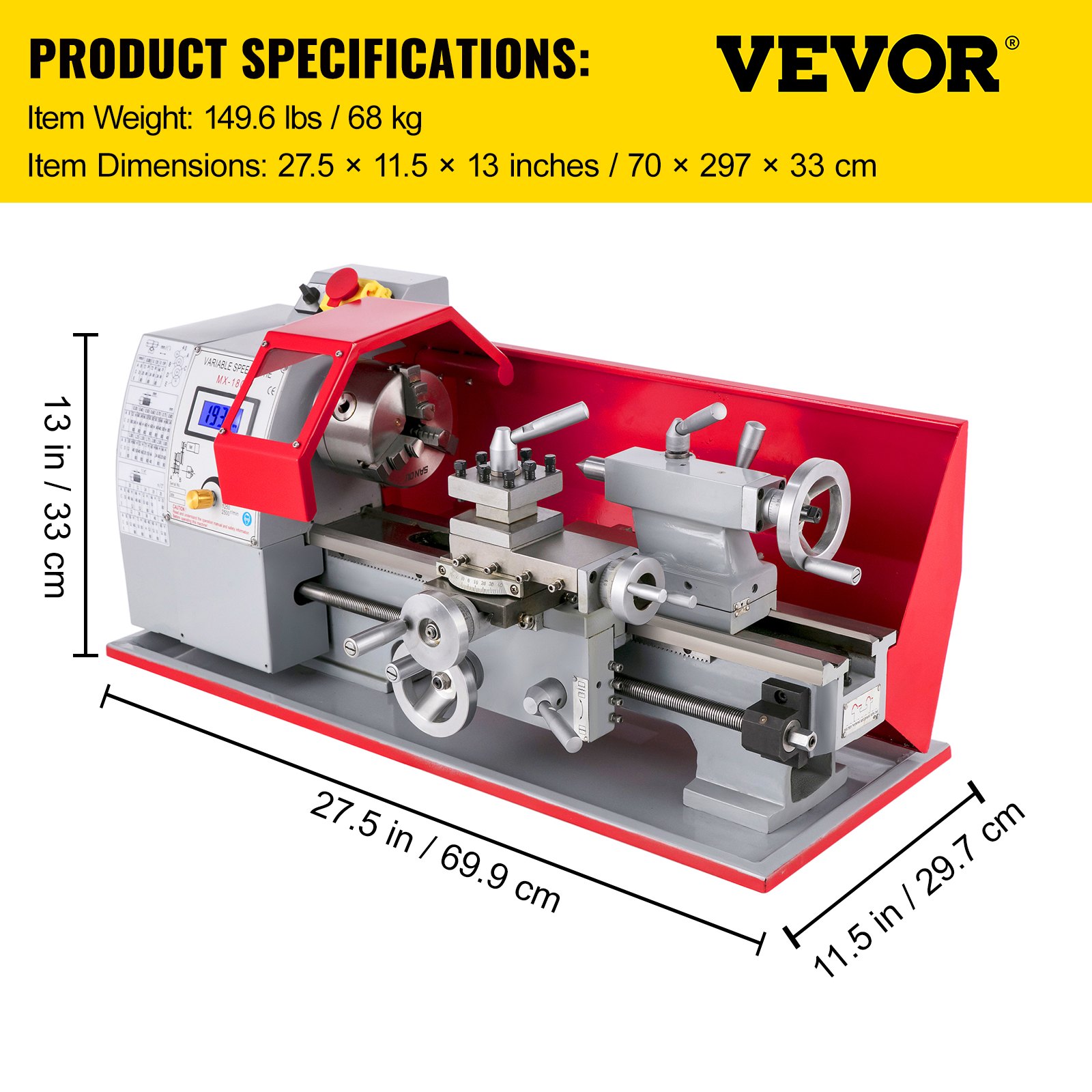

  • Gross Weight: 68 kg (149.6lbs)

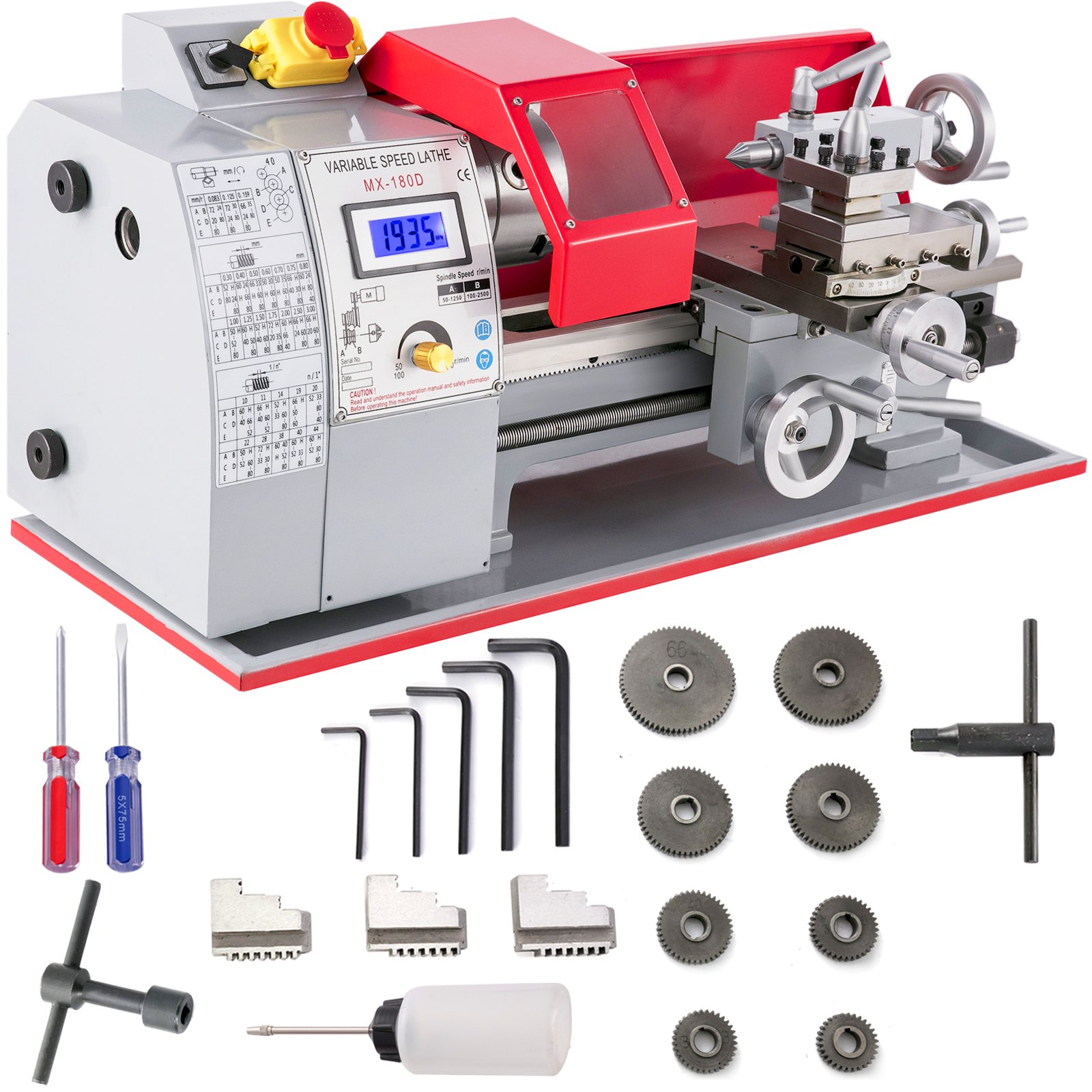

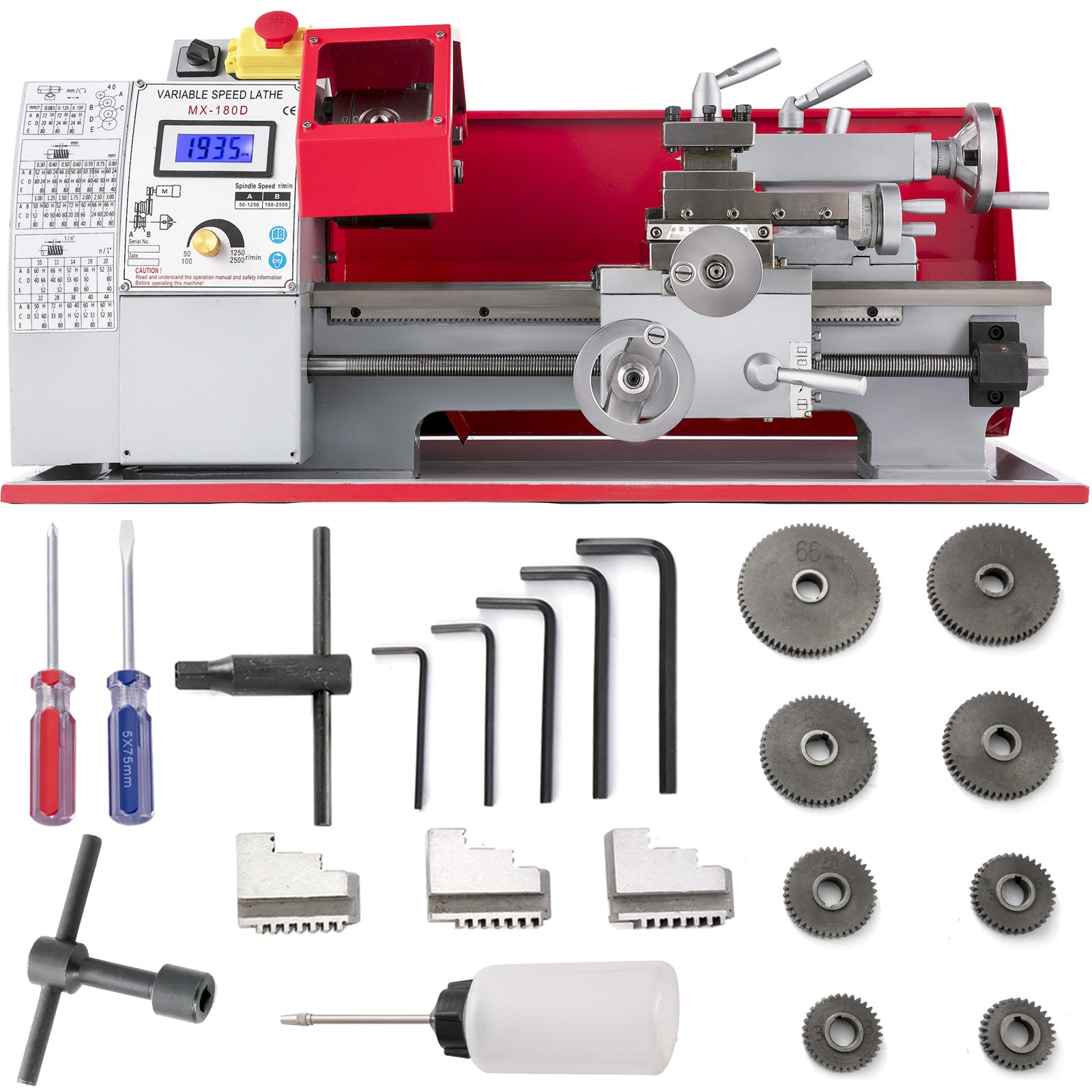

Package Content
  • 1 x Mini Lathe
  • 1 x 3-Jaw Chuck
  • 1 x Splash Guard
  • 1 x Chip Tray
  • 1 x Toolbox
  • 1 x Manual

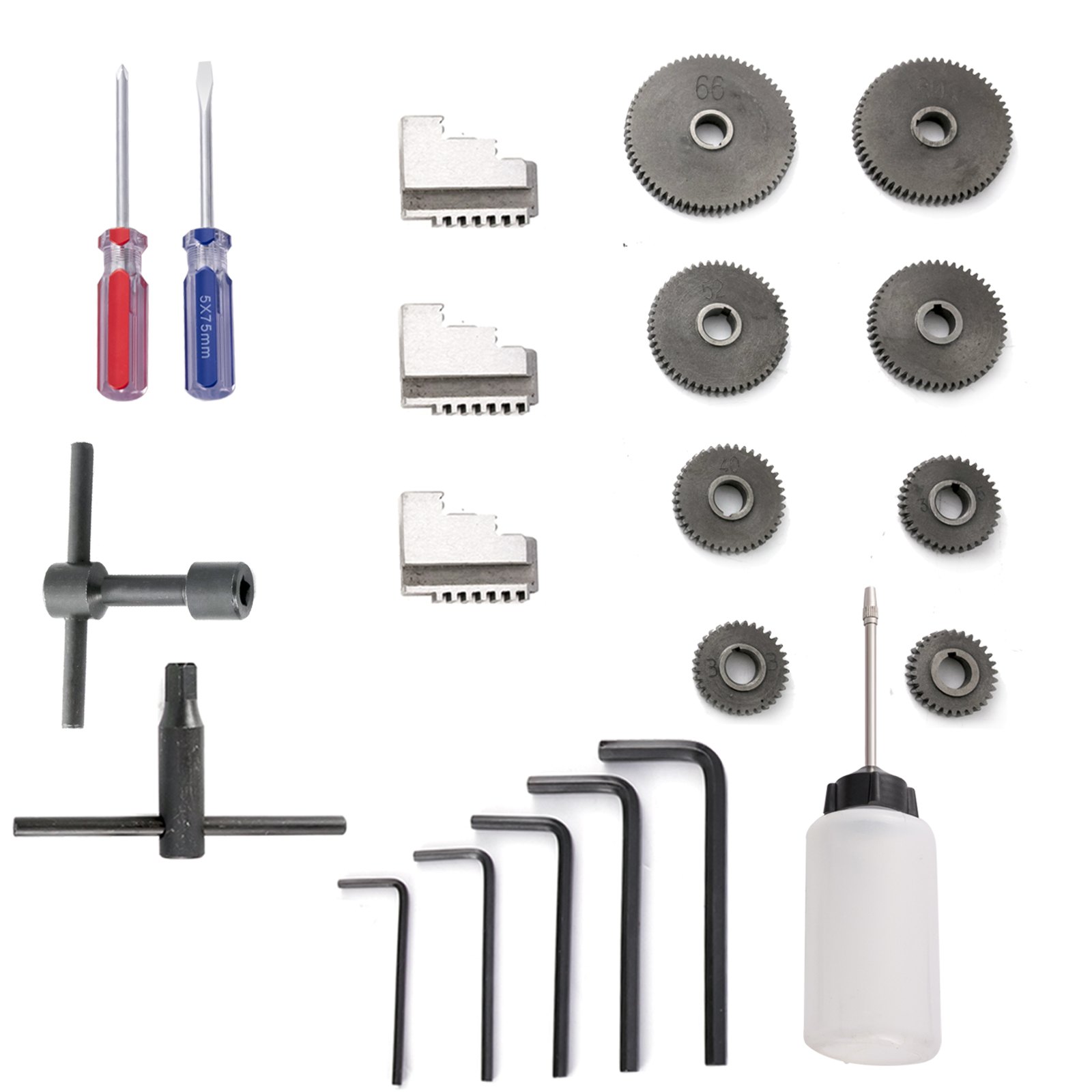

  • 1 x Accessory Set


Features & Details


  • 【STURDY & DURABLE CONSTRUCTION】 - The mini lathe features a finish that stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.
  • 【INFINITELY VARIABLE SPEEDS】 - Revolving Speed Range: 50-2500 rpm. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
  • 【WORKS WITH PRECISION】 - Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, which clamps raw materials tight, and a backsplash guard that ensures your safety during operation.
  • 【FASTER & MORE EFFECTIVE】 - Swing Over Bed: 7.1"/180 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting, and bevel cutting possible.
  • 【WIDE APPLICATION】 - The lathe produces precision work without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
Specifications
  • Power: 600W; 220V/50Hz
  • Distance Between Centers: 11.8" (300 mm)
  • Swing Over Bed: 7.1" (180 mm)
  • Swing Over Cross Slide: 3.7" (95 mm)
  • Taper of Spindle Bore: MT3
  • Spindle Bore: 0.8" (21 mm)
  • Range of Spindle Speeds: 50-2500 RPM
  • Range of Threads: 10-44T.P.I (0.5-3 mm)
  • Max. Slide Travel: 2.2" (55 mm)
  • Cross Slide Travel: 3" (75 mm)
  • Tailstock Quill Travel: 2.4" (60 mm)
  • Taper of Tailstock Quill: MT2
  • Gross Weight: 68 kg (149.6lbs)
Package Content
  • 1 x Mini Lathe
  • 1 x 3-Jaw Chuck
  • 1 x Splash Guard
  • 1 x Chip Tray
  • 1 x Toolbox
  • 1 x Manual
  • 1 x Accessory Set

Specification

Power
600W; 220V/50Hz
Distance Between Centers
11.8" (300 mm)
Swing Over Bed
7.1" (180 mm)
Swing Over Cross Slide
3.7" (95 mm)
Taper of Spindle Bore
MT3
Spindle Bore
0.8" (21 mm)
Range of Spindle Speeds
50-2500 RPM
Range of Threads
10-44T.P.I (0.5-3 mm)
Max. Slide Travel
2.2" (55 mm)
Cross Slide Travel
3" (75 mm)
Tailstock Quill Travel
2.4" (60 mm)
Taper of Tailstock Quill
MT2
Gross Weight
68 kg (149.6lbs)
Questions and Answers
5 Questions
The spindle bearings are tapered ball bearings or axial?
It is NSK 6206 bearing.
By vevor
Can I convert this to simple CNC operation. I want to do repeats of small items mainly in brass.
No, it's manual.
By vevor
size of chuck?
The size of the chuck is 100mm.
By vevor
Hi i live in Norway and i m wondering if thi this mashine i can work wood also
Yes, it can.
By vevor
pls advice the diameter off the Chuck
Its diameter is 100 mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
18 Review(s)
Clear filters
Pierce Pierce
You get what you pay for!
Was impressed with delivery time, came in a plywood crate which was ok but contents were not secured so damage was made to the ways from the tail stock, would have like to have seen polystyrene and cable ties securing contents, but otherwise very happy.
glen oliver glen oliver
Mini lathe
I have had lathes an milling machines for years and just bought a mini lathe delivery was super quick and was well boxed in a wooden crate once opened and setup on a solid bench I checked over the lathe and I can say that I was so impressed with the quality of the lathe turned some brass and steel made a metric thread used the 4 jaw chuck and clocked the bed it was within a half a thou the chuck was a 10th of a thou wow fantastic piece of kit I'm thinking of putting dro on .
Scott Edwards Scott Edwards
Manque rotation porte outil
R_lisation de maquettes
Doux Doux
Qualit prix excellent !
Tr_ bon tour d _abli ! Tout est correctement ajust sans jeu. Veillez quand m_e graisser correctement et serrer les supports votre convenance.Attention la livraison, pour ma part beaucoup de coups et t?le froiss_ mais le service client du vendeur su y faire pour palier financi_ement ce probl_e.
Jacob Jacob
Bevor damit gearbeitet werden kann muss einiges gemacht werden
Gute Maschine f_ das was die kostet.Auch das Drehen von Stahl ist m?glich wenn man etwas vorsichtig arbeitet.Jedoch bevor man damit arbeitet sollte man jede Schraube anziehen und auch einige Teile entgratten. Auch die Spannung des Zahnriemen muss kontrolliert werden.In der Beschreibung ist die Maschine mit 550 w angegeben jedoch hats sie nur 400 w was aber ausreichend ist. Die Lagerung der Spindel sollte durch Kegellager ersetzt werden welche die Qualit?t der Arbeit stark verbessert.
Moulin K_in Moulin K_in
Bon petit tour mais
C'est un bon petit tour mais il faut des la r_eption tout d_ont pour tout nettoyer car il y a plein de poussi_es d'usinage des pi_es de fonderie un peut partoutToutes les pi_es demande _re ajust et les bavures sur les angles vif enlev a la main.Les verniers on du jeux (qui peut _re rattrap) et certaines tige filet_ demande _re redress, la poup_ mobile doit _re ajust en auteur et j'en passe.Bref je consid_e plut?t cela comme un petit tour en "kit" qu'un tour pr_ l'emploie,c'est une bonne petite machine si vous _es d_ bon bricoleur pour pouvoir remettre tout d'_uerre et le rendre agr_ble a l'usage.Avant la mise en service et vos premier copeaux de m_al il est n_essaire de d_ont le panneaux de derri_e qui abrite la carte _ectronique pour lui faire une isolation pour les _entuelles copeaux qui pourrais faire un cours circuit (j'ai eu le cas), surtout si vous _es amener le bouger.Une fois tout sa fait vous vous retrouver avec une petite machine vraiment sympa qui peut travailler m_e de l'inox avec de faible passe et tenir des c?tes au centi_e.Le mandrin 3 mors d'origine est assez bluffant de pr_ision pour une chinoiserie mais l'achat d'un 4 morts ind_endant est quand m_e indispensable pour des travaux de plus grande pr_ision.
Karl-Heinz Karl-Heinz
Ich bin sehr zufrieden!
Gute Qualit?t, musste die Schlitten zwarNachjustieren war halb so wild. Ich erzielemit dieser Drehbank wirklich gute Ergebnisse. Der Preis f_ diese Drehbankist wirklich Super. Schnell geliefert Top!
colin66south colin66south
A great little machine
The decision to order this machine over a cheaper 7x14 lathe, was its full metal gears that drive the leadscrew and its speed DRO.... I'm not disappointed and certainly think this was a great buy!The machine arrived earlier than expected and in a wooden crate (a nice touch I thought). Overall the build looks great, very sturdy and definitely heavy. Everything works as it should. The only noticeable things are the tail stock brake needs adjusting, the tailstock quill is a bit stiff and the machine is covered in what seems to be grit - all of which were easily solved. I_e used the machine a few times now and am very happy with the results it yields. One thing to keep in mind though, is that this machine is not precision, but then it never claims to be. What it claims, it delivers.
derf derf
Goede prijsstelling.
Goed verpakt. Snelle levering. Tof machientje.
henri bernard henri bernard
tour
impecable dommage qu il n est pas fourni un outil avec
